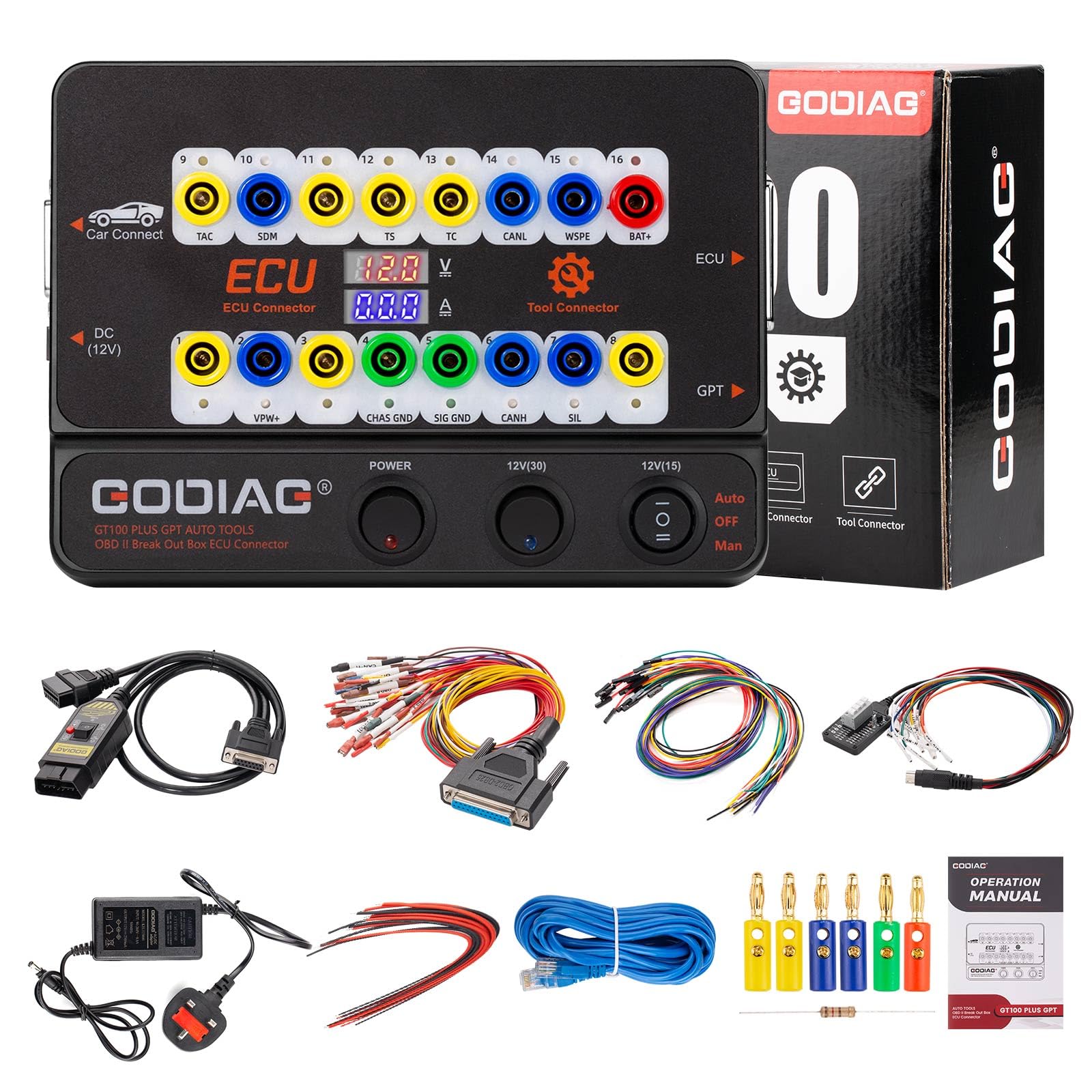

GODIAG GT100+ ECU Breakout Box OBDII DOIP-ENET GPT Adapter — 24V-to-12V Conversion & Shielded CAN for Bench Testing

The GODIAG GT100+ GPT ENET DOIP OBDII Breakout Box is a multi-protocol ECU connector and bench testing adapter that lets technicians read, write, and monitor ECU data via OBDII, DOIP-ENET and GPT methods without removing the control unit.

The GT100+ is built for automotive professionals who need a robust interface for ECU programming, bench testing and vehicle diagnostics. It combines 24V-to-12V conversion, GPT protocol support, DOIP-ENET connectivity and shielded CAN wiring into a compact breakout box. Designed to safeguard vehicle modules during programming, it helps avoid data loss while simplifying connections between diagnostic tools and single or multiple vehicle modules.

How does the GT100+ help perform ECU bench reads and writes?

The GT100+ supports multiple bench methods — OBD2 bench, GPT bench and Boot connections — so you can access ECU data on or off the vehicle. It enables read/write operations without disassembling many ECUs, reducing handling risk and speeding workflow.

• Supports GPT read/write with devices like PCM-FLASH and KESSV2.
• OBD2 Bench, CAN bus and K-Line supported for common bench setups.
• Boot mode available for ECUs that require direct access.
• 24V to 12V conversion allows compatibility with heavier platforms.

What communication protocols and connections are included?

The unit accepts DOIP-ENET and GPT protocols and exposes standard OBDII and 16-pin signals for wide compatibility with diagnostic and programming tools. Shielded twisted CANH/CANL cabling improves signal integrity in electrically noisy workshops.

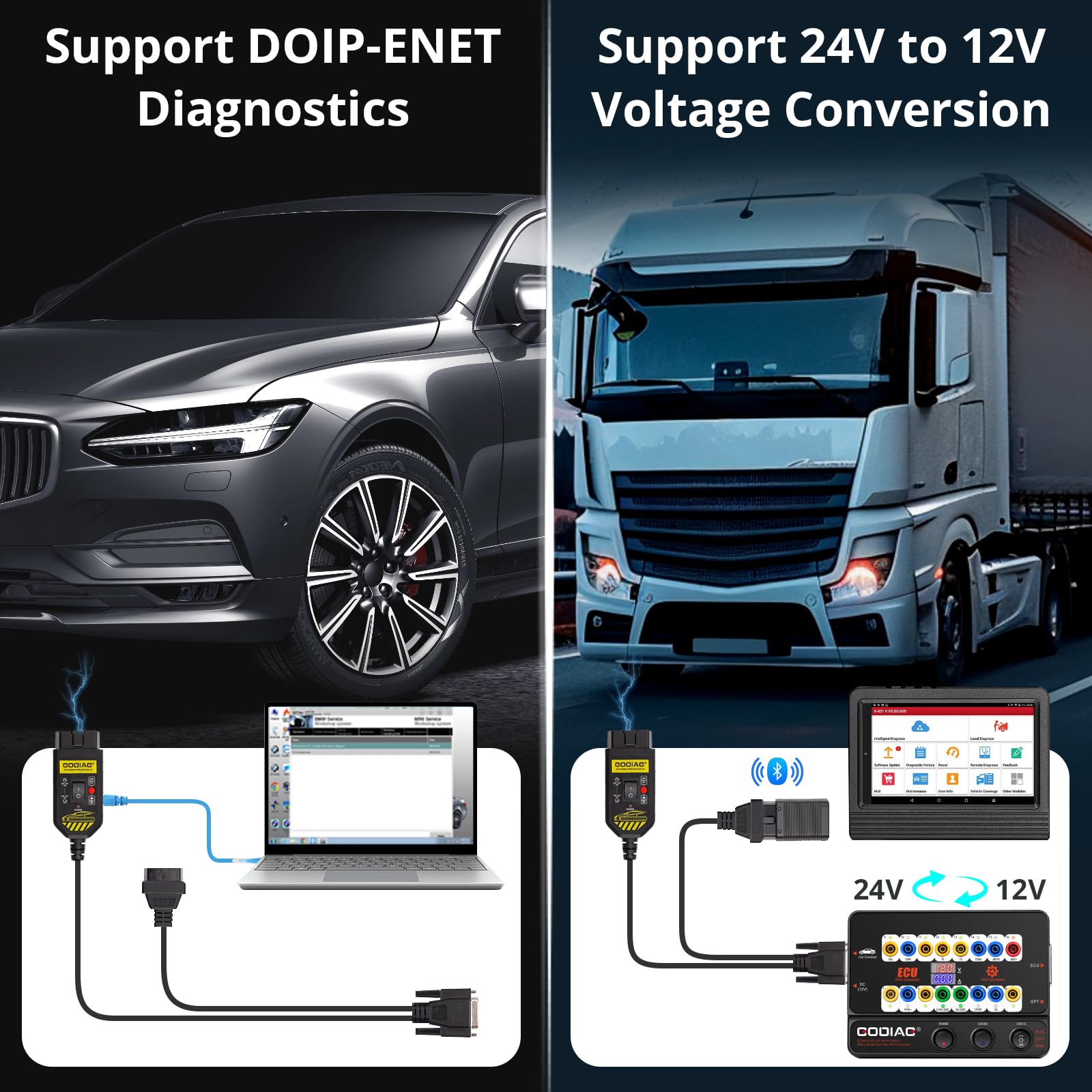

• DOIP-ENET port for modern Ethernet-based ECUs.
• GPT protocol support for non-disassembly reads/writes.
• Shielded CANH and CANL twisted pair cables to resist EMI.
• Standard OBDII interface plus converted 16-pin breakout signals.

How does the GT100+ protect vehicle systems during programming?

The breakout box monitors OBDII interface voltage and indicates communication status with LEDs so technicians can avoid risky operations. It includes a power-sustain feature for battery replacement and warns if voltages drop below safe thresholds, helping prevent control module corruption or audio lock-ups.

• LED indicators show OBDII communication health and voltage level.
• Stops programming recommendations if voltage is under 11V.

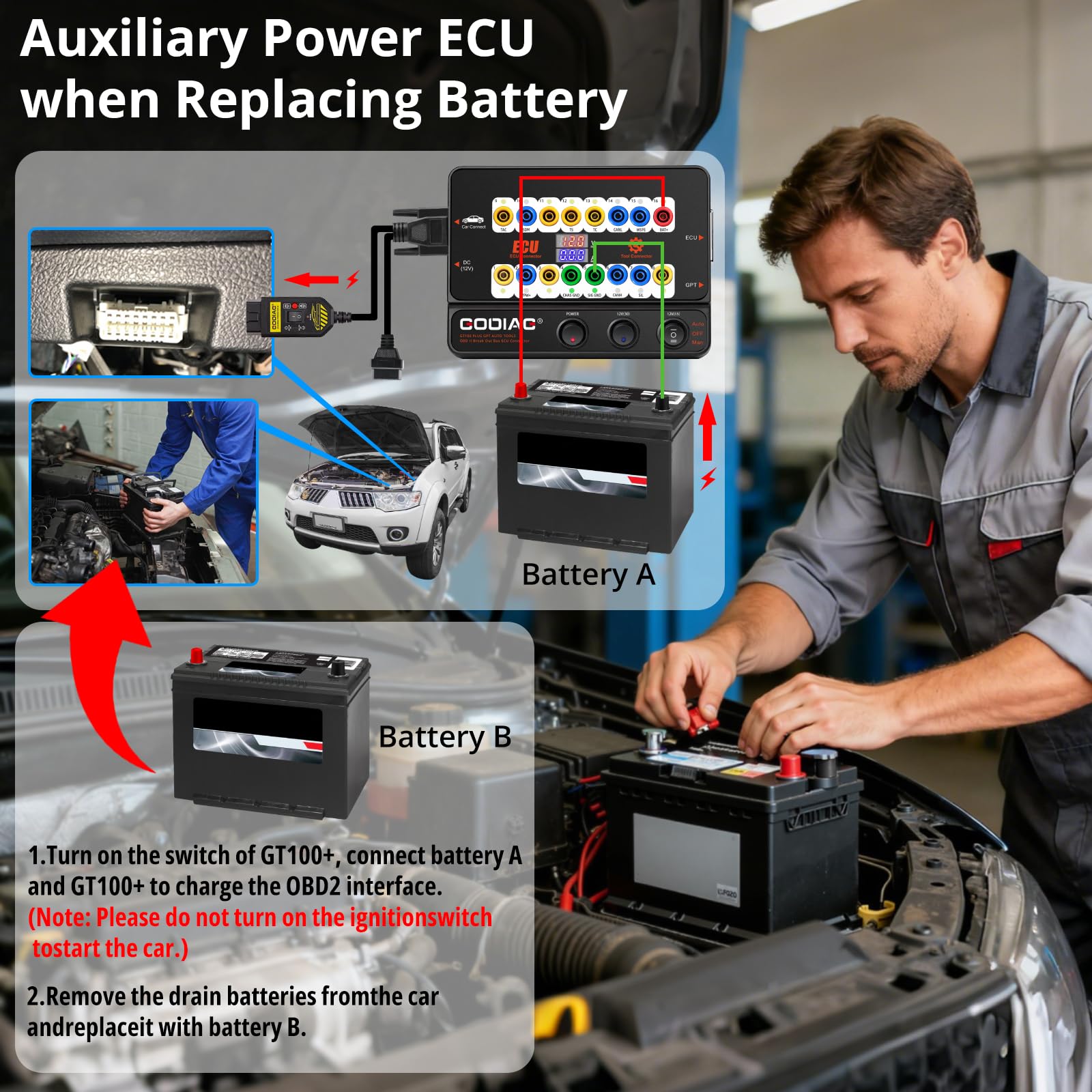

• Maintains vehicle power during battery swap to prevent data loss.
• Reduces risk to other modules by enabling bench testing rather than in-vehicle manipulation.

Can the GT100+ connect to single modules or multiple modules in a vehicle?

Yes — the GT100+ converts the vehicle OBDII port into a 16-pin breakout so you can probe and connect either individual modules or multiple modules at once. That flexibility makes it suitable for diagnostics, module replacement checks and multi-module programming sessions.

• Converts OBD2 interface to 16-pin signal taps for modular access.
• Compatible with standard diagnostic tools for communication checks.
• Works with both single-module bench tests and multi-module configurations.
• Easy wiring layout reduces setup time in busy shops.

Who is this for: The GODIAG GT100+ GPT ENET DOIP OBDII Breakout Box is aimed at automotive diagnostic shops, ECU programmers, tuners and technical training centers that need a versatile, workshop-grade interface for ECU bench work and in-vehicle diagnostics. It’s especially useful where non-disassembly ECU access, DOIP-ENET integration or dependable CAN communications are required to protect vehicle modules during programming.
