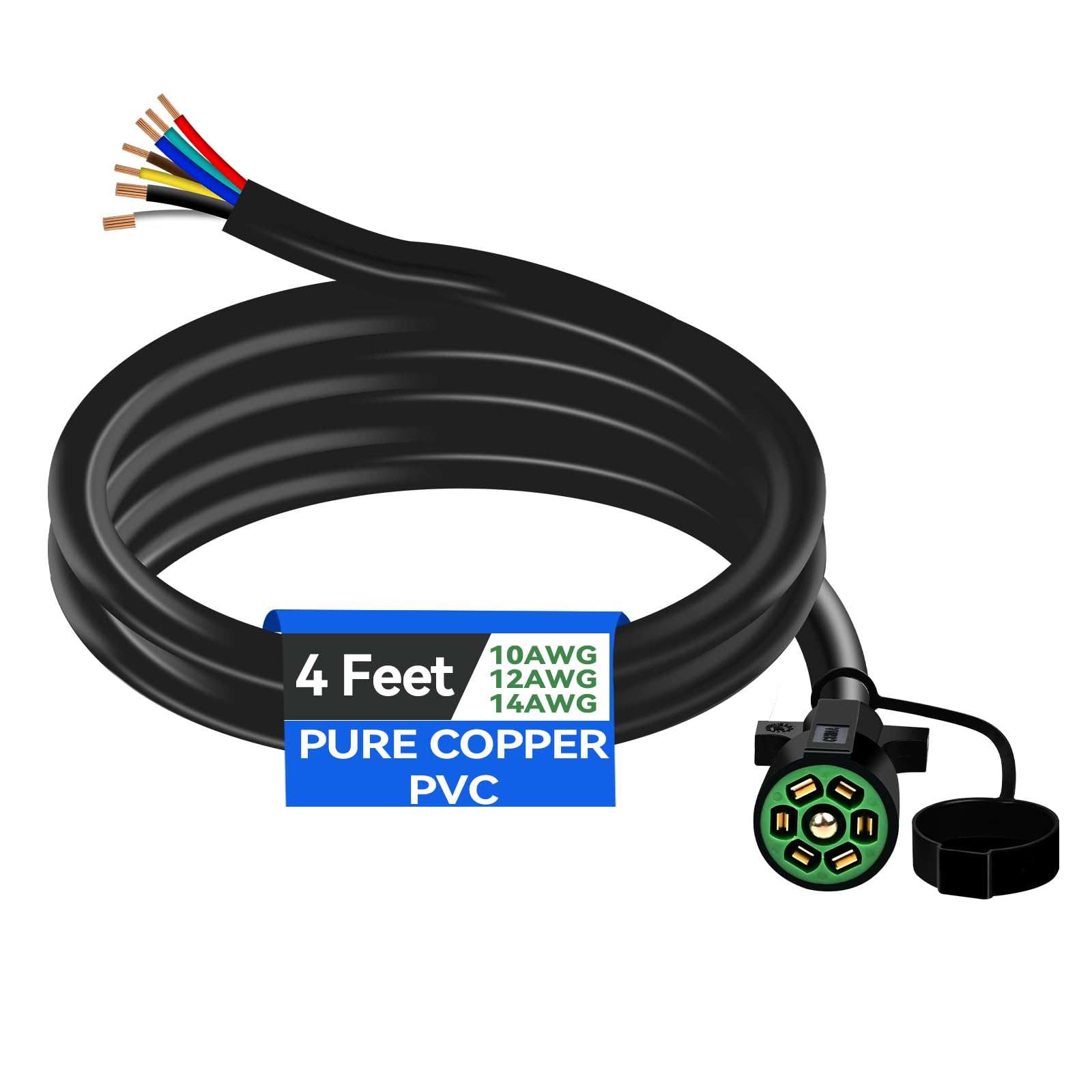

Gubrdfrsod 7-Pin Trailer Wiring Harness 4 ft — Pure Copper, PVC Jacket, Rain‑Proof Cap

Gubrdfrsod 4 Ft 7 Pin Trailer Plug is a heavy‑duty, pure‑copper 7‑way trailer wiring harness built for reliable vehicle-to-trailer lighting and signal connections.

This 4‑foot Gubrdfrsod 7‑pin trailer cord combines 100% pure copper conductors, a rugged PVC jacket and a rain‑proof dust cap to deliver consistent electrical contact for brake lights, turn signals, tail lights and reverse lights. Designed for trailers, RVs, campers, food trucks and caravans, the harness uses standard RV color coding and mixed 10–14 AWG wire sizes so it handles varying load needs while remaining flexible for outdoor use.

How does this plug improve trailer lighting reliability?

The Gubrdfrsod connector uses pure copper terminals and double‑prong contacts to reduce resistance and maintain steady current flow under vibration. Better conductivity means faster response for brake and turn signals and lower risk of intermittent connections during towing.

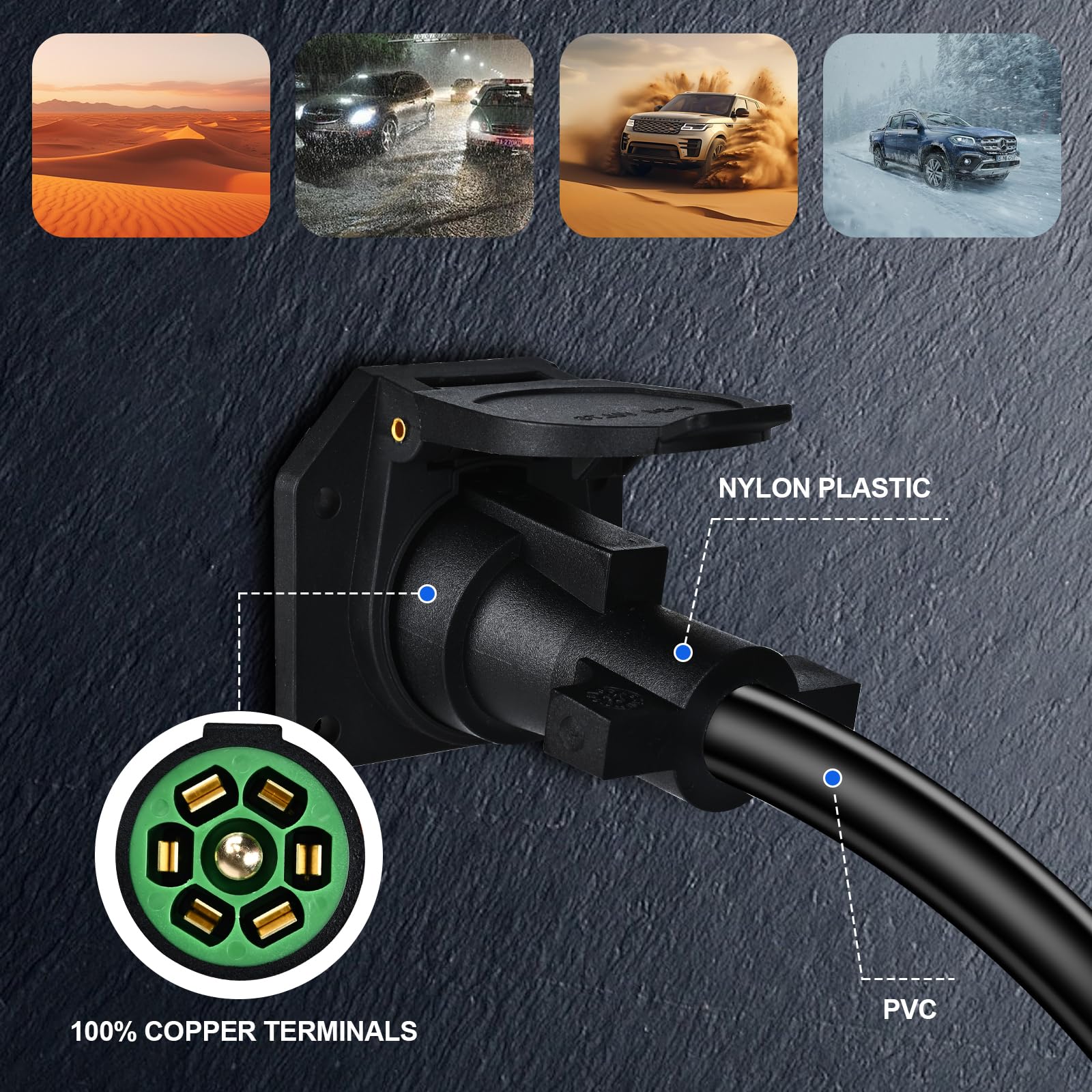

• 100% pure copper cores and terminals for superior conductivity
• Double‑prong contact design for stronger, more consistent engagements
• Durable PVC sheath protects conductors from abrasion and weather

Will this 7‑pin harness fit my trailer or RV?

The harness follows standard 7‑way RV color coding and pin layout, making it compatible with most trailers and tow vehicles. Because some manufacturers vary slightly, confirm pin arrangement and wire assignments before installation to avoid miswiring.

• Standard RV color codes for easy matching to existing systems
• 4‑foot length suited for close‑coupled connections or splicing
• Check your trailer’s pin layout against the harness before wiring

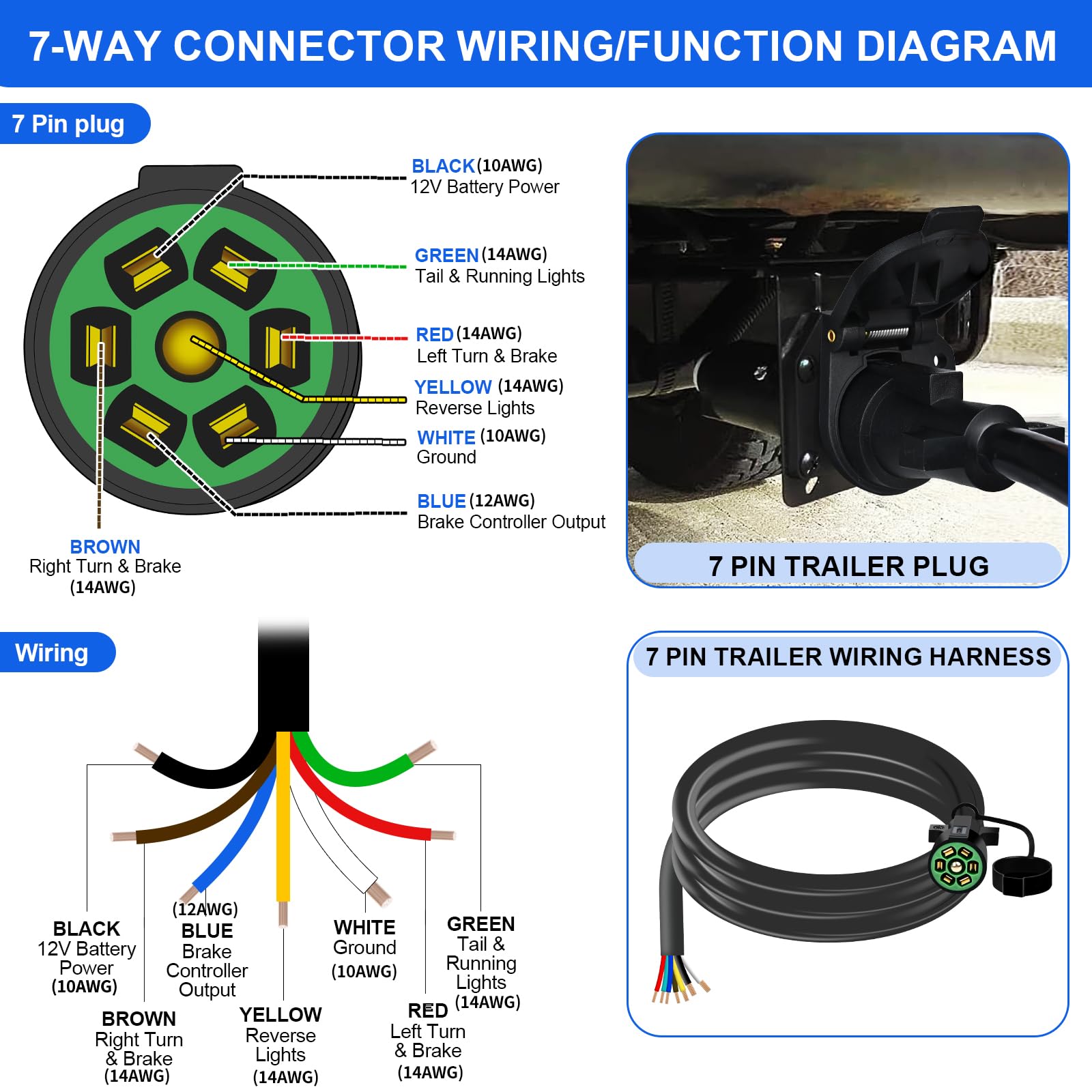

What do the wire gauges mean for performance?

The harness combines 10–14 AWG wires so heavier circuits use thicker copper while lighter circuits use thinner gauge to stay flexible. Thick 10AWG conductors for primary circuits reduce voltage drop; 14AWG handles accessory lighting and signals.

• Black & white: 10 AWG for main power and ground capacity
• Blue: 12 AWG for auxiliary or brake signal circuits
• Brown, yellow, red, green: 14 AWG for tail, turn and reverse lights

How easy is the harness to install and protect from the elements?

Installation is straightforward: color‑coded wires and a standard 7‑pin connector let you splice or swap with the original harness quickly. A fitted PVC cap keeps terminals dry and clean when disconnected, extending the life of the contacts.

• RV standard colors simplify splicing and replacement
• 4‑foot length gives room for routing or joining to existing wiring
• Included PVC dust/rain cap protects terminals when not in use

Who this is for: The Gubrdfrsod 4 Ft 7 Pin Trailer Plug suits DIY mechanics, RV owners, small trailer fleets, food truck operators and anyone needing a durable replacement or upgrade for a corroded 7‑way cord. It’s ideal when you want a balance of long‑lasting pure‑copper conductivity, weather protection and plug‑and‑play convenience without extensive rewiring.
