Hantek PC USB 8CH Automotive Diagnostic Oscilloscope — 12‑bit, 8‑ch Signal Generator

Hantek 1008C is a PC-connected, 8-channel automotive diagnostic oscilloscope that combines vehicle-specific tests, a general-purpose oscilloscope and an 8‑channel programmable signal generator in one USB-powered tool.

The Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope brings professional-level multi-channel waveform analysis to garages, workshops and electronics benches by combining more than 80 vehicle diagnostic functions with a high-resolution oscilloscope core and a configurable signal generator. Designed to run with Windows-based PC software over USB 2.0, it records and displays ignition, sensor, bus and actuator signals while offering deep capture memory and easy one‑key measurements for fast troubleshooting.

What measurements and automotive tests can I run with this oscilloscope?

The device supports a wide range of automotive diagnostic routines suited for modern vehicles and legacy systems. Preconfigured tests speed up common checks while the scope channels capture simultaneous signals for correlation.

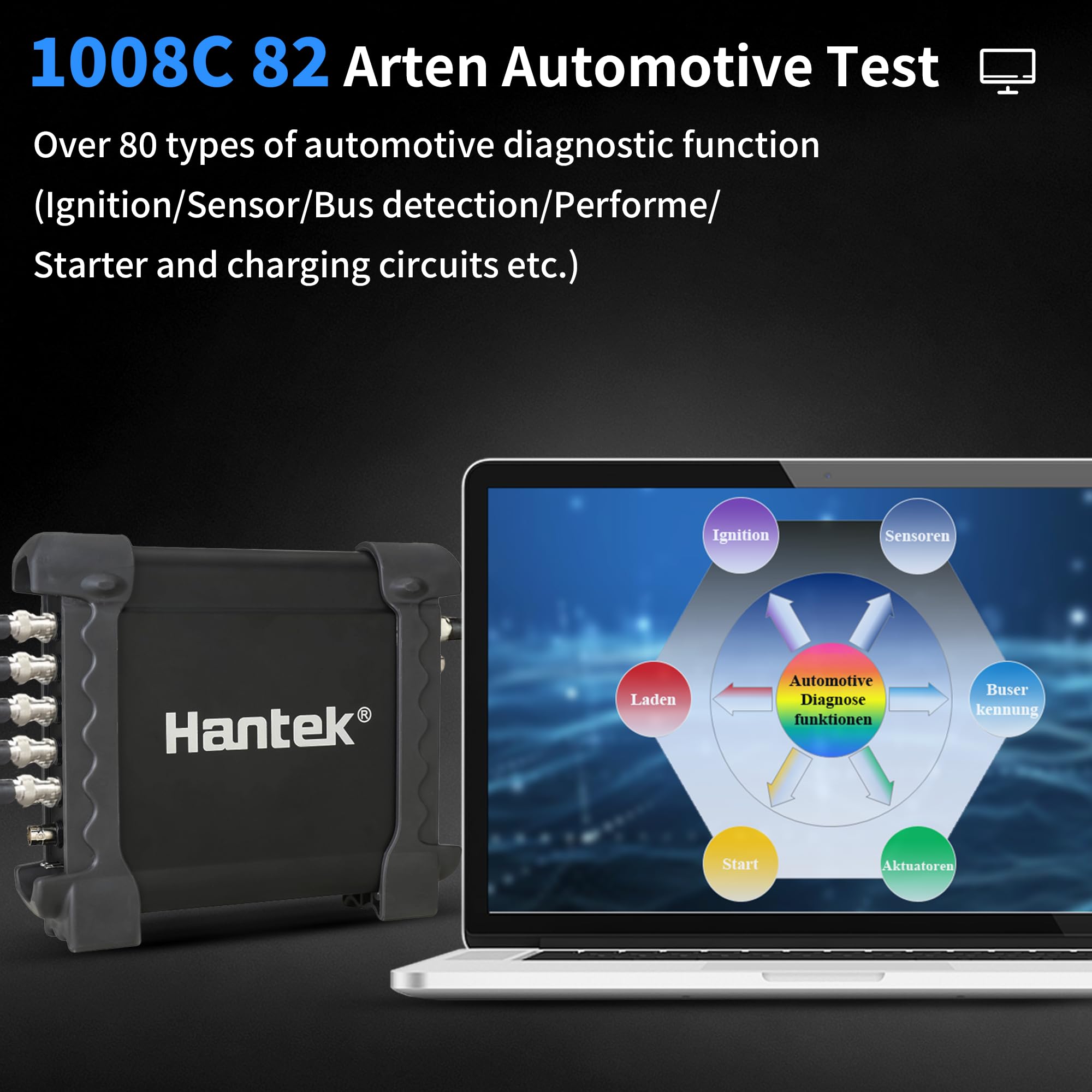

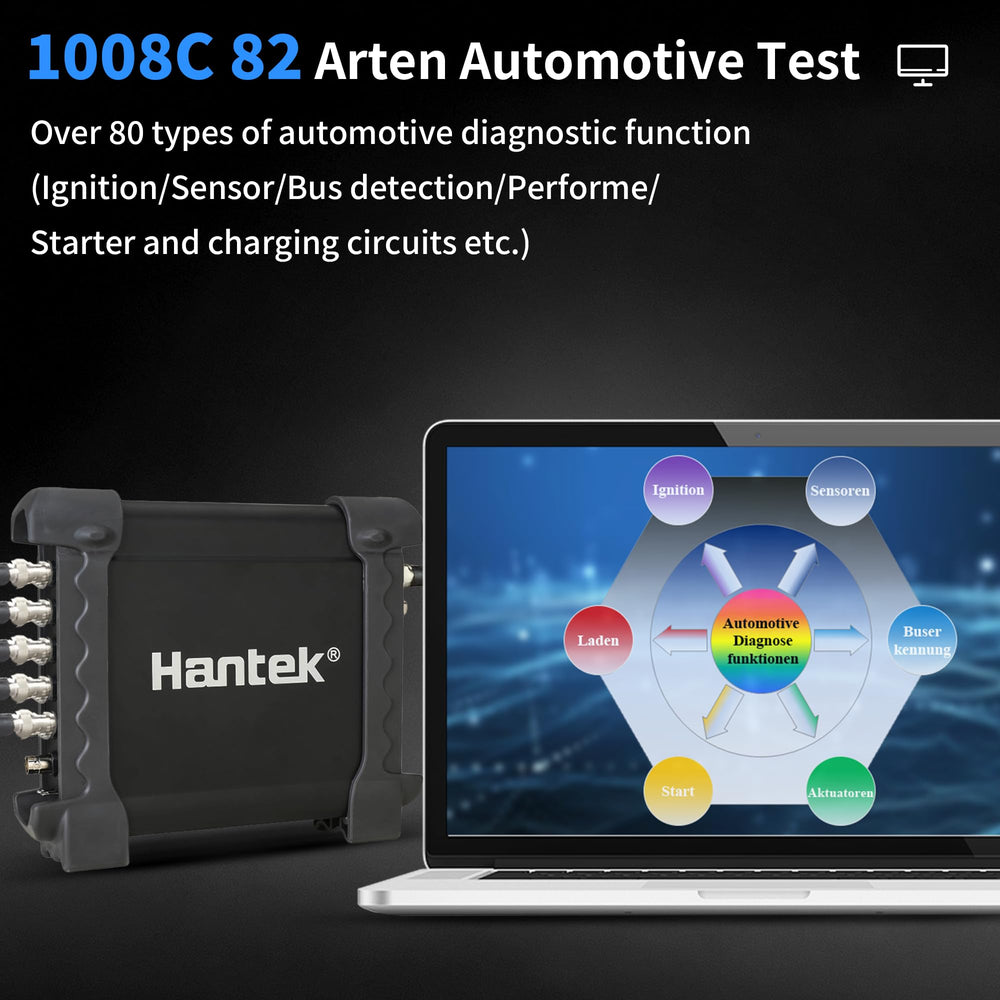

• Over 80 automotive functions: ignition, sensors, bus communications, actuators, starting and charging tests.

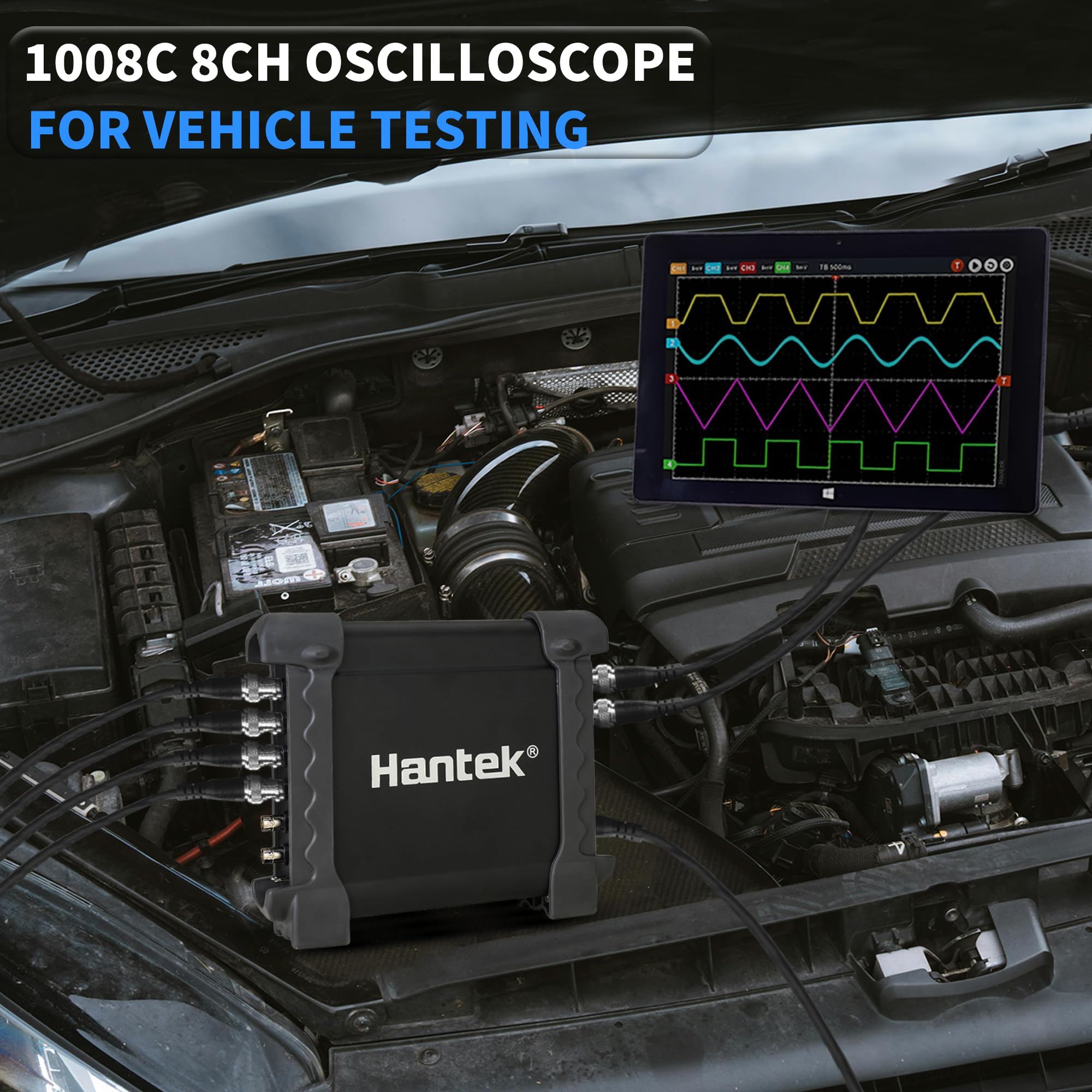

• 8 analogue channels to monitor multiple circuits at once for comparative analysis.
• One-key access to 20 automatic measurement modes for instant numeric readouts.

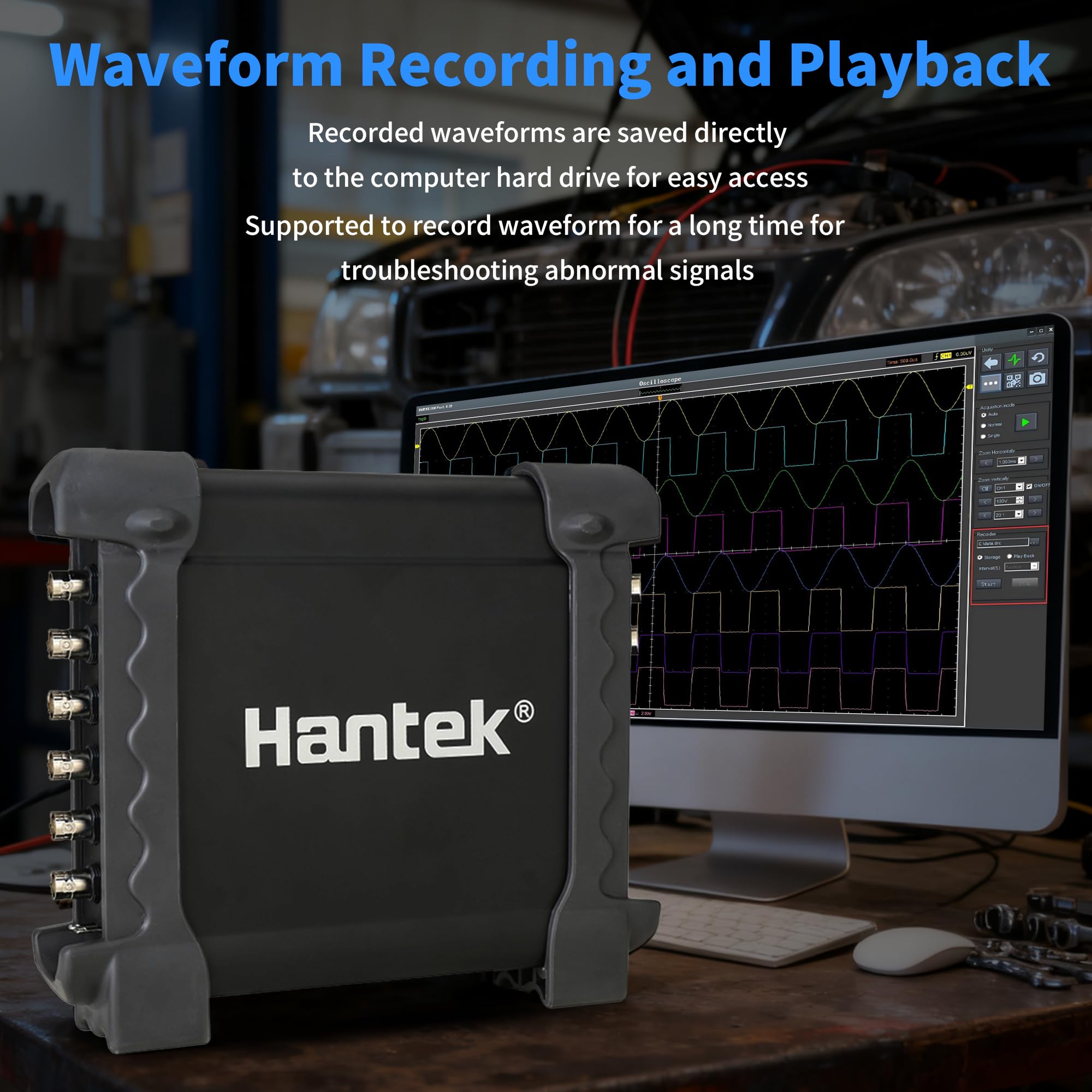

• USB transfer and PC software for logging, playback and advanced analysis on Windows.

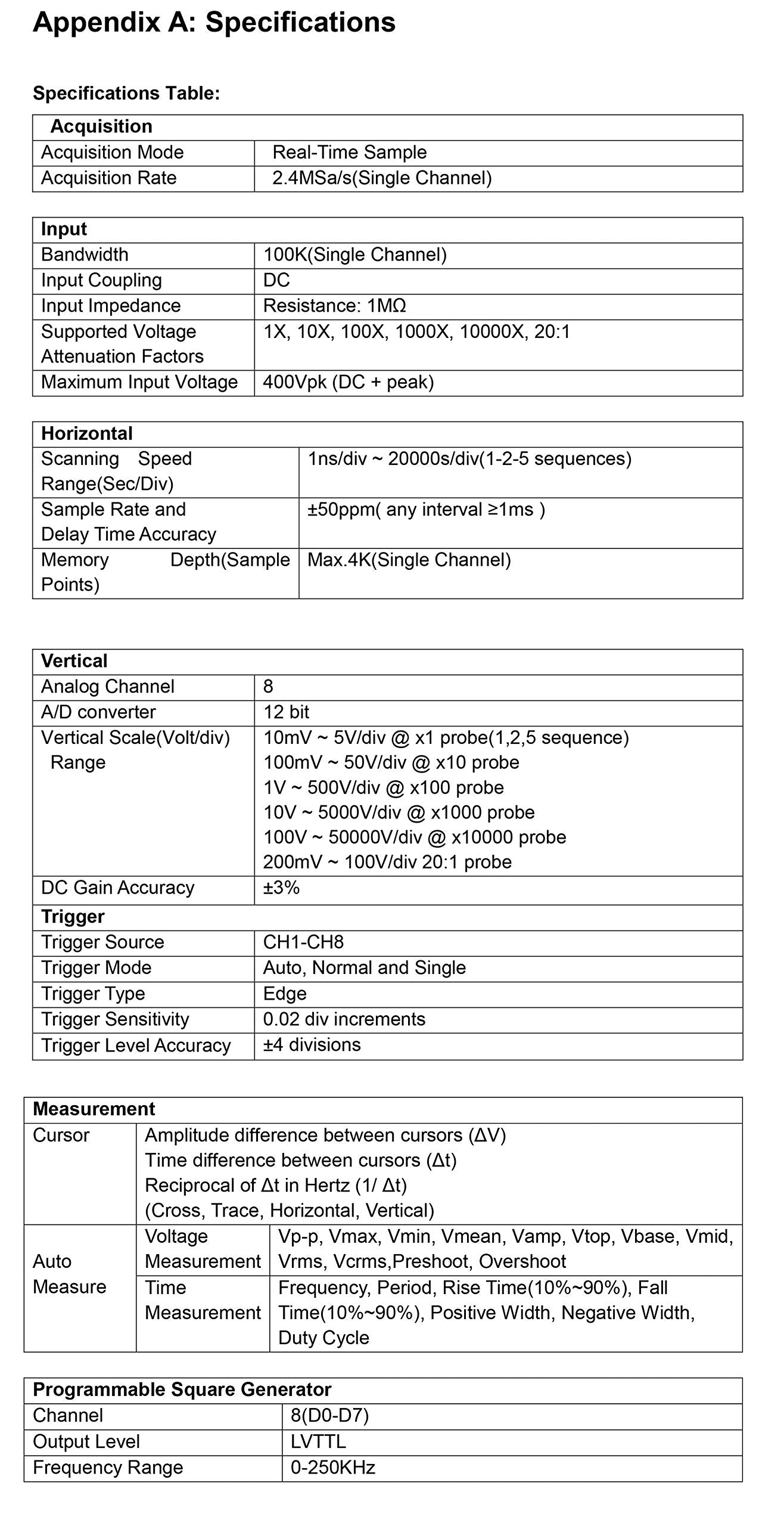

How precise and fast is the oscilloscope for waveform capture?

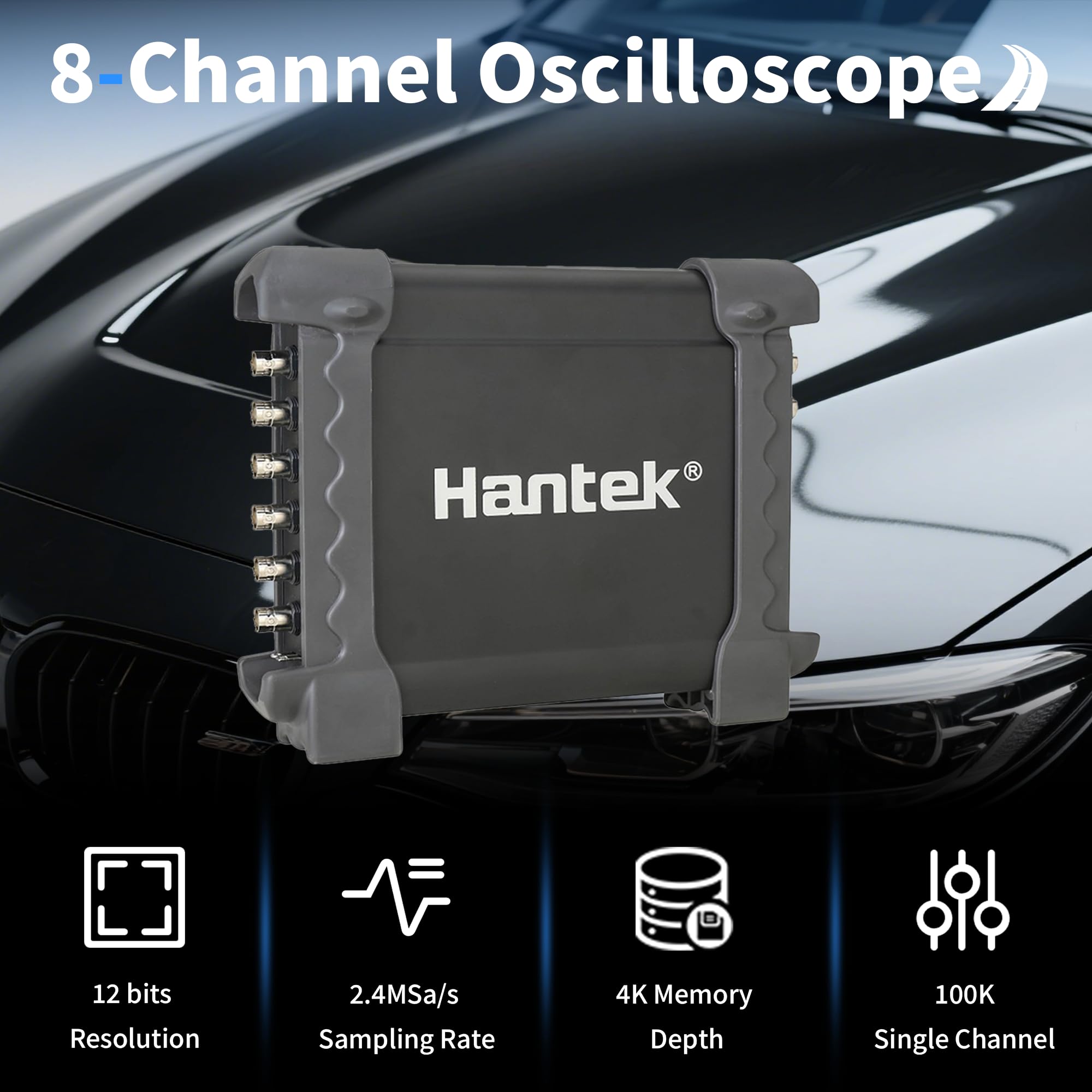

Hantek equipped the 1008C with solid sampling and memory specs to resolve automotive waveforms accurately and capture transient events. Its 12-bit vertical resolution improves detail compared with lower-bit capture devices.

• 12-bit resolution for finer amplitude detail and cleaner digital representation.
• 4K memory depth per channel to store longer records without losing detail.
• 2.4 MSa/s real-time sampling rate to capture dynamic signals and transients.
• 20 auto-measure modes simplify waveform analysis and speed diagnostic decisions.

What does the programmable signal generator do and when would I use it?

The built-in signal generator can emulate common automotive timing and sensor signals, letting you stimulate circuits and verify responses without live engine signals. It’s helpful for bench testing components and simulating crankshaft or camshaft pulses.

• 8-channel LVTTL outputs for simultaneous test signals across multiple circuits.
• Frequency range from 0 to 250 kHz for simulating timing and sensor frequencies.
• Use to recreate crankshaft/camshaft waveforms or validate ECU inputs.
• USB storage capability to save waveform setups and recall them quickly.

How easy is it to use the Hantek 1008C in a workshop setting?

The unit is designed for technicians and hobbyists who prefer a PC interface for visualization, logging, and reporting. Connections, software controls and one-key measurement functions reduce setup time and help focus on diagnostics.

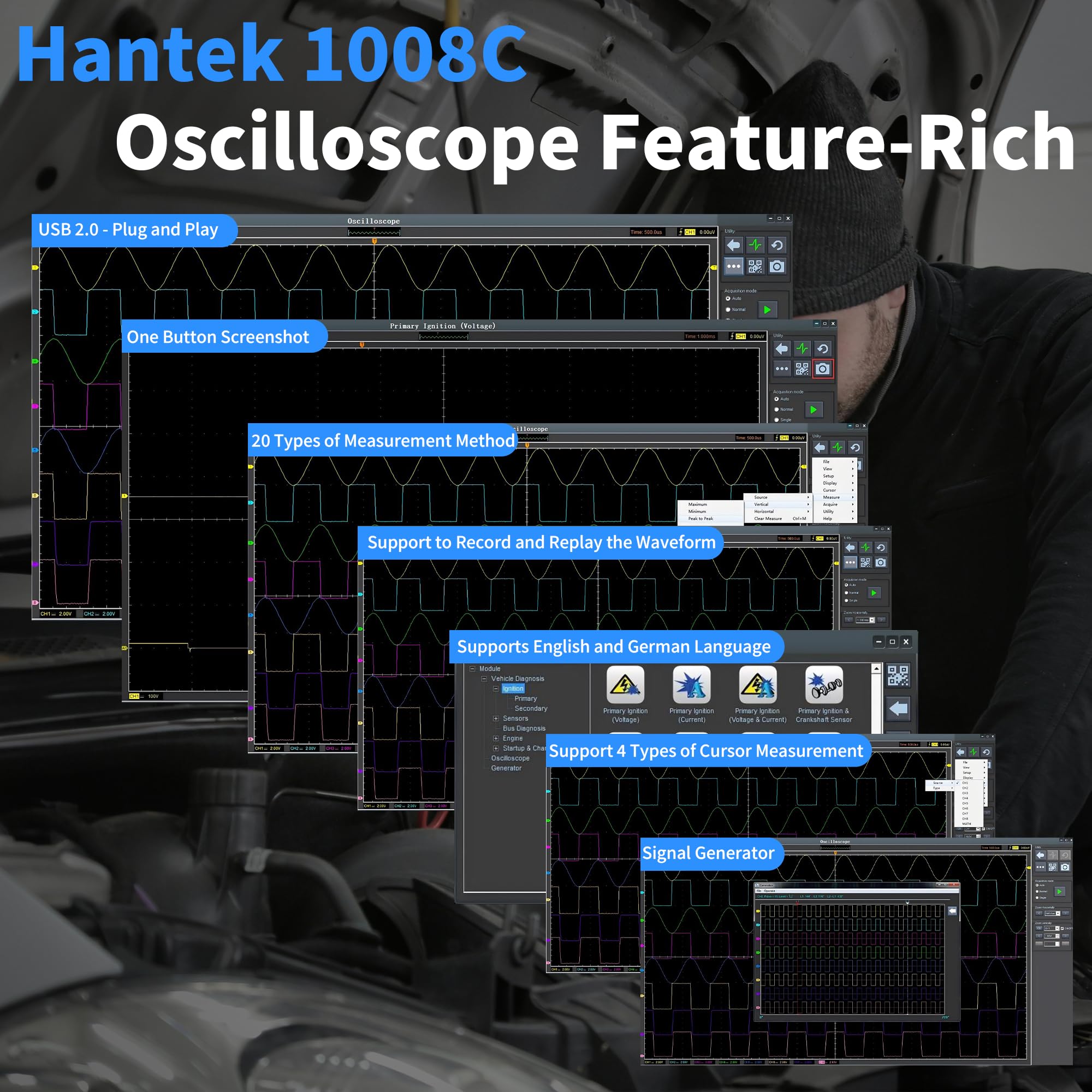

• PC software for Windows with graphical display, storage and export features.

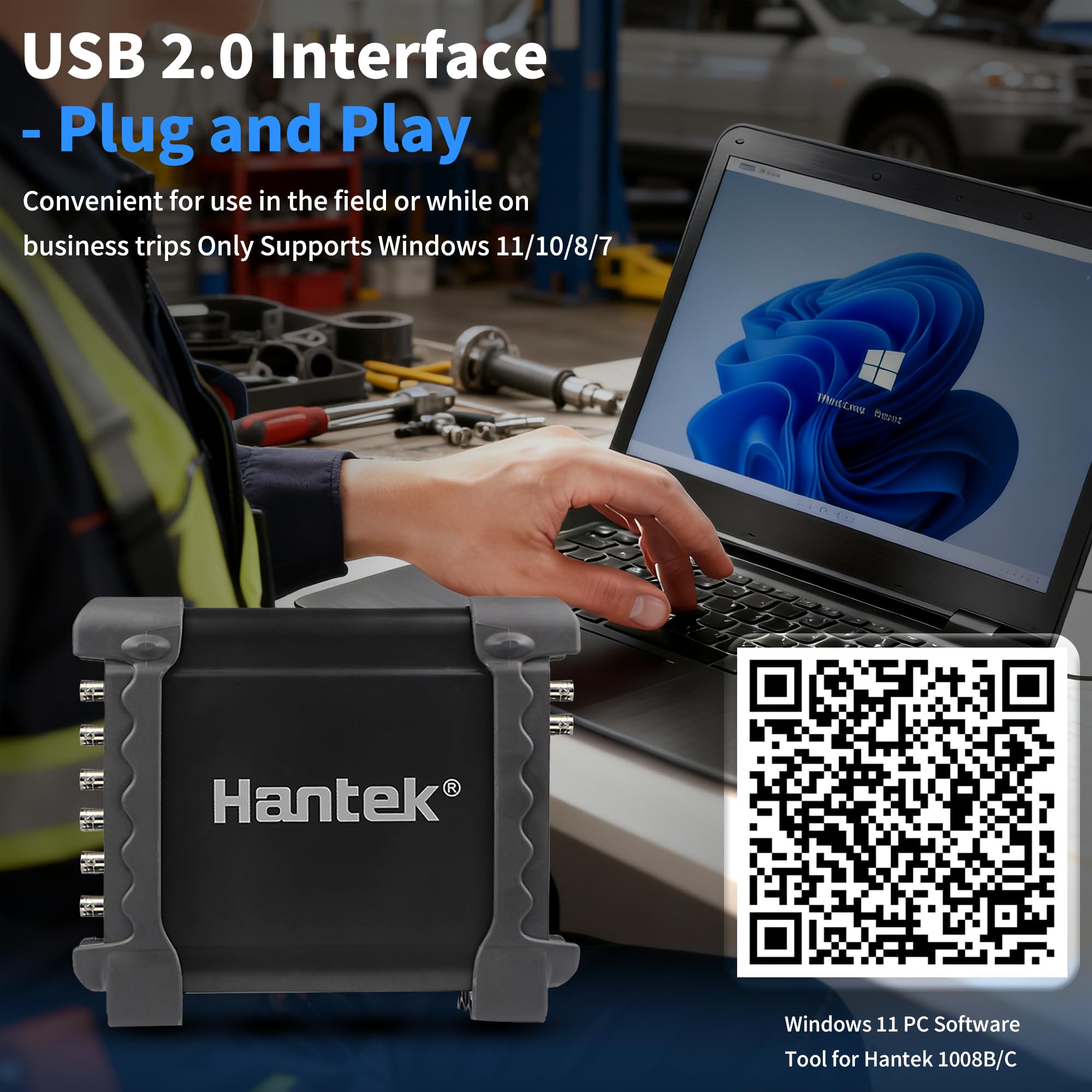

• USB 2.0 connection for both power and data transfer—no separate power brick required.
• Simple menus and one-key measurement toggles for faster checks.
• Suitable for electricians, mechanics, electronics enthusiasts and repair shops.

Who is this for? The Hantek 1008C is aimed at automotive technicians, electrical trainers, electronics hobbyists and small repair shops that need a multi-channel, PC-based oscilloscope tailored to vehicle diagnostics. It’s especially valuable when you must compare multiple signals at once, simulate sensor/shaft pulses with the built-in generator, or archive waveforms and reports on a Windows PC for documentation and advanced analysis.
