Harbot replacement carburetor for Kohler XT650 XT675 — 149cc 6.75hp kit with filter & spark plug

Harbot 6.75hp 149CC carburetor is a ready-to-install replacement and complete accessory kit designed to fit Kohler XT650/XT675 and Toro Recycler 22 engines that use the 14 853 68-S / 1485368S carburetor pattern.

This Harbot assembly is engineered as a direct-fit substitute for older Kohler Courage XT6/XT7 149cc engines and select Toro Recycler models. It arrives as an all-in-one bundle including the carburetor, filter, fuel shut-off, hose, spark plug, gasket and clamps so you can swap the unit quickly without sourcing multiple parts. Materials and testing emphasize corrosion resistance, stable fuel flow and durability under real-world running conditions.

Will this carburetor bolt on my Kohler XT675 or XT650 engine?

Yes—this Harbot carburetor follows the factory mounting dimensions and throttle/choke sizes used on many Kohler XT6.5/XT6.75 and XT675 series engines. The mounting holes, throttle and choke diameters are matched so the unit installs without adapter plates in compatible models.

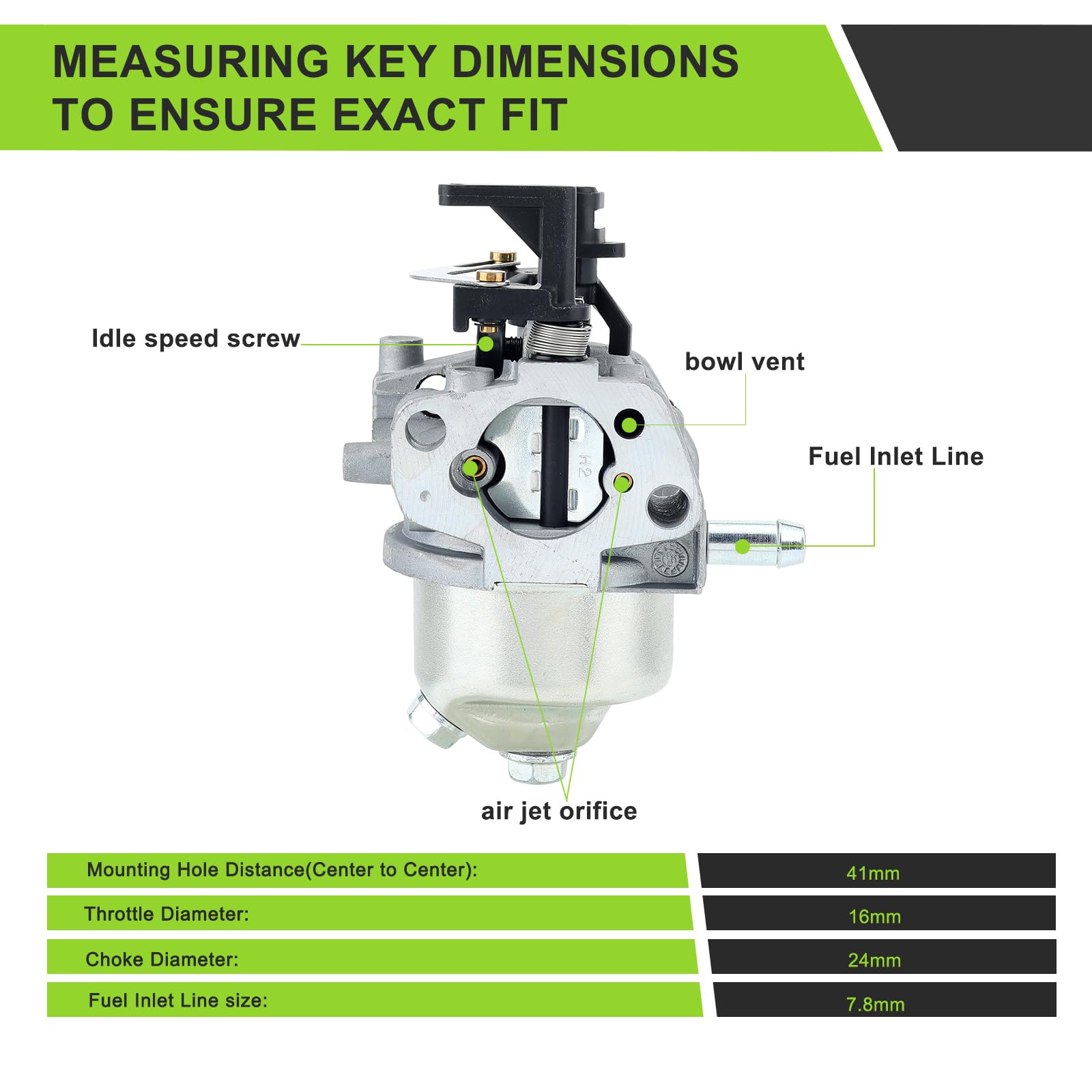

• Mounting hole center-to-center: 41mm
• Throttle bore diameter: 16mm
• Choke bore diameter: 24mm
• Fuel inlet hose size: 7.8mm

Does this replace Toro part 14-853-68-S (1485368S) and include everything I need?

Harbot supplies a full replacement kit intended to match the Toro Recycler 22 carburetor reference numbers, eliminating the need to buy additional small parts. The package contains both the carburetor and commonly replaced peripherals, streamlining the repair or rebuild process.

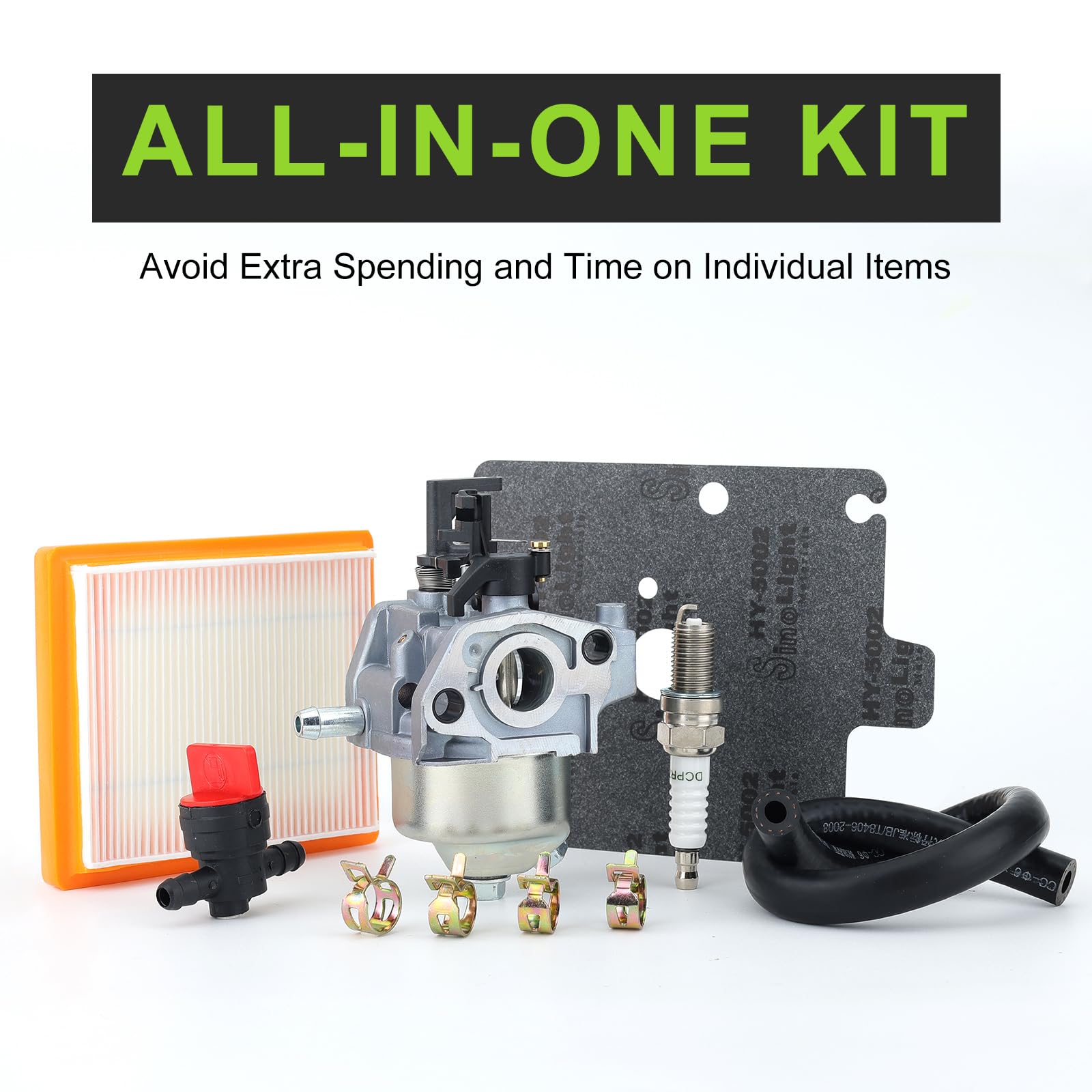

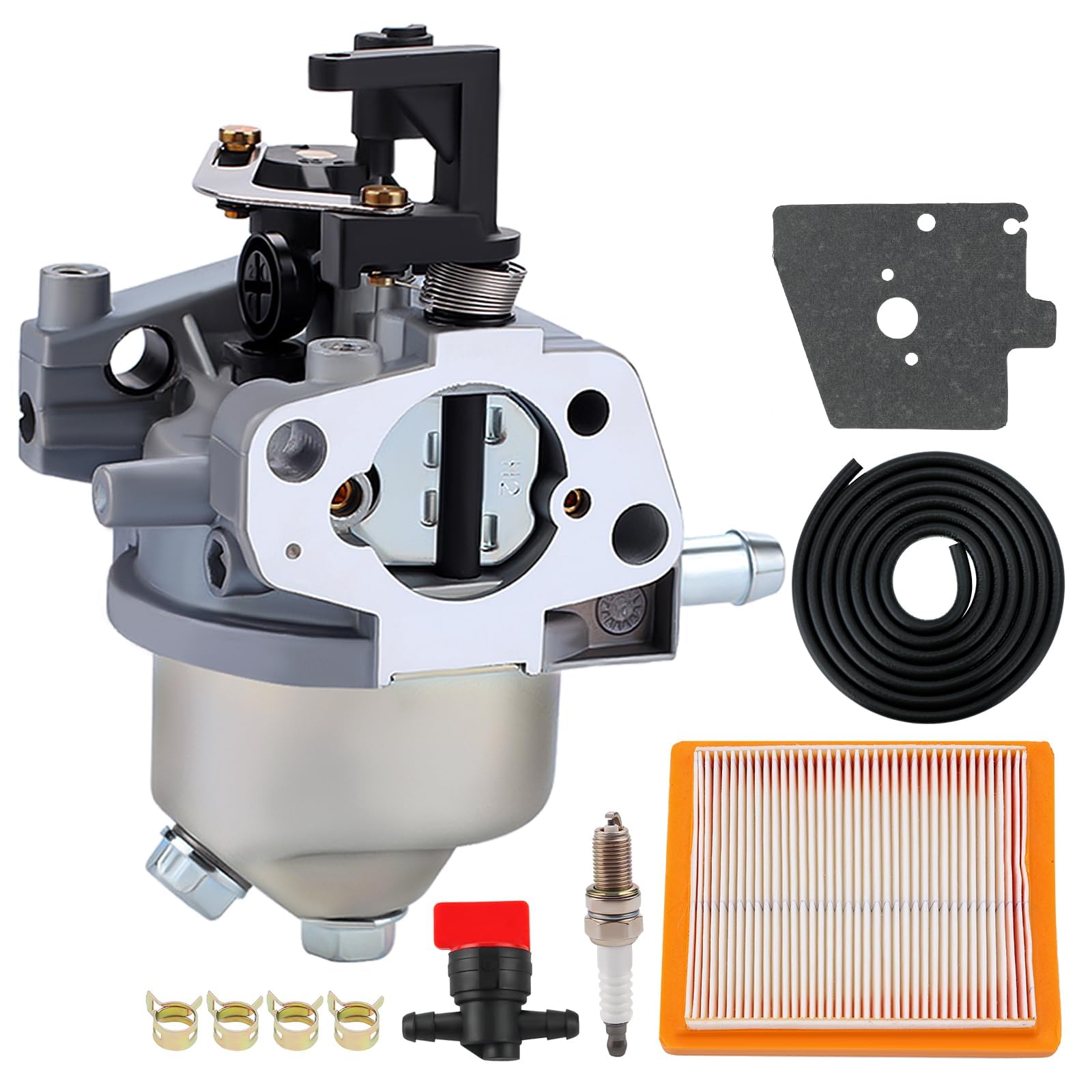

• Included: Harbot carburetor x1, air filter x1, fuel shut-off valve x1
• Included: 2 feet fuel line x1, spark plug x1, gasket x1, fuel line clamps x4
• Factory-style calibration for simpler startup and less tuning

How is this carburetor built and tested for reliability?

The Harbot unit uses a mix of corrosion-resistant metals and engineered plastics to withstand fuel exposure and heat cycles. Each carburetor is flow-tested in wet conditions to simulate engine operation and verify consistent fuel delivery before shipping.

• Brass fittings for fuel connections and jets
• Zinc-plated float bowl and high-density plastic float for longevity
• Anodized aluminum body to resist wear and heat
• Wet-flow testing to ensure consistent performance

Which engines and choke types is this compatible with?

This unit fits many older Kohler XT6 and XT7 variants, including multiple XT650 and XT675 model numbers, and is suited for engines with a vacuum choke pull-off or a 12mm standard choke without a shutoff. Confirm your engine model and choke arrangement before ordering to ensure proper compatibility.

• Fits Kohler 6.5HP / 6.75HP XT6.5, XT6.75, XT650 and XT675 families
• Compatible with older 149cc Courage XT engines using vacuum choke pull-off
• Works with 12mm standard chokes that do not include a shutoff mechanism

Who is this for: This Harbot carburetor kit is aimed at homeowners, landscapers and small-engine technicians who need a reliable, ready-to-fit replacement for Kohler XT650/XT675 and Toro Recycler 22 engines. If your mower or walk-behind uses the 14-853-68-S / 1485368S carburetor pattern and you prefer a single-purchase repair solution with tested components and included accessories, this kit simplifies the repair and reduces downtime.
