HiFind 14-Gauge 30ft 6-Conductor Trailer Wiring Harness — Bonded Flat CCA Cable, Weather-Resistant PVC

HiFind 14-gauge 30-foot bonded 6-conductor trailer wiring harness is a flat, stranded CCA cable kit that supplies tail, turn, brake, ground and 12V auxiliary circuits for RVs, trailers, boats and other 12V towing applications.

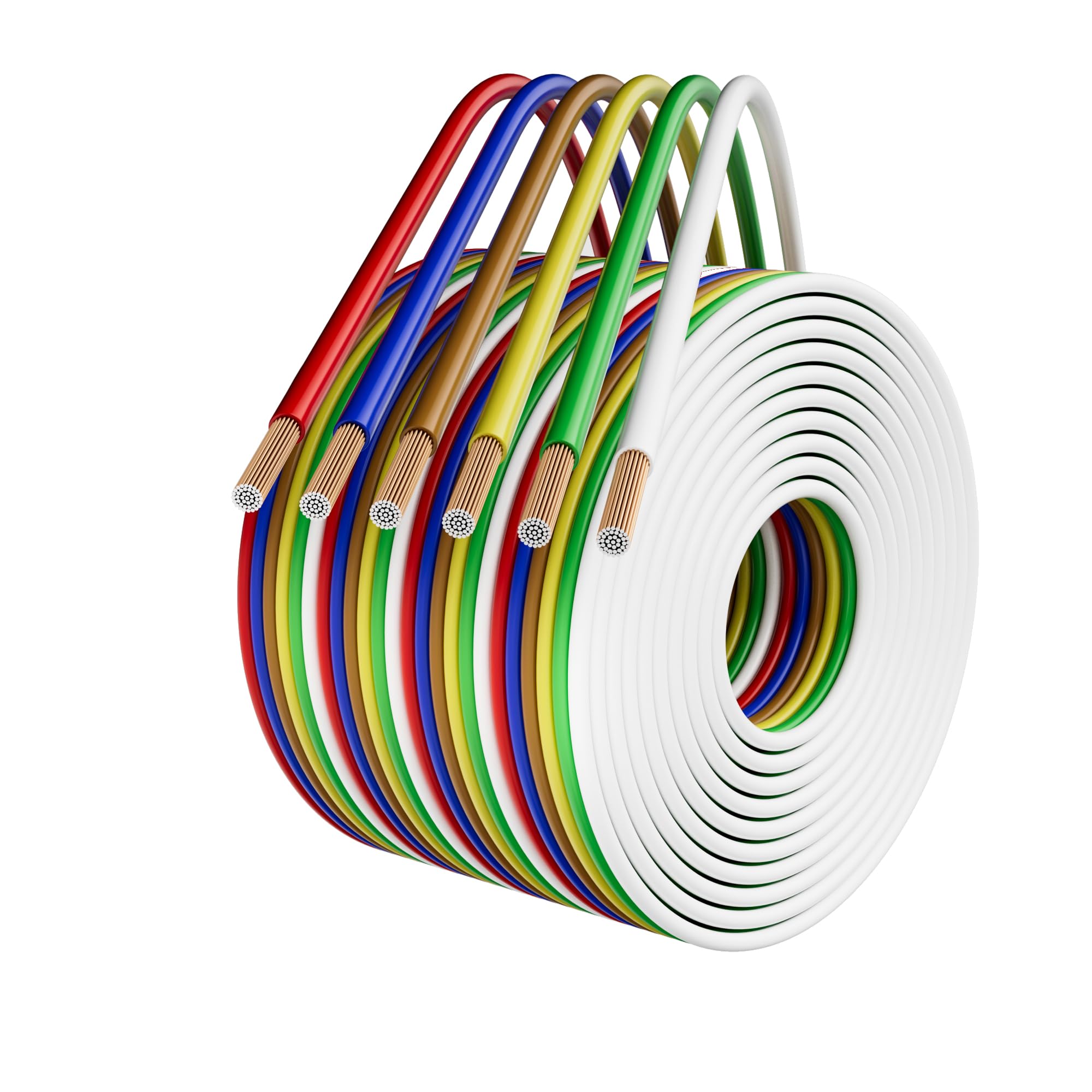

This harness combines thicker 14AWG stranded conductors with copper-clad aluminum (CCA), wrapped in a weather-resistant PVC jacket and bonded side-by-side into a flat profile for tidy routing. It's built to replace worn harnesses, extend existing wiring, or serve as the wiring backbone for a new trailer, camper or boat, giving you a higher-capacity, easy-to-manage cable that threads through channels without tangling.

How will a 14AWG bonded harness perform compared with thinner trailer wire?

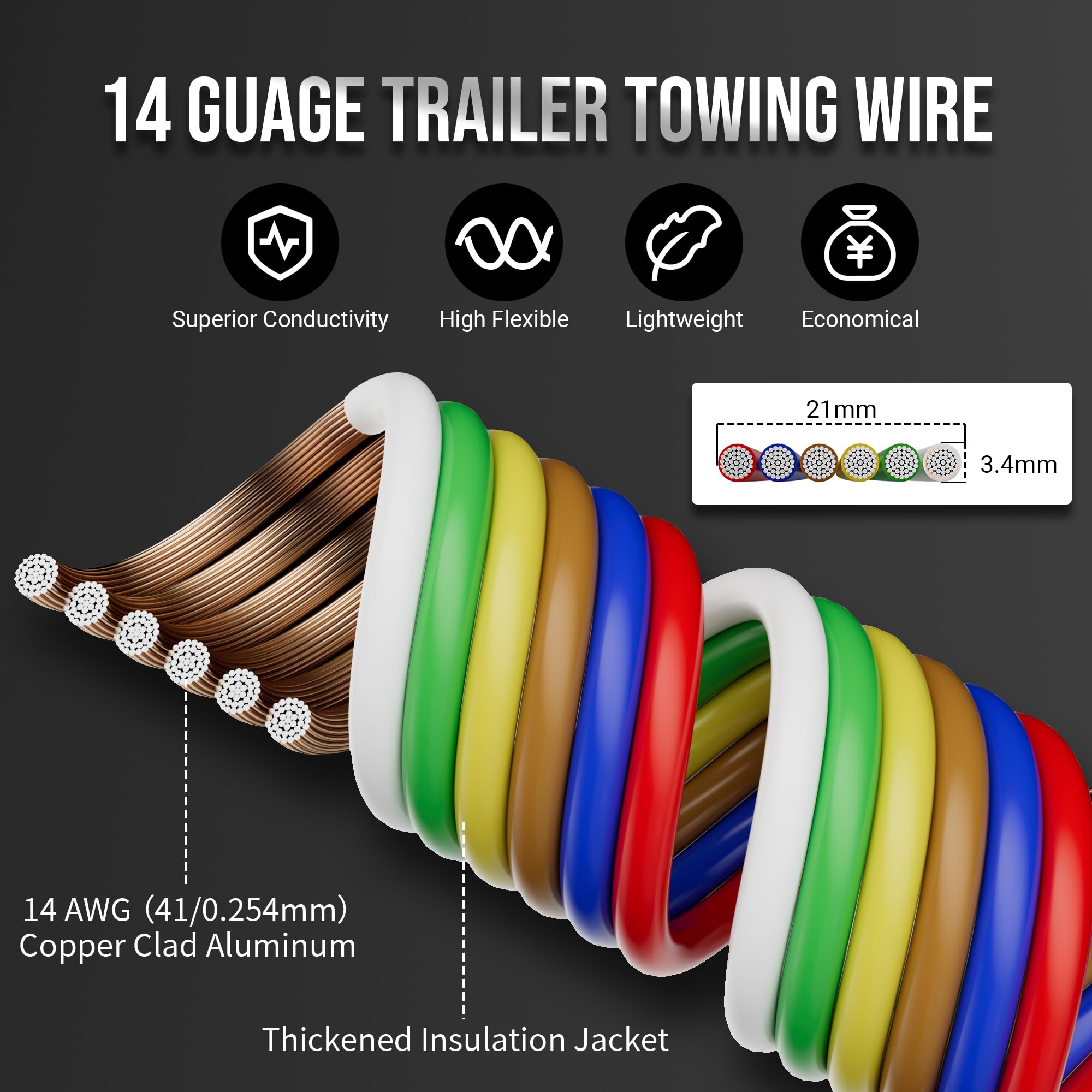

A 14AWG stranded conductor carries more current and has lower voltage drop than 16AWG alternatives, which matters on longer runs and for electric brake controllers. The stranded construction flexes better in moving or vibrating environments, reducing fatigue risk. CCA cores lower weight and cost while maintaining conductivity suitable for most 12V lighting and brake circuits.

• Stranded 14AWG: reduced resistance and improved long-distance power delivery.
• Bonded flat layout: easier routing and prevents wire entanglement.
• CCA core: lighter and cost-efficient while keeping good conductivity.
• Suitable for lighting, brakes and 12V auxiliary circuits on trailers and RVs.

What environmental protection and durability does this harness offer?

The cable is covered in a tough PVC jacket formulated to resist moisture, UV, oil and common automotive chemicals, and it tolerates temperatures from -40°C to +105°C. The construction meets SAE J1128 standards for automotive wiring, which helps ensure reliable electrical performance under road and weather stresses. The white ground conductor uses the same 14AWG gauge as the others to maintain secure, corrosion-resistant grounding.

• UV-, oil- and acid-resistant PVC jacket for long outdoor life.
• Wide operating temperature range for harsh climates.
• SAE J1128 compliance for automotive-grade materials and performance.
• Full-size ground conductor to reduce corrosion and improve safety.

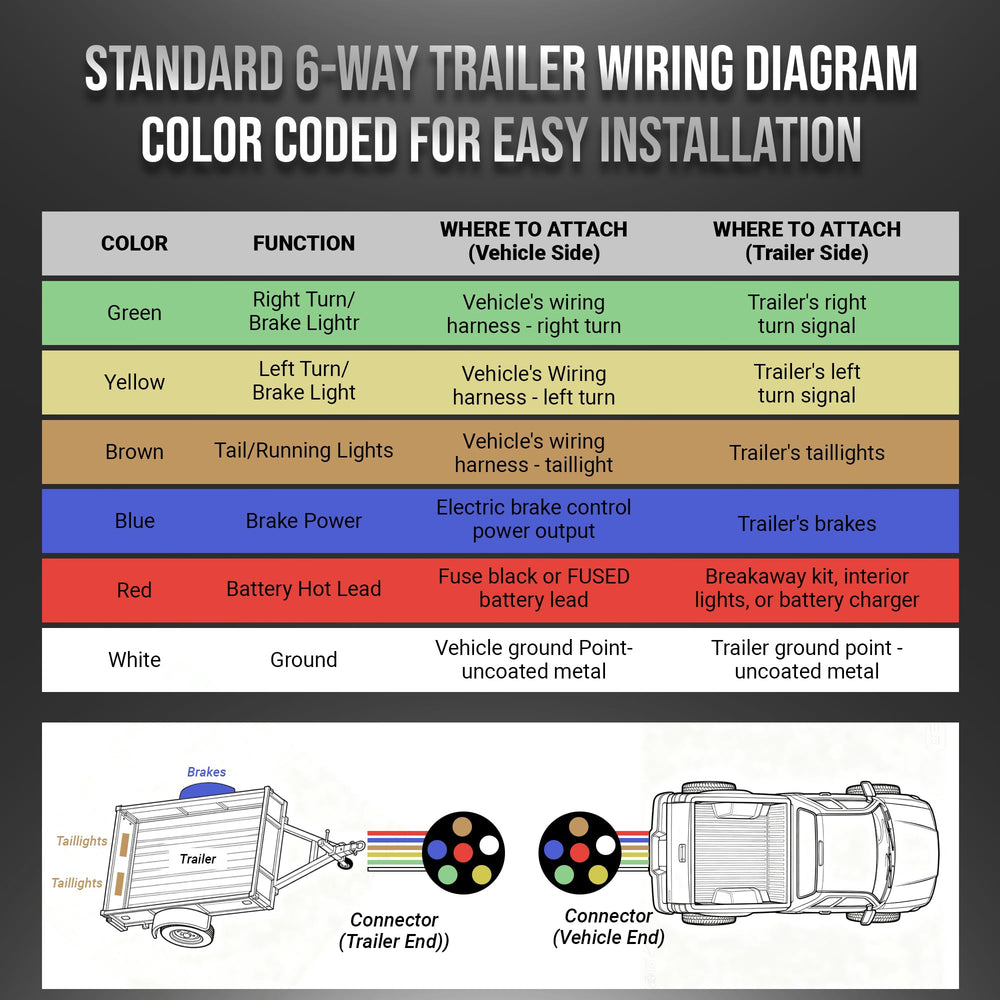

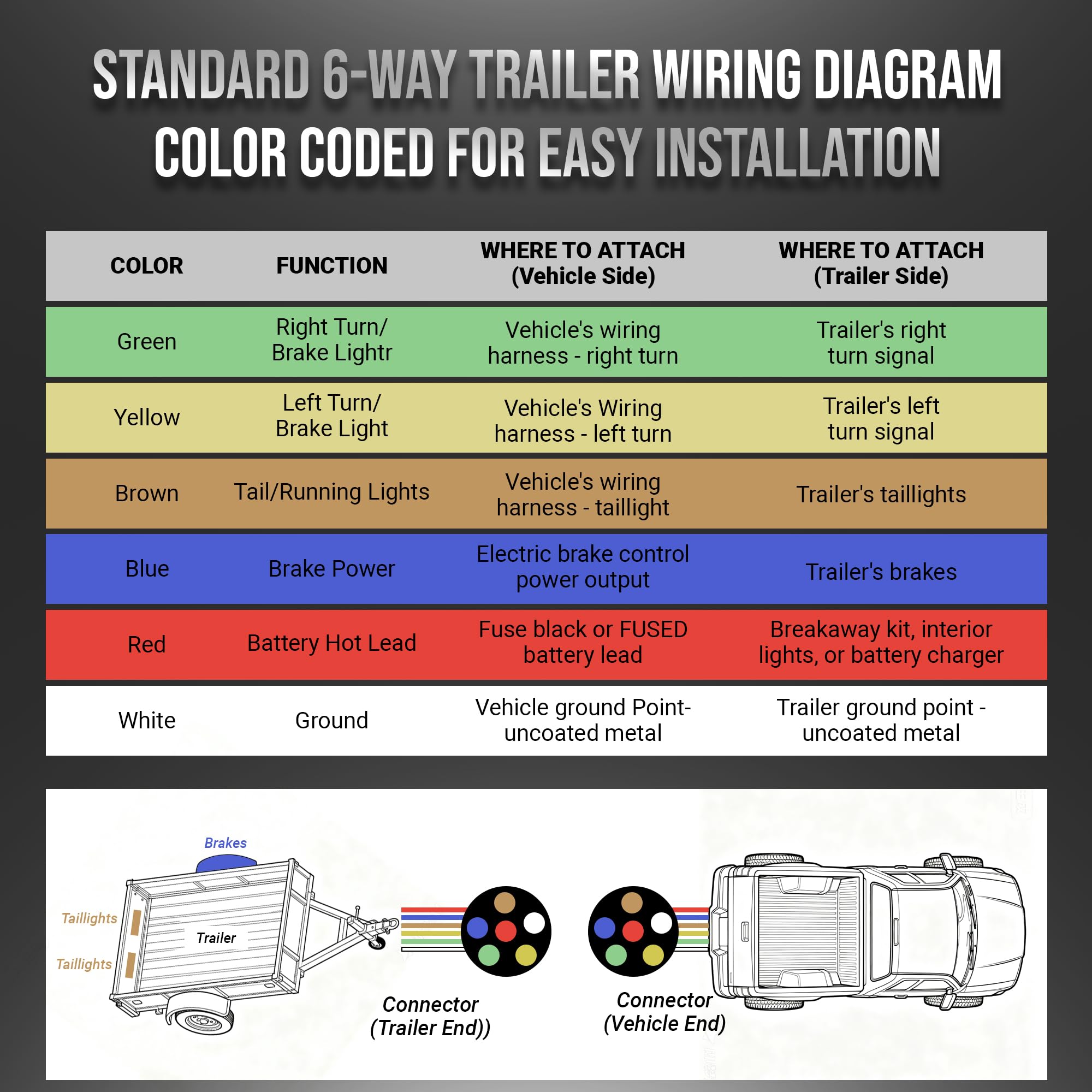

Which circuits are included and how are the wires identified?

The harness contains six color-coded conductors for quick identification and accurate hookups, minimizing wiring mistakes. Colors follow common trailer wiring conventions so installation with plugs, lamps and controllers is straightforward. The bonded flat format keeps the colors aligned for easy separation into individual wires when needed.

• White: ground (14AWG)
• Brown: tail/running lights
• Yellow: left turn signal
• Green: right turn signal
• Blue: electric brake controller
• Red: 12V battery / auxiliary power

How easy is this harness to install or adapt for different vehicles?

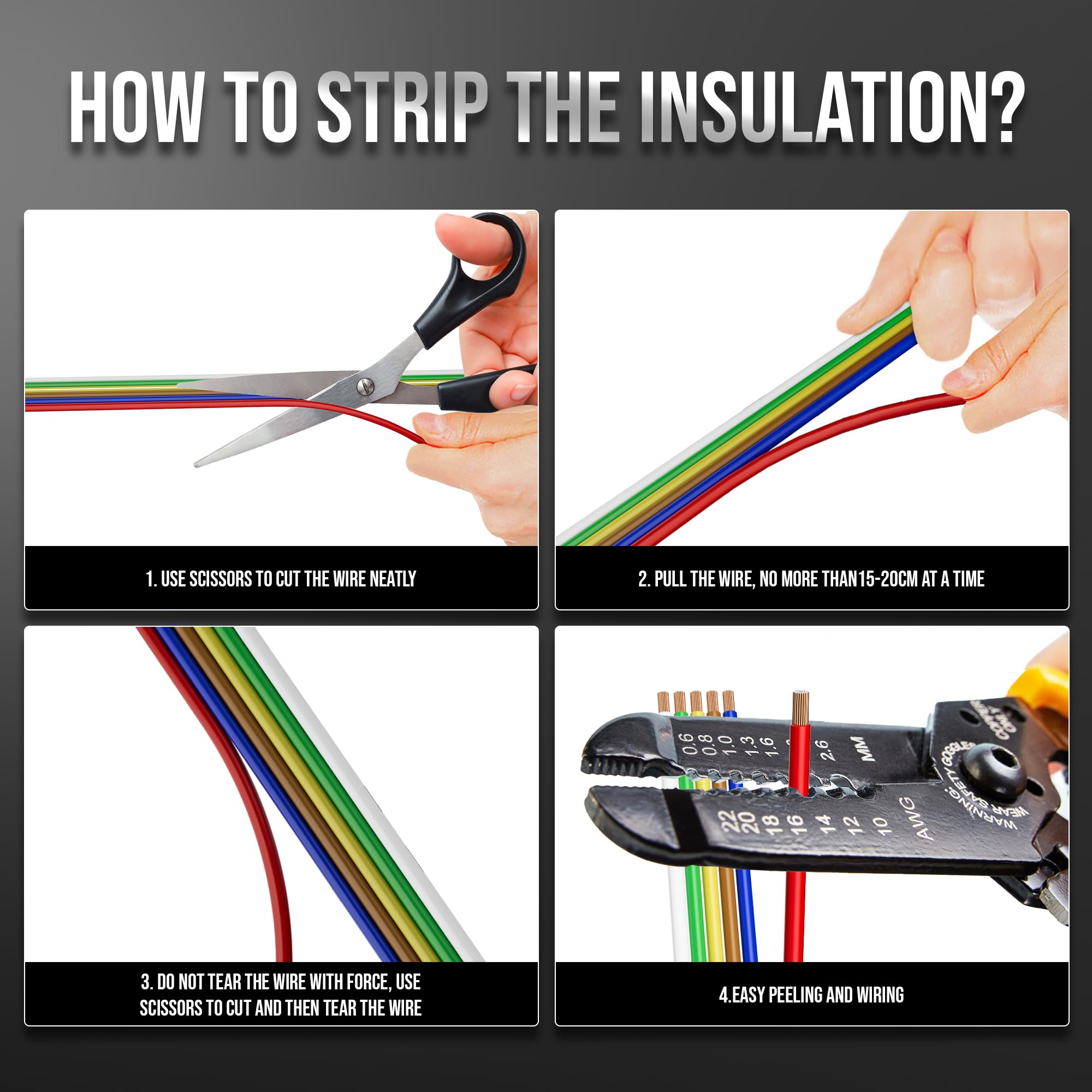

The bonded flat design simplifies feeding the harness through narrow openings and channels without twisting, and color coding speeds matching to existing plugs and fixtures. You can cut and separate the bonded wires to run individual circuits where needed, making it flexible for repairs, retrofits, or full replacements. The stranded conductors accept standard trailer terminals, crimps and solder joints for common installation methods.

• Flat bonded layout for fast routing through frames and sleeves.
• Easily cut into separate wires for custom runs or repairs.
• Compatibile with typical trailer connectors, crimps and solder joints.
• 30-foot length suits many single-axle and tandem-axle trailers and RV runs.

Who is this for? Installers, DIY enthusiasts and fleet owners who need a robust, low-resistance 6-way wiring solution for 12V trailer lighting, electric brakes and auxiliary power will find this HiFind 14AWG bonded harness practical and economical. It's designed for anyone replacing aged wiring on trailers, campers, boat trailers, horse and cargo trailers, or building a new wiring loom where a thicker, weatherproof cable is required.
