HiFind 14AWG 6-Way Trailer Wiring Harness 50 ft — Bonded Flat CCA Cable for RV, Boat & Towing

HiFind's 50-foot 14AWG 6-way bonded trailer wiring harness is a ready-to-install flat cable kit that supplies six color-coded, stranded CCA conductors for reliable 12V lighting, brake controller, and auxiliary power connections on trailers, RVs, and boats.

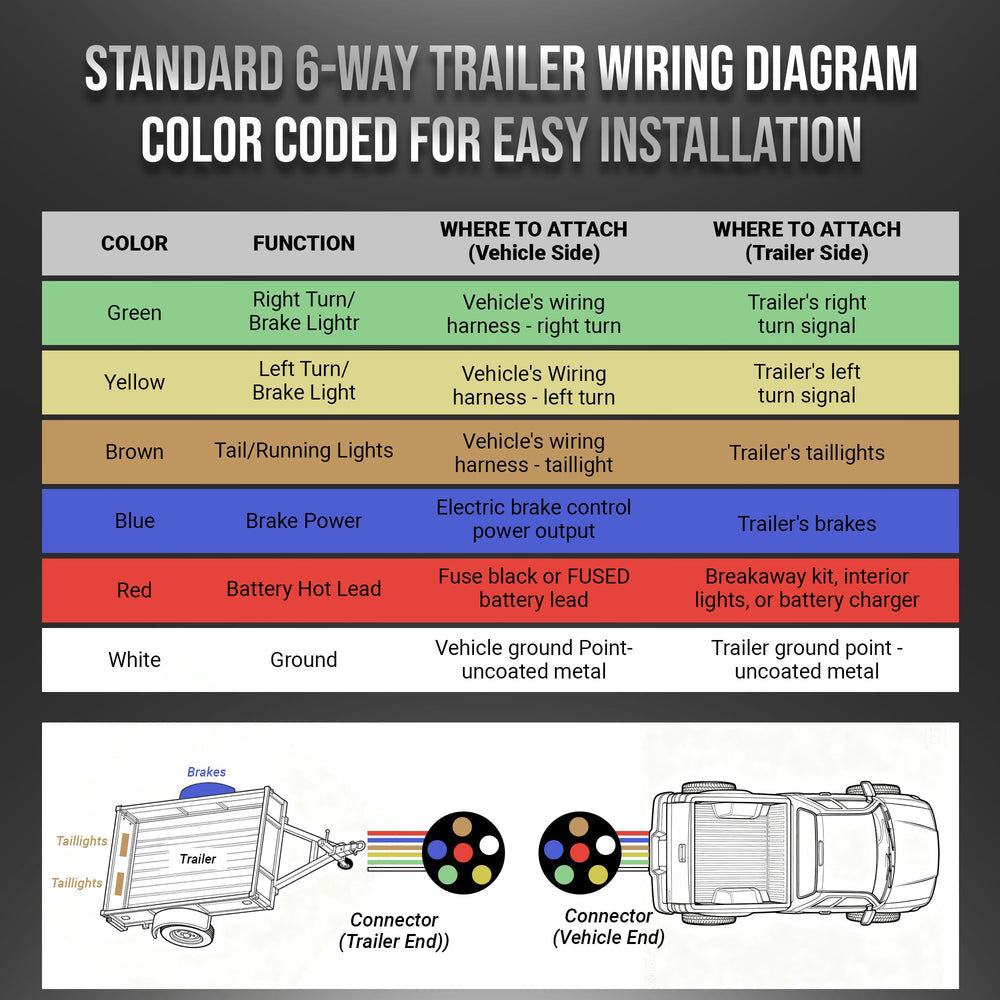

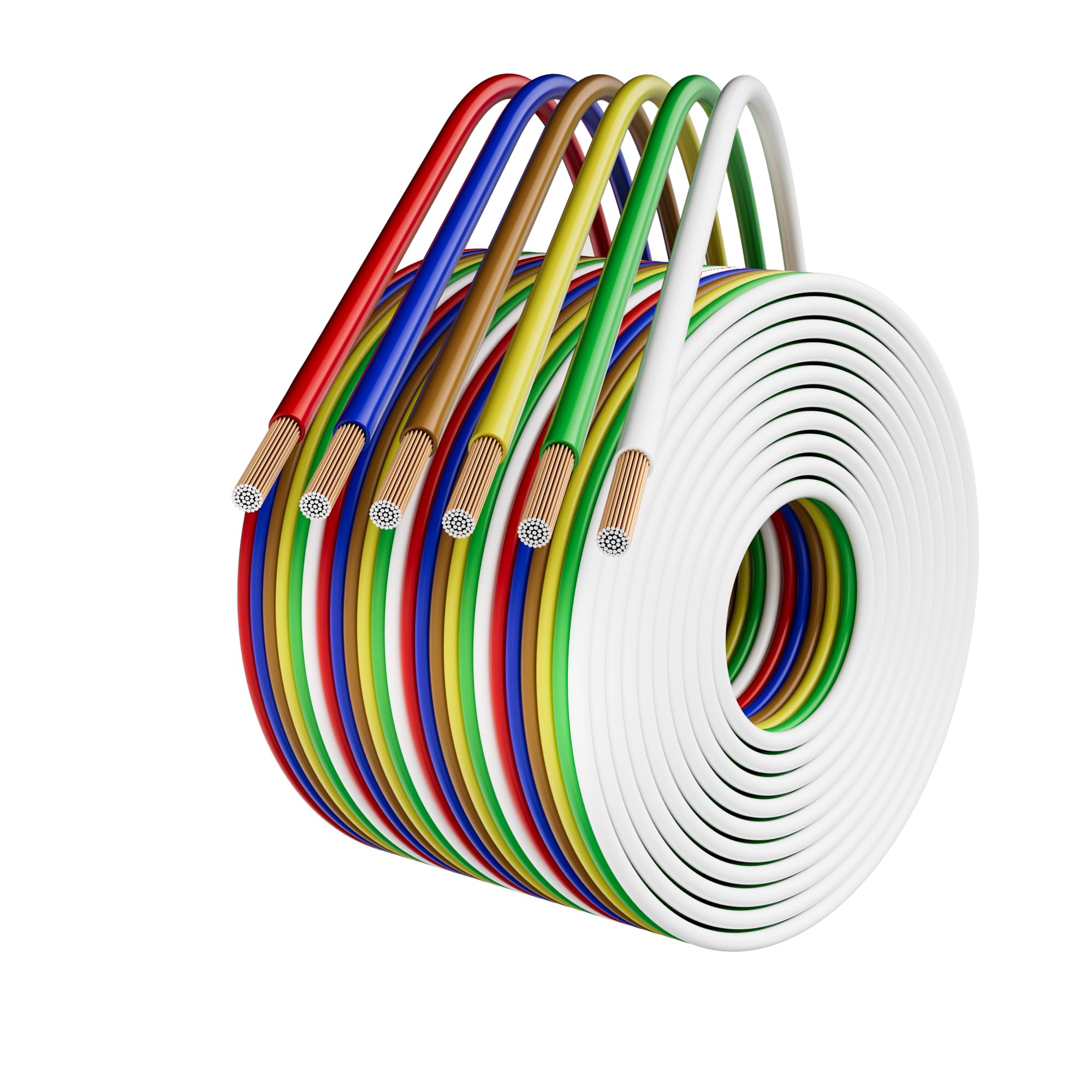

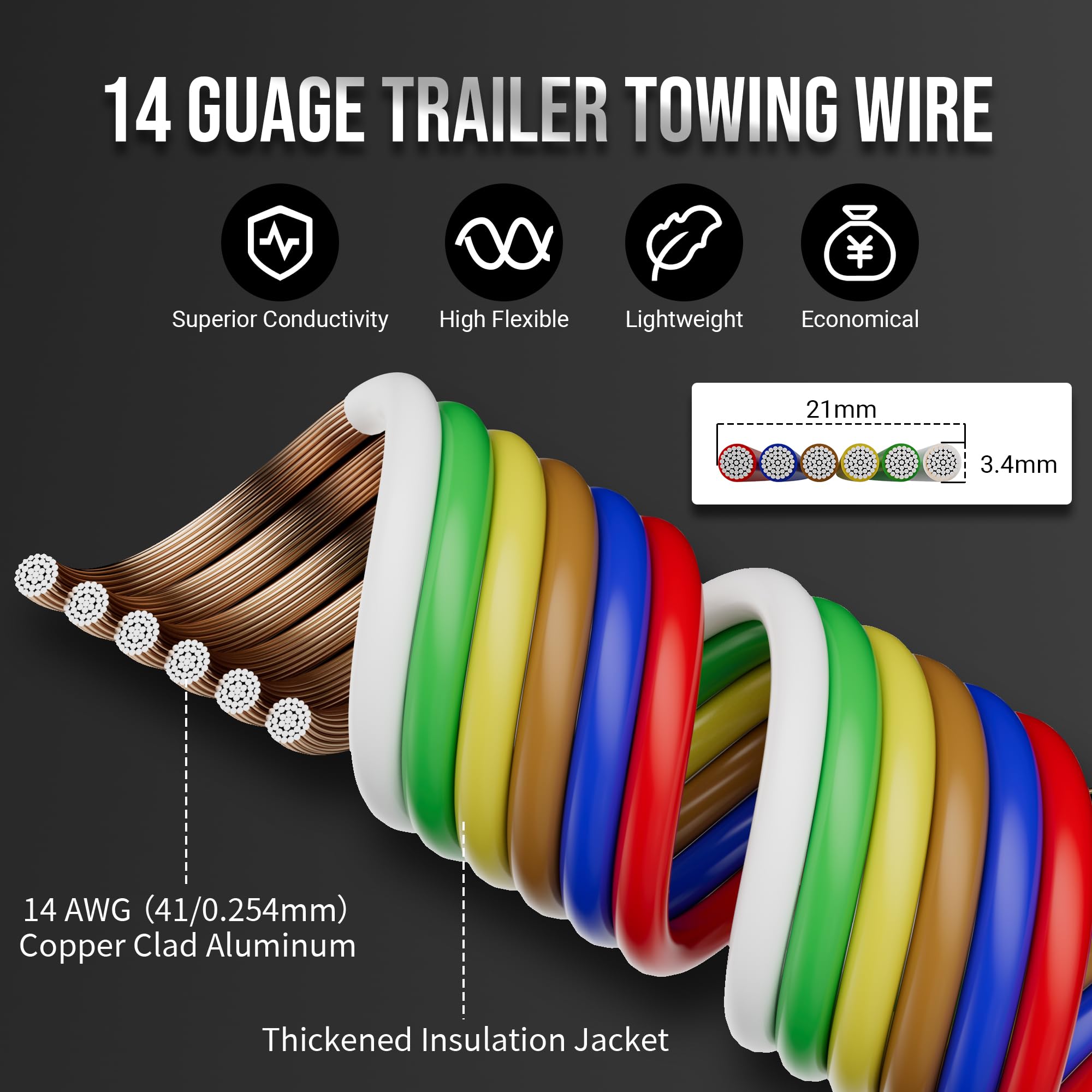

This harness bundles six parallel, stranded 14-gauge copper-clad aluminum (CCA) conductors into a flat, easy-to-route cable designed for long runs and heavy-duty trailer use. The heavier 14AWG strands reduce resistance compared with thinner 16AWG options, while the bonded configuration keeps wires neat and simplifies threading through frames, channel guides, and convoluted routing paths. Each conductor carries a distinct color so you can match signals quickly: ground, tail lights, left and right turn/stop, electric brake, and auxiliary 12V power.

How does this harness improve installation speed and neatness?

The flat, bonded layout keeps all six wires side-by-side so you can pull the assembly through tight spaces without snagging separate bundles. Color coding eliminates guesswork and reduces mistakes during splicing or connector assembly. Together these features shorten install time and create cleaner results on both new builds and repairs.

• Flat bonded design for one-pass routing through channels and grommets
• Distinct colors for easy wire identification and faster terminations
• Stranded conductors flex for routing around bends without breakage
• 50-foot length covers long trailer, RV, or boat runs without splicing

What electrical performance can I expect from 14AWG CCA stranded wire?

Fourteen AWG stranded CCA gives better current capacity and lower voltage drop than 16AWG, making it more suitable for long harness runs and electric brake controllers. The stranded construction improves flexibility and vibration resistance compared with solid wire, while the CCA core balances conductivity with lighter weight and lower cost.

• Lower resistance than 16AWG, helpful for long-distance 12V supply
• Stranded construction resists fatigue and vibration under chassis
• CCA reduces weight and cost while maintaining adequate conductivity
• White ground conductor is full 14AWG for secure grounding and corrosion resistance

Is this harness durable enough for outdoor and marine environments?

The HiFind cable is wrapped in a weather-resistant PVC jacket formulated to resist UV, moisture, oil, grease, and many common road chemicals. Temperature tolerance from -40°C to +105°C and compliance with SAE J1128 standards mean the wiring is designed to sustain harsh conditions beneath trailers and RVs without rapid deterioration.

• SAE J1128-compliant materials for automotive-grade performance
• UV-, oil-, and acid-resistant PVC jacket for long-term exposure
• Wide temperature range for cold winters and hot summers
• Robust abrasion and vibration resistance for under-chassis use

Which vehicles and projects is this harness suited for?

This 6-way wiring kit works with any standard 12V trailer or tow vehicle lighting system: trailers, camper rigs, boat trailers, cargo and horse trailers, food trucks, and small utility builds. It’s convenient for replacing worn harnesses, extending existing runs, or creating a complete new wiring loom on custom projects.

• Compatible with standard 6-way trailer lighting and electric brake setups
• Ideal for RVs, campers, boats, motorcycles, ATVs, and food trucks
• Can be separated into individual conductors for custom routing
• 50 ft length reduces the need for splices in long installations

Who is this for: If you’re a DIY trailer owner, RV hobbyist, boat rigger, or professional installer who needs a longer, heavier-gauge 6-way harness that’s easy to route and weather-resistant, this HiFind 14AWG 50ft bonded wiring kit is built for that purpose. It’s also suited to anyone replacing aging harnesses who wants full-size 14AWG grounding and cleaner, faster installation with color-coded conductors and durable PVC protection.
