Hipa Ignition Coil & Spark Plug Kit — Direct-Fit for Briggs & Stratton 593872/799582, 220mm HT Lead

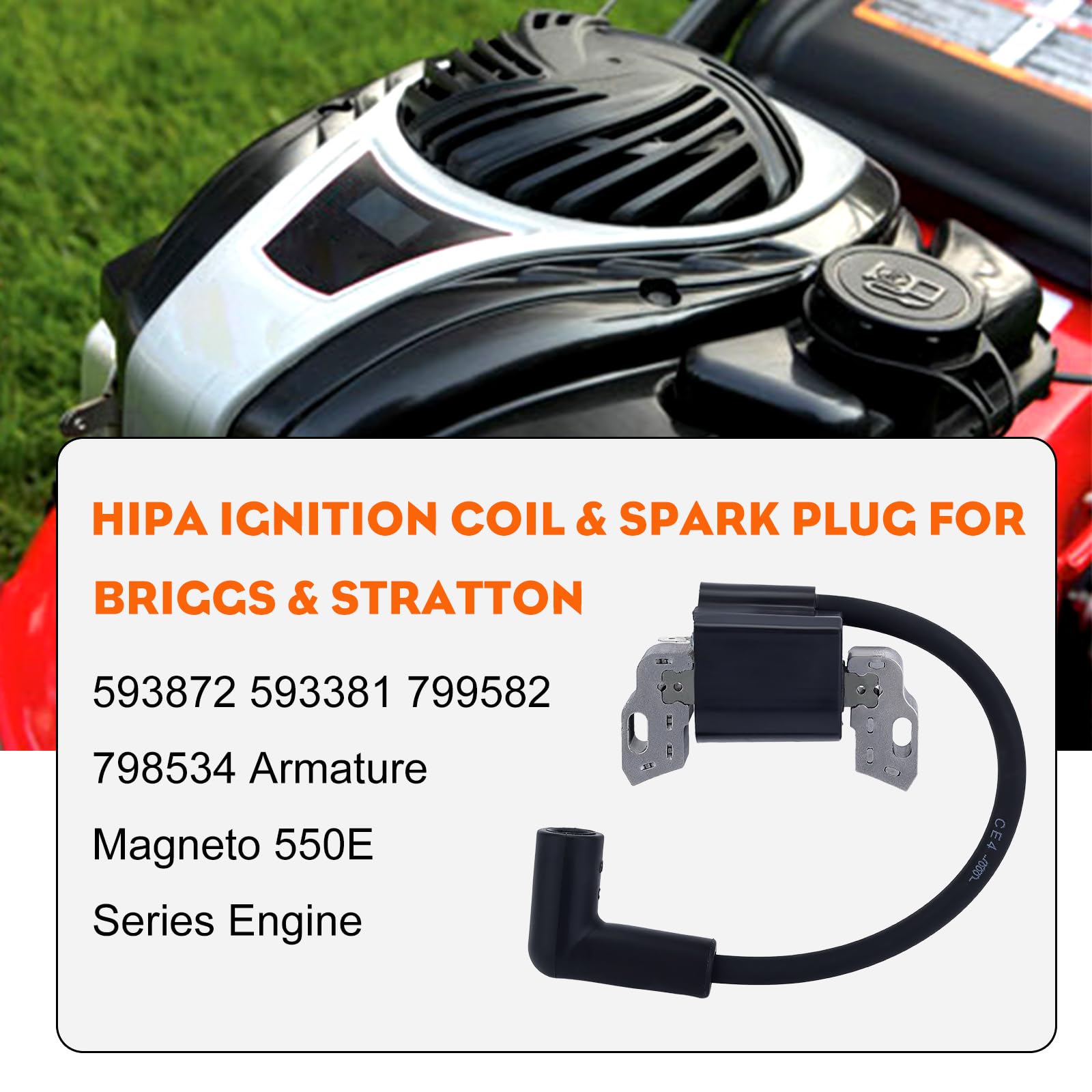

Hipa 593872 Ignition Coil Armature Magneto is a direct-fit replacement ignition coil and spark plug kit built to work with select Briggs & Stratton engines that used part numbers 593872, 799582, and 593381.

This ignition coil assembly from Hipa is sold as a replacement for older Briggs & Stratton coil part numbers and includes one coil and one spark plug. The listing reflects that the original 593872 design has been updated by the OEM (superseded by 84005272), so physical dimensions such as mounting hole spacing and high-tension lead length can differ between older and newer versions. To avoid fitment issues, measure your current coil’s wire length and mounting hole spacing before purchase; small adjustments to brackets or light filing are commonly used when installing a replacement that has slightly different hole spacings.

How do I know if this coil fits my engine?

Check the part numbers and key dimensions on your existing coil. This Hipa unit is intended to replace legacy Briggs & Stratton numbers 593872, 799582, and 593381, but because the OEM updated the design, measurements are the most reliable method.

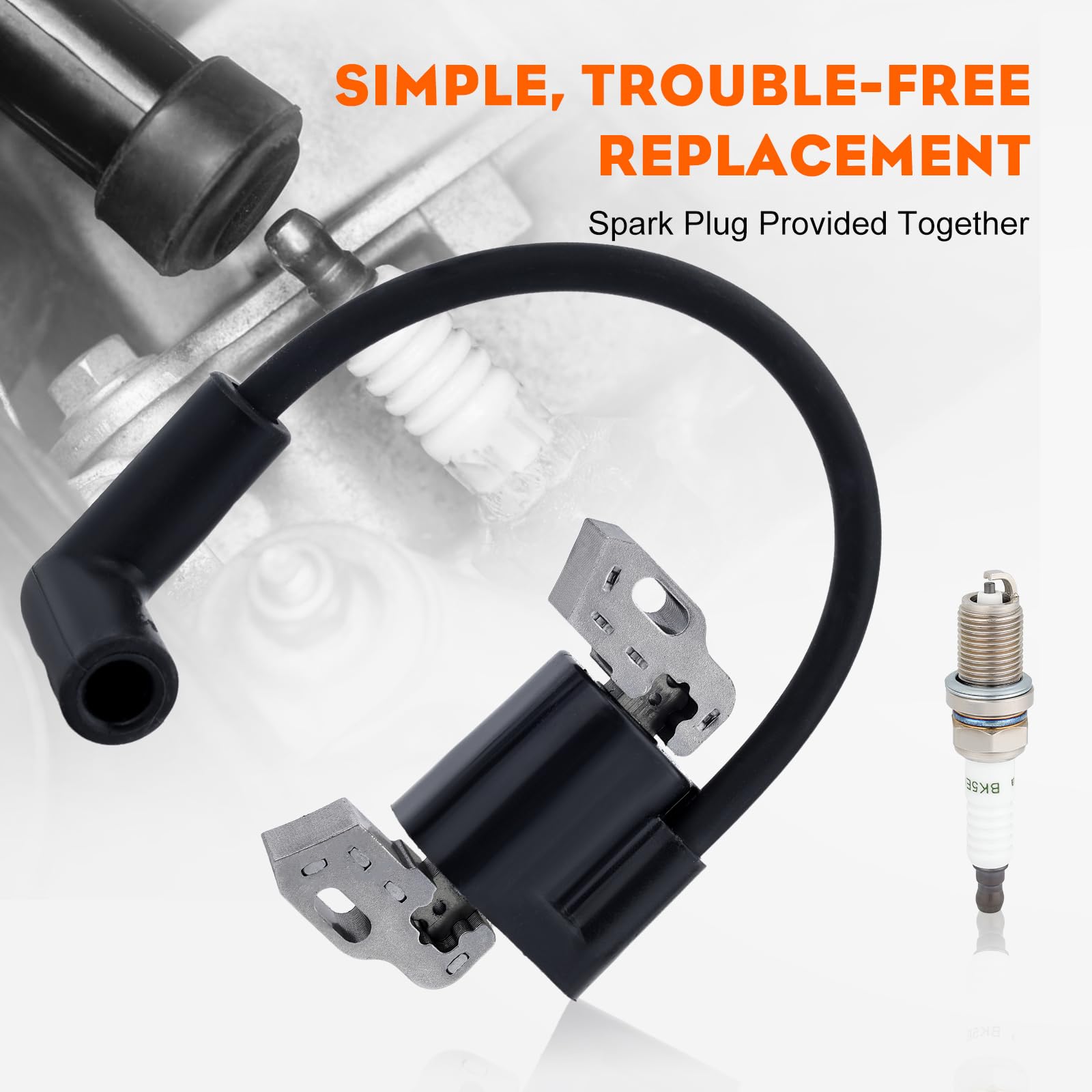

• High-tension lead length: approximately 220mm (8.7 inches)
• Mounting hole spacing: approximately 63.5mm (2.5 inches)
• Allow for 1–3mm variation between batches
• Measure your old coil before ordering to confirm compatibility

What should I do if the bolt holes don’t line up?

Misaligned bolt holes are a known consequence of the OEM superseding the original part; it is not a defect. Many users resolve this with simple adjustments rather than returning the part.

• Compare mounting hole spacing; if off slightly, try light filing of the bracket
• Minor bracket adjustment or a different bolt length can correct alignment
• Ensure secure fit and correct coil-to-flywheel gap after modification
• Contact a small-engine technician if you prefer professional assistance

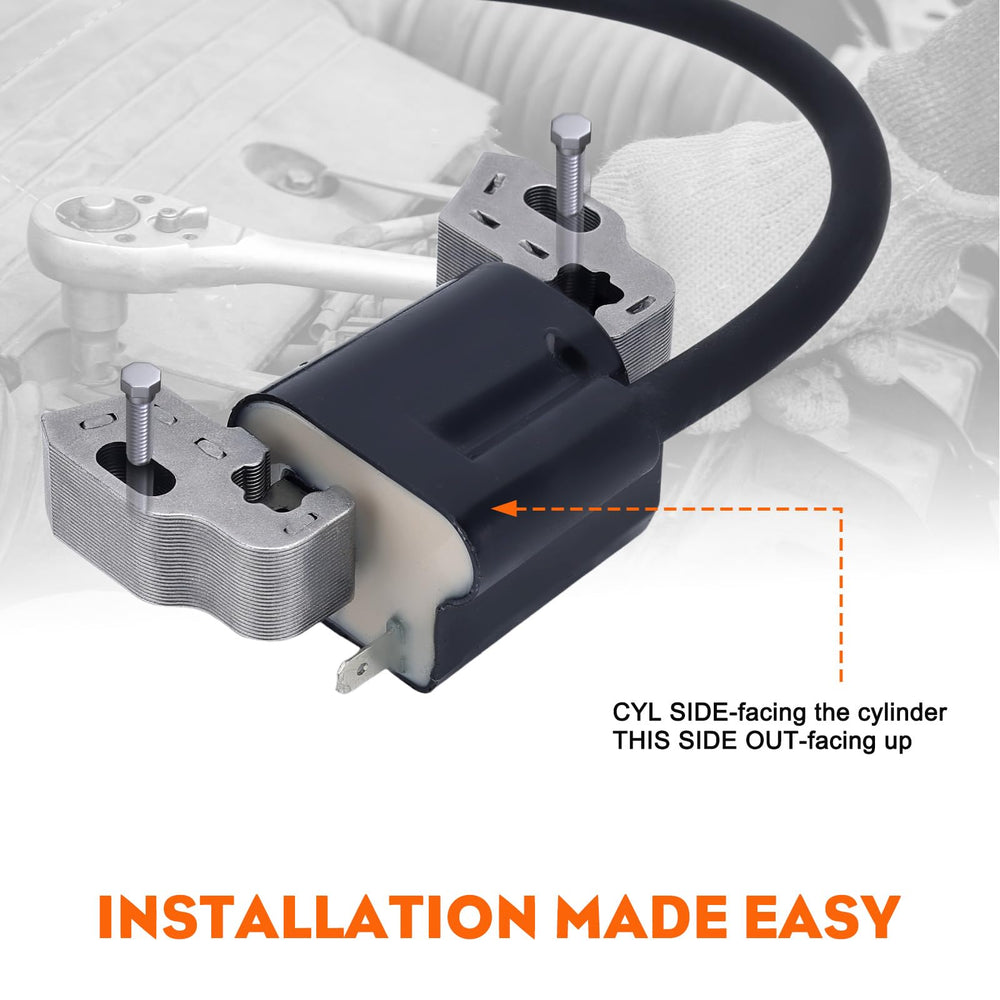

How do I install and set up this ignition coil for best performance?

Installation follows standard small-engine coil replacement practices: remove the old coil, mount the new coil in place, connect the high-tension lead to the spark plug, and set the air gap. Correct gap and secure mounting help ensure consistent spark delivery.

• Verify coil dimensions before mounting to reduce fitment surprises
• After mounting, set air gap to 0.010–0.014 inches (0.25–0.35 mm) with a feeler gauge
• Use insulated tools and disconnect the spark plug wire during installation
• Re-check tightness and clearance before starting the engine

What’s included and what materials are important to check?

The package contains one ignition coil and one spark plug. Confirm the high-tension lead length and mounting hole spacing match your application to avoid unexpected fitment work.

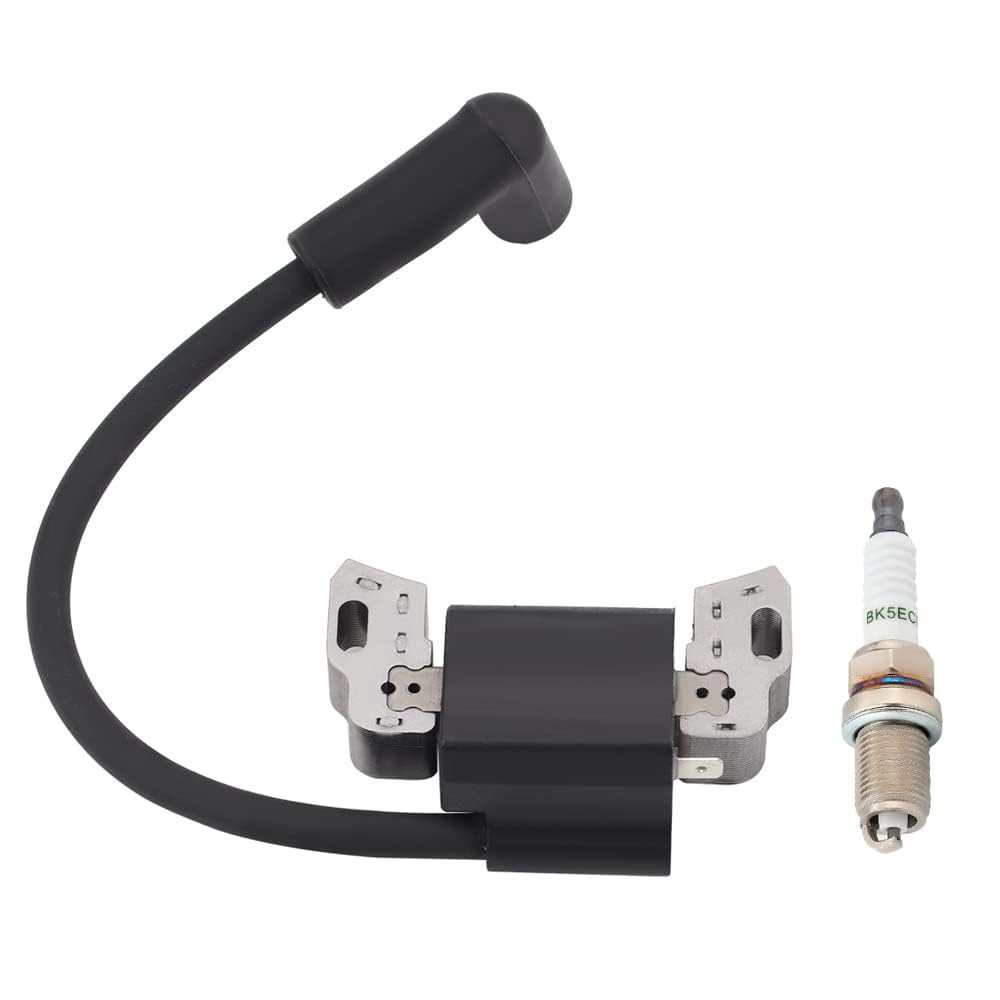

• Package contents: 1 ignition coil, 1 spark plug
• High-tension lead ~220mm (8.7 in) for common reach
• Mounting hole spacing ~63.5mm (2.5 in); check tolerance
• Small variations between production runs are possible

Who is this for: This Hipa ignition coil is intended for DIYers, small-engine mechanics, and owners of lawnmowers or outdoor power equipment who need a cost-effective replacement for older Briggs & Stratton coils (593872, 799582, 593381). It’s well suited to users comfortable measuring parts and performing light bracket or mounting adjustments when necessary. If you prefer bolt-in, no-modification replacements, verify the exact OEM revision or consult a professional to match current mounting specifications.
