Holley Vacuum Secondary Diaphragm 135-4 — Direct-Fit High-Performance Rubber Replacement

If your Holley carburetor’s vacuum secondary feels sluggish or leaks, the 135-4 diaphragm offers a durable, OEM-style fix. Manufactured from a resilient rubber compound, this diaphragm is intended to replace worn or cracked units that impede proper secondary plate actuation. It's a practical service part for street, race, or marine engines that rely on vacuum-operated secondary throttles.

How does the 135-4 diaphragm restore carburetor performance?

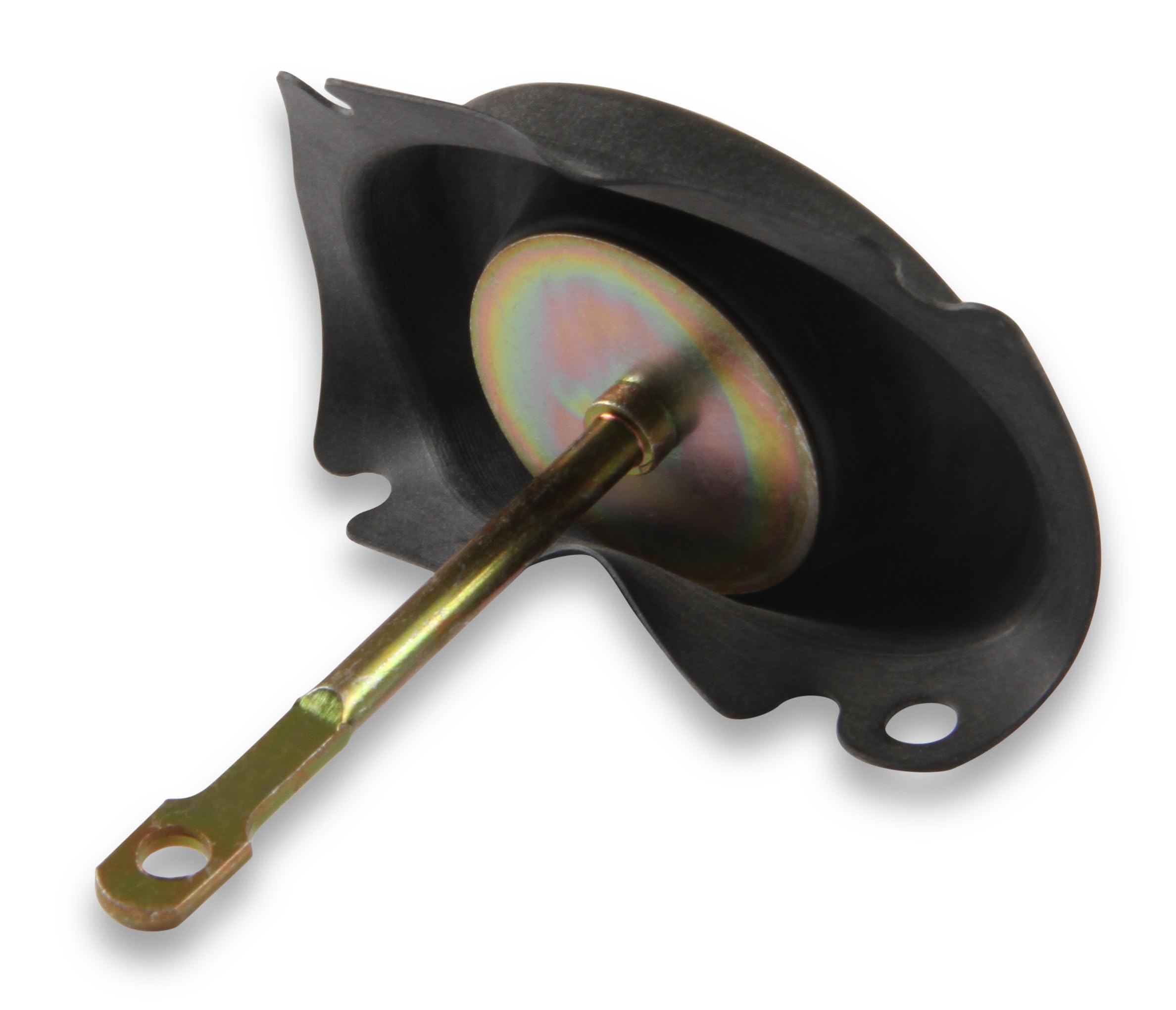

Replacing a degraded diaphragm eliminates vacuum leaks and restores predictable movement of the secondary throttle plates. When the diaphragm seals correctly, it allows the engine vacuum to control the secondary opening more smoothly, improving throttle response under load. Installation returns the carburetor to its designed actuation characteristics.

• Seals vacuum to prevent erratic secondary plate operation
• Restores smooth diaphragm flex and response
• Prevents fuel/air delivery inconsistencies linked to leaks

What materials and construction features matter for long life?

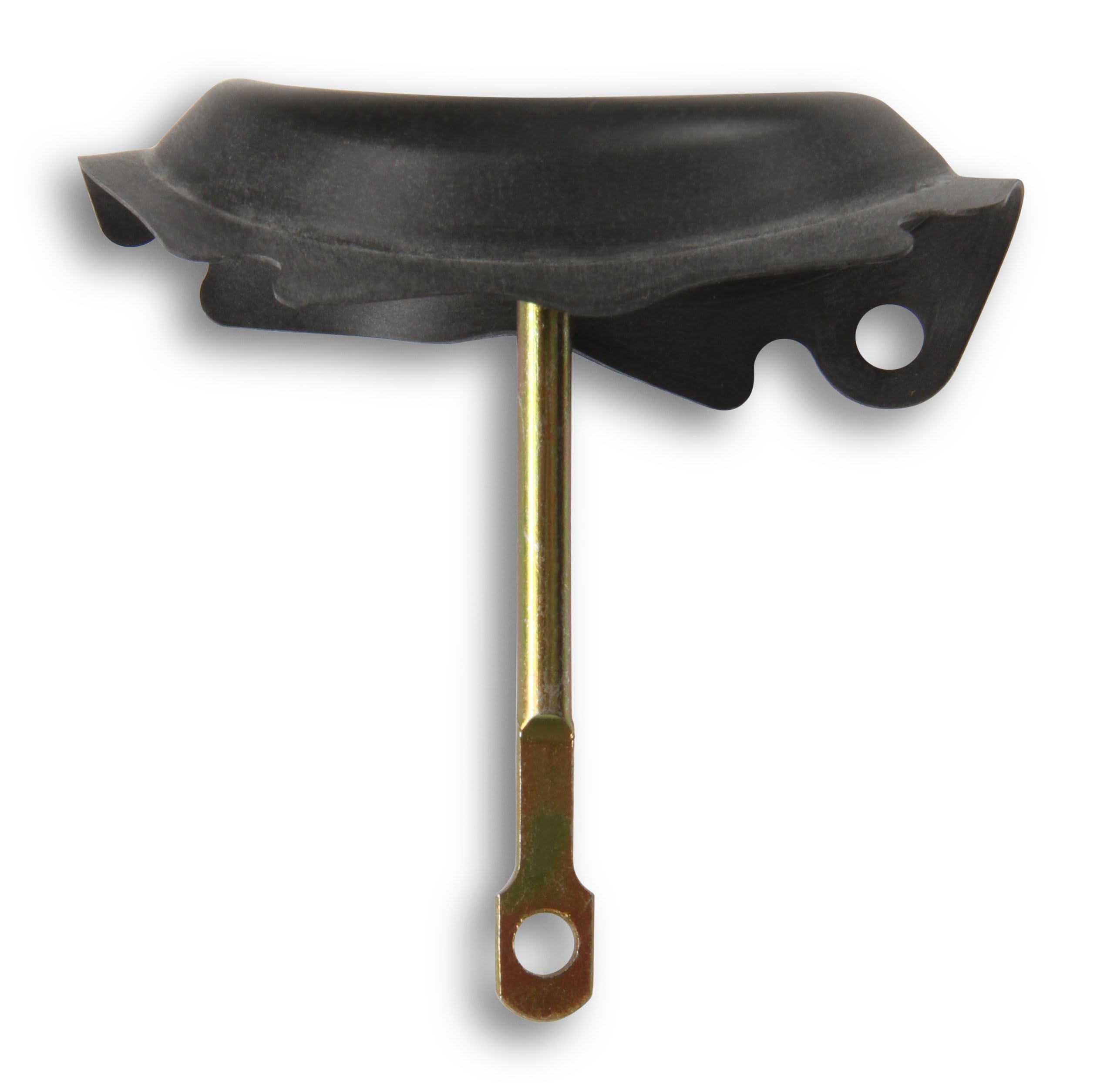

The 135-4 uses a high-performance rubber that resists fuel, heat, and ozone exposure better than older, brittle materials. Robust molding and consistent thickness help ensure the part maintains its shape and sealing surface under repeated cycling. That construction reduces the chance of premature cracking or deformation during normal use.

• High-performance rubber resists degradation from fuel and heat
• Consistent molding preserves sealing surface and flexibility
• Durable under repeated vacuum cycles for longer service life

How do I know this diaphragm fits my vehicle?

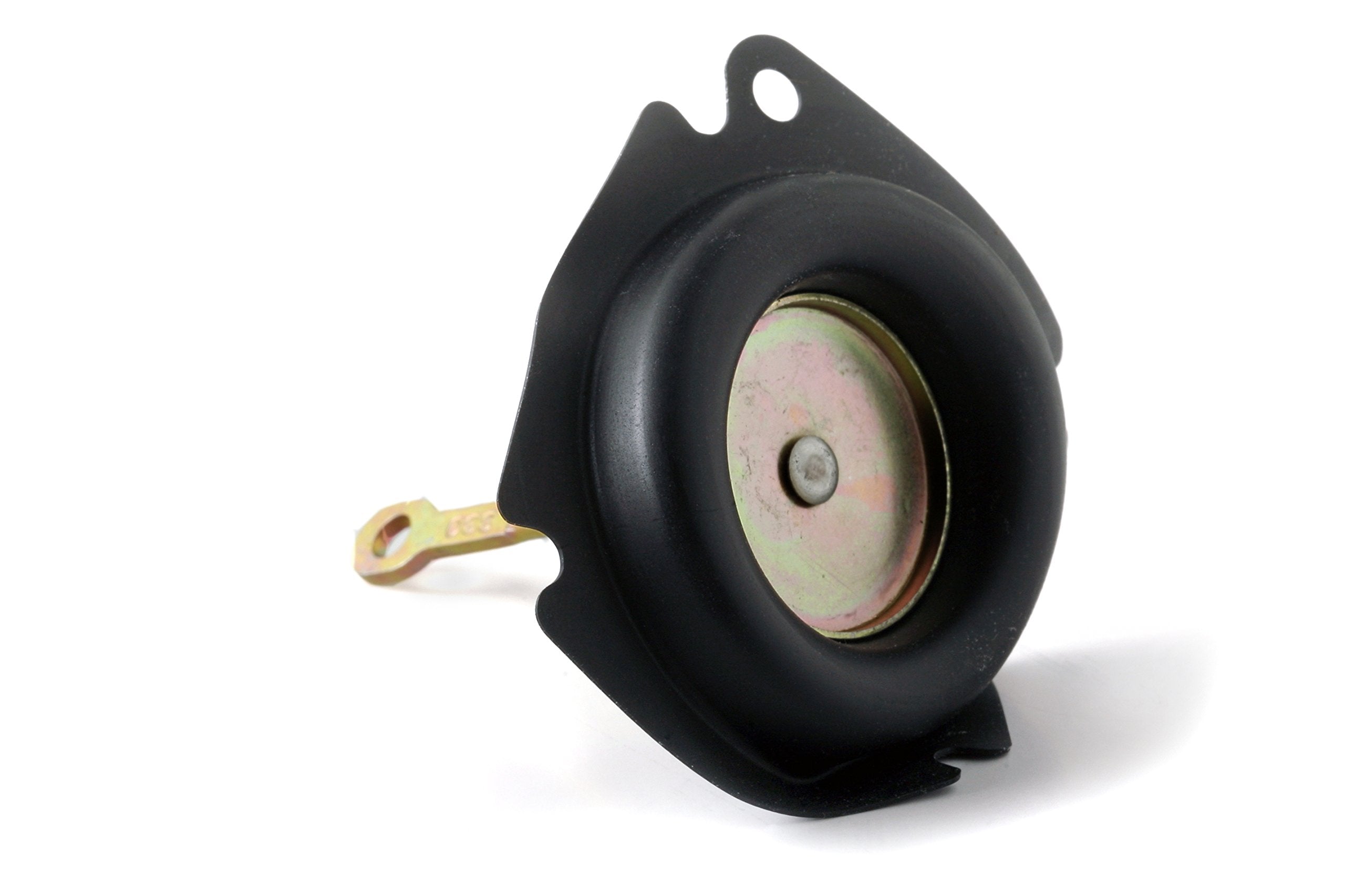

The Holley 135-4 is a vehicle-specific service part designed to match the original diaphragm used in compatible Holley vacuum secondary carburetors. Verify fit by cross-referencing your carburetor model number or consult Holley’s parts guide to confirm compatibility. Correct fitment ensures the diaphragm aligns with mounting holes and actuating components without modification.

• Check your carburetor model against Holley fitment charts

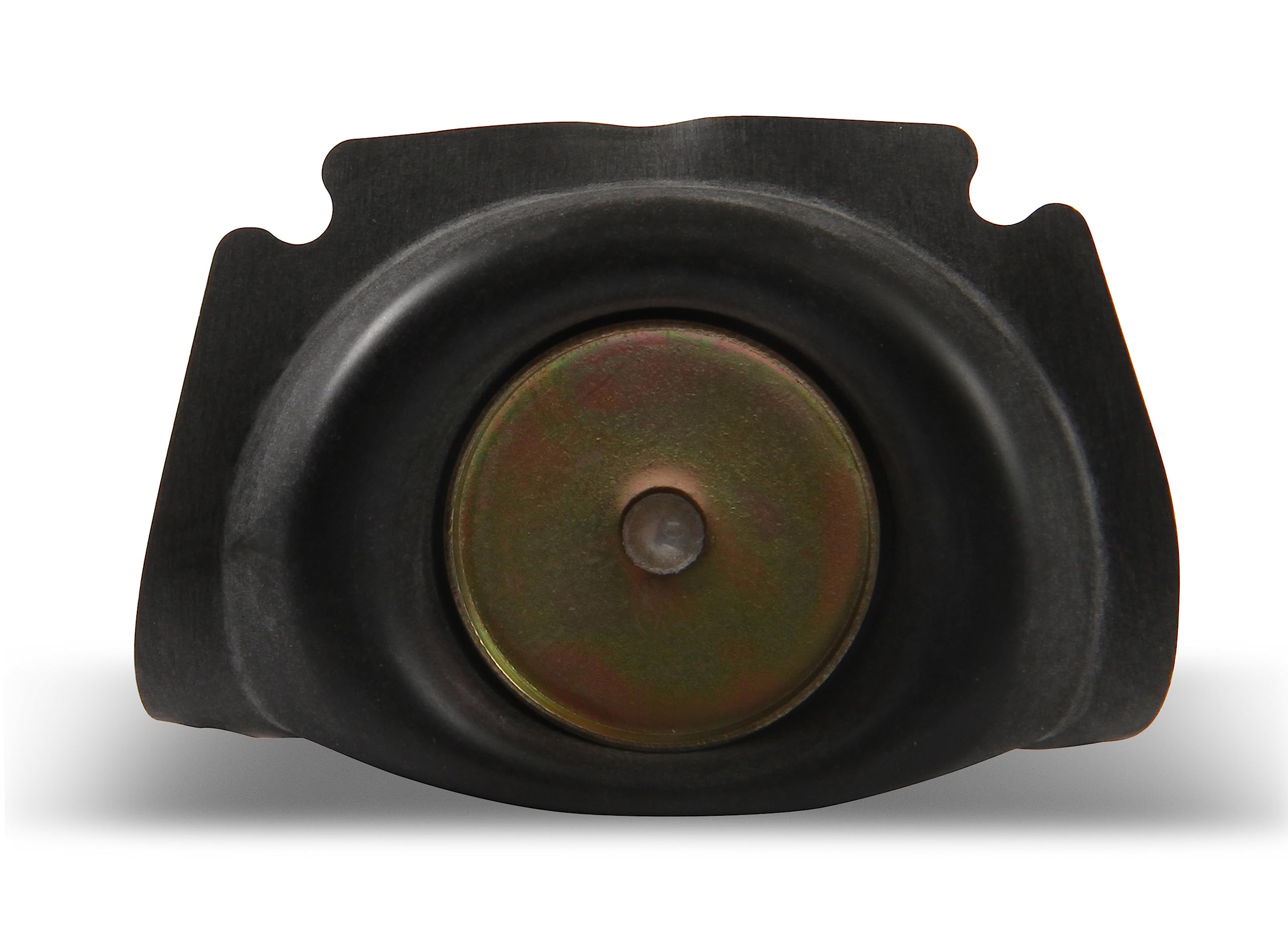

• Measure mounting pattern and diaphragm OD if unsure
• Use as a direct replacement when matched to the correct carb model

How simple is the replacement process?

Replacing the diaphragm is typically a straightforward maintenance task for anyone comfortable with basic carburetor service. It requires removing the secondary cover, swapping the old diaphragm for the new one, and reassembling with proper torque and alignment. Taking care to avoid pinching or stretching the new rubber speeds a trouble-free install.

• Remove secondary cover and old diaphragm carefully
• Seat new diaphragm flat, aligning any mounting holes or tabs
• Reassemble cover and verify smooth secondary movement

Who is this for? The Holley 135-4 Vacuum Secondary Diaphragm is intended for enthusiasts, mechanics, and racers who maintain Holley vacuum-secondary carburetors and need a dependable replacement part. It suits street rods, classic restorations, performance builds, and marine applications where original diaphragms have aged or failed. Choose this part when you want a like-for-like diaphragm made from a more durable rubber compound to keep your carburetor operating as intended.
