HUAREW 60A MRBF Fuse Holder Single-Stud M8 (5/16") Red Cap, Compact IP66 Sealed

HUAREW 60 AMP MRBF terminal block is a compact, ignition-protected single-stud fuse holder (M8 / 5/16") designed to deliver 60A DC protection for batteries and main DC circuits.

This compact MRBF fuse holder combines a robust thermoplastic body, ceramic insulation, and nickel-plated copper fuse elements to protect DC power runs in vehicles, boats, RVs, and other equipment. Its M8 single stud accepts 5/16" ring terminals and stacks with standard hardware, while the red insulating cap and IP66-level sealing reduce the risk of shorts from moisture and dust. The kit ships with a washer, lock washer, and hex nut for straightforward mounting.

How does this fuse holder save installation space?

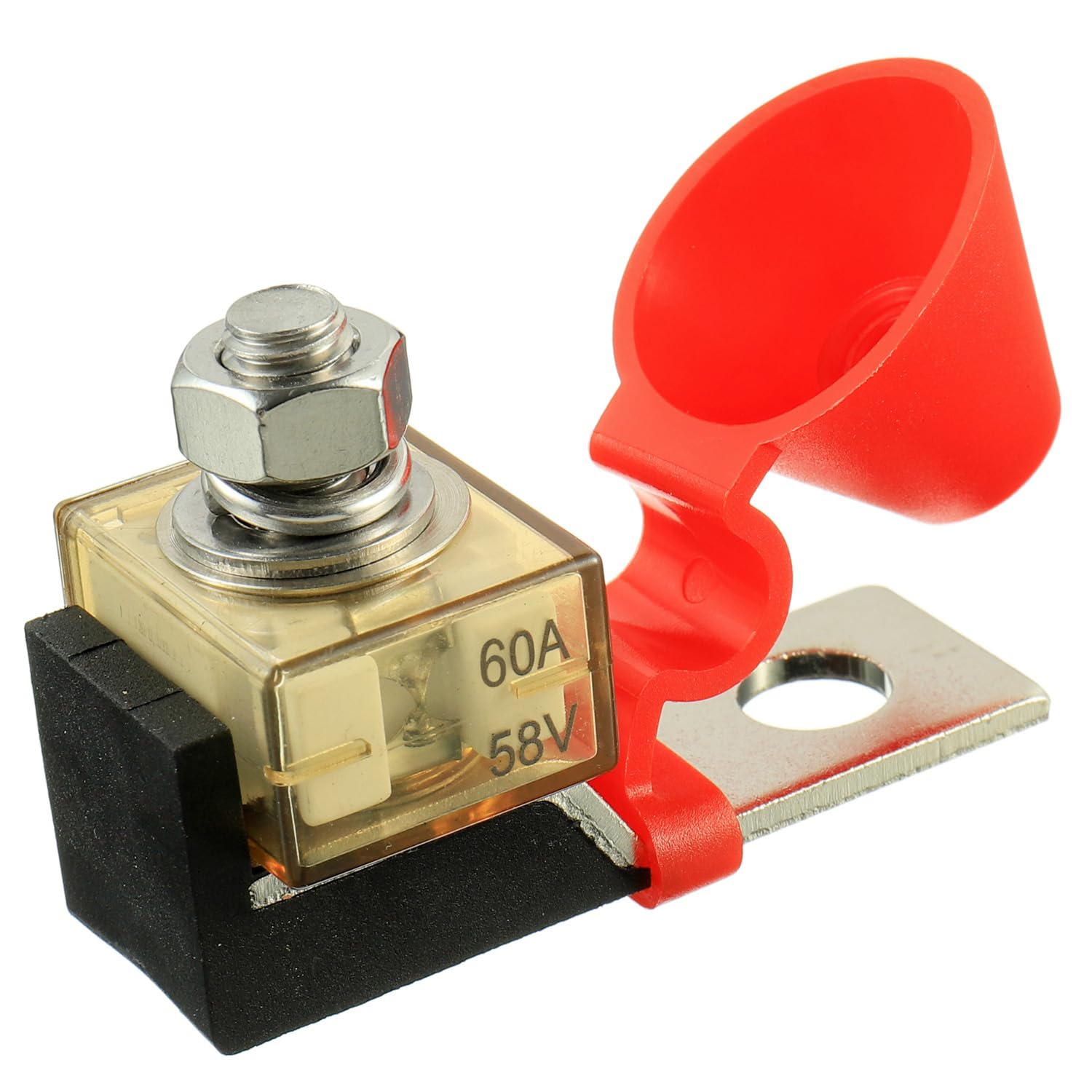

The HUAREW MRBF is engineered to be small and efficient so you can place main-line protection in tight panels or battery compartments. Its single-stud layout and ability to accept stacked terminals reduce the footprint compared with multi-post fuse blocks. The clear PES fuse housing is thin yet durable, helping keep overall depth minimal.

• M8 (5/16") single stud for compact terminal connections
• Accepts stacked ring terminals to combine circuits on one stud
• Low-profile PES fuse housing and thermoplastic base reduce bulk
• Mounting hole sized for M10 (3/8") hardware fits common panels

What materials are used and why do they matter?

Materials were selected for electrical performance and long service life: a PA66-RG301 thermoplastic base resists heat and corrosion, ceramic insulation offers high-temperature stability, and nickel-plated copper fuse strips deliver reliable conductivity. Stainless steel studs and galvanized self-locking nuts resist oxidation and maintain secure connections under vibration.

• Body: PA66-RG301 thermoplastic — heat and corrosion resistant
• Fuse element: nickel-plated copper alloy, 2.5mm thick for conductivity
• Studs: stainless steel for strong, low-resistance contacts

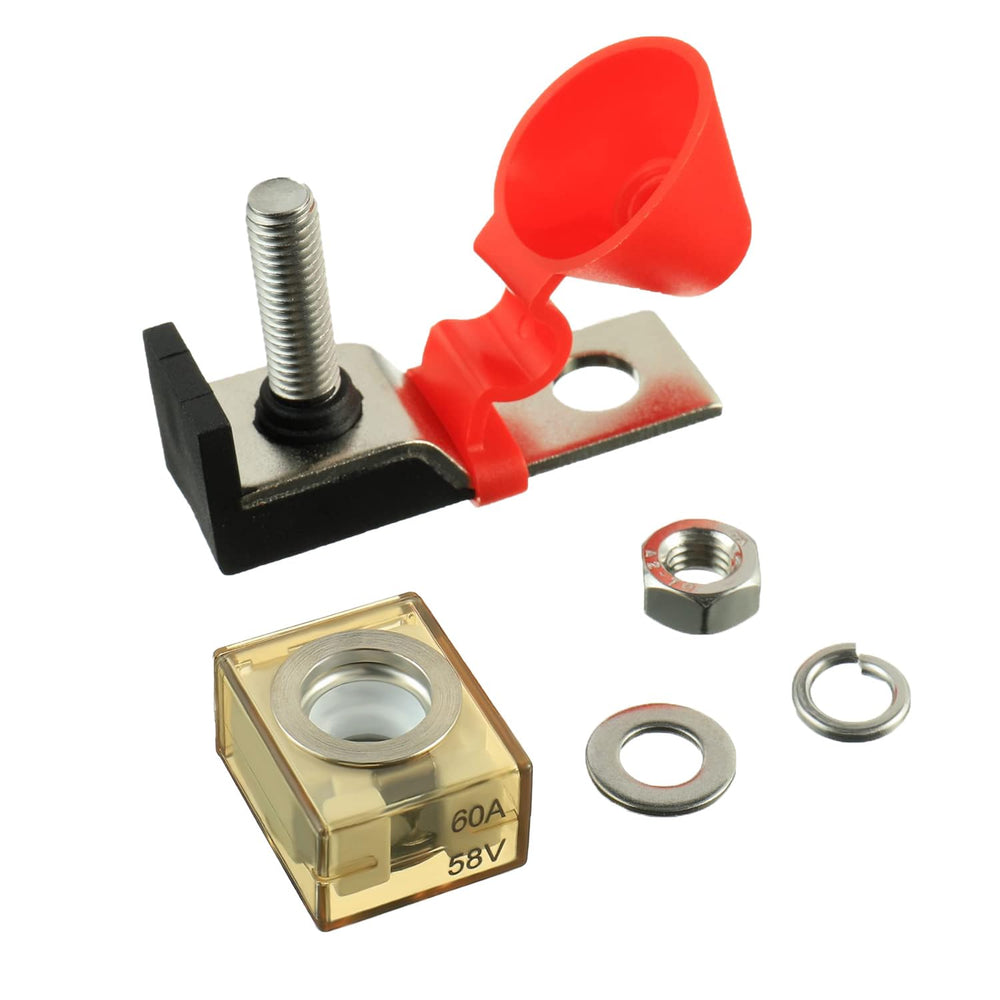

• Insulation: ceramic inserts increase thermal stability and safety

Is this suitable for marine and automotive use?

Yes—the unit is designed as an ignition-protected MRBF terminal suitable for battery circuits, inverters, windlasses, bow thrusters and similar DC loads up to 58VDC. Its IP66 protection, insulating cap, and corrosion-resistant hardware make it appropriate for harsh environments where moisture, dust or salt spray are concerns.

• Rated up to 58VDC and 60A continuous current
• Red insulating cap prevents accidental short circuits
• IP66-level sealing guards against dust and heavy spray
• Common applications: RVs, boats, cranes, new-energy vehicles, charging piles

Who is this for? Installers, marine electricians, RV DIYers and integrators who need a compact, ignition-protected main-line fuse solution will appreciate the HUAREW 60A MRBF single-stud holder. It’s also suitable for builders of battery banks, small commercial equipment, or anyone replacing a single-stud 5/16" battery fuse with a corrosion-resistant, space-saving option. The included hardware and clear fuse housing simplify installation and inspection while the durable materials provide long-term reliability in demanding DC environments.
