HUAREW MRBF 100A Single-Stud Fuse Holder M8 (5/16") — Compact Ignition-Protected Battery Terminal, Clear Housing

HUAREW 100 AMP MRBF single-stud fuse holder is a compact, ignition-protected battery terminal fuse that delivers 100A DC protection in tight spaces.

This MRBF-style terminal fuse box combines corrosion-resistant hardware, high-temperature ceramics and a clear PES fuse housing to protect DC circuits up to 58V. It accepts M8 (5/16") studs and 3/8" (M10) mounting holes, and ships with the insulating cap, washers and hex nut needed for a secure battery or busbar connection. Built from robust thermoplastic (PA66-RG301) with stainless steel fasteners and nickel-plated copper fuse elements, the unit is designed for marine, automotive and renewable-energy installations where safety and compactness matter.

How does this fuse holder save space in an electrical panel?

The HUAREW MRBF fuse holder is engineered for compact installations where multiple power circuits share limited real estate. Its single-stud layout and slim housing allow stacking or close mounting to busbars and battery terminals without bulky enclosures. The design minimizes footprint while keeping the fuse accessible for inspection and replacement.

• Single M8 (5/16") stud for tight terminal spacing
• 3/8" (M10) mounting hole compatibility for secure fastening

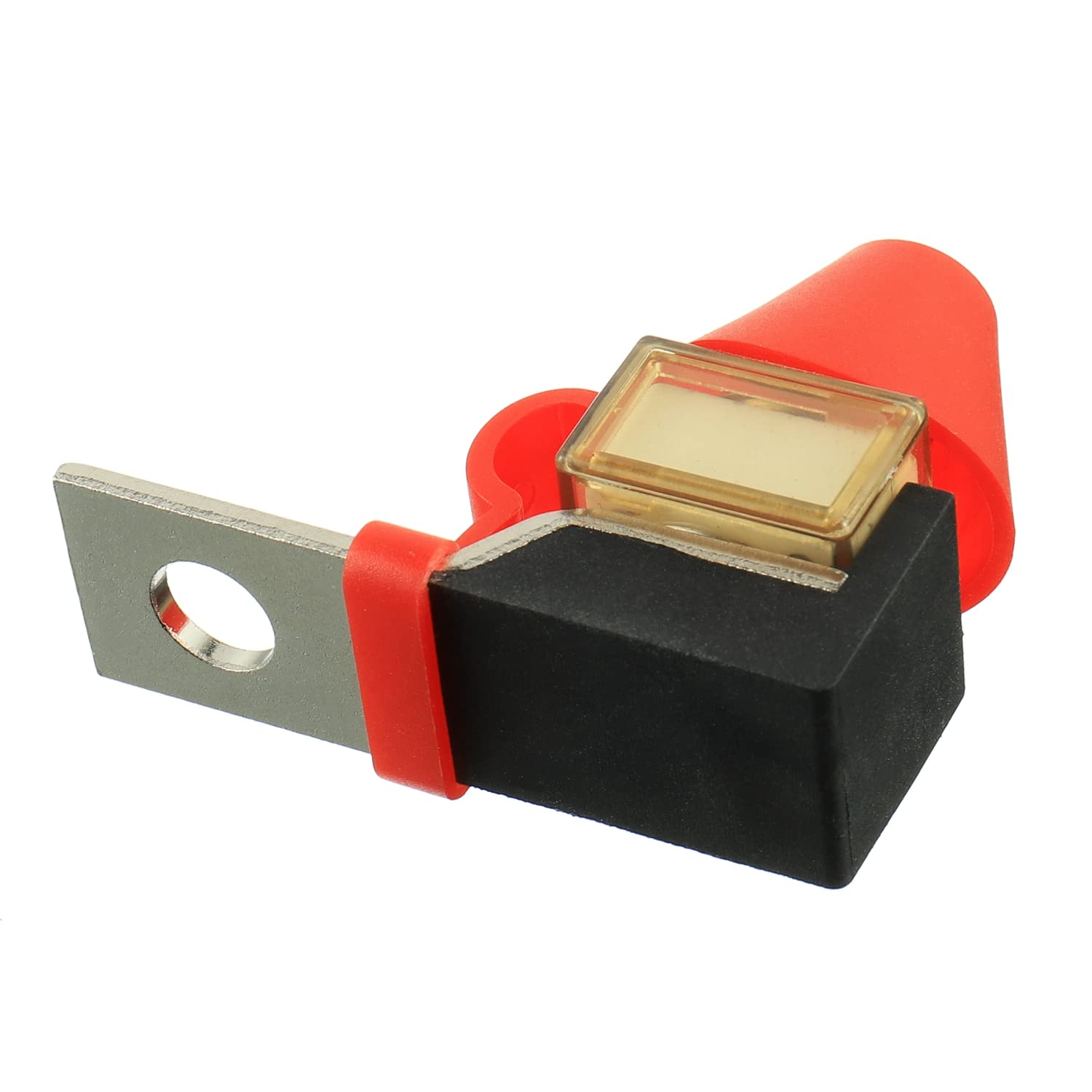

• CLEAR PES fuse housing for quick visual fuse condition checks

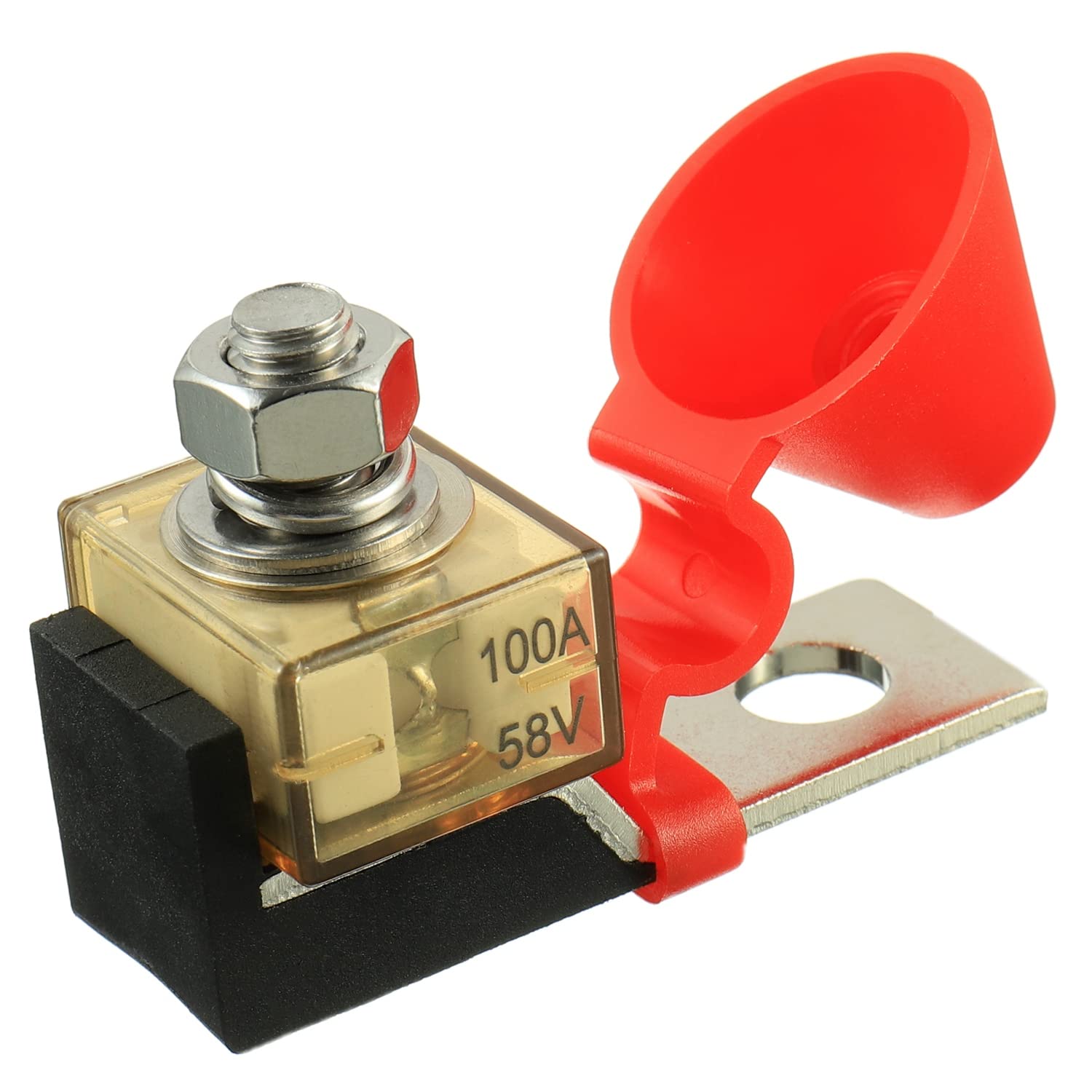

• Red insulating cap reduces accidental shorts in crowded panels

What materials protect the fuse under harsh conditions?

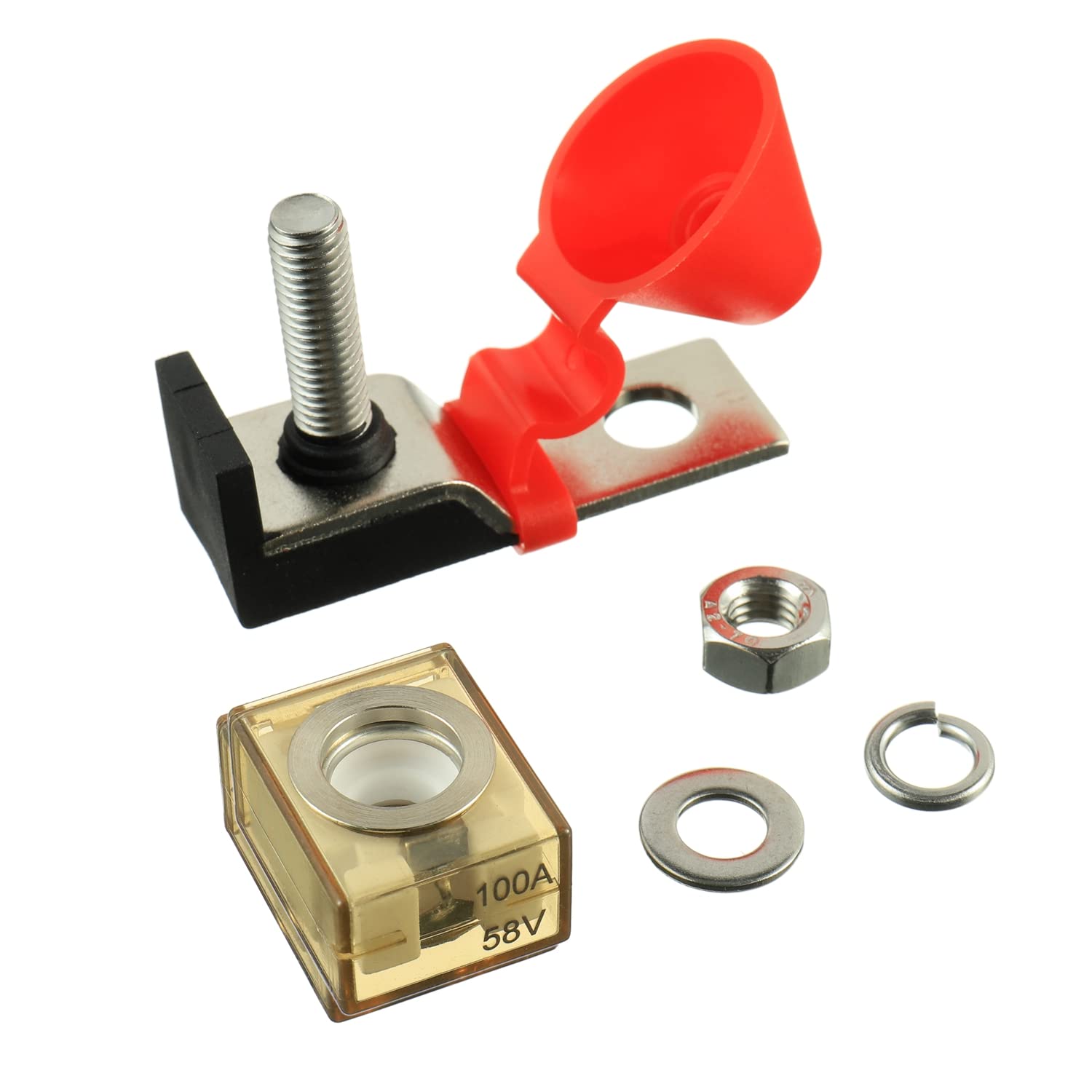

Components are selected to withstand heat, oxidation and damp environments typical of marine and vehicle use. The seat is thermoplastic PA66-RG301 for temperature and corrosion resistance; the stud and nut are stainless steel for conductivity and rust protection. The fuse element is a nickel-plated copper alloy and the internal insulation uses ceramic to handle high temperatures safely.

• PA66 thermoplastic body resists heat and corrosion
• Stainless steel stud and galvanized self-locking nut prevent rust
• Ceramic insulation for high-temperature resilience
• Nickel-plated copper fuse element ensures good conductivity

Is this fuse holder safe for marine and vehicle applications?

Yes — the HUAREW MRBF holder is designed with ignition protection and environmental sealing in mind, making it suitable for boats, RVs and many vehicle applications. The insulating cap, waterproof housing properties, and secure fastening reduce the risk of accidental shorts and environmental degradation. It’s rated for DC systems up to 58V and intended for primary circuit protection like batteries, windlasses, and bow thrusters.

• Ignition-protected MRBF style reduces spark risk near fuel sources
• Water- and dust-resistant construction for marine use
• Rated to 58V DC and 100A continuous current
• Includes cap, washer, lock washer, and hex nut for safe installation

How do I install and maintain this terminal fuse holder?

Installation is straightforward: mount the base to a 3/8" (M10) hole, secure the M8 stud connection through your ring terminal, and fit the supplied nut and washers. Use the red insulating cap after wiring to prevent shorting. Periodically inspect the clear fuse housing and fasteners for corrosion and tightness, replacing the fuse if it shows overheating signs.

• Mount through a 3/8" (M10) hole and tighten the supplied nut
• Use 5/16" (M8) ring terminals for a reliable connection
• Cover with the insulating cap to avoid accidental shorts
• Visual check of the clear PES housing for fuse condition

Who is this for: technicians, marine electricians, RV owners, and DIYers who need a compact, ignition-protected 100A DC fuse solution for battery banks, inverters, windlasses, bow thrusters and other high-current DC circuits. If you require a corrosion-resistant, easy-to-install terminal fuse holder with clear visual fuse access and M8 hardware compatibility, the HUAREW MRBF 100A terminal fuse box is designed to meet those needs without occupying excessive panel space.
