HZ Ignition Coil for Briggs & Stratton 590454 Compatible — 5–6.5 HP Replacement Coil, OEM-fit

High-quality HZ ignition coil designed to replace Briggs & Stratton 590454, 802574, 796964, 695711 and similar magneto armatures for small engines.

If your mower, tractor, or small engine stalls, misfires, or won't spark, a worn or damaged ignition coil is often the cause. This HZ replacement ignition coil is built to match the bolt pattern, wire routing, and electrical output of many Briggs & Stratton and compatible engines — including Quantum 127802 series 5 HP and various 6.5 HP (205cc) applications — so you can restore reliable ignition without buying a new engine.

How do I know this HZ coil matches my Briggs & Stratton model?

Confirming fit is straightforward: compare the part numbers and mounting pattern on your old coil with the list of compatible numbers and engine model families. The HZ coil is manufactured to match common OEM dimensions and terminal placements used across many Briggs & Stratton, Toro, Vanguard and Craftsman engine lines.

• Replaces common part numbers: 590454, 802574, 796964, 695711, 555530, 557040, 492416, 493237, 491760, and others.
• Fits Quantum 127802 series 5 HP and numerous 6.5 HP (205cc) engines.
• Compatible with many Toro, Murray and Craftsman engine models listed in the product details.

What performance and durability features does the HZ ignition coil offer?

The HZ coil is constructed to deliver consistent spark energy and resist vibration and heat commonly encountered inside mower engine compartments. Materials and winding specifications are selected to provide stable ignition timing and reduce misfires across normal operating conditions.

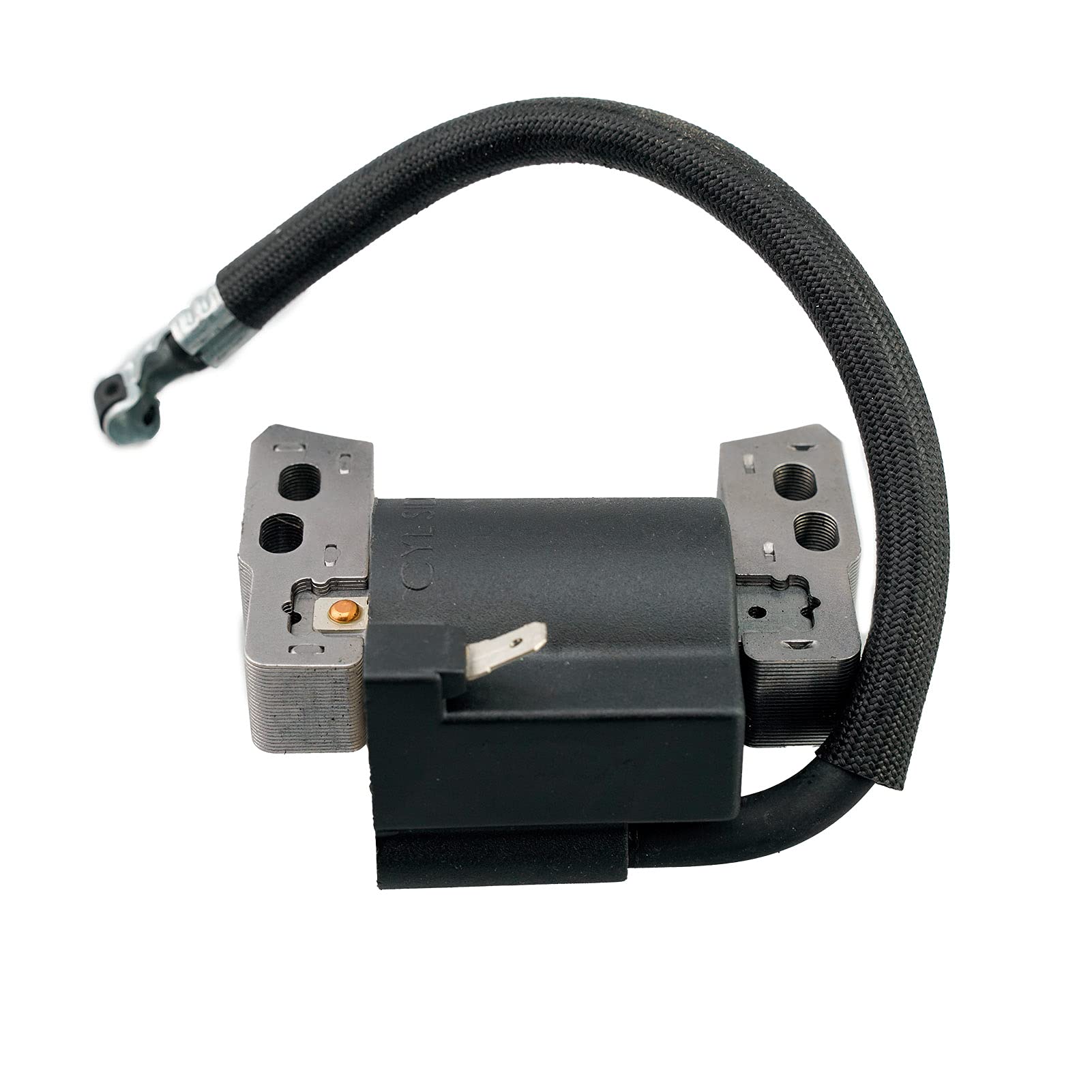

• Robust windings and insulation for reliable spark generation.

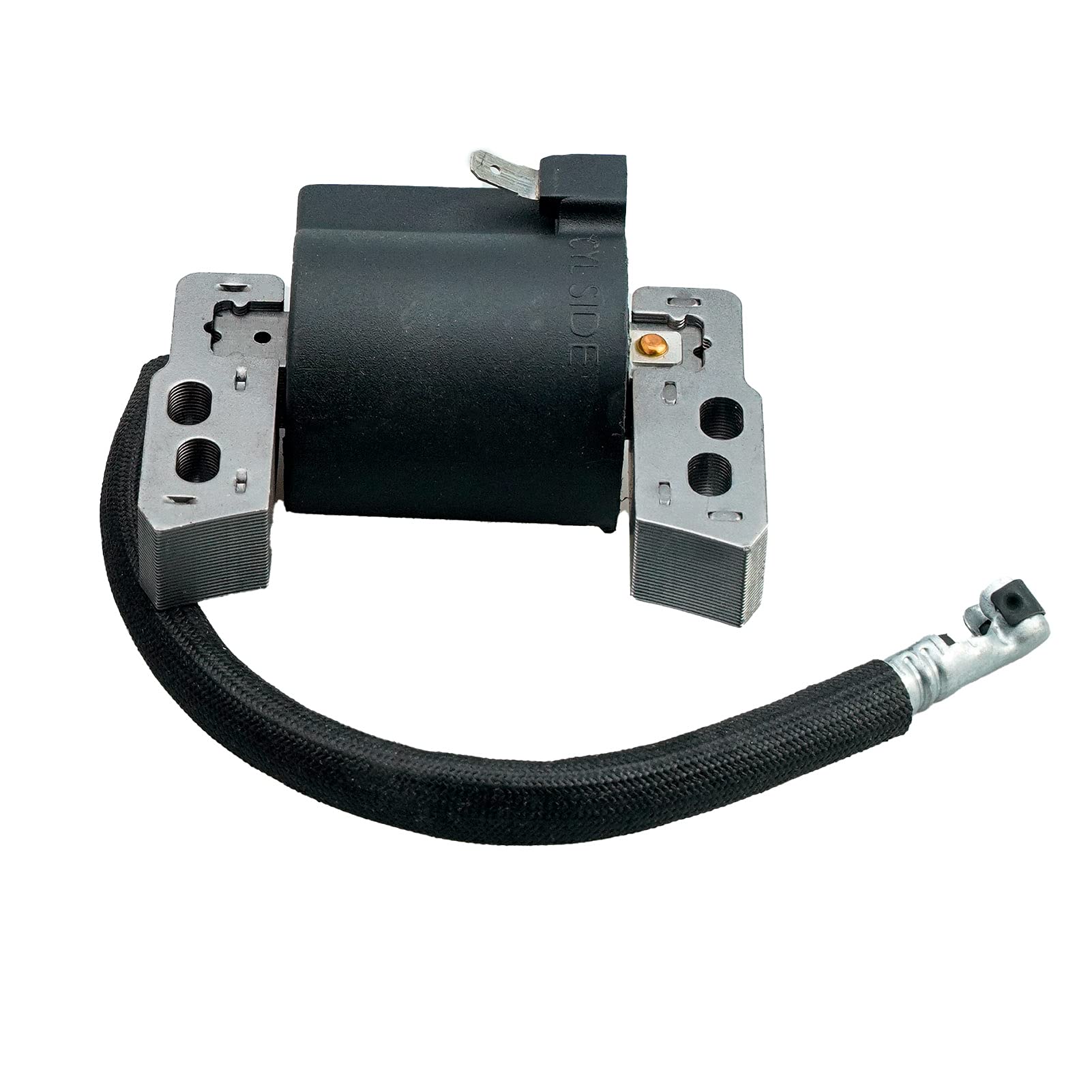

• Mounting flange and terminal arrangement matched to OEM patterns.
• Designed to withstand typical engine heat and vibration for extended service life.

How do I install the replacement coil on my lawn mower or tractor?

Installation is a moderate DIY task for someone comfortable removing the engine cover and working near the flywheel. Basic hand tools and attention to flywheel key alignment and air gap specs are all you need to restore ignition function quickly.

• Disconnect the spark plug and remove the engine shroud for access.
• Remove the old coil, transfer any mounting hardware, and align the new coil with the flywheel per OEM air-gap specs.
• Reconnect the kill wire and high-tension lead, test for spark, then reassemble the engine cover.

Will this coil work with other brands like Toro or Craftsman?

Yes — the HZ coil replaces many aftermarket and OEM coils used across Toro, Craftsman, Murray and Vanguard small engines where the same mounting and electrical characteristics apply. Always verify part numbers and engine compatibility before installing.

• Lists compatibility with numerous Toro model numbers and Craftsman engine IDs in the product details.
• Designed as a cross-reference replacement for several OEM ignition coil numbers.
• Works for a broad range of walk-behind mowers, lawn tractors, and small engine applications when matched correctly.

Who is this for: The HZ ignition coil is ideal for DIY mechanics, lawn-care professionals, and anyone maintaining older Briggs & Stratton, Toro, Murray or Craftsman small engines who needs a dependable, cost-effective replacement part. If your machine shows ignition problems and the part numbers listed match your existing coil, this unit offers a straightforward route to restoring spark and engine reliability without sourcing scarce OEM components.
