iFJF Carburetor Rebuild Kit for Weber 32/36 DGV DGAV DGEV – 92-3237-05 with Needle, Diaphragms & Gaskets

Complete replacement kit for Weber 32/36 DGV-series carburetors that restores worn needle, seat, diaphragms and gaskets for reliable fuel delivery.

This iFJF Carburetor Rebuild Kit (92-3237-05 / 92323705) gathers the most commonly failing service parts for Weber 32/36 DGV, DGAV and DGEV carburetors into one package. Instead of sourcing each small part separately, this set gives you the needle and seat, accelerator pump diaphragm, full gasket set, and base gasket needed to refresh the carburetor's internal seals and moving components. The kit is useful for hobby mechanics, restorers, and anyone maintaining classic engines that originally used Weber 32/36 family carburetors.

What exactly is included and why does each piece matter?

The kit contains parts chosen to address common deterioration points inside these Weber carburetors. Replacing worn seals and diaphragms prevents leaks and inconsistent fuel metering, while the needle and seat set restores float control to reduce flooding or starvation.

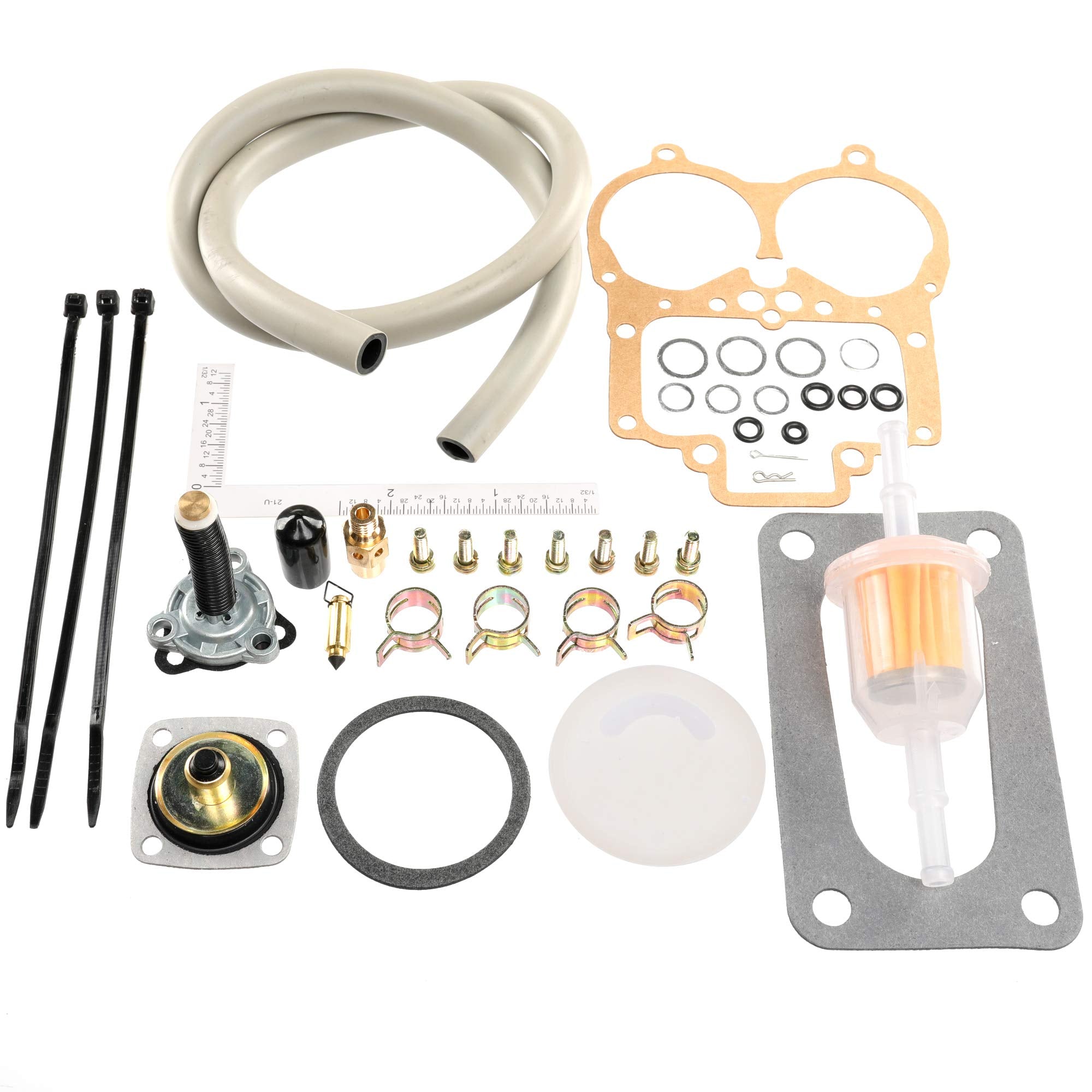

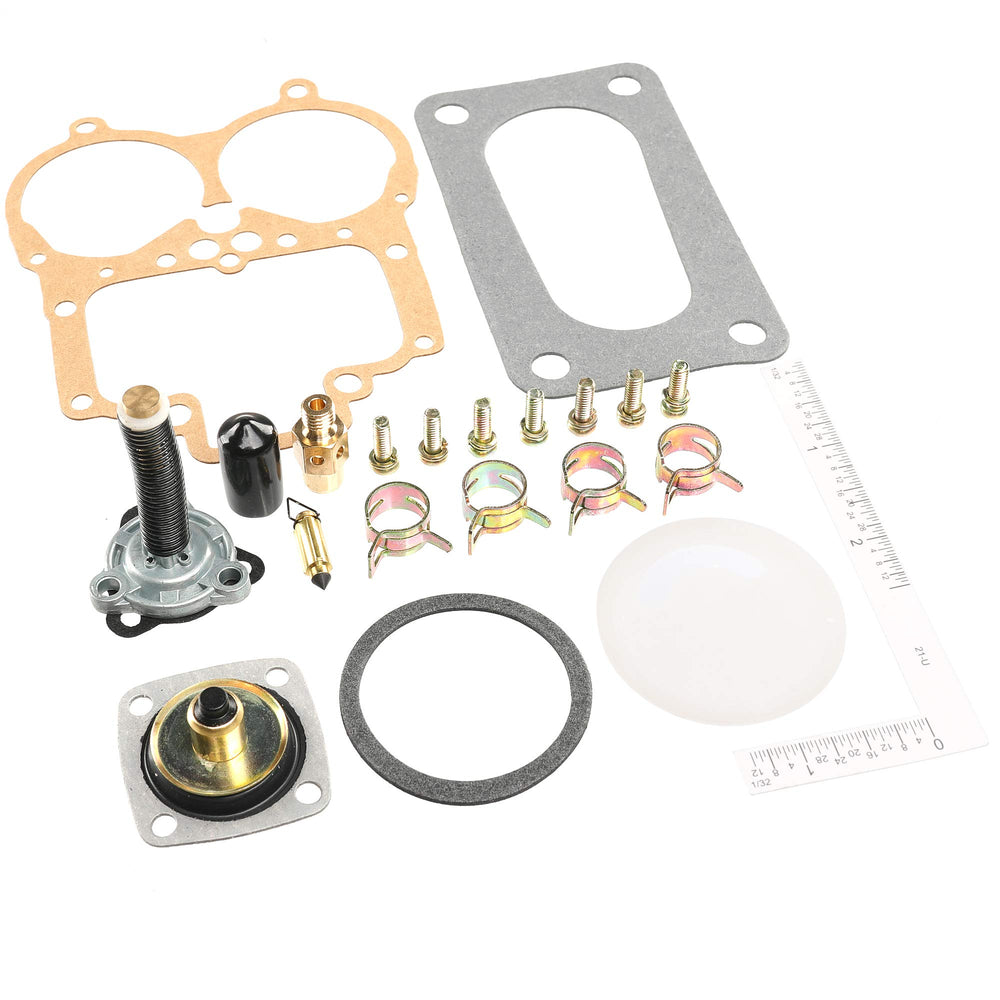

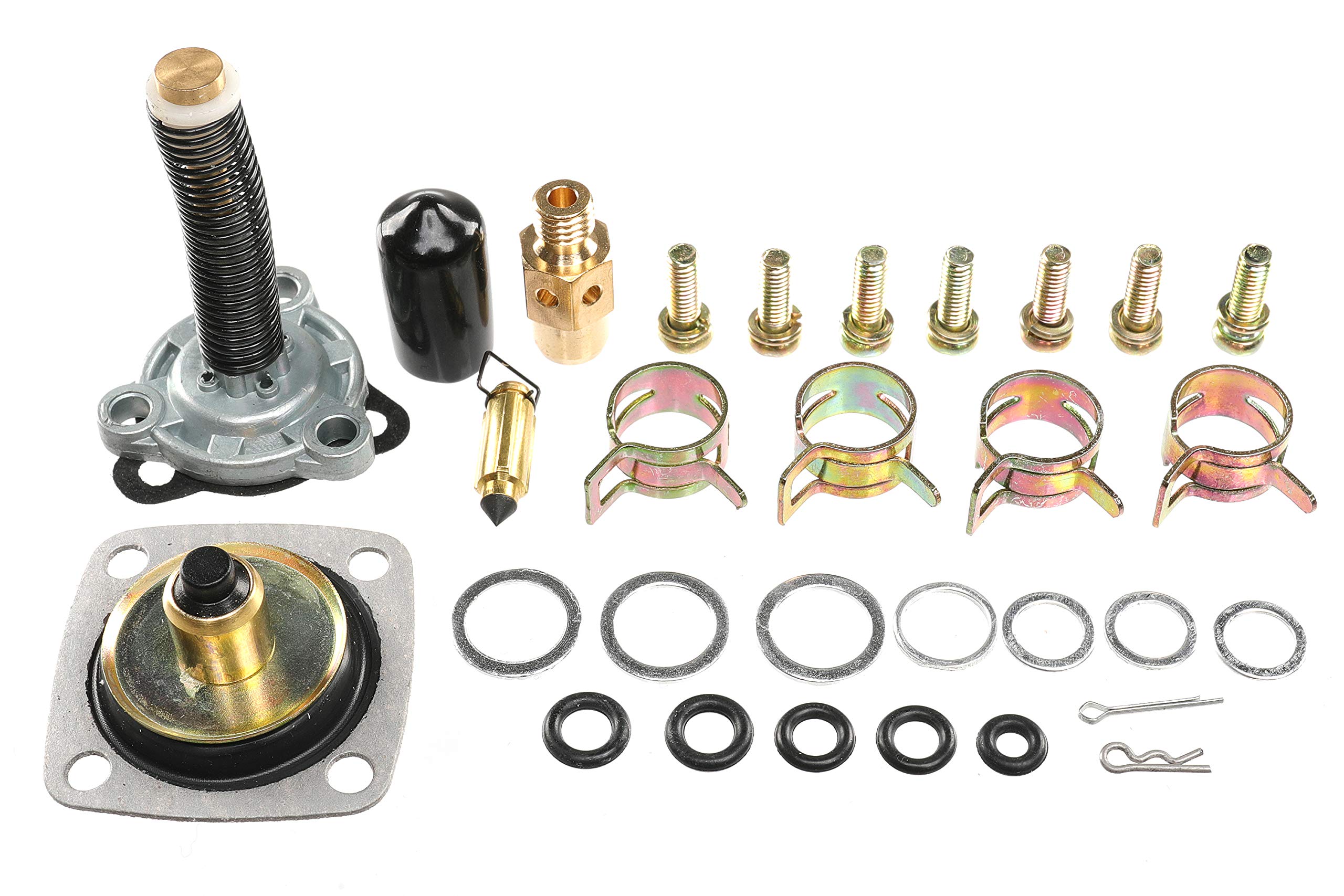

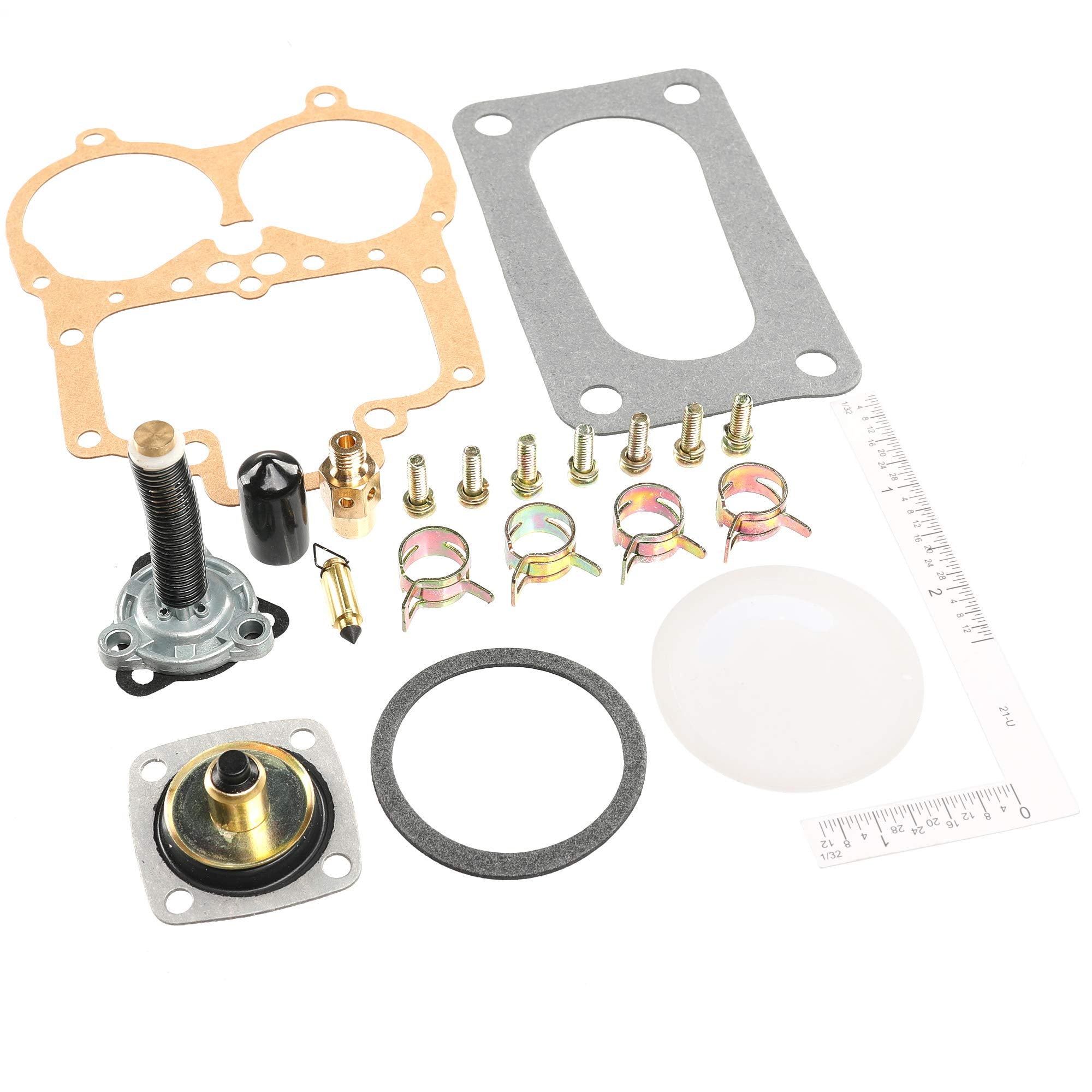

• Needle and seat assembly (Weber 32/36 DGV 200, Part 1586-18)

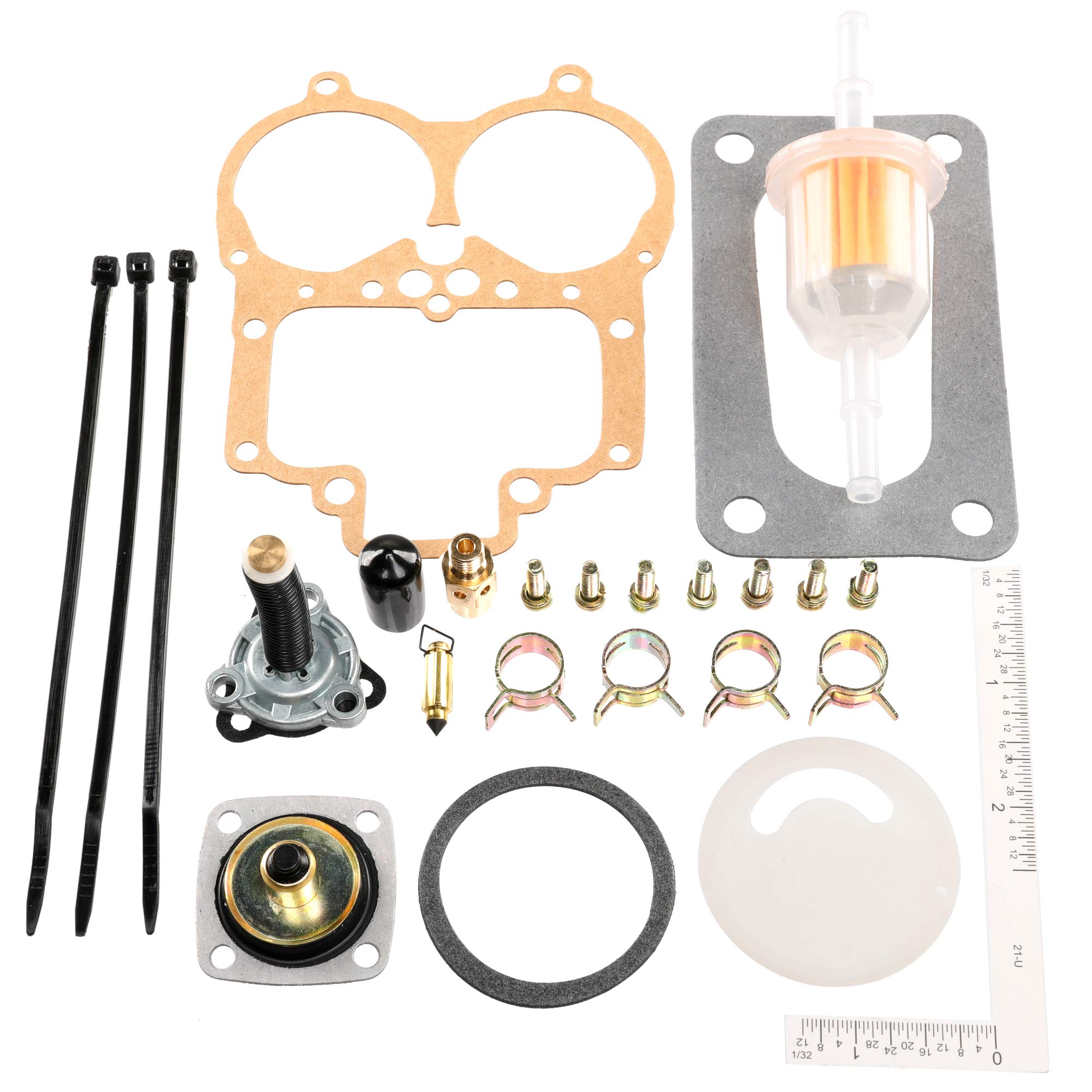

• Accelerator pump diaphragm assembly (Part 1586-36) to restore throttle response
• Full diaphragm and flat gasket set (Part 1582) for internal sealing
• Carburetor base gasket (Part 1586-gasket) and assorted O-rings and spacers

Which Weber models will this kit fit and which should be avoided?

This rebuild kit is designed primarily for Weber 32/36 DGV and the close DGAV/DGEV variants, including the 32/36 DGV 5A. It also fits several related 28/30 and 32 series models listed in Weber service references. However, it does not replace parts for DFV/DFAV/DFEV models, which use different components.

• Compatible: Weber 32/36 DGV, DGAV, DGEV, 32/36 DGV 5A, and select 28/30 variants
• Not compatible: DFV family carburetors (DFV/DFAV/DFEV)
• Check model stamping or service manual before ordering to confirm fit

How does installing this kit affect performance and drivability?

Replacing degraded diaphragms and the needle/seat assembly stabilizes fuel flow, which improves throttle response, reduces sputter on acceleration, and minimizes float-related flooding. While this kit refreshes mechanical fuel control, final tuning (jets, air correction) may still be required for peak performance.

• Improves throttle response by renewing the accelerator pump diaphragm
• Reduces flooding and fuel leaks via new needle, seat, and gaskets
• Provides a baseline for further carb tuning after rebuild

What tools and skills are needed to install the rebuild kit?

Basic mechanical skills and common hand tools are sufficient for most home mechanics to complete the rebuild. Familiarity with carburetor disassembly, careful gasket cleaning, and use of a manual or diagram will make the job faster and reduce risk of damage. If you’re uncomfortable calibrating floats or adjusting mixtures, professional service is recommended.

• Required: screwdrivers, pliers, small wrenches, clean workspace
• Helpful: carburetor manual, float level gauge, small pick for gasket removal
• Time estimate: 1–2 hours for experienced hands, longer for first-timers

Who is this for: The iFJF 92-3237-05 rebuild kit is intended for classic car and motorcycle enthusiasts, restoration shops, and DIY mechanics working on Weber 32/36 DGV-family carburetors. It’s best for users who want a comprehensive set of replacement seals and moving parts to address common aging issues, reduce leaks, and restore consistent fuel metering without buying individual components.
