iFJF Fuel Filter Assembly for Yamaha 115–225 HP Outboards — Direct-Fit Replacement, Reinforced Plastic Bowl

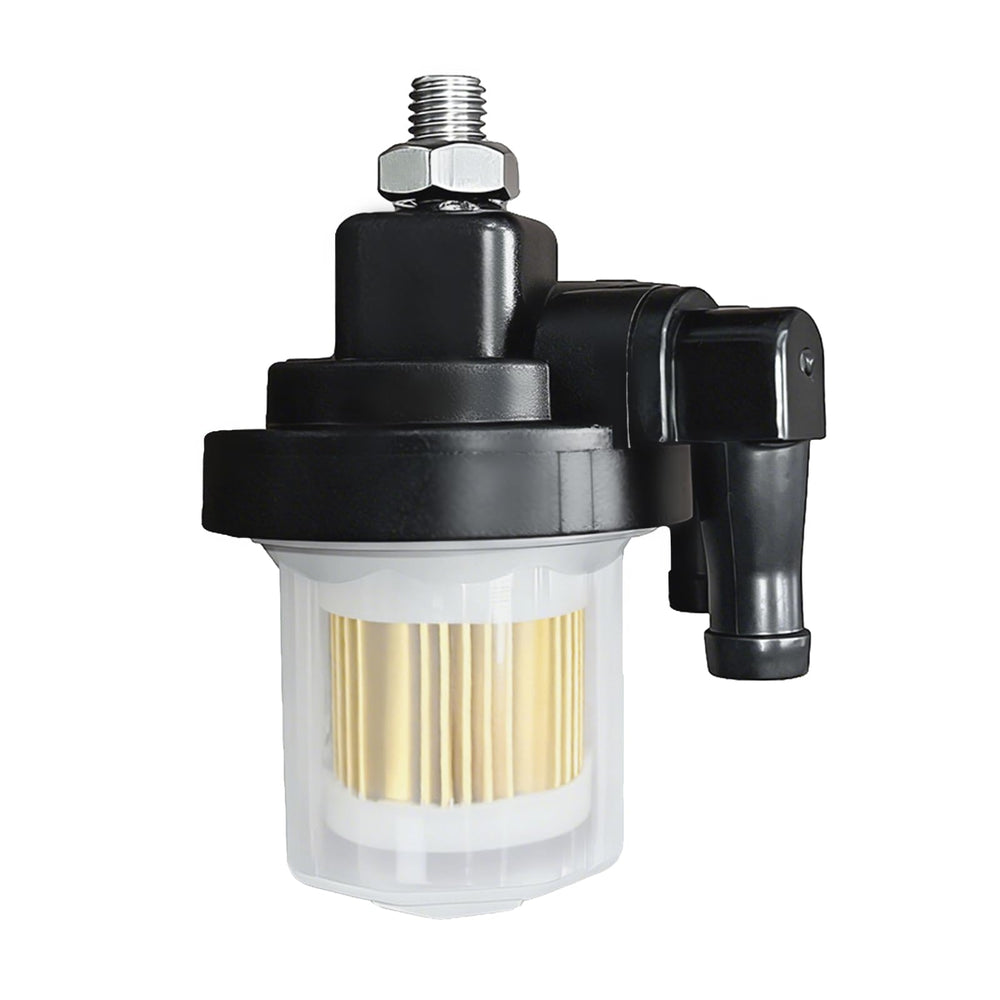

The iFJF 6R3-24560-00-00 is a direct-fit fuel filter assembly engineered to replace Yamaha 6R3-24560-00-00 / 6E5-24560-00-00 models on 115–225 HP 2- and 4-stroke outboard engines.

If your Yamaha outboard is due for a fuel-system refresh, this replacement assembly offers a straightforward swap: compatible with a wide range of Yamaha 115HP through 225HP motors, it traps contaminants, resists temperature stress, and connects using a 5/16" fuel line with an 8 mm (0.315 in) barb. Crafted with a reinforced plastic bowl, the unit balances durability with serviceability so you can inspect and change the filter element without specialized tools.

How does the iFJF fuel filter assembly fit my Yamaha outboard?

This assembly is designed to replace Yamaha part numbers 6R3-24560-00-00 and 6E5-24560-00-00 and fits 115HP, 130HP, 140HP, 150HP, 175HP, 200HP, and 225HP engines for both 2-stroke and 4-stroke models. Installation follows the same mounting points and hose connections as the OEM part for a direct fit.

• Direct replacement for OEM part numbers 6R3-24560-00-00 and 6E5-24560-00-00.
• Compatible with Yamaha 115–225 HP outboards, 2- and 4-stroke.

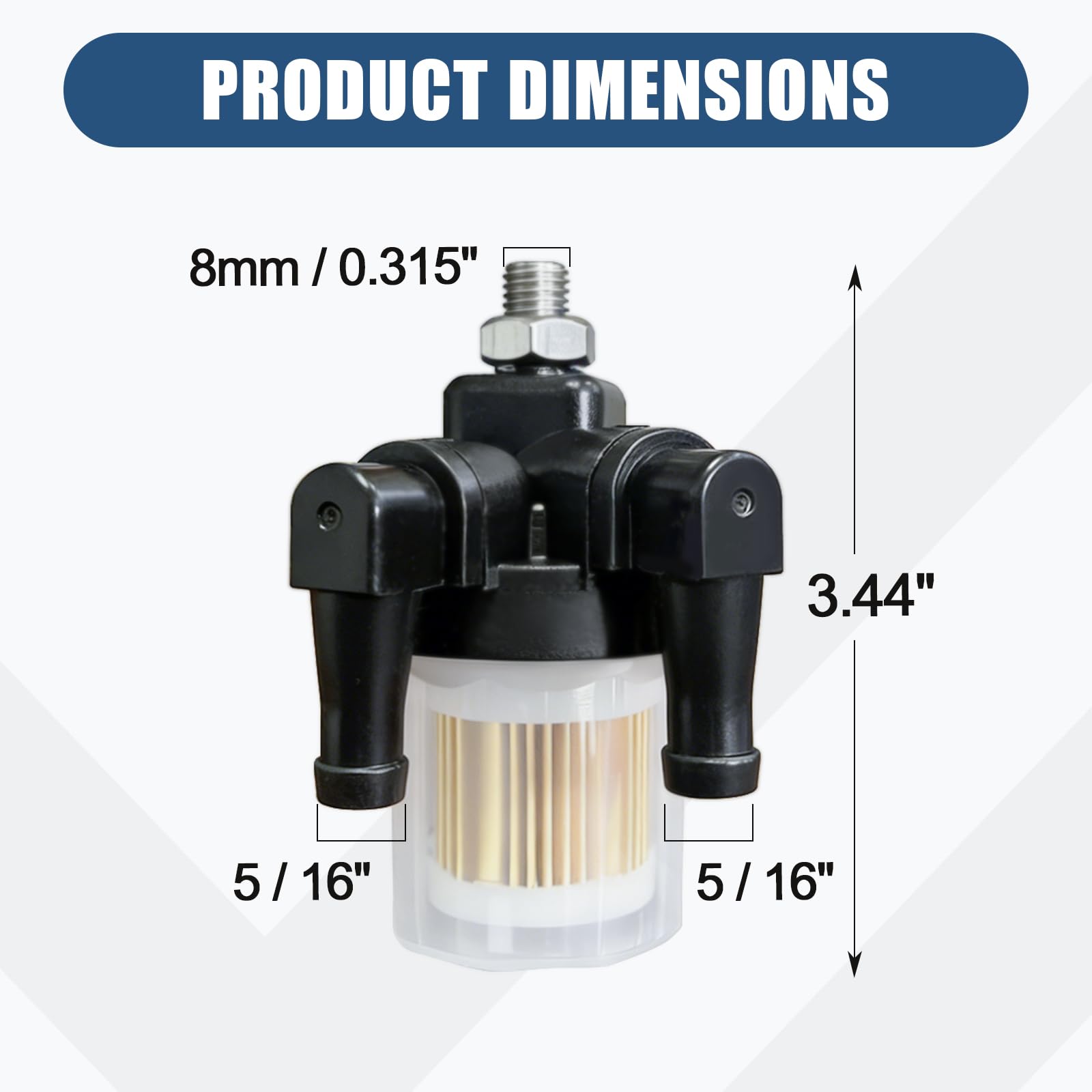

• Connects to 5/16" fuel line using 8 mm (0.315 in) nipple barb.
• Packaged as a single complete fuel filter assembly for immediate install.

What materials and construction details ensure long service life?

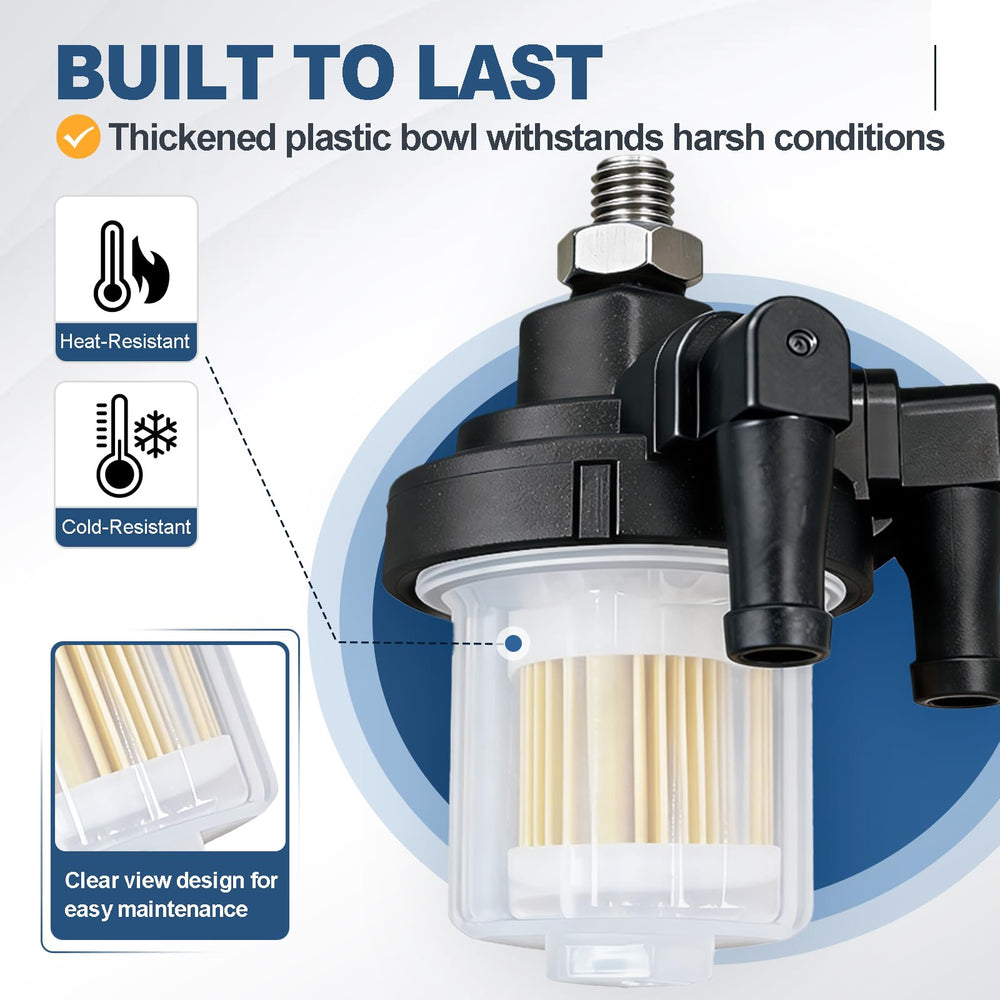

iFJF built this assembly with a thickened plastic bowl that withstands rapid temperature changes and marine conditions better than thin housings. The filter element captures sediment and impurities to reduce wear on carburetors, injectors, and pumps without compromising flow.

• Reinforced plastic bowl for impact and thermal resistance.
• Element media sized to trap common fuel contaminants and particles.
• Corrosion-resistant fittings suitable for marine use.
• Designed for routine inspection and straightforward replacement.

How do I install and maintain the replacement fuel filter assembly?

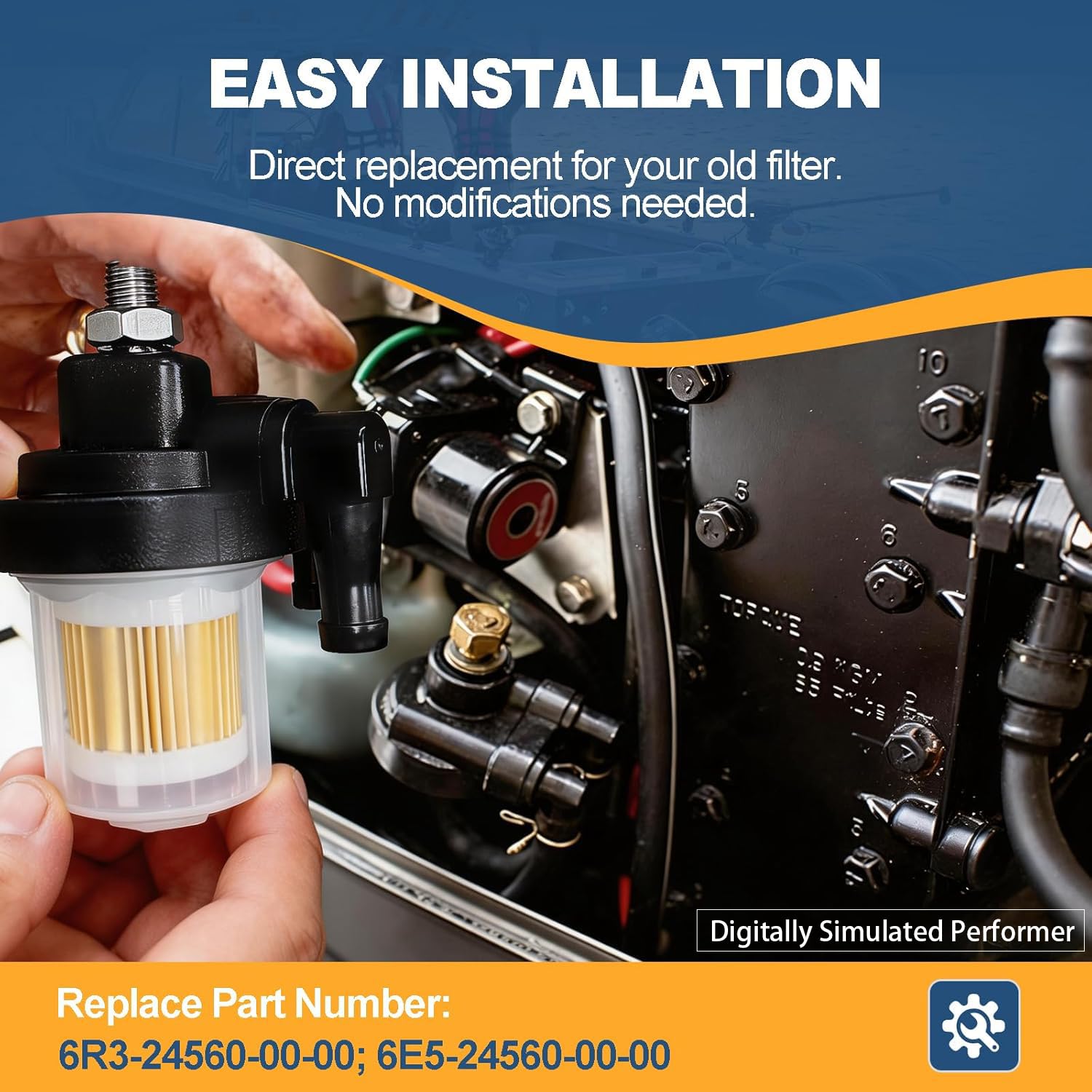

Installation is a simple hose-and-mount swap: depressurize and drain fuel if needed, remove the old assembly, connect the 5/16" hoses to the 8 mm barb, and secure the unit in the original bracket. Periodic inspection of the bowl and filter element ensures reliable operation; replace the element if you notice debris or reduced fuel flow.

• Shut off fuel and relieve pressure before removing old filter.
• Use clamps on 5/16" hoses to secure the 8 mm barb connections.
• Inspect the bowl for water or sediment during routine maintenance.
• Replace the filter element per manufacturer or seasonal schedule.

Who is this replacement assembly for? Boaters and marine technicians with Yamaha outboards from 115HP to 225HP who need a reliable, OEM-compatible fuel filter solution will find this iFJF unit useful. It’s ideal for owners performing routine maintenance, service shops stocking replacement parts, and anyone seeking an economical, durable alternative to original Yamaha assemblies. The package includes one complete 6R3-24560-00-00 fuel filter assembly so you can replace your unit quickly and get back on the water with confidence.
