iRhapsody 250A 12VDC High-Power SPST Relay — 4-Pin, M8 Studs, Continuous-Duty Low-Coil

The iRhapsody 250A 12VDC 4-pin SPST relay is a heavy-duty continuous-duty split-charge relay built to switch up to 250 amps for automotive and marine high-current applications.

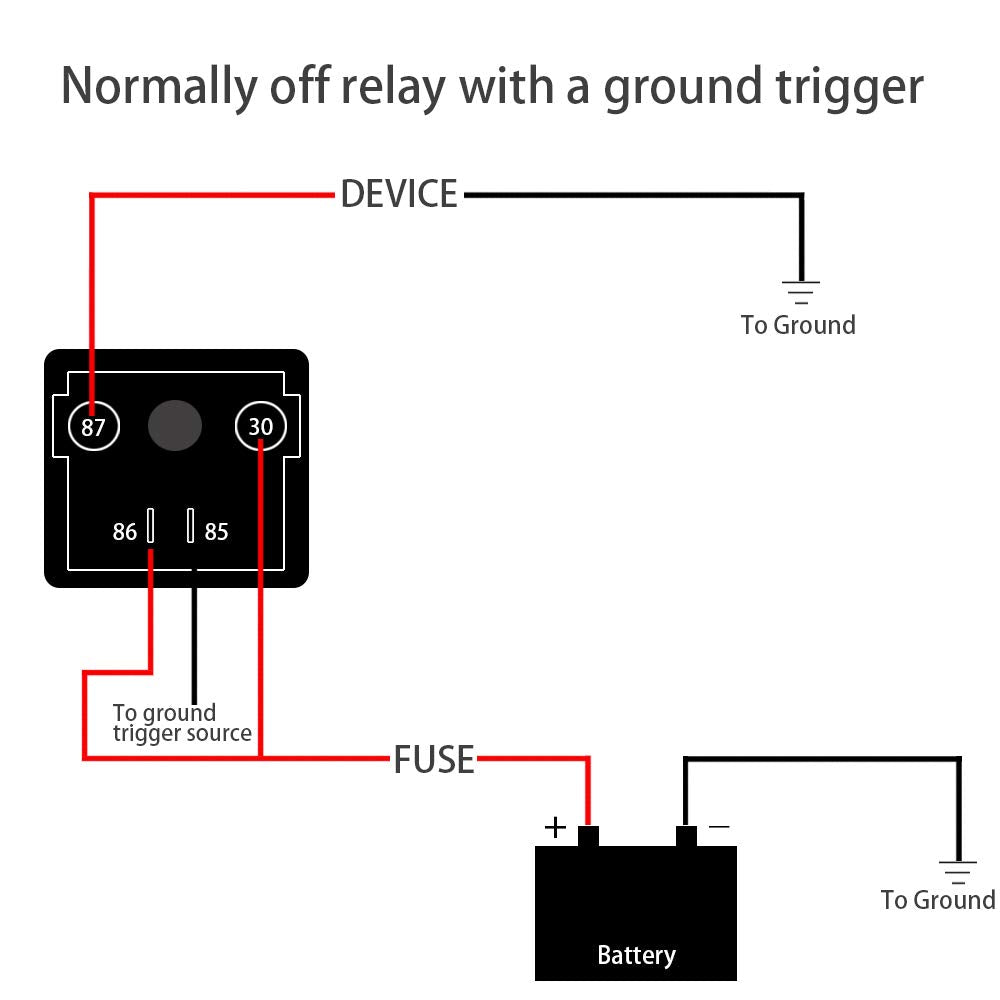

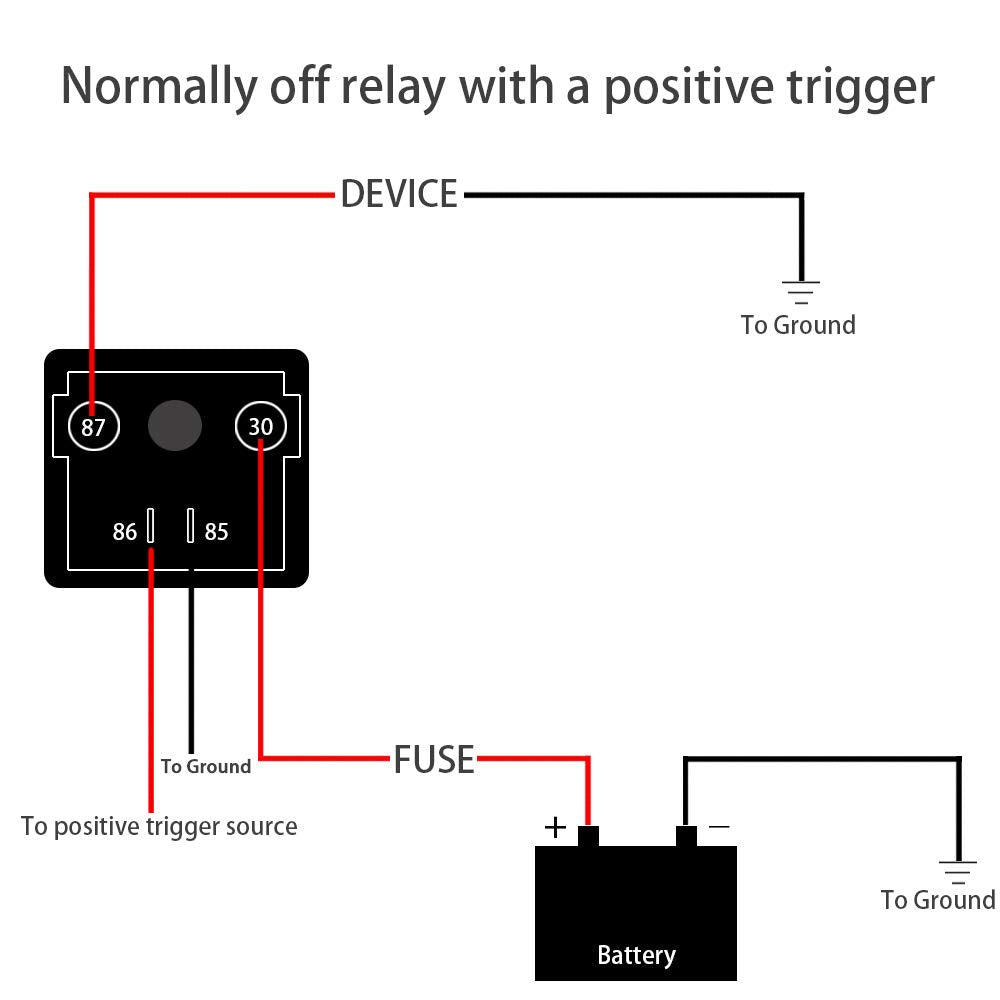

Designed for vehicles, boats and off-grid systems that need a dependable high-current switching solution, this relay combines a low-coil-power design with robust contacts and M8 stud terminals. It operates on a nominal 12 V DC supply with a pickup around 8 V and drops out near 1.2 V, giving predictable behavior across typical automotive voltage ranges. The compact four-pin SPST layout makes it straightforward to wire as a battery isolator, starter cutout, or heavy load relay.

How does this relay handle high-current split-charging tasks?

The relay uses heavy-duty internal contacts sized to switch up to 250 A at voltages up to 14 V DC, making it suitable for linking starter batteries, auxiliary batteries, or high-draw accessories. Its continuous-duty rating and robust construction reduce the risk of overheating under sustained load when installed and fused correctly.

• Max switching current: 250 A
• Max switching voltage: 14 V DC

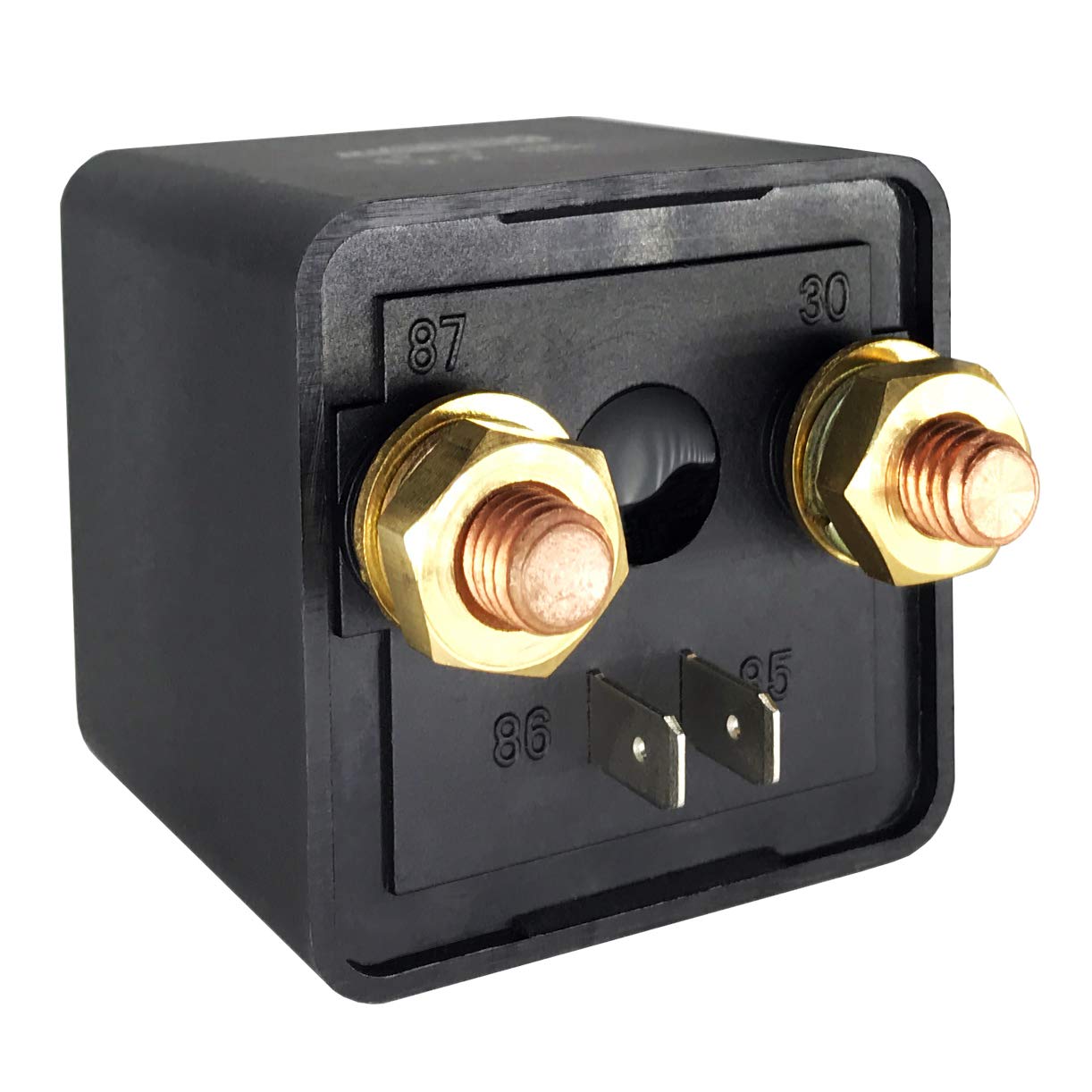

• M8 (8 mm) round stud terminals for secure high-current connections
• Recommended operation within 10–15% of rated capacity for longevity

Why is the coil specification important for reliability?

This model uses a 1.8 W coil with 80 Ω resistance, a balance between draw and sensitivity that improves reliability versus higher-power coils. Lower coil power reduces heating and allows consistent pickup/dropout behavior in fluctuating vehicle voltages.

• Nominal coil voltage: 12 V DC
• Coil power: 1.8 W; coil resistance: 80 Ω
• Pickup voltage: ~8 V DC; dropout voltage: ~1.2 V DC
• Maximum applied coil voltage: 14 V DC

What environmental and installation conditions does it support?

The relay is engineered for a wide temperature range and common automotive environments, allowing use in hot engines bays or cold climates. Proper mounting, secure M8 terminal connections, and appropriate in-line fusing are essential for safe, long service life.

• Operating temperature range: -30°C to +80°C
• Heavy-duty metal case designed for vehicle and marine use
• Requires correct gauge cabling and fusing to match current load
• 4-pin SPST footprint fits standard relay mounting brackets

Who is this for? Installers, RV and boat owners, off-grid system builders, and anyone needing a dependable high-current relay will benefit from the iRhapsody 250A relay. It’s aimed at users who require a durable, low-coil-power solution for split-charging, battery isolation, or powering high-current accessories — provided wiring, fusing, and load planning follow best practices to avoid exceeding ratings.
