JAVIK Fuel Gauge Fuel Cap for John Deere Gator — Direct-Fit Replacement, Upgraded Seal & Calibrated Float

JAVIK fuel gauge gas cap that replaces OEM AM143170/AM136941/AM133922/AM117650 for John Deere Gator UTVs — a direct-fit cap with a working fuel-level float and upgraded sealing materials.

If you need a replacement fuel cap assembly for John Deere Gator utility vehicles, this JAVIK unit is made to match the gauge function and mounting of the original part. It’s built with a calibrated float mechanism so the fuel-level indicator reads properly, and the seal and corrosion-resistant components are improved to resist degradation over time. The cap ships as a ready-to-install assembly and comes with JAVIK’s customer support and a one-year warranty.

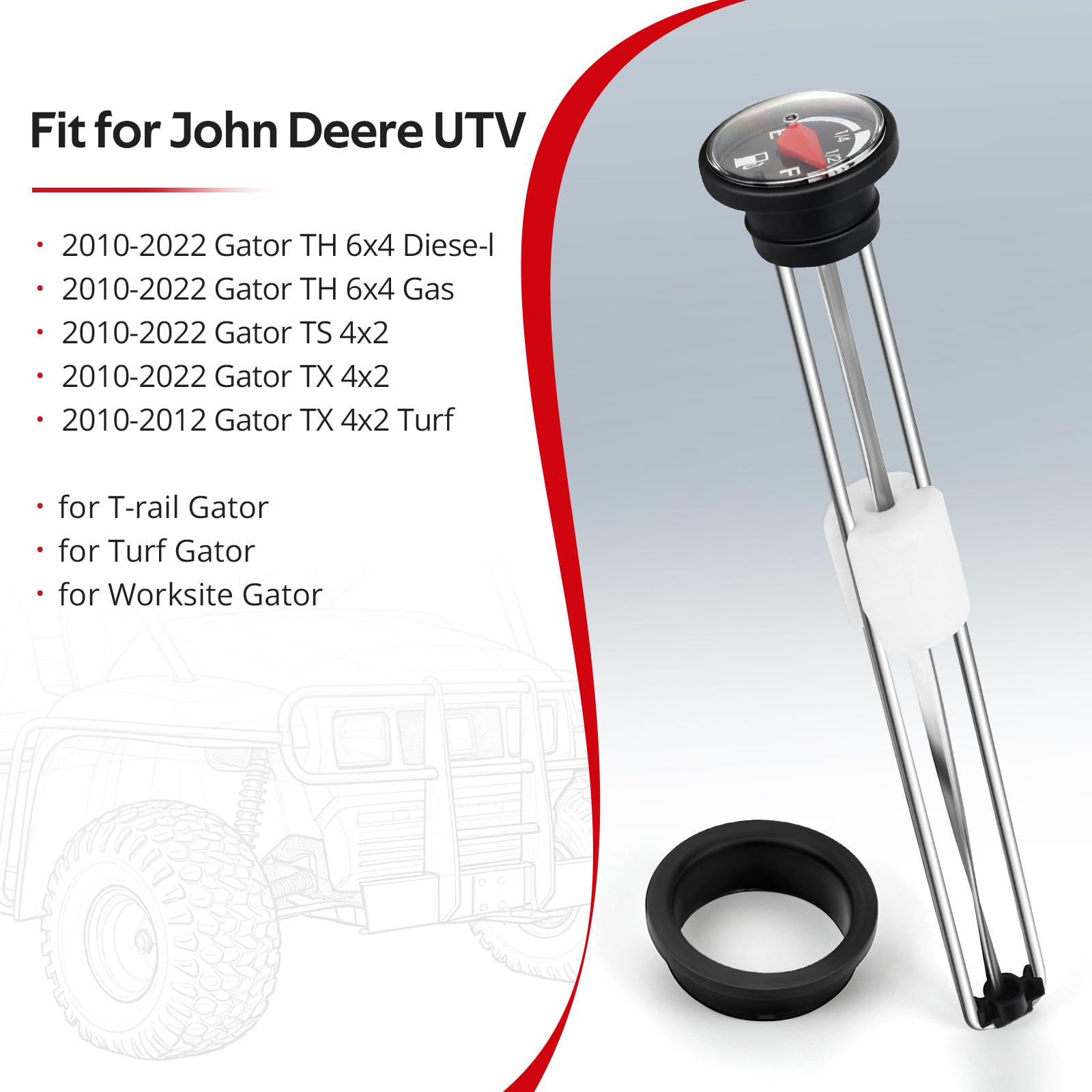

Which John Deere Gator models is this cap compatible with?

This JAVIK fuel gauge cap is manufactured to fit a range of John Deere Gator model years and configurations commonly using the listed OEM numbers. Check your machine’s model and part reference before ordering to confirm exact compatibility.

• Gator TH 6x4 Diesel and Gas models 2010–2022
• Gator TS 4x2 models 2010–2022
• Gator TX 4x2 (including Turf variant) 2010–2012
• Applicable to T-rail, Turf, and Worksite Gator trims that use the same fuel cap assembly

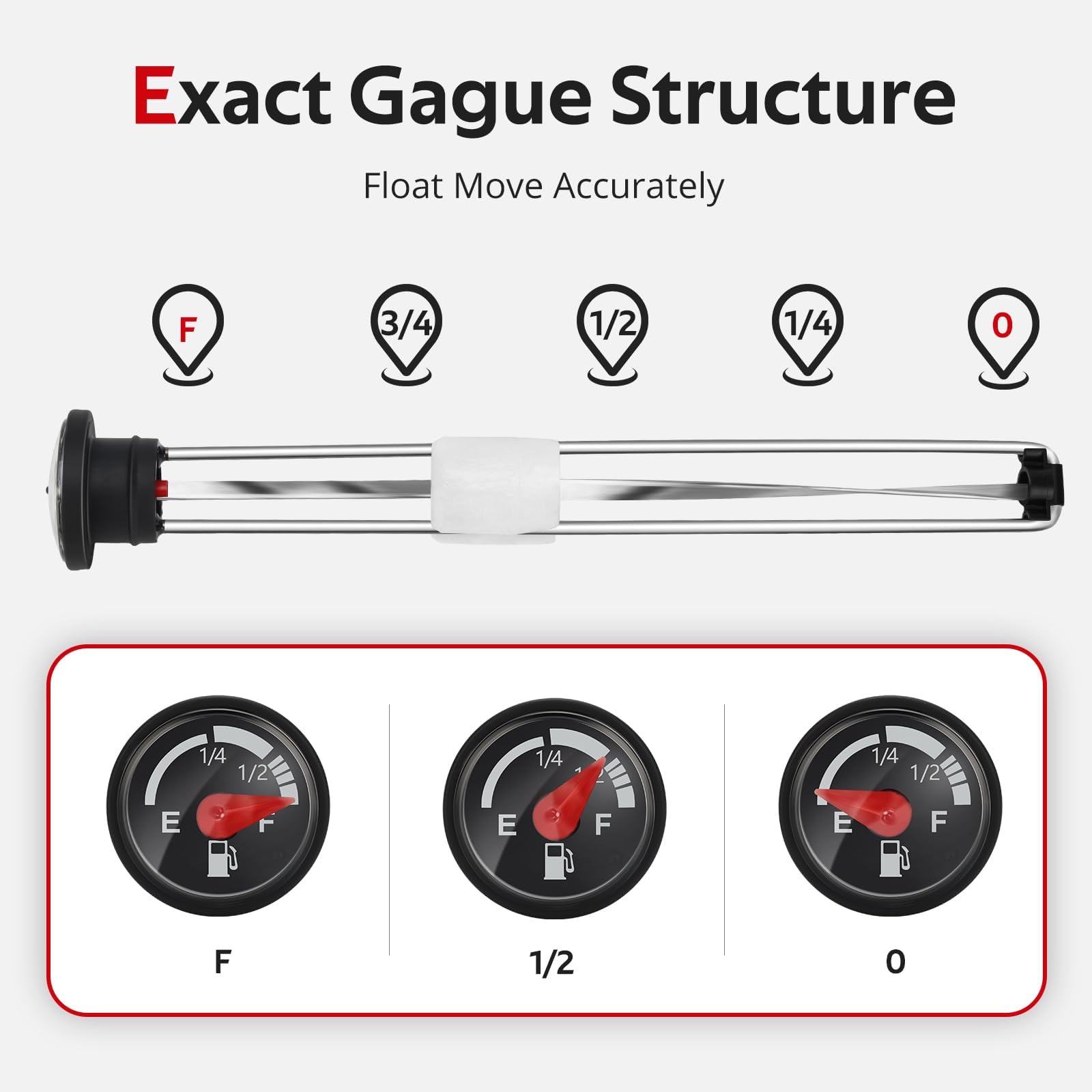

How does the JAVIK cap recreate the original gauge function?

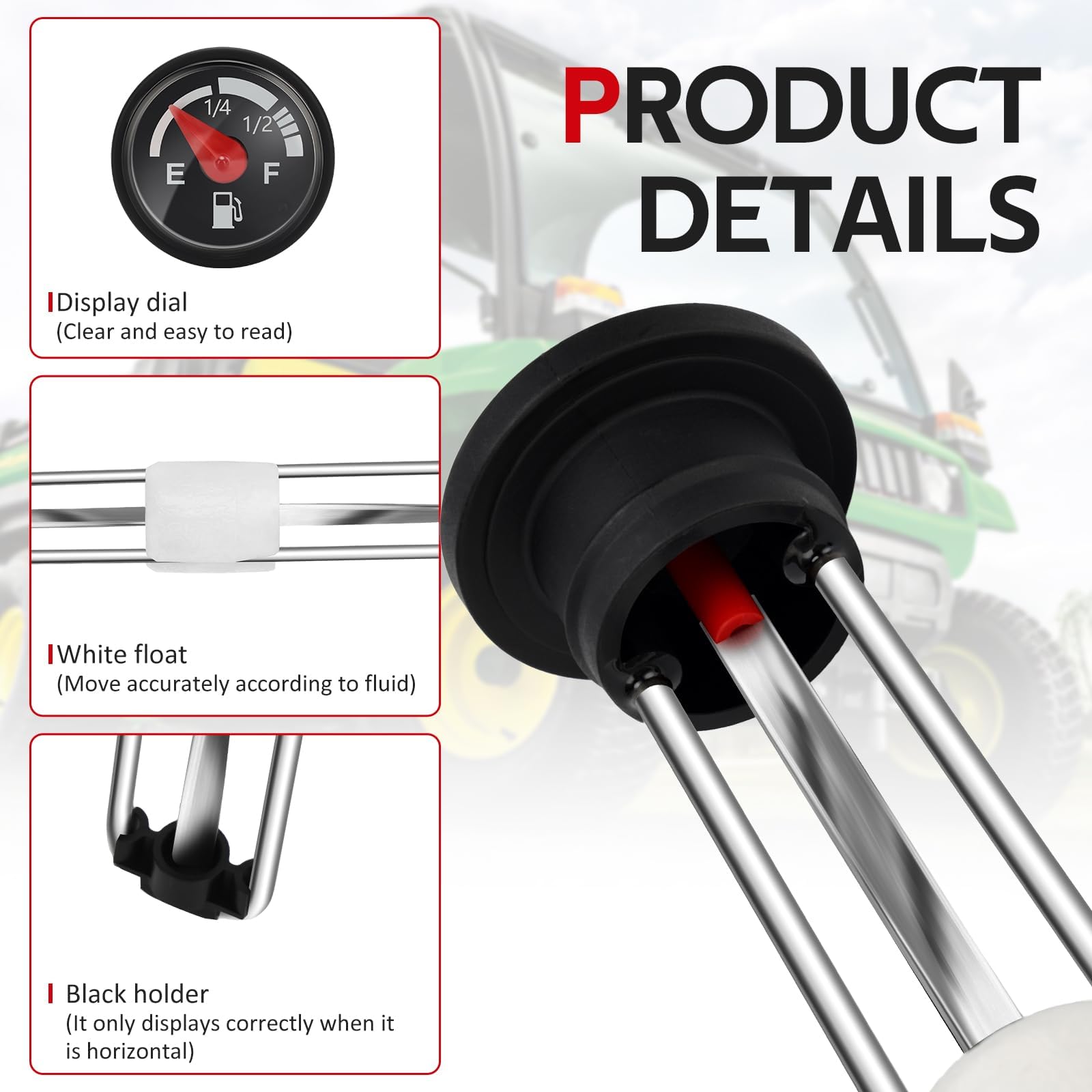

The cap includes an internal float and gauge structure designed to move and report fuel level like the OEM part. That internal mechanism is calibrated to meet expected travel and response so instrument readings remain accurate when installed.

• Exact gauge assembly that replicates float movement
• Ready-assembled unit for plug-and-play replacement
• Designed to interact with existing dash instruments without rewiring

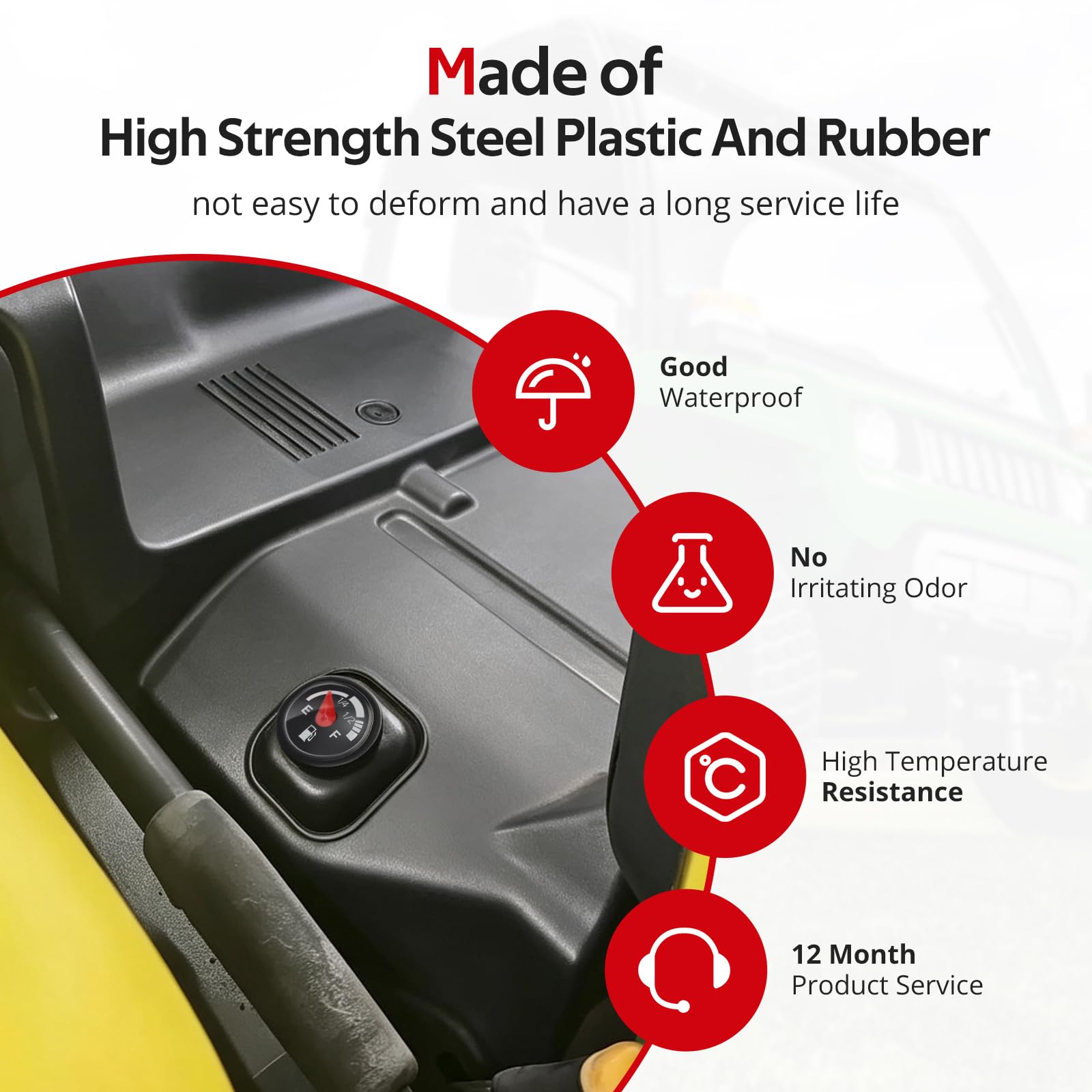

Will this replacement leak or corrode over time?

JAVIK equips the assembly with enhanced anti-aging and anti-corrosion sealing materials to reduce the chance of leaks and extend service life. Proper installation and occasional inspection of the seal area will help preserve performance in outdoor and worksite conditions.

• Upgraded rubber/plastic seals for improved durability
• Corrosion-resistant components where fuel and weather exposure occur
• Supplied as a complete seal-and-gauge assembly to limit installation errors

Is installation difficult and what comes in the package?

Installation does not require special tools or professional service; the part is supplied as a single fuel gauge assembly ready to replace your old cap. Follow basic safety steps—engine off and cool—then remove the old cap and fit the new assembly to ensure the gauge and seal seat correctly.

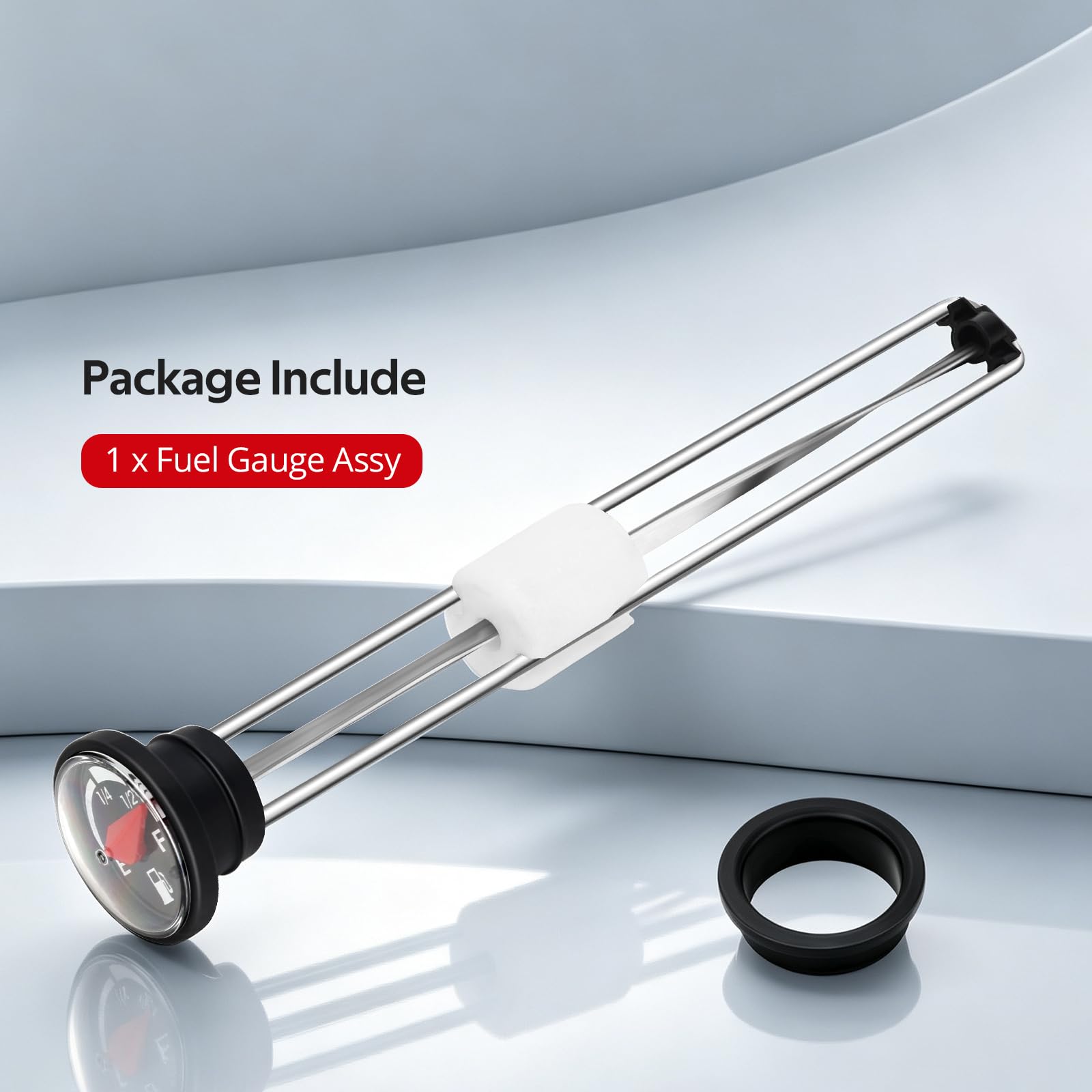

• Package includes 1 x JAVIK fuel gauge assembly

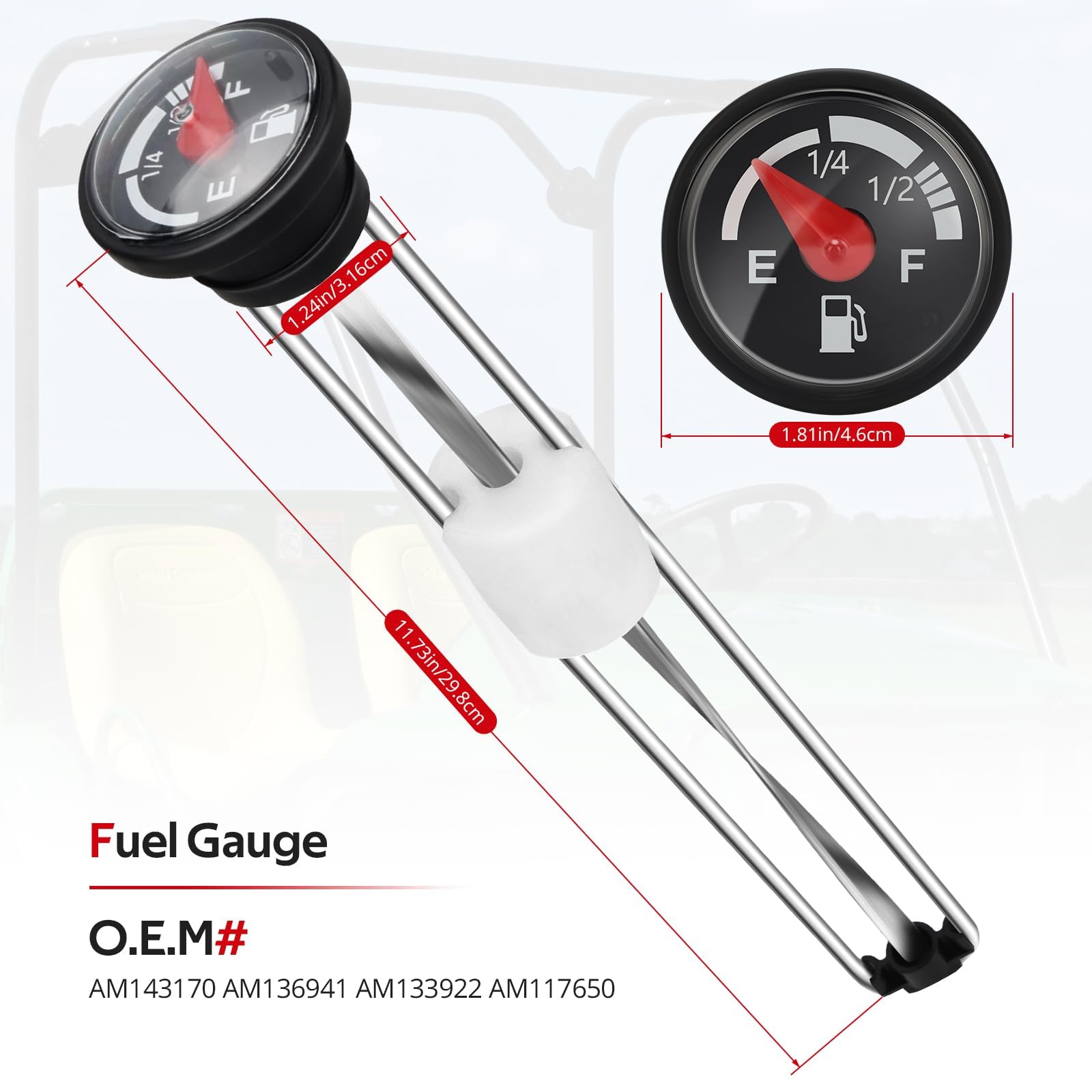

• Designed for drop-in replacement of OEM part numbers AM143170, AM136941, AM133922, AM117650
• Simple hand installation; no modifications expected

Who is this for: Owners, fleet managers, and maintenance technicians of John Deere Gator TH, TX, and TS models who need an accurate, durable replacement fuel cap assembly. It’s suited to users who want a direct-fit swap for the OEM gauge cap with improved sealing and corrosion resistance, plus support from JAVIK if questions arise.
