JHE LED Light Bar Remote Control Wiring Harness Kit — 16AWG Waterproof Wireless Remote, 100ft Range, 7 Modes

The JHE 16AWG LED Light Bar Remote Control Wiring Harness Kit provides a waterproof, wireless way to switch and cycle LED light bars, fog lights, driving lights, and pod lights with multiple modes up to 100 feet.

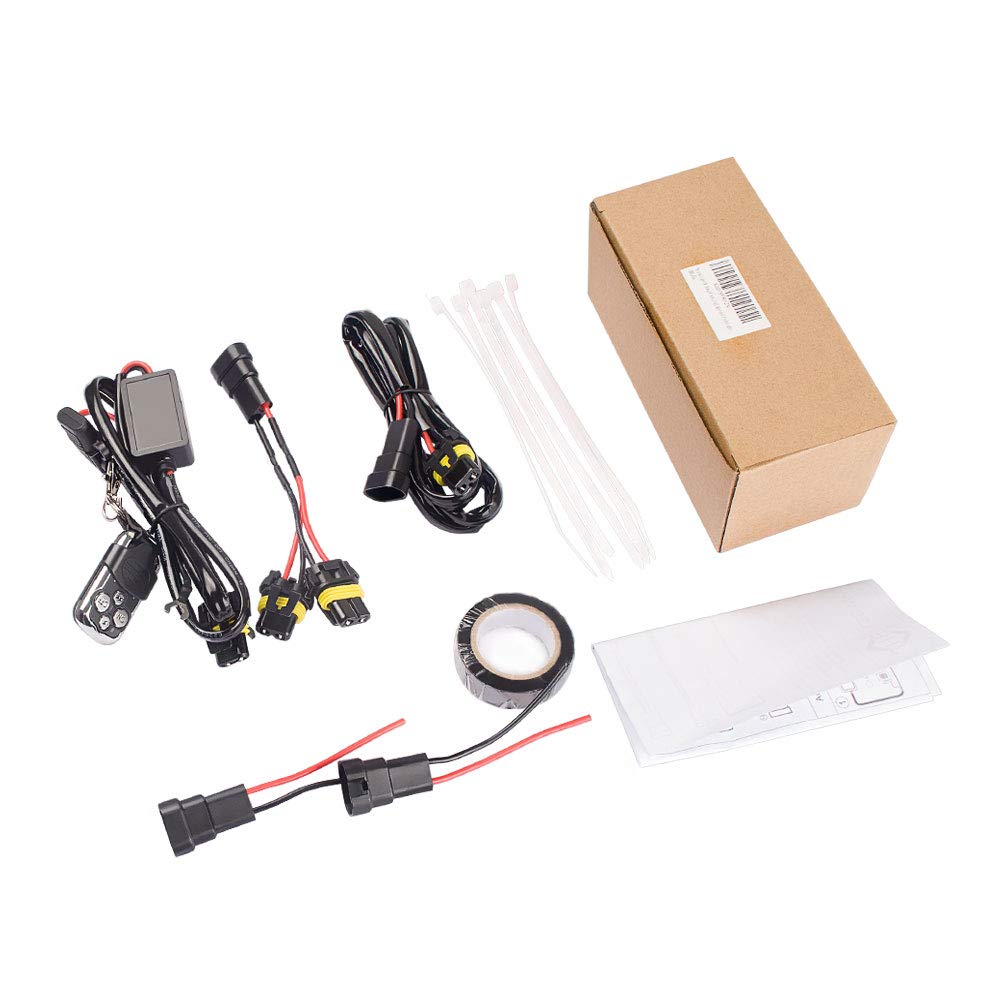

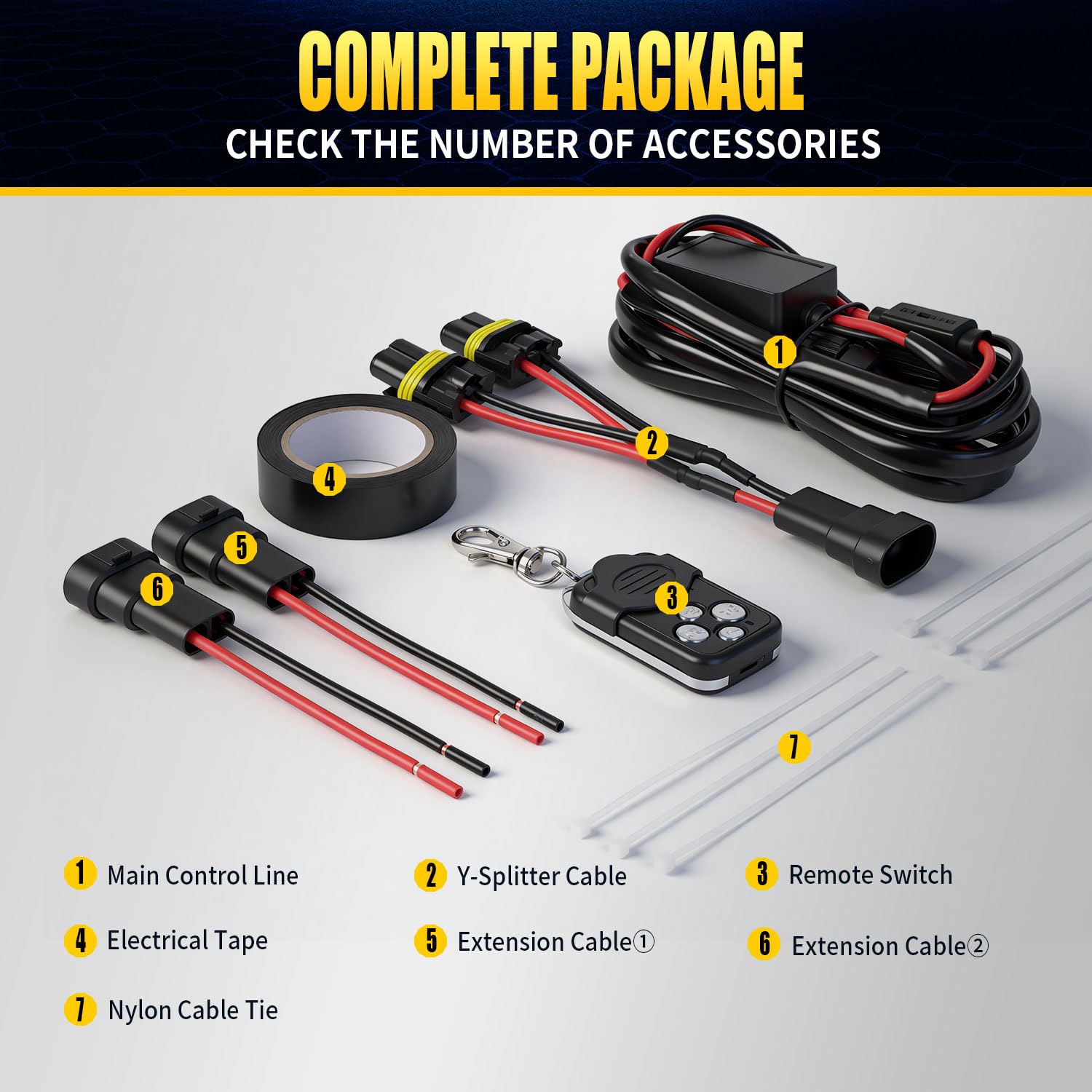

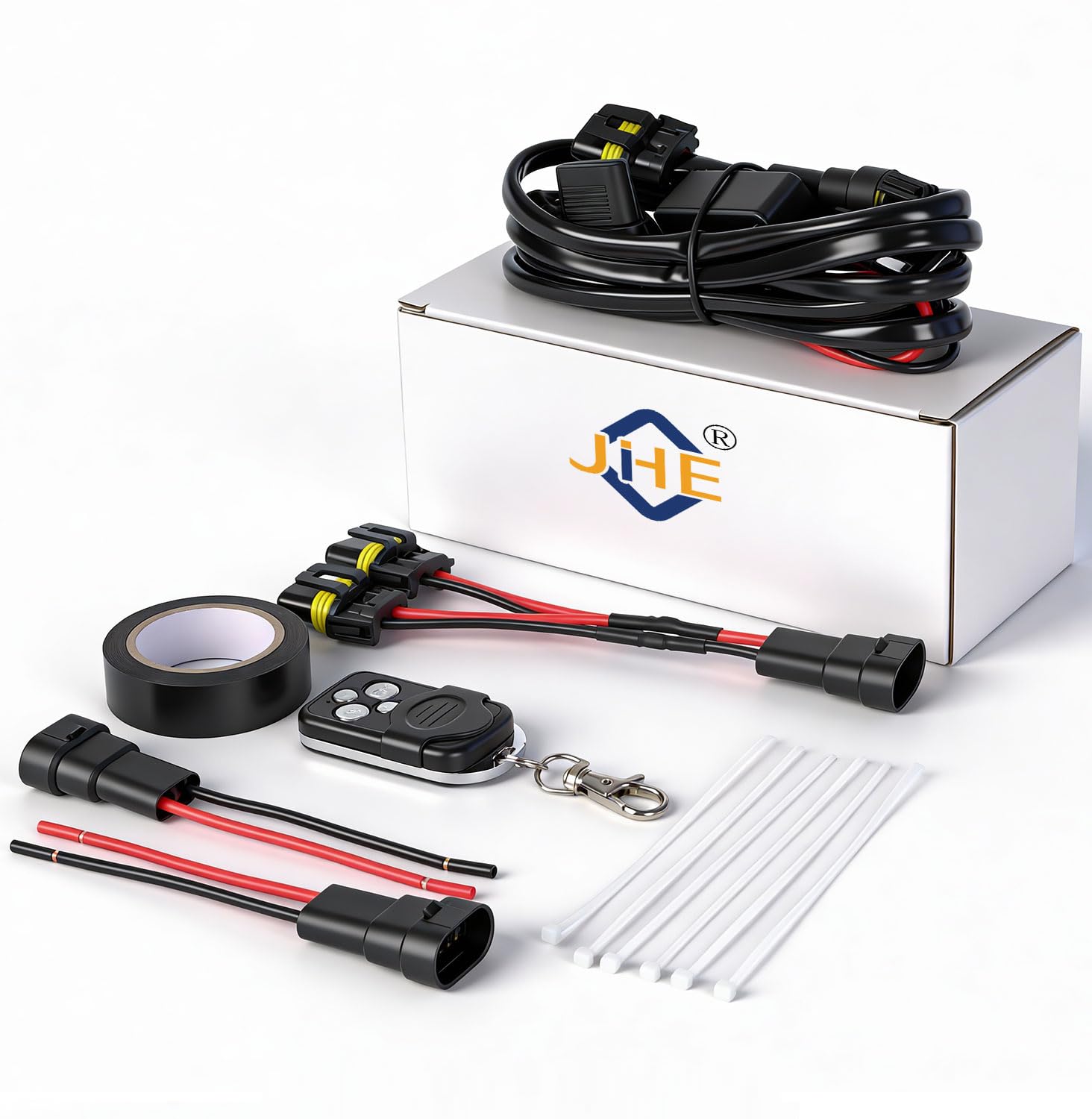

This JHE wiring harness is a plug-and-play remote-control system built for vehicles—cars, jeeps, trucks, pickups, SUVs and 4x4s—that need a flexible, easy-to-install method for operating auxiliary lights. The kit includes a waterproof control box, wireless remote, and heavy-duty 16AWG wiring designed to handle typical LED light bar loads. No drilling or vehicle body modifications are required when you follow the included wiring diagram; the control box should be mounted where it gets good signal reception. A 12-month guarantee covers manufacturing defects.

How do I install the JHE remote control harness?

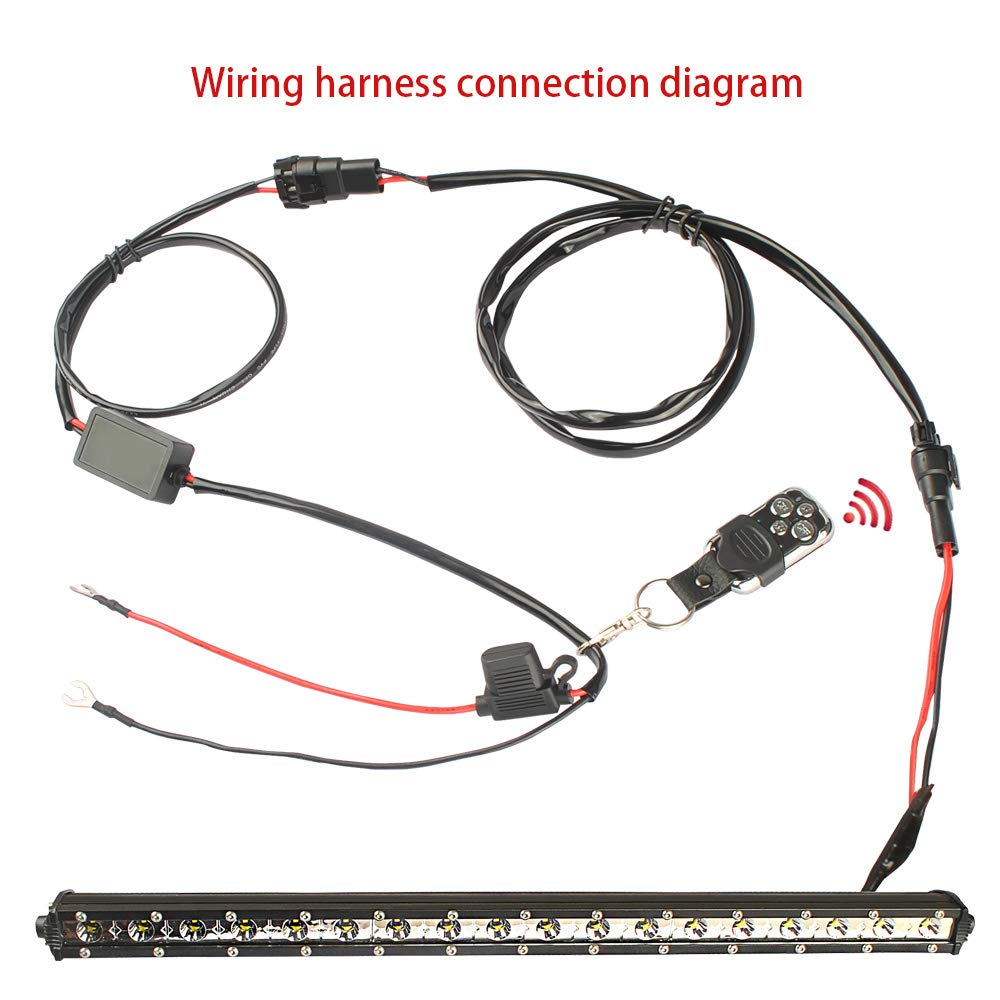

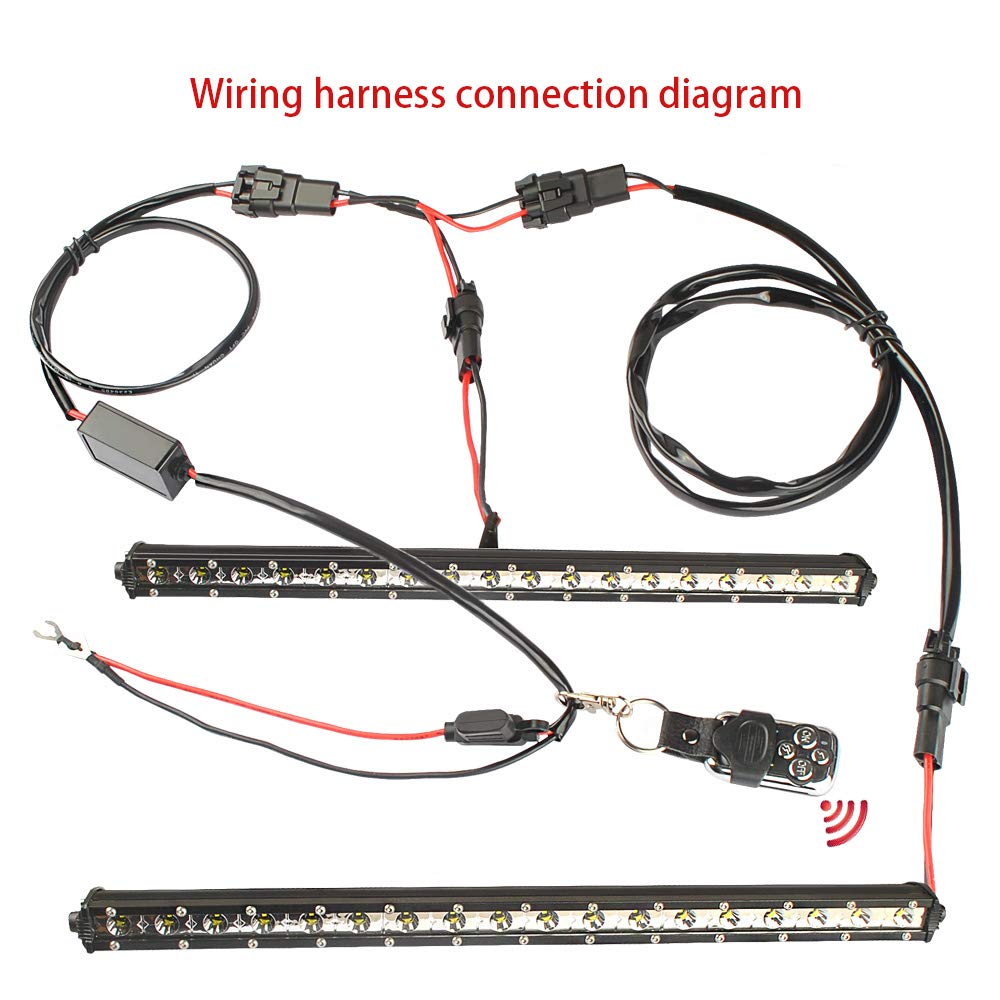

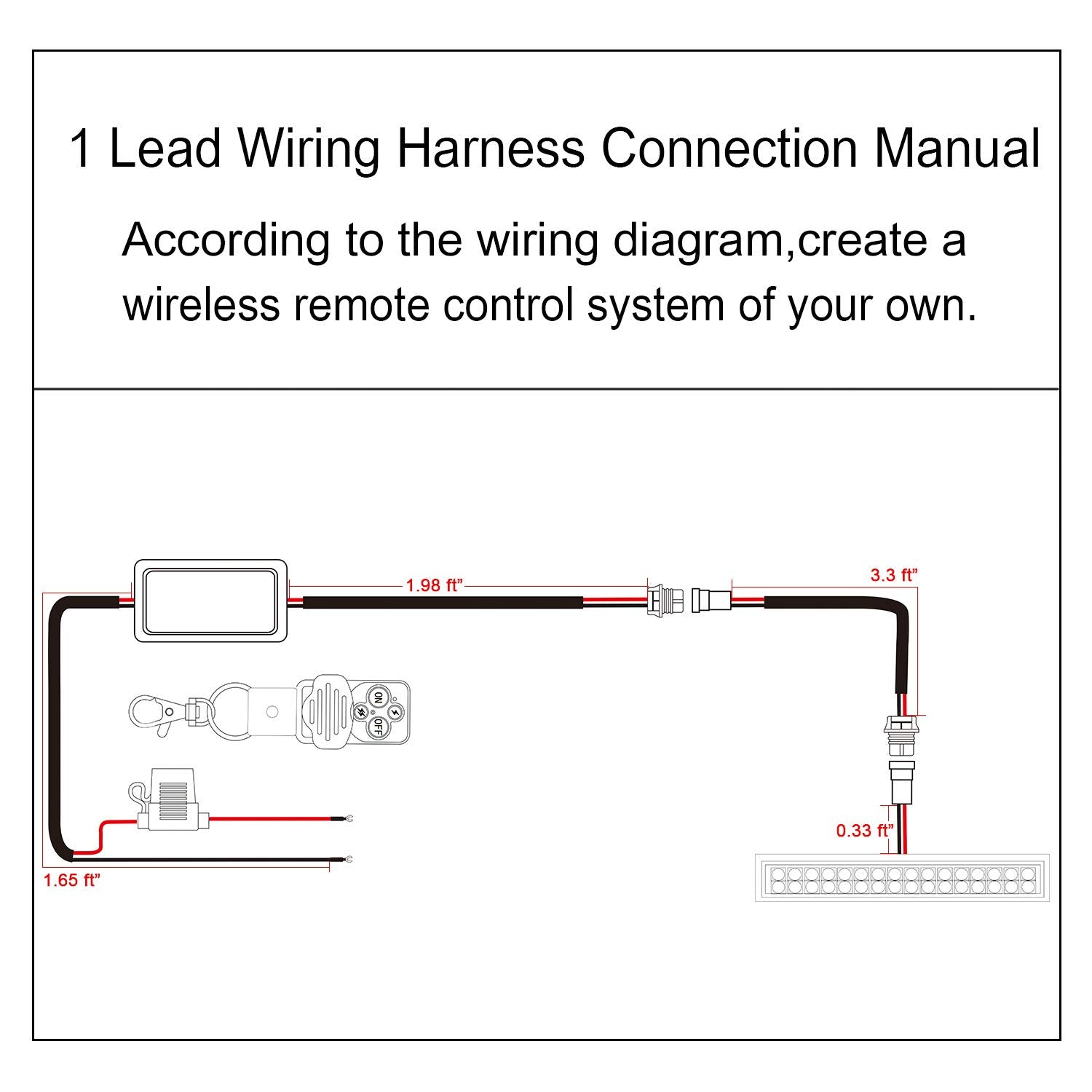

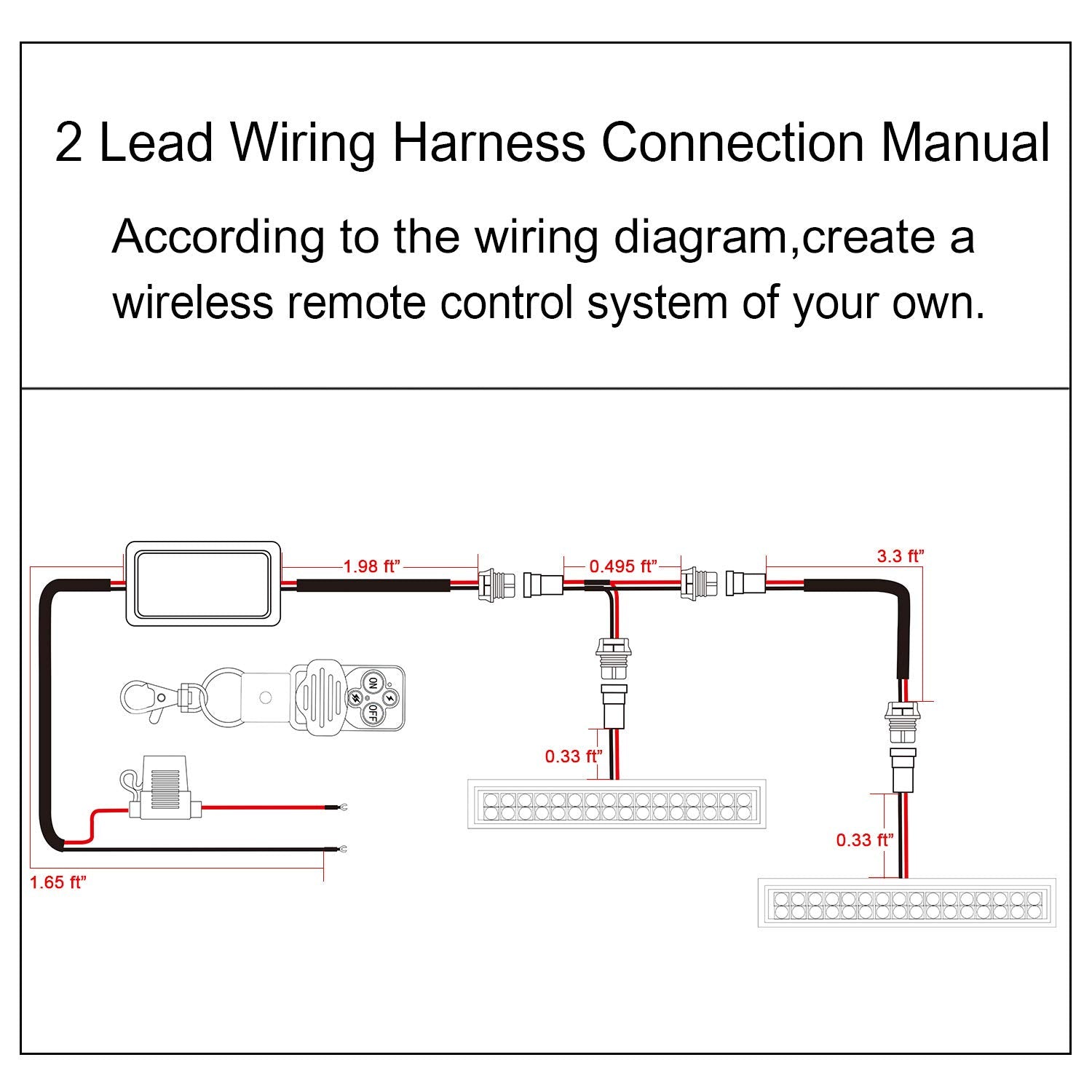

Installation is straightforward when you follow the wiring diagram and route wires to match the chosen lamp positions. The harness uses 16AWG cable for reliable current handling and connectors that simplify attachment to most LED light bars and pods.

• Mount the waterproof control box in a dry, signal-friendly location inside the vehicle or under trim.
• Connect power and ground to the vehicle battery, with inline fuse protection as shown in the diagram.
• Run the lamp wires to the light bar or pods using existing grommets or cable channels—no drilling required.
• Test remote functions before finalizing mounting and sealing cable runs.

What lighting functions and modes are available?

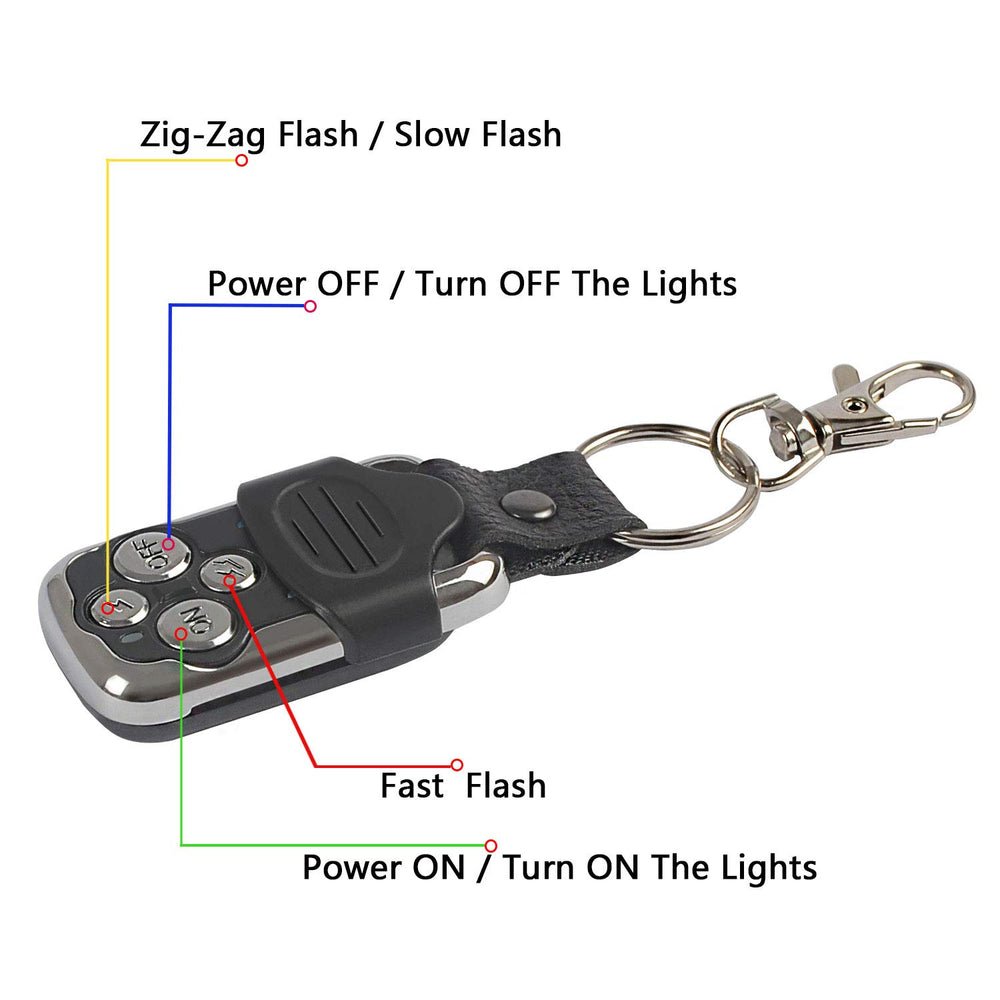

The remote offers multiple modes so you can choose steady or attention-getting patterns depending on use. Modes include standard on/off plus several flash and pulse patterns that work well for work, off-road, or visibility scenarios where flashing is appropriate.

• Steady on/off for continuous illumination.
• Zig-zag flash and strobe patterns for signaling or emergency-style attention.
• Pulsing mode for lower-intensity, attention-grabbing cycles.
• Seven control modes total, selectable from the wireless remote.

How durable and vehicle-compatible is this harness?

The JHE kit is built to withstand typical automotive environments: the control box is waterproof and the 16AWG wiring is sized for most LED arrays. Compatibility is broad, but always confirm light amperage and connector fit before installation.

• Waterproof control box for protection against moisture and dust.
• 16AWG wiring for common LED light bar and driving light loads.
• Designed to fit most cars, trucks, SUVs, jeeps and 4x4s without body modifications.
• Wireless remote range up to approximately 100 feet in open areas.

Who is this for? This JHE remote control wiring harness is intended for drivers who want a reliable, no-drill solution to control aftermarket auxiliary lighting. It suits weekend off-roaders, tradespeople using work lights, fleet operators adding visibility options, and DIY vehicle modifiers who prefer a plug-and-play approach. If you plan to run higher-current LED banks, confirm electrical specifications and fusing to match your setup; otherwise the kit provides a simple, flexible way to add wireless lamp control backed by a 12-month guarantee.
