Joinfworld ANL Fuse Holder Kit — 1-in-2-Out Waterproof Block with 2×300A, 400A & 500A Fuses, M8 Studs, Heavy-Duty Copper Bussing

This compact ANL fuse holder assembles high-current protection into a single, durable unit for automotive, marine and solar systems. Its thick copper bussing, stainless hardware and removable sealing plates make routing large gauge cables cleaner and safer while providing versatile fuse options for different load needs. The kit supports 4 posts with 5/16" (M8) studs so you can fit substantial ring terminals and lugged connectors that larger battery and inverter feeds require.

How does this fuse block manage multiple high-current circuits?

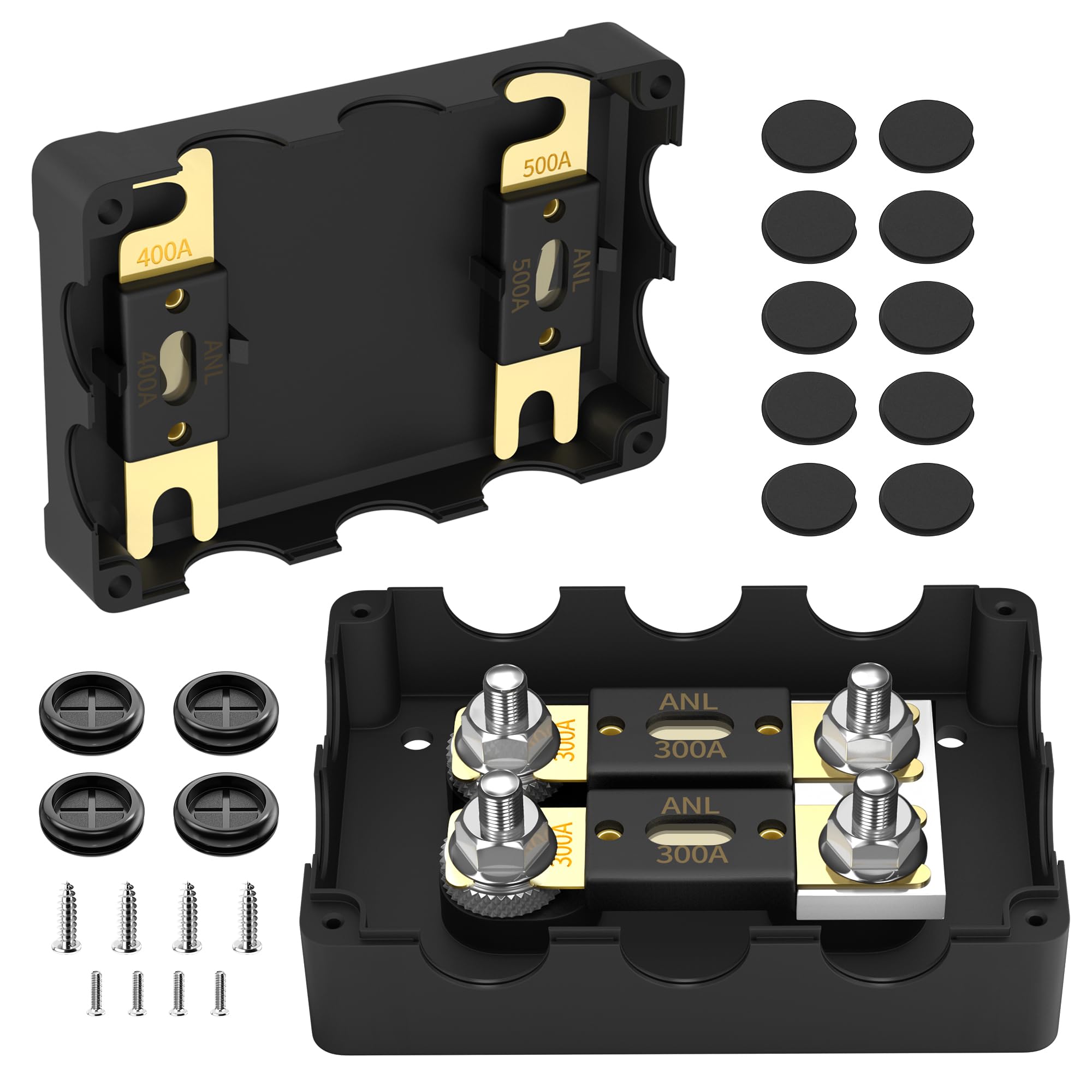

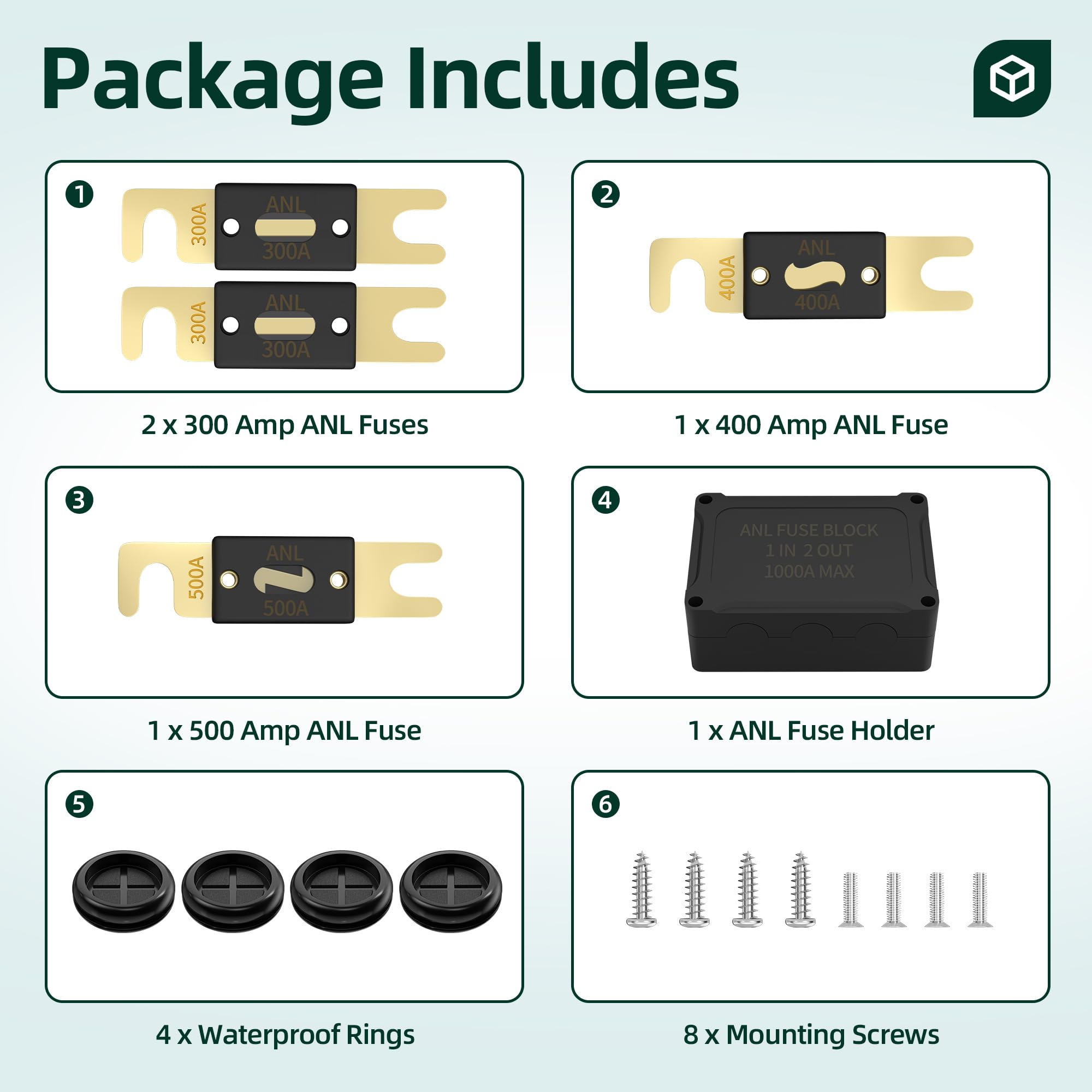

The Joinfworld block is configured as one input with two outputs, allowing a single supply to feed two separate devices or subcircuits while protecting each branch with an ANL fuse. You receive a selection of fuses (two 300A, one 400A and one 500A) so you can tailor protection to each load without extra parts shopping.

• One-in/two-out layout for splitting a single power source into two protected feeds.
• Supplied fuses cover common amperage needs for audio, inverter and battery feeds.
• Accepts ANL fuses up to 1000A for future upgrades or higher-capacity installs.

What materials and fasteners are used to ensure long-term reliability?

This holder uses a thickened copper plate for the current path and stainless steel studs and nuts to resist corrosion, which is especially important in marine or high-moisture environments. The robust conductor thickness reduces voltage drop and heat buildup under heavy loads.

• 6.6 mm copper bussing for low-resistance high-current transfer.

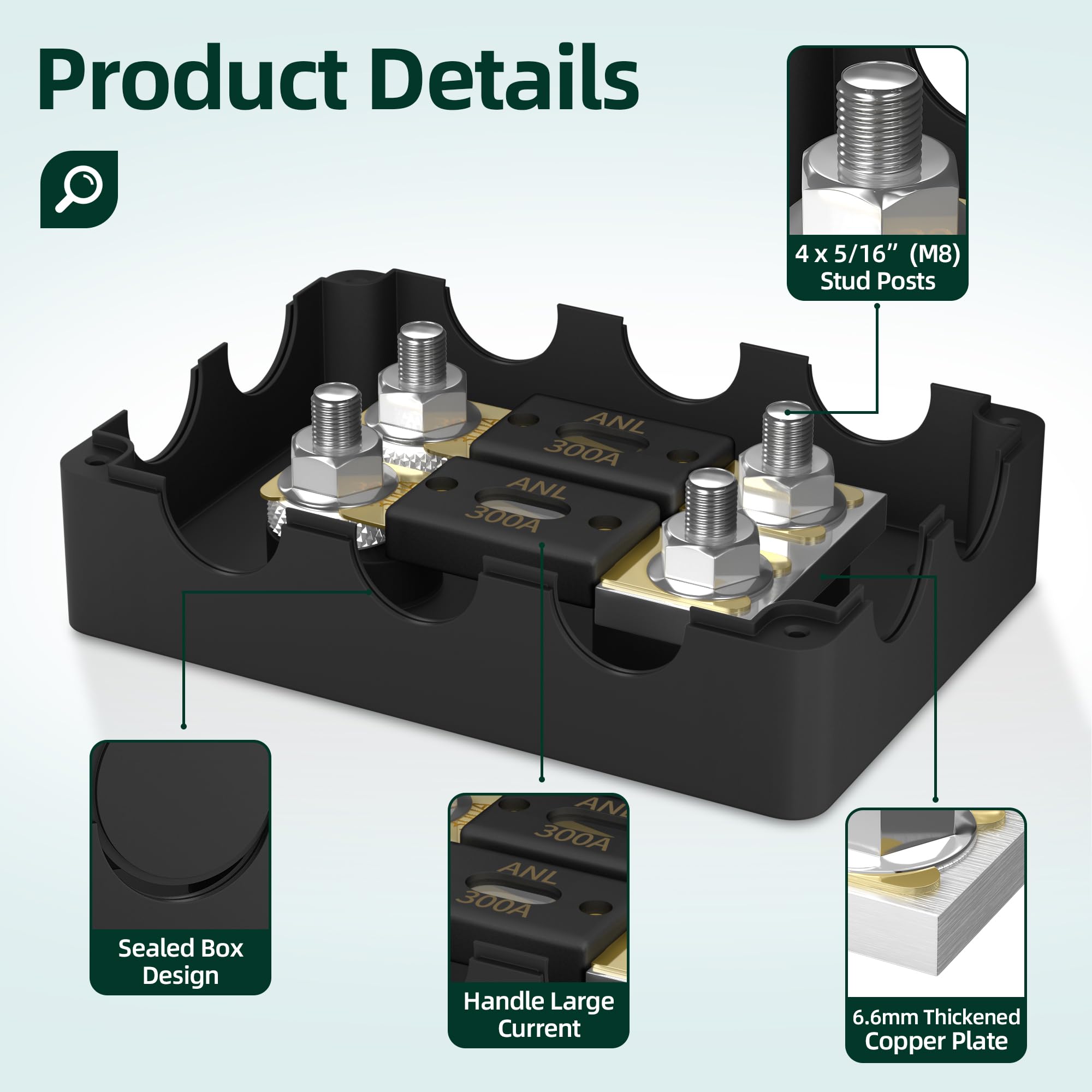

• Stainless steel M8 studs and nuts for secure, corrosion-resistant terminations.
• Removable plates to prevent terminal chafing and ease wiring during installation.

Is the fuse holder suitable for wet or dusty environments?

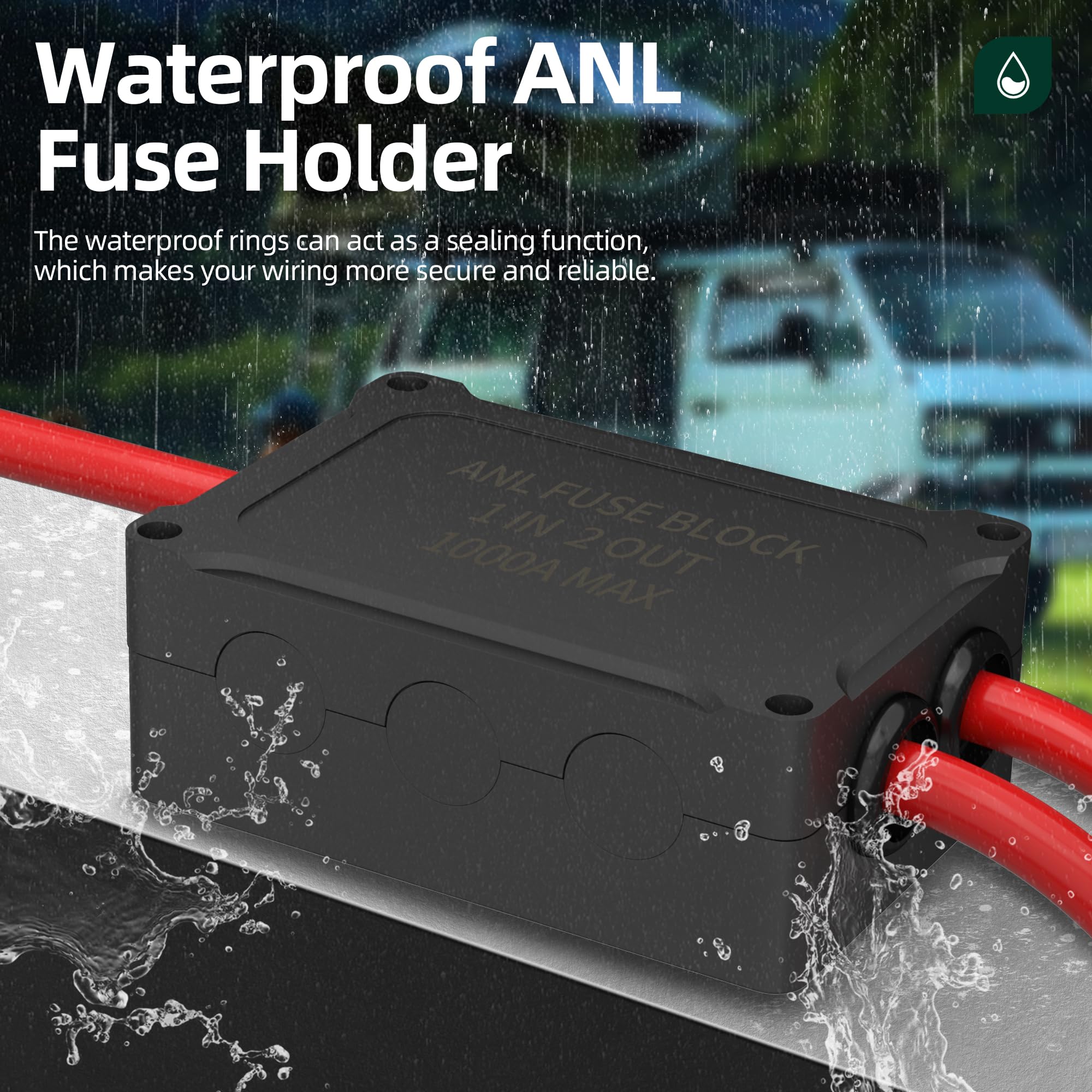

Yes — the kit includes rubber sealing rings and removable cover plates that help keep water and dust away from the terminals and fuse contacts. While it provides strong environmental protection for most installations, proper mounting and additional enclosure use are recommended where continuous submersion or extreme exposure is expected.

• Rubber waterproof rings for each stud to reduce ingress of moisture and dust.
• Plate covers that can be removed for cable routing and replaced to shield connections.
• Design suited for marine, automotive and outdoor electrical systems when mounted correctly.

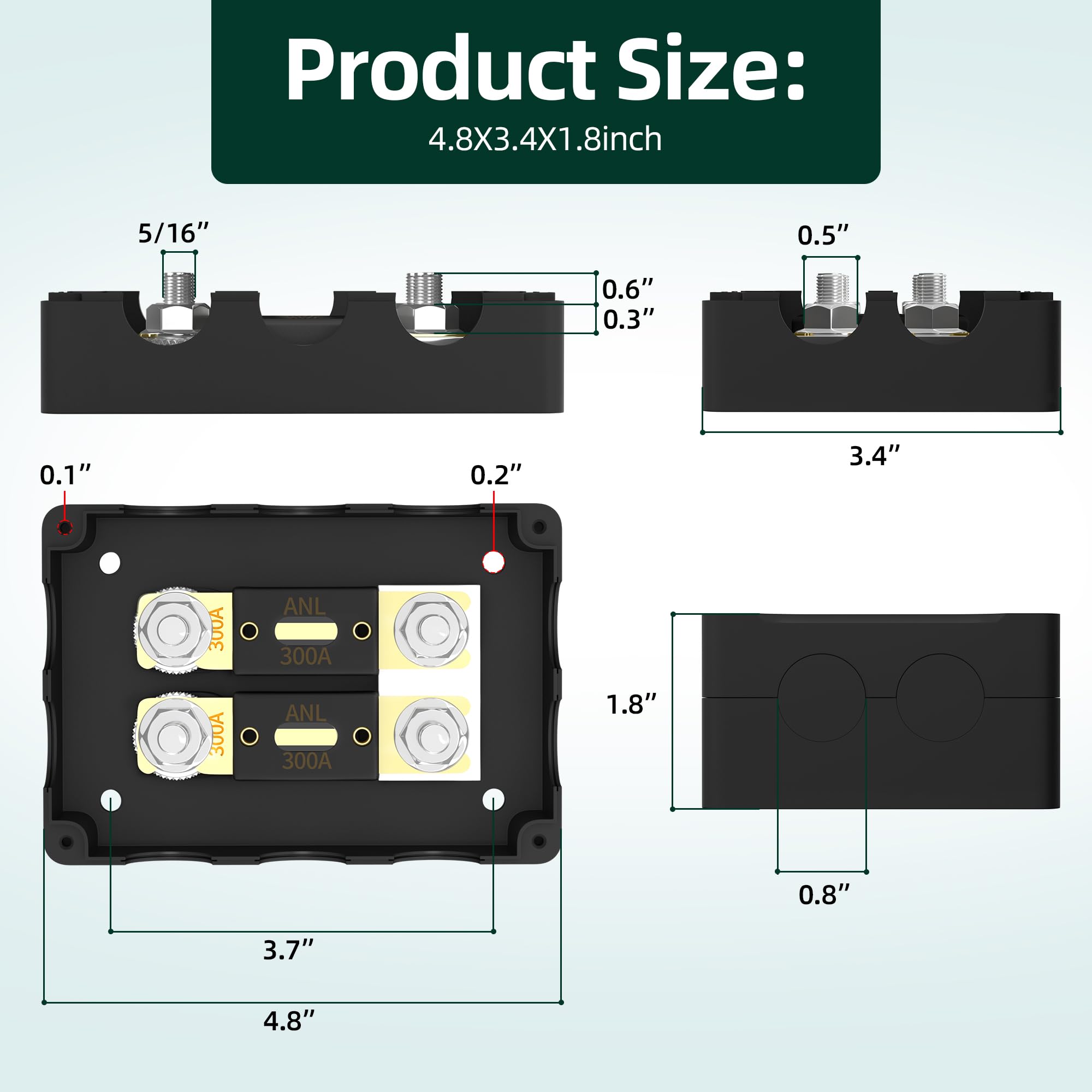

How do the stud size and layout accommodate large cables and connectors?

The four 5/16" (M8) studs enable connection of wide ring terminals and large gauge cables commonly used on batteries, alternators and inverters. The spacing and hardware selection make it straightforward to select compatible lugs and cable crimps for a clean, secure installation.

• 4 x 5/16" (M8) stud posts accept large terminal connectors and lugs.
• Spaced layout simplifies routing multiple thick cables without crowding.
• Choice of connector sizes lets you match cable, lug and clamp for optimal contact.

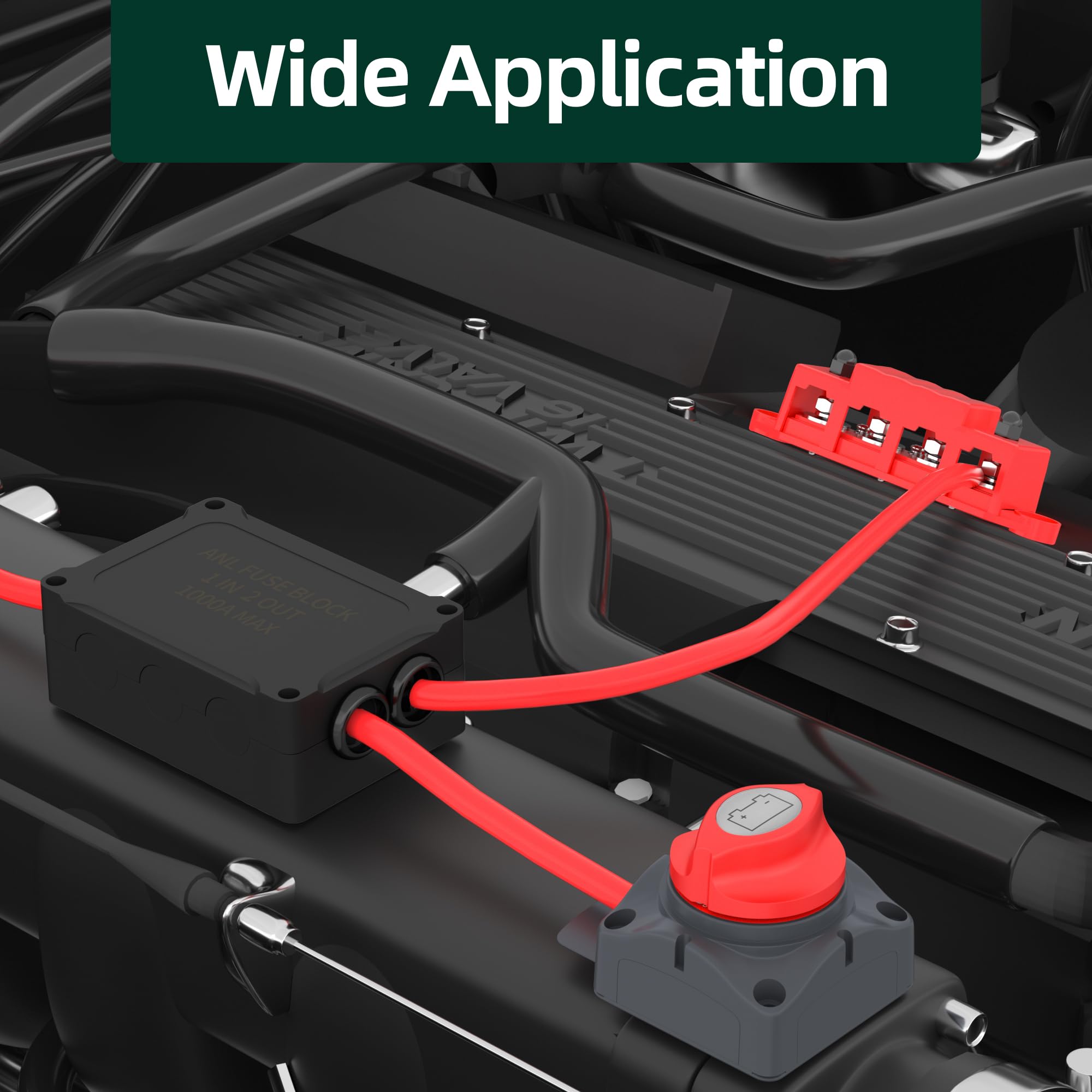

Who this is for: Installers and DIYers who need a rugged, flexible ANL fuse solution for high-current systems — ideal for car audio, marine power distribution, inverter/battery protection, RV and solar arrays. If you require a compact, serviceable fuse block that accepts large lugs, offers waterproof sealing and comes with a range of fuse sizes, this Joinfworld kit provides a ready-to-install option with room to upgrade to higher amperage ANL fuses as system needs grow.
