Joinfworld Thru-Panel Battery Bulkhead Connector 3/8" Stud Copper Core 250A with Protective Caps

Joinfworld's 3/8" thru-panel battery bulkhead connectors are a 250A copper-core jump-post kit that makes charging and jump-starting a battery through a firewall safe, convenient, and fast.

These heavy-duty bulkhead connectors provide a secure, through-panel connection point for battery charging, trickle charging, and jump-start access on cars, trucks, RVs, boats, and UTVs like the Can-Am. Built with an internal copper core and a 3/8" stainless stud, the kit is designed for high-current use while keeping the wiring inside the chassis tidy and protected. Each post includes color-coded protective covers so you can quickly identify positive and negative terminals and keep contacts shielded when not in use.

How do these thru-panel connectors simplify charging and jump-starting?

Instead of exposing the battery or running long exposed jumper cables, the bulkhead posts let you attach charging cables or jump leads at a convenient exterior or dash-mounted location. The 250A rating supports most starting and charging needs without overheating under normal use.

• 3/8" stud fits common battery clamps and ring terminals

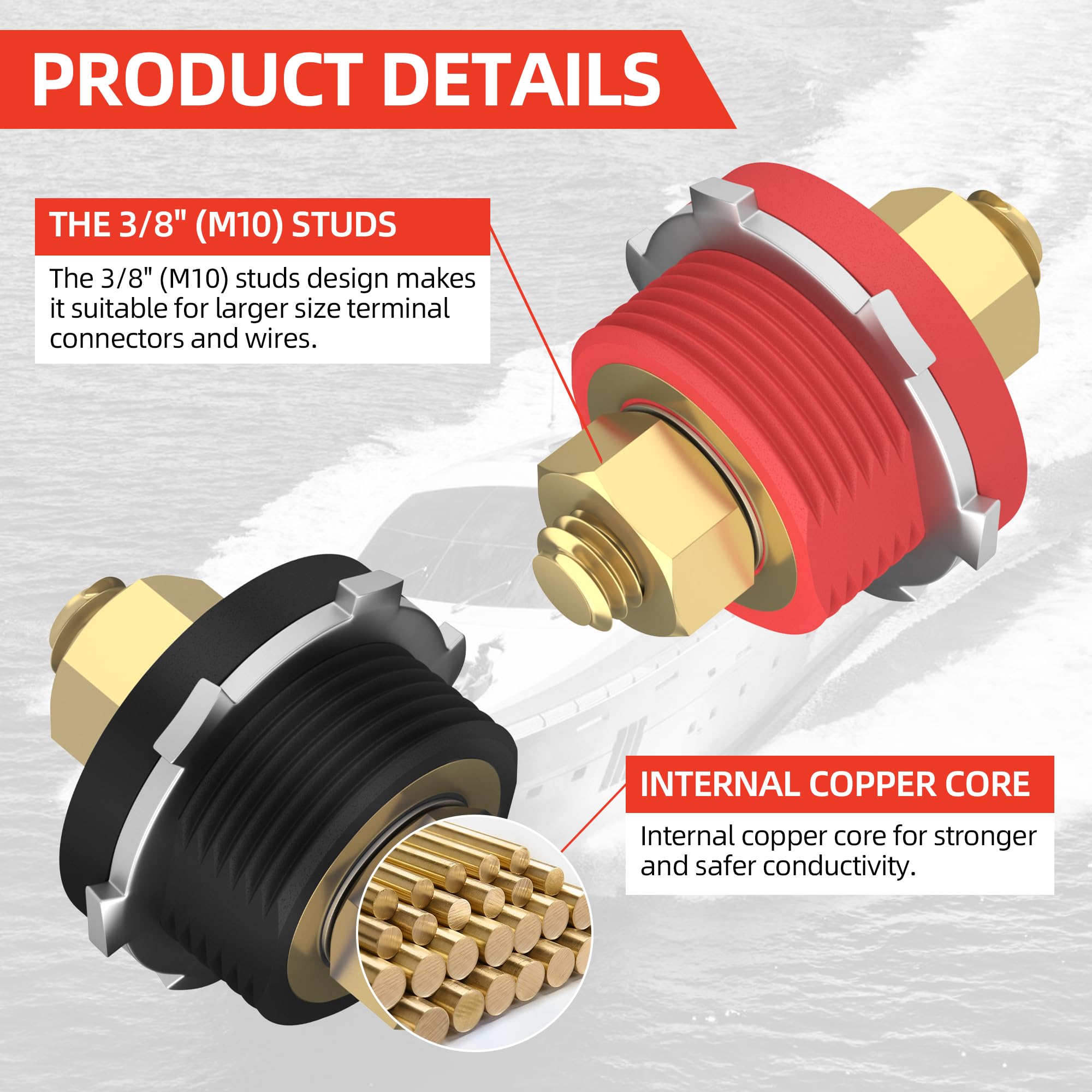

• Internal copper core for reliable current flow

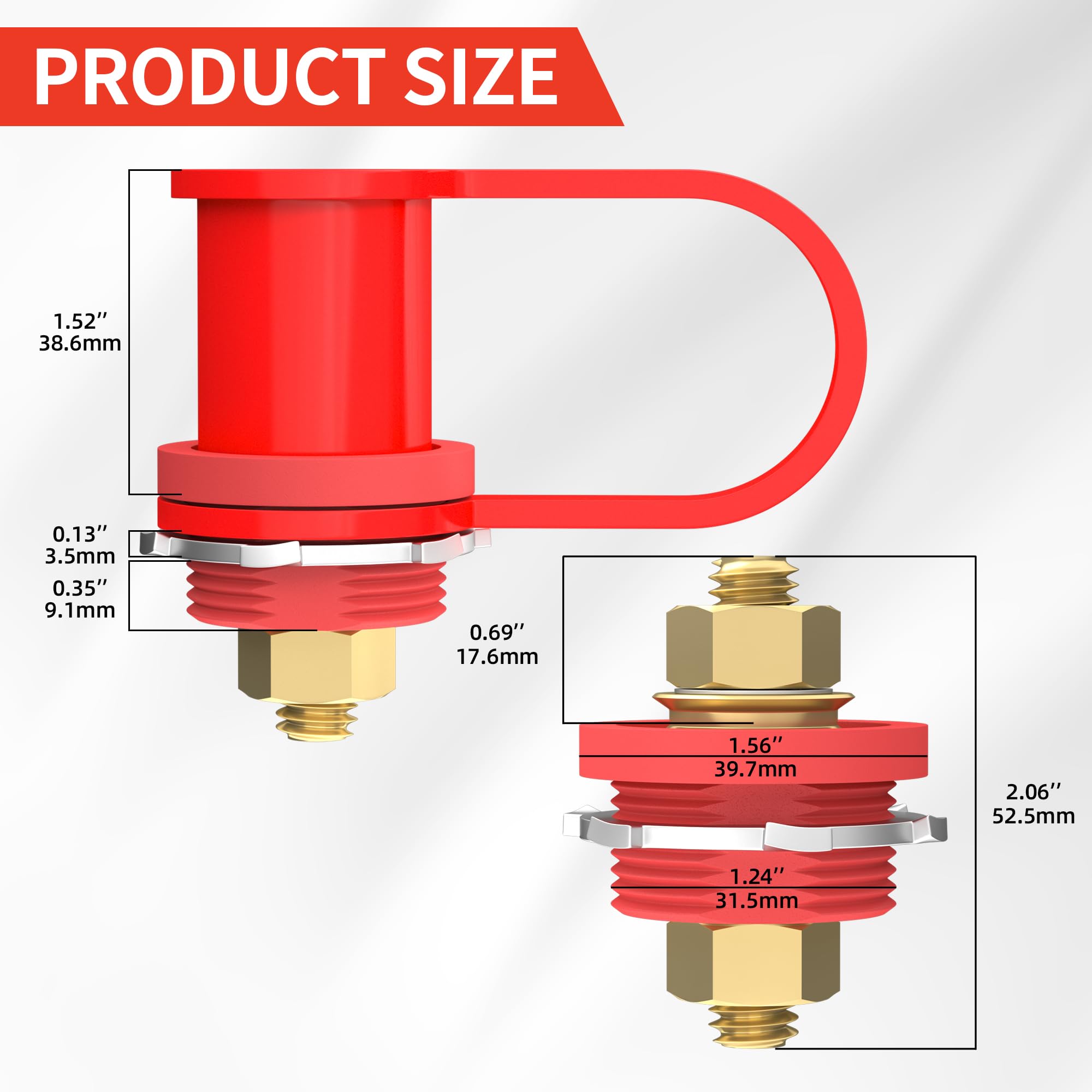

• Mounts through up to 0.3" panel thickness with a 1-1/4" hole

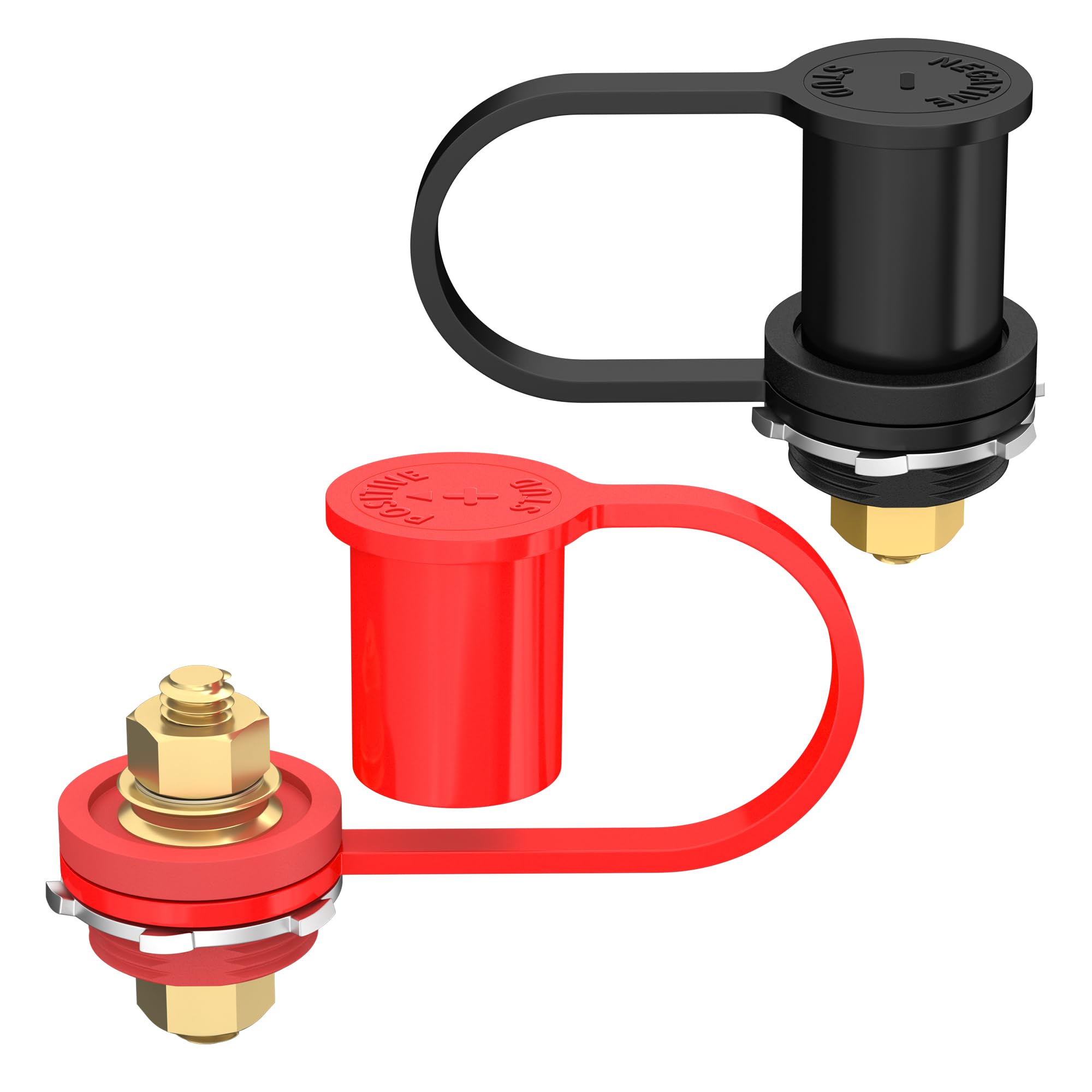

• Red and black protective caps to prevent shorts and dirt

Will these connectors handle heavy-duty or repeated use?

Yes — the combination of a copper core and substantial 3/8" stud provides a low-resistance path for high currents, and the 250A rating reflects durable construction for repeated charging and occasional jump starts. Proper installation and use within rated limits will keep the posts performing reliably.

• 250A continuous rating for charging and starting support
• Copper inner conductor minimizes voltage drop
• Secure nut and washer mounting prevents loosening

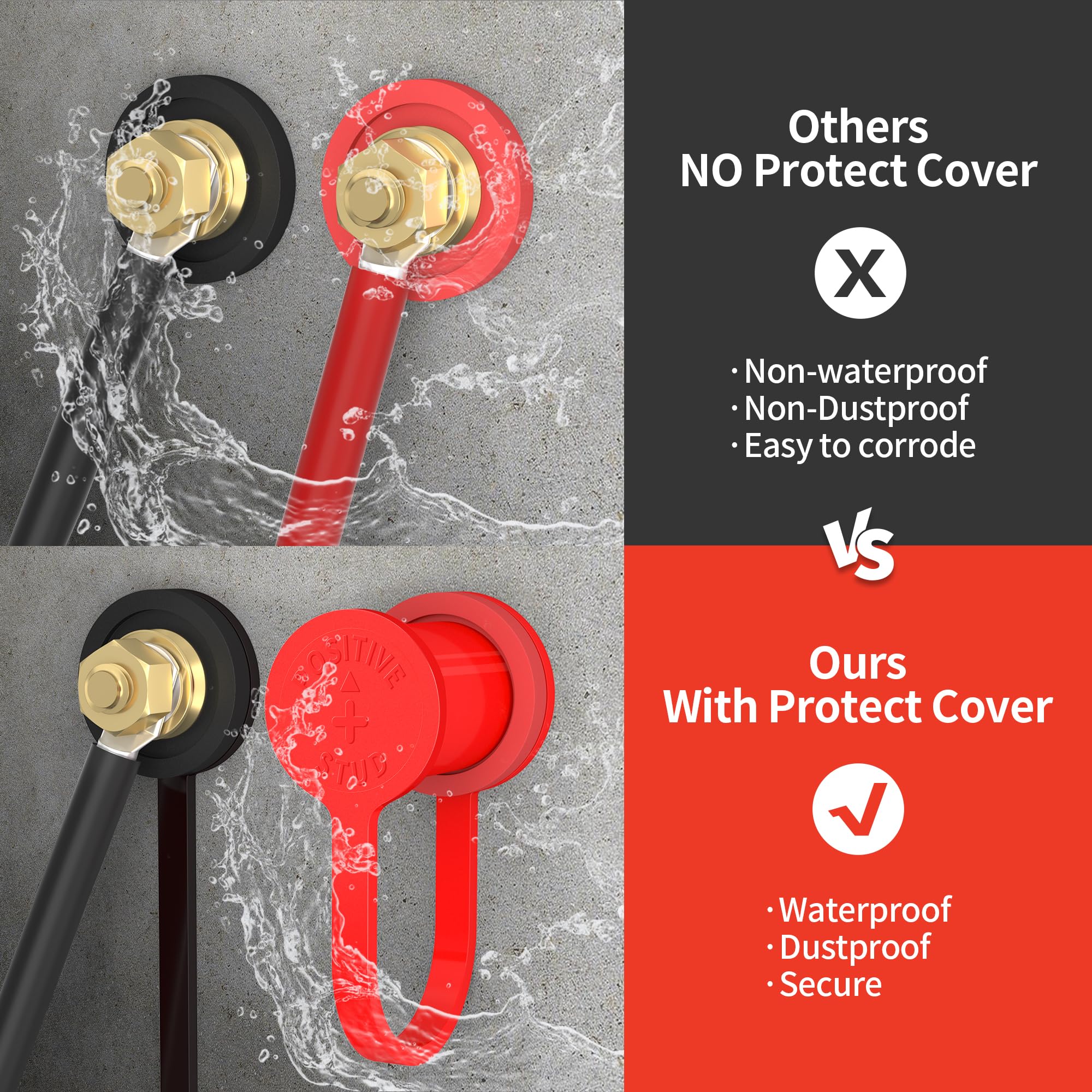

• Protective caps reduce corrosion and accidental contact

How do I mount and wire the Joinfworld bulkhead posts?

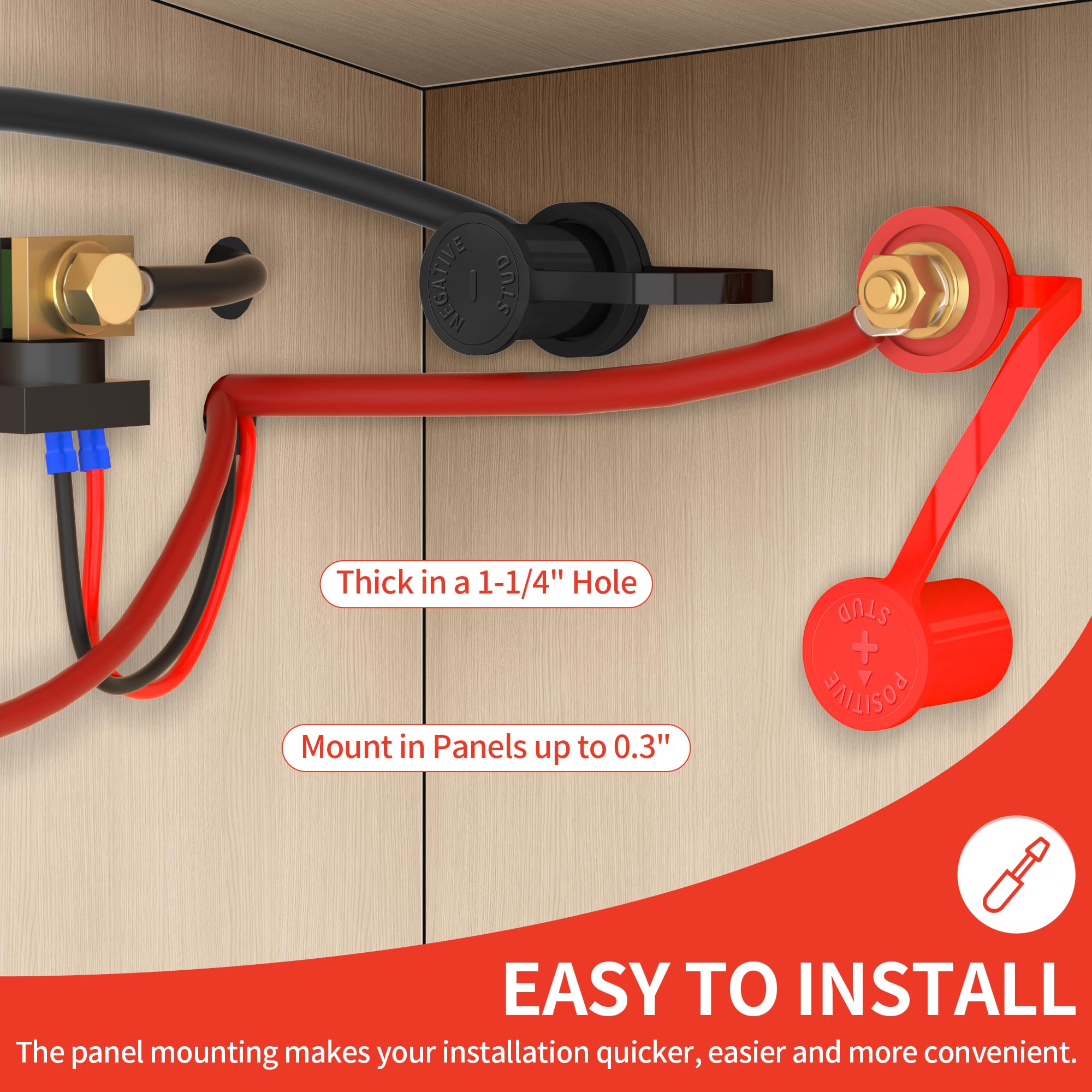

Installation is straightforward: drill a 1-1/4" hole through the chosen panel (up to 0.3" thick), feed the connector through, and fasten with the included nut and washer. Inside the vehicle or compartment, attach appropriately sized battery cable to the copper terminal using ring terminals or heavy-duty lugs rated for the amperage.

• Drill 1-1/4" hole in panel (max 0.3" thickness)
• Secure post with washer and nut to prevent movement
• Use heavy-gauge cable and properly crimped ring terminals
• Color-coded caps mark positive (red) and negative (black)

Where are these thru-panel posts best used in vehicles and boats?

These connectors are ideal wherever you want remote access to the battery without exposing the battery itself: engine bays, camper compartments, dash panels, sterns of small boats, and UTV dash or fender mounts. They work well on Can-Am Mavericks and similar off-road vehicles where quick external access is important.

• Cars, trucks, and RV service panels for easy charging
• UTVs and ATVs like Can-Am for remote jump-starts
• Boats for shore-power or battery-tender hookups
• Work trucks and fleet vehicles for rapid on-site power

Who is this for: The Joinfworld 3/8" thru-panel bulkhead connector kit is aimed at DIY vehicle owners, boaters, fleet mechanics, and off-road enthusiasts who want a neat, safe place to attach chargers or jumper cables without exposing the battery. If you need a rugged, high-current remote post for charging or emergency starts — and want clear positive/negative identification with protective covers — this compact kit is a practical, easy-to-install solution.
