Joywayus Solid Brass 4-Way Manual Heater Control Valve, 5/8" (16mm) Barb — Integrated Corrosion-Resistant

Joywayus All Solid Brass 4-way manual heating water valve is a compact, rust-resistant automotive heater control valve with a 5/8" (16mm) barb designed to reliably route coolant between heater circuits.

This integrated, screwless valve is built from solid brass (brass ball core and stem) with an electroplated handle for long-lasting resistance to high temperatures and corrosion. It fits 5/8" (16mm) hoses, tolerates working temperatures from -20 to 150℃ and pressures up to 1.6 MPa. The valve is intended to manage heater water flow, reduce unwanted cross-circulation between warm and cold circuits, and limit warm water flow into the cabin heater tank when not needed.

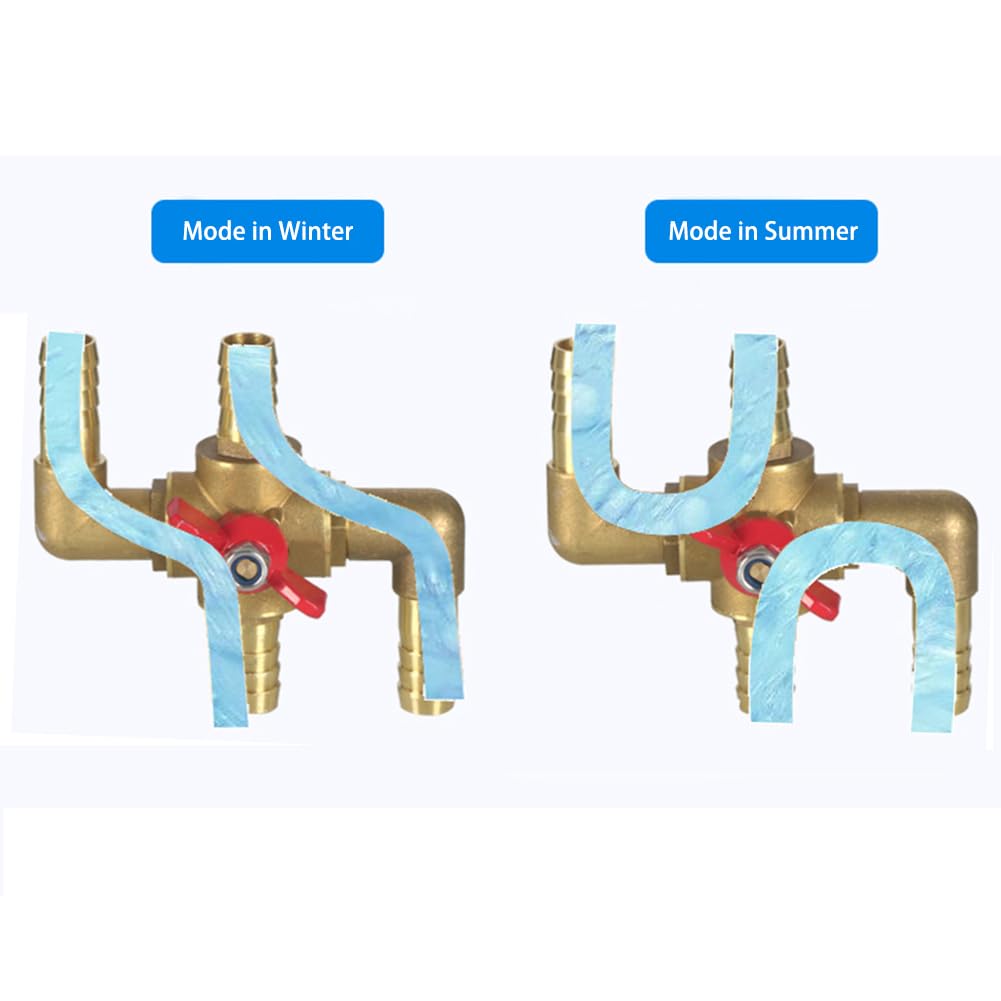

How does this valve improve my vehicle’s heater performance?

By providing a positive mechanical shutoff between heater circuits, the Joywayus 4-way valve prevents warm water from leaking into cold-air lines or the cabin heater tank when the system calls for cooling. That keeps the heating circuit isolated and helps the HVAC system perform as intended.

• Integrated design eliminates common leak paths found in multi-piece valves.
• Solid brass construction resists corrosion and high-cylinder temperatures.
• Manual control allows immediate isolation or routing of coolant paths.

Will this valve fit my hoses and withstand engine heat?

The valve uses a 5/8" (16mm) OD barb that accepts standard 5/8" heater hoses and is rated for continuous operation between -20℃ and 150℃ and up to 1.6 MPa pressure. Its all-brass body and brass internal parts are chosen for thermal durability and rust resistance compared with plated or plastic valves.

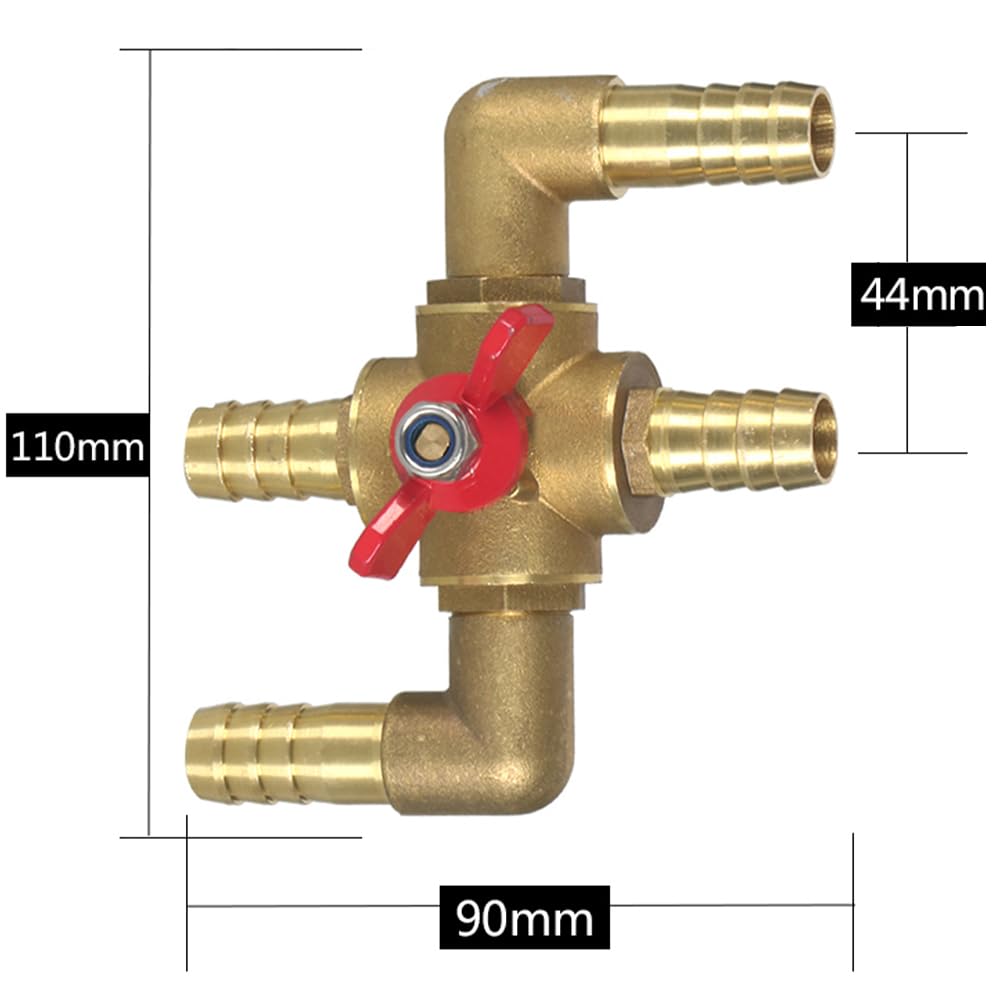

• Barb size: 5/8" (16mm) — fits common heater hoses.
• Temperature range: -20℃ to 150℃ for engine bay environments.
• Pressure rating: 1.6 MPa for typical coolant system pressures.

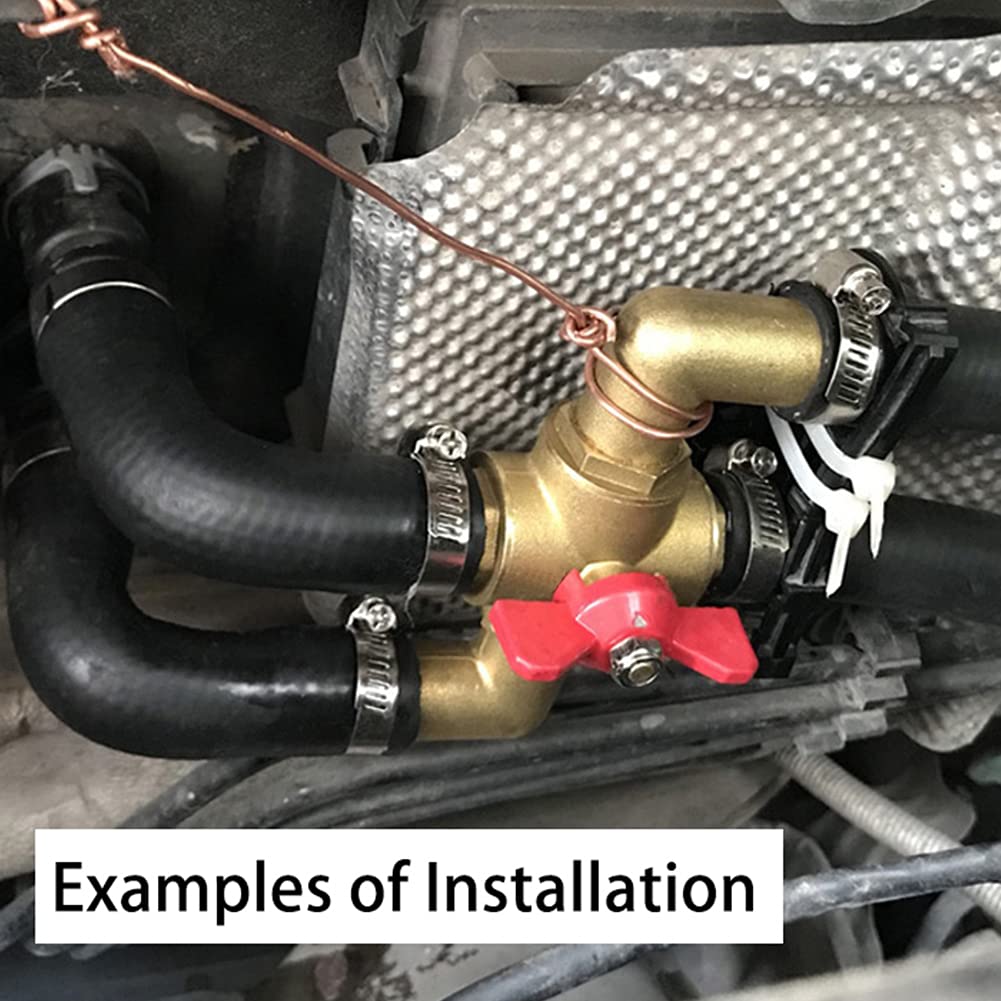

How is the valve installed and maintained in a vehicle heater system?

Installation replaces a section of heater hose: cut the hose, push onto the 5/8" barb ends, and secure with clamps. The integrated, screwless construction simplifies assembly, though older hoses may need sealant or high-temperature tape to compensate for reduced elasticity over time.

• Cut hose to length and slide clamps over hose before fitting to barbs.
• Clamp tightly; if hoses are aged, add high-temperature sealant or wrap with PTFE tape for improved sealing.
• Operate the electroplated handle to confirm smooth routing and tight shutoff.

What practical benefits should I expect after installing this Joywayus valve?

Expect reduced unwanted heat transfer between circuits and less warm water entering the cabin heater tank when the system is in cooling mode, which can help the HVAC system reach targeted temperatures more reliably. The valve also helps prevent coolant loss from a failing heater tank by isolating leaks from the rest of the cooling system.

• Limits cross-flow that can reduce cooling efficiency and increase fuel use.
• Reduces risk of engine pulling from heater tank leaks by isolating failures.
• Long-term durability from solid brass parts and electroplated handle.

Who is this for: The Joywayus All Solid Brass 4-way heating water valve suits DIY mechanics, fleet technicians, and vehicle owners who need a durable manual solution to control coolant routing in automotive HVAC systems. It’s particularly useful when replacing corroded plastic valves, adding an isolation point to protect a cabin heater tank, or upgrading to a higher-temperature-tolerant component in demanding engine bays.
