JRready Deutsch Connector Pin Removal Kit ST5231 — Size 20/16/12 Extractors, Stainless Handles

JRready ST5231 is a four-piece Deutsch connector release and pin removal kit designed to extract size 20, 16, and 12 solid contacts cleanly and to release terminals from a wide range of Deutsch-style housings.

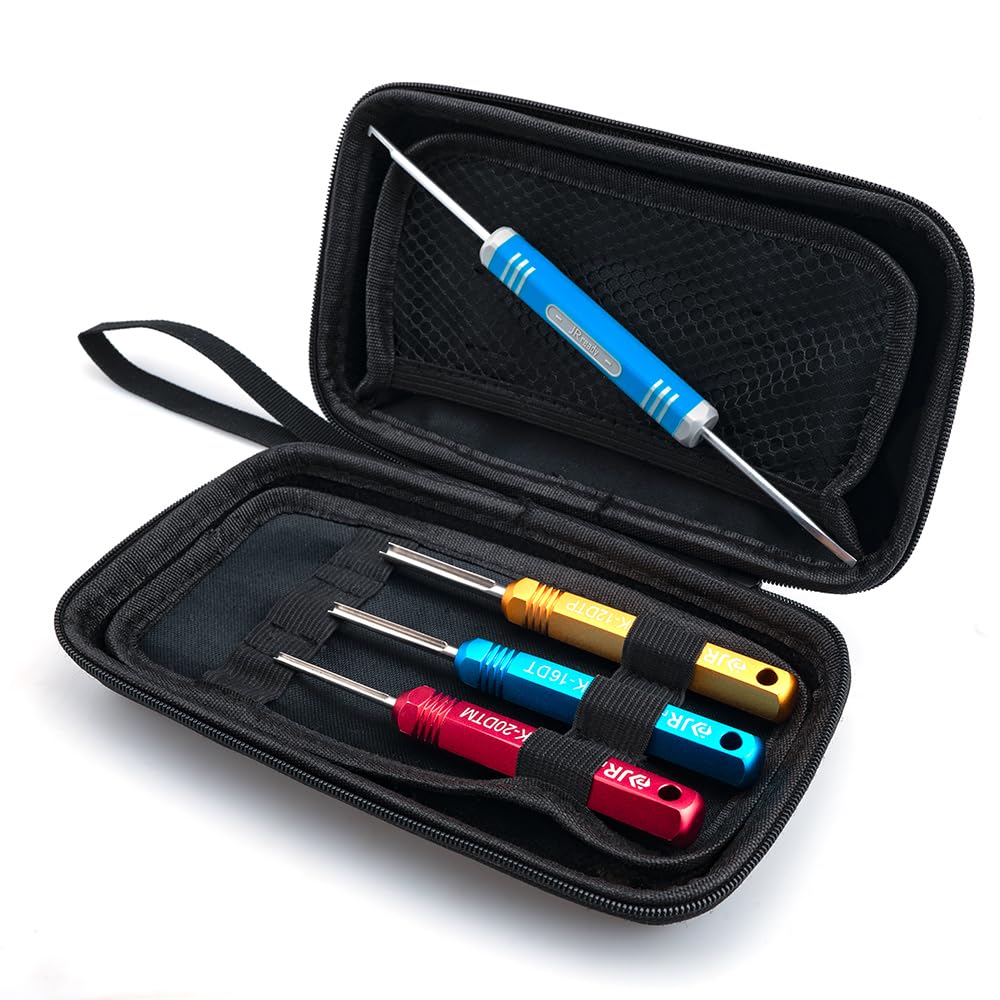

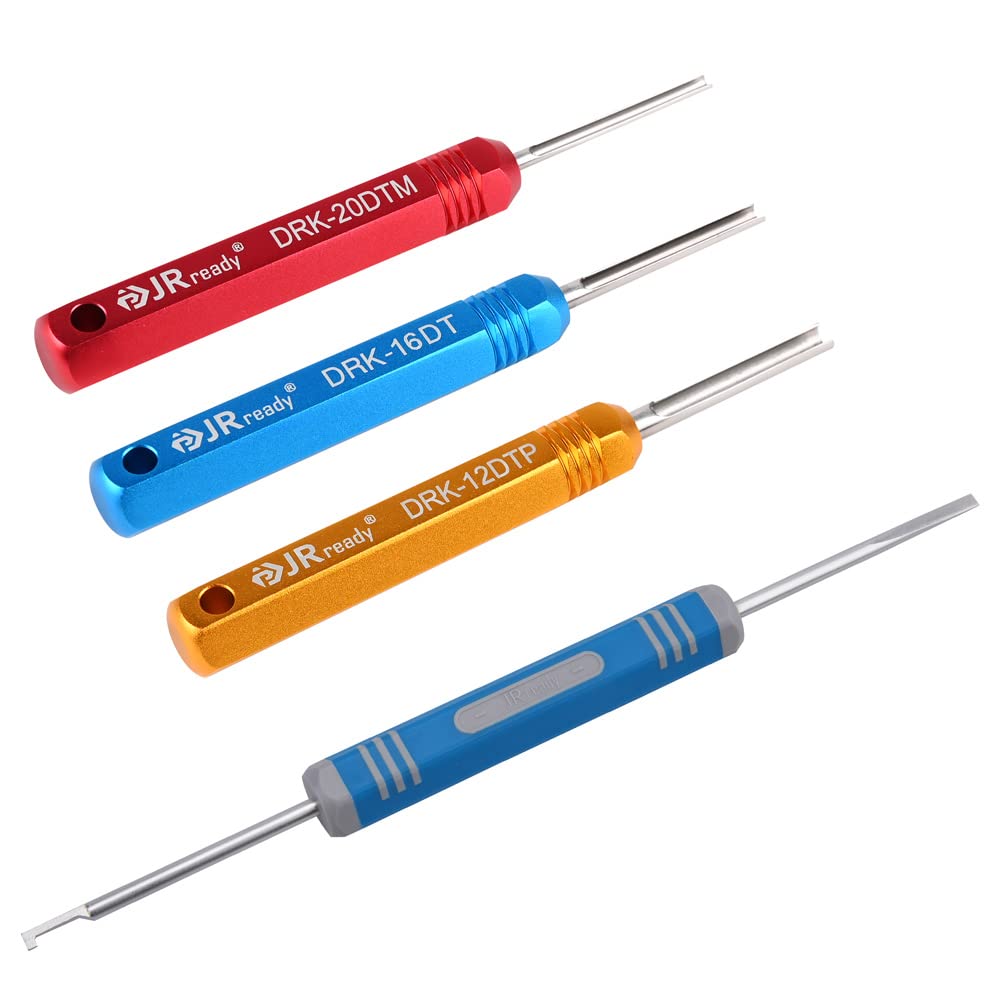

This compact toolkit groups three slotted pin-extractors and one dual-ended pick into a single set tailored for professional electricians, automotive technicians, and hobbyists who service Deutsch DT/DTP/DTM and related connectors. Each extractor features a stainless steel shaft for strength and a longer anodized aluminum handle for secure grip and added leverage. The kit is built to access terminals at different depths, minimize wire damage, and speed up wiring repair, replacement, or assembly tasks.

How do the different tools in this kit fit various contact sizes?

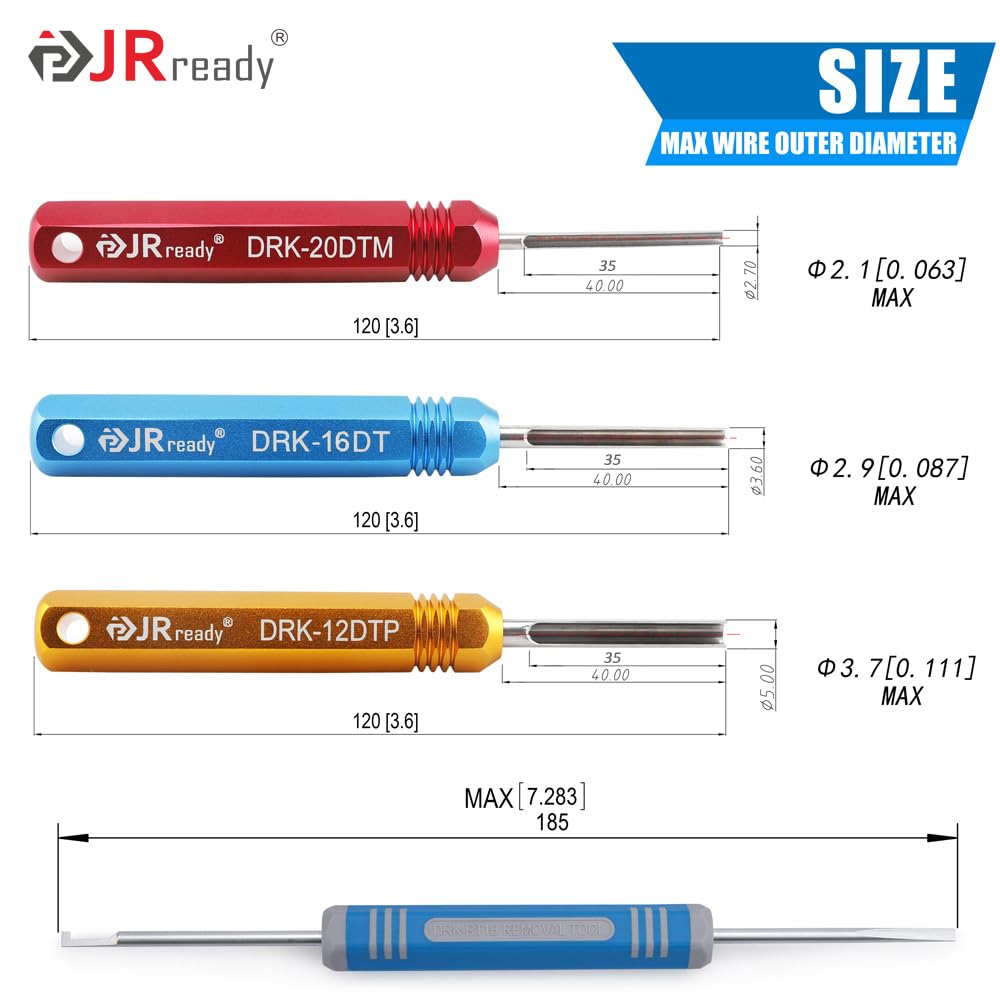

Each stainless-steel extractor is sized for a specific contact gauge so you can remove pins without deforming the contact or insulation. The DRK-20DTM, DRK-16DT, and DRK-12DTP match common Deutsch solid-contact dimensions and accept maximum wire outer diameters as specified.

• DRK-20DTM — for size 20 contacts, supports wires up to 2.1 mm outer diameter.
• DRK-16DT — for size 16 contacts, supports wires up to 2.9 mm outer diameter.
• DRK-12DTP — for size 12 contacts, supports wires up to 3.7 mm outer diameter.

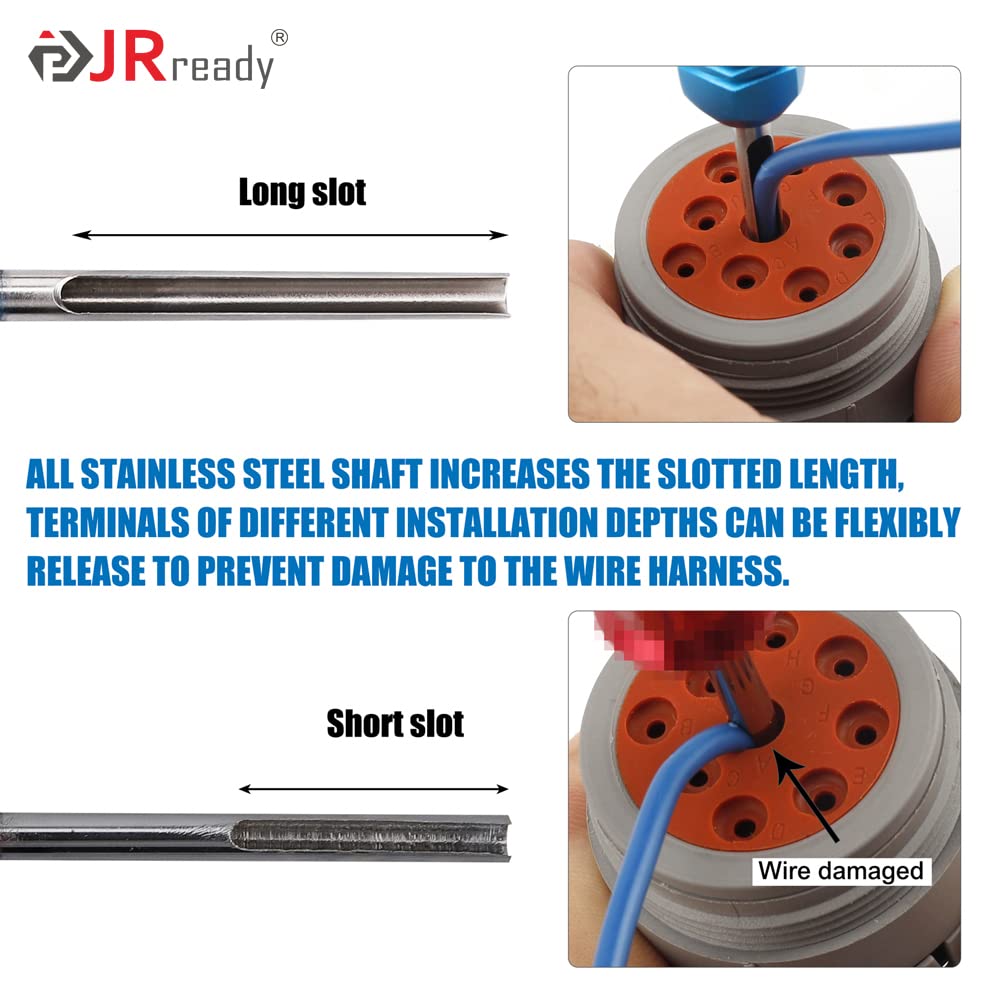

• Longer slotted length lets you reach terminals installed at variable depths.

What connector series and applications are supported?

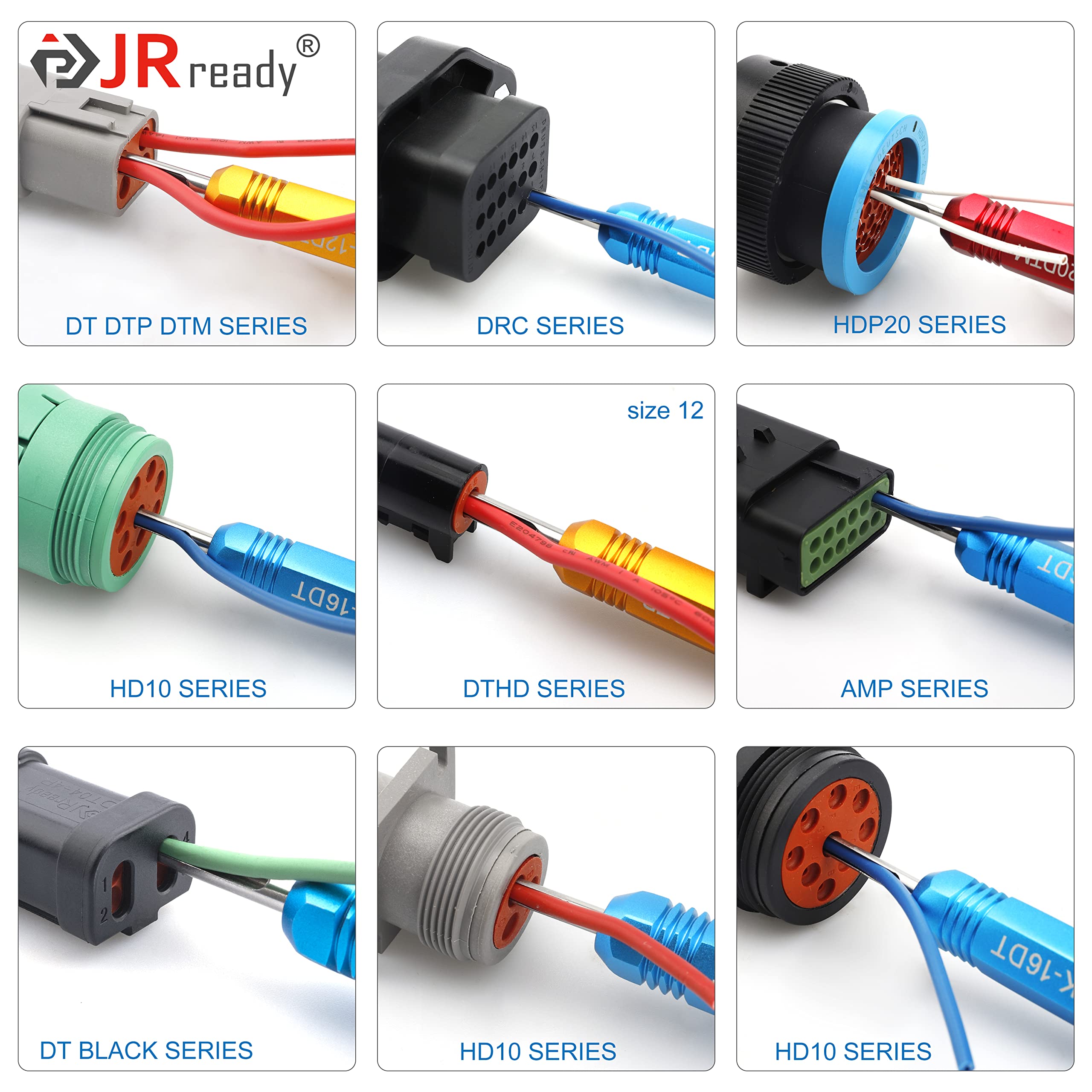

This kit works across a broad range of Deutsch and Deutsch-compatible housings used in automotive, industrial, and off-road equipment. It’s suitable for repair, retrofit, and prototyping work where access to individual contacts is required.

• Compatible with Deutsch DT, DTP, DTM series and many similar housings.
• Also fits AEC, DTV, DRB, HD10/20/30, STRIKE and JIFFY SPLICE type connectors.
• Useful for wiring harness repair, vehicle diagnostics, and field maintenance.
• Removes terminals without cutting or otherwise damaging the wire harness.

How is each tool constructed and how does that affect longevity?

The kit combines corrosion-resistant stainless steel shafts with anodized aluminum handles for a balance of durability and comfortable control. The build prevents bending and wear during repeated insertions into sealed and unsealed housings.

• Stainless steel shafts resist rust and maintain slot shape under torque.
• Anodized aluminum handles add ergonomic grip and prevent slippage.
• Extended slotted length reduces force needed and avoids pulling on insulation.
• DRK-RT1B pick adds a hooked and flat-head option for stubborn terminals.

What are practical tips for safe, efficient use?

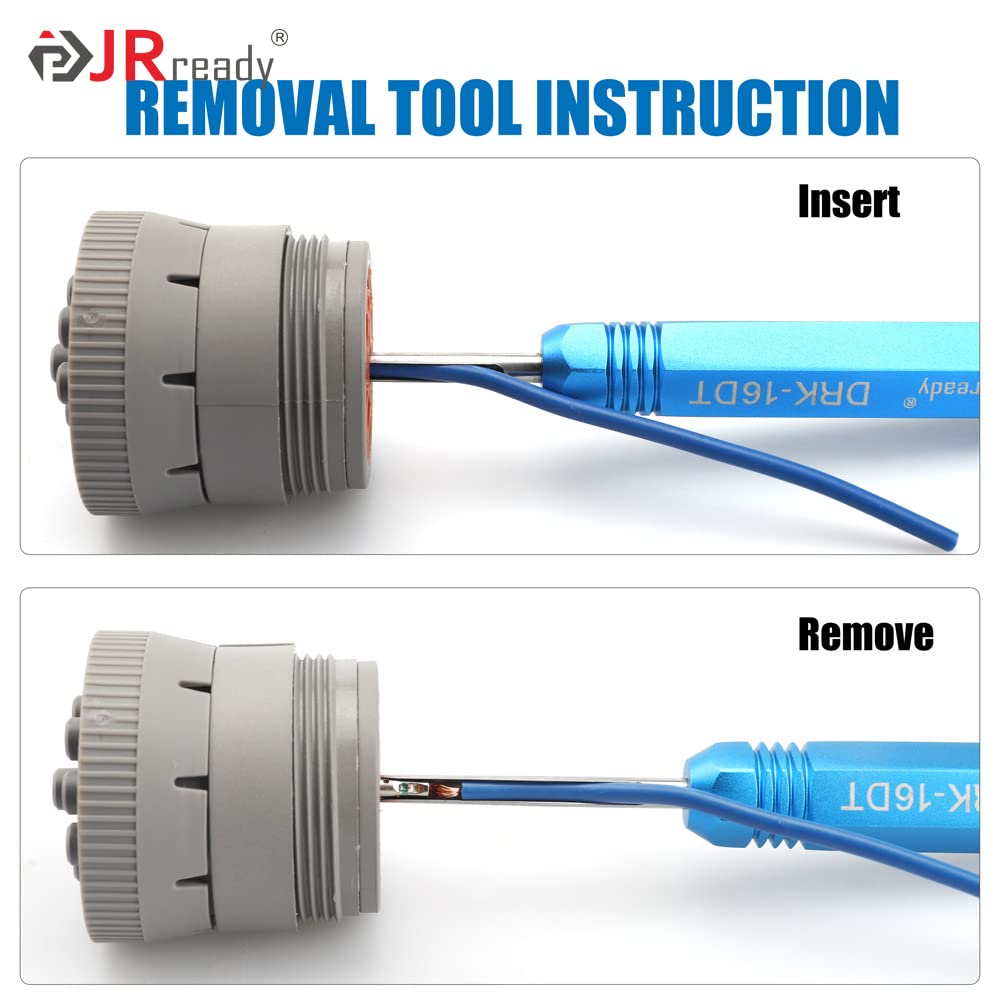

Using the right-size extractor and the correct insertion angle prevents terminal deformation and wiring damage. Work methodically: identify the contact size, depress the retention tang gently, and withdraw the terminal straight out.

• Select the extractor matching the contact size before inserting.
• Insert the slotted end fully until the retention tang clears, then pull straight out.
• Use the DRK-RT1B hook to nudge bent tangs or the screwdriver end for minor lever adjustments.
• Keep tools clean and store dry to sustain long service life.

Who is this for: The JRready ST5231 kit suits electricians, fleet and heavy-equipment mechanics, motorsport technicians, and electronics hobbyists who frequently service Deutsch-style connectors. It’s particularly useful for workshops that need a compact, durable set to remove solid contacts without replacing entire housings or damaging wire insulation. If you work with automotive harnesses, off-road vehicles, industrial control panels, or custom wiring projects, this kit streamlines terminal removal and reduces rework time.
