JRready Deutsch DTM 2‑Pin Connector Kit (4 Sets) — Solid Size‑20 Contacts, Waterproof and Vibration‑Resistant

This compact kit supplies everything you need to build reliable 2‑pin Deutsch DTM terminations for motorcycles, cars, ATVs, boats and other equipment exposed to vibration, moisture and engine-heat. JRready includes both plug and receptacle housings, solid size‑20 copper‑nickel contacts rated for typical small‑wire circuits, wedgelocks for secure retention and seal plugs to block unused cavities. The housings are molded from PA66 nylon for long service life and resistance to oils and salts.

What parts come in the JRready ST6330-2 kit?

The kit is complete for assembling four mated Deutsch DTM 2‑pin connections and offers replacement parts for repairs. Each component is sized and selected for ease of assembly and field service.

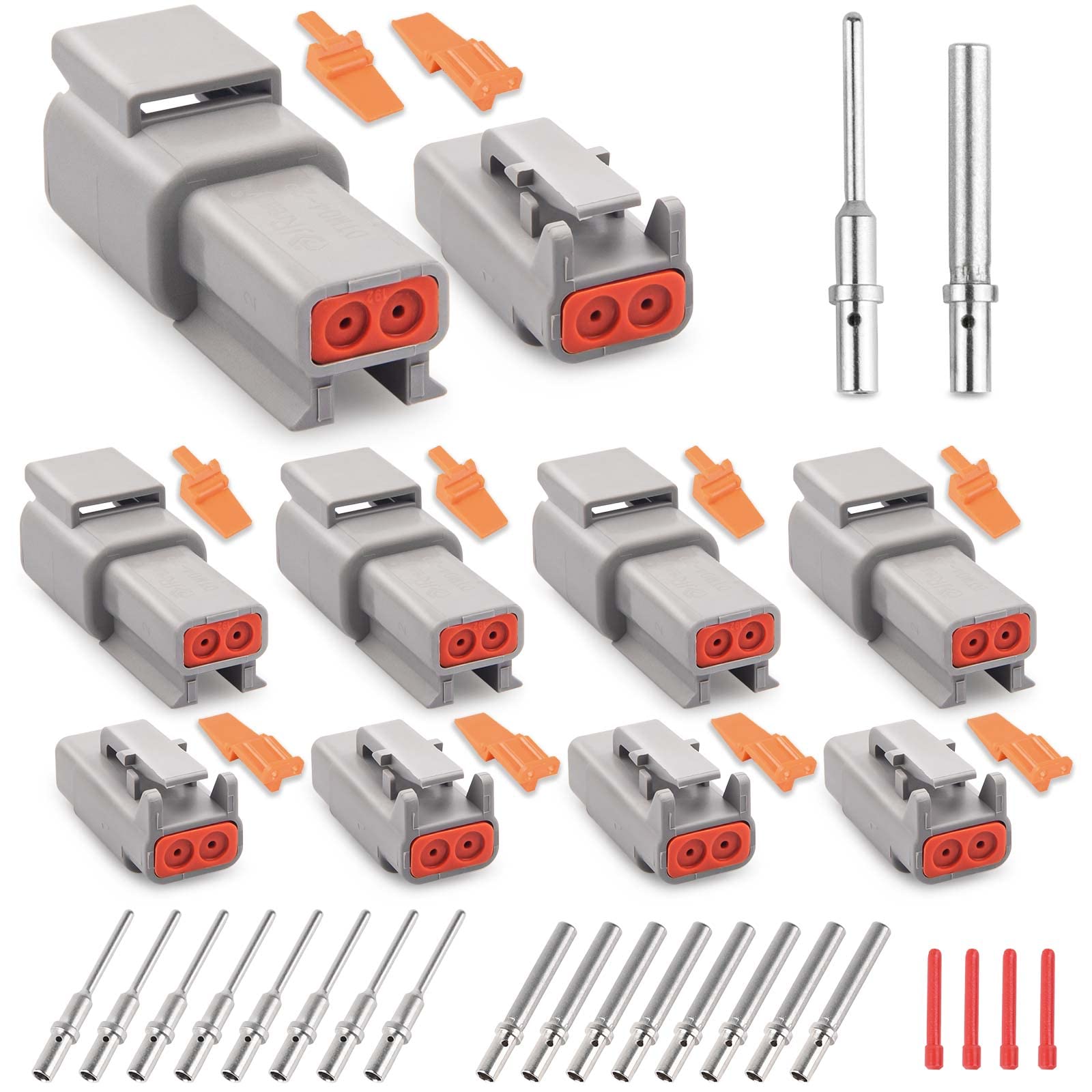

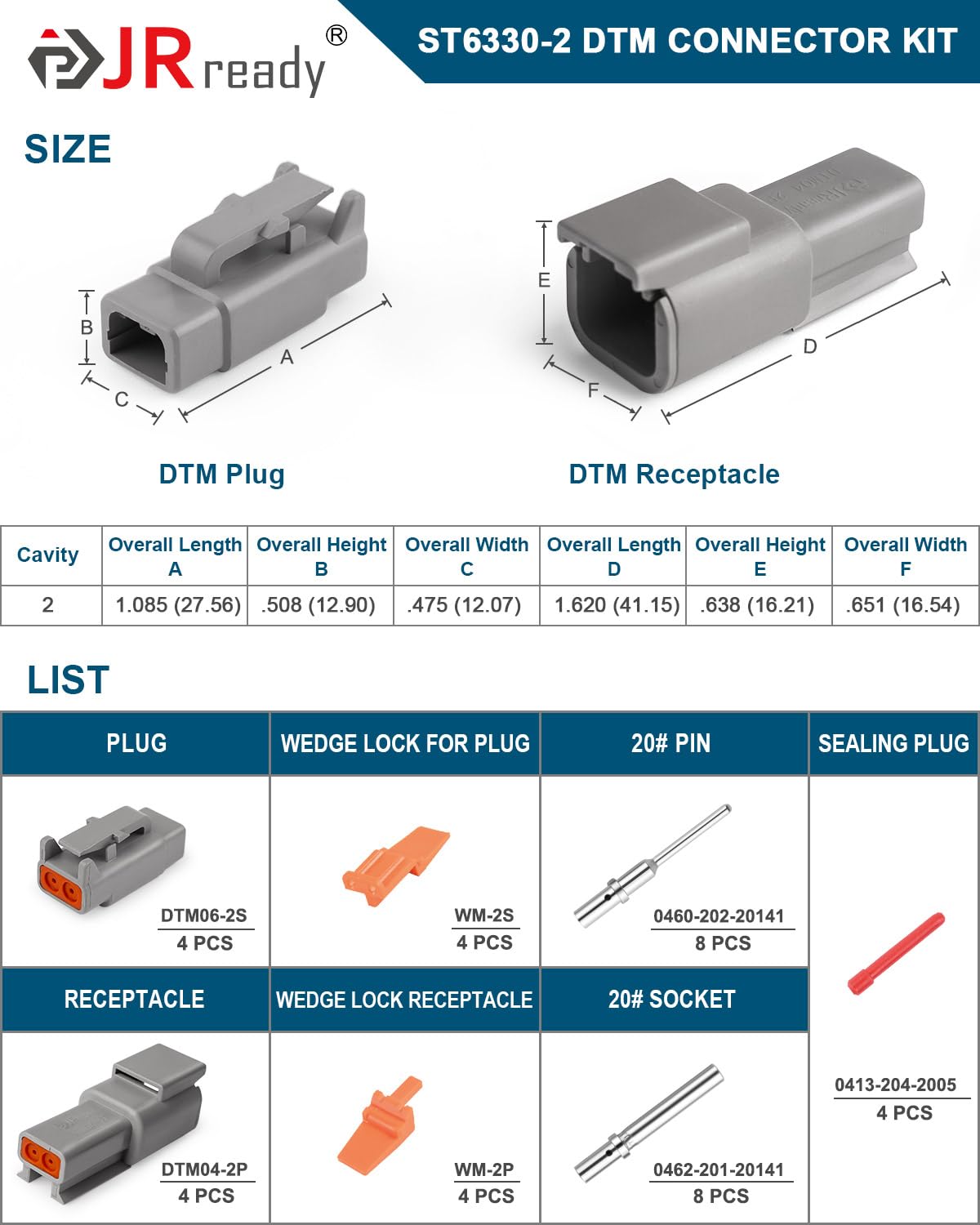

• 4 pairs DTM 2‑pin housings (DTM06‑2S plug / DTM04‑2P receptacle)
• 8 pairs size‑20 solid contacts (0460‑202‑20141 / 0462‑201‑20141)
• 4 wedgelocks for plugs and 4 wedgelocks for receptacles
• 4 seal plugs to close unused cavities

How do the size‑20 solid contacts perform and fit wires?

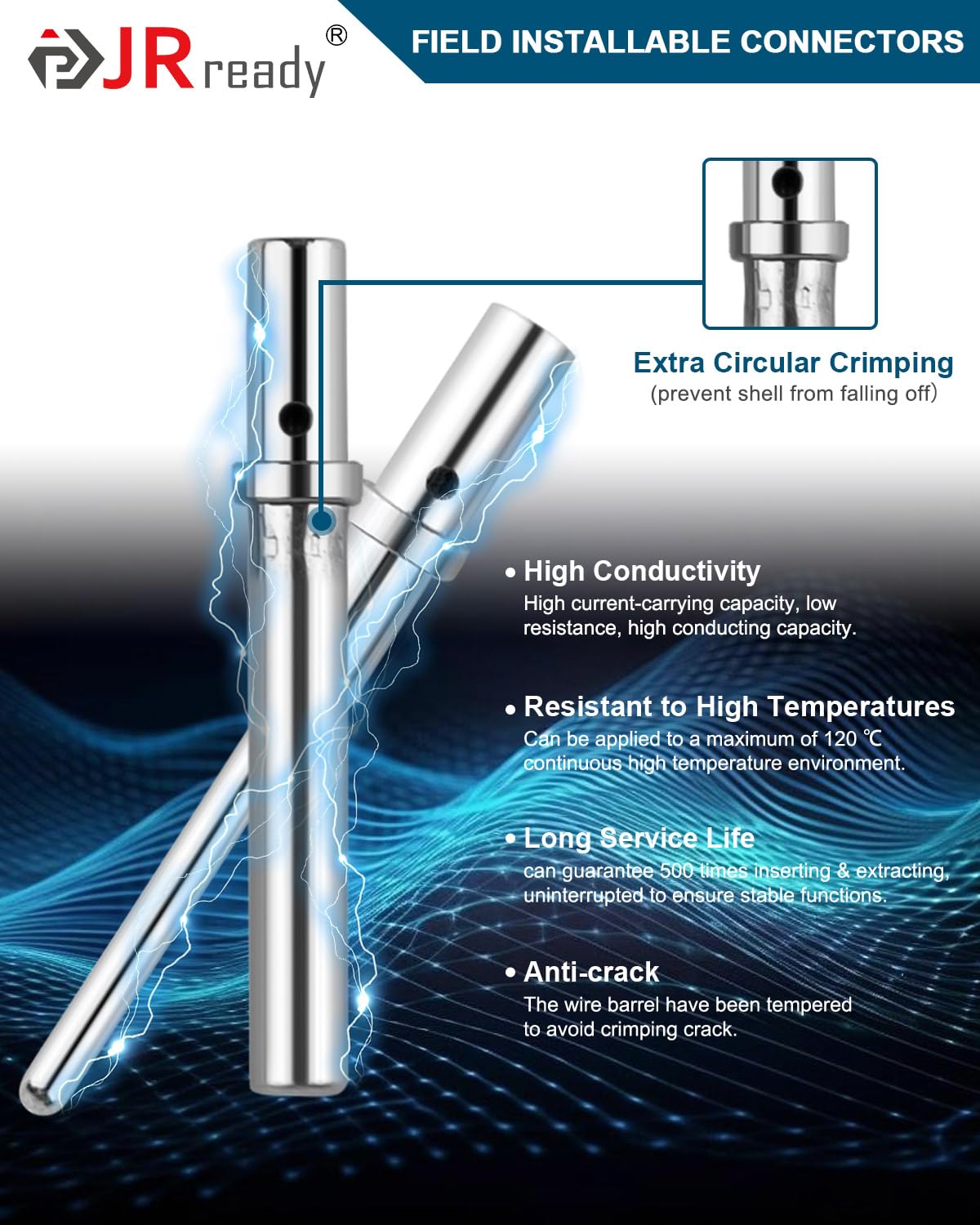

JRready supplies solid size‑20 contacts made from a copper‑nickel alloy chosen for conductivity and mechanical strength. They accept 20–22 AWG conductors and are designed for repeated crimping without surface cracking when proper tools are used.

• Wire range: 20–22 AWG, suitable for common sensor and accessory circuits
• Continuous current capacity: approximately 7.5 A per contact

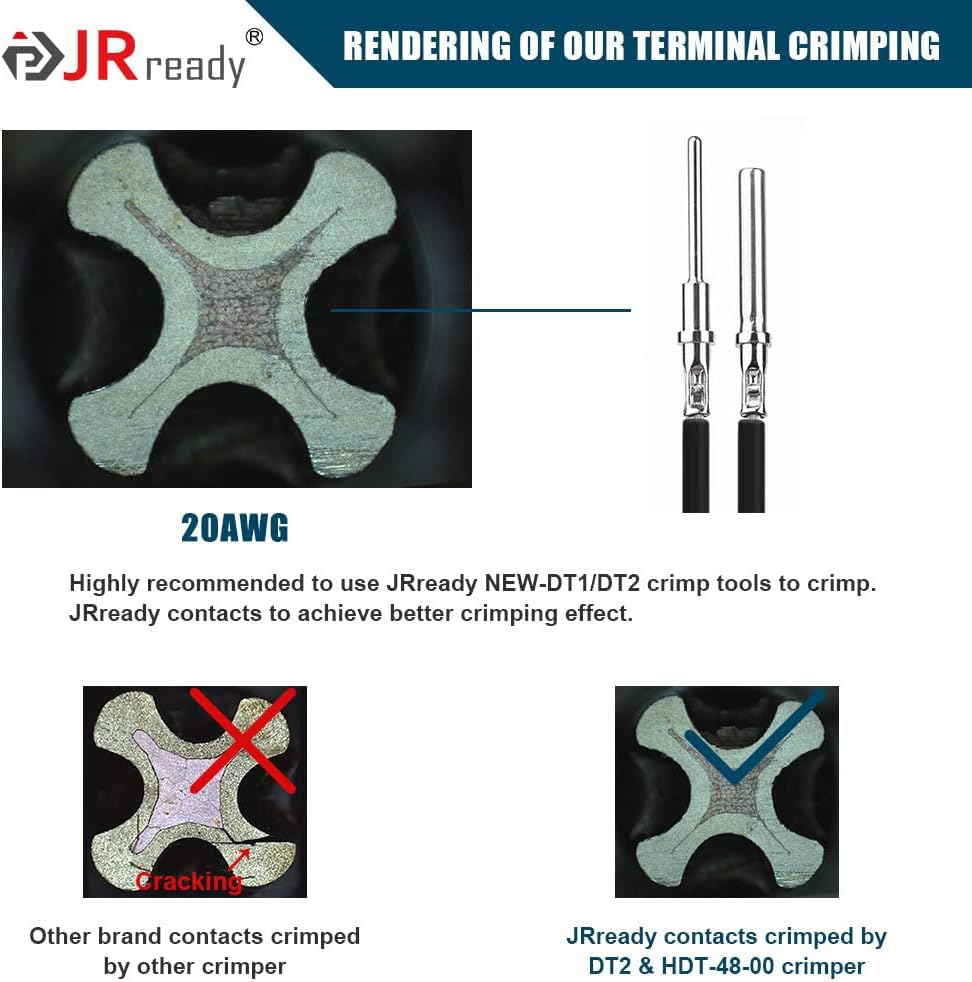

• Special surface treatment reduces crimp cracking and improves reliability
• Solid (non‑solder) contacts for secure crimp connections

Are the connector housings weatherproof and durable?

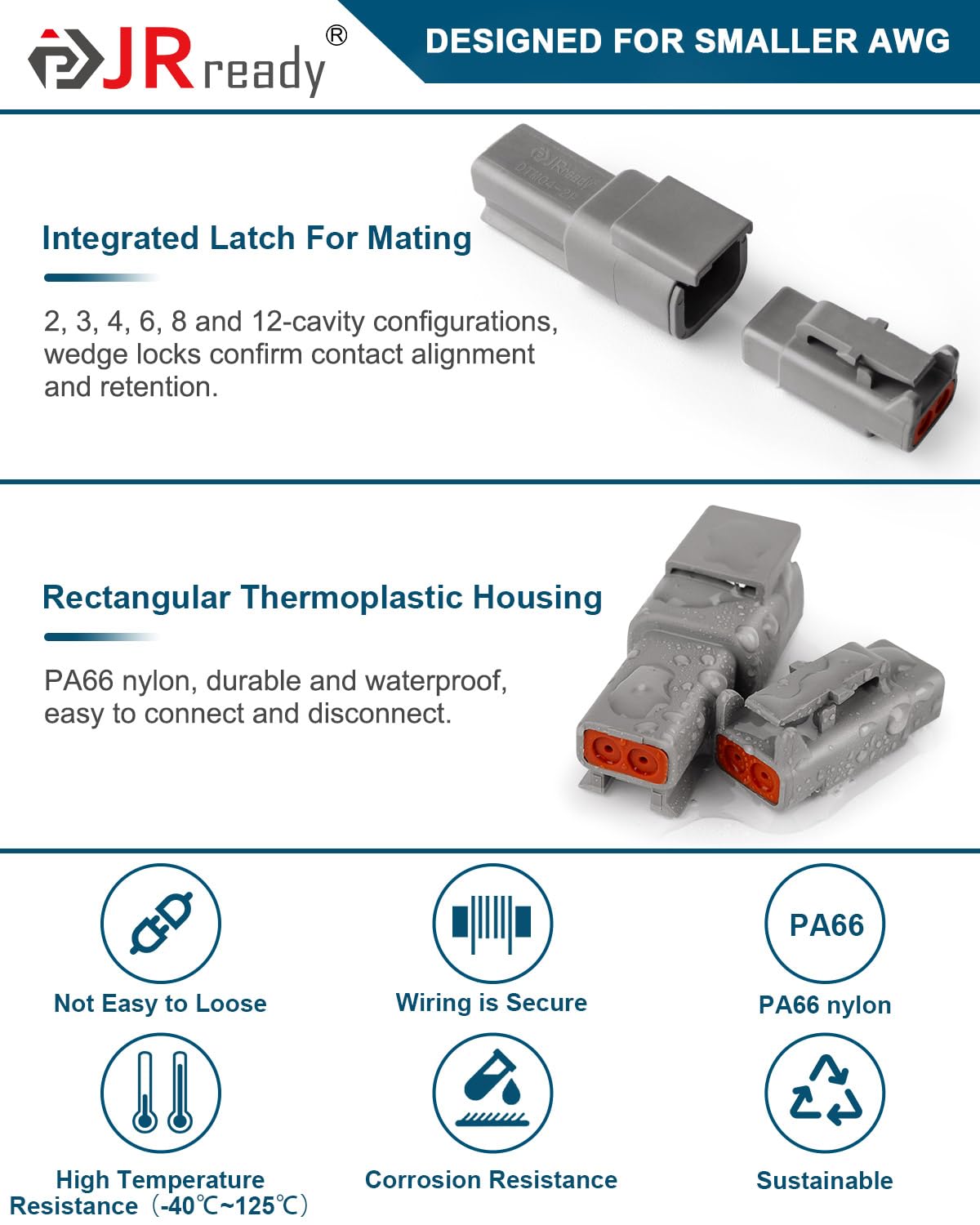

Housings are injection‑molded from PA66 nylon, a high‑strength engineering plastic resistant to wear, heat and many automotive fluids. The mating geometry, wedgelocks and included seals create a water‑resistant interface suitable for under‑hood and marine applications when assembled correctly.

• Material: PA66 nylon for mechanical strength and insulation

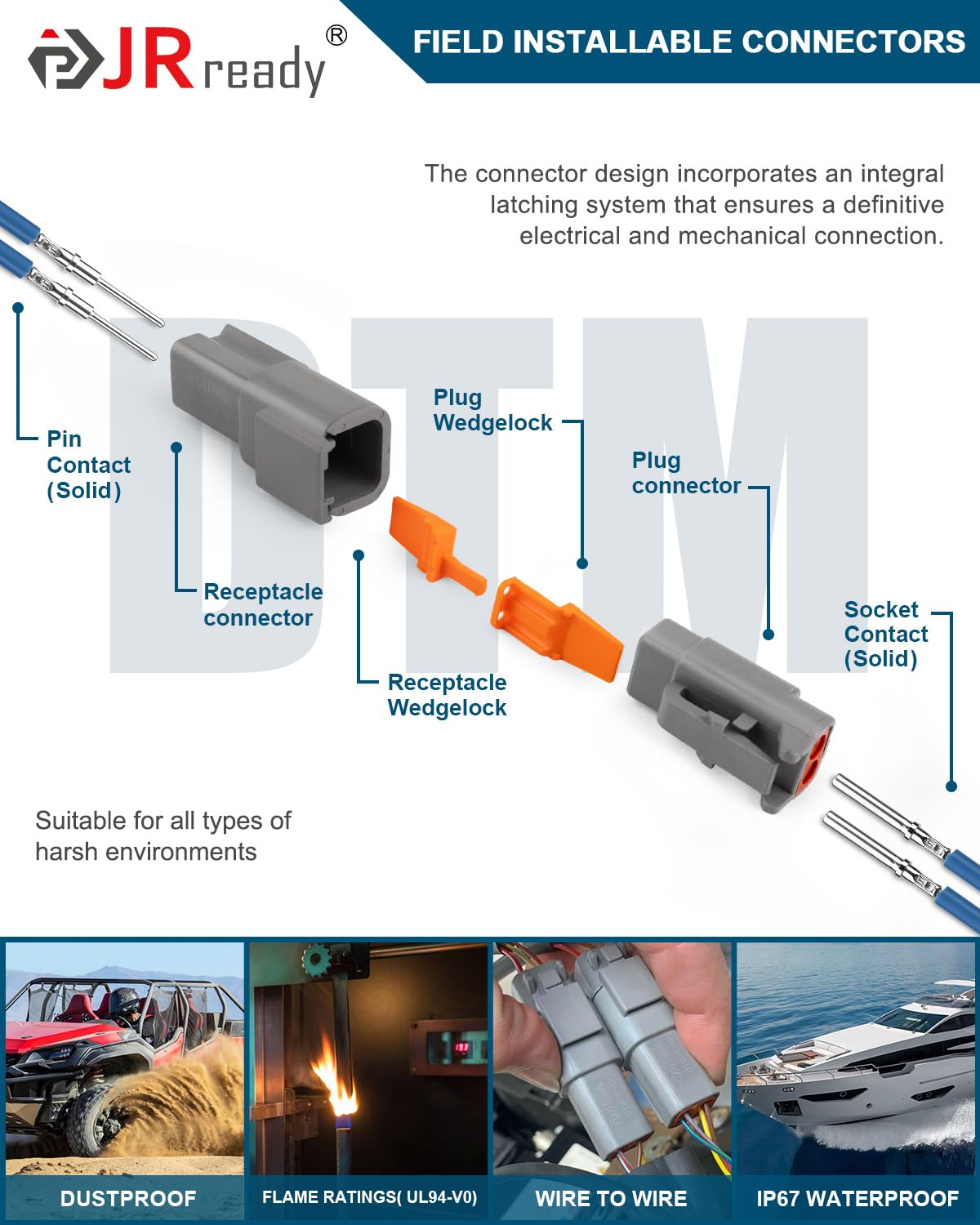

• Includes wedgelocks to prevent contact back‑out under vibration
• Seal plugs close unused cavities to keep out water and contaminants
• Designed for repeated connect/disconnect cycles without deformation

Where can these DTM 2‑pin connectors be used safely?

The kit is aimed at low‑to‑moderate current circuits in vehicles and marine craft where compact, waterproof two‑pin connections are required. Typical uses include sensors, lighting, small actuators and accessory wiring near engines or in exposed locations.

• Motorcycles, scooters and ATVs — harness repairs and aftermarket additions
• Cars and trucks — sensors, auxiliary lighting and under‑hood connections
• Marine applications and jetskis — corrosion‑resistant housings and seals
• Caravans, trailers and off‑road equipment needing compact waterproof plugs

Who is this for: JRready ST6330-2 is ideal for hobbyists, mechanics and installers who need a small quantity of high‑quality Deutsch DTM 2‑pin connectors for repair, prototype or retrofit work. Choose this kit when you want OEM‑style housings, durable size‑20 solid contacts sized for 20–22 AWG wiring, and the convenience of wedgelocks and seal plugs included so assemblies remain secure in vibration, moisture and salt‑spray environments.
