JRready Deutsch DTM 3-Pin Connector Kit ST6330-3 — 4 Sets, Solid Size-20 Contacts, Waterproof

JRready ST6330-3 is a 3-pin Deutsch DTM connector kit that provides four waterproof connector pairs with solid size-20 contacts, wedgelocks, and seal plugs for reliable vehicle and marine electrical connections.

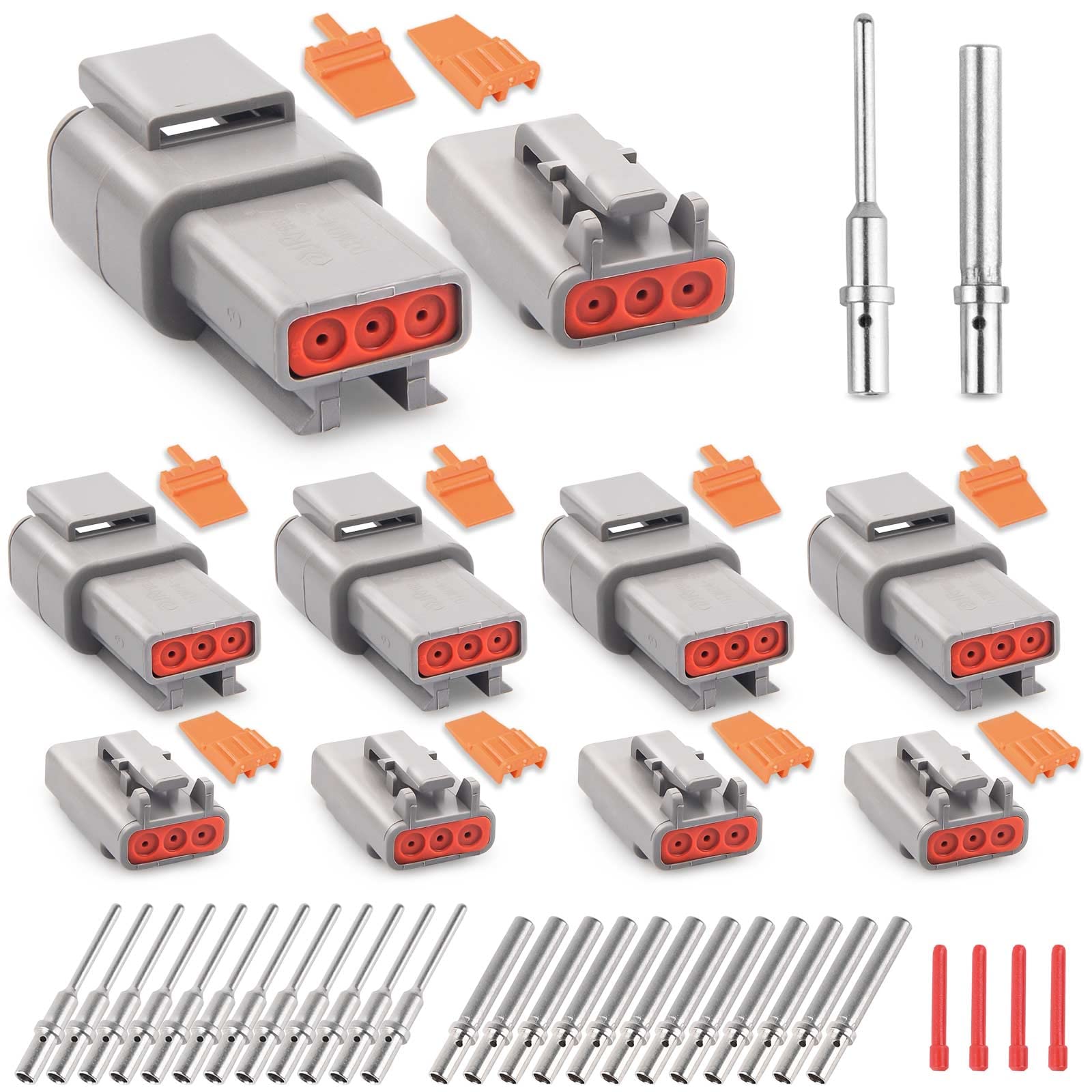

This kit bundles everything needed to build durable, weatherproof three-pin harnesses: four DTM 3-pin plug/receptacle pairs plus the matching solid copper-nickel contacts, wedgelocks for secure pin retention, and spare seal plugs. Designed for installations near engines, under hoods, or exposed to moisture, the components are molded from PA66 nylon for ruggedness and include solid contacts rated for continuous use on 20–22 AWG wire.

How does this kit keep connections waterproof and secure?

The DTM housings are engineered with sealed cavities and molded nylon bodies that resist moisture and contaminants. Combined with rubber or polymer seal plugs and wedgelocks, the assembly minimizes water intrusion and prevents pins from backing out under vibration.

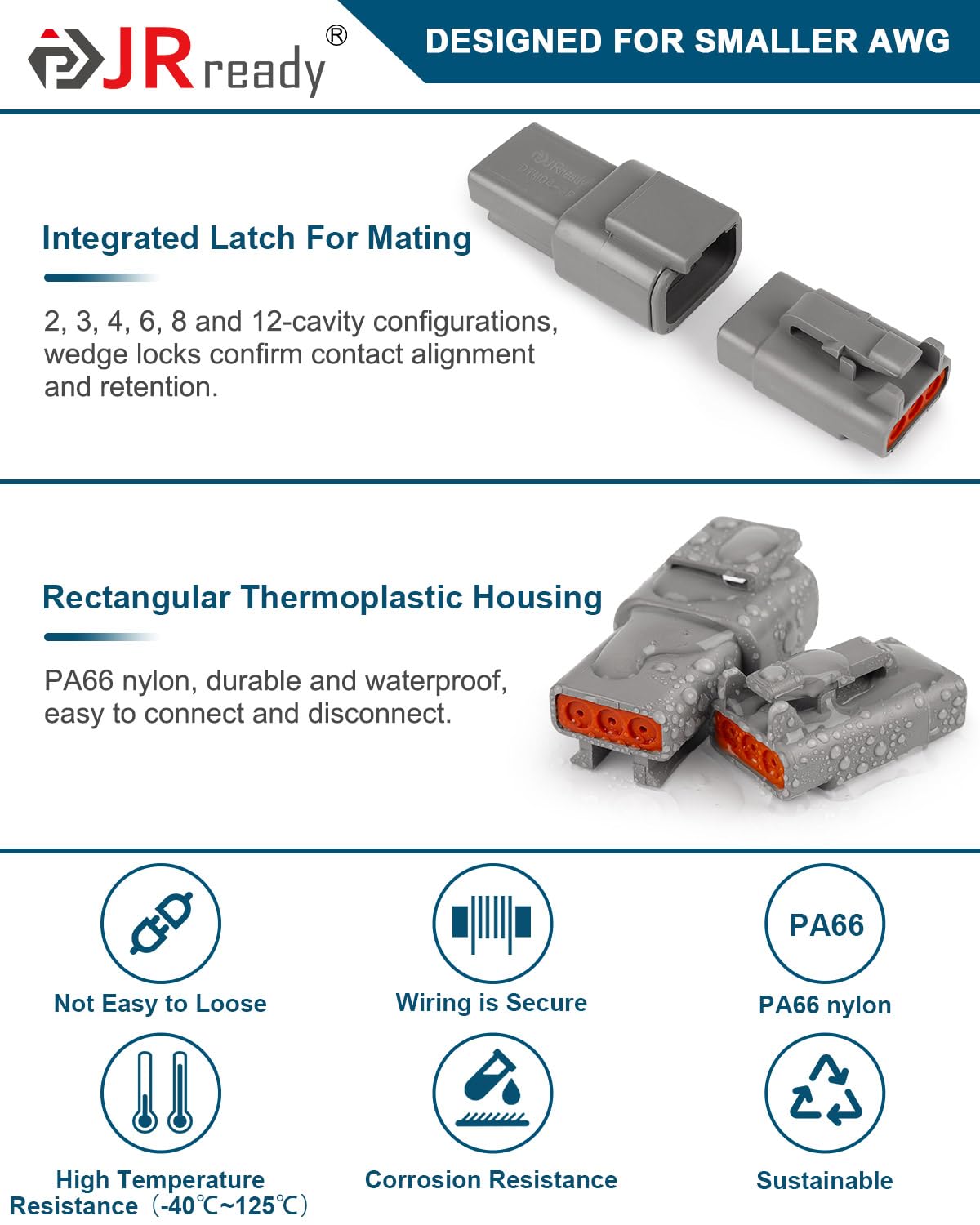

• PA66 nylon housings with molded recesses for seals
• Individual seal plugs to close unused cavities

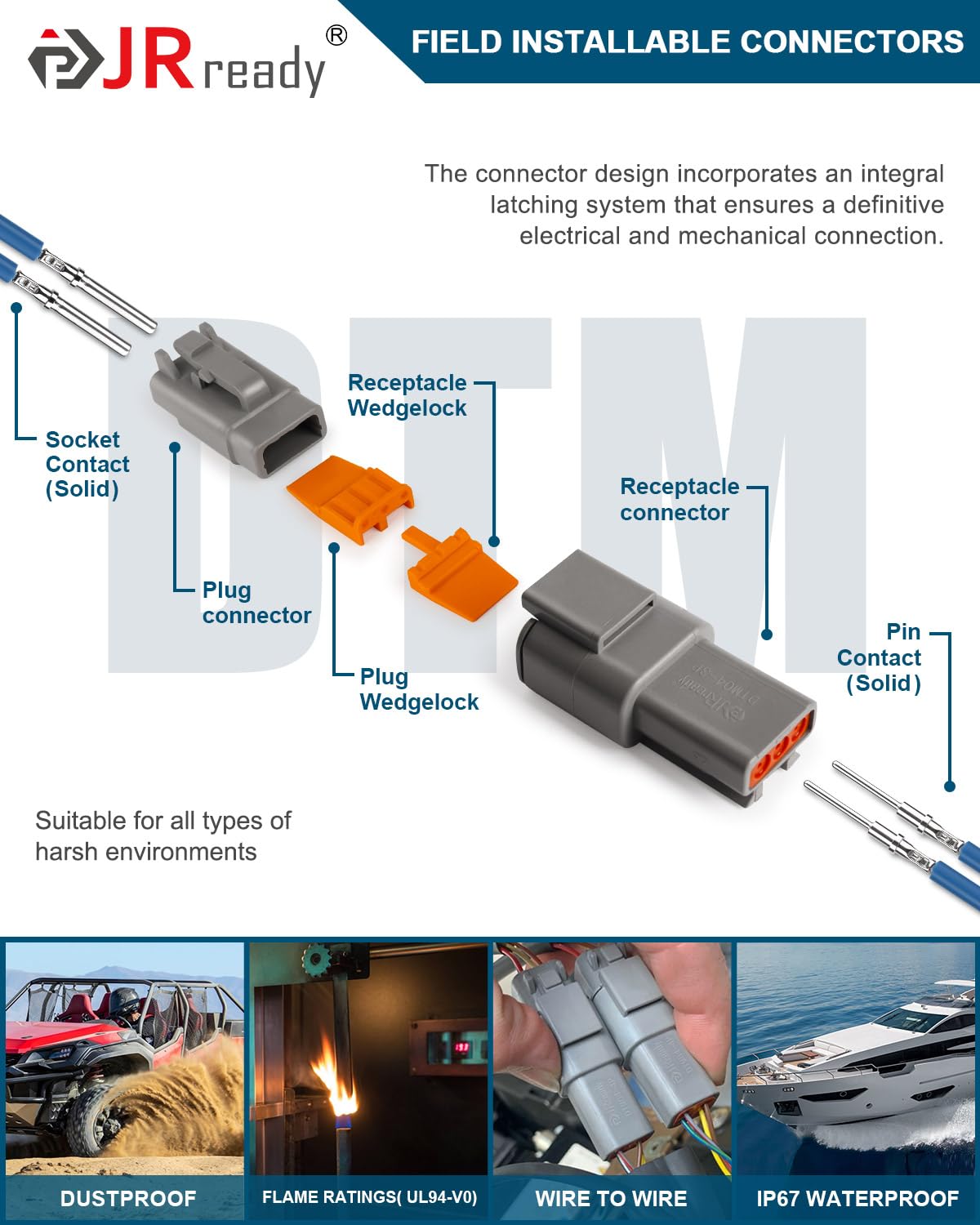

• Wedgelocks for mechanical retention of contacts
• Design intended for wet or vibration-prone environments

What electrical performance can I expect from the solid contacts?

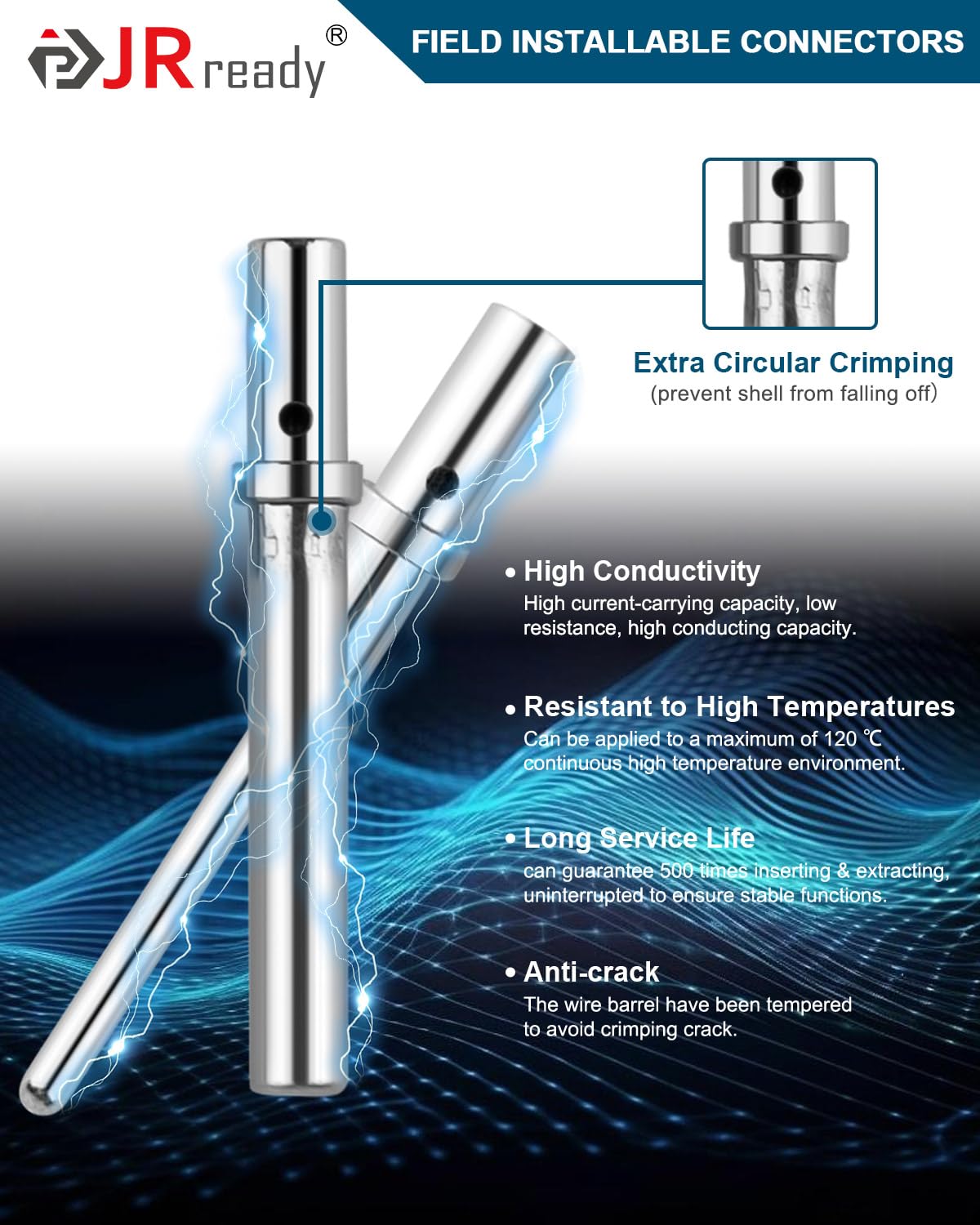

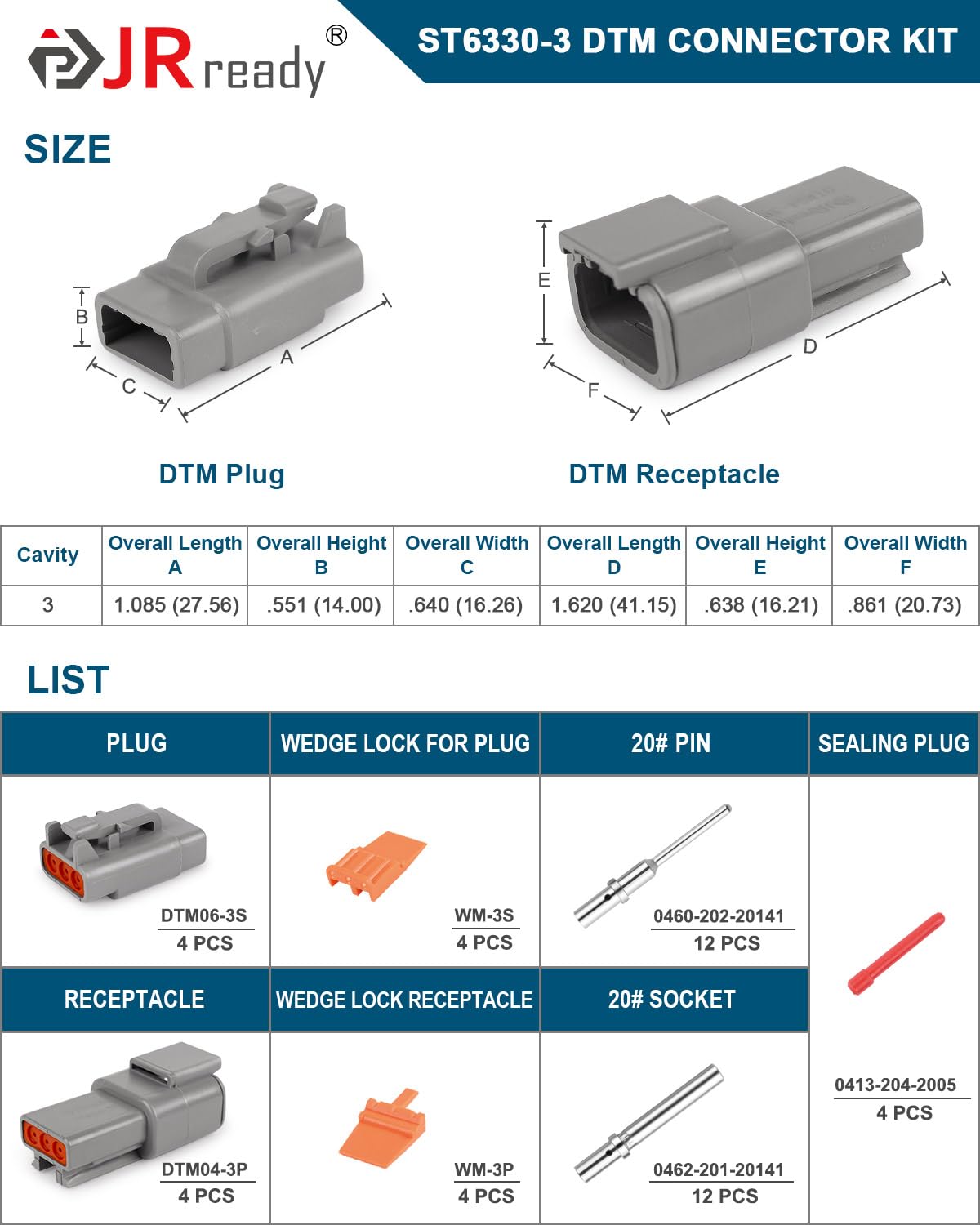

The included size-20 solid contacts are made from a copper-nickel alloy for stable conductivity and corrosion resistance. They accept 20–22 AWG wire and are rated for approximately 7.5 amps continuous, making them suitable for lighting, sensors, actuators, and other low-to-moderate current circuits.

• Solid contacts for consistent crimp and reduced micro-motion
• Compatible with 20–22 AWG conductor sizes
• Approximately 7.5 A continuous current capacity per contact

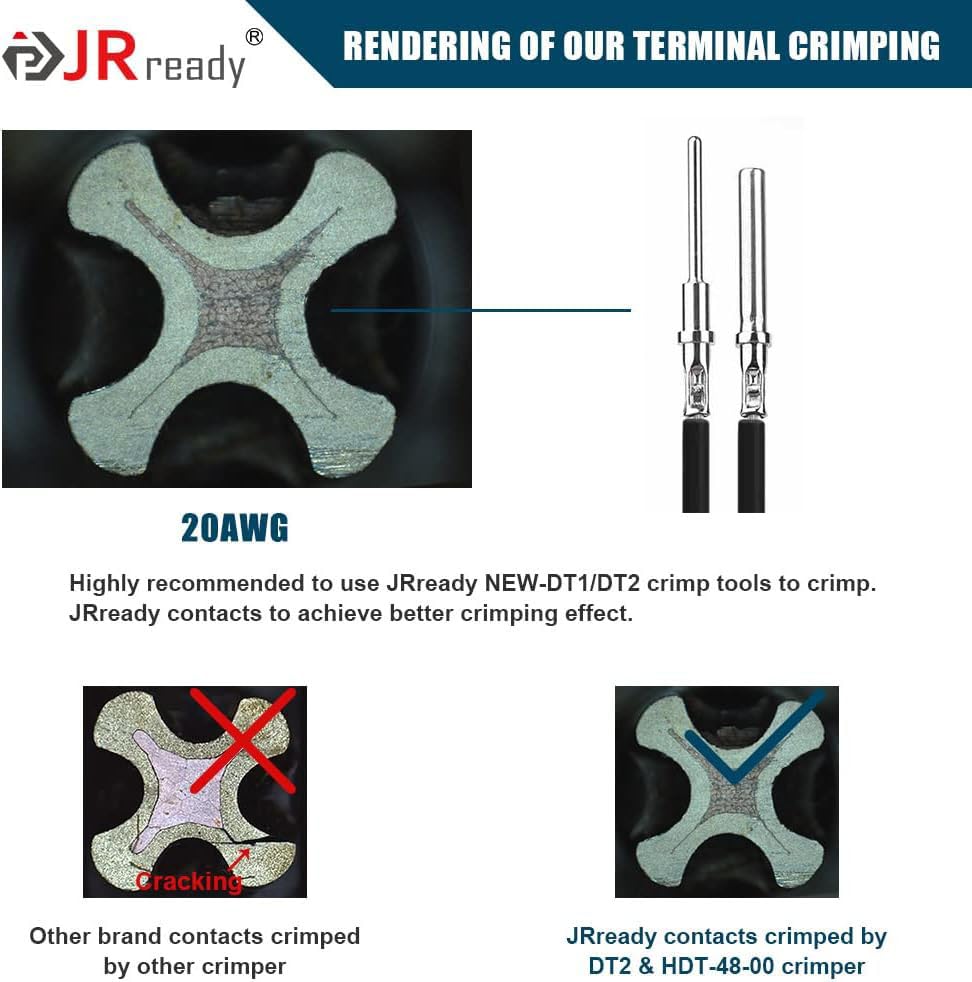

• Surface-treated to reduce cracking during crimping

How easy is assembly and what tools are recommended?

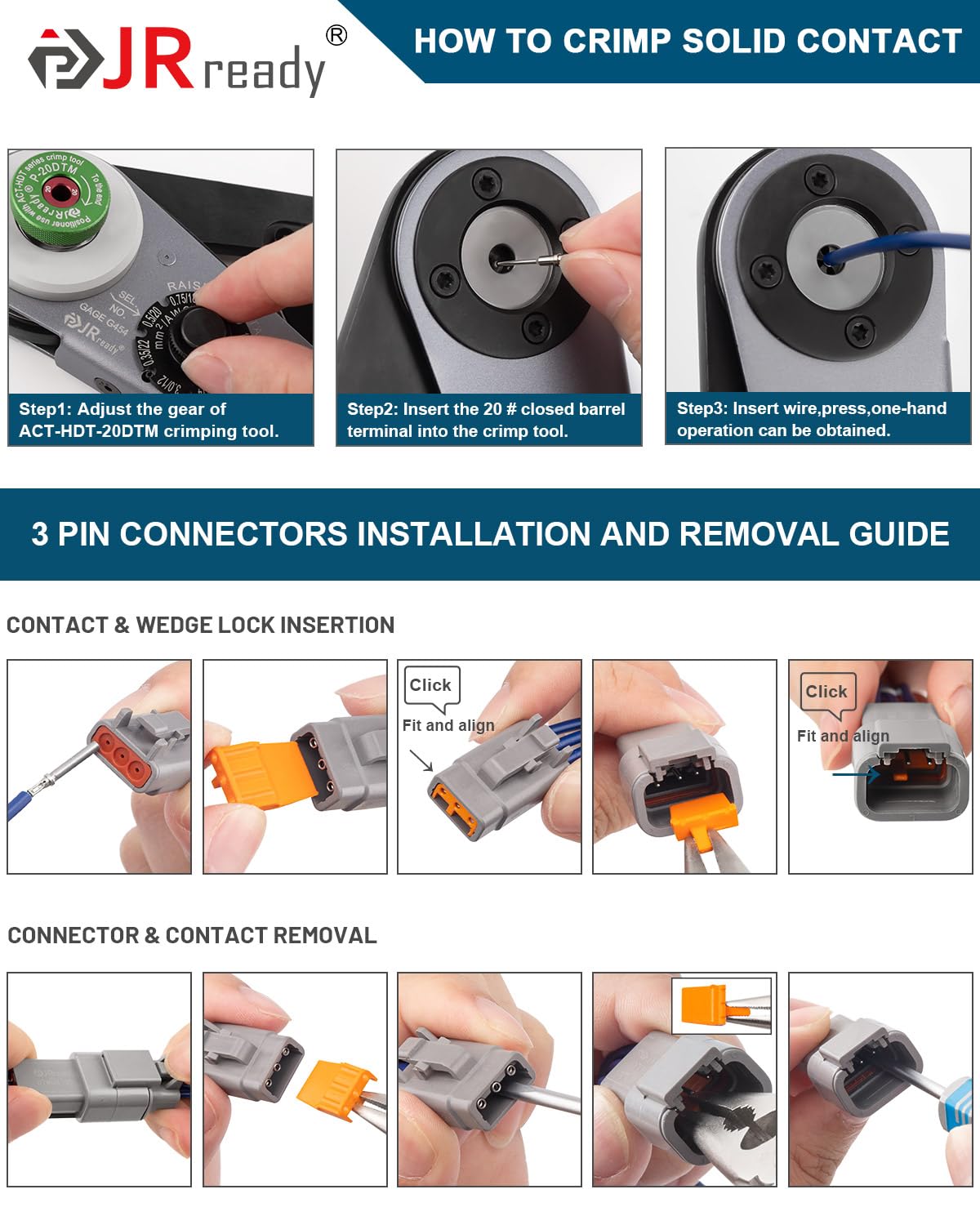

Assembly is straightforward: insert seal plugs where needed, crimp the solid contacts onto stripped wire, then seat each contact into the DTM housing until the wedgelock snaps in. For best results, use an appropriate size precision crimp tool and verify retention before sealing the harness.

• Strip 20–22 AWG conductors to recommended length
• Use a matched crimp tool for solid size-20 terminals
• Confirm contact retention and orientation before wedgelock installation
• Apply dielectric grease if additional moisture protection is desired

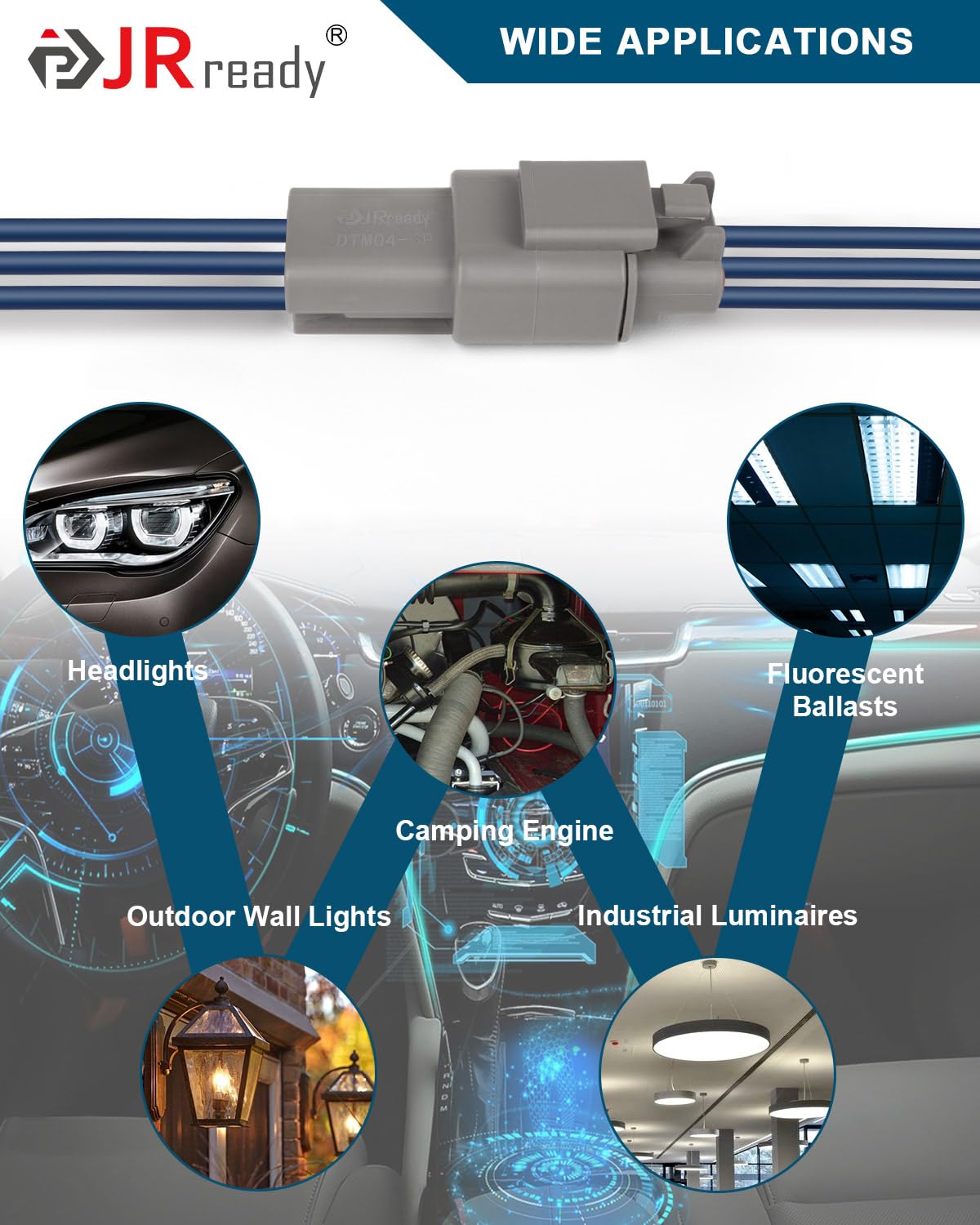

Where are these connectors typically used and what environments suit them?

These three-pin DTM connectors are popular around engines and in exposed vehicle regions because of their compact, sealed design. They work well on motorcycles, cars, boats, ATVs, and utility vehicles where resistance to oil, water, and vibration is important.

• Under-hood wiring for sensors, pumps, and lighting
• Marine and jetski wiring exposed to spray and salt air
• Motorcycle and off-road vehicle harness repairs or upgrades
• Trailer, caravan, and auxiliary equipment connections

Who is this for: technicians, DIY vehicle owners, and small-scale harness builders who need a reliable, ready-to-use supply of Deutsch DTM 3-pin connectors and solid size-20 contacts. The kit is tailored to anyone wiring low-to-moderate current circuits in automotive, marine, powersports, or industrial applications where a compact, sealed connector is preferred. Because the kit includes wedgelocks and seal plugs, it’s especially useful for those assembling and maintaining connectors in wet or vibration-prone conditions.
