JRready Deutsch DTM 4‑Pin Connector Kit ST6330‑4 — 4 Sets with Size 20 Solid Contacts, Wedgelocks & Seal Plugs

JRready ST6330-4 is a complete 4-set Deutsch DTM 4-pin connector kit with size 20 solid contacts, wedgelocks and seal plugs for reliable waterproof electrical connections.

This kit supplies everything needed to create dependable sealed 4-pin Deutsch DTM connections for vehicles and equipment. The housings are molded from PA66 nylon for strength and environmental resistance, while the included copper‑nickel alloy solid contacts handle 20–22 AWG wires and continuous currents up to 7.5 A. JRready bundled wedgelocks and seal plugs so you can assemble secure, serviceable plugs and sockets for engine compartments, marine gear, and outdoor electrical systems.

How does this kit protect electrical connections near engines and outdoors?

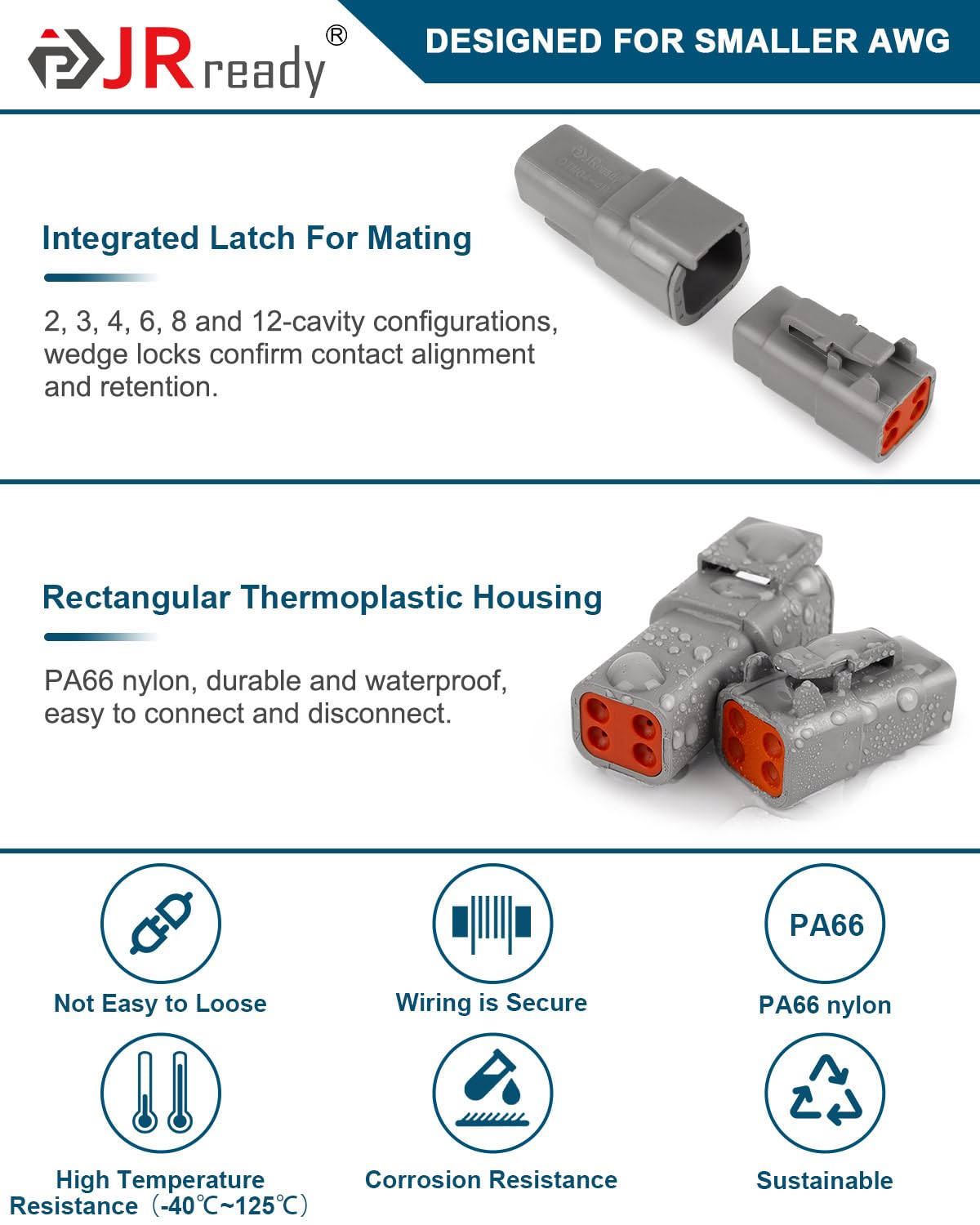

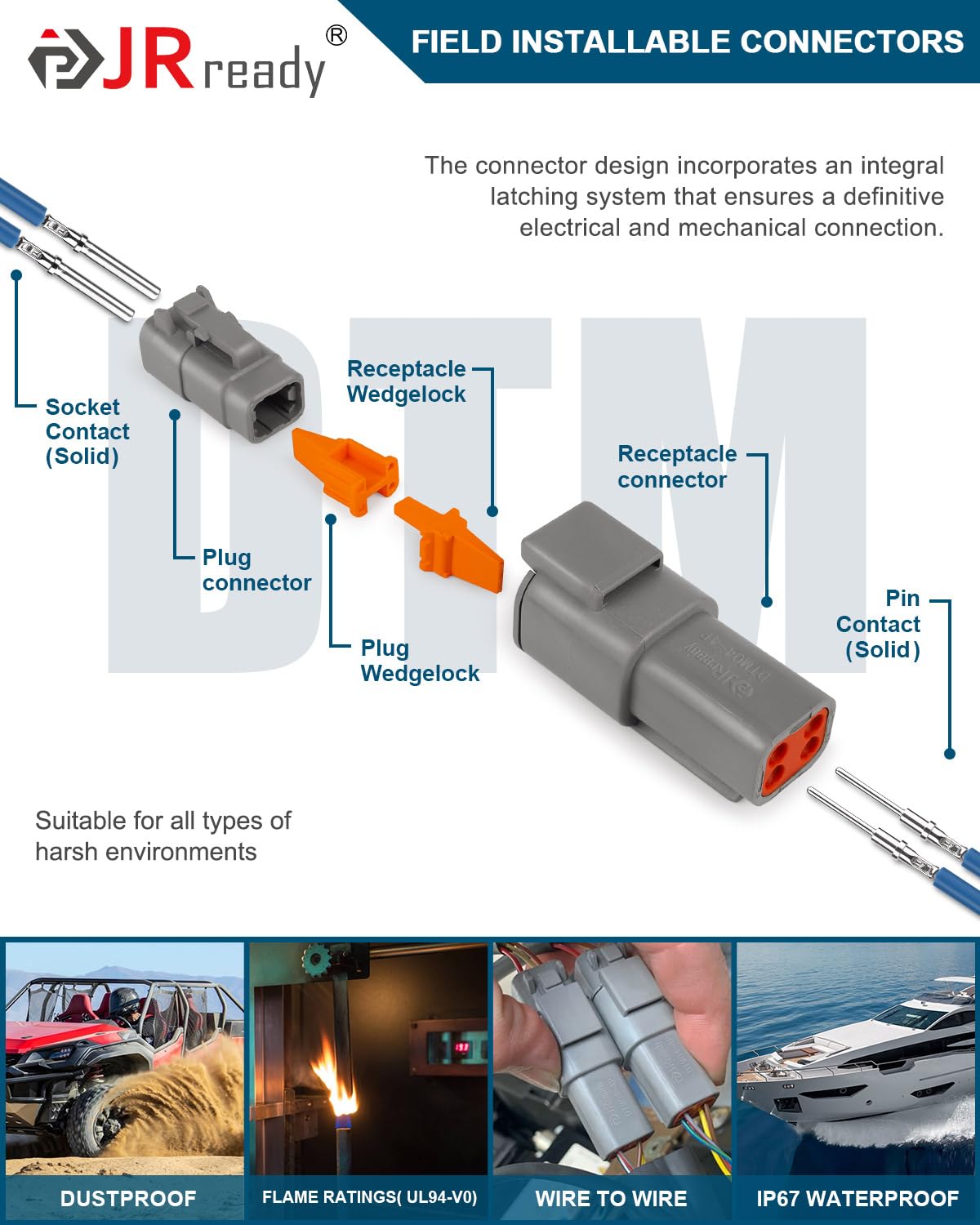

The JRready DTM housings are engineered from high‑strength PA66 nylon that resists heat, abrasion, and moisture. The design accepts sealing plugs and features wedgelocks to lock contacts in place, reducing the chance of corrosion or intermittent connections in harsh environments.

• PA66 nylon housings for heat and wear resistance
• Seal plugs included to block water ingress
• Wedgelocks secure contacts against vibration
• Size 20 solid contacts resist deformation under crimp

What wires and electrical loads can these size 20 solid contacts handle?

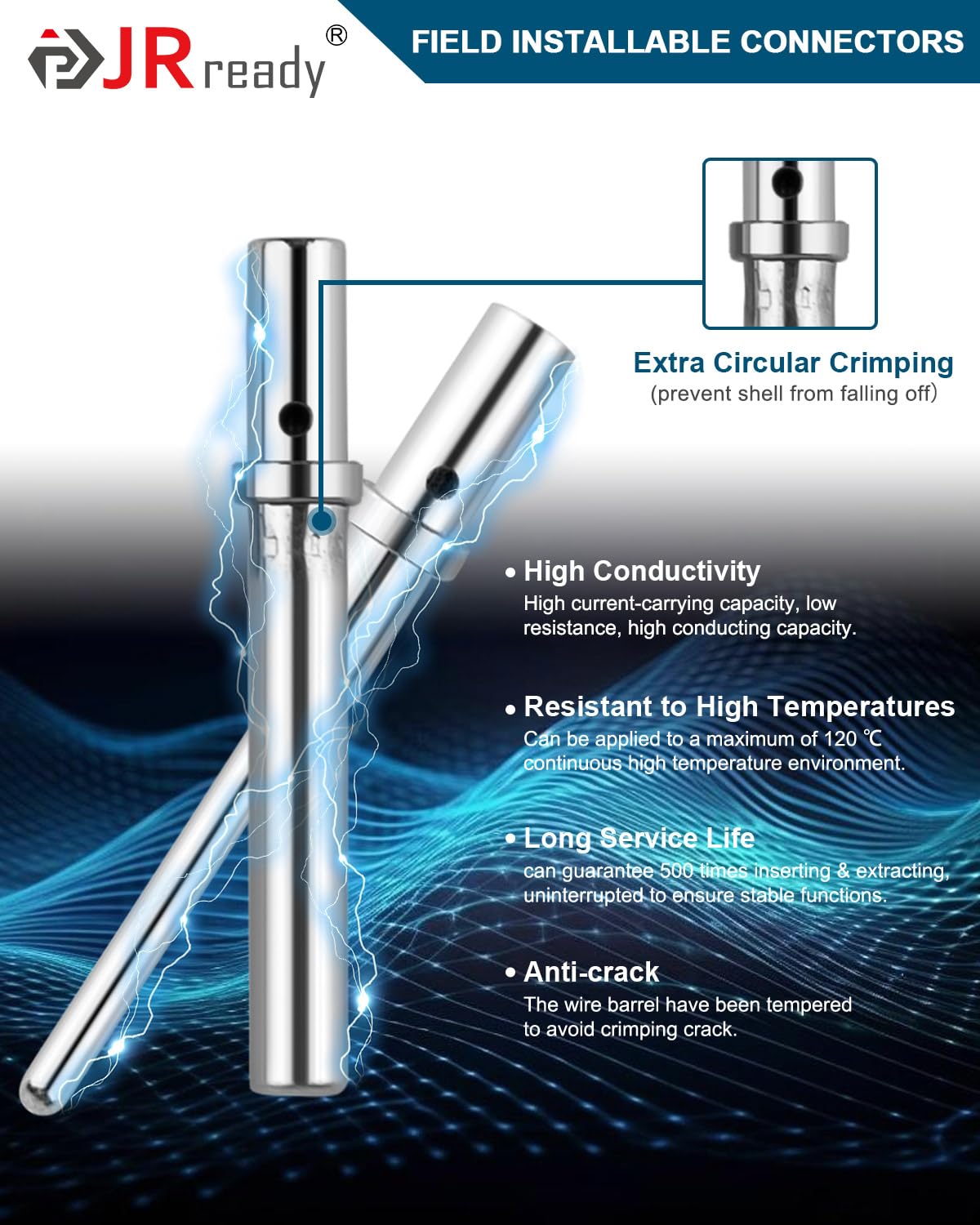

The supplied size 20 solid contacts are suited for 20–22 AWG wiring and rated for continuous currents up to 7.5 amps, which covers many sensor, lighting, and low‑power accessory circuits. Contacts are made from a copper‑nickel alloy and are surface‑treated to improve crimp reliability and reduce cracking during assembly.

• Wire range: 20–22 AWG
• Continuous current rating: 7.5 A per contact
• Copper‑nickel alloy for stable conductivity
• Surface treatment for improved crimp durability

What parts are included and how many connections can I build?

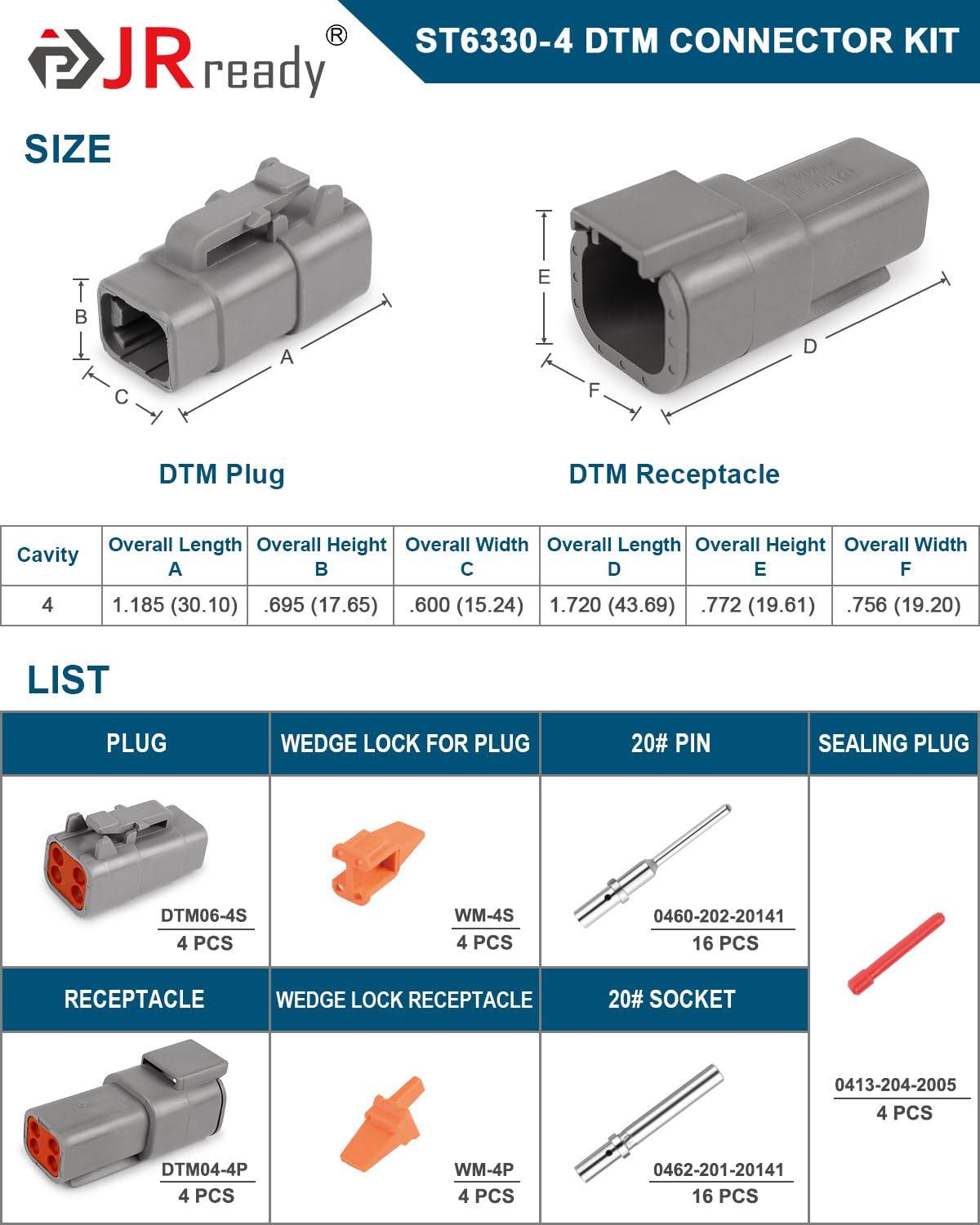

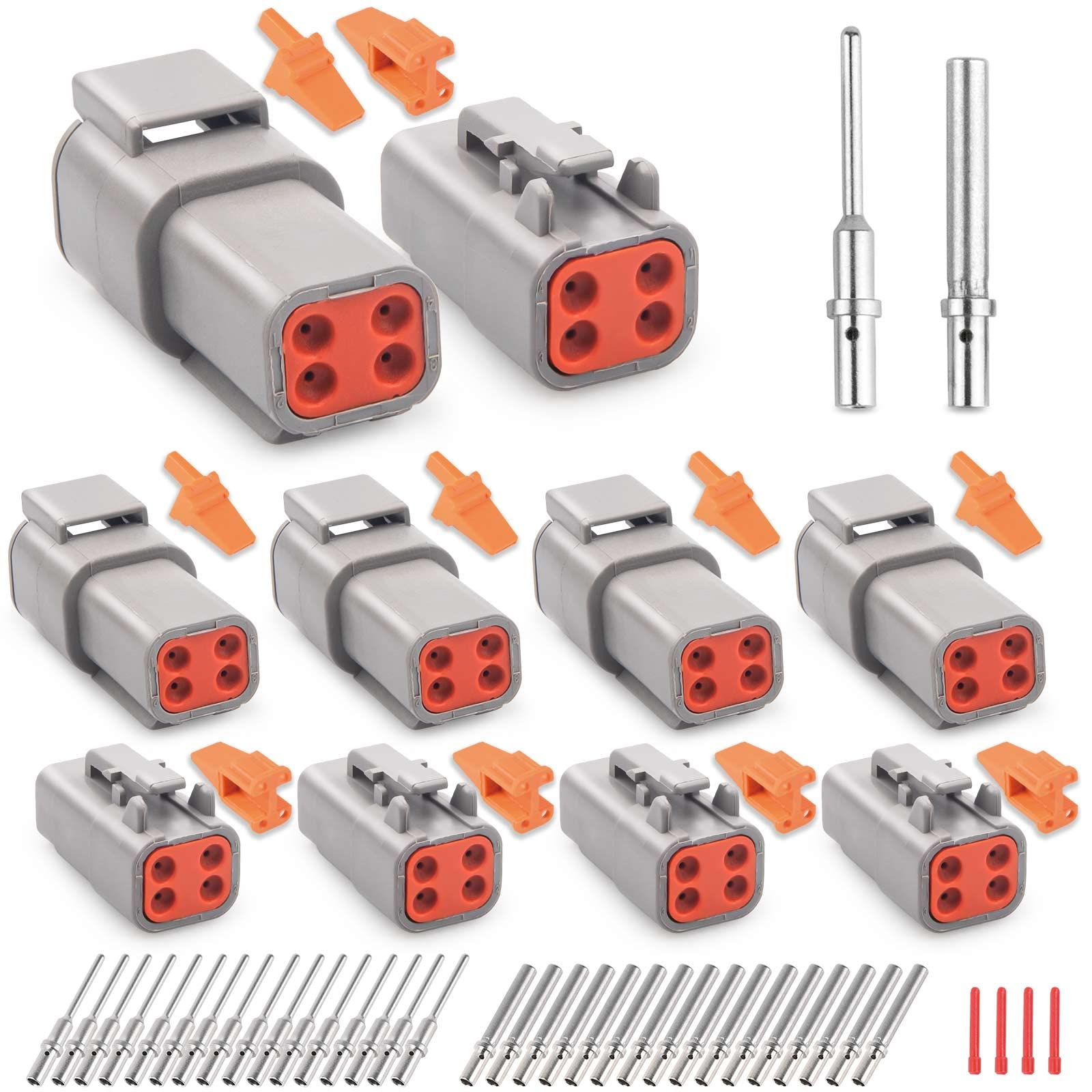

The kit contains four full pairs of DTM 4‑pin housings (plugs and receptacles), 16 pairs of solid contacts to populate all positions, plus wedgelocks and seal plugs to finish each connector. That means you can build up to four completed, sealed 4‑pin Deutsch DTM cable assemblies right away.

• 4 pairs DTM 4‑pin housings (DTM06‑4S / DTM04‑4P)
• 16 pairs size 20 solid contacts (0460/0462 part series)
• 4 plug wedgelocks and 4 receptacle wedgelocks
• 4 seal plugs for unused cavities

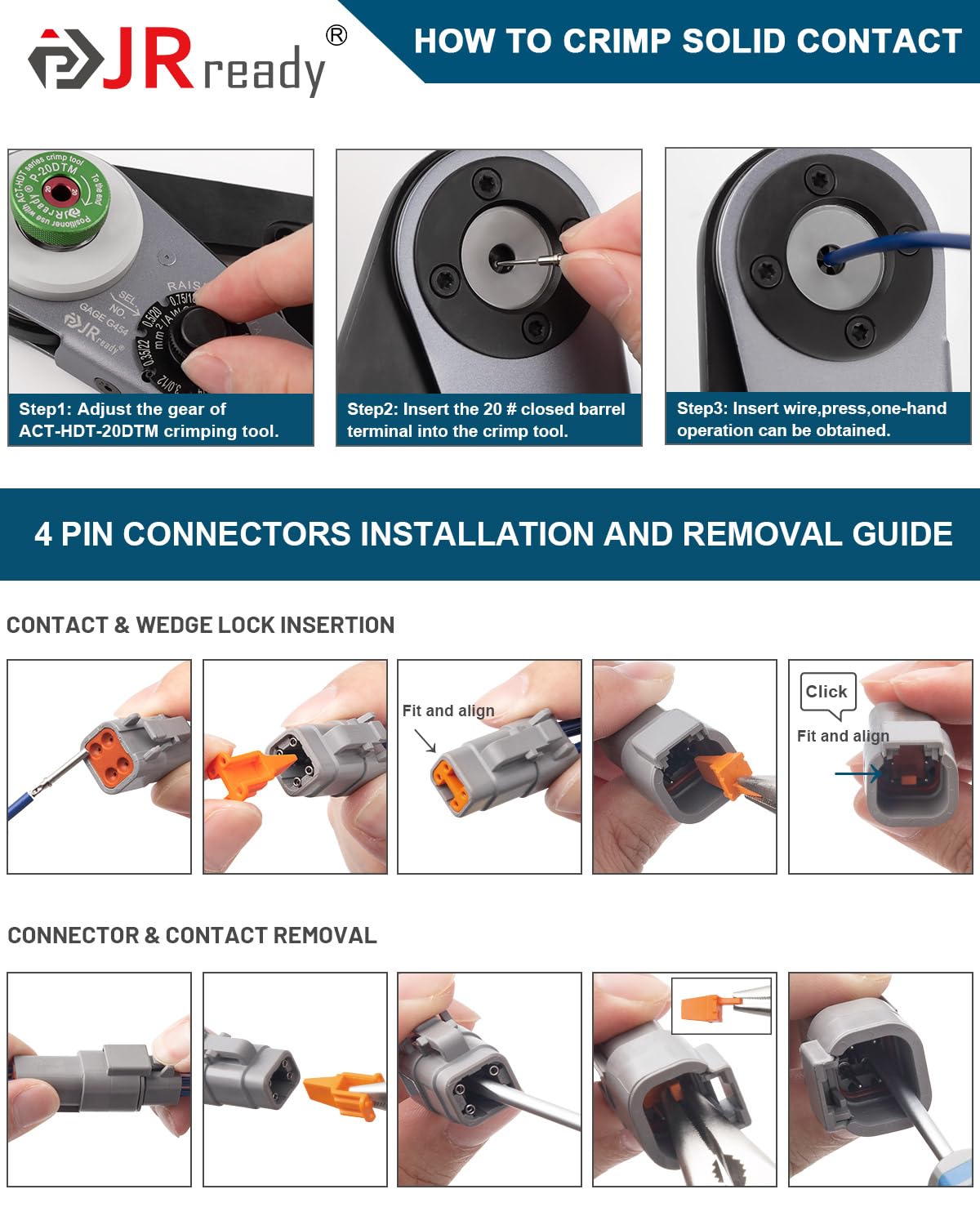

How easy is assembly and what tools are recommended?

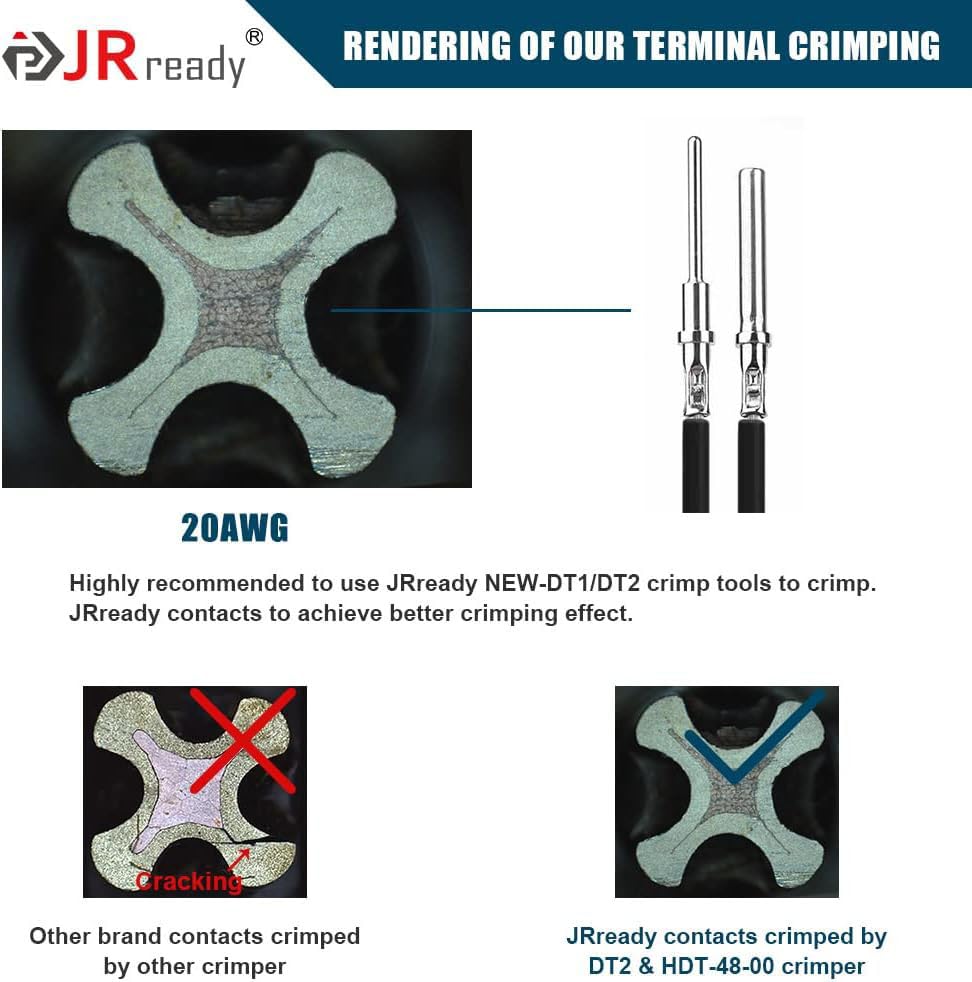

Assembly is straightforward with proper tools: strip the wire, insert into the contact, and crimp using a matched size crimp tool for size 20 terminals. After inserting each contact into the housing, install wedgelocks and seal plugs; a small pick or insertion/extraction tool helps with seating and future service.

• Use a size‑20 crimp tool for reliable crimps
• Wire stripper for 20–22 AWG insulation removal
• Small pick or terminal insertion tool recommended
• Inspect crimps visually and with pull test before sealing

Who is this for: JRready ST6330‑4 suits technicians, fabricators, and hobbyists who need robust 4‑pin sealed connections for motorcycles, cars, trucks, boats, ATVs, and specialty equipment. If you assemble or repair wiring near engines, under hoods, or in marine environments and require ready‑to‑build Deutsch DTM connectors with durable solid contacts and necessary locking hardware, this kit gives you a complete, serviceable solution.
