JRready Mini-Fit Jr Molex Pin Extractor DAP-D173 — ATX/EPS/PCIe Depinning Tool with Built-In Plunger, Hardened Tip

The JRready DAP-D173 is a compact Molex Mini-Fit Jr pin extractor with an integrated plunger that releases and removes Mini-Fit Jr terminals quickly and safely.

Made for technicians and hobbyists who service ATX, EPS and PCI-E connectors, this Molex 11-03-0044-equivalent depinning tool combines a hardened alloy extraction tip with an anodized aluminum handle and a built-in ejector rod. It’s designed to clear locking tabs reliably, reduce terminal wear during removal and improve speed when depinning connectors with or without attached wires.

How does the built-in plunger improve terminal removal?

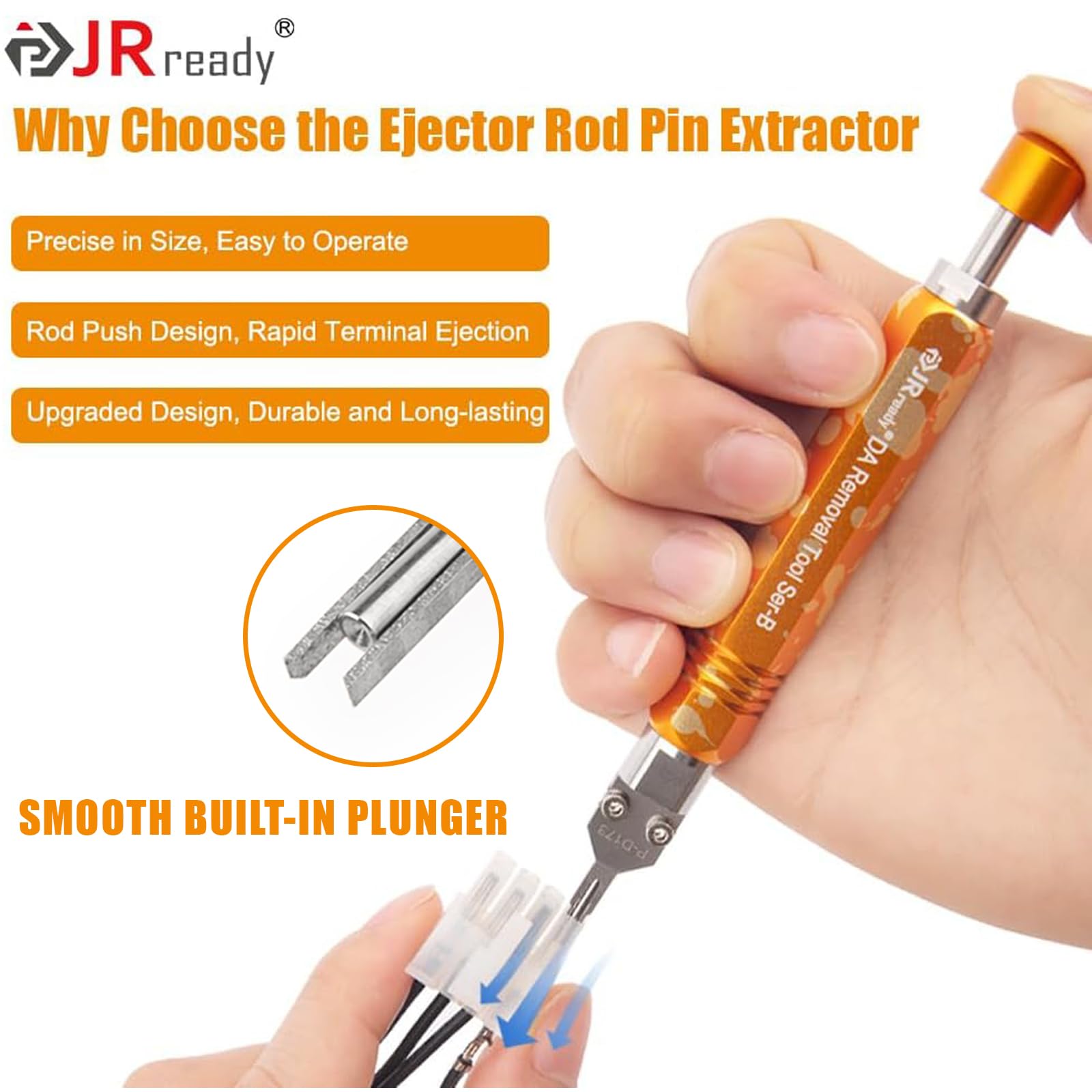

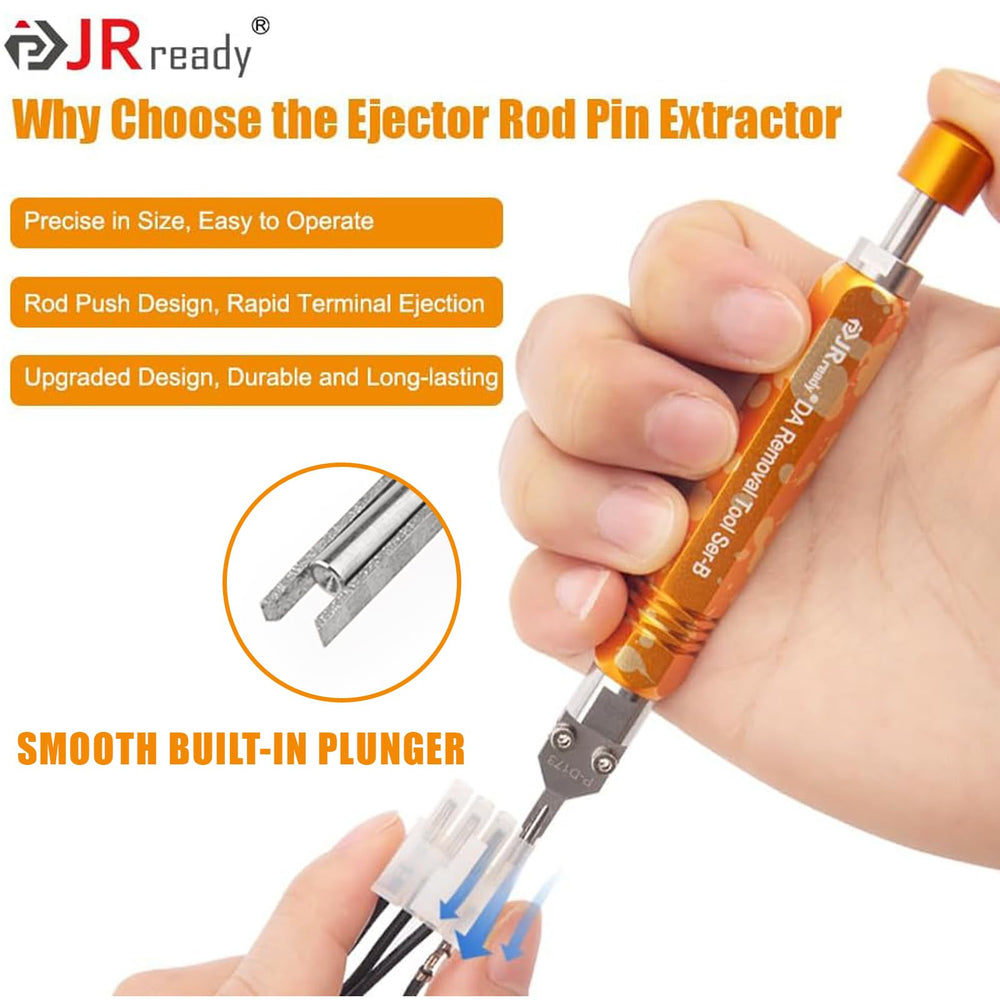

The integrated plunger (ejector rod) depresses locking tangs and pushes contacts out after the extraction tip releases them. This eliminates manual prying that can bend or damage pins and cuts the number of steps needed to depin a terminal.

• One-handed depress-and-push action for faster extraction.
• Reduces stress on contacts compared with separate back-pushers.
• Makes removal of terminals without wires easier and safer.

Is this tool compatible with Molex Mini-Fit Jr and ATX connectors?

Yes — the DAP-D173 is dimensioned to work with Molex Mini-Fit Jr family contacts (including 5556 and 5558 series) and common ATX/EPS/PCI-E housings. It matches the functional profile of Molex part 11-03-0044, so it fits and operates where Mini-Fit Jr terminals are used.

• Fits Mini-Fit Jr terminals used in PC power connectors.
• Works with both male and female contacts in standard housings.
• Suitable for ATX, EPS and PCI-E connector servicing and repairs.

What makes the tip and handle suited for repeated professional use?

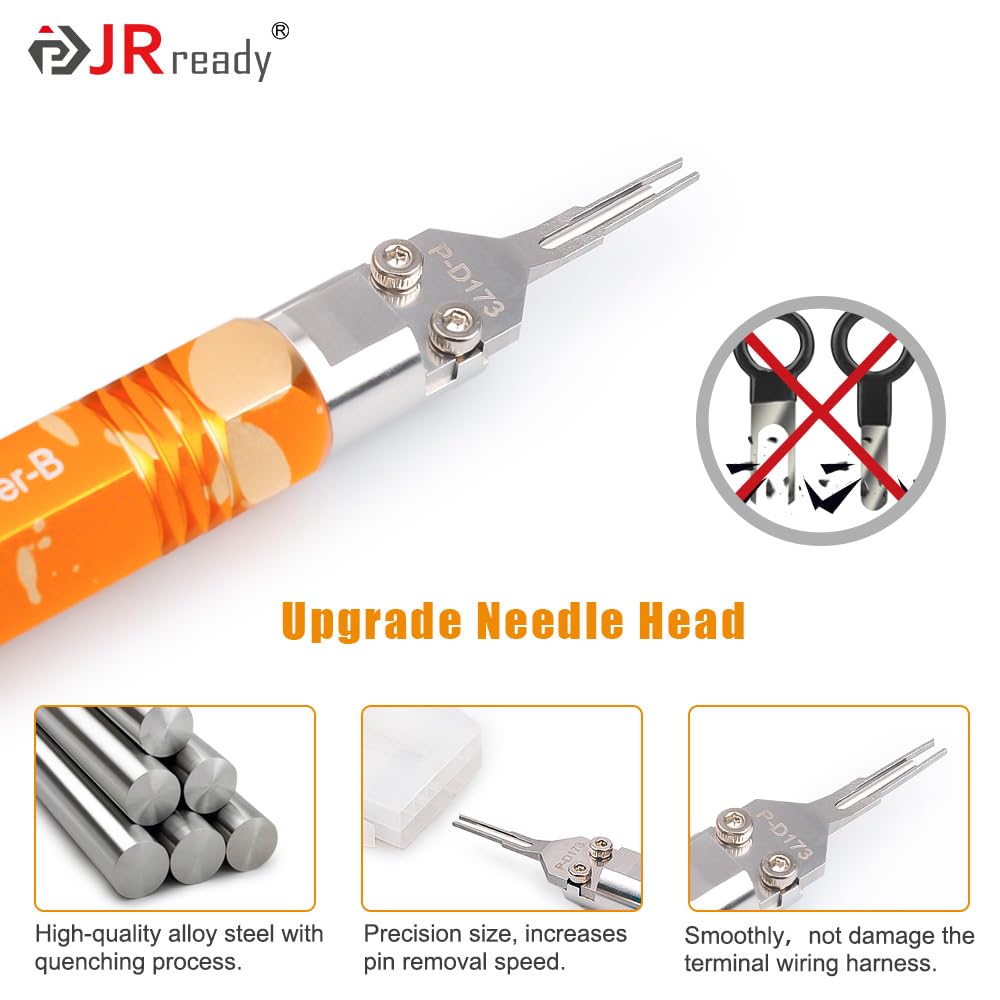

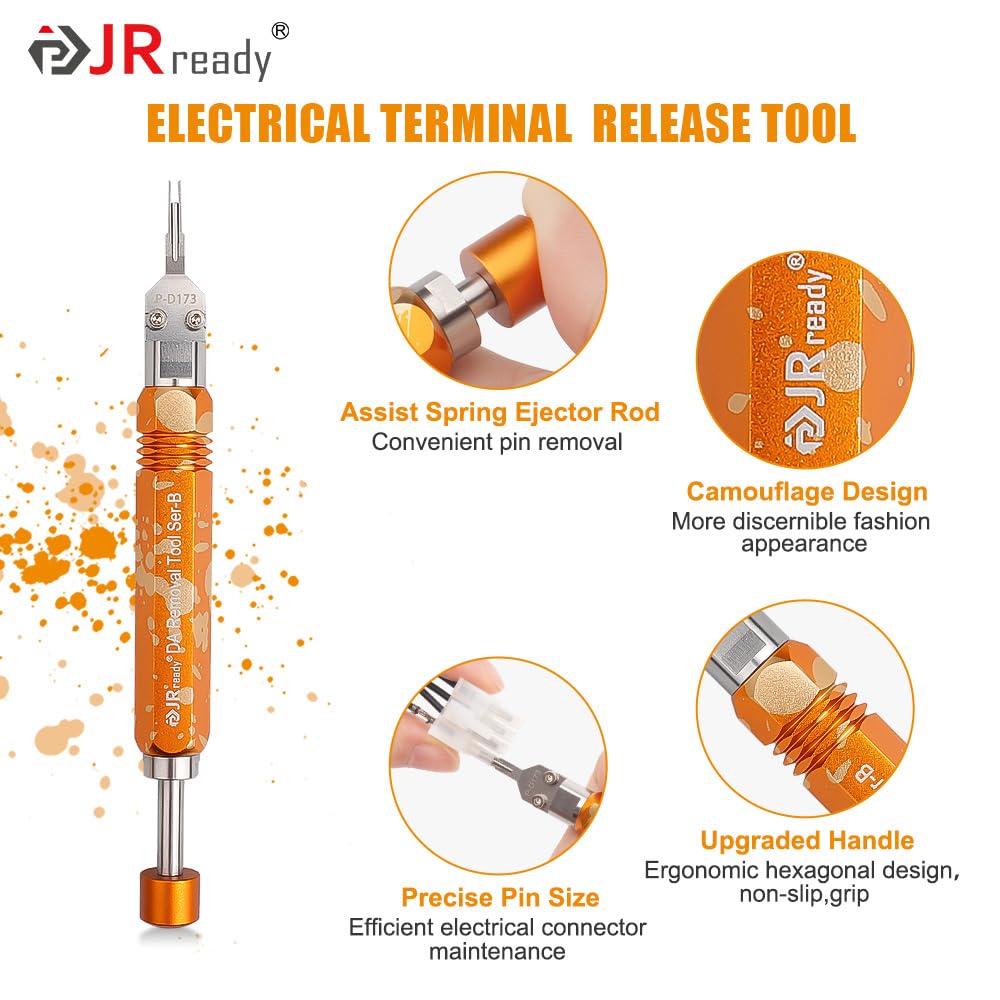

The extraction tip is made from hardened alloy steel for durable, precise contact release with minimal wear. The handle is upgraded aluminum alloy with an ergonomic shape to improve grip, control and comfort during extended repair tasks.

• Hardened tip resists deformation over many cycles.
• Aluminum alloy handle reduces tool weight while improving durability.
• Ergonomic profile helps steady fine movements in crowded connector bays.

How should I use and care for the JRready pin removal tool?

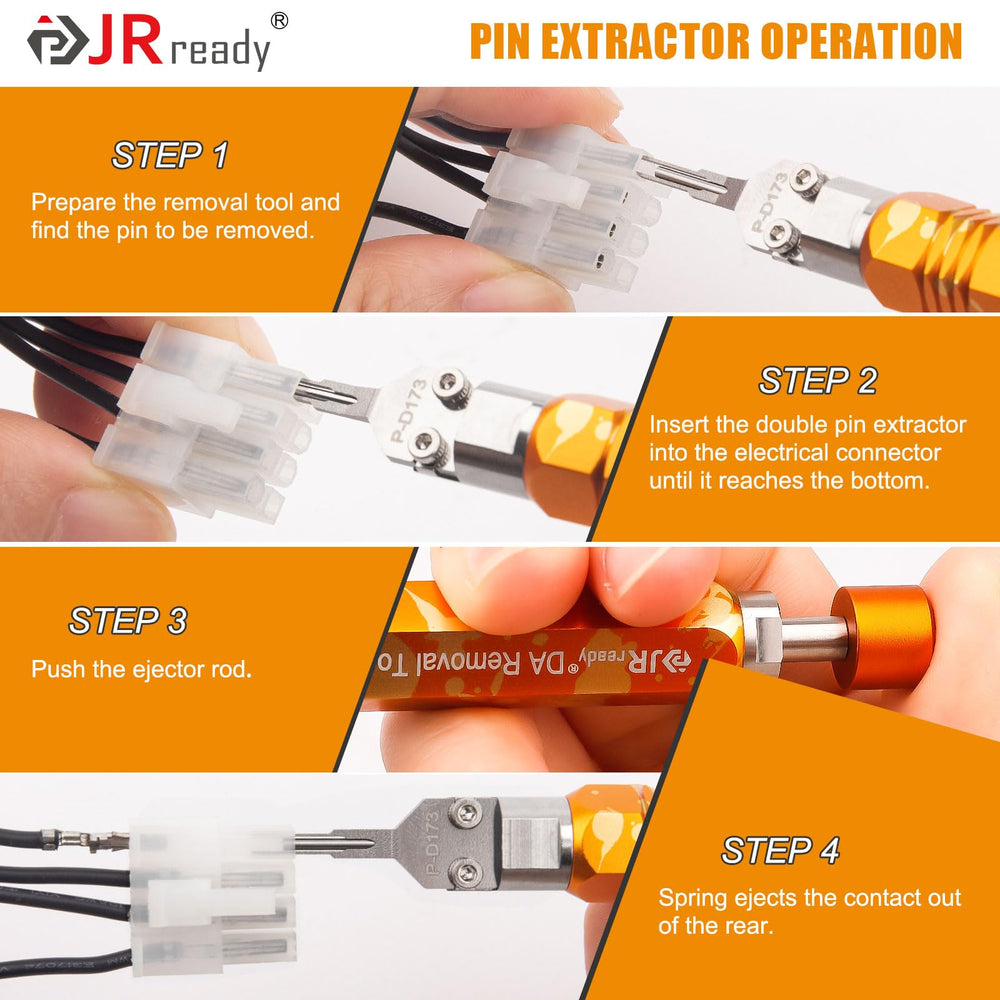

Insert the extraction tip into the connector cavity to disengage the terminal latch, then push the built-in plunger to eject the contact. Keep the tip clean, avoid bending it, and store the tool dry to maintain tip hardness and handle finish.

• Work in good light and steady the housing to prevent slippage.
• Wipe metal tip with a cloth after use; avoid corrosive cleaners.
• Store in a toolbox or pouch to protect the tip and plunger mechanism.

Who is this for: The JRready DAP-D173 is aimed at electronics technicians, PC builders, automotive electricians and DIYers who frequently remove or replace Mini-Fit Jr terminals. It’s especially useful when terminals lack attached wires or when quick, repeatable depinning is required during connector repair, harness rework or component swap-outs.
