JYINCPED Transfer Tank Vented Fuel Cap 2" NPT – Two-Way Venting, Spring-Loaded Seal

The JYINCPED Transfer Tank Vented Fuel Cap is a heavy-duty, two-way venting replacement cap designed to fit a standard 2" NPT transfer tank bung and control both pressure and vacuum during fueling and fuel draw.

This replacement vented cap is built for transfer tanks, auxiliary fuel containers, and mobile diesel tanks that use a 2-inch threaded bung. It combines spring-loaded sealing with a one-way venting action and a removable pressure-release feature so vapors can escape when loosening the cap and air can enter the tank while fuel is removed. The construction prioritizes corrosion resistance and a reliable gasket seal to reduce leaks and unwanted vapor loss while on the road or in the field.

How does this cap relieve pressure and prevent tank vacuum?

The venting system is designed to operate in both directions: when you begin to loosen the cap, internal venting releases built-up pressure to the outside, and while fuel is drawn from the tank the vent admits air to prevent a vacuum. This reduces stress on the tank shell and maintains steady fuel flow from pumps or gravity feeds.

• Two-way venting releases vapors when loosening and admits air during fuel withdrawal.
• Spring-loaded mechanism opens vents at the correct moment to prevent sudden release.
• Protects tanks from over-expansion and collapse caused by pressure differentials.

Will this cap stop fuel leaks and reduce vapor loss while driving?

Yes — the cap uses an internal gasket and spring-loaded seal to form a tight closure when fully seated, which minimizes leakage and limits excess vapor escape during transport. The fit is compatible with standard 2" NPT bungs, so a proper installation helps maintain a secure, road-ready seal.

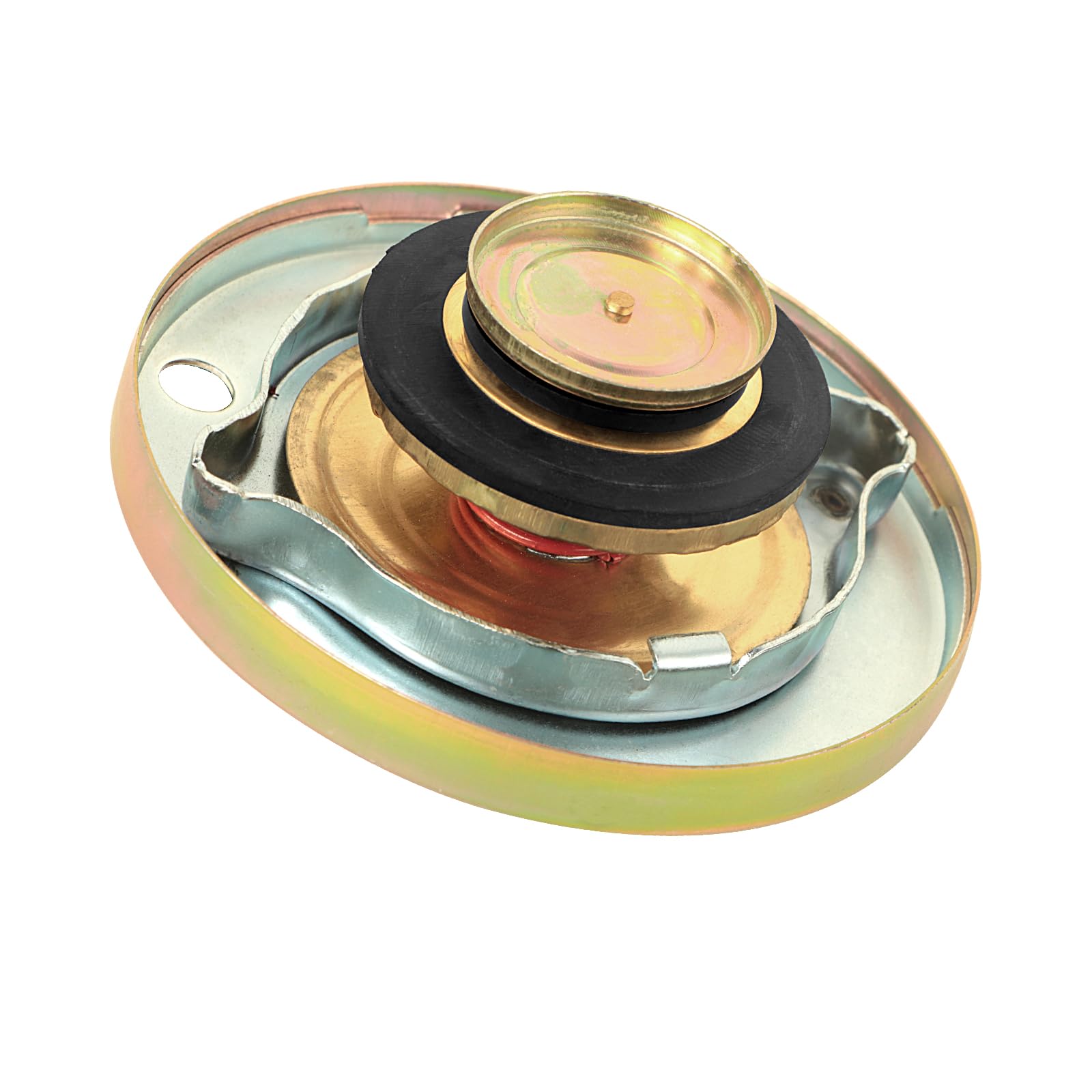

• Inner gasket prevents liquid seepage and limits fuel smell.
• Spring-loaded seal maintains contact with the flange under vibration.
• Designed to meet the fitment profile of common 2" transfer tank bungs.

How do I install and remove the JYINCPED vented cap safely?

Installation and removal are straightforward: align the cap with the notch, push down and twist clockwise to tighten fully. To remove, reverse the motion slowly; the cap vents pressure as you reach the vent notch, allowing safe and controlled release of vapors before fully unthreading.

• Align with the notch, push down, and twist clockwise to lock the cap.
• Counter-clockwise twist slowly to the vent notch to release pressure first.
• Removable cap design allows servicing or replacement of the vent element if needed.

What materials and durability features does this replacement cap offer?

The JYINCPED cap is constructed from corrosion-resistant materials that withstand weather exposure and common fuels. Its robust build is intended for long-term use on ground, farm, commercial, and mobile applications where repeated opening and road vibration occur.

• Waterproof and corrosion-resistant components for outdoor use.
• Spring mechanism engineered for repeated cycles without failure.
• Compact 2" NPT fit for compatibility with many transfer and auxiliary tanks.

Who is this for: This vented transfer tank cap is ideal for fleet managers, farmers, mobile fuel operators, and anyone using 2" NPT transfer or auxiliary diesel tanks who needs reliable venting, a secure seal, and durable materials. It’s well suited for replacement on Dee Zee Fill-Rite style pressure tank caps and similar bungs where controlled venting and leak prevention are priorities.
