KACOLA 6-Gang 12V Switch Panel — Auto-Dimming Backlight, 60A Protected Relay System

The KACOLA 6 Gang Switch Panel is a 12V latching relay system that lets you control six vehicle lights or accessories with auto-dimming backlight, overload protection, and plug-and-play wiring.

Designed for drivers, off-roaders, and mobile professionals who need tidy, reliable electrical control, this compact panel combines six latching switches with a protected relay/control box. It supports up to 60A total current (720W at 12V) and uses solid-state relays, fuses, and thermal cutoffs to protect connected devices. The panel's backlight adjusts automatically to ambient light so you can see switch positions in daylight or night driving.

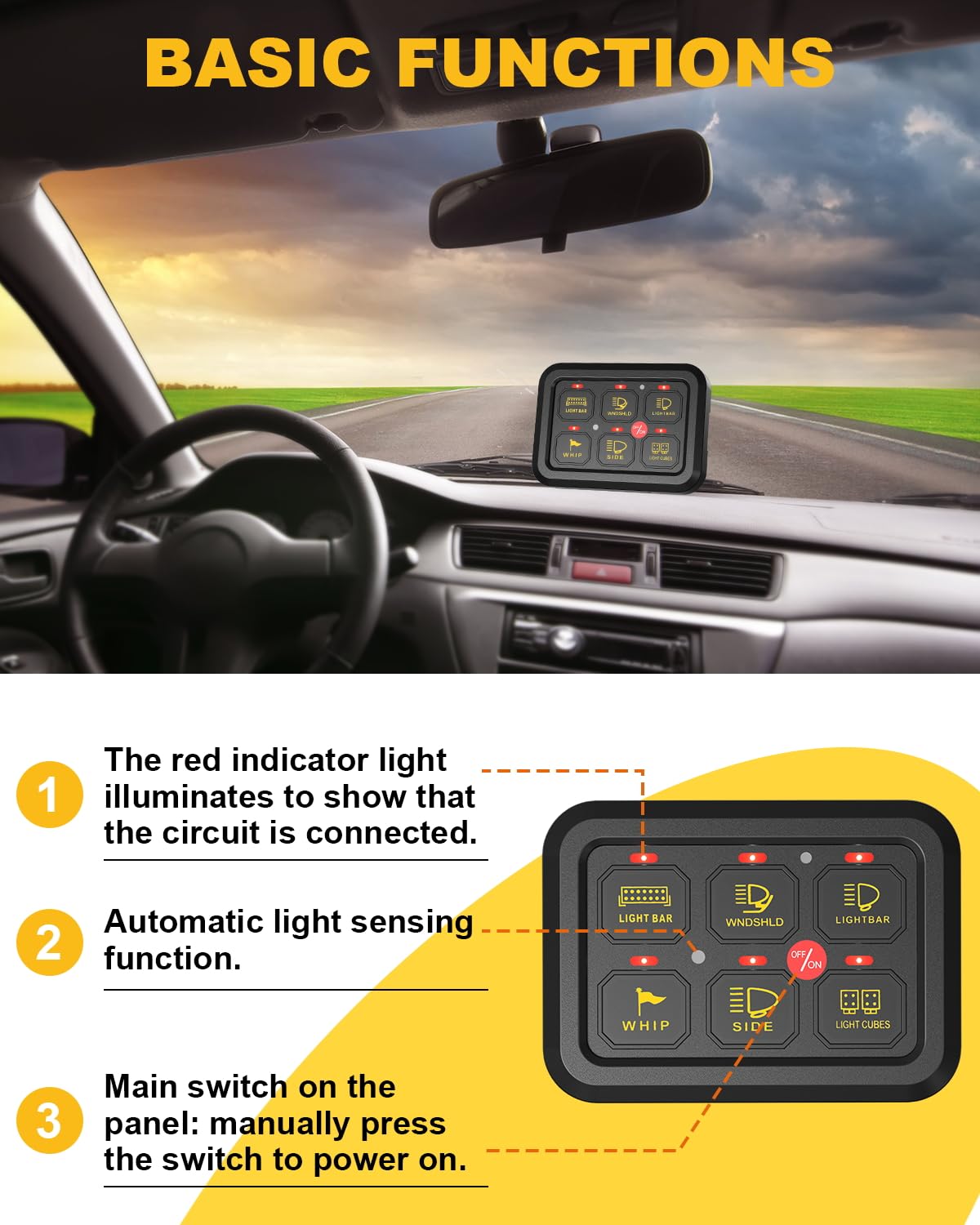

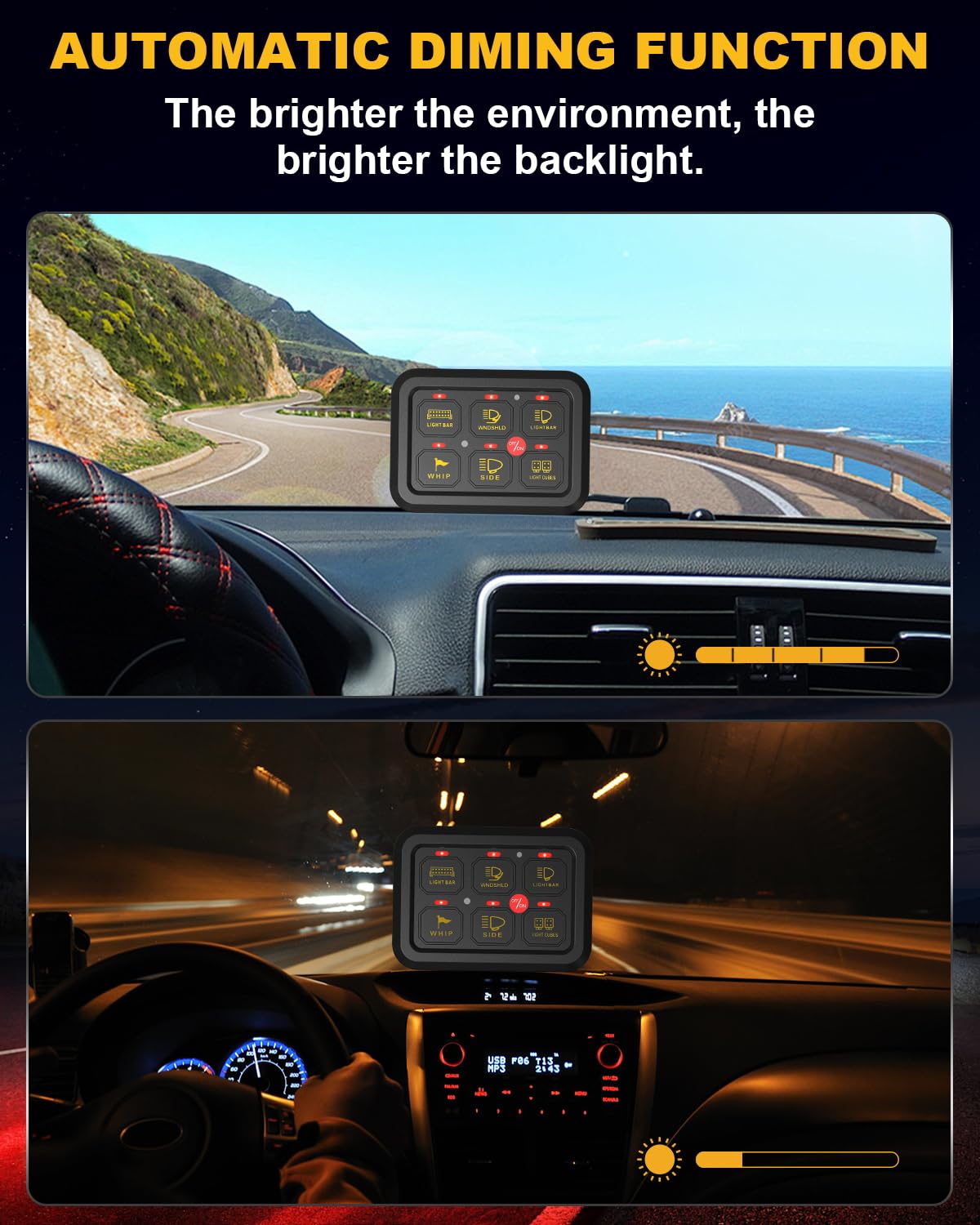

How does the auto-dimming backlight improve usability?

The panel senses ambient brightness and adjusts the switch backlight level so switches stay visible without being distracting. That makes it easier to identify circuits at night without blinding glare and keeps the cabin look consistent during daytime.

• Ambient light sensor adjusts brightness automatically.
• Clear switch status at low and high light conditions.
• Reduces driver distraction with balanced illumination.

What safety features protect my accessories and vehicle?

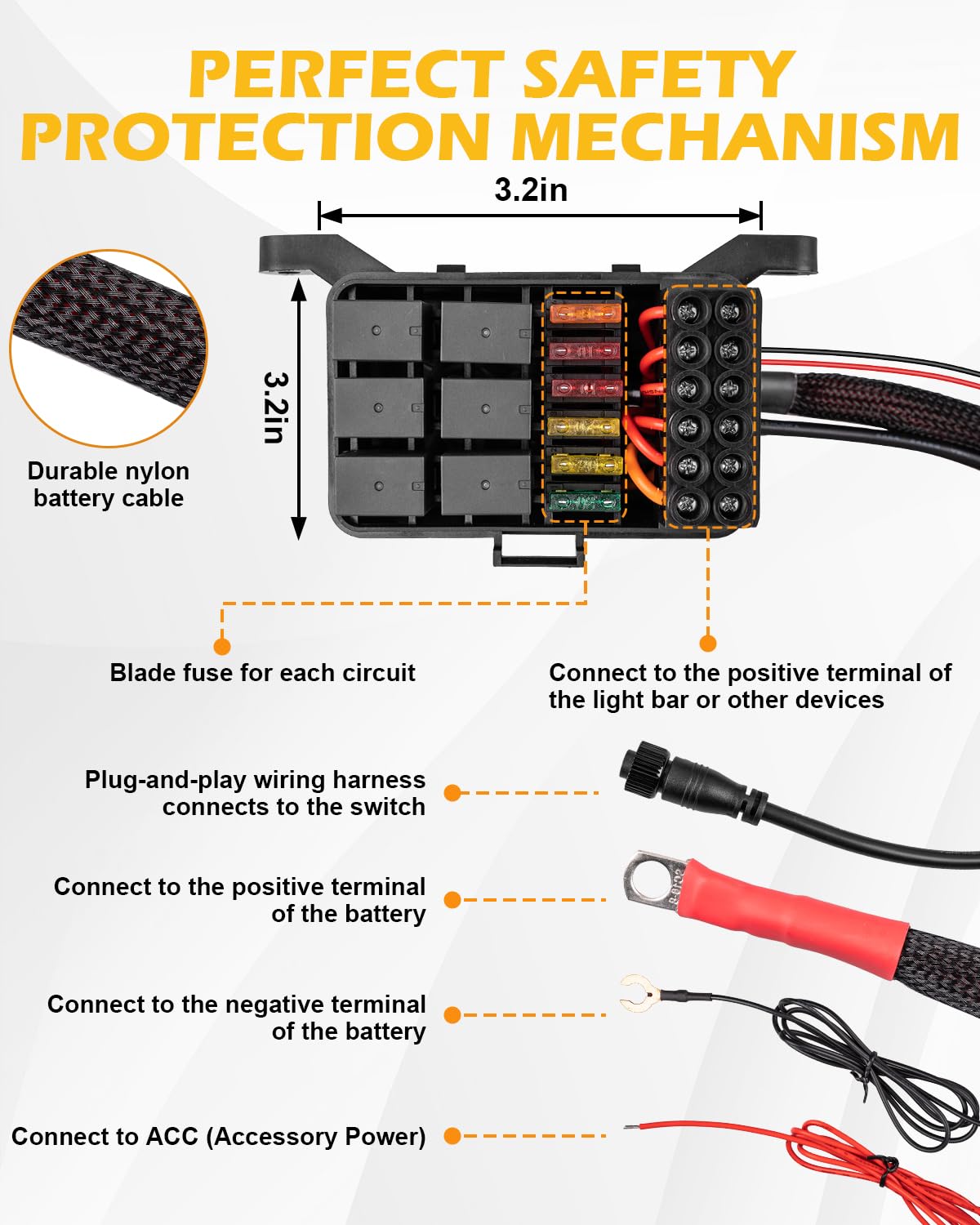

KACOLA built the control system with multiple protective elements: solid-state relays for responsive switching, integrated fuses for overcurrent protection, and a thermal cutoff that disconnects outputs if temperatures climb above safe limits. Reverse polarity protection and overvoltage safeguards help prevent damage from wiring errors or electrical faults.

• Built-in fuses and solid-state relays for overload protection.
• Automatic thermal shutdown above 100°C to prevent damage.
• Reverse polarity and overvoltage protection included.

Is installation difficult and where can I mount it?

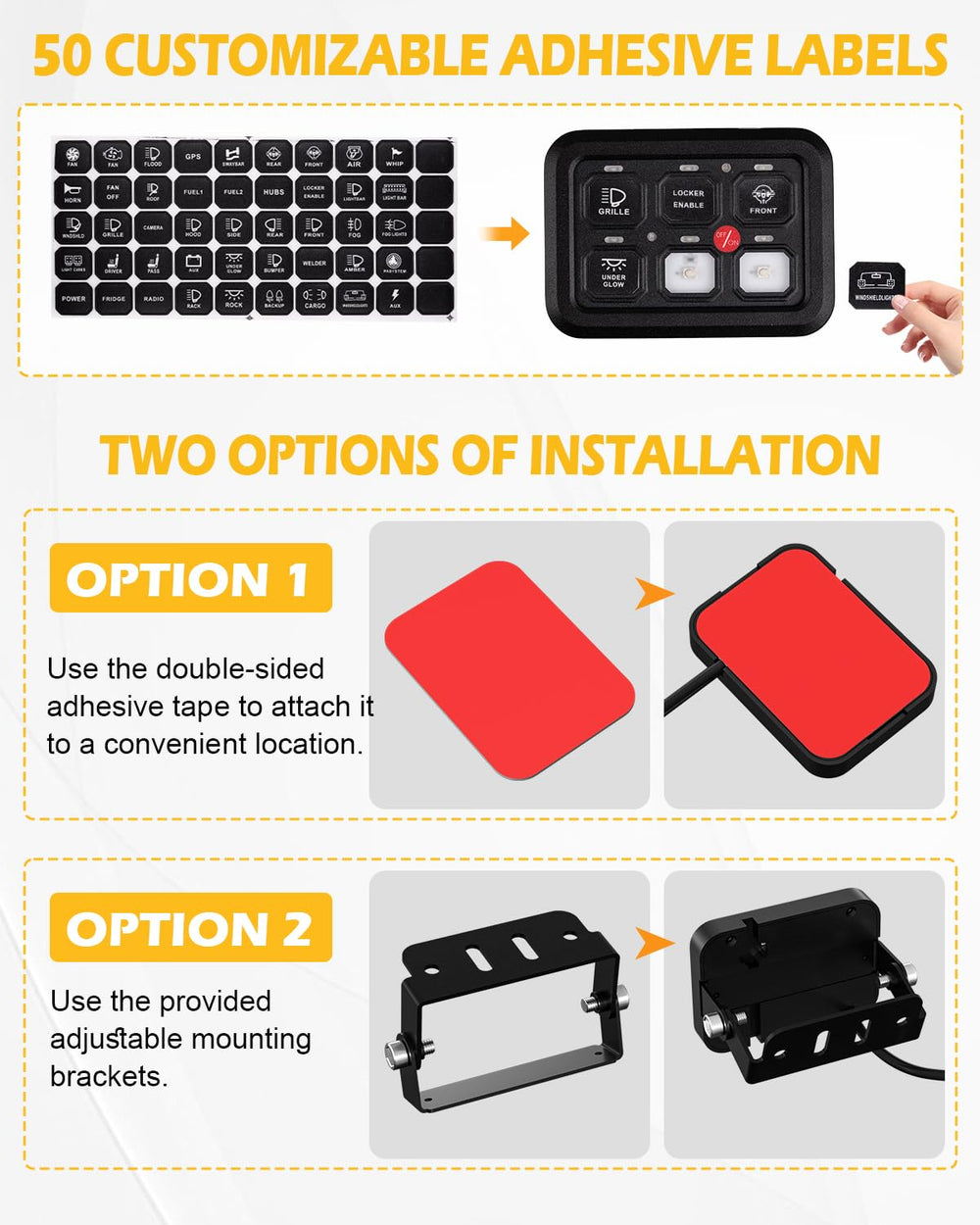

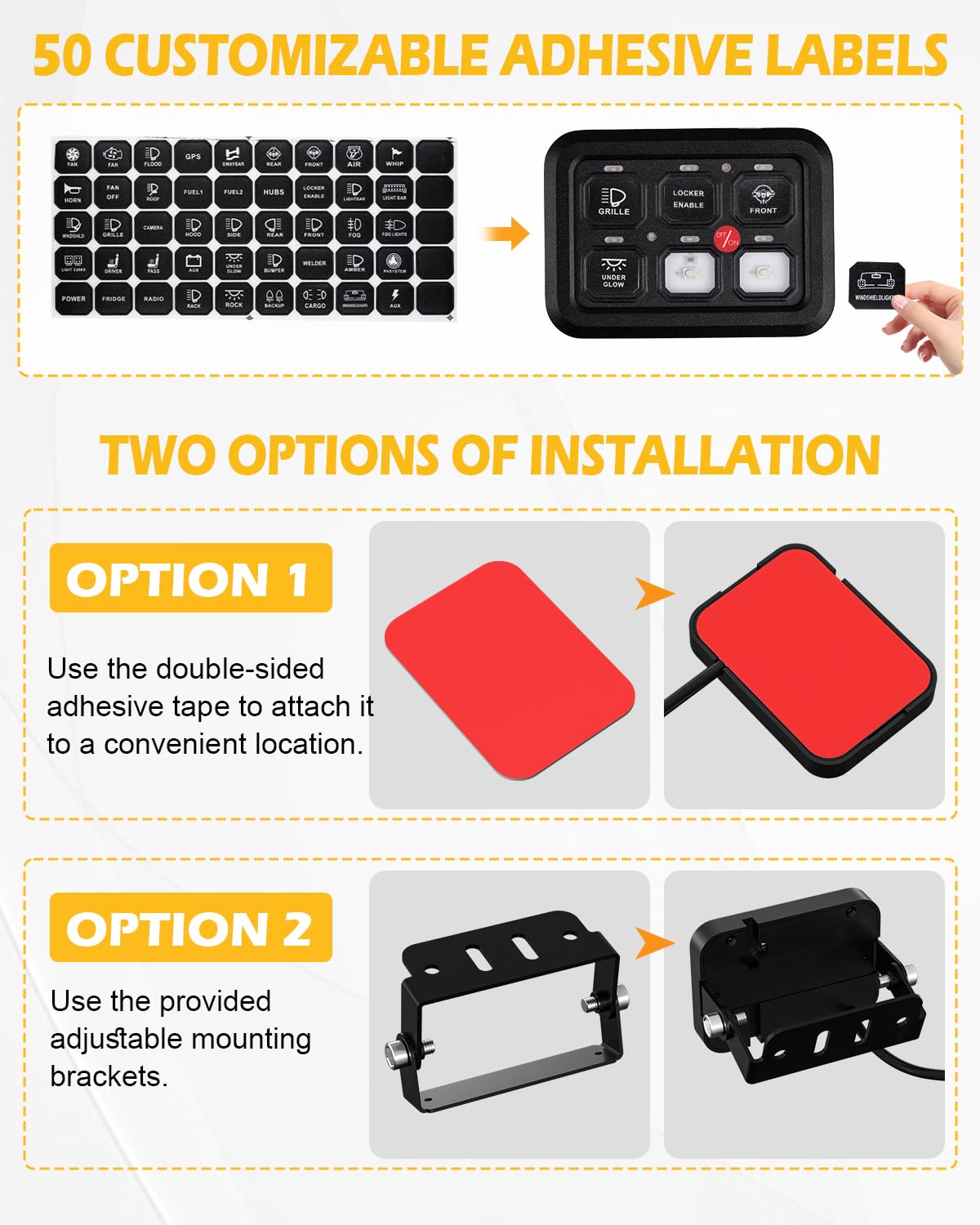

Installation is streamlined with a plug-and-play wiring harness plus two mounting brackets to fit different surfaces. The small panel and compact relay box allow flexible placement across dashboards, consoles, sun visors, or under-hood compartments without extensive wiring work.

• Plug-and-play harness minimizes installation time.
• Two mounting brackets included for varied placements.
• Compact control box fits tight spaces (approx. 3.2" x 4.4").

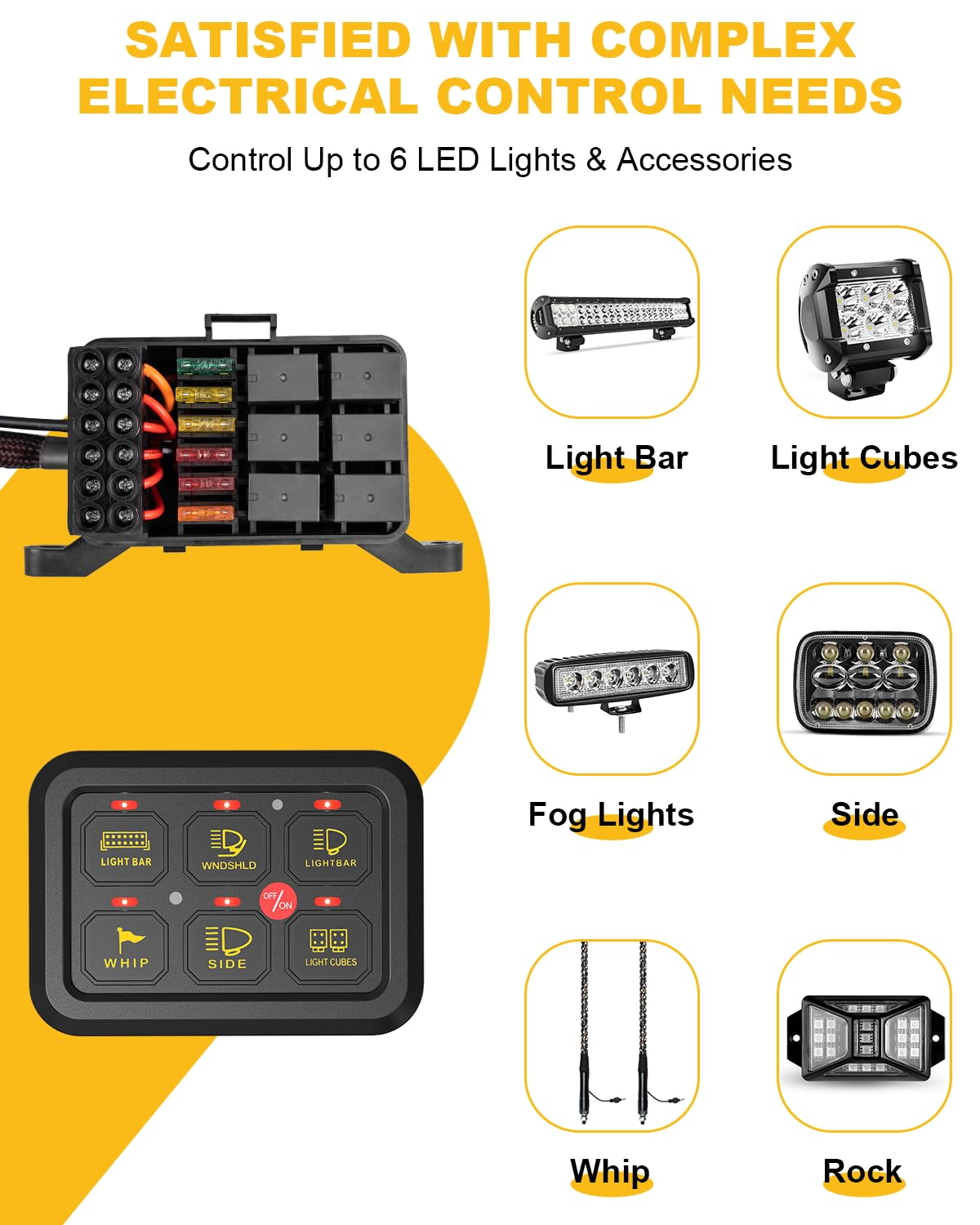

What can this panel actually control and what are the limits?

The six latching circuits let you switch lighting, pumps, compressors, auxiliary outlets, and other 12V accessories. Each circuit participates in the panel's total rated capacity—maximum 60A combined—so plan loads accordingly. This model does not support momentary (push-and-hold) switch behavior; it is strictly latching on/off only.

• Controls up to six 12V accessories simultaneously.
• Total system capacity: 60A (up to 720W at 12V).
• Latching switch functionality only; no momentary mode.

Who is this for: The KACOLA 6 Gang Switch Panel is aimed at vehicle owners and installers who want a compact, robust control center for accessories—ideal for off-road rigs, work trucks, RVs, marine craft, UTVs, and motorcycles. If you need reliable, protected switching for multiple 12V loads with neat wiring and automatic backlight adjustment, this panel provides a durable, easy-to-mount solution without complex aftermarket wiring.
