KAIWEETS HT118A Digital Multimeter Automotive TRMS 6000-Count NCV, 1000V, 10A, Backlit Display

The KAIWEETS HT118A is a 6000-count true-RMS digital multimeter built for automotive and electrical troubleshooting, offering NCV detection, temperature, capacitance, frequency and broad safety protection.

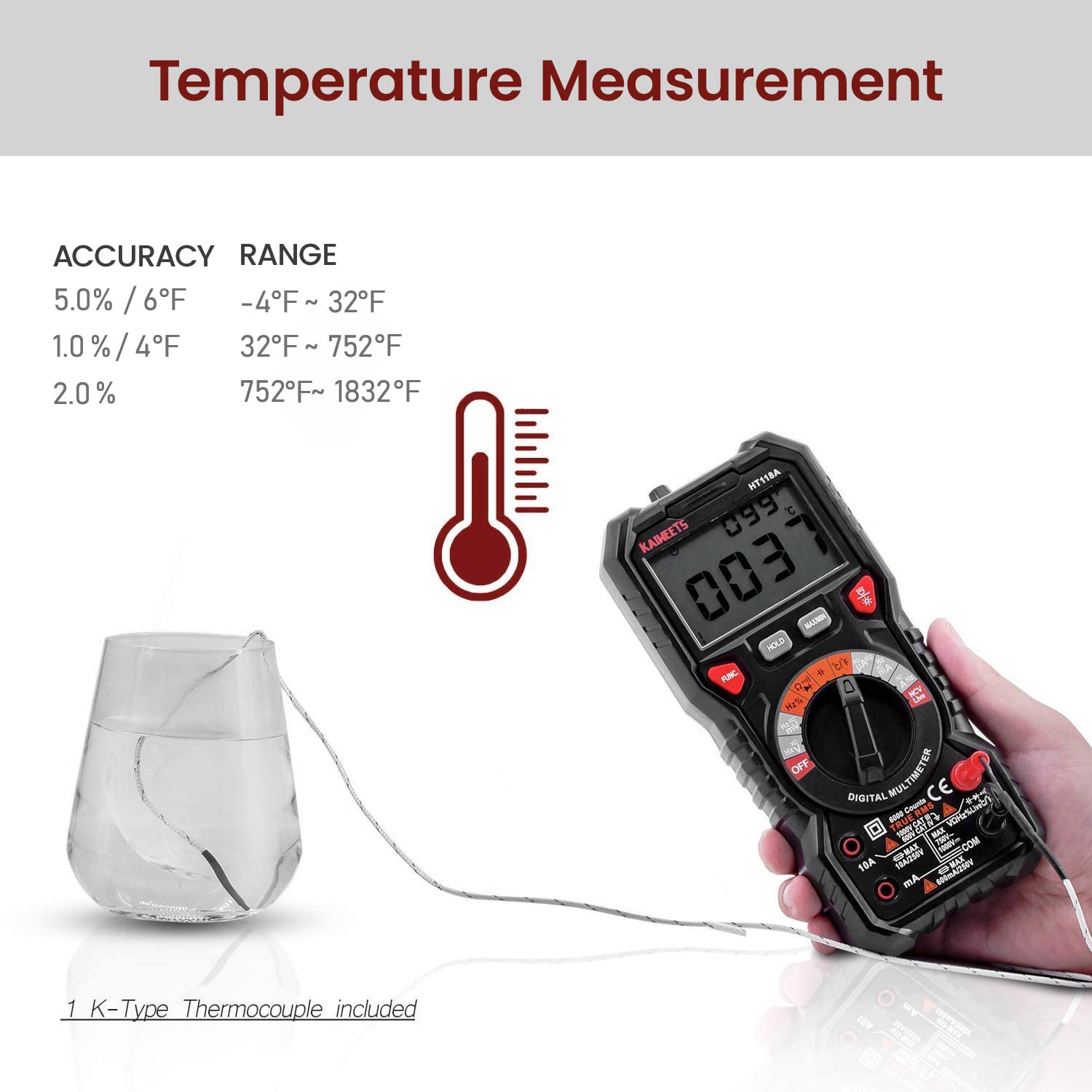

Compact but feature-rich, this KAIWEETS automotive multimeter combines a clear 2.9" backlit display and autoranging convenience with safety-rated circuitry and non-contact voltage (NCV) sensing. It measures AC/DC voltage up to industry-class limits, handles current up to 10A, reads resistance into the megaohm range, and adds useful functions such as diode/continuity checks, duty cycle, frequency, capacitance and temperature with the included thermocouple.

How accurate and versatile is the HT118A for car and home electrical work?

The HT118A is a true-RMS meter with 6000-count resolution, so readings are stable and appropriate for non-sinusoidal signals found in modern electronics and vehicles. It supports a wide measurement set that covers common diagnostic tasks around engines, batteries, power supplies and household wiring.

• True-RMS measurement for accurate AC readings on complex waveforms

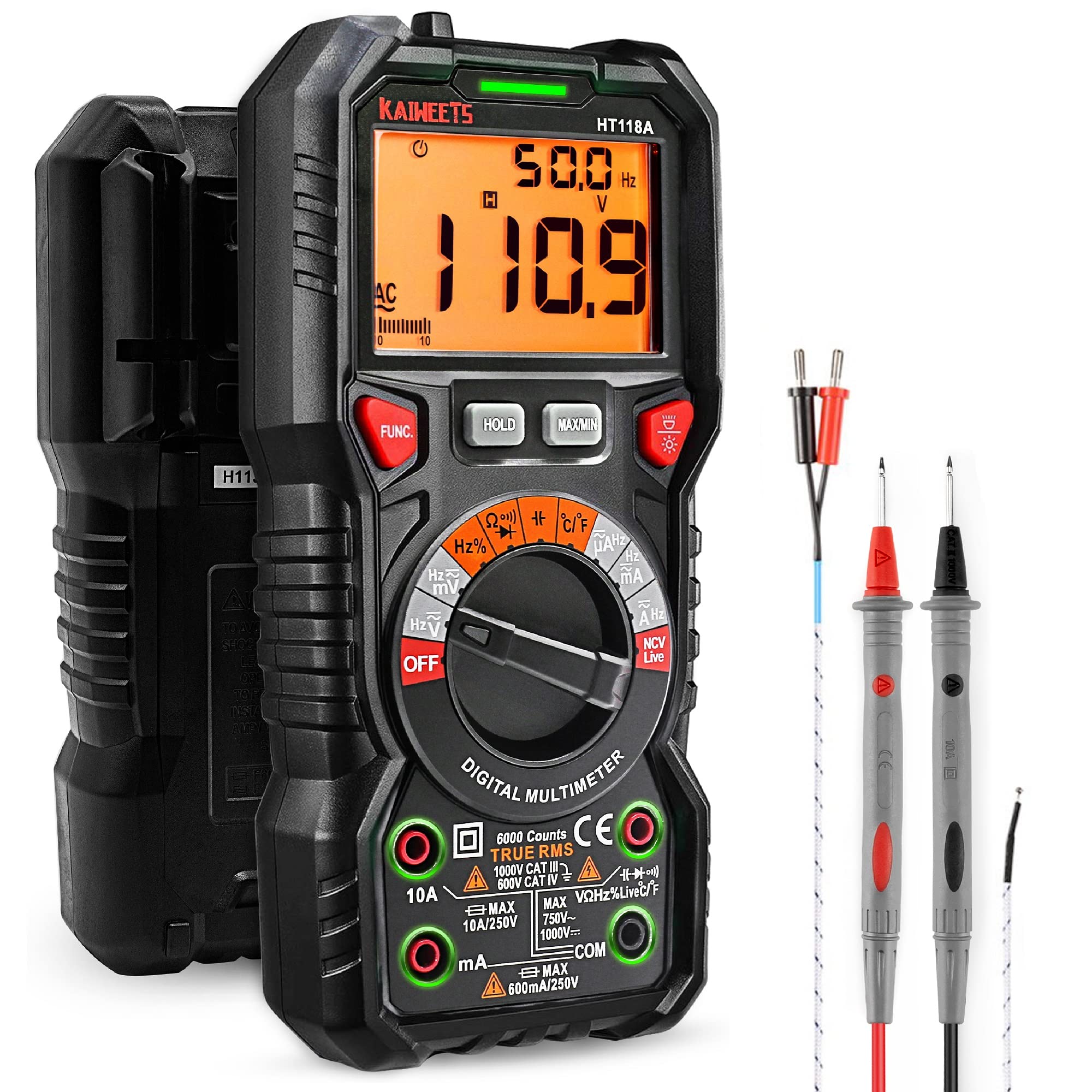

• 6000-count display with large digits and backlight for visibility
• Measures up to 1000V DC / 750V AC and 10A AC/DC current
• Tests resistance up to 60 MΩ, capacitance, frequency and duty cycle

What safety features protect me and the meter during testing?

KAIWEETS designed the HT118A to meet IEC safety categories suitable for heavy-duty electrical work. The unit includes active high-voltage protection, double ceramic fuses, thermistor protection and a silicone protective case to reduce damage from drops.

• Rated CAT III 1000V and CAT IV 600V for industrial and service environments
• Double ceramic fuses and thermistor circuit for anti-burn protection
• Double insulation, CE and RoHS certifications included
• Silicone sleeve adds shock resistance and grip during field use

How easy is it to use the meter in low light or busy workspaces?

The HT118A keeps operation simple with an autorange dial and intuitive jack LEDs that indicate where to plug test leads. A built-in flashlight and large backlit LCD make it easy to read and position the meter in dim engine bays or behind panels.

• Autoranging saves time and removes manual range selection

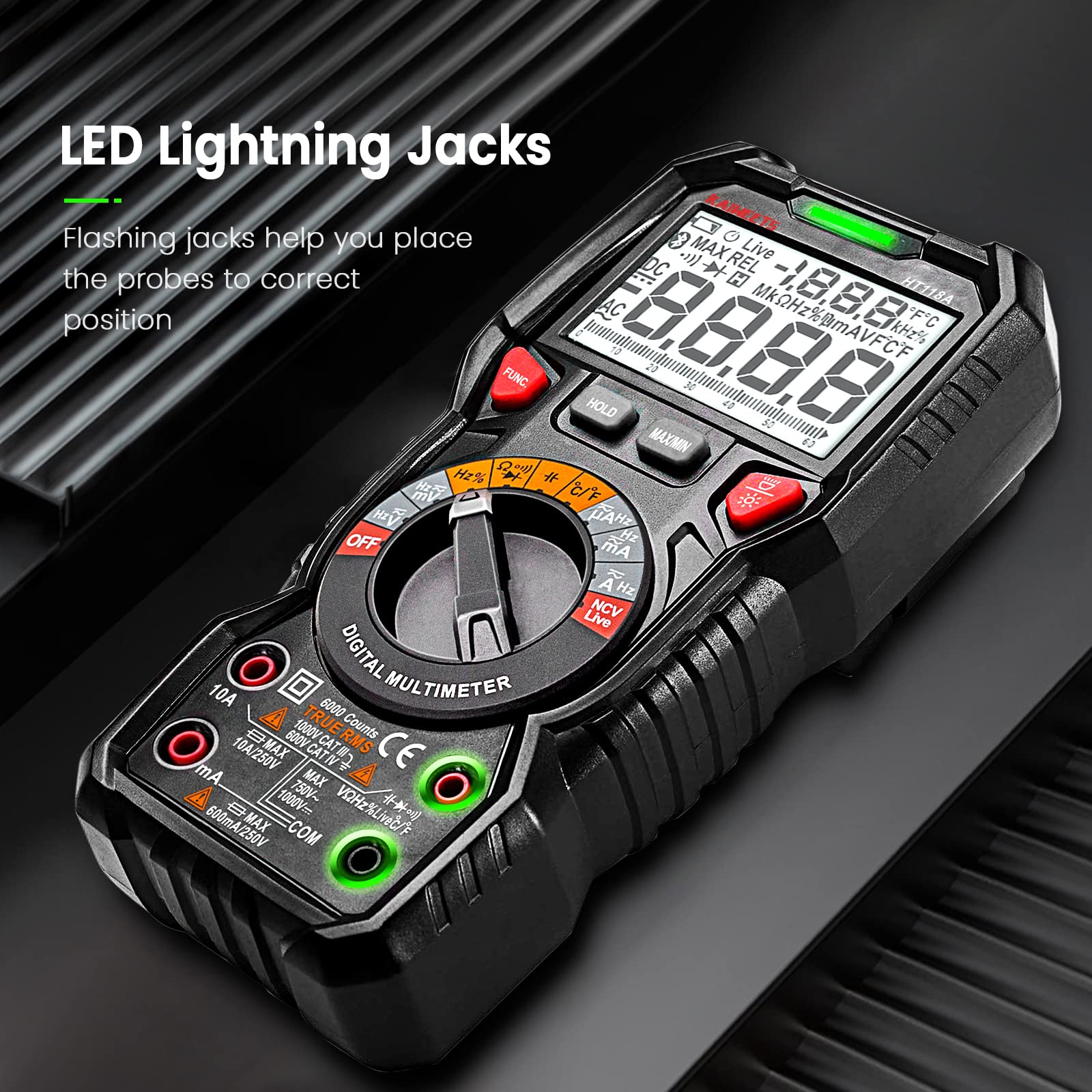

• LED-lit jacks guide lead placement to the correct socket

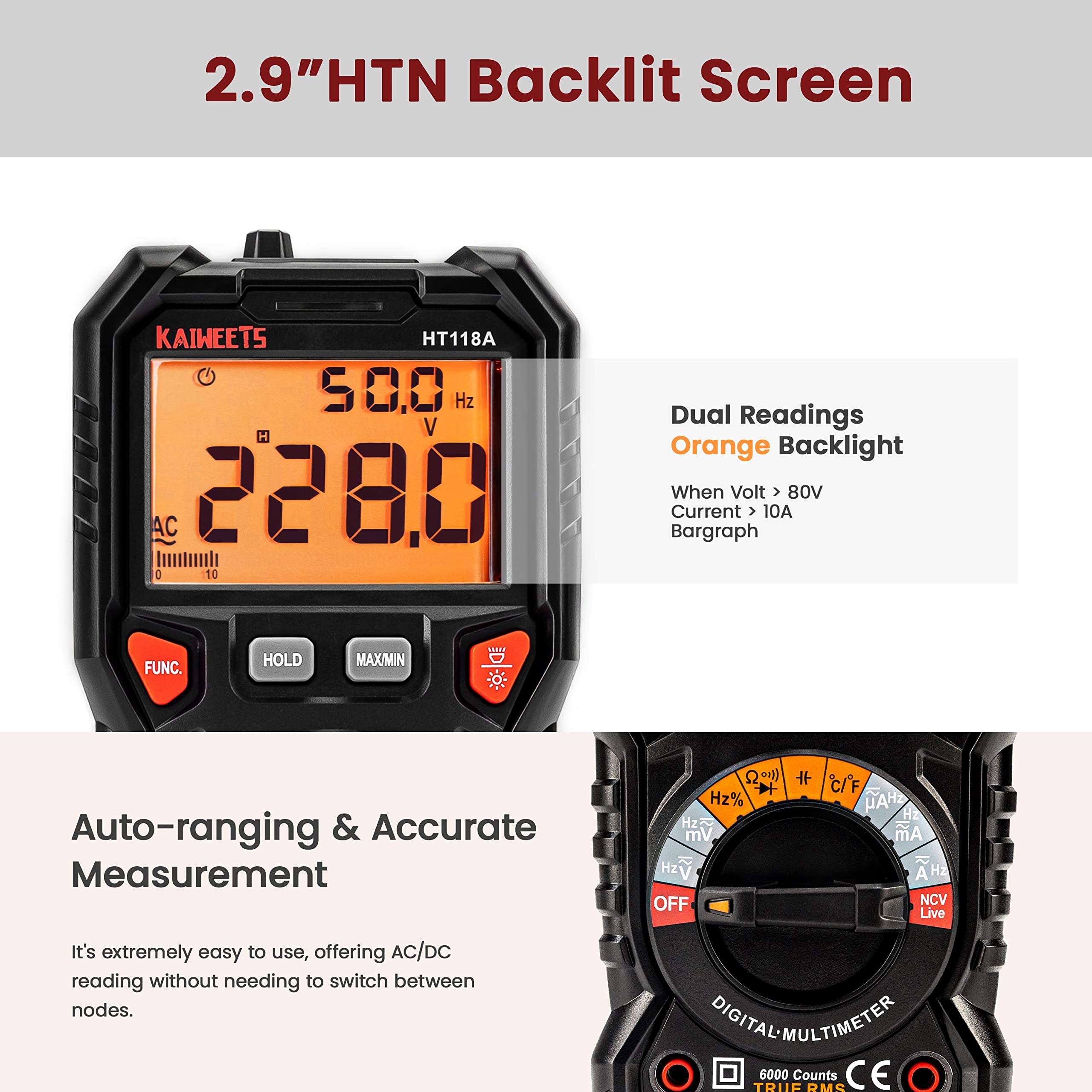

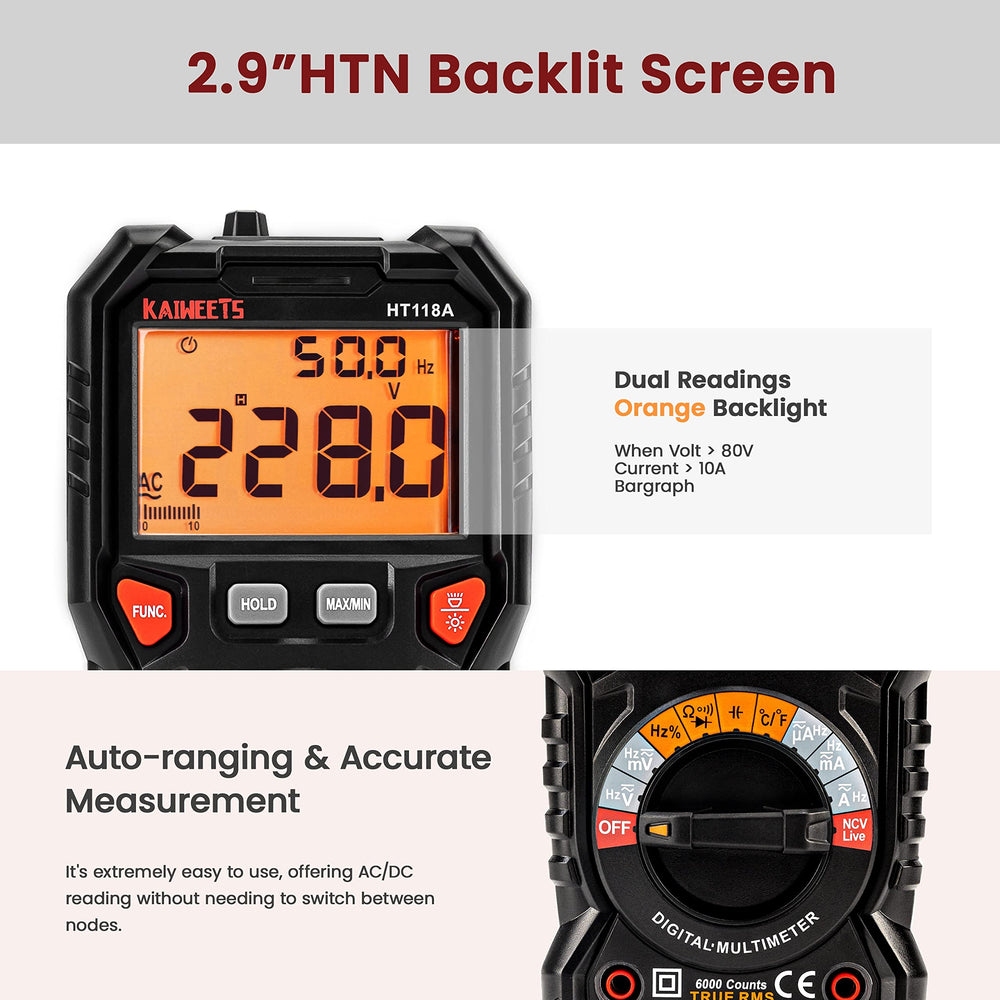

• Rear flashlight and 2.9" backlit display for low-light work
• Kickstand and pen slot for stable hands-free positioning

What accessories and after-sales support come with the HT118A?

The kit arrives ready for immediate use: test leads, a thermocouple for temperature readings, batteries and a user manual are included. KAIWEETS backs the meter with a 36-month after-sale service period and lifetime technical support for peace of mind.

• Included: test leads, thermocouple temperature probe, batteries, manual
• 36-month after-sales service and lifetime technical assistance
• Low-battery indicator, data hold, Min/Max/Average recording, auto power-off
• Note: remove cap before inserting leads to ensure correct connection

Who is this for? The KAIWEETS HT118A suits DIY mechanics, electricians, maintenance technicians and hobbyists who need a robust, safety-minded multimeter for automotive, household and light industrial troubleshooting. If you require clear readings on complex signals, NCV detection, temperature measurement and trustworthy protection features in one portable instrument, this meter is built to cover those needs without extra bulk.
