Kylazer laser alignment tool for belts and pulleys — red laser, magnetic feet, compact diagnostic unit

Kylazer's compact laser alignment tool quickly locates belt and pulley displacement so you can correct misalignment and protect drive systems.

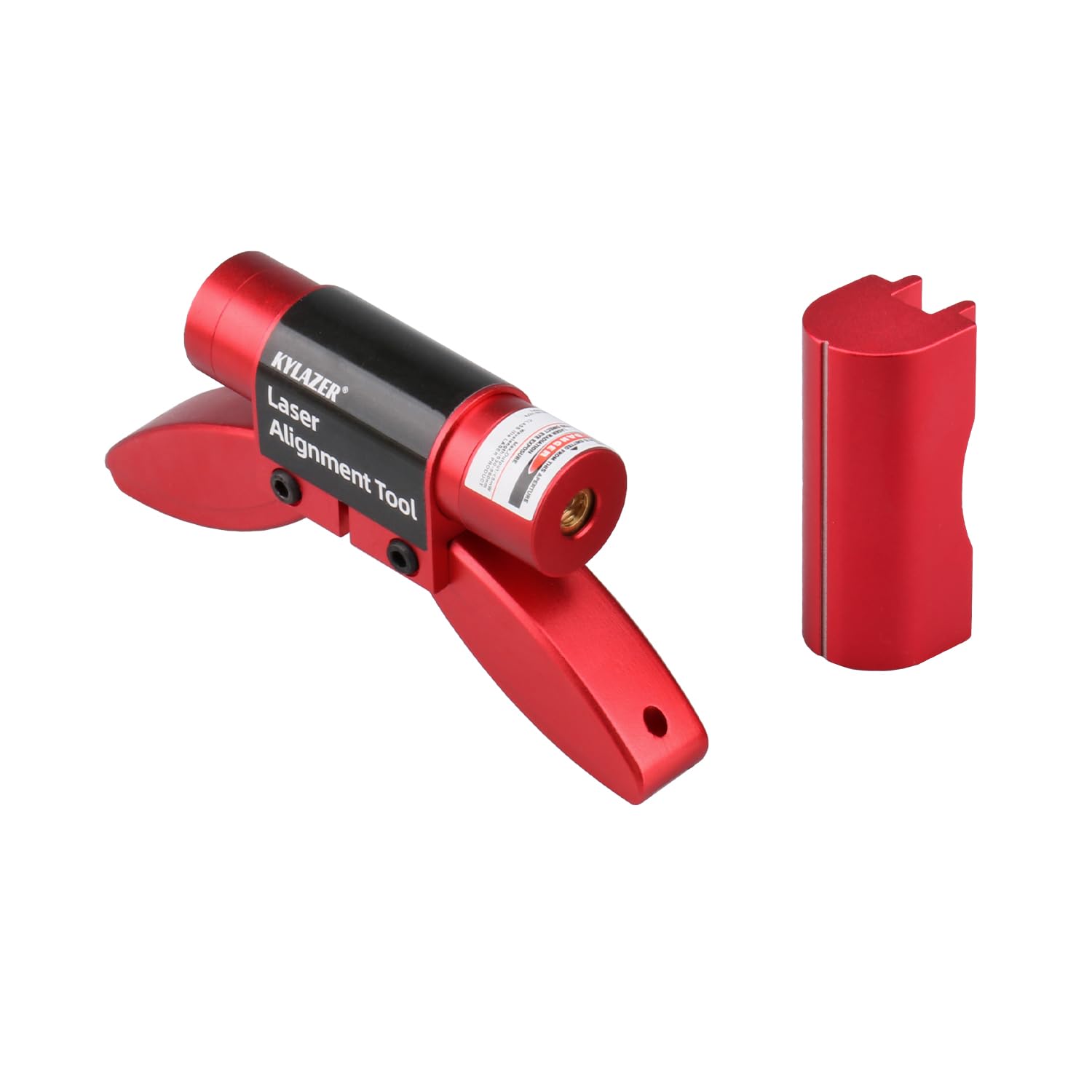

The Kylazer Laser Alignment Tool is a battery-powered diagnostic device designed to measure and reveal belt and pulley (BDS) misalignment using a visible red laser. Its small footprint, magnetic feet, and recessed base make it simple to attach to pulleys and position for fast checks on conveyors, HVAC drives, and industrial belt systems. Built with a durable housing and pre-calibrated laser, the tool aims to speed up troubleshooting and reduce premature belt wear.

How does the Kylazer tool detect pulley and belt displacement?

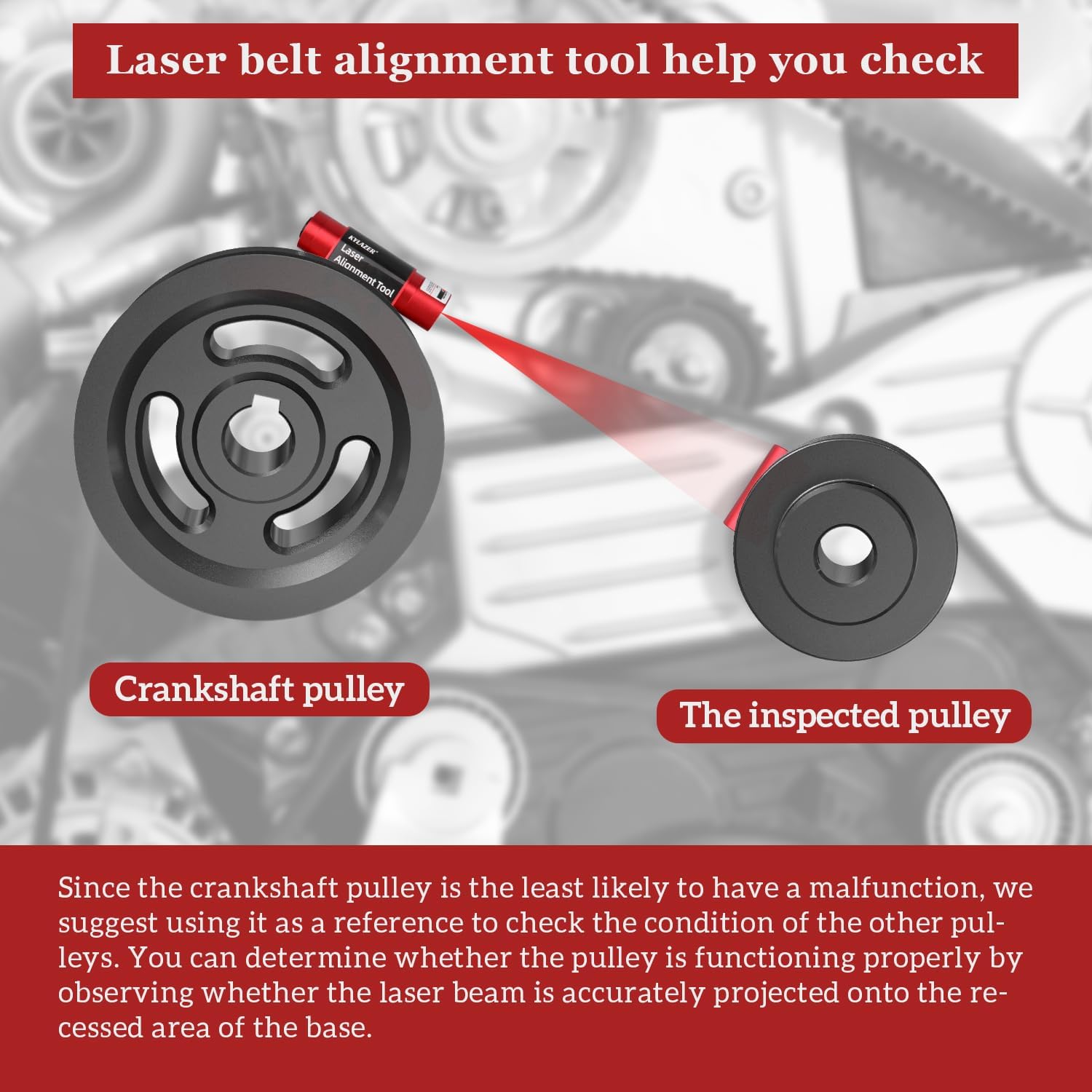

The unit projects a precise red laser line or dot onto reference points of the pulley system, so even small angular or lateral offsets become visible. By comparing the laser mark to intended alignment targets you can quantify displacement and decide where to adjust tension or reposition components.

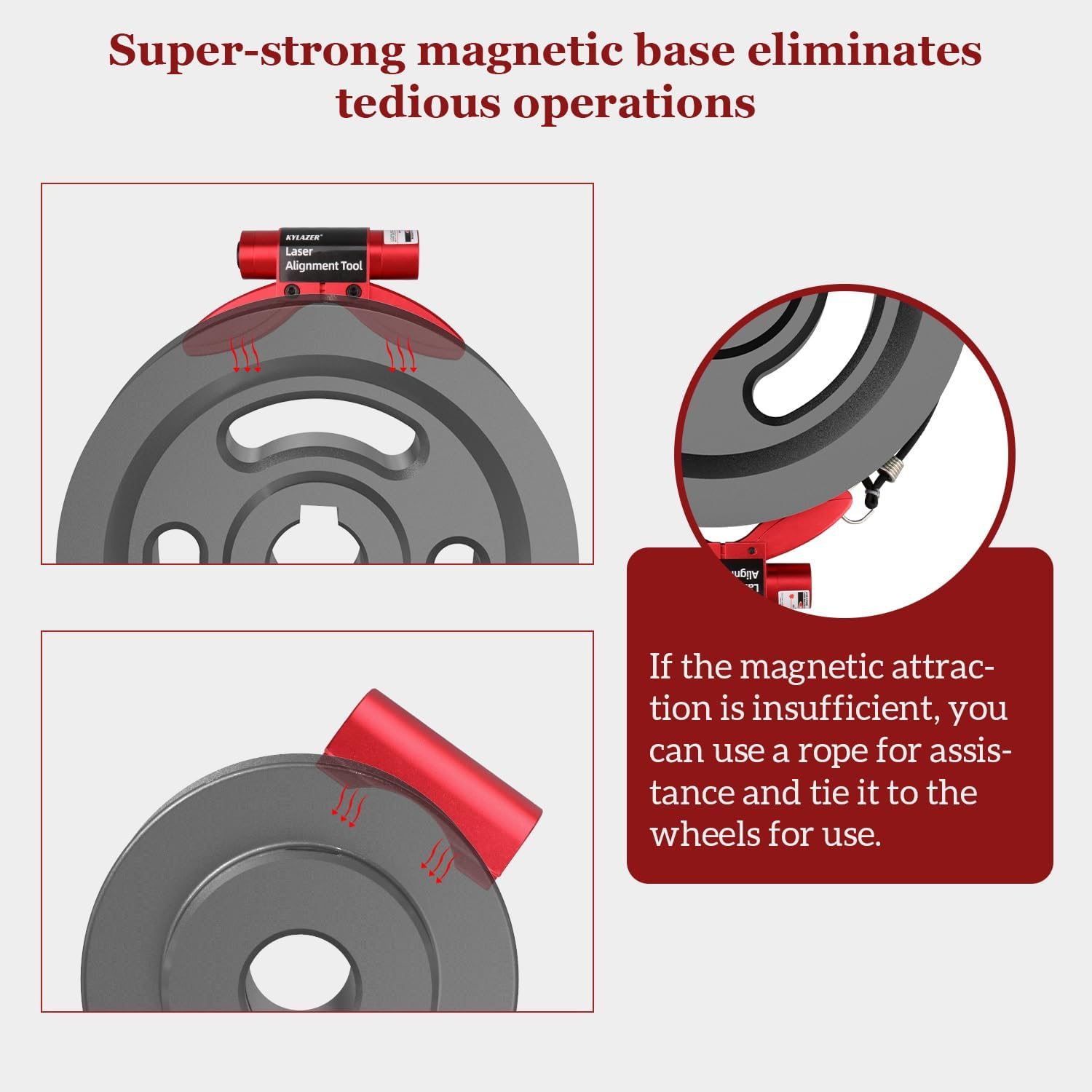

• Magnetic feet attach to pulley flanges for stable positioning.
• Recessed base ensures correct placement on narrow pulleys.

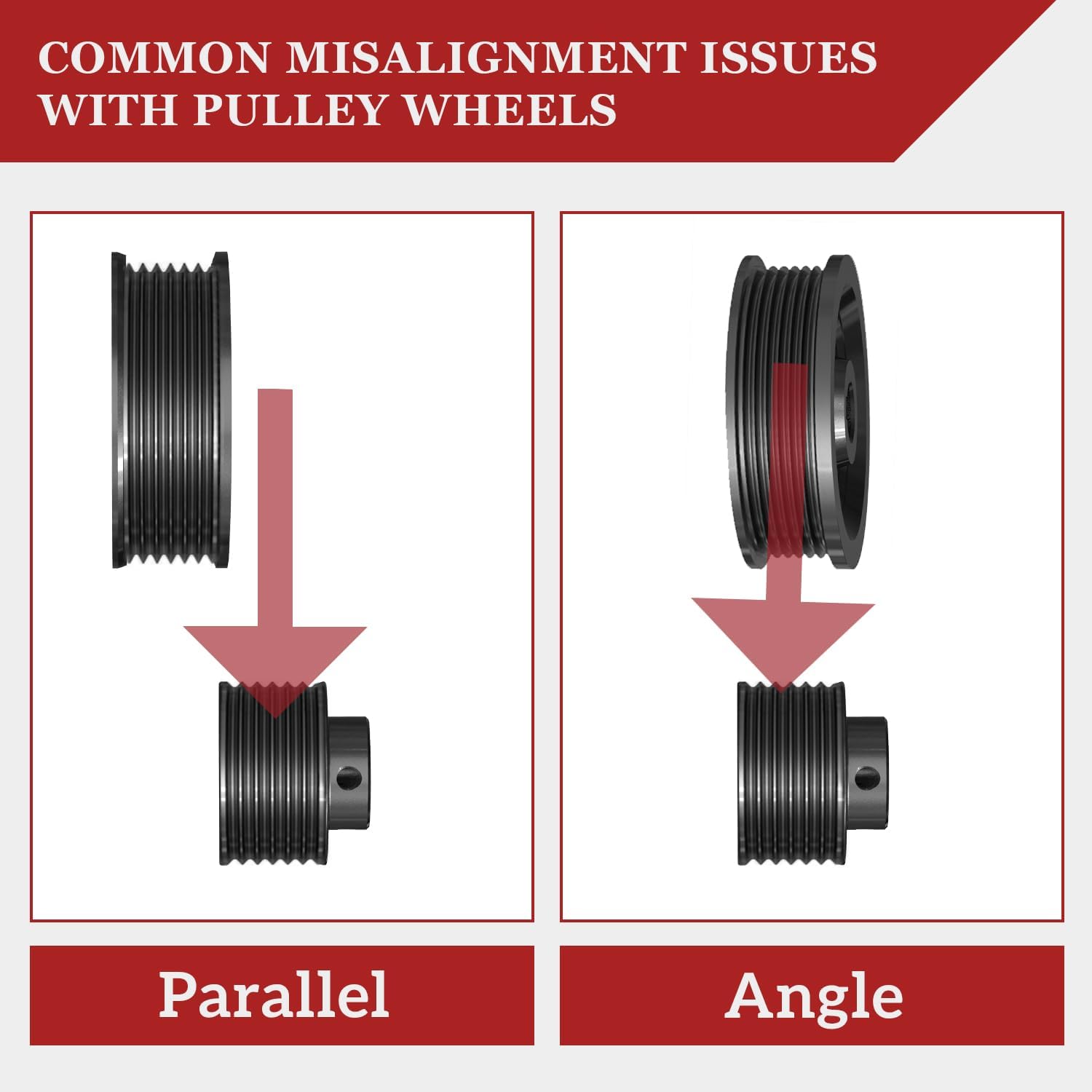

• Visible red laser highlights axial and radial offsets instantly.

What makes this alignment tool durable and reliable on the job?

The Kylazer housing and laser module are manufactured to withstand routine workshop use, and the company calibrates the laser prior to shipping. For continued accuracy, the design also allows easy battery replacement and field recalibration guidance if transport knocks affect alignment.

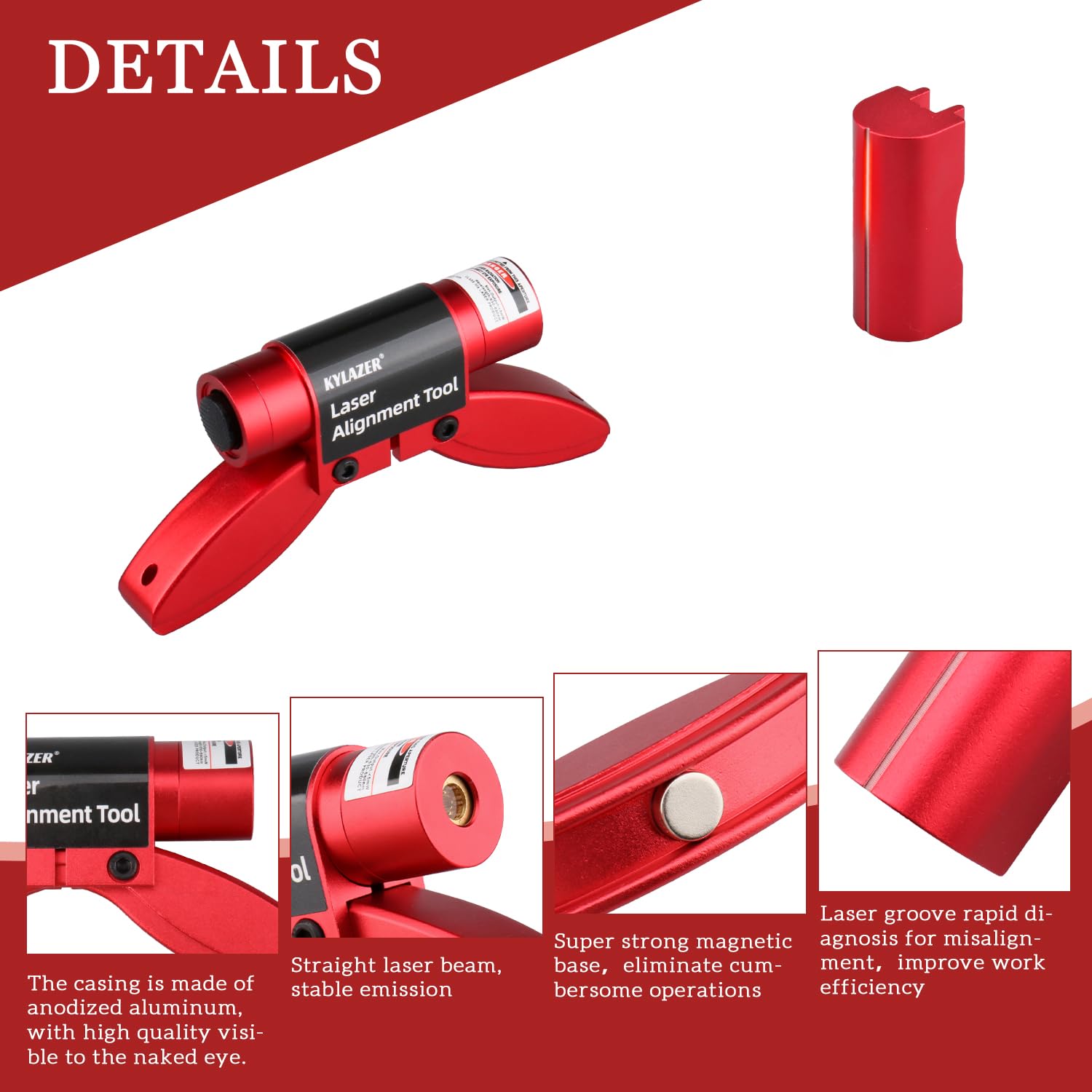

• Rugged casing resists shop impacts and dirt.
• Pre-shipped calibration reduces setup time out of the box.
• Replaceable batteries keep the unit running through long jobs.

How do you set up and use the laser safely during inspections?

Mount the base with its magnetic feet to a pulley face, aim the laser at the corresponding target or marker, then note any offset relative to the ideal alignment line. Always follow standard laser-safety precautions—avoid direct eye exposure and use the tool at recommended distances for clear readings.

• Mount on pulley using magnetic feet for steady readings.
• Use a visible reference mark or straightedge to read displacement.
• Replace batteries promptly to maintain consistent laser output.

What should I do if the laser seems off after delivery?

Transportation can shift the factory calibration; if the beam does not align as expected, consult the manual’s alignment check procedure or the product page troubleshooting steps. Kylazer also offers customer support and a two-year warranty to address quality concerns.

• Follow the manual’s quick recalibration routine before first use.
• Contact Kylazer support if the recalibration does not resolve the issue.
• Keep lithium batteries on hand as recommended for uninterrupted work.

Who is this for: The Kylazer Laser Alignment Tool is aimed at maintenance technicians, mechanical contractors, and shop professionals who perform routine belt and pulley inspections on conveyors, compressors, HVAC units, or light-to-medium industrial drives. It’s also useful for installers who need a fast, portable method to confirm alignment during setup and service visits. If you require a compact, magnet-mounted laser diagnostic aid to reduce misalignment-related downtime and extend belt life, this tool is designed to fit into your toolbox.
