LDMINDA 12V 3-Terminal Continuous-Duty Solenoid Relay — Zinc-Plated 200A Transient, 100A Continuous

LDMINDA's 12V 3-terminal continuous-duty solenoid relay is a heavy-duty, zinc-plated switch designed to handle up to 200A transient current for golf carts, winches, and marine applications. This robust relay combines an upgraded copper coil, corrosion-resistant plating, and a sealed housing to deliver reliable battery isolation and high-current switching in demanding environments. Built for repeated engagement and continuous-duty performance, it replaces many common solenoid part numbers and mounts with a standard 180° flat bracket for easy installation.

How does this solenoid protect my battery and electrical system?

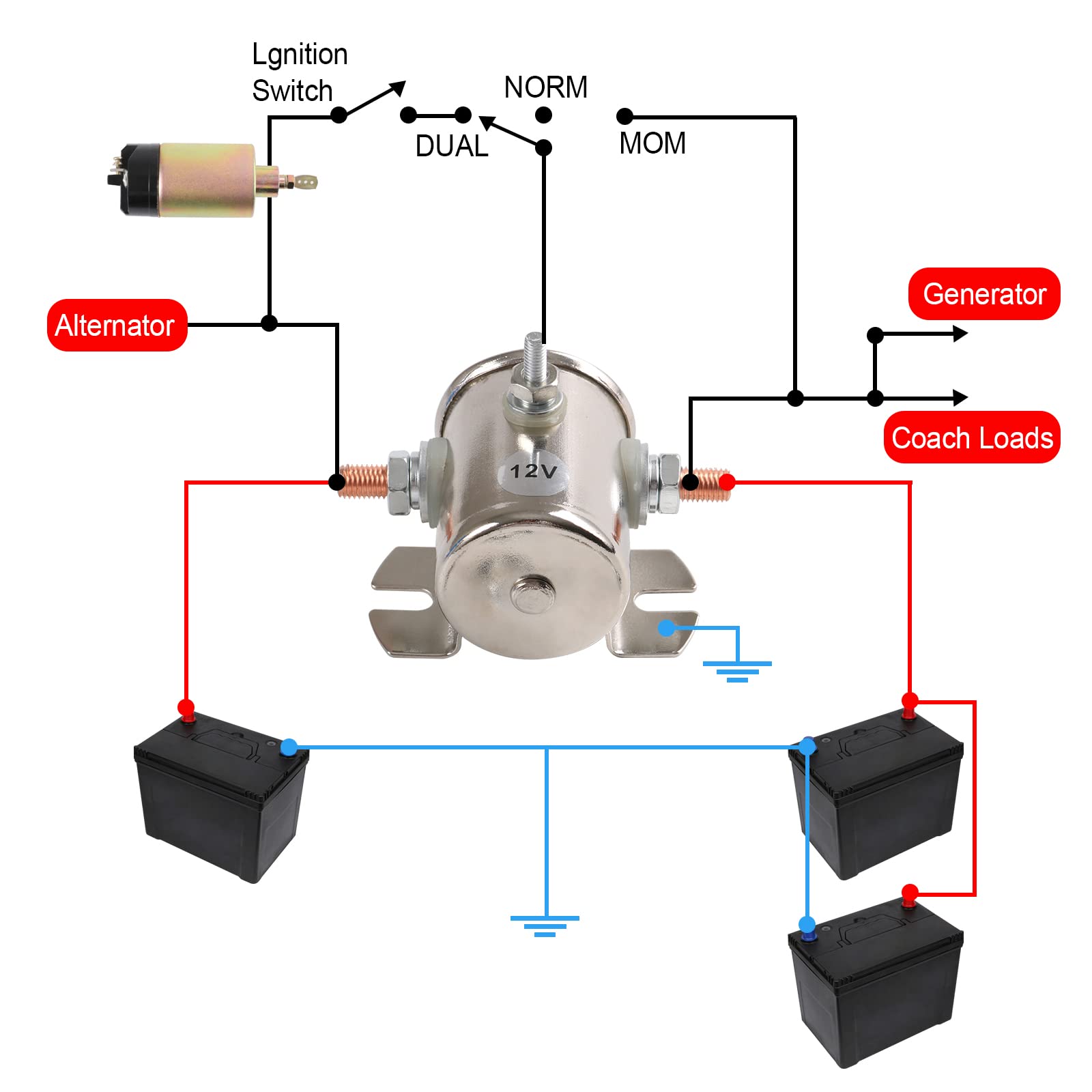

The LDMINDA solenoid acts as a controlled high-current path that isolates the battery when the circuit is not engaged, limiting parasitic drain and protecting components. Its copper contact studs and low-resistance coil reduce voltage drop and heat buildup during operation.

• 3-pole battery isolation design reduces unwanted drain
• Copper contact studs (5/16-24) improve conductivity and lower losses
• Sealed zinc-plated housing helps prevent corrosion in wet conditions
• Rated for 12V systems with a transient capability up to 200A

Can it handle continuous duty for heavy accessories like winches?

This relay is engineered for continuous-duty use and can sustain high current in short bursts, but long-term heavy loads should be managed to avoid overheating. The spec sheet indicates safe operation near 100A continuous and transient survival up to 200A; intermittent 150A operation is possible but requires duty cycling to prevent thermal damage.

• Continuous rate current: approximately 100A
• Transient (flash) current capability: up to 200A
• Can run 150A for short spans; recommended breaks to cool

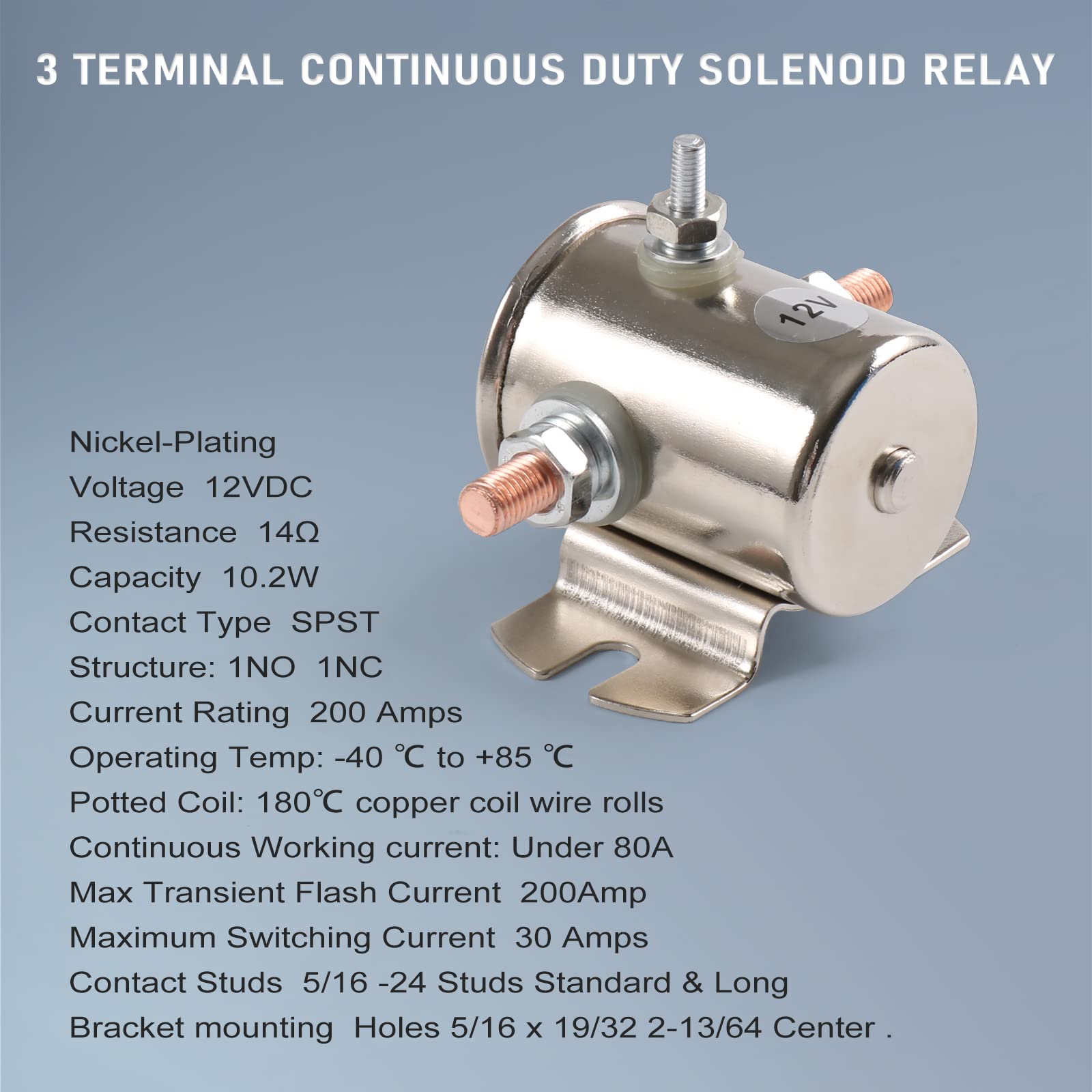

• Flat mounting bracket for secure installation on vehicle frames

What are the installation and compatibility details I should know?

The relay uses standard 5/16-24 studs and a 10-32 control terminal for straightforward wiring in most 12V systems. Its mounting hole spacing and 180° flat bracket match common replacement patterns, and it is listed as a successor to numerous OEM part numbers for easy swap-in compatibility.

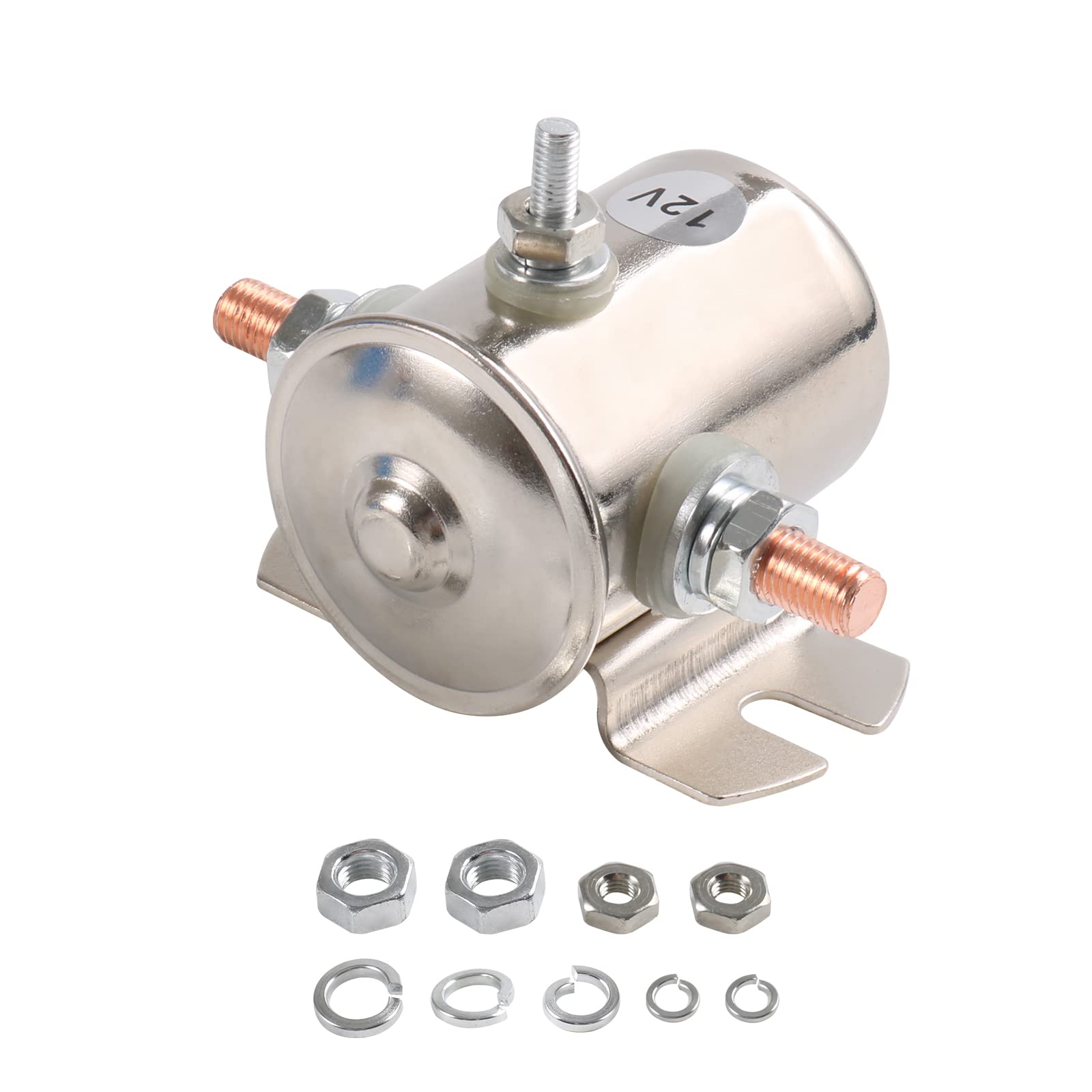

• Contact stud size: 5/16-24 (standard and long options)
• Control terminal: 10-32 threaded post
• Mounting holes: 5/16 x 19/32, center spacing 2-13/64

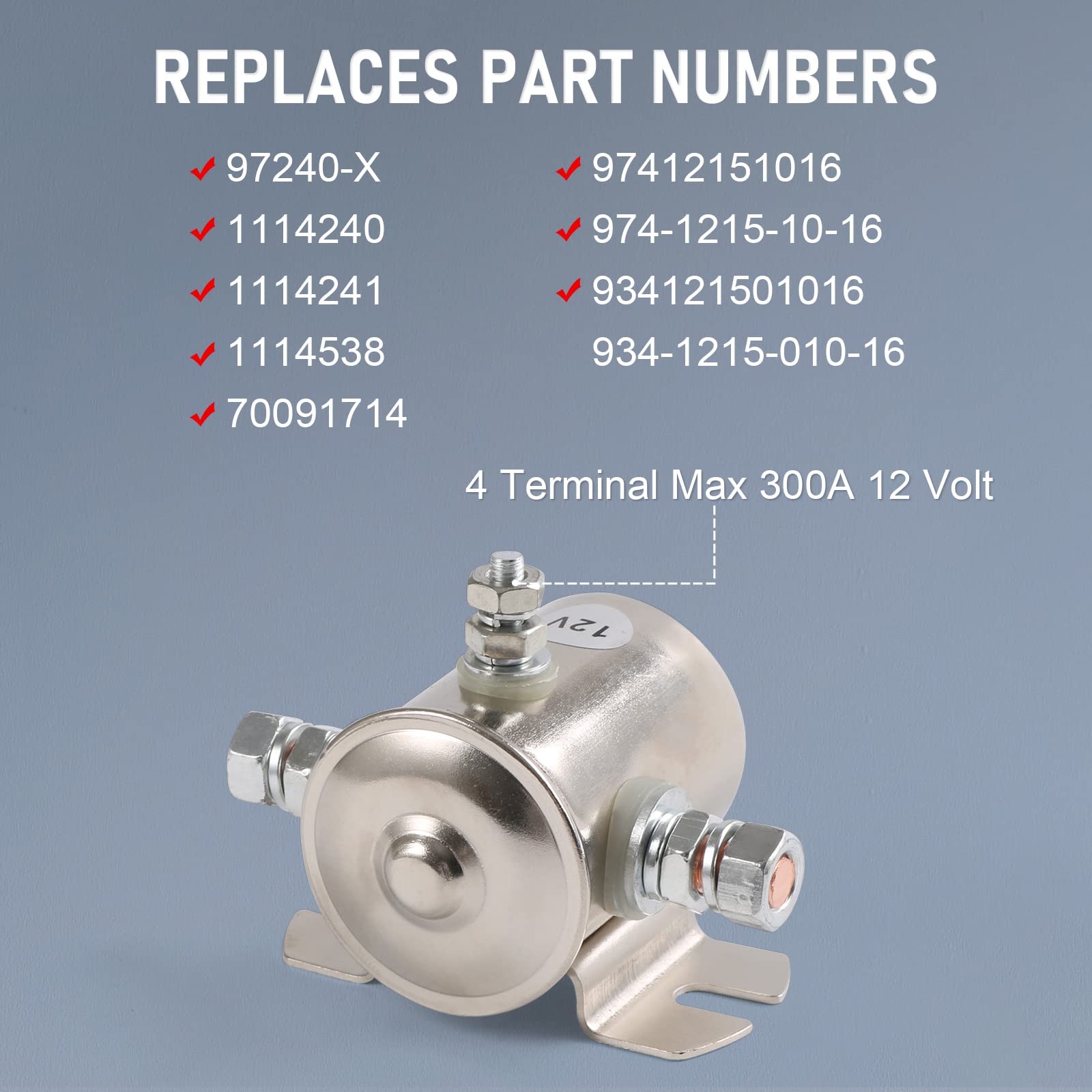

• Direct-fit replacement for many Trombetta and OEM numbers

What materials and build features improve durability?

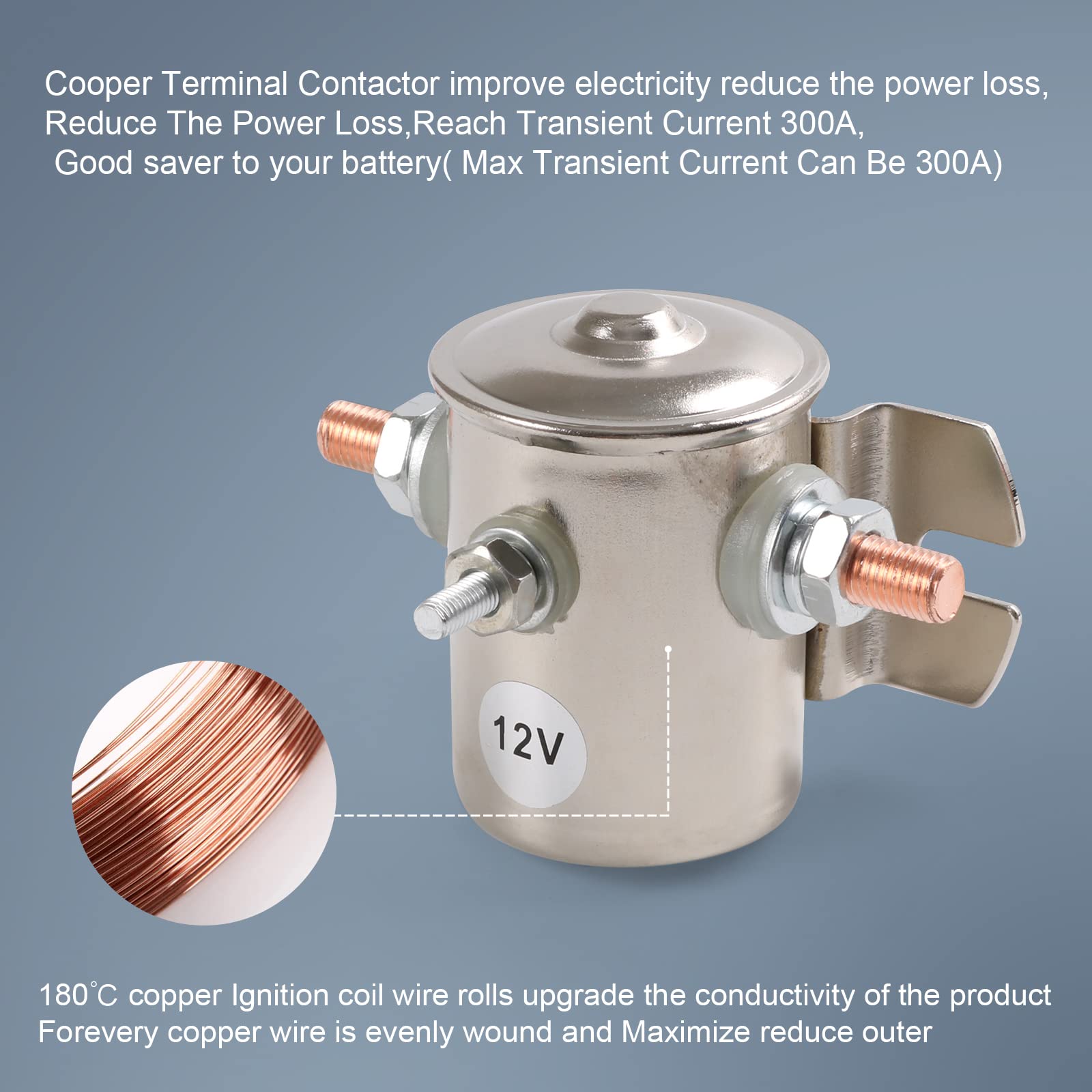

High-temperature copper coil windings and a nickel/zinc-plated outer shell increase conductivity and resist corrosion under moisture and salt exposure. The unit's sealed construction limits ingress of contaminants, extending life in marine and off-road settings.

• 180°C-rated copper coil wire for improved conductivity
• Environmental plating and sealed case protect internal parts
• Heavy-gauge metal base for vibration resistance
• Designed for harsh conditions: marine, off-road, and utility vehicles

Who is this for? This LDMINDA 12V continuous-duty solenoid is intended for vehicle owners, fleet technicians, and hobbyists who need a rugged replacement relay for golf carts, utility vehicles, winches, and small marine systems. Choose this unit if you require a high-conductivity, corrosion-resistant solenoid with standard mounting and stud sizes for straightforward upgrades or repairs; if you plan heavy continuous current use, pair it with appropriate fusing and duty-cycle management to avoid overheating.

FAQ

Q: Is this solenoid compatible with 12V winches and golf carts?

A: Yes. It’s built for 12V systems and fits common mounting and stud sizes used on winches and golf carts.

Q: Can it run continuously at high amperage?

A: It’s rated near 100A continuous and handles 200A transient; extended 150A use needs duty breaks to avoid overheating.
