LDMINDA 24V Solenoid Relay 4-Terminal Nickel-Plated — 150A Continuous Duty SPST for Golf Carts & Winches

The LDMINDA 4-terminal 24V continuous duty solenoid relay is a heavy-duty SPST starter relay designed to handle up to 150A continuous (200A transient) for golf carts, winches, marine and industrial equipment.

This nickel-plated, sealed solenoid uses high-temperature 180°C copper coil windings and two copper contact points to deliver reliable switching performance in harsh environments. Engineered as a replacement for common OEM part numbers, it provides a durable electrical path for starter and accessory circuits where a compact, serviceable relay is required.

How does this solenoid fit into my golf cart or winch system?

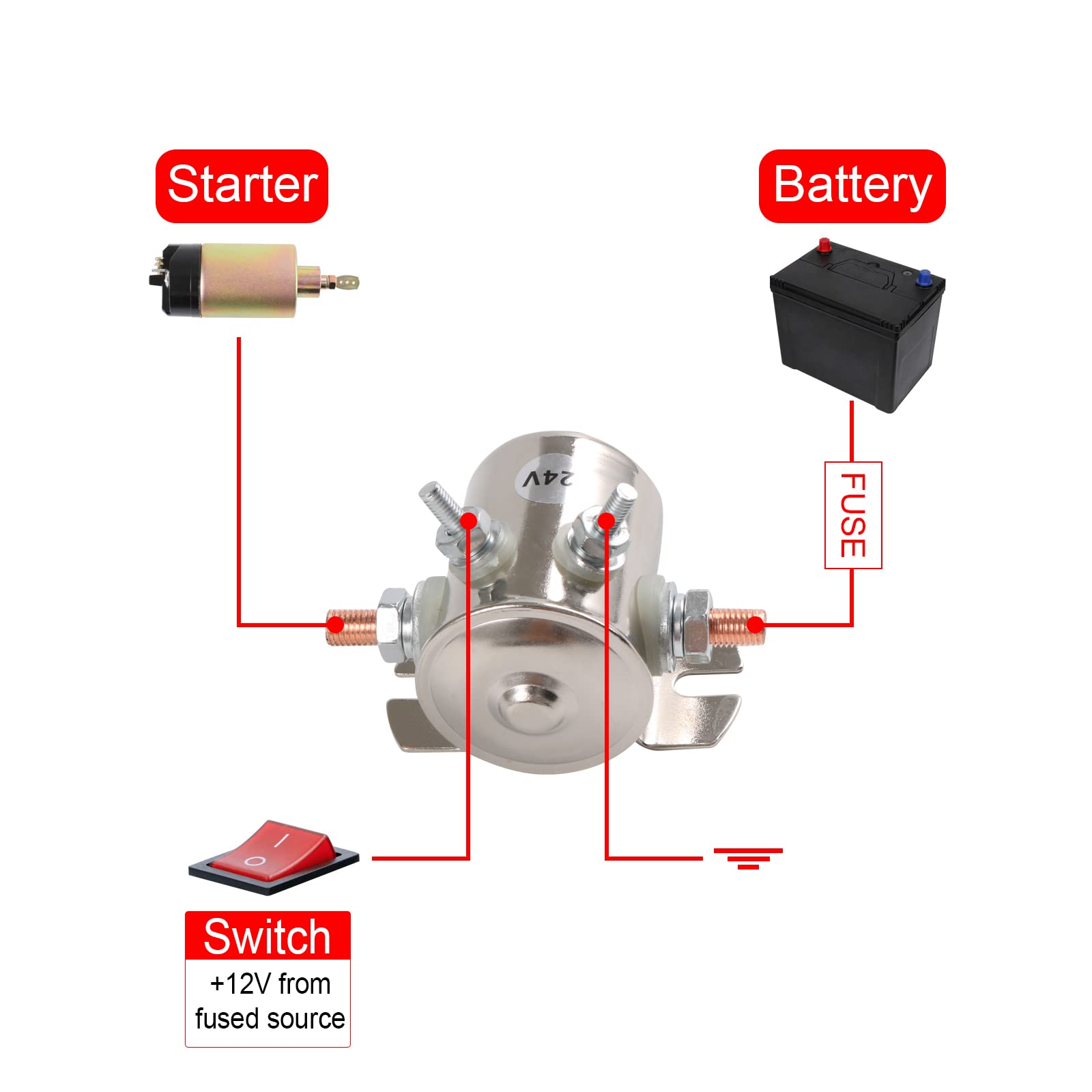

The LDMINDA solenoid acts as a high-current on/off switch that connects battery power to the starter motor or winch motor when energized by a low-current ignition or control circuit. Its SPST design makes installation straightforward: two heavy terminals for battery/load and two small terminals for the control coil.

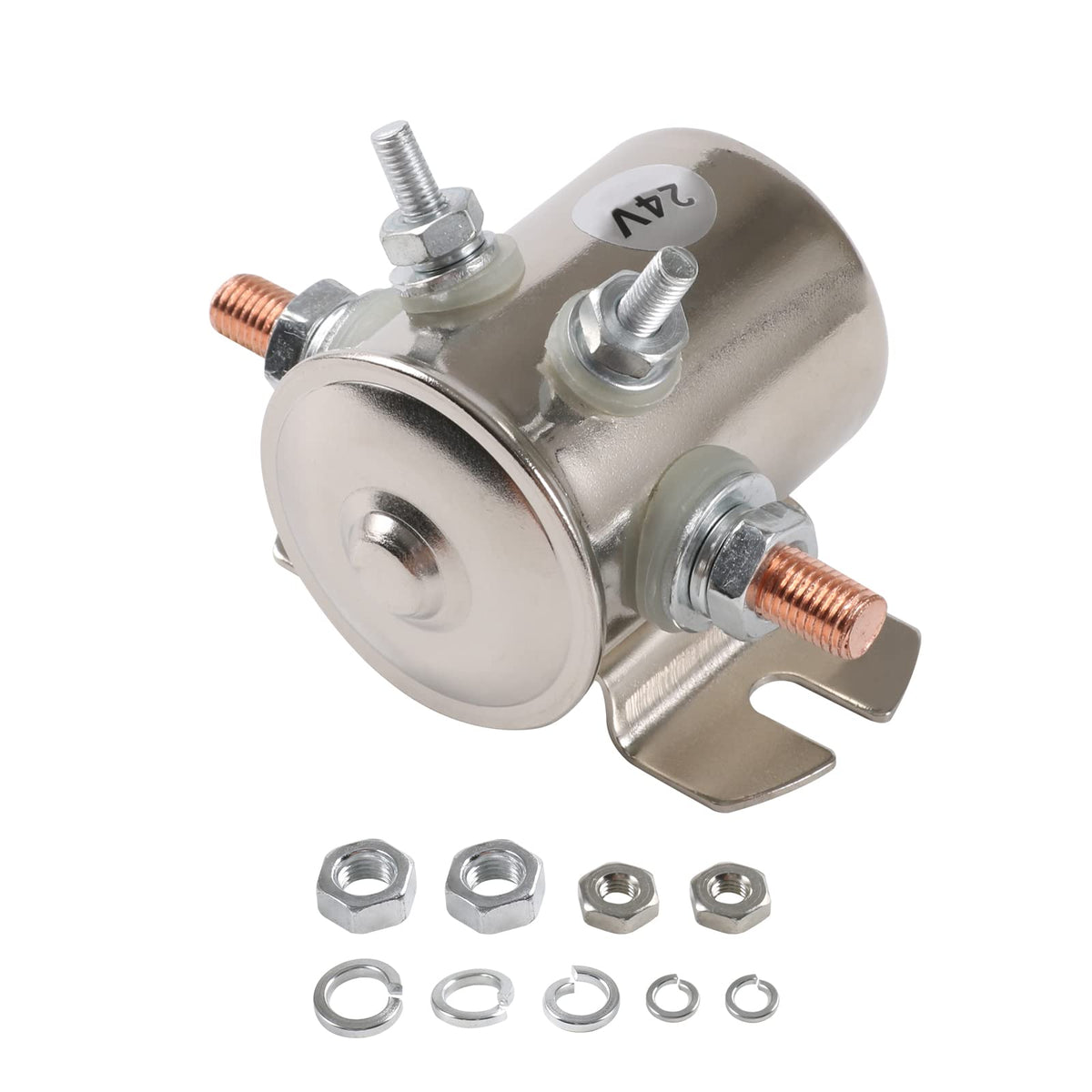

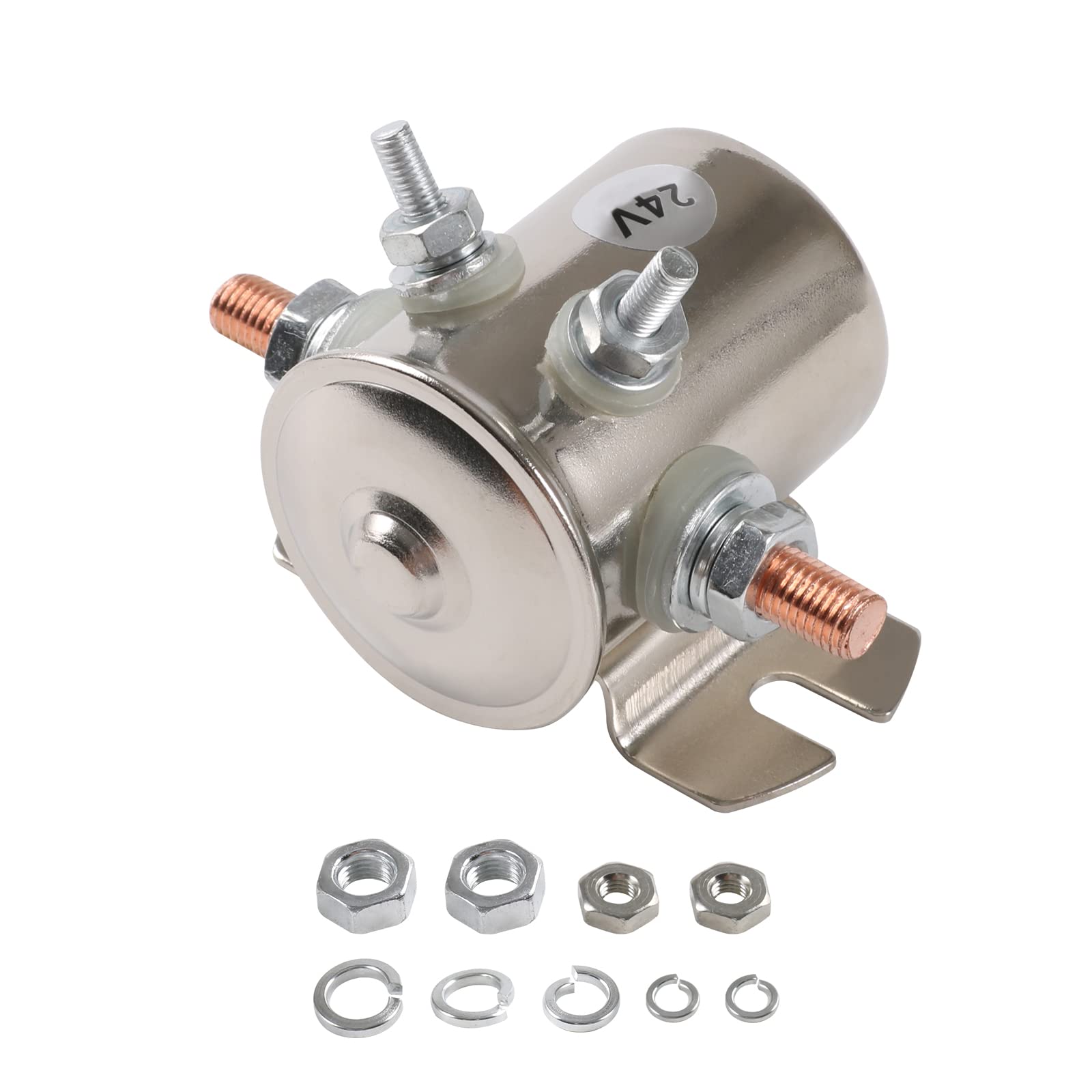

• 4-terminal layout: two large copper posts for battery and load, two small coil terminals for control

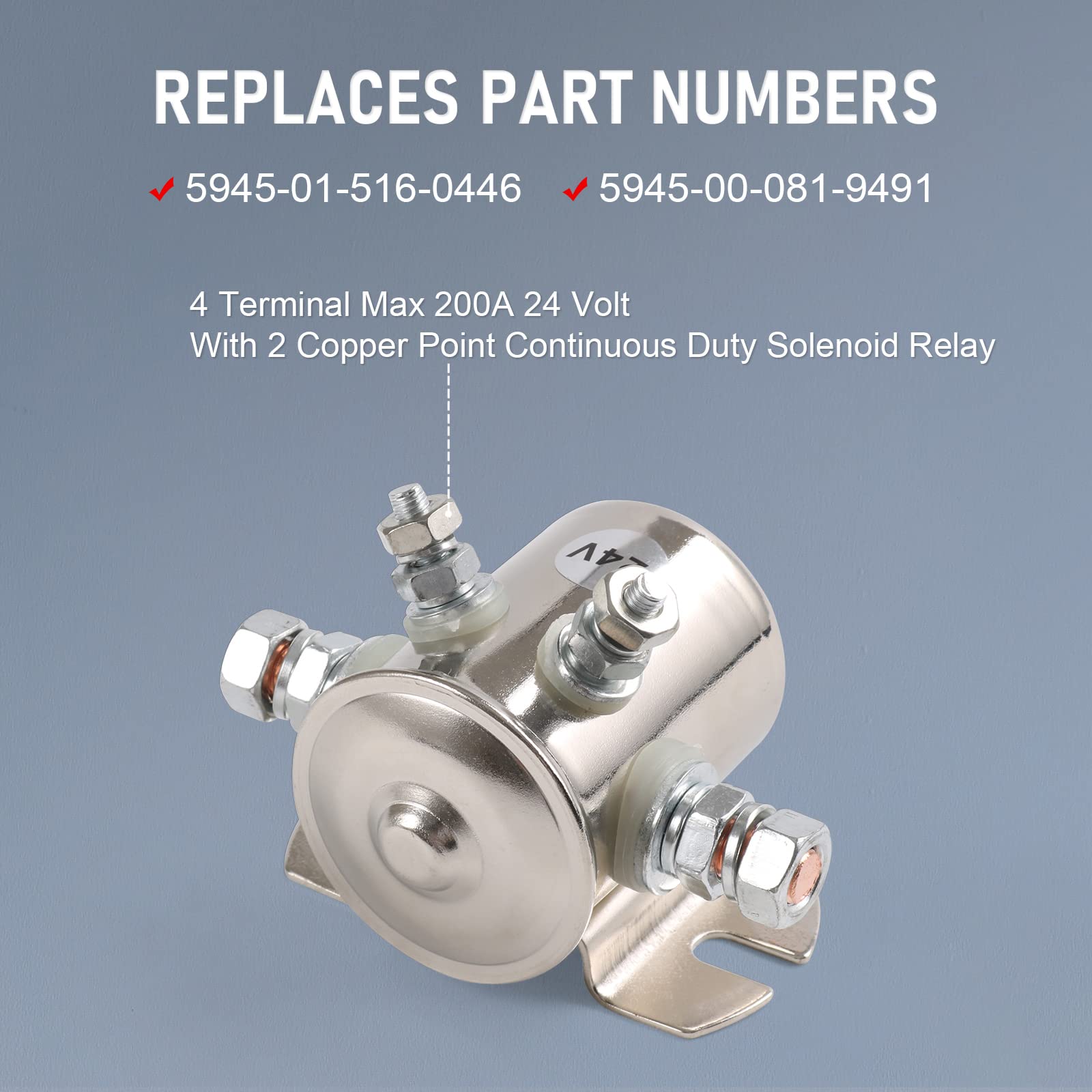

• Replaces common OEM numbers for direct fit or easy wiring adaptation
• Nickel-plated sealed cover resists corrosion in marine and outdoor use
• Compact footprint fits many vehicle and equipment mounting locations

Can it handle continuous use and what are the thermal limits?

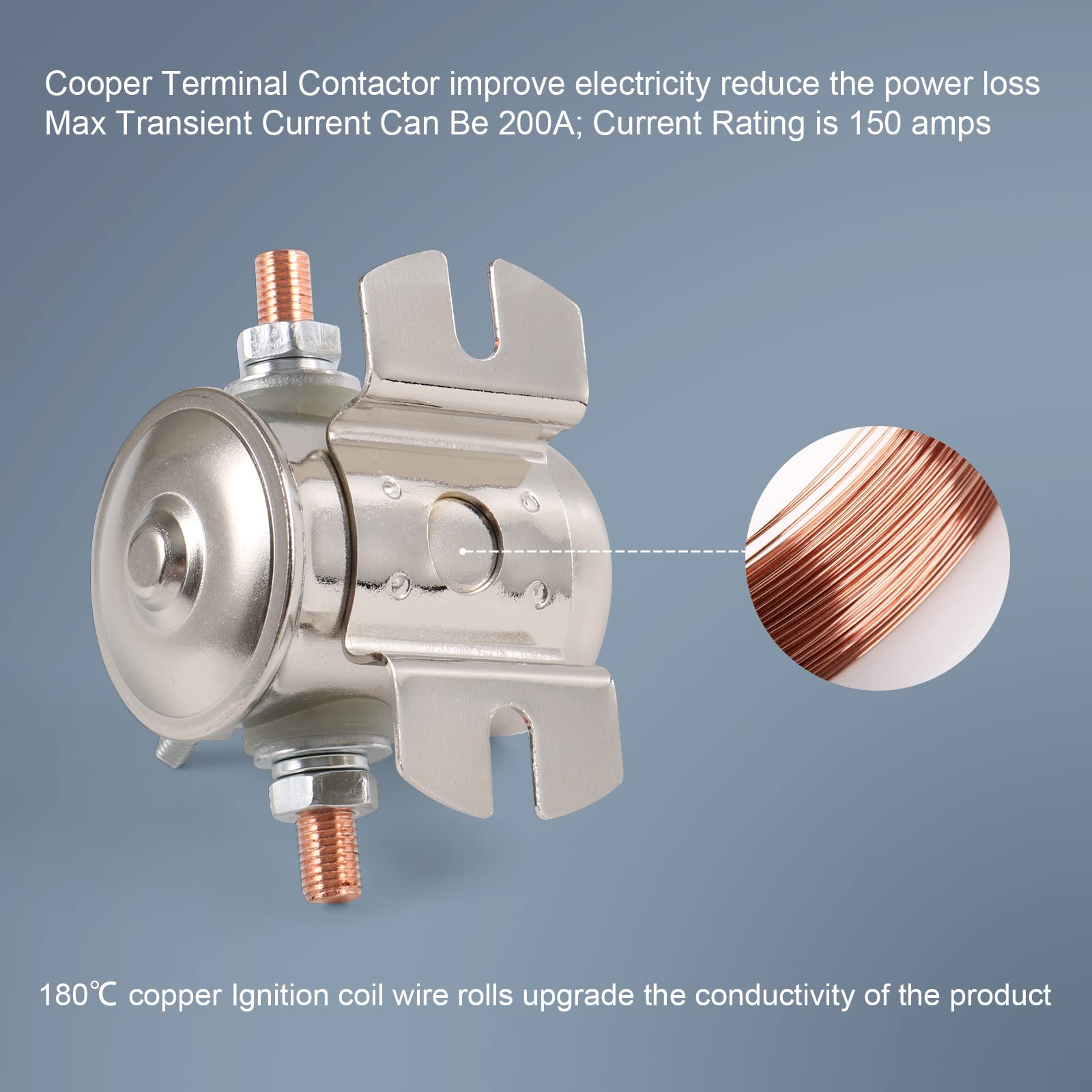

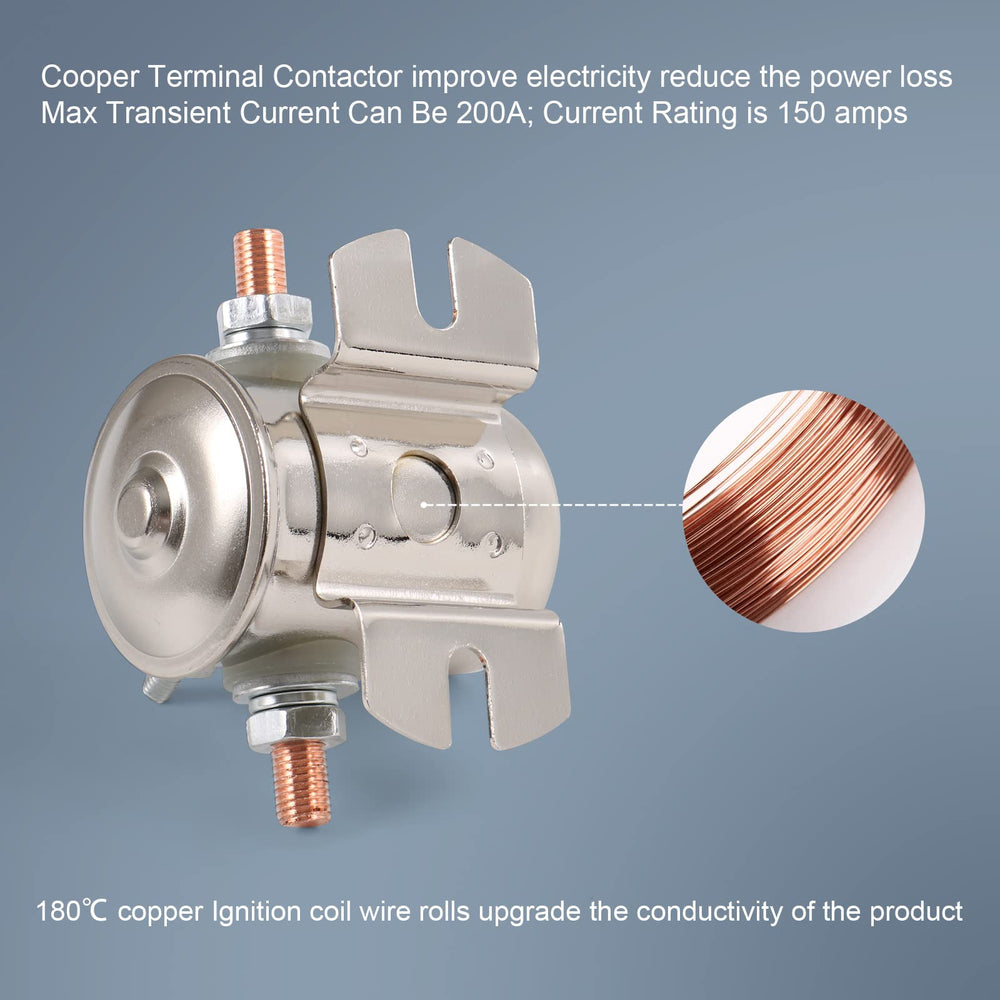

This relay is rated for continuous duty at up to 150A with the ability to handle transient surges up to 200A. It is built with a 180°C coil and sealed housing to manage heat, but like all solenoids it requires sensible duty cycles to avoid overheating in sustained high-current applications.

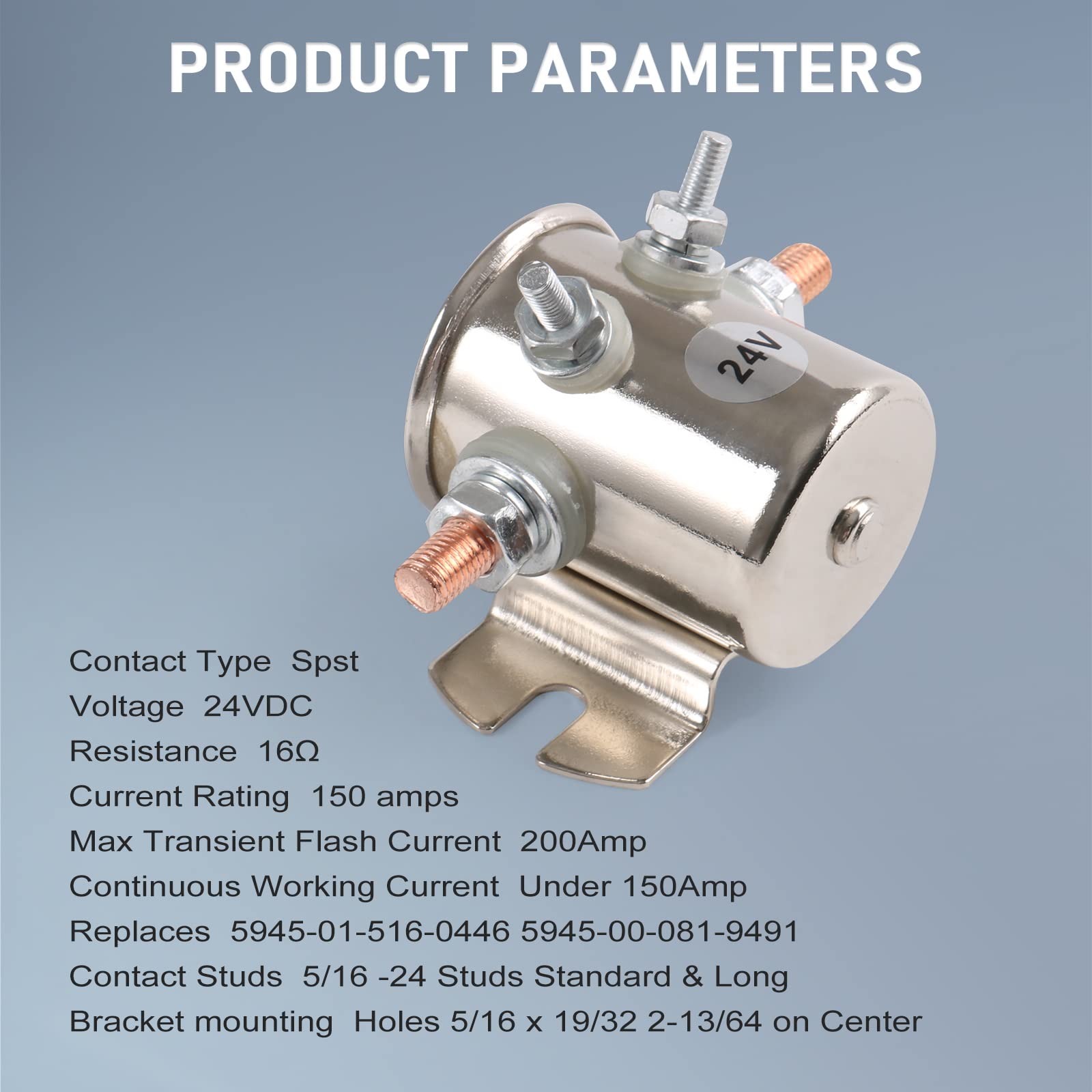

• Continuous current rating: 150A (typical operating condition)
• Transient surge capacity: up to 200A for brief periods
• Coil insulation rated to 180°C for prolonged reliability
• Recommended controlled on/off cycles to prevent thermal stress

What installation and maintenance tips improve lifespan?

Correct mounting, secure terminal connections, and allowing cooling pauses during heavy workloads will maximize service life. Use appropriately sized cables and ensure the control circuit provides a clean 24V activation signal to avoid excessive arcing or heat buildup at the contacts.

• Tighten 5/16-inch copper terminal threads to proper torque and inspect periodically
• Use heavy-gauge battery and load cables to reduce voltage drop and contact stress
• Avoid continuous high-current draws; implement duty breaks (for example, 10s on / 30m off under very heavy loads)
• Keep mounting area free of moisture and debris despite sealed housing

Who is this for? Technicians, fleet managers, marine installers and DIY owners who need a robust, serviceable 24V SPST solenoid for starters, winches, hydraulic units or utility vehicles will benefit from the LDMINDA relay. It’s intended as a direct replacement part when you need high-current switching in rugged or outdoor conditions and as a component in new builds requiring reliable 24V control.
