LEDKITO 12in LED Light Bar — 30000LM Spot/Flood Combo, Waterproof Harness Included

LEDKITO 12-inch LED Light Bar is a rugged spot-and-flood combo driving light that delivers intense 30000LM output with a waterproof wiring harness and adjustable mounts for off-road and utility use.

This compact 12-inch LED bar combines a focused 30° spot reflector and a 150° flood pattern to give both long-range throw and wide peripheral illumination in a single housing. Built from die-cast aluminum with advanced sealing, silicone gaskets, and ribbed heat sinks, the bar is engineered for durable, all-weather performance. A full wiring harness with a rocker switch, fuse, and relay is included so you can install a ready-to-run lighting system suitable for trucks, ATVs, UTVs, SUVs, work machines, and specialty vehicles.

How bright is the LEDKITO 12" light bar and what beam pattern does it create?

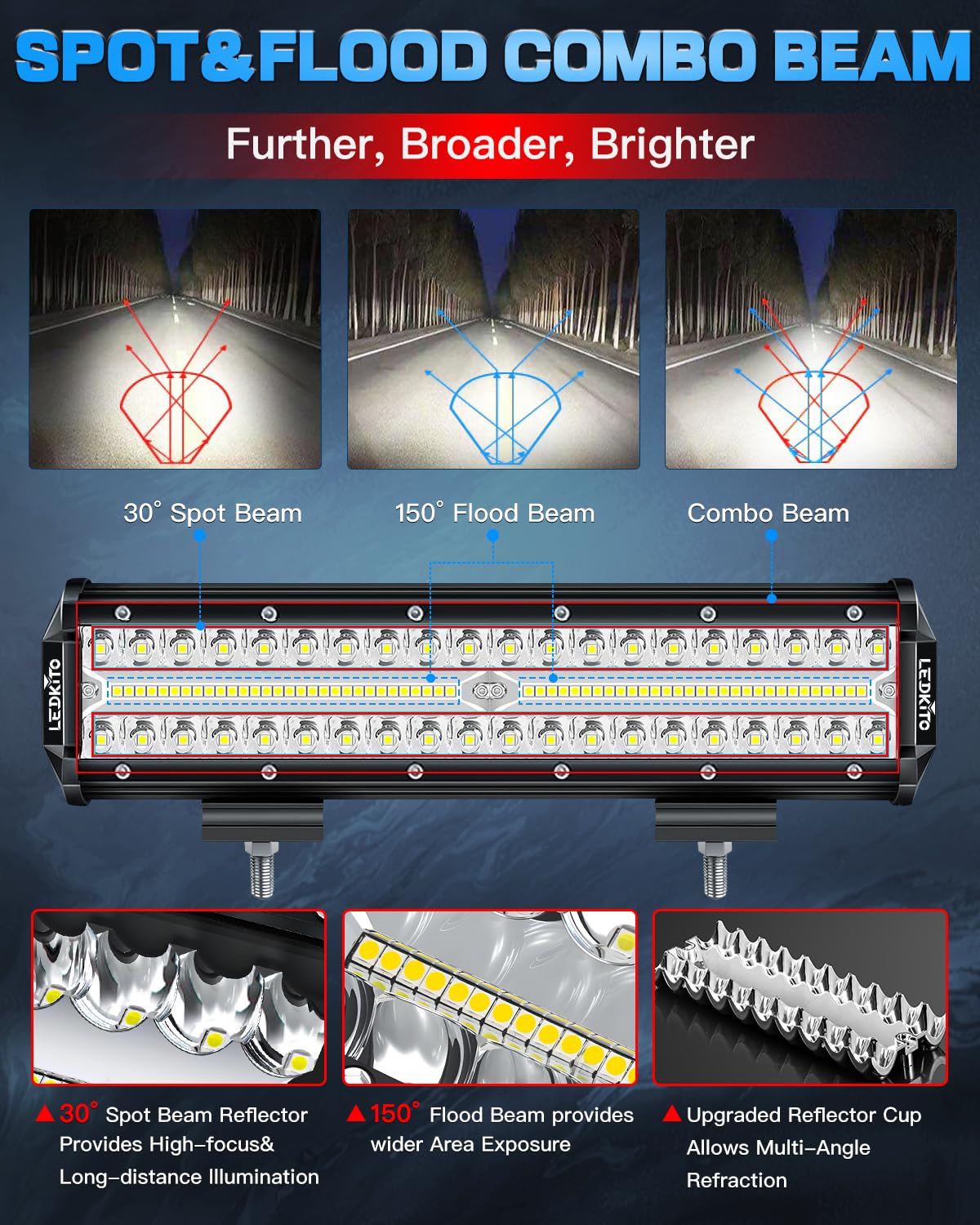

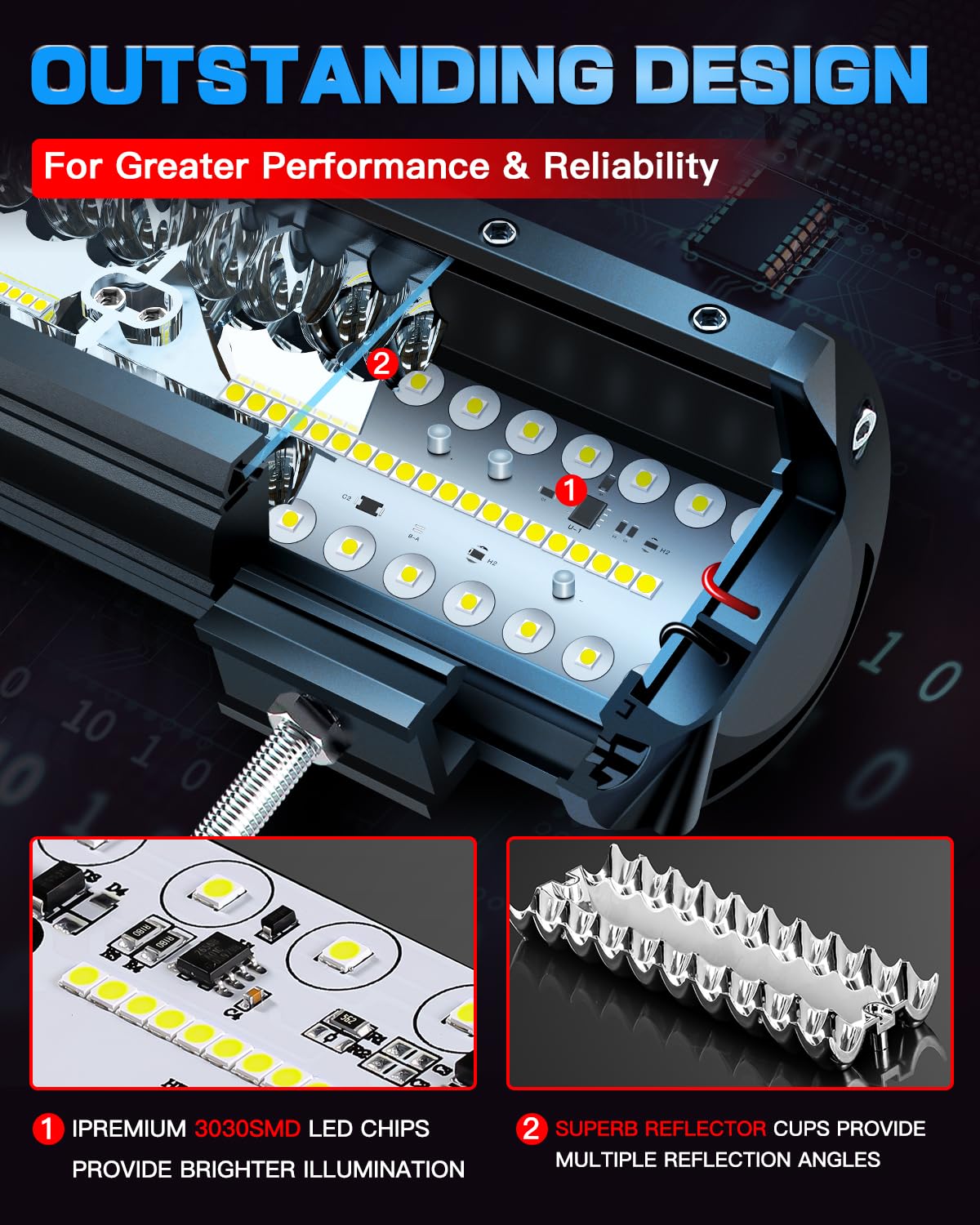

The light bar uses 100 high-quality 3030 SMD LED chips producing a combined visual output designed to light up close and distant terrain. The dual-beam layout pairs a narrow, concentrated 30° spot for long-distance visibility with a 150° wide flood for near-field coverage, emitting a crisp 6000K–6500K white color temperature.

• Rated luminous performance created by 100 x 3030 SMD LEDs.
• 30° spot reflector for focused long-range illumination.
• 150° flood section to cover a broad area near the vehicle.
• Neutral white 6000K–6500K color for clear contrast at night.

What makes its construction suitable for harsh environments?

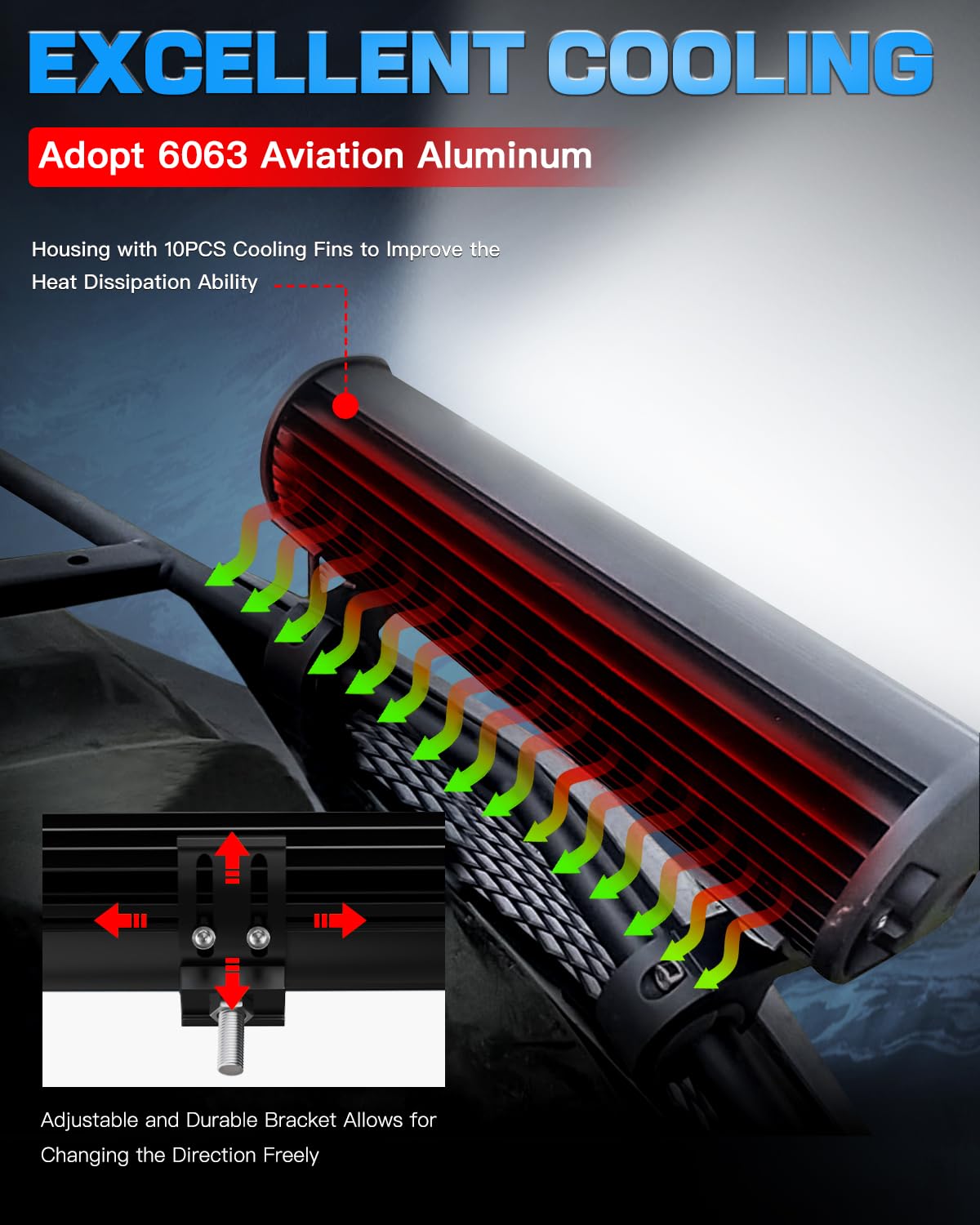

The body is die-cast aluminum with corrosion-resistant finishes and a PC lens for impact resistance. Multiple sealing layers — including silicon gaskets and an IP68-grade glue-filled shell — keep moisture, dust, and debris out, while ribbed heat sinks manage thermal load to prolong LED life.

• Anti-collision die-cast aluminum housing for structural strength.
• IP68-style full-seal assembly with silicone gaskets and glue layer.
• Ten cooling fins per LED section for improved heat dissipation.
• Internal EMC, constant-current and anti-flicker circuitry for stable output.

What does the included wiring harness and mounting hardware provide?

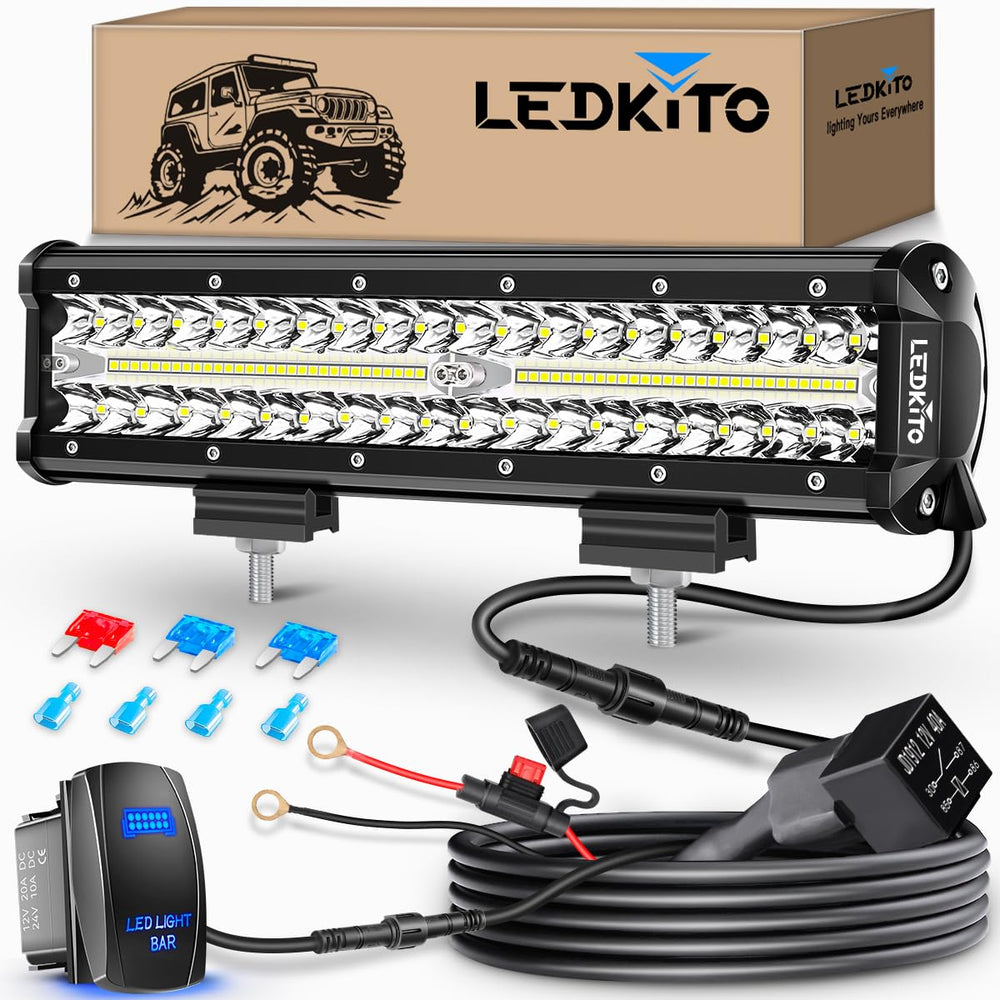

The kit ships with a 12-foot rocker switch wiring harness, relay, fuses, and waterproof screw-down connectors so the light bar can be installed without sourcing additional parts. Sliding brackets allow up to 45° of vertical adjustment so you can aim the bar for the best coverage from roof, bumper, or rack mounts.

• 12 ft wiring harness with switch, 30A blade fuse, and 40A relay (DC 12V rated).

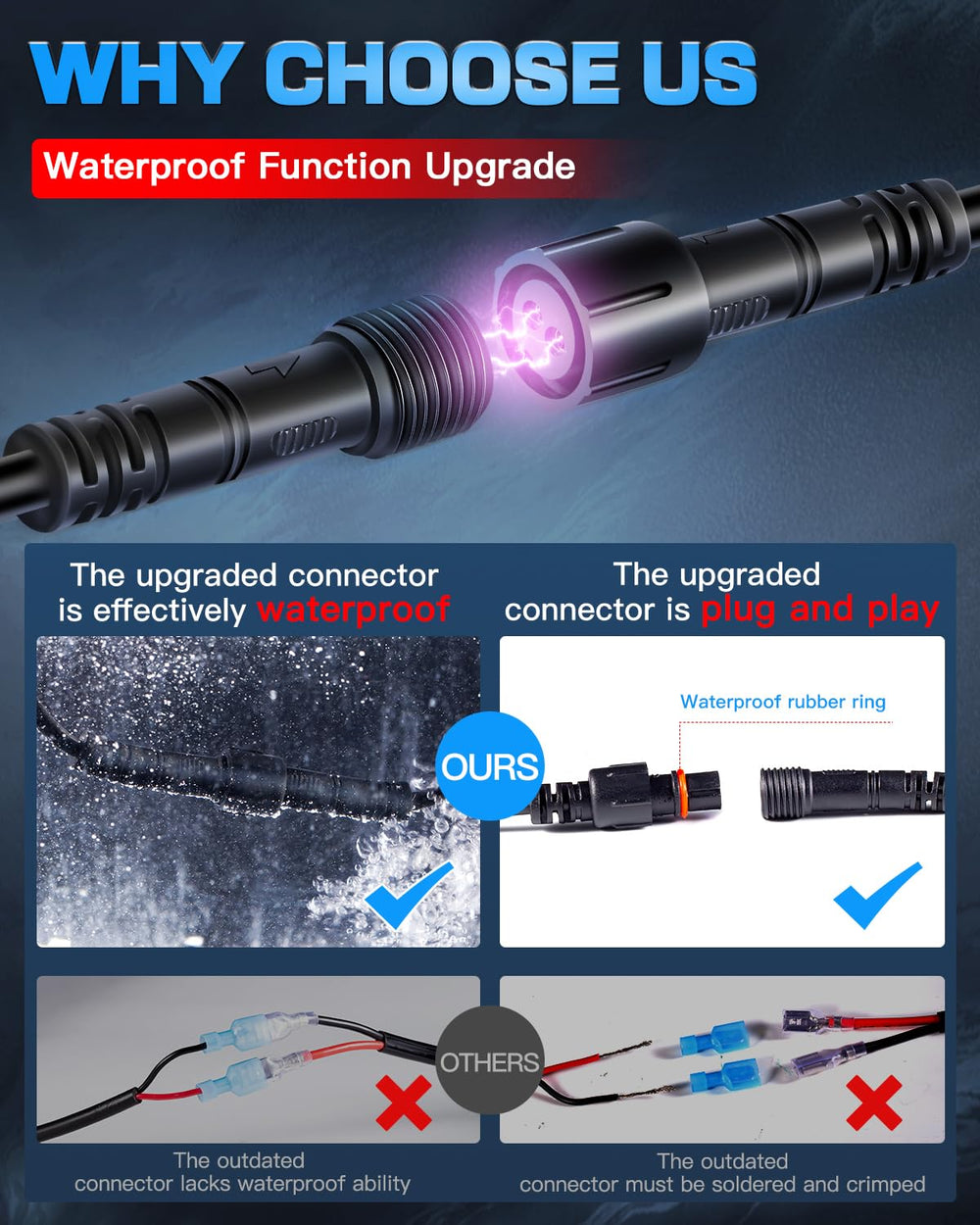

• Waterproof screw-down caps on harness connectors to reduce moisture ingress.
• Sliding, adjustable mounting brackets with 45° up/down tilt range.
• Extra spare fuses, ribbon ties, and full installation manual included.

Can I use this light bar on different vehicle types and voltages?

The LEDKITO 12" is compatible with most 12V vehicles including trucks, Jeeps, ATVs, UTVs, SUVs, and many utility machines. If you need to fit systems that exceed 12V, replace the relay with an appropriate voltage-rated relay to protect the circuit and prevent damage.

• Designed primarily for DC 12V electrical systems out of the box.
• Suggested relay swap for applications above 12V to avoid circuit failure.
• Common mounting locations: roof rack, bull bar, bumper, roll cage or rear work area.
• Suitable for work, off-road, auxiliary driving, and utility lighting tasks.

Who is this for: The LEDKITO 12-inch LED Light Bar is aimed at drivers and fleet operators who need a compact, powerful auxiliary light built to survive mud, rain, snow and vibration. It suits off-road enthusiasts, farmers, tow operators, contractors, and recreational riders who want a reliable 12V lighting solution that combines long-range visibility with broad area illumination and includes a complete, weatherproof wiring harness for straightforward installation.
