LEIMO KPARTS VM22 26mm Carburetor for 110-140cc Pit Dirt Bikes — Direct-Fit, Serviceable Replacement

The LEIMO KPARTS VM22 26mm carburetor is a direct-fit aftermarket intake-carb replacement engineered for 110cc–140cc pit and mini dirt bike engines like Lifan, YX and Zongshen.

This VM22 model delivers a straightforward, serviceable carburetor option when you need to restore throttle response, idle stability and jetting control on small-displacement four-stroke and two-stroke pit bikes. It replaces worn or damaged factory carbs and matches common manifold and bolt dimensions so installation is fast for hobbyists and mechanics alike. The unit ships complete with the parts shown in the pictures for a ready-to-install swap.

How does the VM22 26mm fit my bike?

The carburetor is designed to fit many 110cc, 125cc and 140cc pit bikes and compatible aftermarket engines. Key dimensions align to common intake manifolds and bolt patterns used on XR50-style and similar mini-bikes, reducing modification needs.

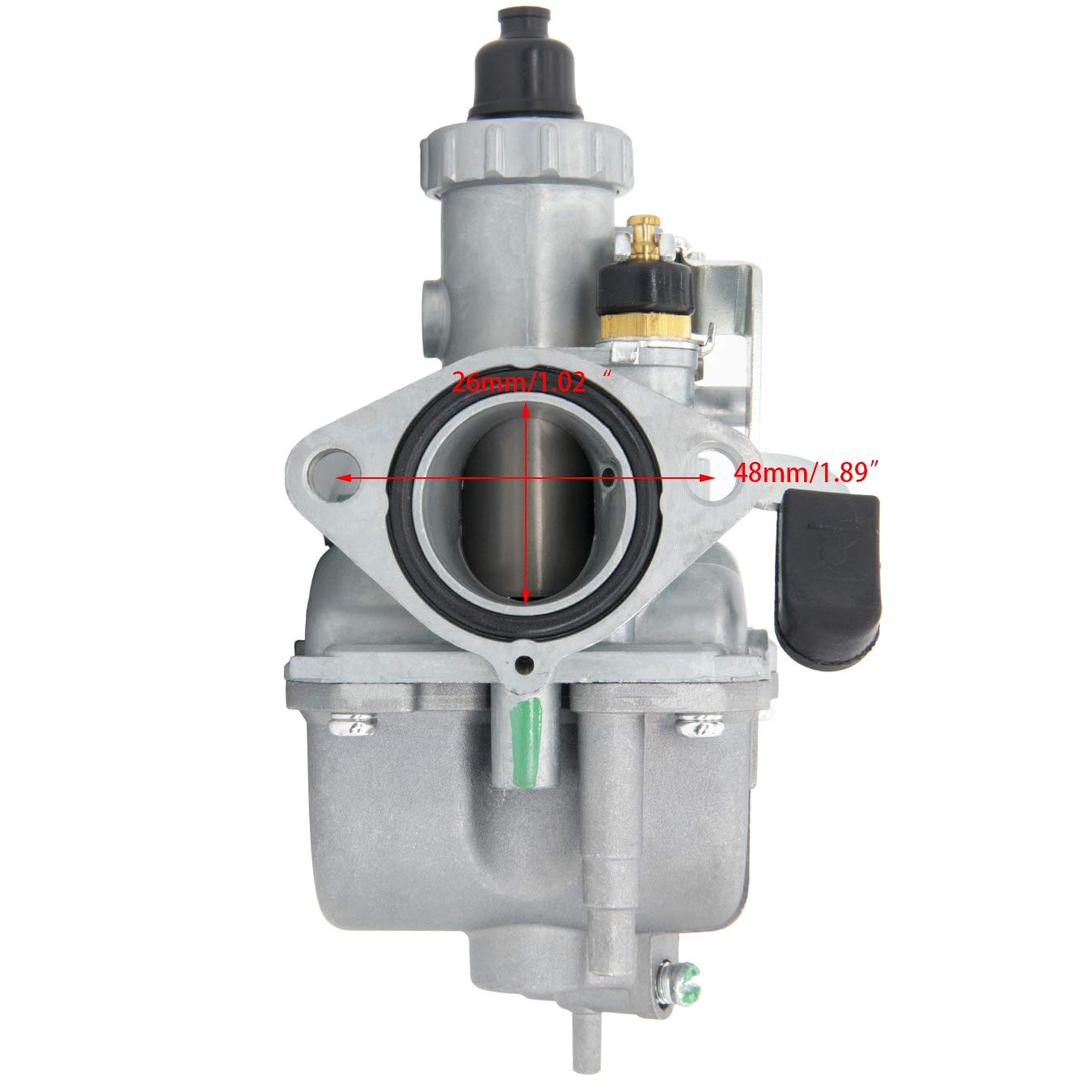

• Manifold outlet diameter: 26mm (22mm inner throat)
• Manifold bolt center-to-center: 48mm
• Bolt hole diameter: 6.5mm — matches standard hardware
• Works with Lifan, YX, Zongshen and many XR50/CRF70-style setups

What performance and maintenance benefits can I expect?

Replacing an old or clogged carburetor with this VM22 restores fuel metering and smooth throttle transitions. The unit is rebuildable and uses standard jets and needles so regular tuning and maintenance are easy.

• Cleaner idle and fewer stumbles after installation
• Serviceable design for jet changes and needle adjustments
• Compatible jets and parts available from common suppliers

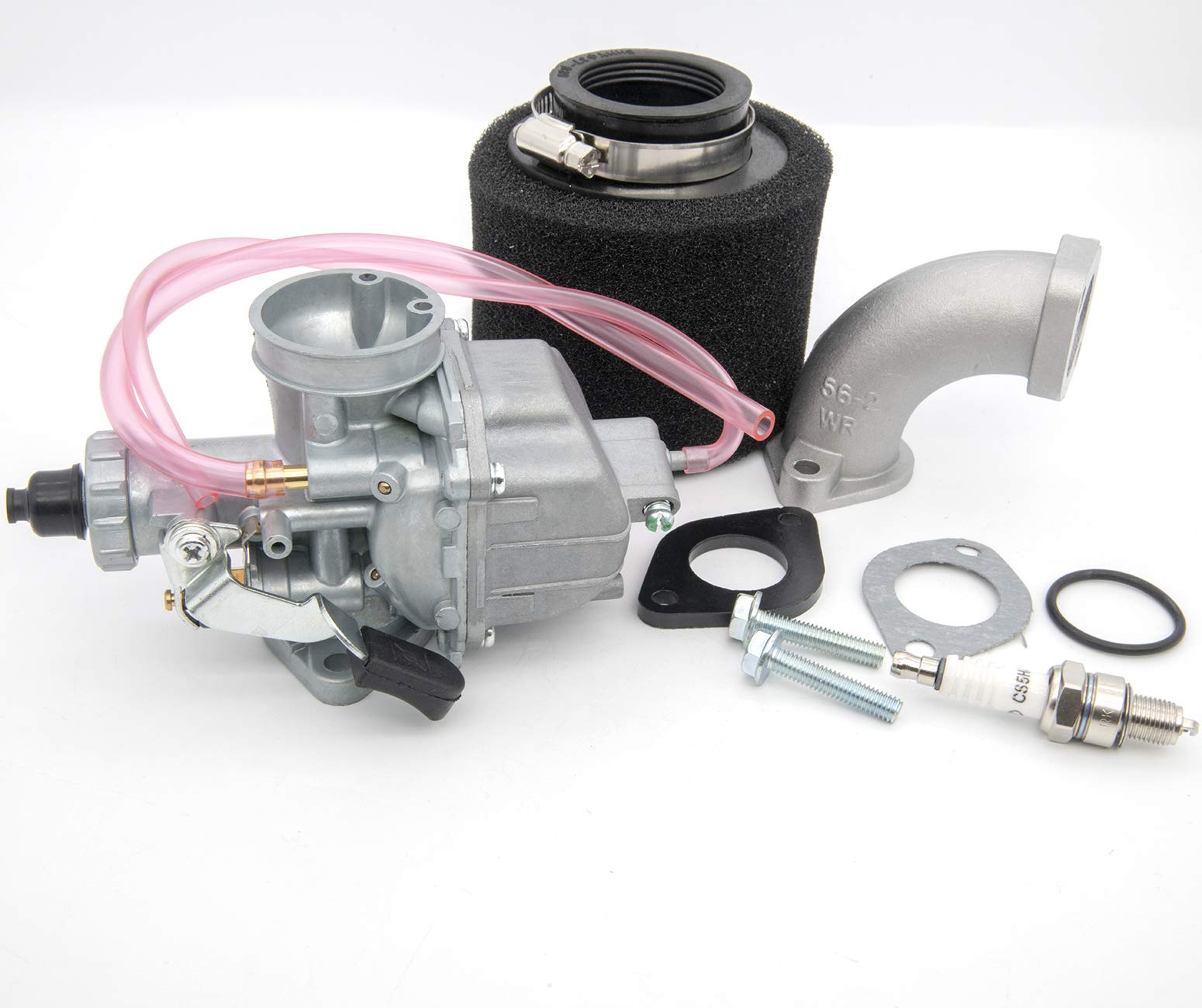

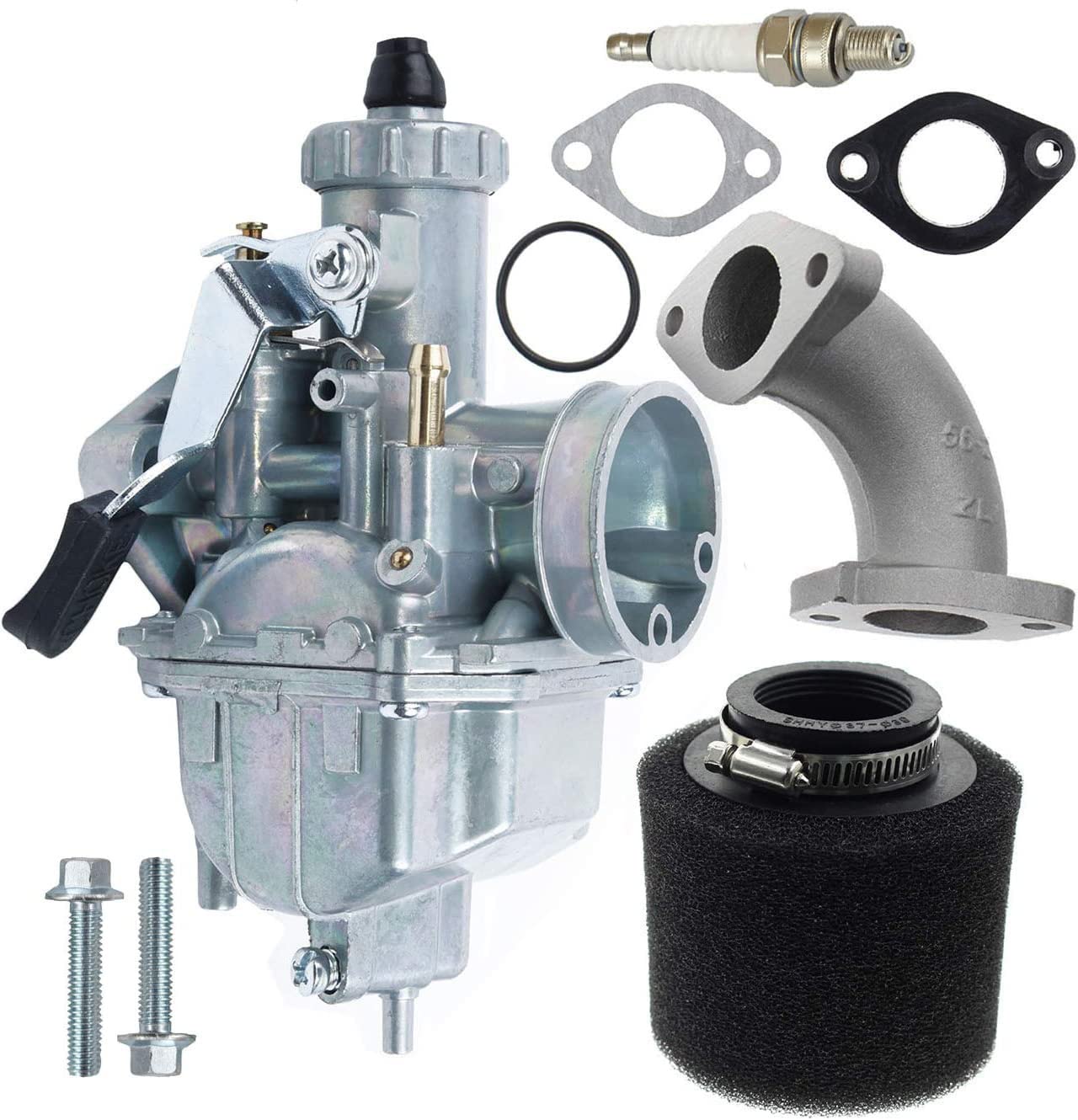

• Complete kit includes the external pieces shown in product images

How difficult is installation for a home mechanic?

Installation is straightforward for anyone familiar with simple carb swaps. Basic tools and minor adjustments—throttle cable alignment and fuel line routing—are typically all that’s required.

• Fits standard manifold bolt spacing—no custom drilling needed
• Swap uses existing throttle and fuel fittings in most cases
• Allow time to fine-tune idle mixture and jetting after fitment
• Follow safety procedures when working with fuel

What should I check before ordering?

Measure your bike’s intake manifold dimensions and compare fastener spacing to the carb specifications to ensure compatibility. Confirm whether your bike uses similar VR/VM-style carbs; if unsure, compare photos or consult a mechanic.

• Verify outlet and inner throat diameters (26mm / 22mm)
• Confirm manifold bolt center-to-center = 48mm
• Check bolt hole diameter = 6.5mm for mounting bolts
• Compare throttle cable and fuel line ends to your current carb

Who this is for: The LEIMO KPARTS VM22 26mm carburetor is aimed at pit bike owners, backyard mechanics and small-shop tuners who need a practical, serviceable replacement carburetor for Lifan, YX, Zongshen and XR50/CRF70-style engines. It suits riders upgrading a worn factory carb, restoring a damaged intake system, or building a custom mini-bike where common bolt spacing and throat size are required. If you require exact fitment help, measure your manifold dimensions or contact the seller with photos to confirm compatibility before purchase.
