LIMICAR 100FT 14 AWG Bonded 4-Way Trailer Wire Spool — CCA Flat Cable, Weather-Resistant

The LIMICAR 100FT 14-gauge bonded 4-way trailer wire spool provides a full, color-coded wiring harness for reliable stop, tail and turn circuits across a complete trailer run.

When rewiring a utility trailer, car hauler, horse trailer or ATV trailer you need a single continuous run of durable wire that resists weather and delivers consistent 12V performance. This LIMICAR spool contains 100 feet of 14 AWG CCA bonded flat cable, built to the SAE J1128 standard and designed for use with standard 4-pin flat or round trailer connectors. It’s thicker than typical 16 AWG trailer wire, helping reduce voltage drop on longer runs and simplifying installation with a clear wishbone color code.

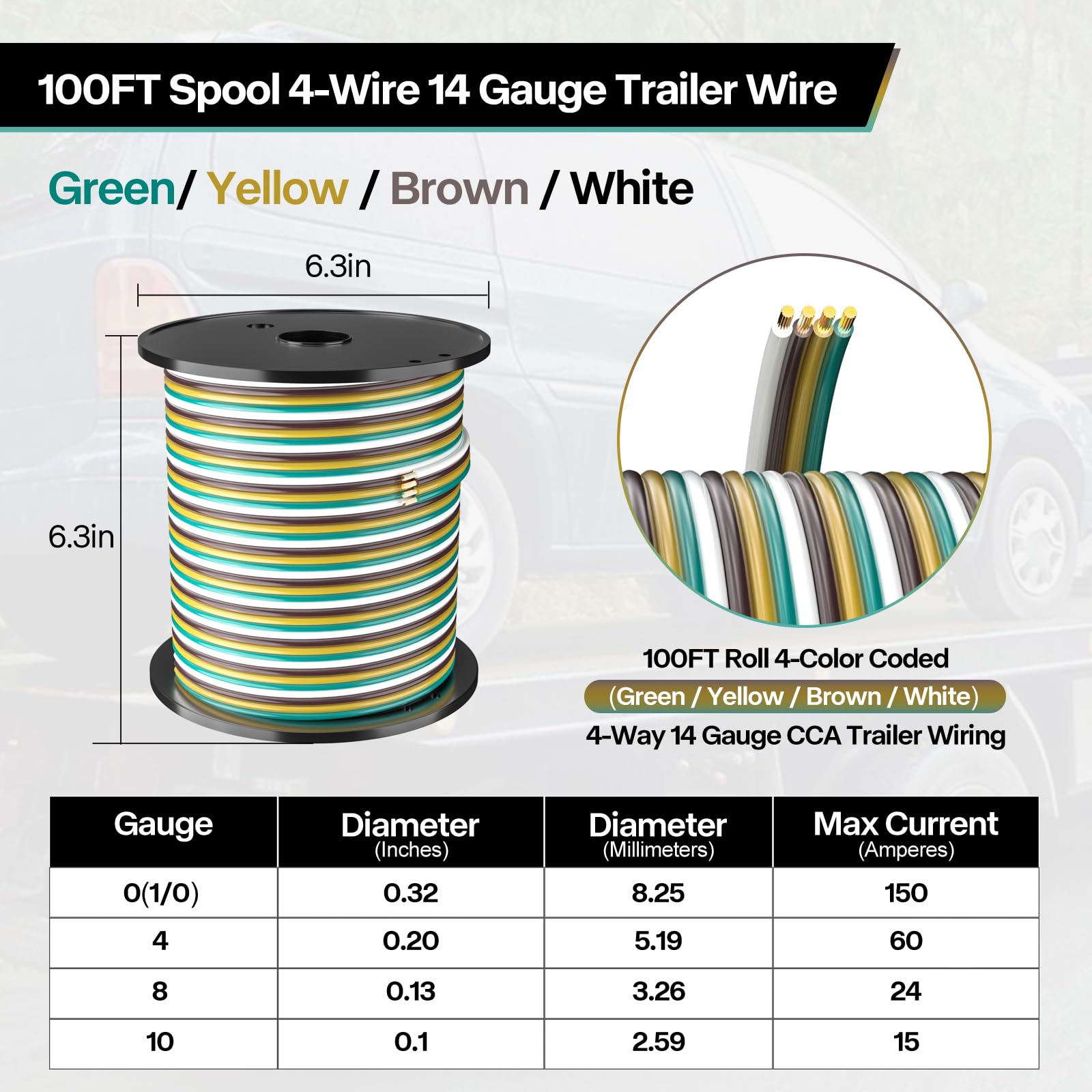

How does the wishbone color code speed up installation?

The cable’s flat wishbone layout separates four insulated conductors in a single bonded jacket so you can peel out each color quickly. Color coding maps each conductor to a trailer function, eliminating guesswork and reducing wiring errors during assembly or repairs.

• White = ground for a single reliable return path
• Brown = tail/running lights wiring
• Yellow = left stop/turn circuit
• Green = right stop/turn circuit

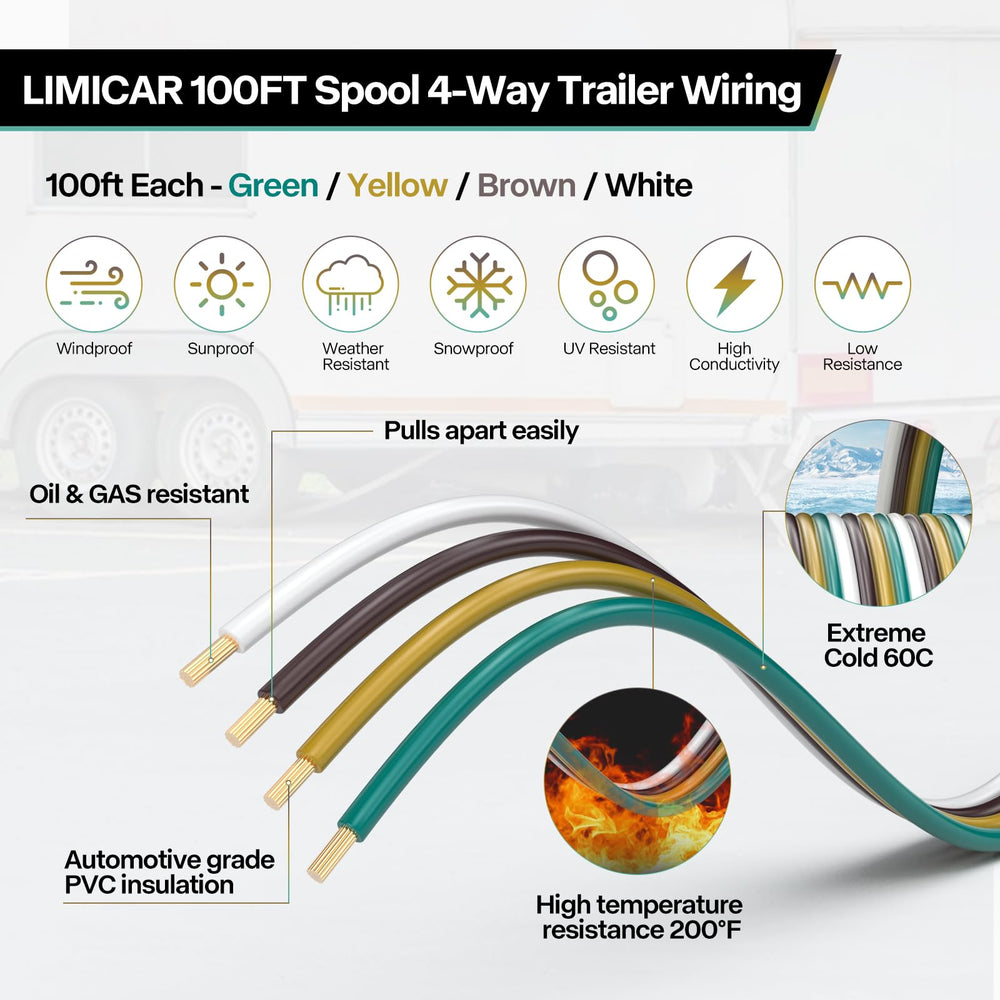

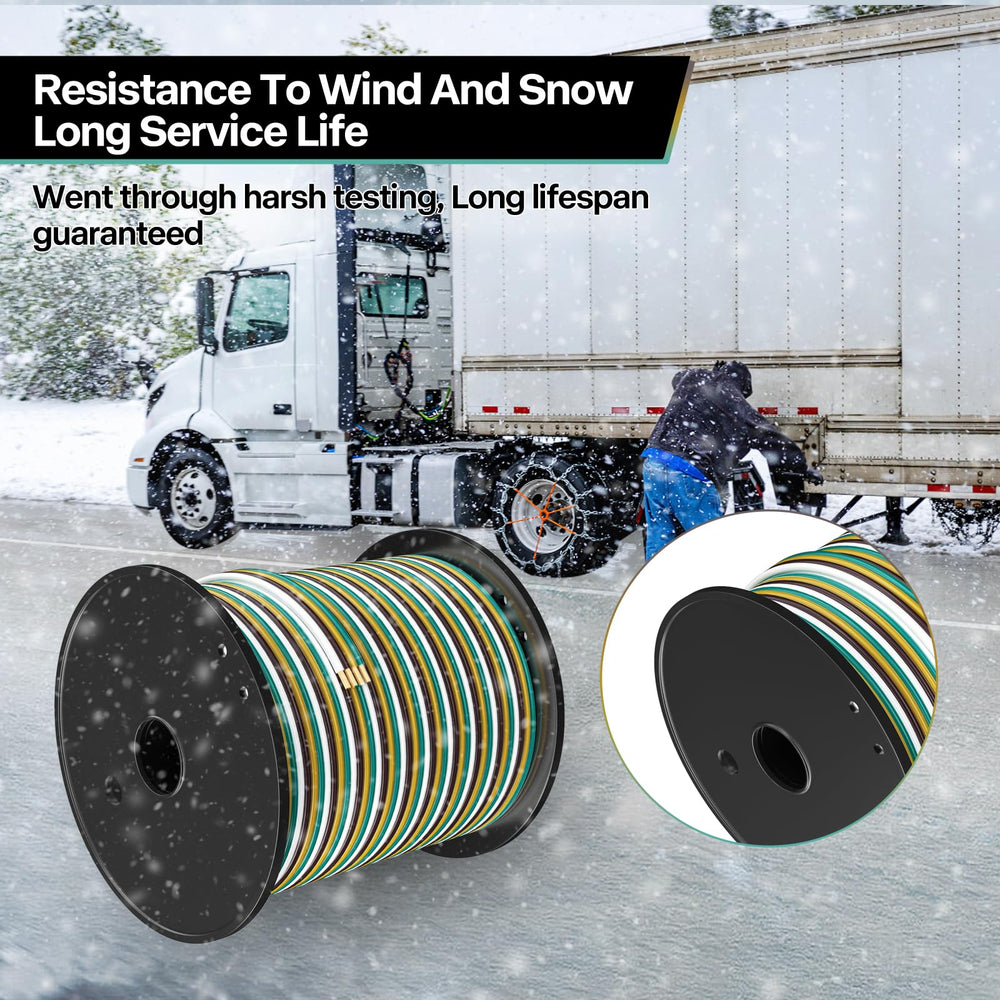

Will this wire resist outdoor conditions and temperature swings?

The insulation is automotive-grade PVC formulated for exposure to road spray, sun and wide temperature ranges. While the jacket is weather-resistant, recommended good practice is to seal exposed splices and terminals with waterproof connectors or liquid tape in moisture-prone or marine environments.

• SAE J1128 certified PVC insulation for automotive use
• Rated for broad temperature ranges to stay flexible in cold and hot conditions
• Includes PVC tape for securing and protecting runs and joints

Why choose 14 AWG instead of thinner trailer wire?

At 14 AWG, the LIMICAR cable offers lower electrical resistance than common 16 AWG alternatives, which helps maintain steady voltage and brighter, more consistent lighting on long trailer runs. The bonded construction keeps the conductors aligned for cleaner routing inside channels or along frames.

• Heavier gauge reduces voltage drop on long distances
• CCA (copper-clad aluminum) balances conductivity and cost
• Flat bonded profile feeds through channels without kinking

What connectors and trailer types are compatible?

This 4-conductor spool is made for standard 4-way flat and 4-way round trailer plugs found on most land-use trailers. It’s suitable for utility, flatbed, car hauler, horse and ATV trailers when used with appropriate connectors and protective seals.

• Works with common 4-pin flat and round trailer sockets
• Suitable for rewiring entire trailer runs without splicing short lengths
• Use waterproof butt connectors or heat-shrink seals for wet environments

Who this is for: installers, hobbyist trailer owners, light-duty fleet maintainers and DIY mechanics who want a single, continuous 100-foot spool of robust 14 AWG trailer wiring that simplifies routing, reduces potential voltage loss and makes color-coded connections straightforward. If you plan to expose splices to saltwater or heavy moisture, add waterproof connectors or sealant for longer-term durability.
