LIMICAR 25FT 14-Gauge 7-Way Trailer Wire — CCA Conductors, PVC Jacket for Small Trailers

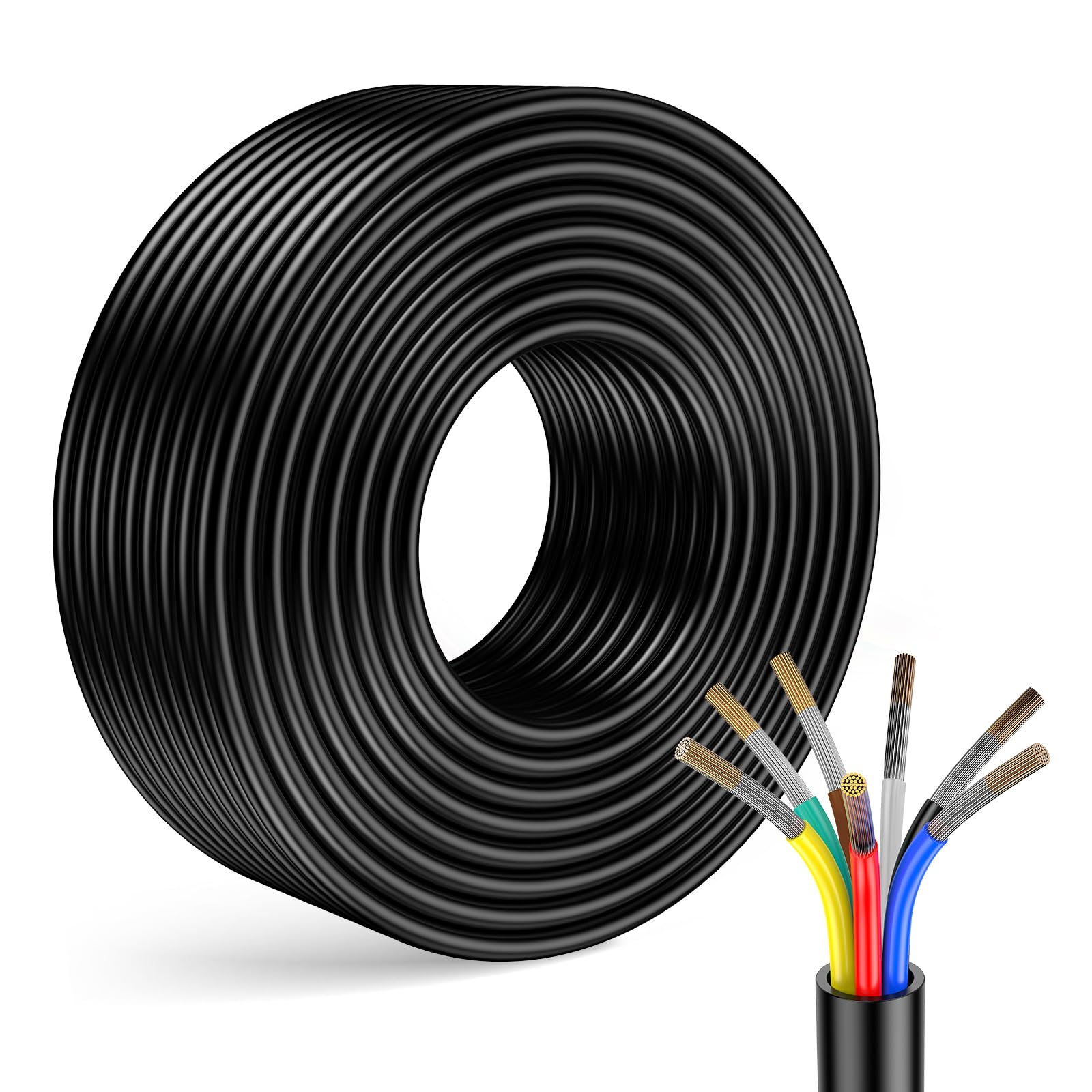

The LIMICAR 25FT 14 Gauge 7-Way Trailer Wire is a pre-measured, color-coded 7-pin wiring roll engineered to wire short trailers and compact RV builds quickly and reliably.

This 25-foot spool gives you the right amount of 7-way wiring when a full 50- or 100-foot roll is overkill. It combines copper-clad aluminum (CCA) 14 AWG conductors with a heavy-duty PVC jacket to balance conductivity, flexibility, and lower weight — making routing and installation on light trailers faster. The wire follows SAE J1128 color coding so each function matches industry-standard connectors and brake controllers.

How does this wire simplify short trailer wiring projects?

The 25-foot length is tailored to single-axle utility trailers, small boat trailers, compact campers, and similar builds under 20 feet, which reduces excess waste and storage hassles. Pre-colored conductors and standard pin mapping let you identify and terminate each circuit quickly, even if you’re not an electrician.

• Pre-measured 25 ft roll avoids leftover spools
• SAE J1128 color code for fast matching to 7-pin harnesses
• Easy to cut and strip for custom harness lengths
• Optimized for trailers under 20 ft where routing is shorter

What electrical performance and durability can I expect?

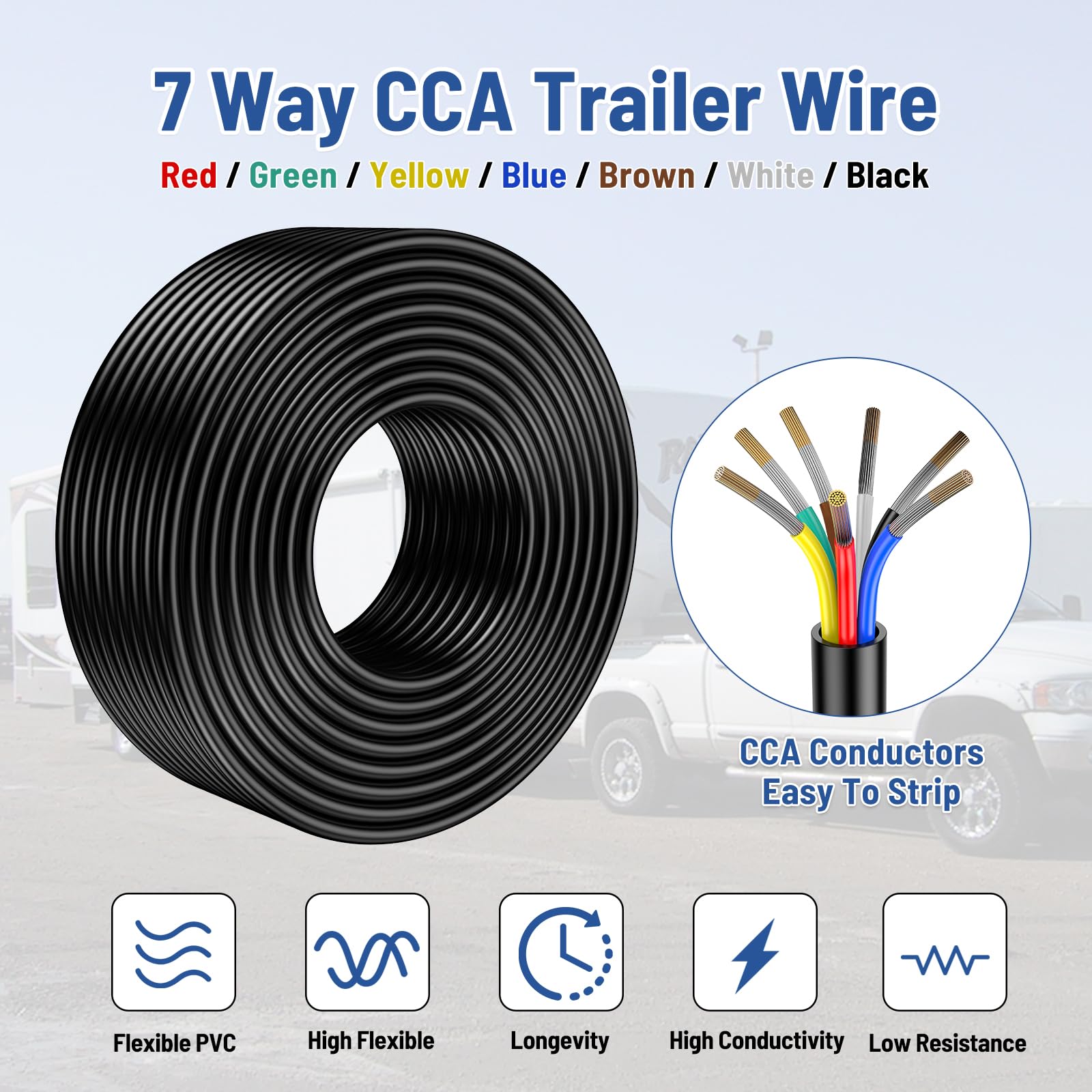

The conductors are 14 AWG copper-clad aluminum, offering good 12V performance while keeping weight and stiffness down compared with solid copper. The PVC jacket resists abrasion and stays flexible in a wide temperature range, keeping the wires protected along frame rails and inside conduits.

• 14 AWG CCA conductors for standard 12V circuits
• Heavy-duty PVC jacket rated from -20°C to 105°C
• Abrasion-resistant outer layer for frame mounting
• Suitable for LED lights, brake controllers, and reverse circuits

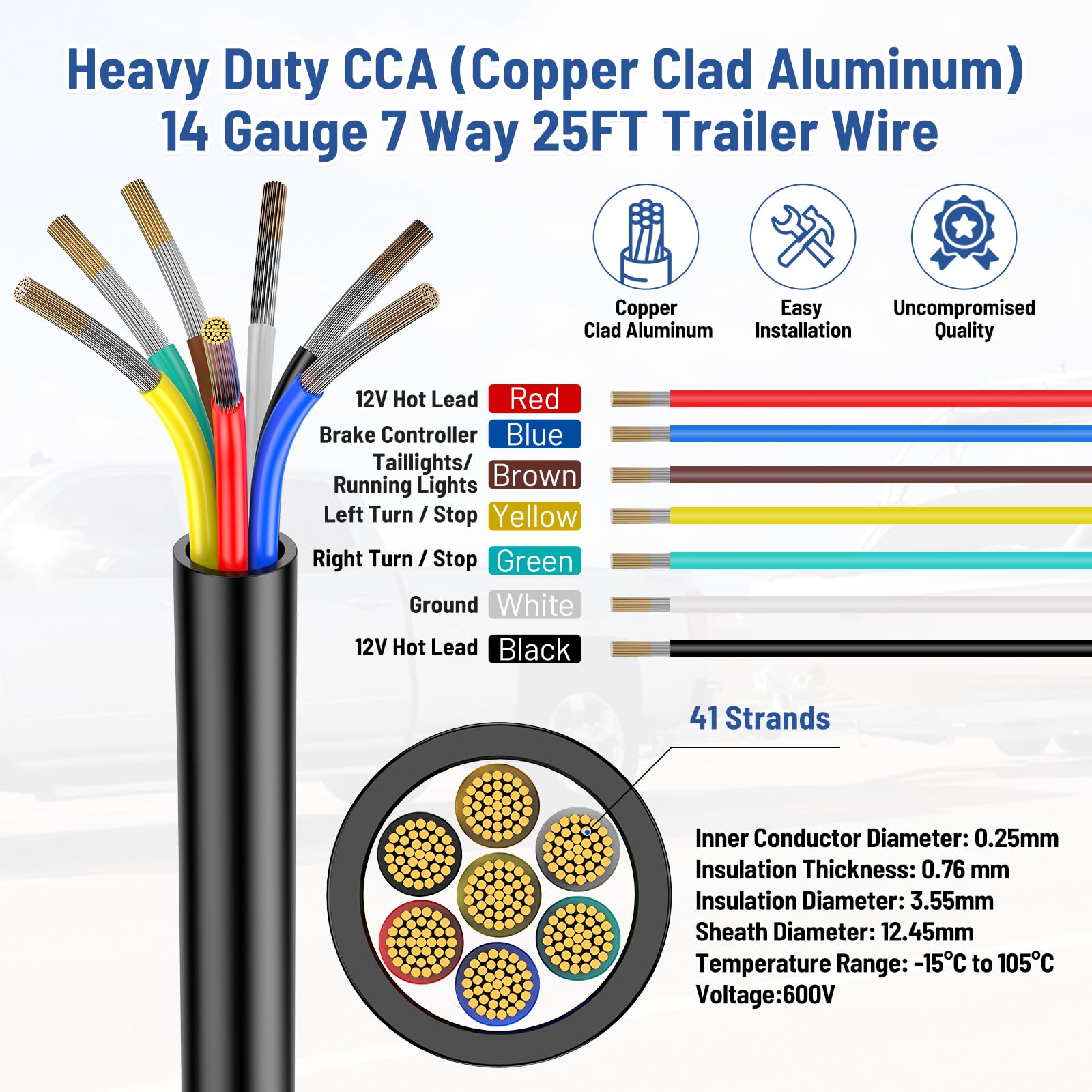

Which functions are included and how are they mapped?

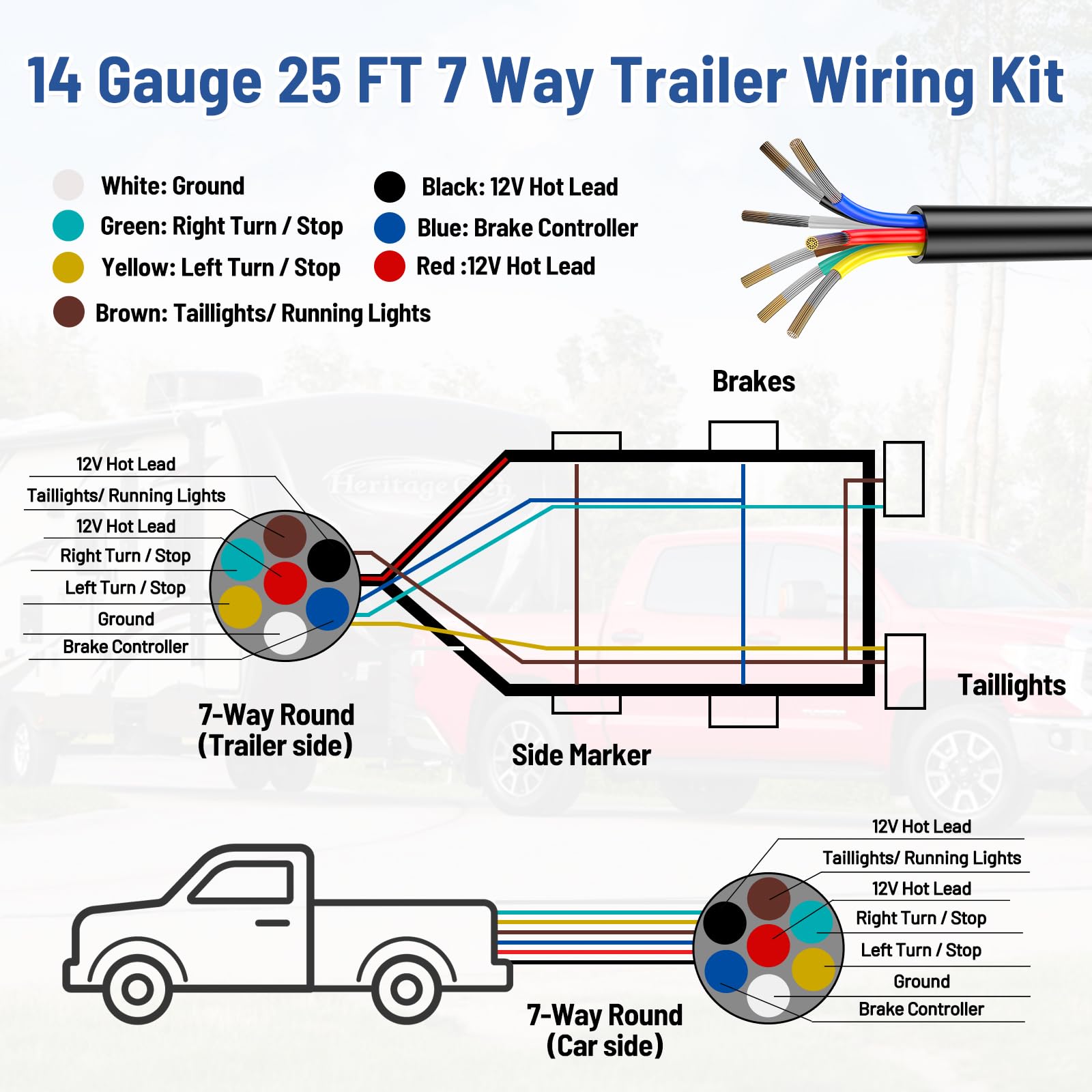

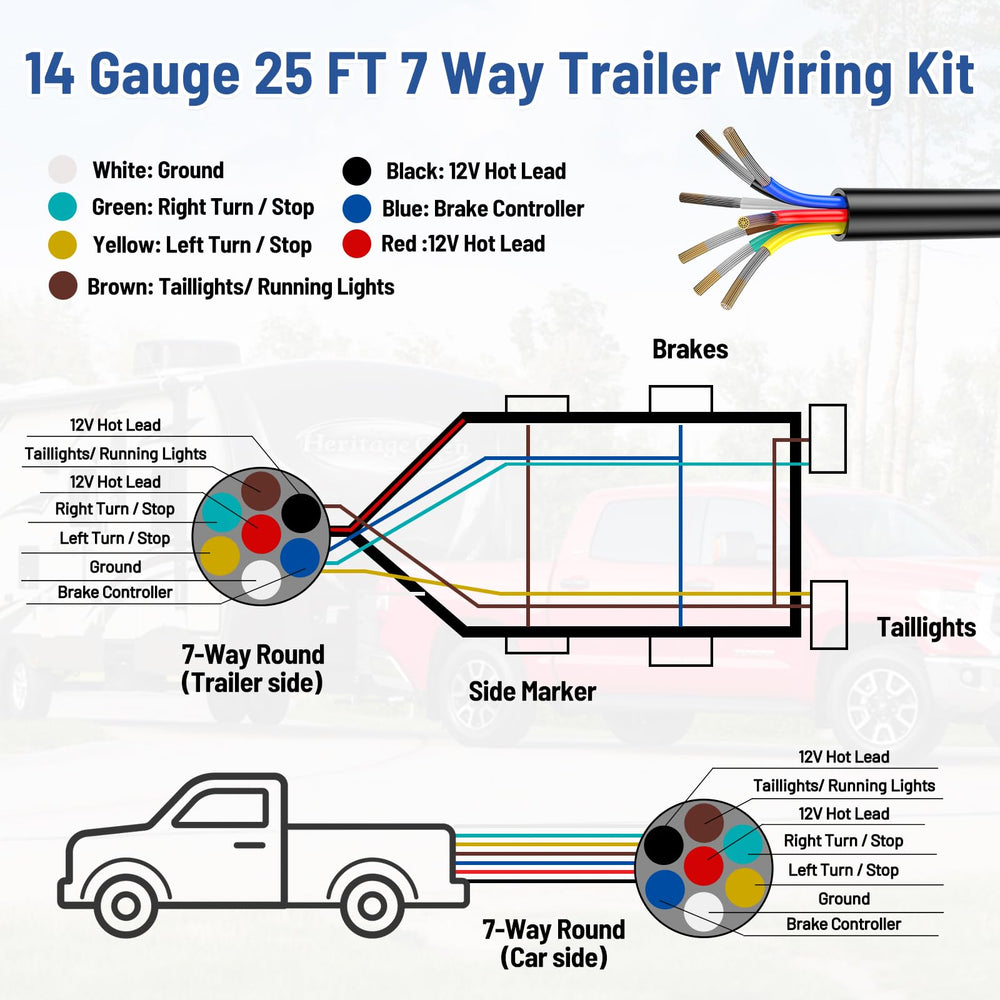

The line uses the familiar 7-pin color scheme so each wire serves a dedicated trailer function: tail lights, turn signals, brakes, reverse, ground, and auxiliary power. That mapping speeds up connector wiring and troubleshooting without guesswork.

• Red = 12V auxiliary power
• White = ground
• Blue = electric brake controller
• Yellow/Green/Brown/Black = turn, tail, reverse as labeled

Can I use this with modern LED lights and brake controllers?

Yes — the 14 AWG CCA conductor size supports typical 12V LED tail light loads and electric brake controllers used on small trailers. For high-current accessories, verify the device’s amperage and consider a higher-gauge run or dedicated power feed when necessary.

• Compatible with LED taillights and standard brake controllers
• Works with RV, boat, horse, cargo, and utility trailer systems
• Use dedicated heavy-gauge wire for high-current accessories
• Direct solder or crimp connections recommended for best contact

Who is this for? If you build or repair single-axle trailers, small campers, or boat trailers and want a neat, efficient wiring solution without excess cable, this LIMICAR 25-foot 7-way roll fits the bill. It’s aimed at DIYers, small shop builders, and installers who need a color-coded, industry-standard 7-pin wiring set that’s easy to route, cut, and terminate for trailers under about 20 feet.
