LIMICAR LED Trailer Lights Kit — 13.7-inch Light Bar with 6 Marker Lights, IP67 Waterproof, Plug-and-Play

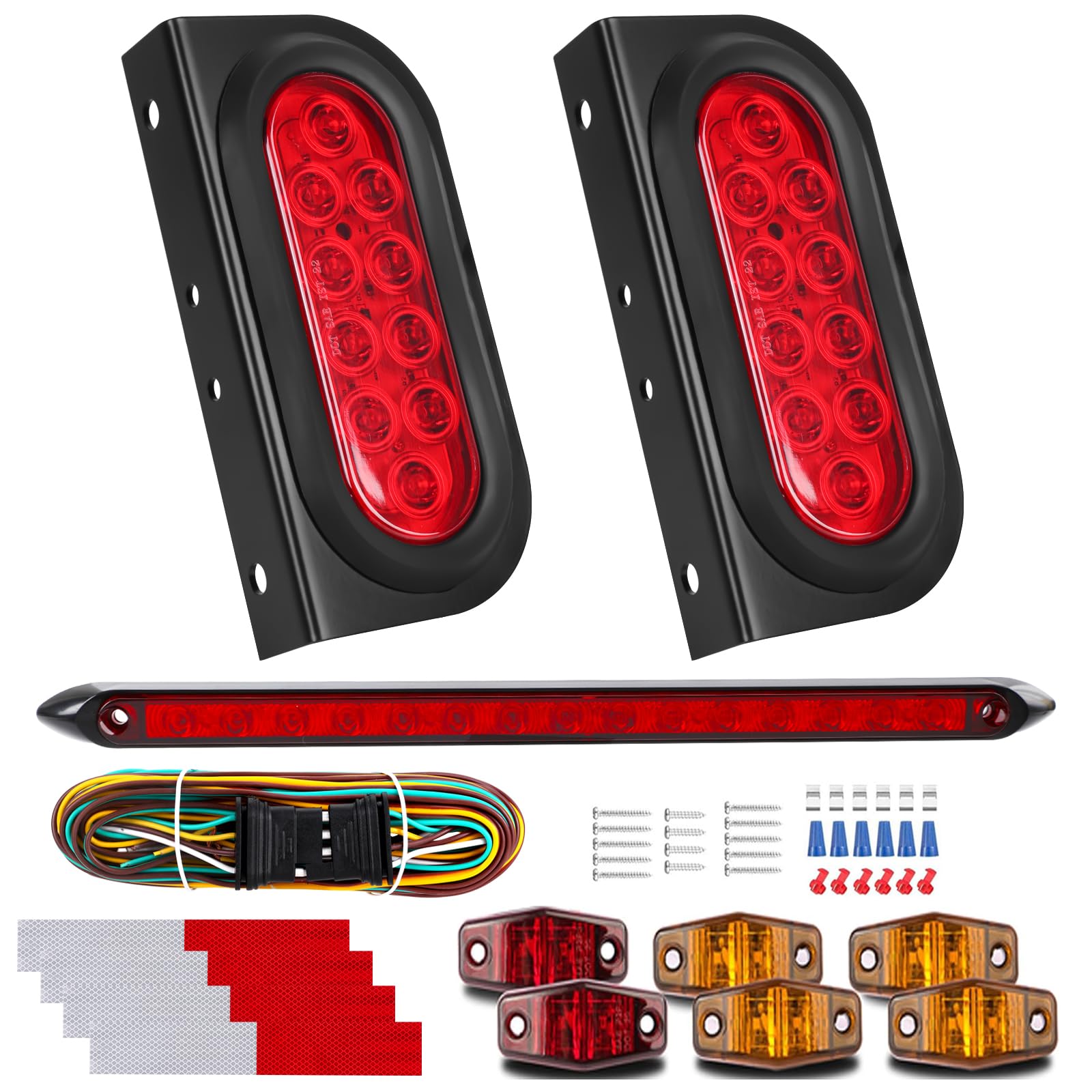

LIMICAR Trailer Lights Kit combines a 13.7-inch LED light bar and six sealed marker lights to deliver bright, weatherproof stop, turn, tail and running illumination for trailers and work vehicles. The LIMICAR kit is a complete LED lighting solution built to replace aging incandescent trailer lamps. It groups a 13.7-inch light bar with three high-output oval lights per side, sealed grommets, welded mounting brackets and simple three-wire connections for turn/stop and tail functions. Designed for durability and improved visibility, this set aims to make nighttime driving and roadside maneuvers clearer without complex wiring changes.

How bright is the LIMICAR kit compared with standard trailer lights?

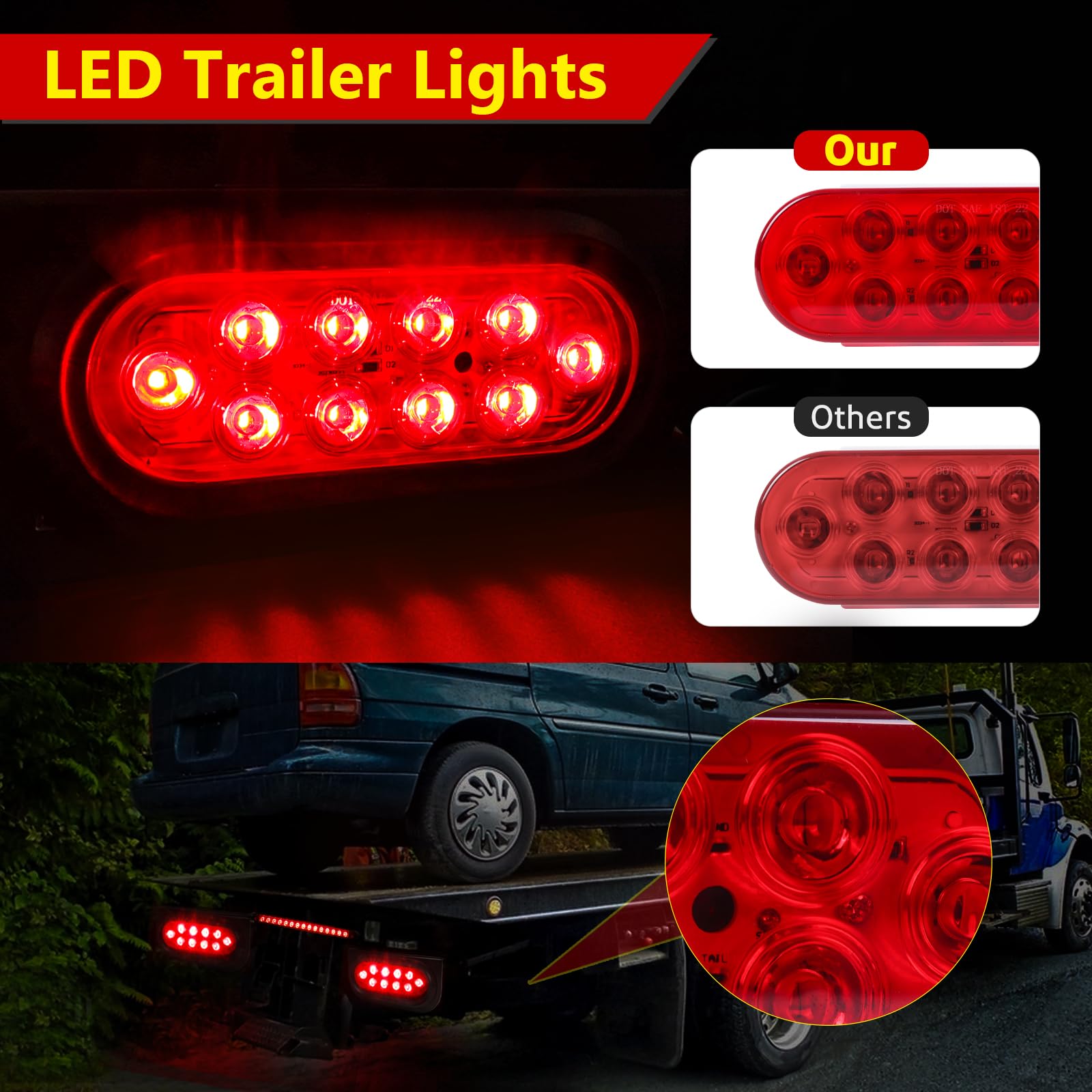

The kit uses multiple high-intensity diodes to increase visible output while keeping power draw low. Different arrays on driver and passenger sides plus the 15-diode bar concentrate light on the rear profile for clearer signaling.

• Driver side: 34 LED diodes total (21 front, 4 side marker, 9 license plate).
• Passenger side: 25 LED diodes total (21 front, 4 side marker).
• 13.7-inch light bar includes 15 diodes for strong center illumination.
• LEDs provide brighter, more energy-efficient output than halogen bulbs.

Will these lights stand up to rain, road spray and salt?

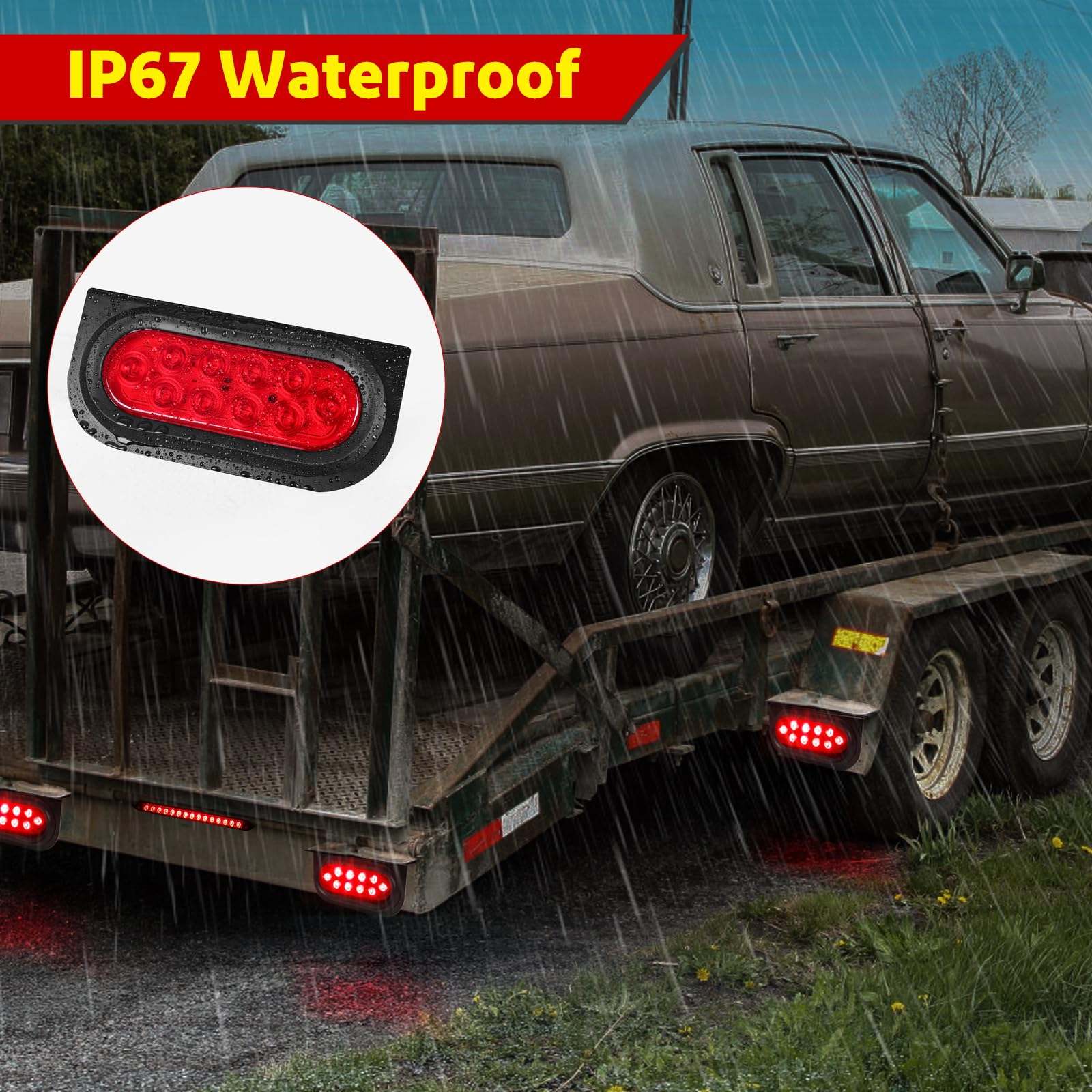

The LIMICAR lights are rated IP67, which means they are sealed against dust and can survive temporary immersion in water. The sealed housing and corrosion-resistant components reduce the risk of shorting or failure from typical road and marine exposures.

• IP67 waterproof rating for protection in heavy rain and splashes.
• Sealed design prevents intrusion from sand, dirt and salt spray.
• Welded mounting brackets for a strong mechanical fit that resists loosening.
• Longevity-focused construction for harsh working conditions.

How easy is it to install and wire on my trailer?

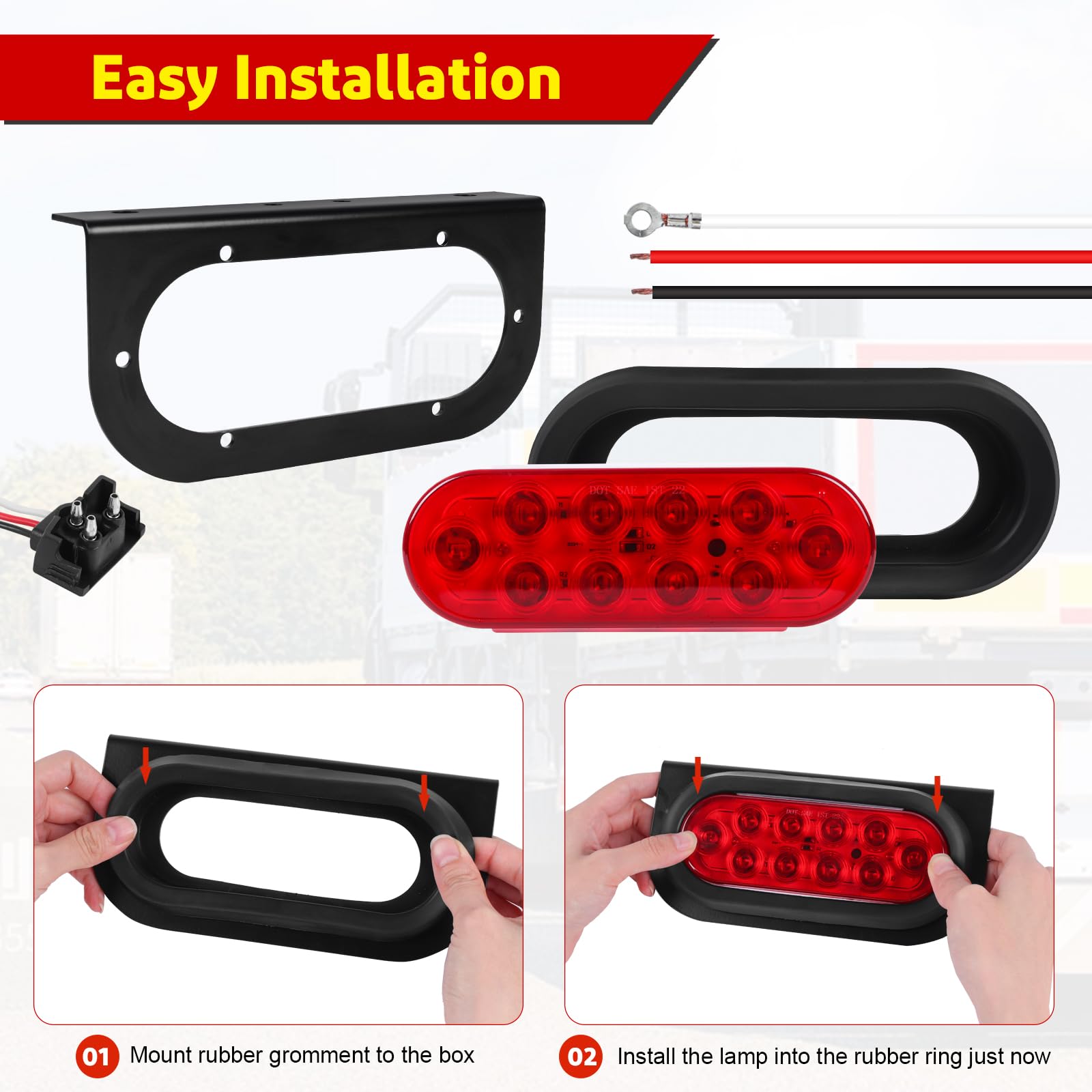

Installation is straightforward using the supplied rubber grommets, welded brackets and three colored wires per oval lamp. The wiring scheme separates high- and low-brightness functions so you can hook up turn/stop and tail lights with minimal guesswork.

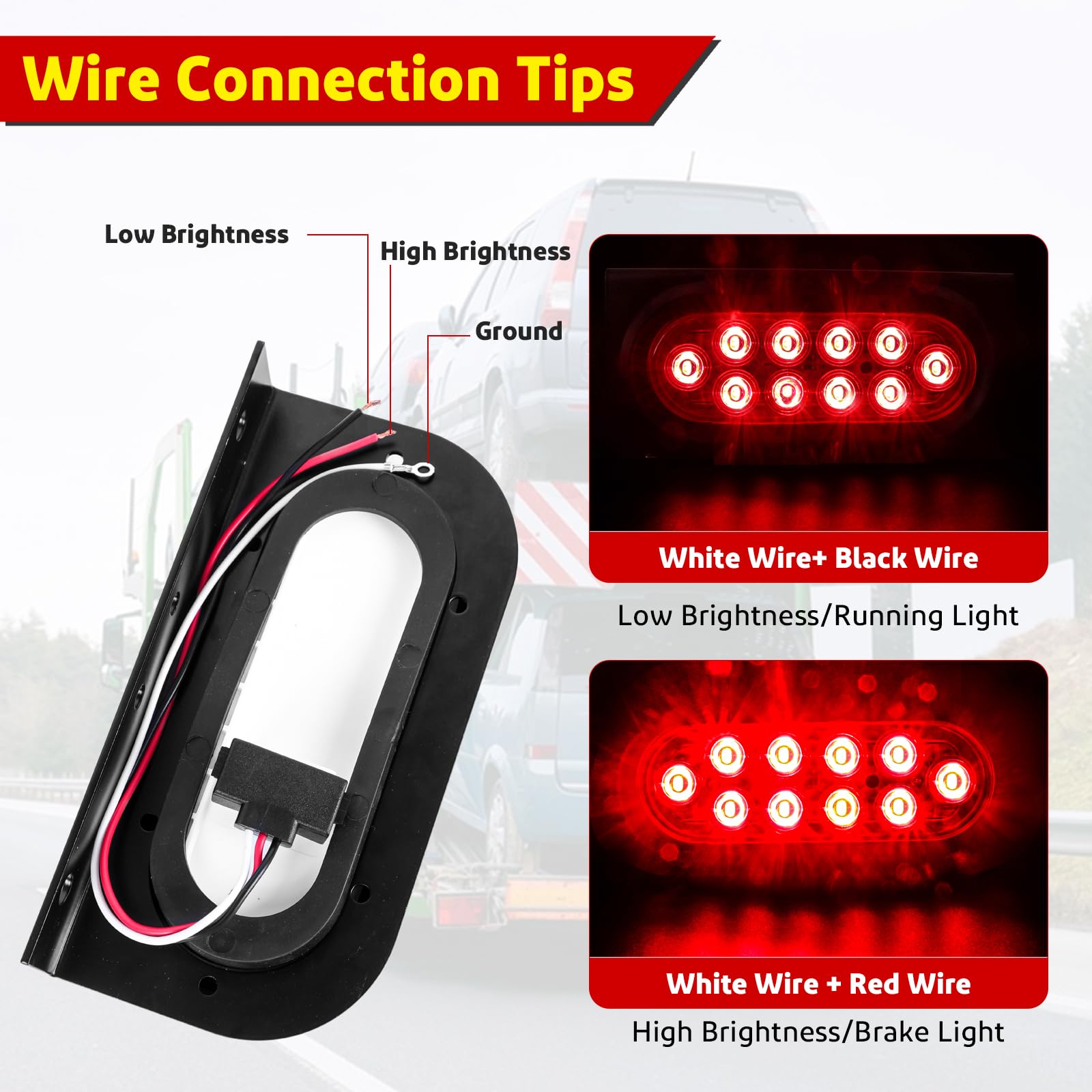

• Oval lights feature 3-wire hookup: red (high/turn/stop), black (low/tail), white (shared/ground scheme).
• Light bar wiring: white for ground, white+red for stop/turn high, white+black for running light low.

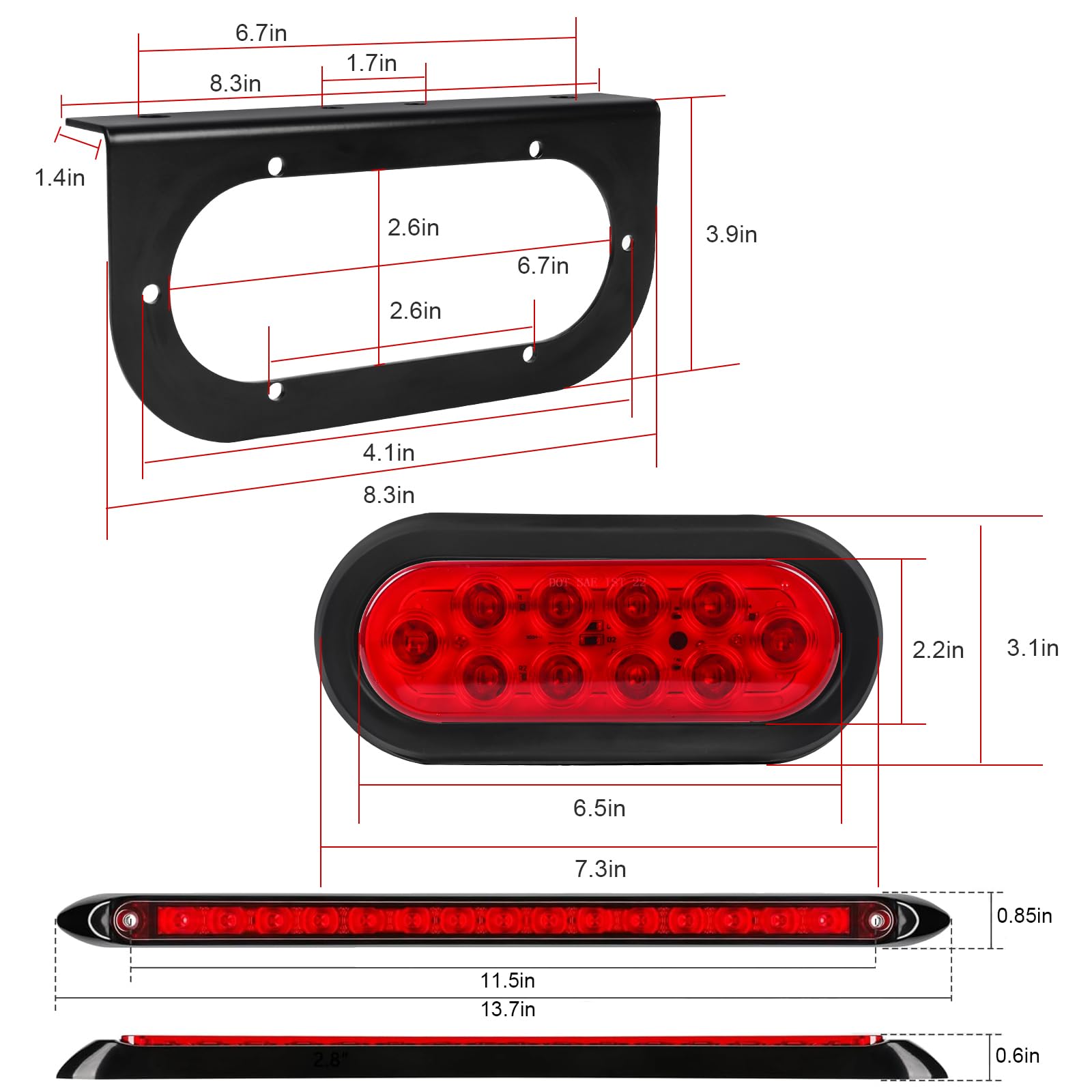

• Mounting holes align to a 0.39" round hole diameter; brackets and nuts included.
• Plug-and-play grommet plugs help keep connectors protected from elements.

What vehicles and uses are these lights suitable for?

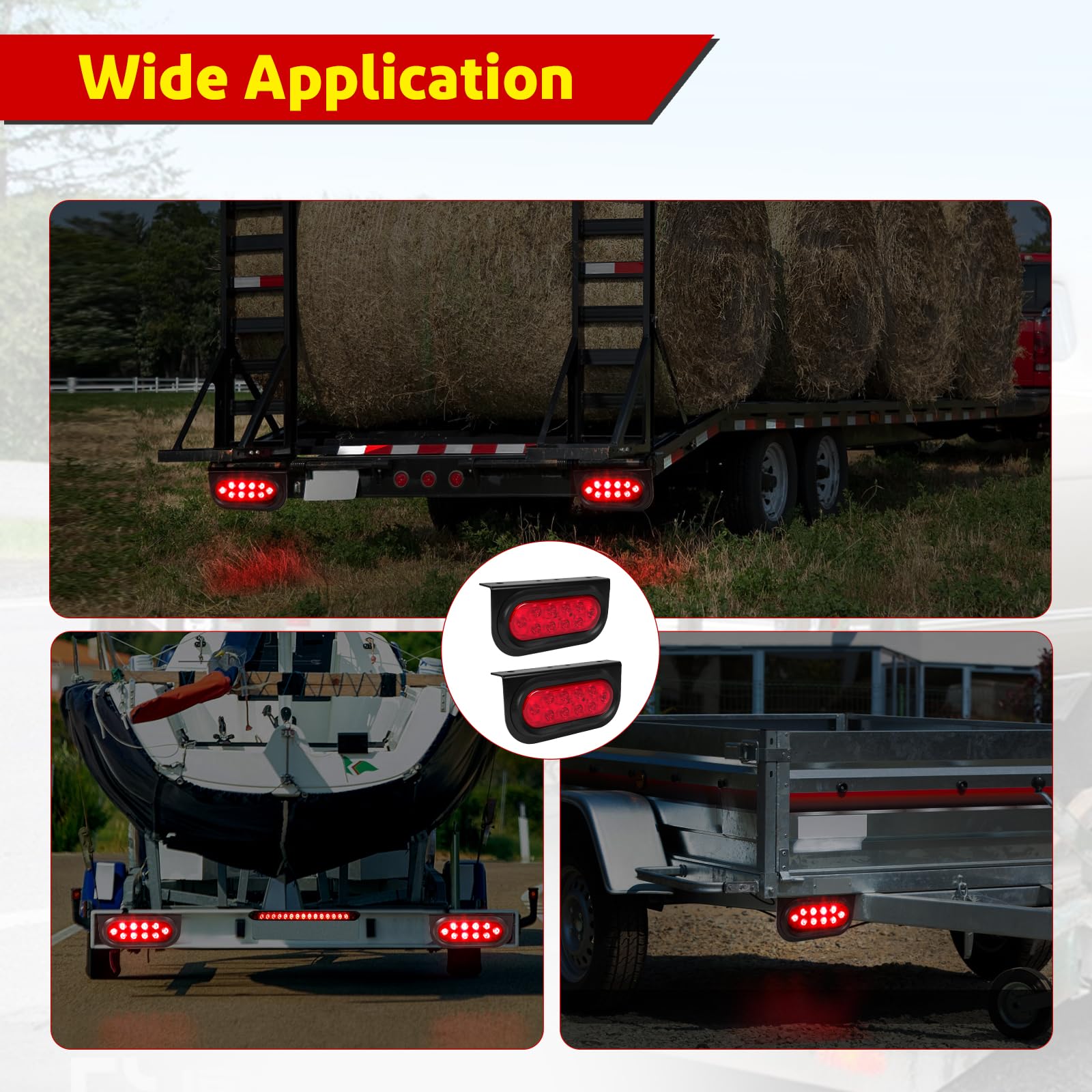

The LIMICAR kit is built as a universal fit for a wide range of towing and commercial applications. It works well for trailers, trucks, campers, farm equipment and many specialty vehicles where clear rear signaling is required.

• Compatible with utility trailers, box and travel trailers, horse trailers, dump trucks.
• Suitable for boats on trailers and agricultural or construction equipment.
• Useful for fleet upgrades where durability and low maintenance matter.
• Ideal replacement for worn incandescent or damaged lamp assemblies.

Who is this for This LIMICAR Trailer Lights Kit is aimed at owners and operators who need a reliable, weatherproof lighting upgrade: trailer owners, small fleet managers, contractors, and DIYers who want brighter LED signaling with straightforward installation. If you need durable lights that reduce maintenance, improve visibility, and fit a broad variety of trailers and specialty vehicles, this kit provides a practical, cost-effective option.

FAQ

Q: Is this kit waterproof enough for marine trailers?

A: Yes. The lights carry an IP67 rating, offering dust protection and temporary immersion resistance suitable for marine trailer exposure.

Q: Can I replace incandescent trailer lights with this kit?

A: Yes. The kit is a universal LED replacement; you may need to match wiring and mounting hole size (0.39") during installation.
