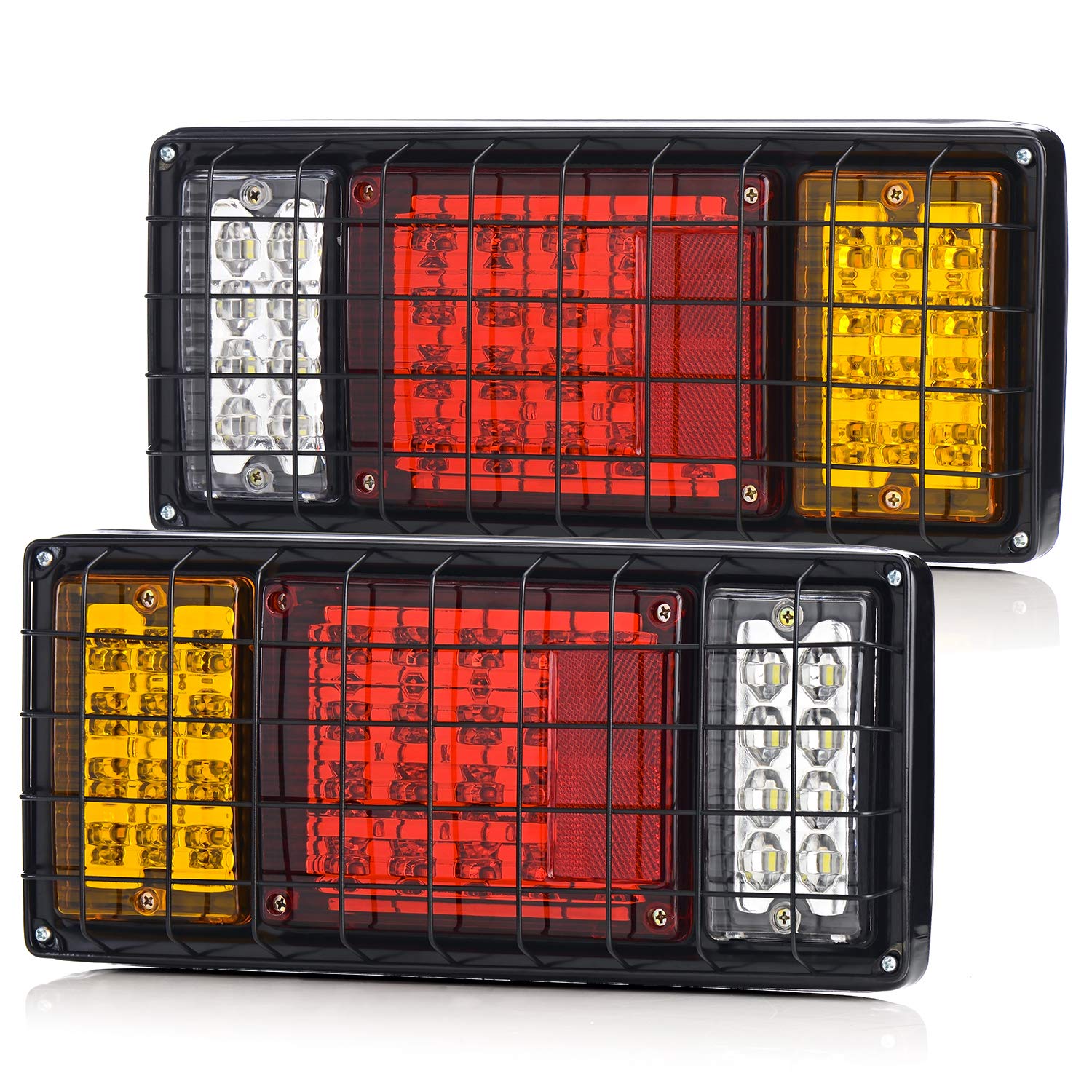

LINKITOM 40-LED Truck & Trailer Tail Light Bar — Iron Net Protection, 10–30V, IP65

LINKITOM 40 LED Truck Trailer Tail Light Bar is a multi-function, DOT-compliant LED light bar with iron-net protection and IP65 waterproofing designed for 10–30V vehicles.

Built for commercial trailers, trucks, RVs and similar 10–30V platforms, this LED tail light bar combines high-intensity LEDs, durable housing and a five-wire hookup to deliver brake, tail, turn and reverse lighting in one slim assembly. The unit uses a robust ABS and iron construction with a protective iron mesh over the lens, making it suitable for heavy-duty use in rain, snow and dusty conditions while meeting common DOT visibility requirements.

How bright and visible is this LED light bar in real driving conditions?

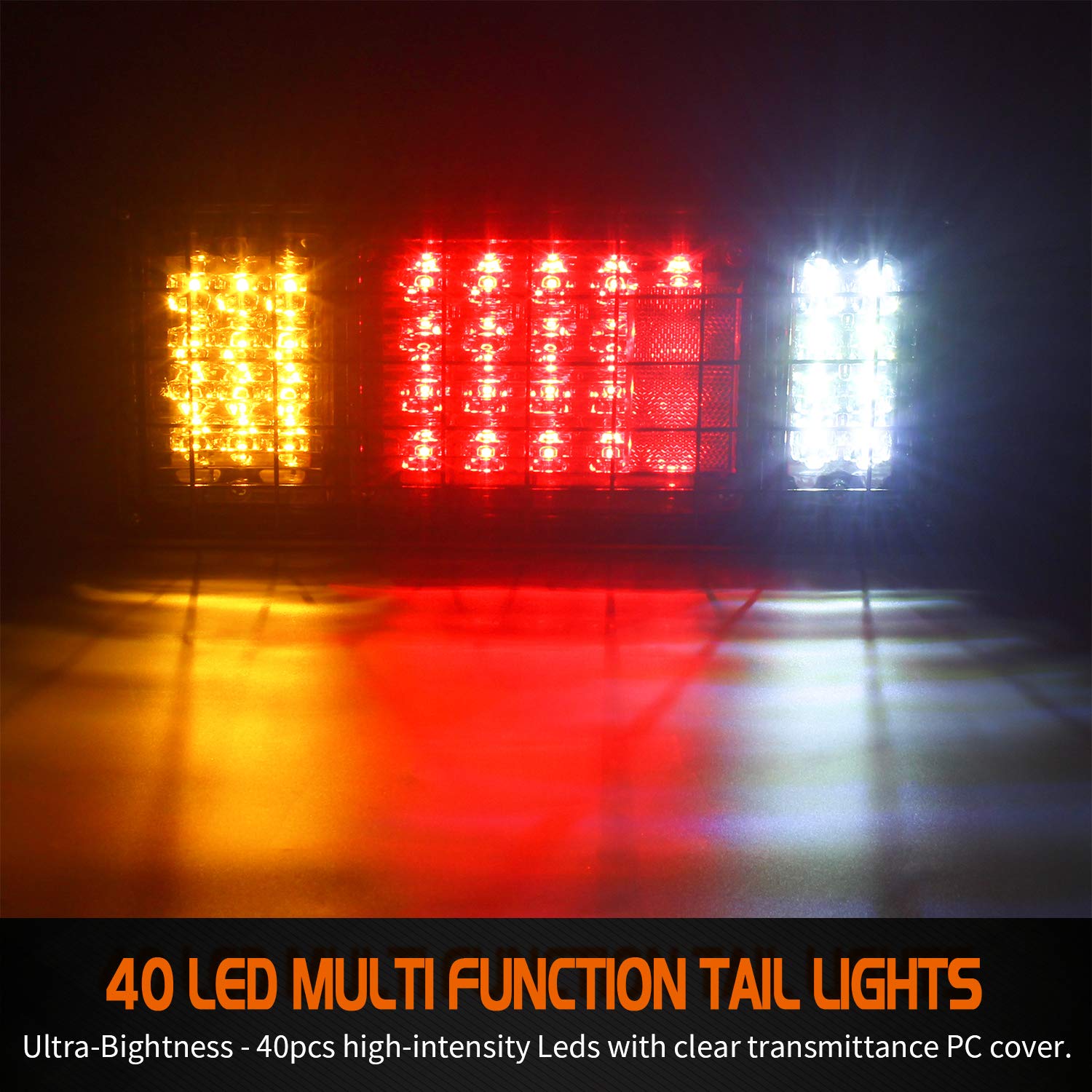

The LINKITOM light bar uses 40 high-intensity rectangular LEDs and a clear PC lens to maximize light transmission. It’s designed for strong daytime visibility and improved recognition at night, in fog and during precipitation without special auxiliary optics.

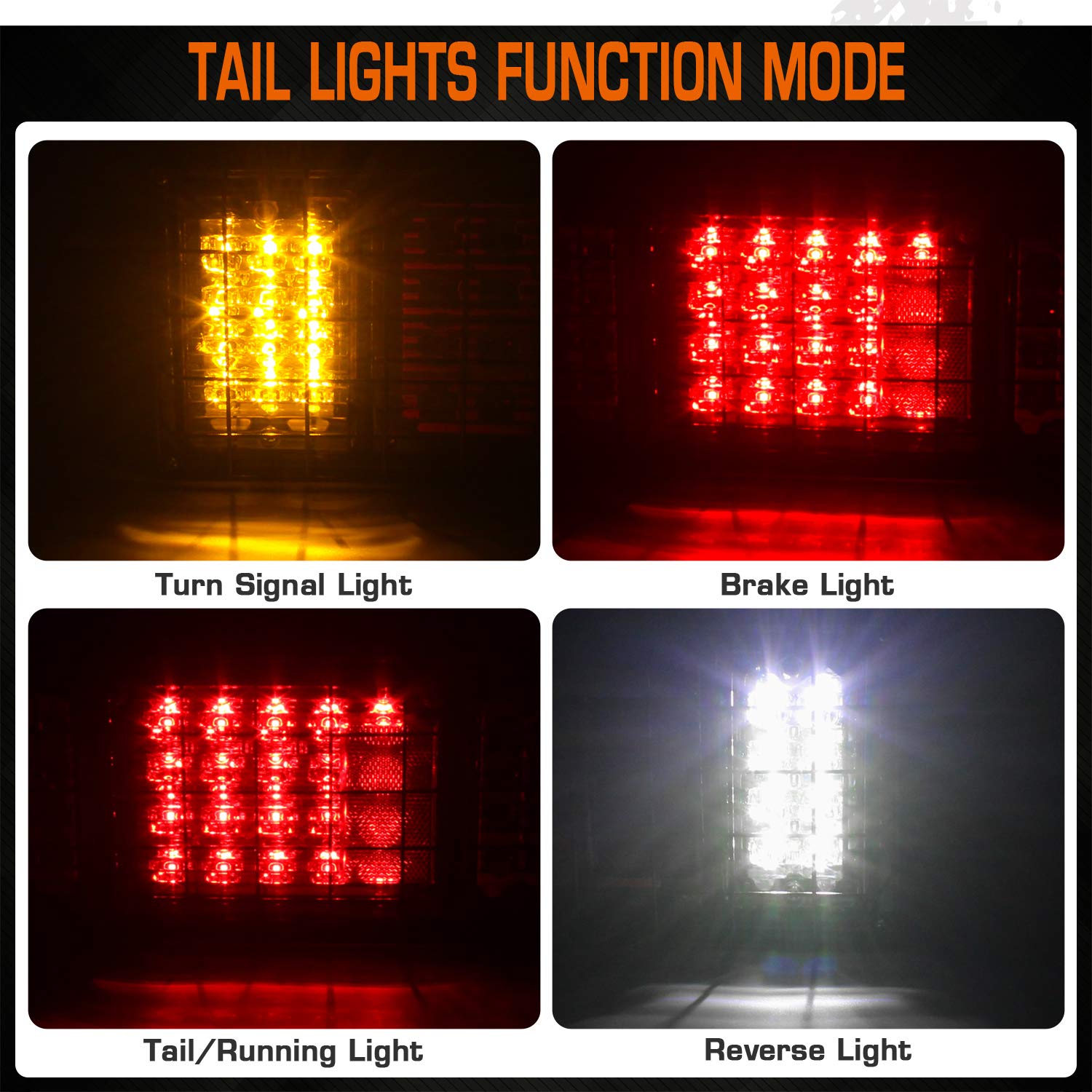

• 40 total LEDs: 20 red (brake/tail), 12 amber (turn), 8 white (reverse)
• Clear PC cover for high light transmittance
• Designed to improve visibility in daylight and low-visibility weather

Is it durable and weatherproof enough for heavy-duty use?

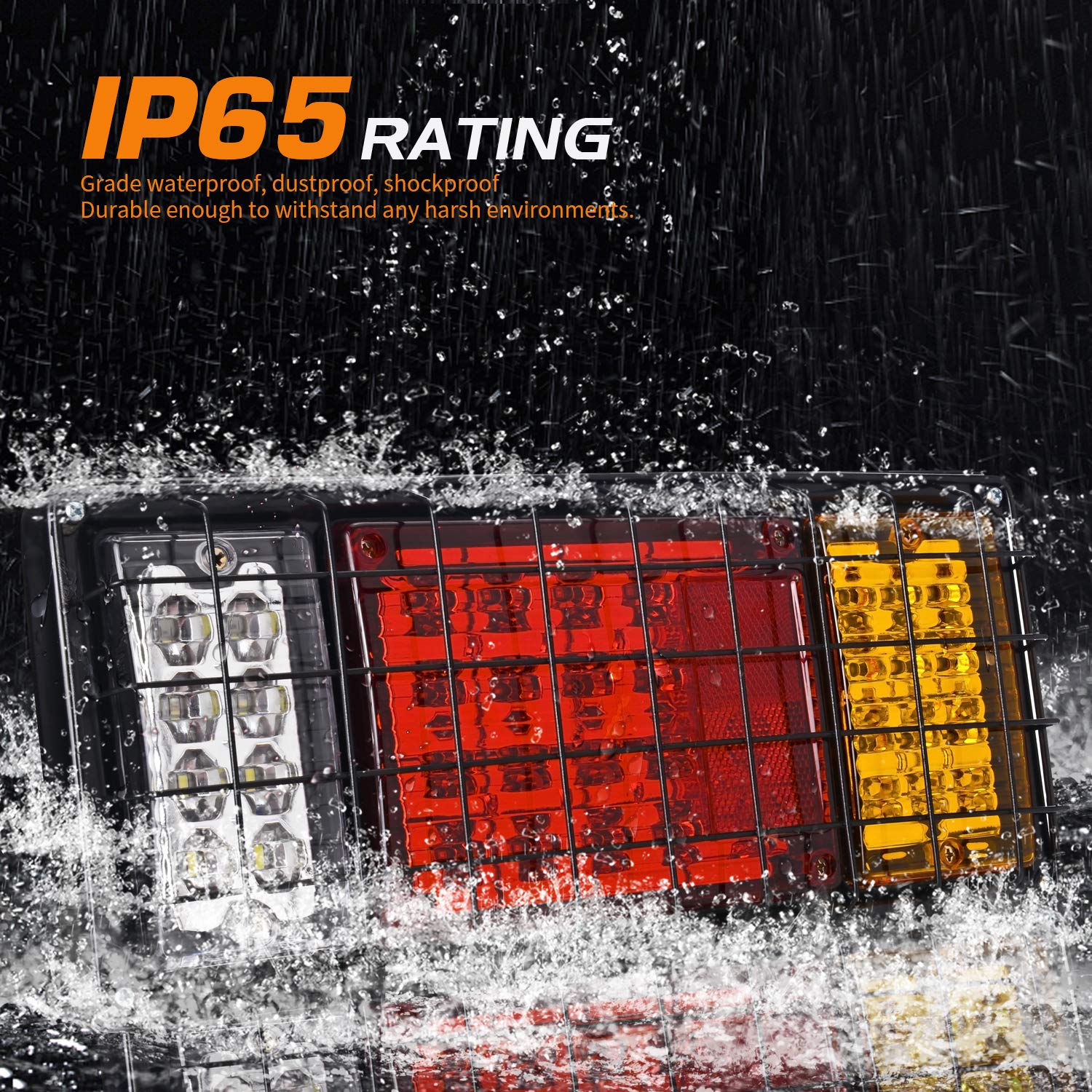

This light bar uses ABS and iron housing, with an iron net across the front of the lens to shield LEDs from impact and debris. It carries an IP65 rating for water resistance so it withstands heavy rain and snow exposure typical of on-road and off-road fleets.

• ABS iron housing plus iron net for front protection
• IP65 waterproof rating for wet-weather reliability
• Rated lifespan over 50,000 hours for long-term service

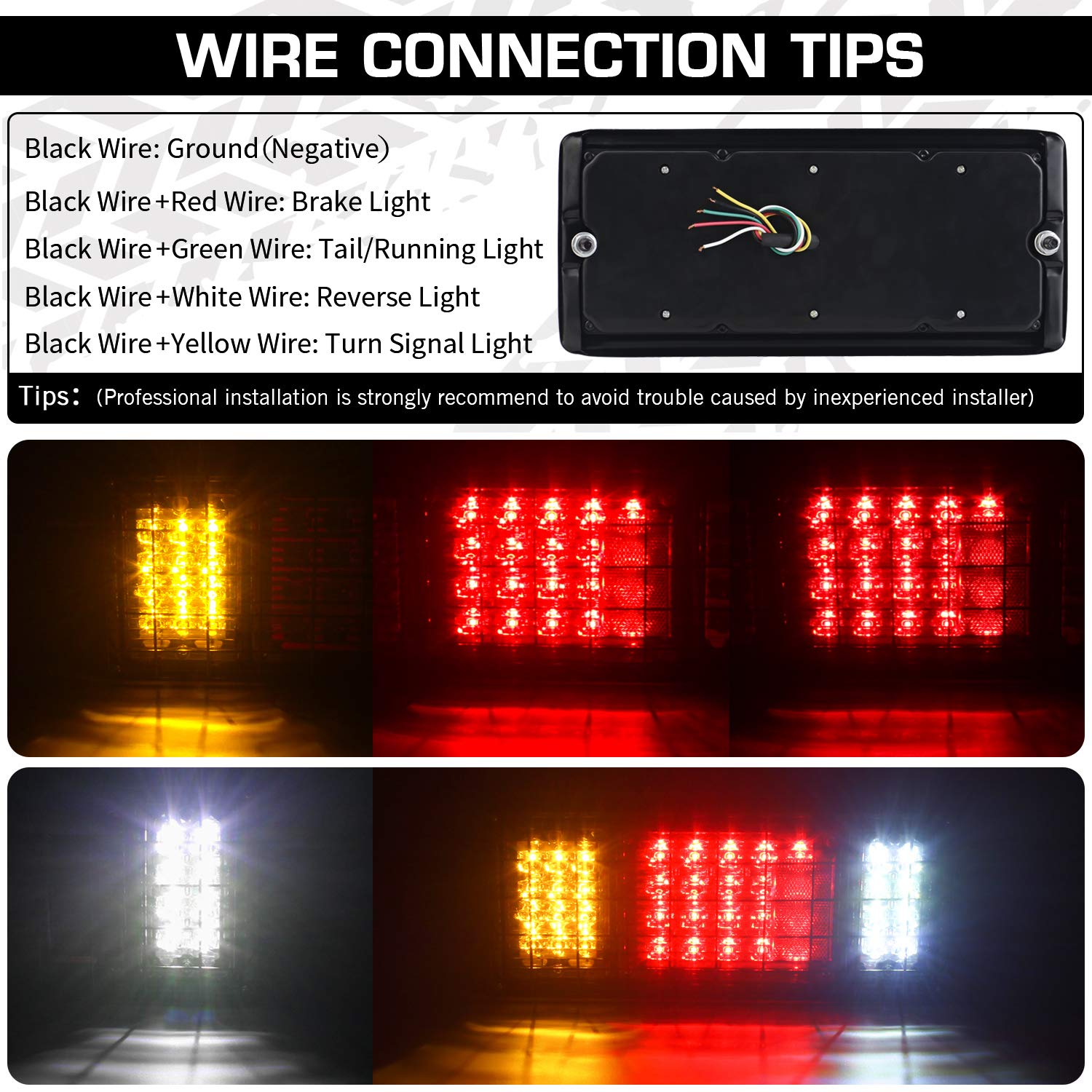

How do I install and wire this 5-wire light bar?

Installation is surface-mounted with included bolts, screws and gasket. The five-wire layout separates each function for compatibility with trucks, trailers, buses and similar vehicles that use independent circuits for brake, turn, tail and reverse lights.

• Wiring: Black = ground, Red = brake, Green = tail/running, White = reverse, Yellow = turn
• Includes mounting hardware and gasket for a sealed fit
• Works with vehicles running DC 10–30V and independent light circuits

Does it meet regulations and which vehicles can use it?

The product incorporates a red reflector area and lens materials intended to satisfy DOT visibility expectations for trailer and truck lighting. Always confirm local regulations before installation, and note the unit is not compatible with vehicles that combine brake and turn signals on a single circuit.

• Built-in red reflection on the red lens portion for compliance
• Suitable for trucks, trailers, RVs, buses, vans, caravans, snowmobiles and boats with 5-wire systems
• Not for use on vehicles that run brake and signal on the same circuit

Who is this for? The LINKITOM 40 LED Tail Light Bar is aimed at fleet operators, trailer owners, RV and commercial vehicle users who need a tough, high-visibility lighting solution that separates brake, turn, tail and reverse functions. If you run a vehicle on a 10–30V system with independent light circuits and want a long-lasting, impact-protected assembly built for outdoor conditions, this light bar is a practical choice.
