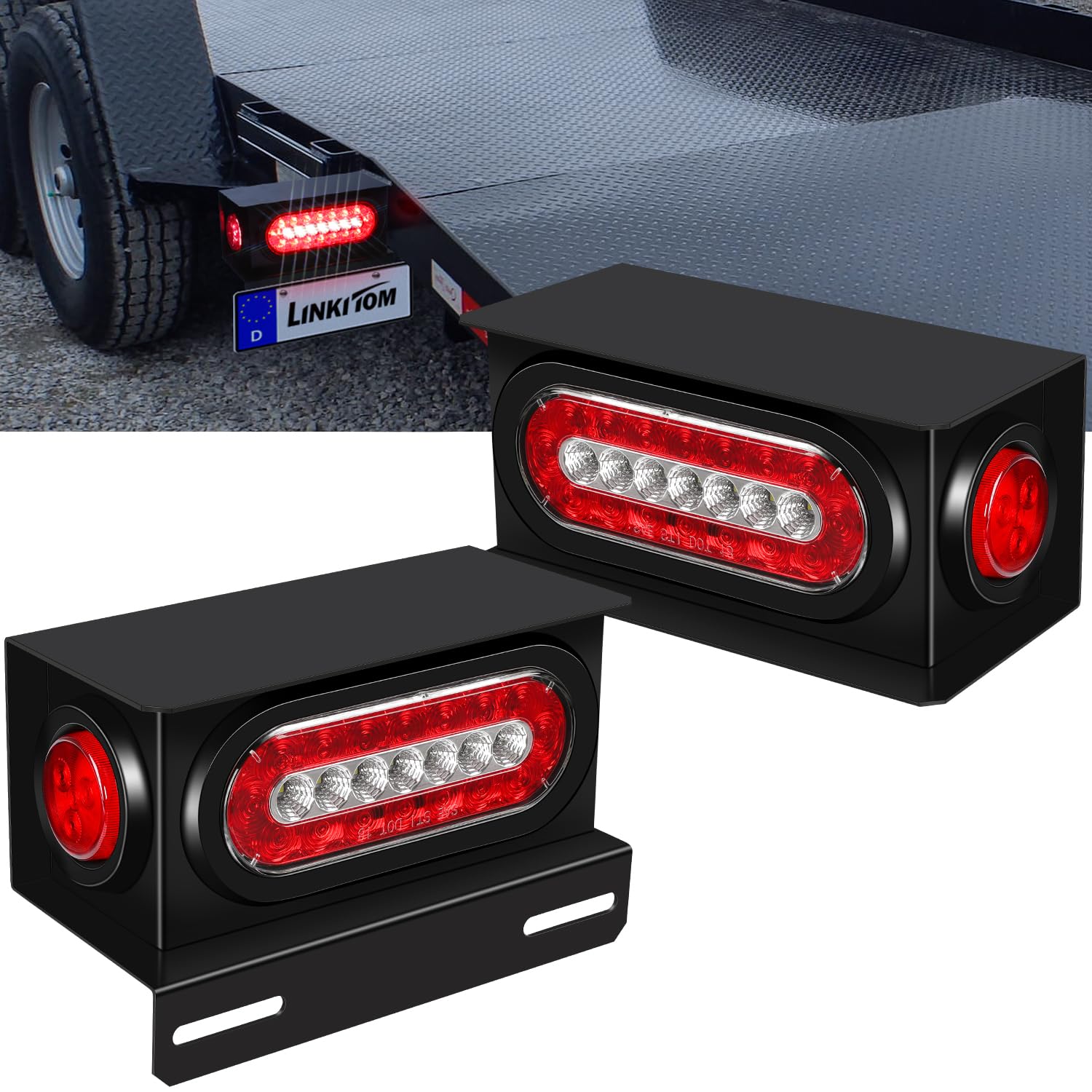

LINKITOM welded steel trailer light box kit, 2-piece 14‑gauge housing with IP67 waterproof LEDs and number plate bracket

LINKITOM's 2-piece welded steel trailer light box kit provides rugged, IP67-rated protection for bright LED tail, brake, turn and reverse lights in a ready-to-install welded housing.

This kit bundles two 14-gauge welded steel light boxes, high-visibility LED lamps and mounting hardware so you can protect trailer lighting from impacts, water and road debris while improving rear visibility. Designed for trucks, trailers, boats and work vehicles, the assembly is built for harsh outdoor exposure and straightforward electrical hookup before welding the box to the frame.

How does this kit protect trailer lights from weather and road damage?

The welded boxes are made from 14-gauge steel and finished to resist corrosion and moisture. Each box encloses the LED lamp and wiring, keeping grit, salt spray and spray water away from the light body and connectors.

• 14-gauge heavy-duty steel housing for impact resistance

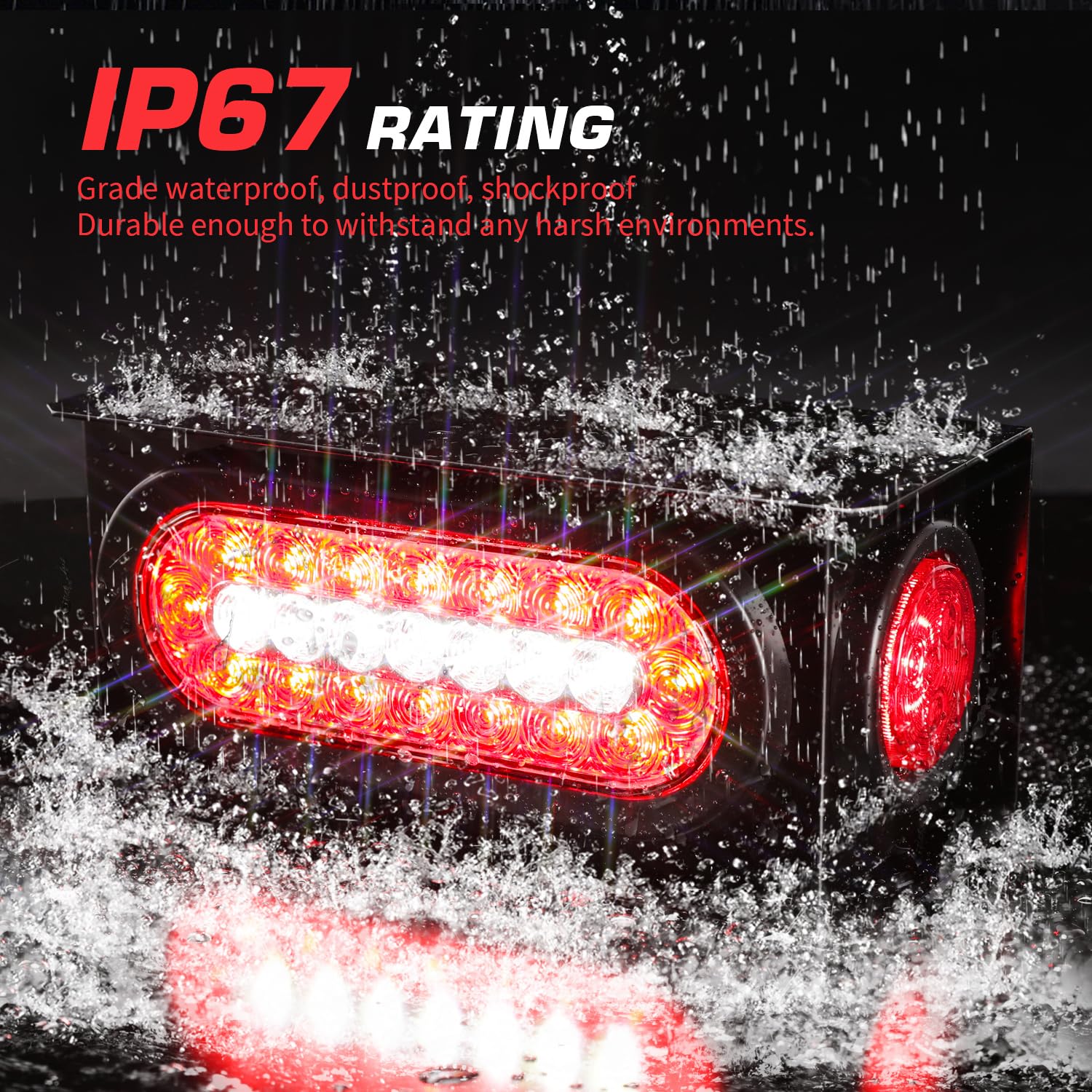

• Moisture-proof sealed design with IP67 waterproof rating
• Rubber grommets around lamp wiring to block water ingress
• Weld-on mounting eliminates loose external brackets

What lights and functions are included in the kit?

The set contains two 6" oval red/white LED lights and two 2" round red LED lamps, covering tail, brake, turn and reverse lighting roles. Reflective stickers are included to boost passive visibility when lights are off.

• 2 × 6" oval red/white LED lamps for tail and reverse functions
• 2 × 2" round red LED lamps for brake and indicator use
• 4 reflective stickers for added nighttime visibility

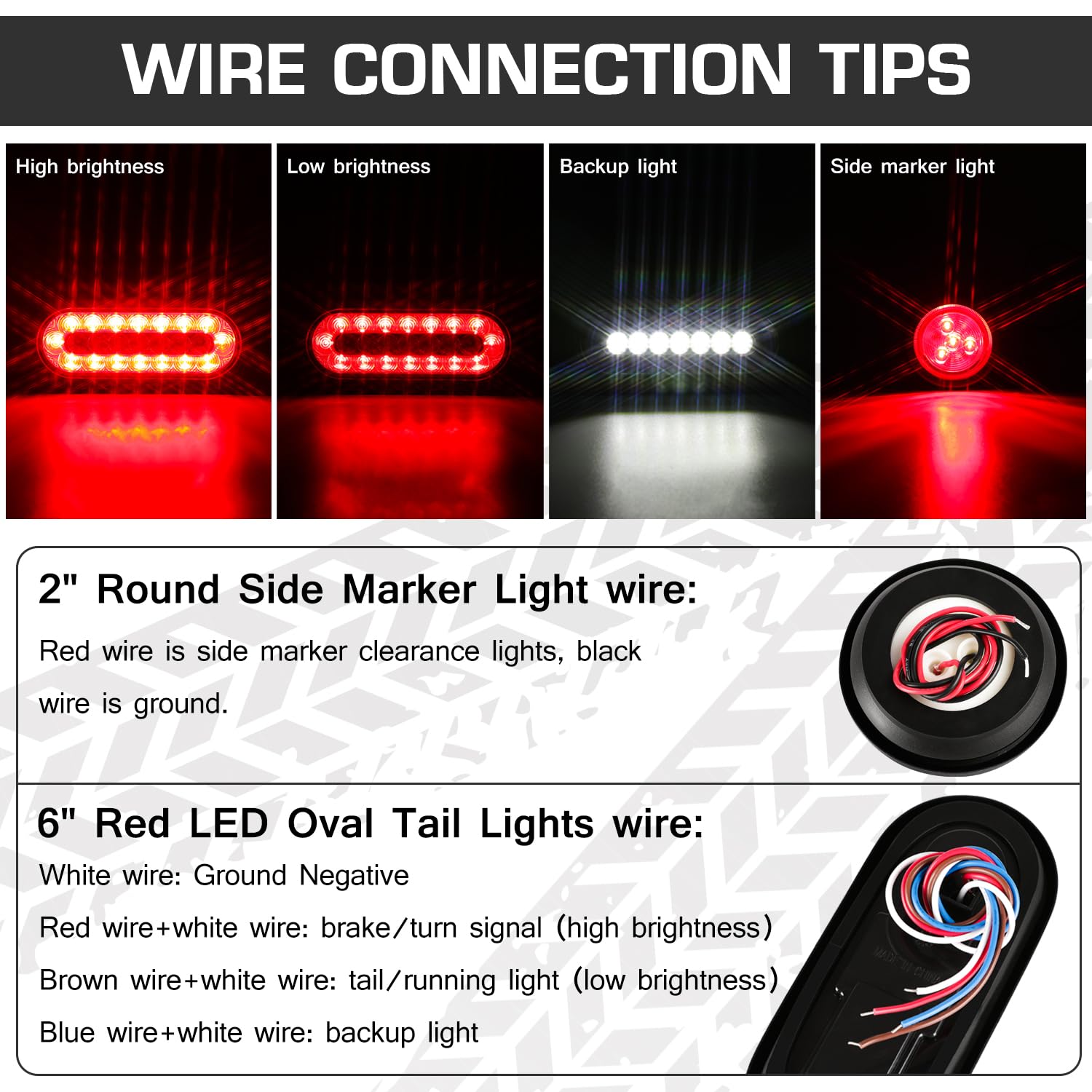

• Preinstalled rubber grommets and wire connectors for quick wiring

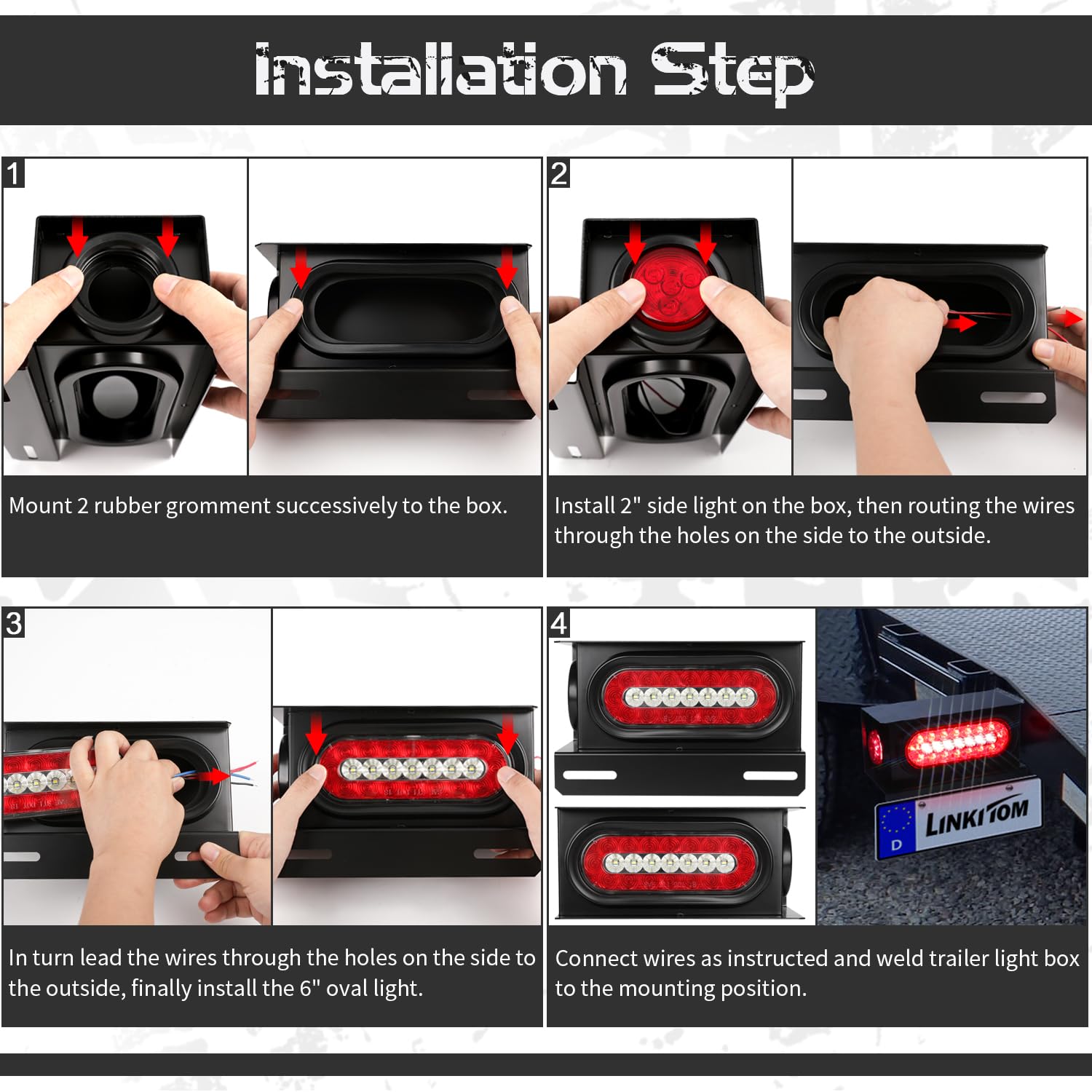

How easy is installation and what tools are required?

Installation is straightforward for anyone familiar with trailer wiring and basic metalwork. The lights are mounted with rubber grommets in the box and wired to the trailer harness; the steel box is then welded to the trailer frame for a secure, permanent fit.

• Wire connectors provided for fast electrical hookup
• Mounting grommets already installed in each box
• Welding the box to the frame required for final installation
• Basic wiring tools and a welder are needed (not included)

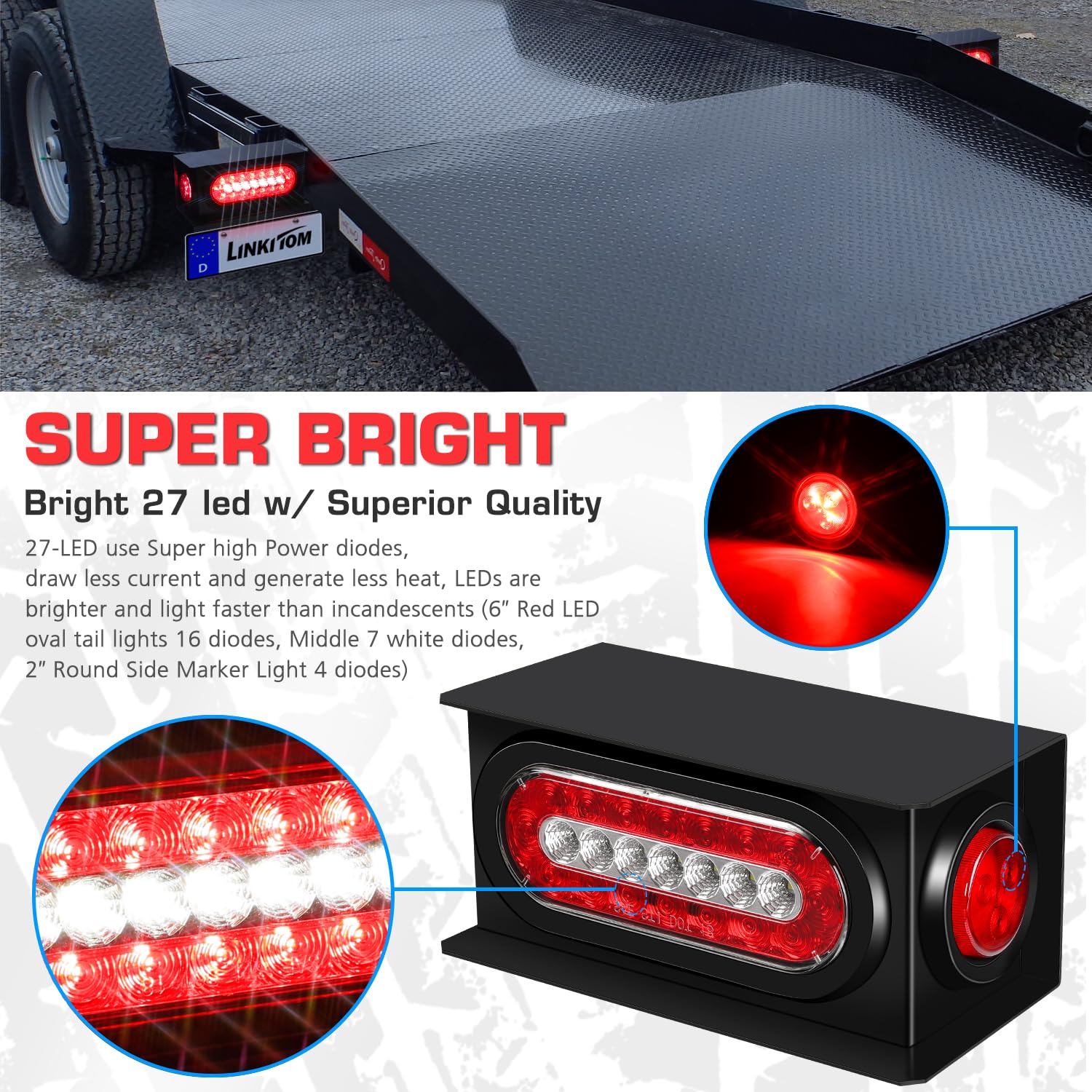

How bright and visible are the LEDs in adverse conditions?

The LEDs use high-intensity diodes designed for strong daytime and nighttime visibility. Their brightness helps other road users spot your trailer in rain, fog or low-light driving without drawing excessive current from the vehicle.

• Super-bright LED diodes for improved conspicuity
• Clear red/white optics for crisp brake and reverse signals
• Durable construction keeps optics aligned and protected
• Low-power LEDs reduce load on trailer electrical system

Who is this for: This LINKITOM kit is aimed at trailer owners, fleet operators and tradespeople who need a durable, weatherproof lighting solution. It suits heavy-duty trailers, utility rigs, boats on trailers, caravans and commercial vehicles where welded, long-lasting lamp protection and reliable LED signaling are priorities.
