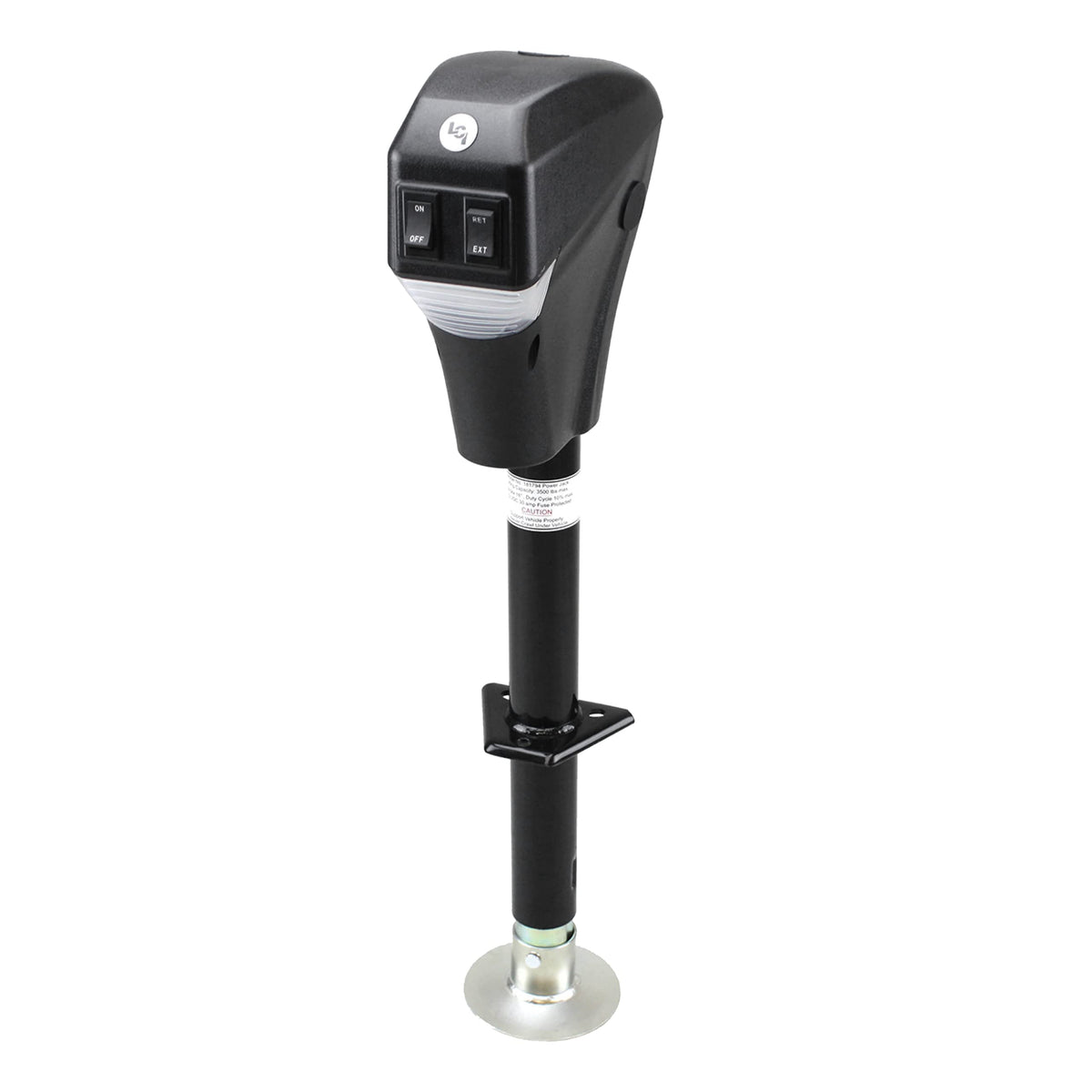

Lippert Components Electric Trailer Tongue Jack 3,500 lb — Black 18" Stroke, LED Lights

The Lippert 3,500 lb Electric Trailer Tongue Jack is a push-button RV power jack that raises and lowers A-frame travel trailers and campers quickly, quietly, and without manual cranking.

Stop wrestling with a hand crank and speed up campsite setup with a beefy, reliable electric tongue jack built for RV life. This Lippert 285318 model delivers a 3,500-pound lift rating, 30 amps of power, and an 18" stroke—all packaged in a textured, black powder-coated housing. It includes four downward-facing LED lights to illuminate the ball and coupler at night, and comes with the mounting hardware, pins, a 5-3/8" footpad and a manual hand crank for backup operation.

How much weight can this tongue jack handle and what are its lift ranges?

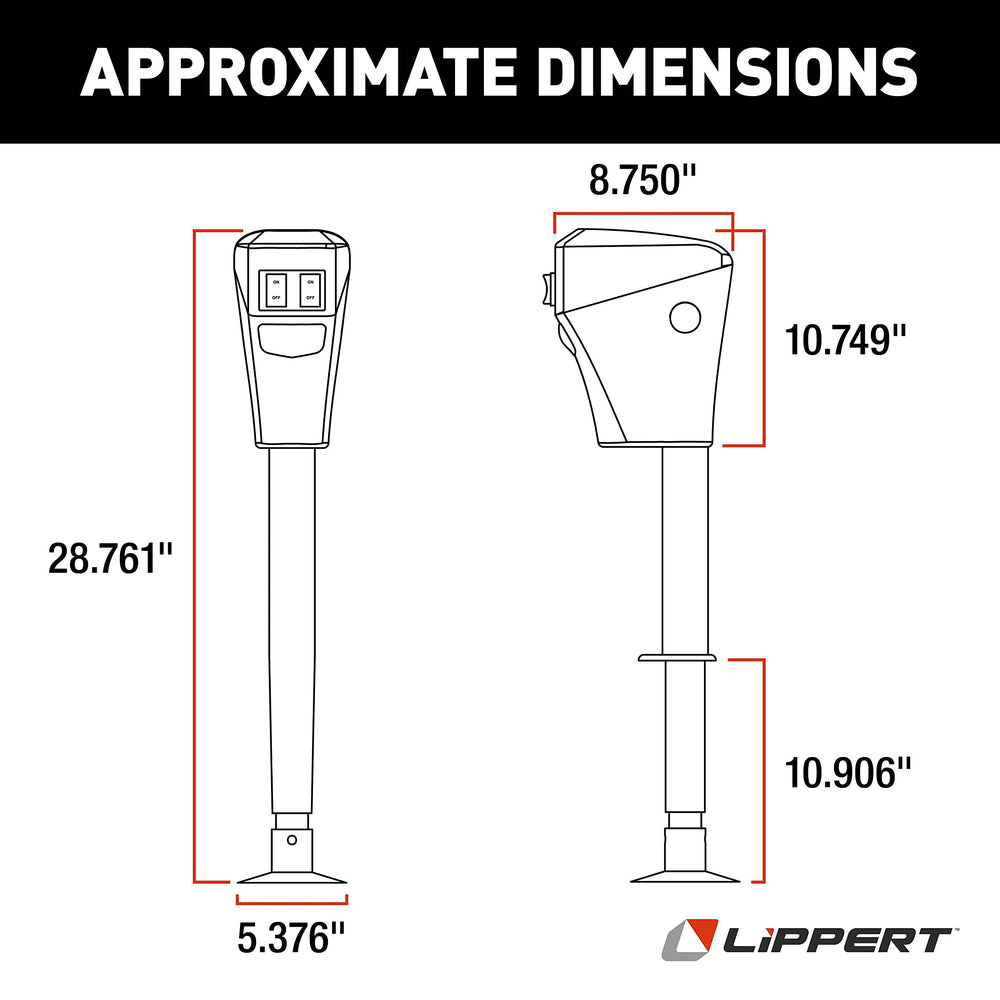

The jack is rated to lift up to 3,500 pounds and provides an 18" travel stroke for wide height adjustment. Retracted height measures 10-3/4" and fully extended reaches 28-3/4", giving ample range for most A-frame RVs, travel trailers, utility trailers and cargo trailers.

• 3,500-lb lift capacity for heavy trailer tongues
• 18" stroke: 10-3/4" retracted to 28-3/4" extended
• Suitable for A-frame and many trailer tongue types

How does the jack perform and what powers it?

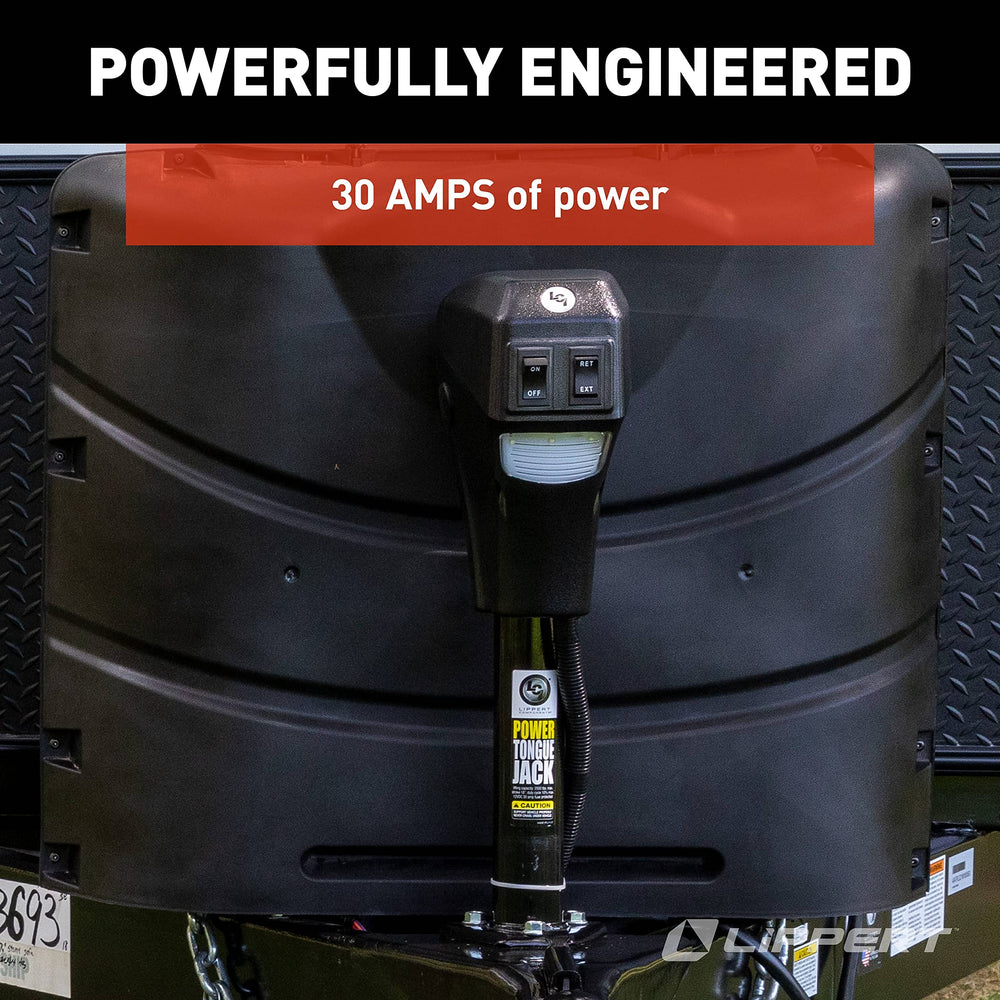

Powered by a 12V motor and designed for 30 amps, this jack uses quiet helical-cut gears for smooth, low-noise operation. The gearset and motor work together to raise and lower the coupler with consistent speed and reduced wear compared to conventional sidewinders.

• 12V motor with 30A design for reliable power delivery
• Helical-cut gears for quiet, smooth operation
• Push-button controls for fast, repeatable movements

What convenience and safety features are included for night or remote setup?

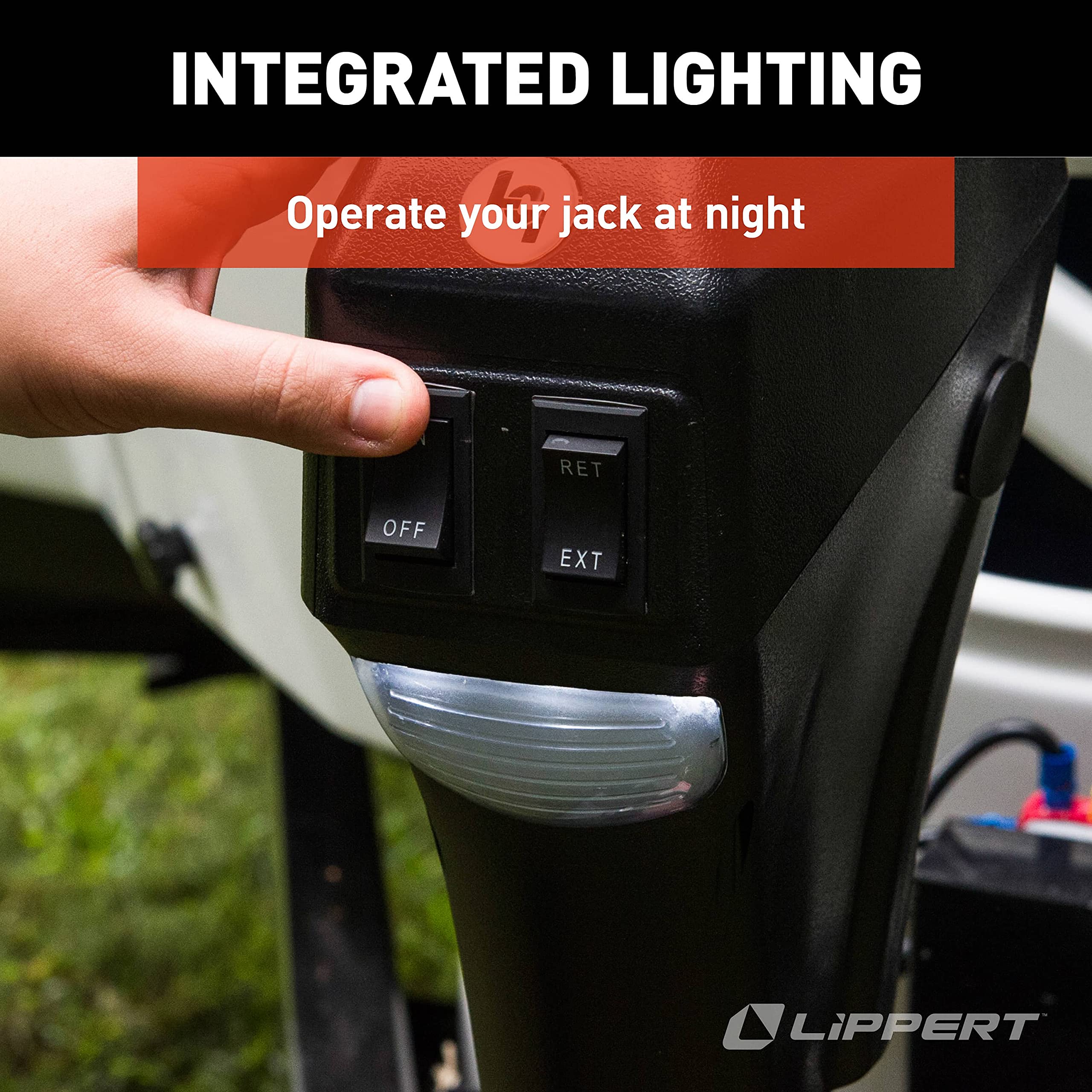

Four integrated LED lights point down toward the ball and coupler so you can see alignment and connections after dark. A protective head casing and textured, powder-coated finish shield the jack from road grime and impact, while the complete kit includes a manual hand crank for emergency lowering if power is unavailable.

• Four downward LED lights for improved nighttime visibility

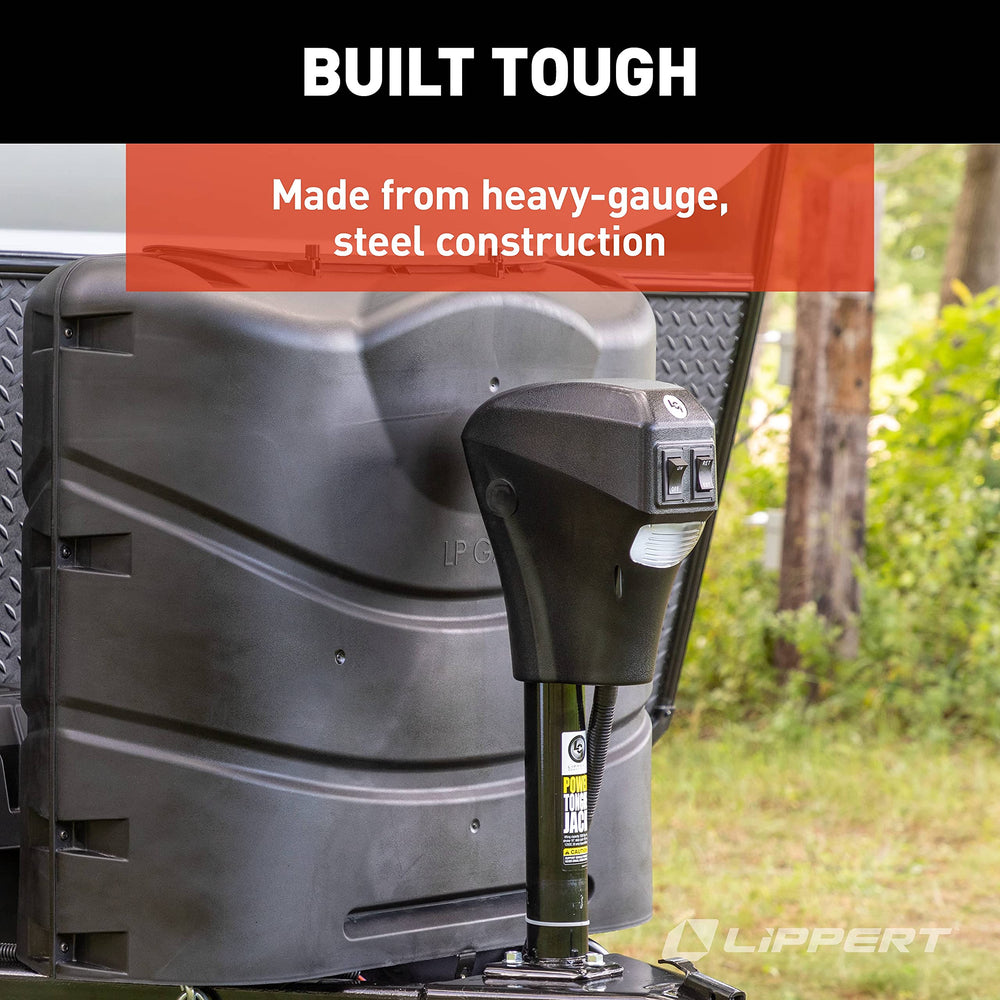

• Durable textured housing and black powder-coating resist abrasion
• Includes hand crank and footpad for manual backup and stability

What comes in the box and how easy is installation?

Lippert supplies a full installation kit with the jack: mounting hardware and pins, a 5-3/8" footpad, and the hand crank for manual override. The unit was designed for straightforward retrofit onto most A-frame trailers, letting you replace a sidewinder or add electric assist with standard tools and basic mechanical skills.

• Complete hardware and pin set for direct mounting
• 5-3/8" footpad included for improved ground contact
• Hand crank for manual operation if 12V power is lost

Who is this for? The Lippert 3,500 lb Electric Trailer Tongue Jack is ideal for RV owners, frequent campers, and anyone who tows trailers where faster setup, less physical strain, and better nighttime visibility matter. If you regularly hitch and unhitch at campgrounds, over uneven ground, or after dark, this jack reduces time and effort while offering a robust construction that stands up to road travel and outdoor conditions.
