Lisle NOx & Soot Sensor Socket Set 24mm & 30mm for 2014+ Ram 3.0L — 1/2" Drive Offset

Two offset sockets specifically built to reach and service NOx and soot sensors on 2014–current Ram 3.0L EcoDiesel V6 applications.

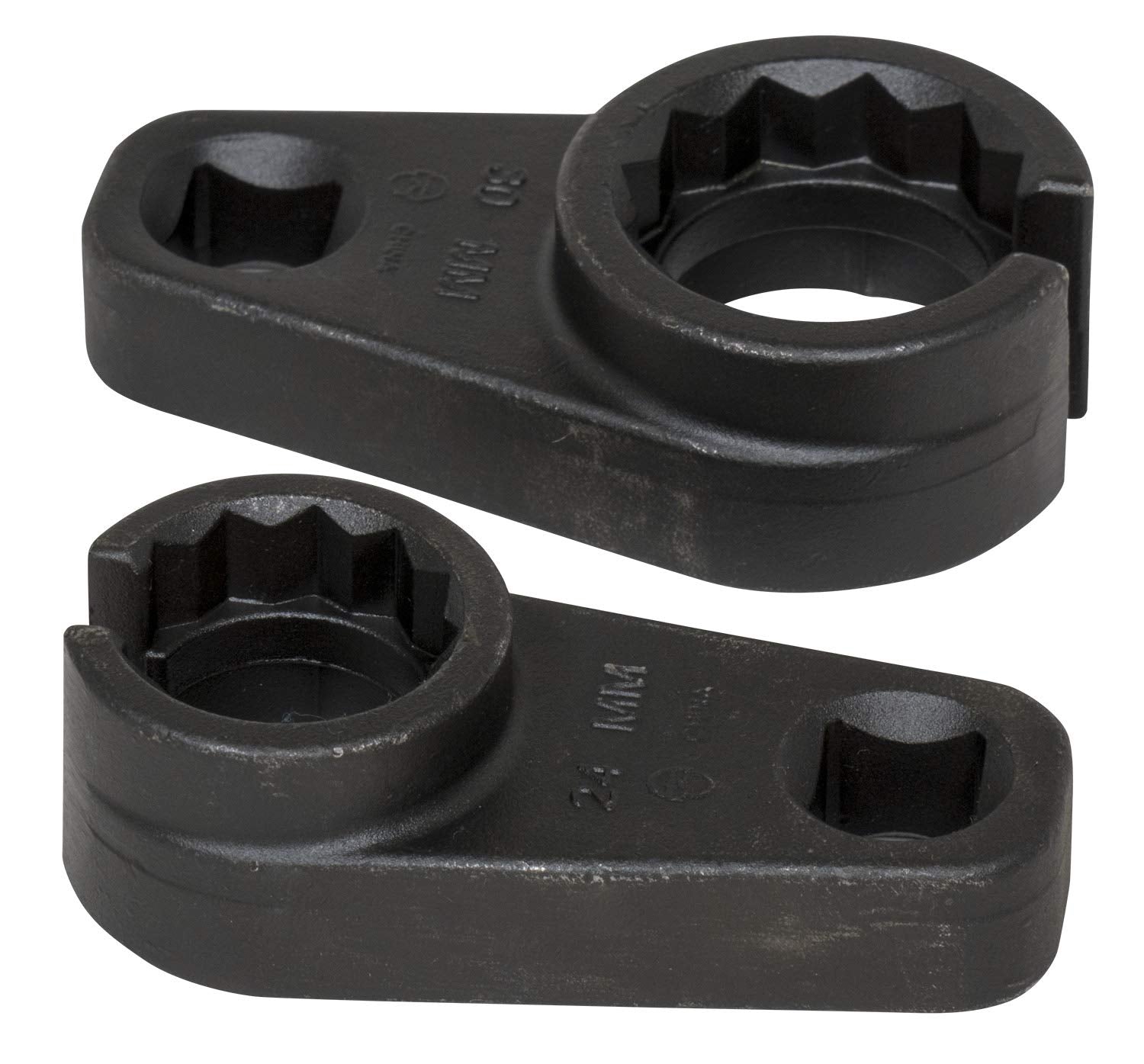

This Lisle 12290 sensor socket set gives technicians and DIYers a straightforward way to remove and install NOx and soot sensors in tight engine locations. The kit contains both 24mm and 30mm offset sockets, each with dual 6-point and 12-point openings, and a heavy-duty 1/2" drive interface so you can tackle seized sensors with common ratchets and breaker bars. It was engineered with the clearance and engagement needed for modern diesel passenger truck engines like the Ram 3.0L EcoDiesel found in Jeep Grand Cherokee and Dodge Ram 1500 trucks from 2014 onward.

How does this set improve access to hard-to-reach NOx and soot sensors?

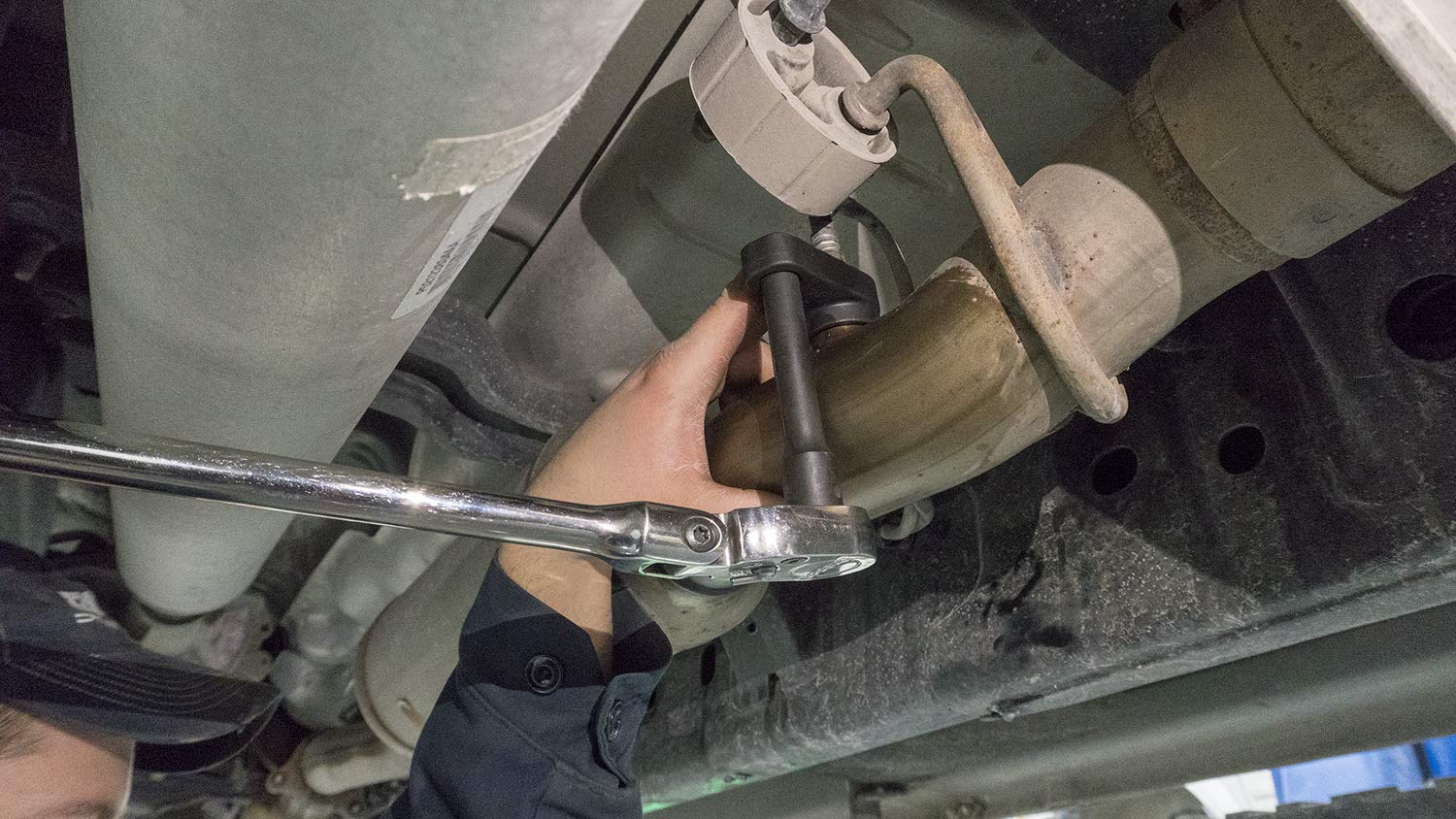

The offset geometry keeps the ratchet and handle clear of surrounding components while the socket body reaches the sensor hex. That extra offset reduces interference from wiring, exhaust, and bracketry so you can apply torque without stripping the sensor.

• Includes 24mm and 30mm offsets for common sensor sizes
• Offset length designed for clearance around exhaust and wiring harnesses
• Allows straight-line access with standard ratchets and breaker bars

What makes the dual 6-point and 12-point design useful?

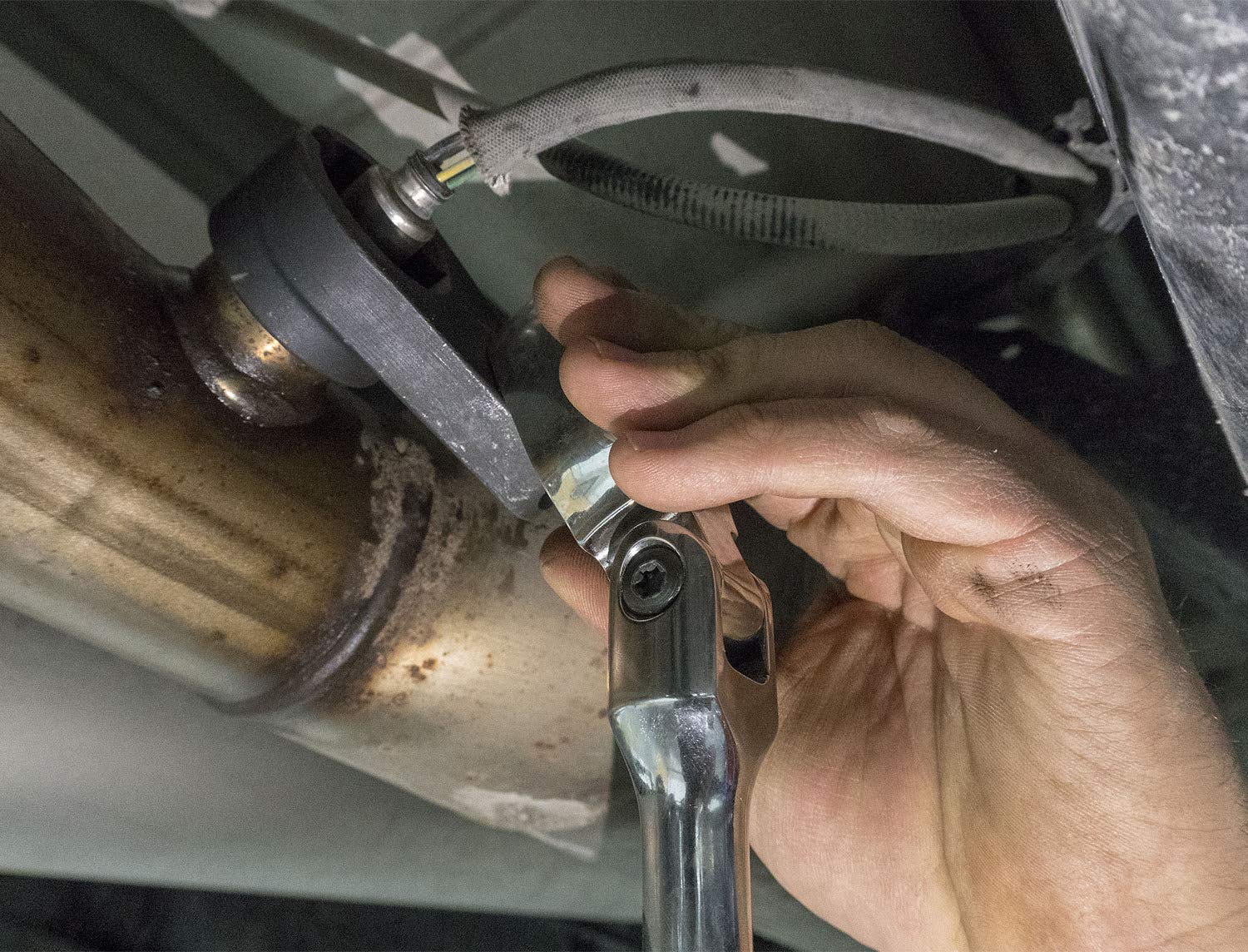

The sockets combine 6-point clamping strength with 12-point entry convenience. The 12-point side lets you quickly engage a sensor in cramped positions; flip it over for the 6-point face when you need better torque distribution to reduce rounding.

• 6-point side for stronger grip under high torque
• 12-point side for easier alignment in tight spaces
• Reduces risk of damaged sensor hexes during removal

Will these sockets work with my existing tools and stubborn sensors?

Yes. The sockets use a standard 1/2" drive so they fit most ratchets, torque wrenches, and breaker bars used in professional and home garages. The heavy-duty construction is intended to withstand the extra force needed for corroded or seized sensors, while the geometry helps keep torque applied to the sensor hex rather than adjacent components.

• 1/2" drive compatible with common hand tools
• Durable construction tolerates higher torque for stubborn sensors
• Designed to avoid contact with nearby brackets and tubing

Which vehicles and sensor sizes does this set cover?

The Lisle 12290 is optimized for 2014 and newer Ram 3.0L EcoDiesel V6 engines, such as those in Jeep Grand Cherokee and Dodge Ram 1500 trucks, but the included socket sizes also serve other diesel applications using 24mm or 30mm sensor hexes. Always verify sensor thread and hex size before use.

• Targeted for 2014–current Ram 3.0L EcoDiesel V6 platforms
• Includes 24mm and 30mm offset sockets for common sensor hex sizes
• Also compatible with other vehicles using the same sensor dimensions

Who is this for: This socket set is aimed at professional diesel mechanics, independent shop owners, and knowledgeable DIYers who service Ram 3.0L EcoDiesel engines or other diesels with 24mm/30mm NOx and soot sensors. If you routinely remove sensors in tight engine bays or want a durable, 1/2"-drive solution to avoid rounded hexes and damaged wiring, this kit provides the specific clearances and engagement options needed for reliable sensor service.
