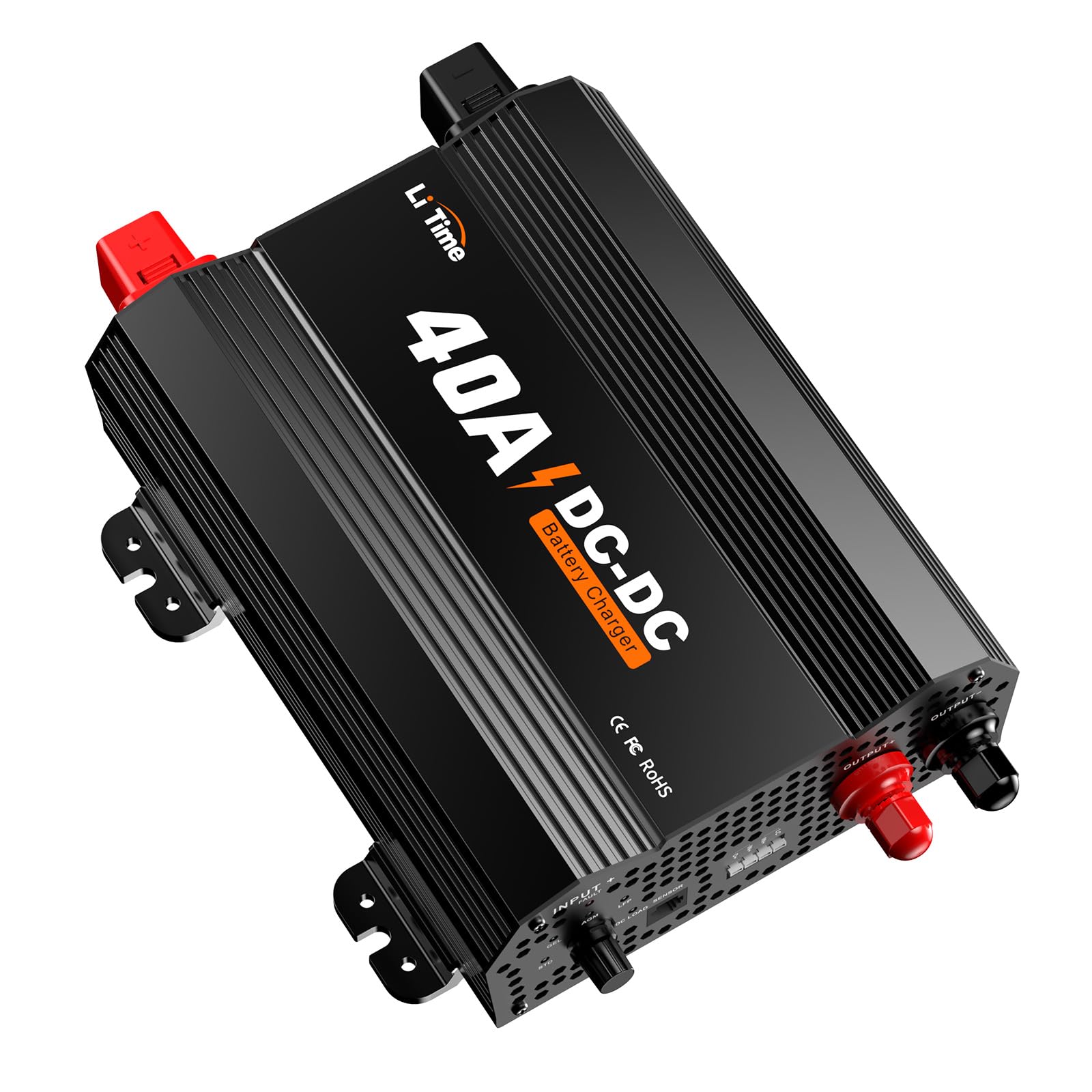

Litime 12V 40A DC-DC Battery Charger — 14.6V Output, M8 Terminals, Multi-chemistry Smart Charging

LiTime 12V 40A DC-DC charger is a compact, multi-chemistry smart charger that delivers up to 40A at 14.6V for on-board service batteries and mobile power systems.

This DC-to-DC battery charger is built for vehicles, campers, and off-grid setups that need reliable, high-current charging and battery maintenance. It accepts common 12V battery chemistries including LiFePO4 and lead-acid variants (AGM, Gel, SLA, Calcium), and automatically selects the correct multi-stage profile to protect battery health while restoring capacity quickly. With a durable, space-conscious housing and built-in safety protections, it integrates into tight installations and hybrid power systems where steady DC power is essential.

How does it charge different battery types?

The LiTime unit detects and applies the appropriate charging algorithm for the connected battery chemistry. For LiFePO4 it uses a two-stage CC/CV routine, while lead-acid batteries receive a three-stage Bulk/Absorption/Float cycle to optimize charge acceptance and reduce stress.

• Automatically switches between LiFePO4 and lead-acid profiles
• CC/CV for lithium; Bulk–Absorption–Float for lead-acid
• Can reactivate lithium batteries after BMS shutdown
• Low-current port option limits output to 20A when needed

What charging performance and connections can I expect?

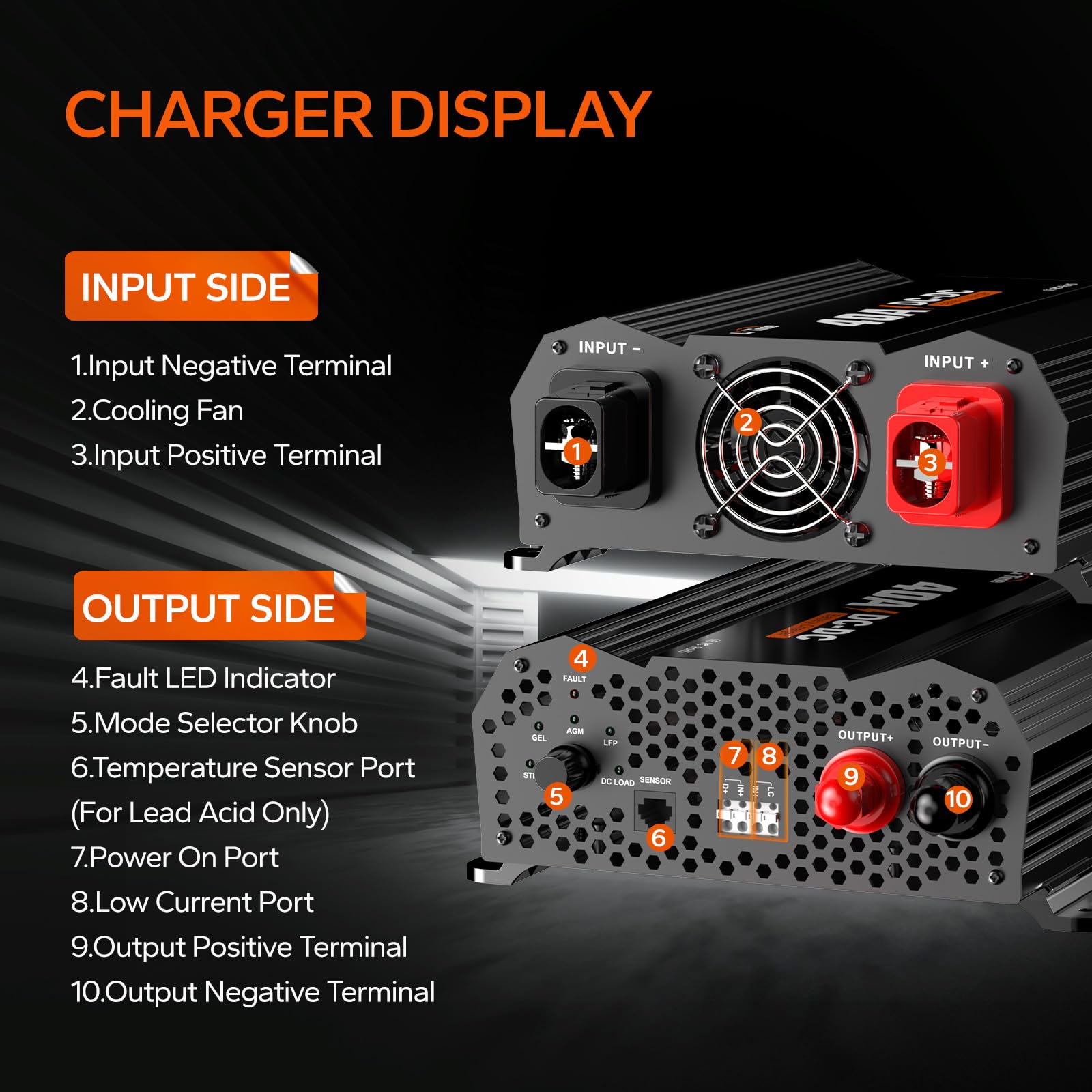

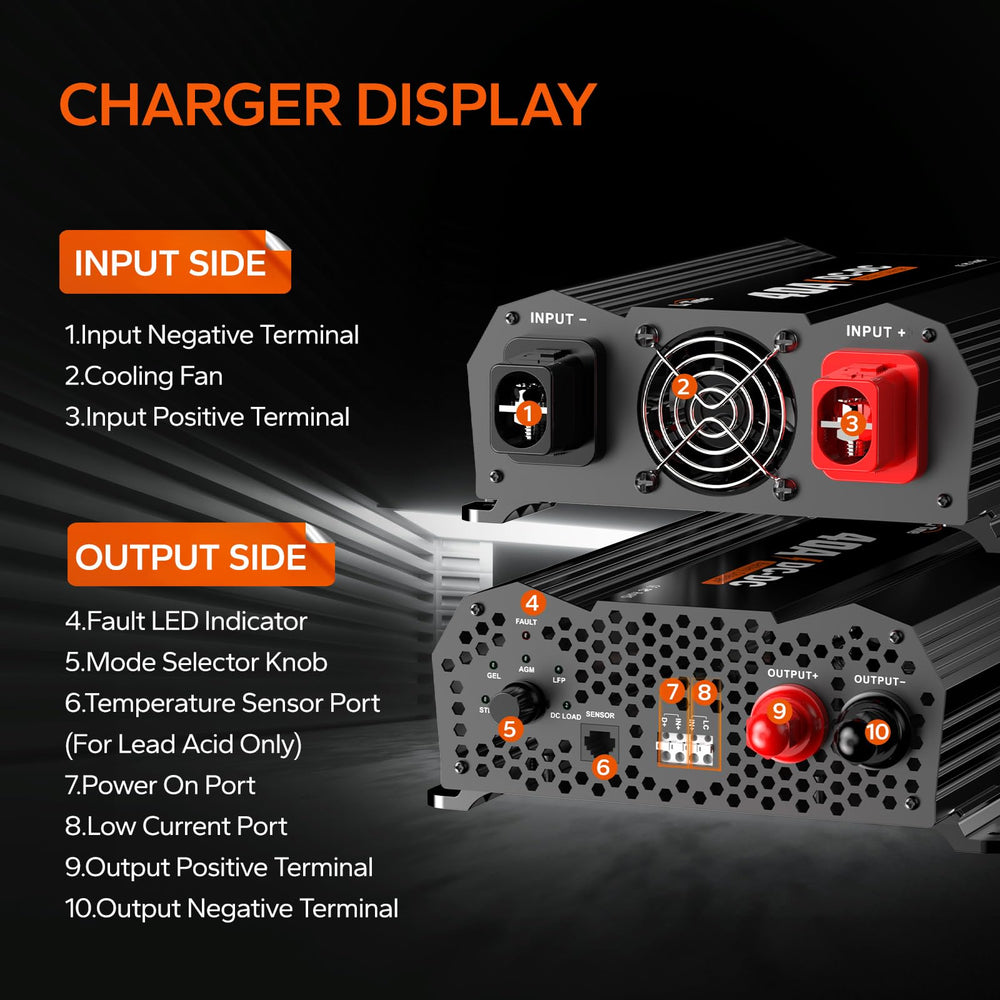

Rated for up to 40 amps at a regulated 14.6V output, this charger supports fast replenishment of service batteries or direct powering of DC loads. It uses sturdy M8 terminals for reliable high-current connections suitable for RVs, trailers, and fixed backup banks.

• 40A maximum output for faster charging cycles
• M8 terminal terminals for secure high-current wiring

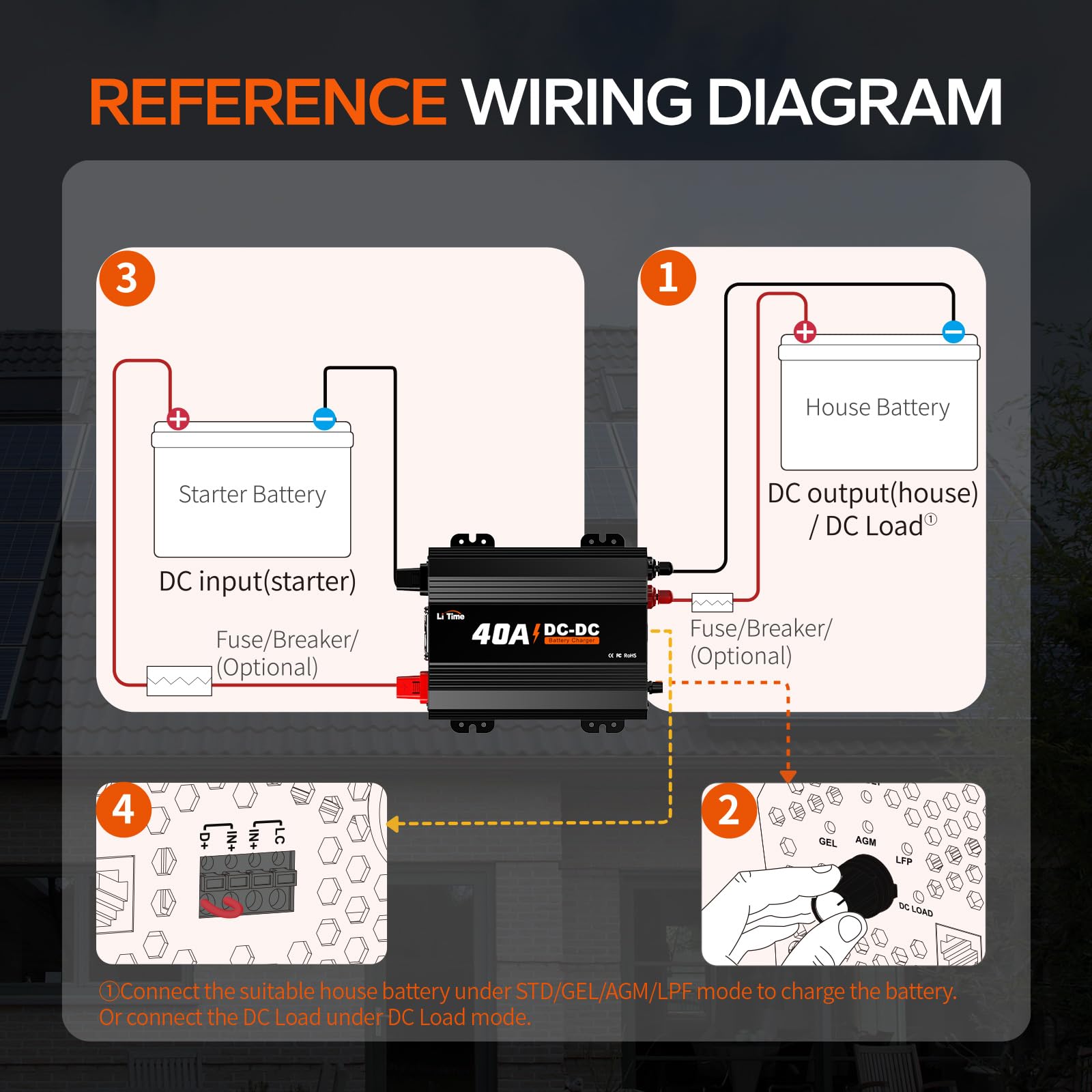

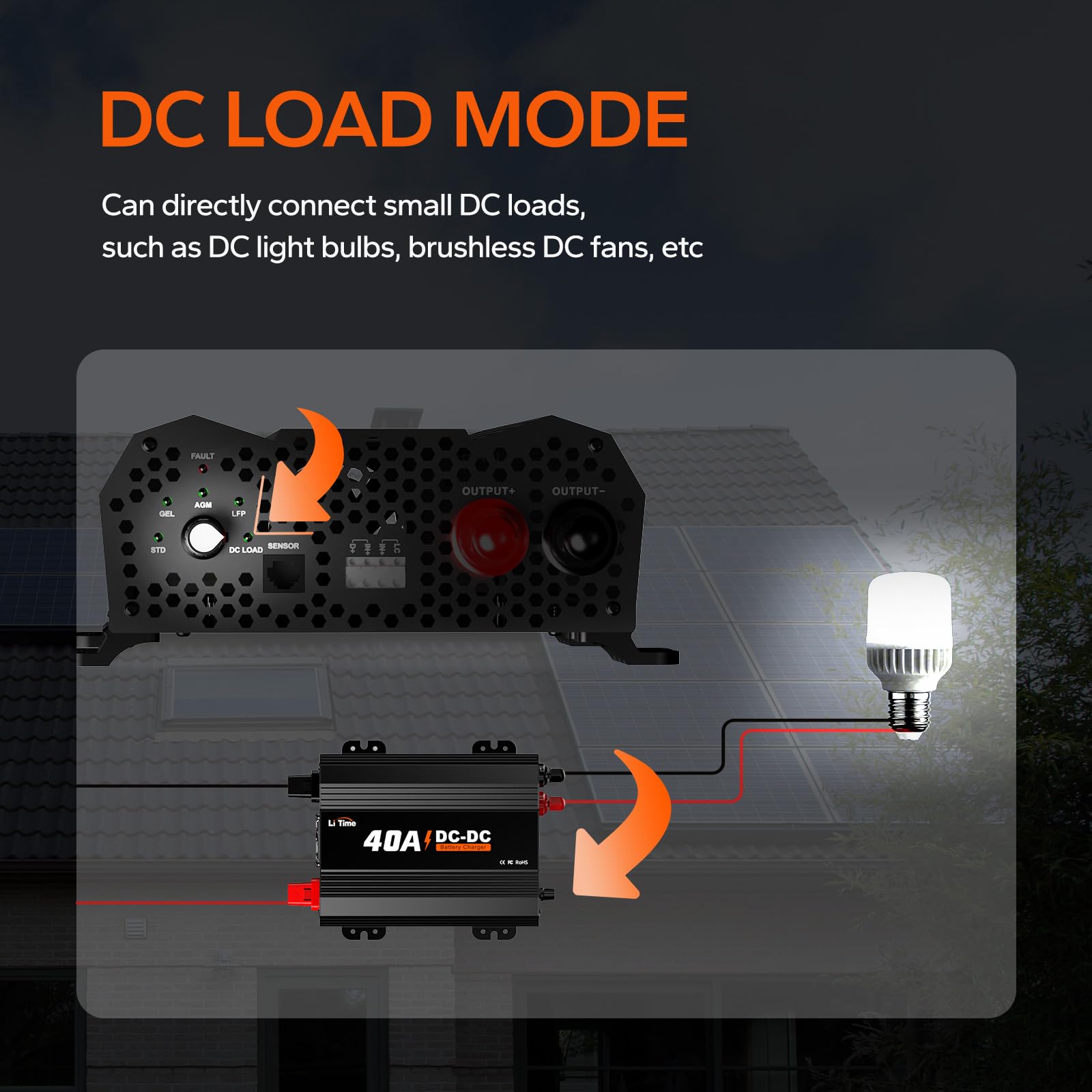

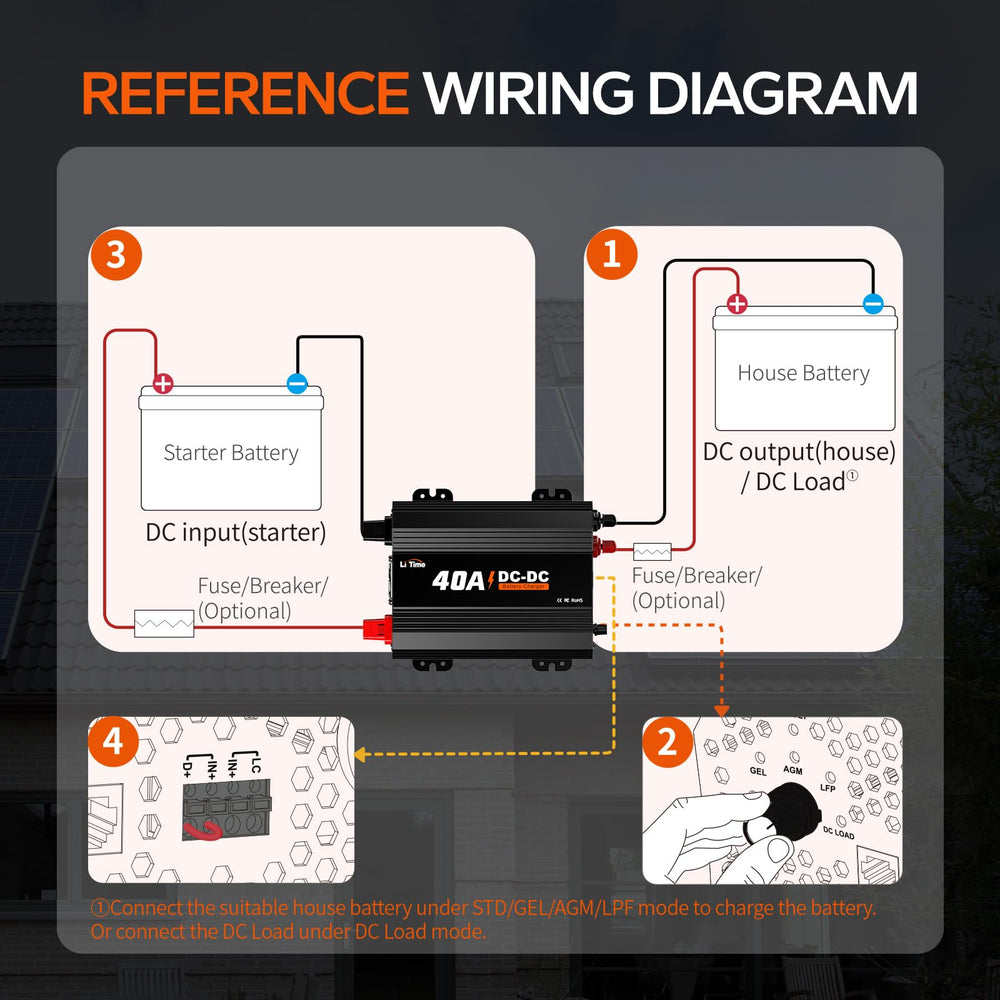

• Can charge batteries or feed DC loads in mobile systems
• Low-current port available to limit output to 20A

How does it protect batteries and the installation?

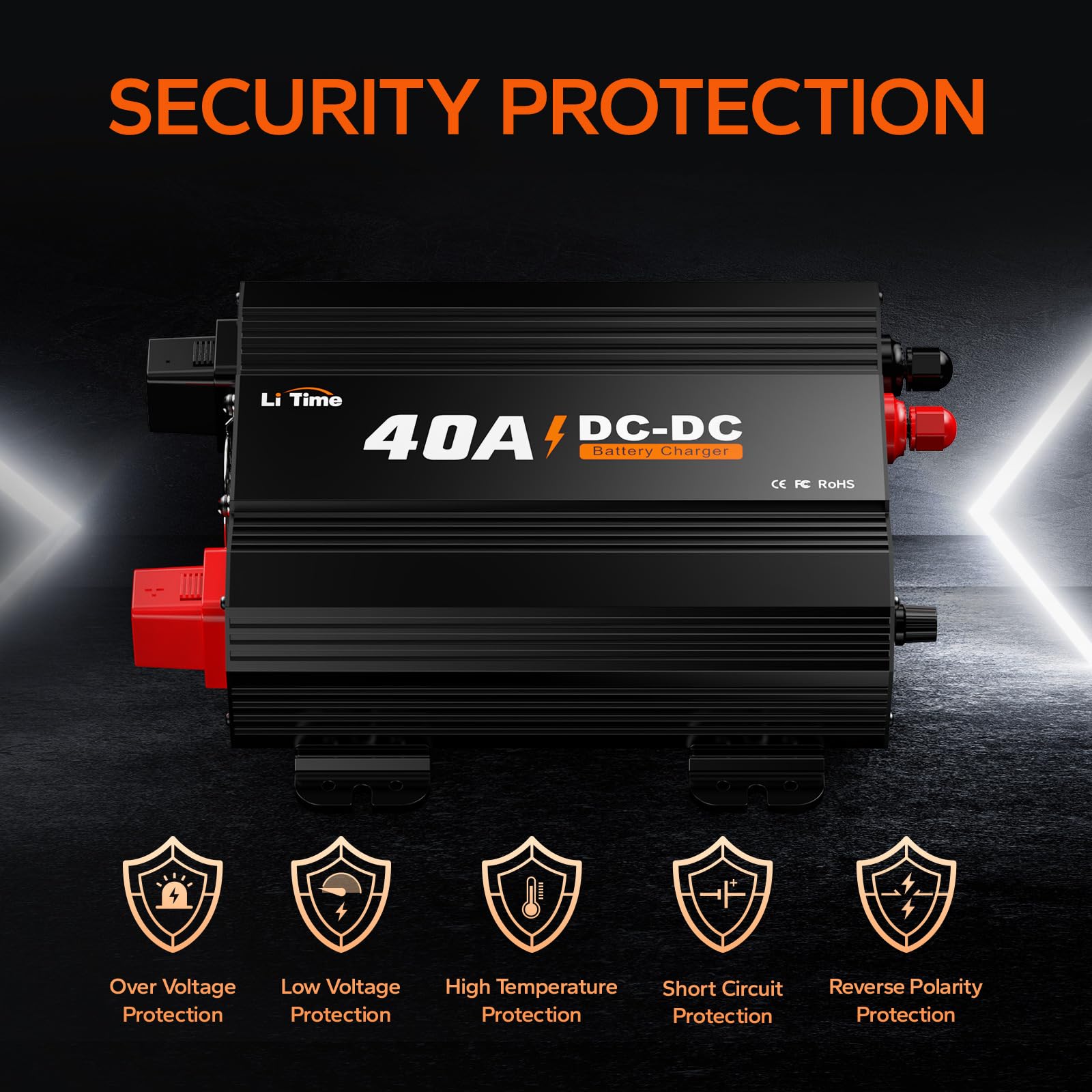

LiTime includes a suite of protective features to safeguard both battery and charger: over-voltage, low-voltage, reverse polarity, short-circuit, and thermal shutdown. These protections reduce risk in automotive and residential installs and help prolong battery life by preventing harmful conditions.

• Over-voltage and low-voltage detection to prevent damage
• Short-circuit and reverse polarity protection for safe wiring
• Over-temperature shutdown for thermal safety in confined spaces
• Reactivation capability for lithium batteries after BMS trips

Where should this charger be installed and what are the limits?

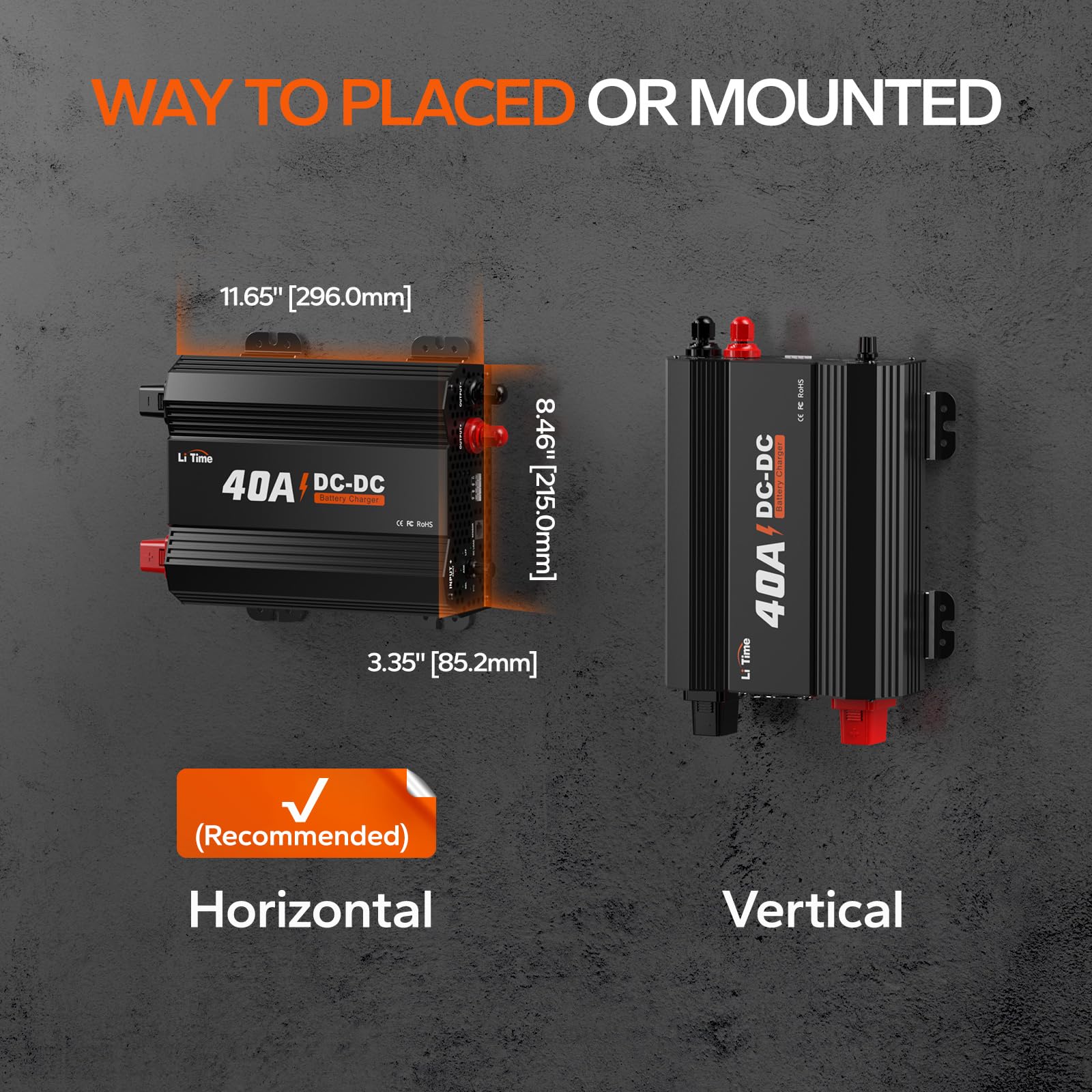

The compact, rugged body fits into tight engine bays, under RV seats, or within wall-mounted off-grid enclosures, but note it is not waterproof and is not intended for marine decks or exposed boat installations. Certifications like FCC, CE, and RoHS indicate compliance with common safety and electromagnetic requirements for home and vehicle use.

• Space-saving design for cramped engine compartments and RVs
• Not rated for marine deck or fully exposed outdoor use
• FCC, CE, and RoHS certified for regulatory compliance
• Covered by AIG product liability insurance effective May 22, 2026

Who is this for? Installers, RV owners, vanlifers, trailer builders, and small-scale off-grid homeowners who need a robust, multi-chemistry DC-DC charger will find this LiTime model useful. It suits systems that demand fast, controlled charging at up to 40A and where space is limited, provided the environment stays dry and wiring follows proper safety practice. If you require a waterproof marine-rated charger, choose a product designed specifically for boating environments instead of this model.
