Littelfuse Mini Diode Fuse 1A Micro2 – 4-Pack | Polarity Protection & Overcurrent

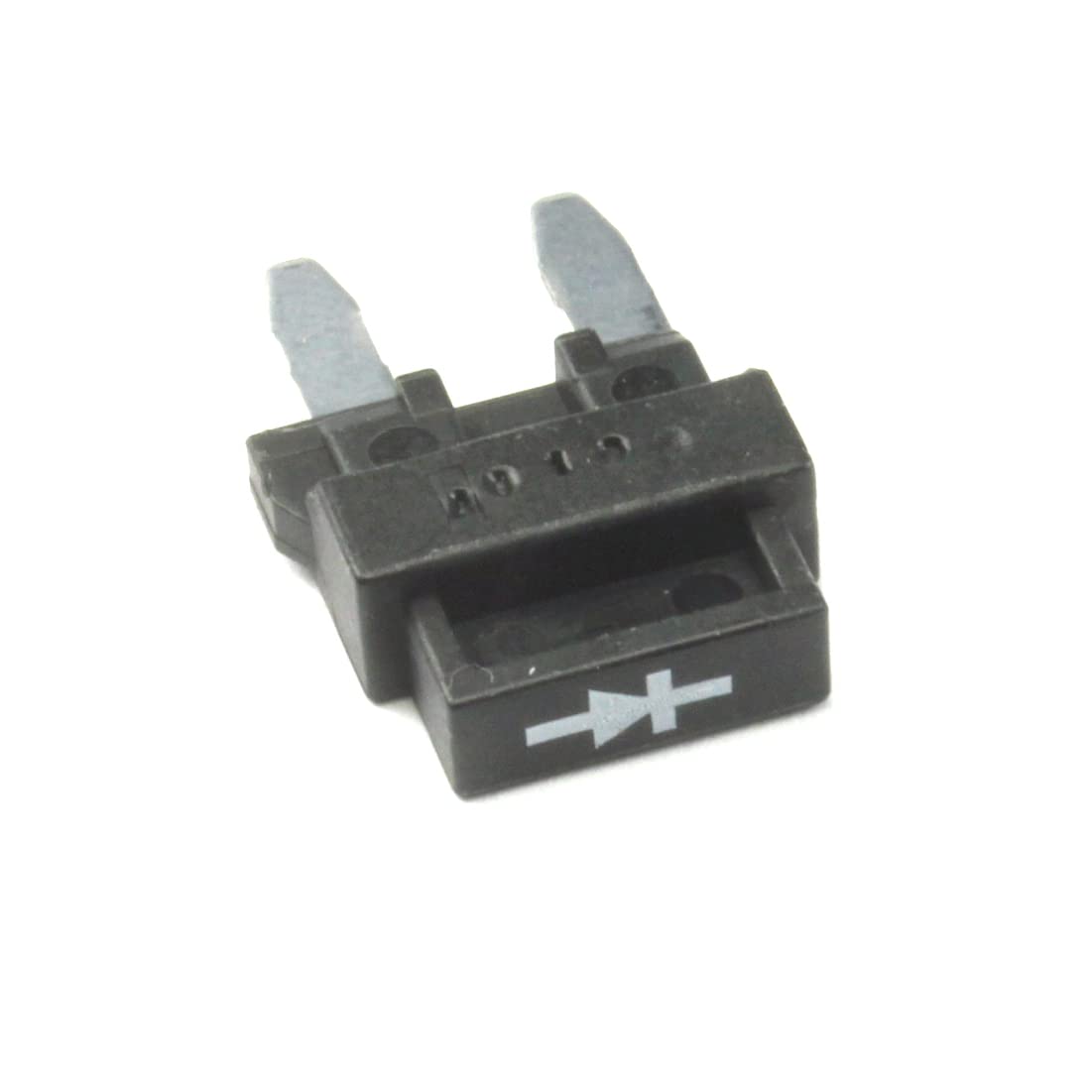

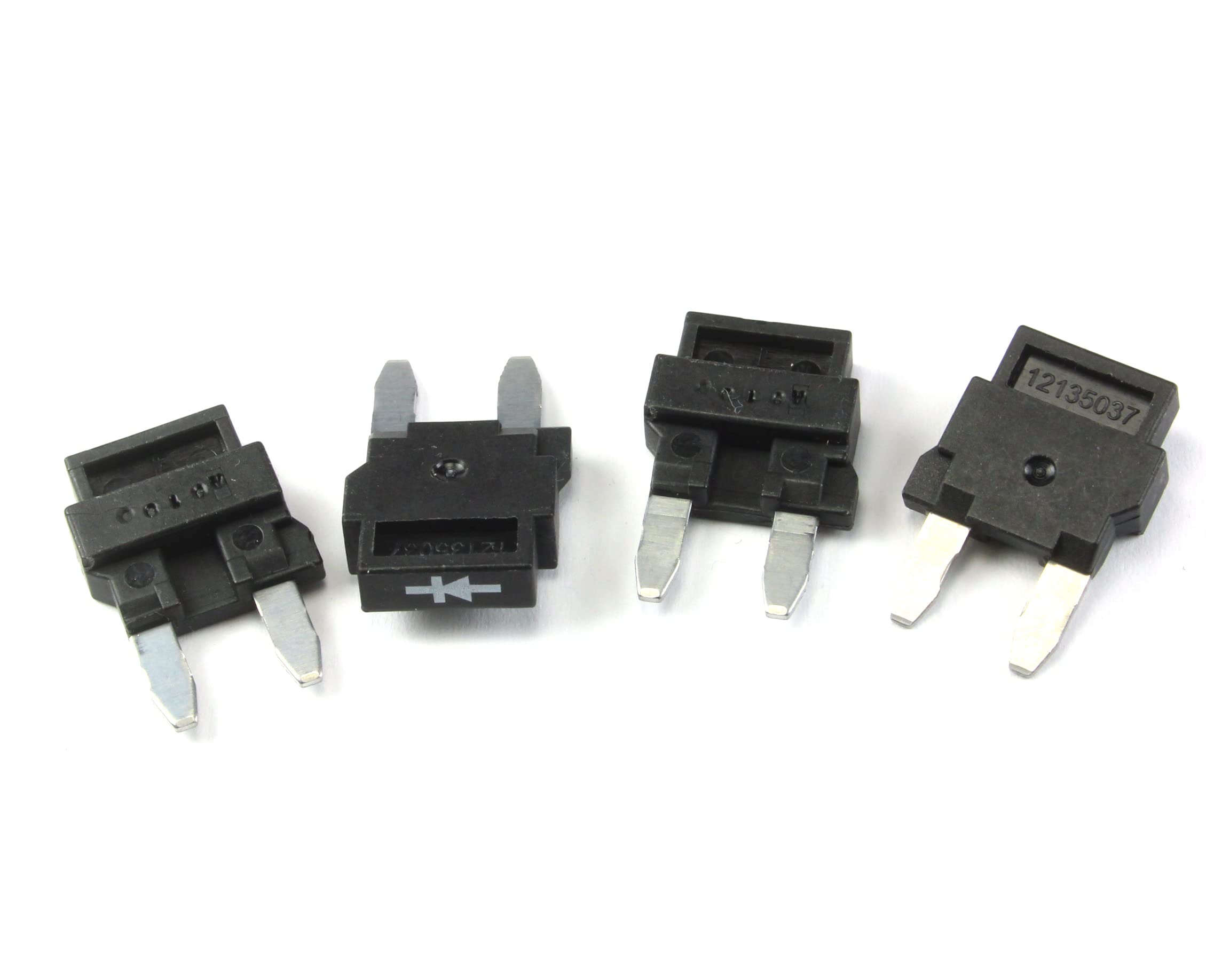

Littelfuse 02400104P is a pack of four 1-amp Mini Diode fuses designed to protect and direct low-current automotive circuits in standard mini (Micro2) fuse holders.

These Micro2-series diode fuses combine overcurrent protection and diode functionality in a compact automotive form factor. They are intended to fit most mini fuse holders used in modern vehicles and light-duty equipment, providing polarity-aware protection for low-amperage circuits such as sensors, control modules, or signal lines. The diodes inside allow current flow in one direction while the fuse element interrupts excessive current to prevent wiring or component damage.

How do these Mini Diode fuses differ from regular automotive fuses?

Unlike a standard blade fuse that only opens under overcurrent, a diode fuse integrates a semiconductor diode so the circuit accepts current in a single direction and blocks reverse flow. This dual function simplifies wiring and protects sensitive components from backfeed or incorrect polarity. The 1A rating targets low-current circuits where both polarity control and overcurrent protection are required.

• Combines diode and fuse in one compact Micro2 package.
• 1 amp current rating for low-power automotive circuits.
• Prevents reverse current or backfeed that can harm electronics.
• Fits in most standard mini fuse holders for easy replacement.

Will the Littelfuse 02400104P fit my vehicle’s fuse box?

The 02400104P uses the Micro2 (mini) blade footprint common in many vehicle fuse panels and aftermarket fuse holders. Check your vehicle’s manual or visually compare the existing fuse size to confirm compatibility. If your fuse holder accepts mini fuses, this diode fuse should seat and secure the same as a standard mini blade fuse.

• Micro2 (mini) blade size—compatible with most mini fuse slots.
• Direct drop-in replacement for panels designed for mini fuses.
• Easy to inspect and replace without special tools.

What applications are best for a 1A diode fuse?

A 1 amp diode fuse is well suited to protect low-current signal and control lines, such as sensor feeds, logic inputs, indicator circuits, and small module power lines. Use it where you need both polarity protection and a reliable overcurrent cutoff for delicate electronics. Avoid using it on power-hungry loads; select a higher-rated fuse for motors, pumps, or lighting circuits.

• Sensor and signal wiring protection in automotive systems.
• Small control modules and ECU input protection.
• Guarding against backfeed in shared-power or accessory circuits.

How should I install and inspect these diode fuses safely?

Always switch off power and consult the vehicle manual before replacing fuses. Remove the old fuse and visually inspect the holder for corrosion or damage; then insert the diode fuse observing orientation so the diode allows intended forward current flow. After installation, test the circuit function and verify no unintended reverse flow occurs.

• Power down the circuit before replacement to avoid shorts.
• Install observing diode orientation for correct polarity control.
• Check the fuse holder for corrosion or loose connections first.
• Test circuit operation once the new fuse is seated.

Who this is for: Technicians, DIY mechanics, and installers working on modern vehicles or light equipment that require compact, polarity-aware overcurrent protection will benefit from the Littelfuse 02400104P 1A Mini Diode 4-pack. It’s ideal when you need an easy, drop-in component that both prevents reverse current and blows under excess amperage, especially in sensitive signal or control circuits. For higher-current circuits choose the appropriate rating and always match the fuse type to your vehicle’s specifications.
