LockNFlate 90° Air Chuck Open Flow — Compact 6-jaw Schrader locking chuck, 1/4" NPT, 150 PSI

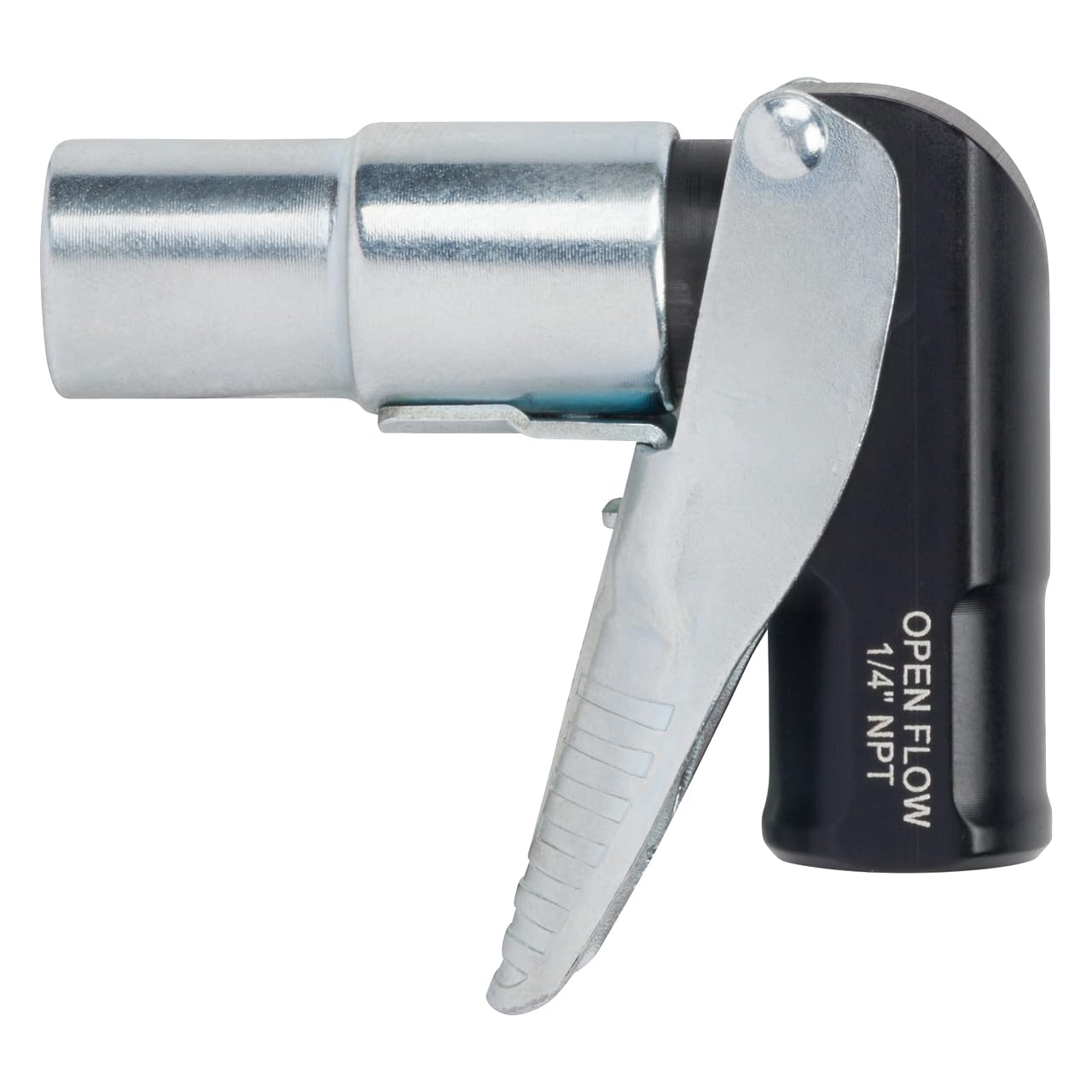

The LockNFlate® 90-Degree Air Chuck (Open Flow 90°) is a compact, six-jaw, right-angle chuck that locks onto Schrader valves for fast, hands-free inflation and fits standard 1/4" NPT airline fittings.

This precision-engineered air chuck combines a low-profile 90° angle with a six-steel-jaw locking collet and a spring-loaded TPU seal, delivering a durable, leak-resistant connection for tires and tubes with Schrader valves. Engineered for both shop and field use, the Open Flow model allows air to pass through continuously and works cleanly with hand- or foot-operated inflators as well as automatic systems. It’s built from hardened components to resist wear in demanding environments while remaining easy to attach and remove.

How does the 90° design help when valves are hard to reach?

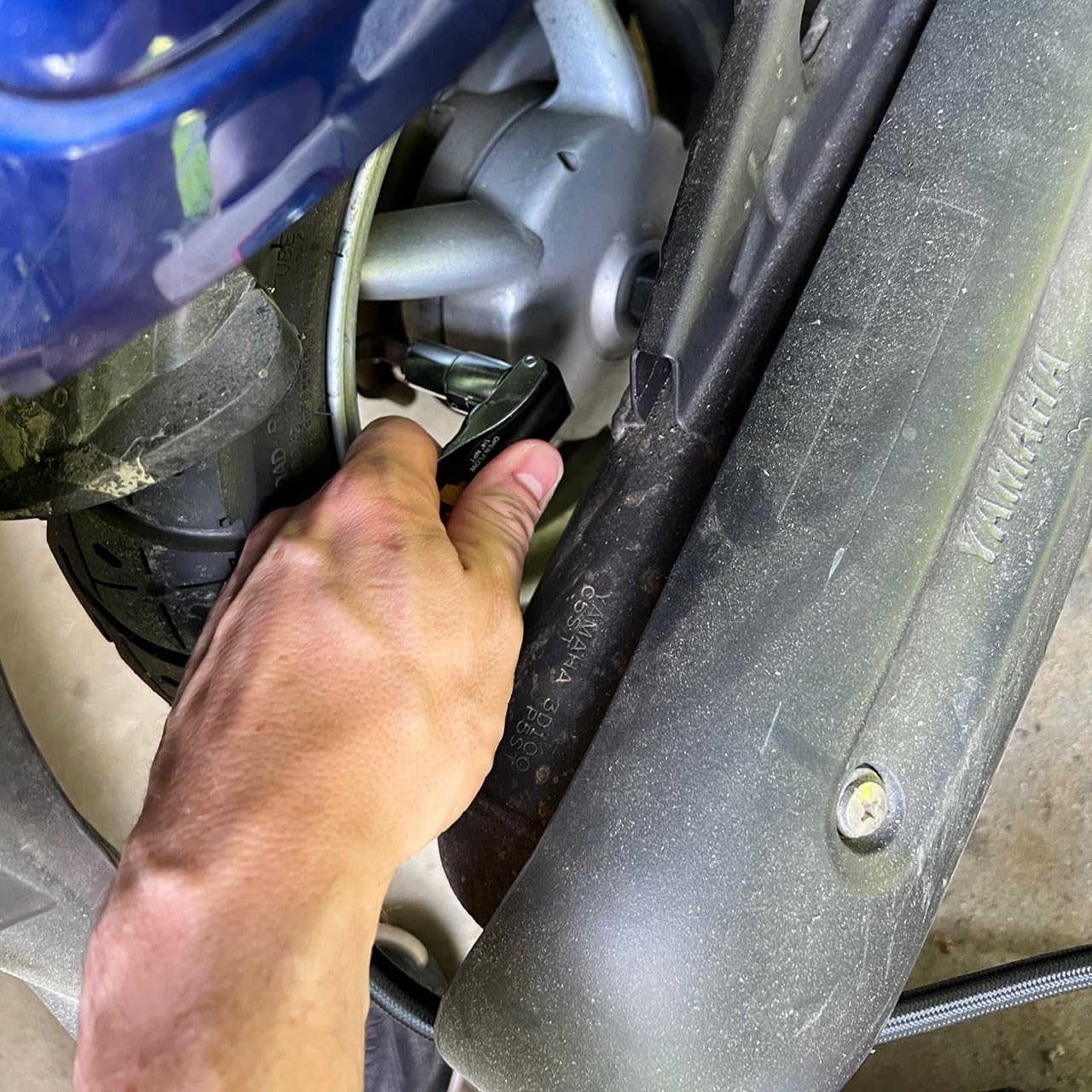

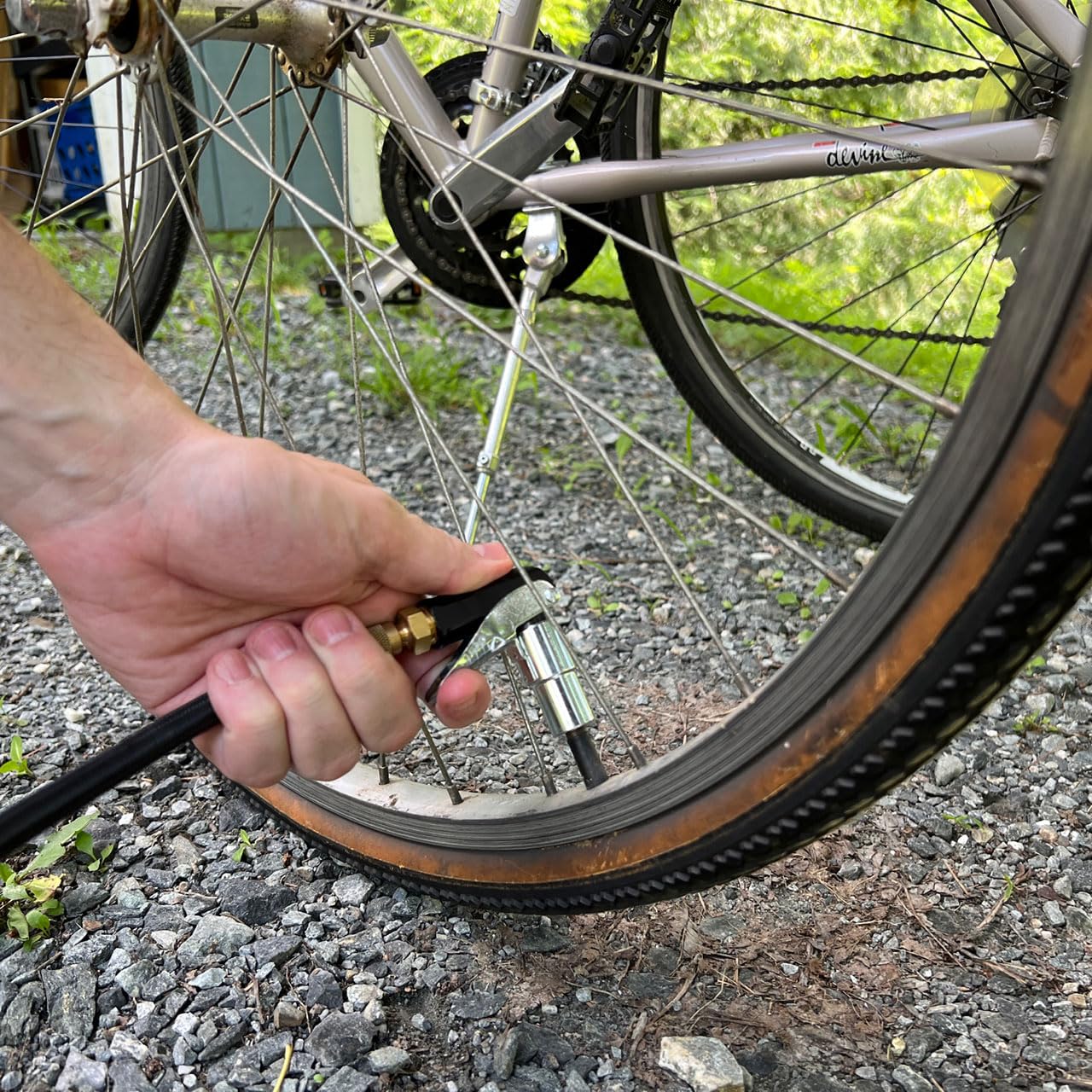

The right-angle profile keeps the airline out of the way and prevents kinks or stress on the valve stem when inflating wheels with tight clearances. It makes access to motorcycle, bicycle, ATV, and lawn equipment valves simpler without awkward wrist positions.

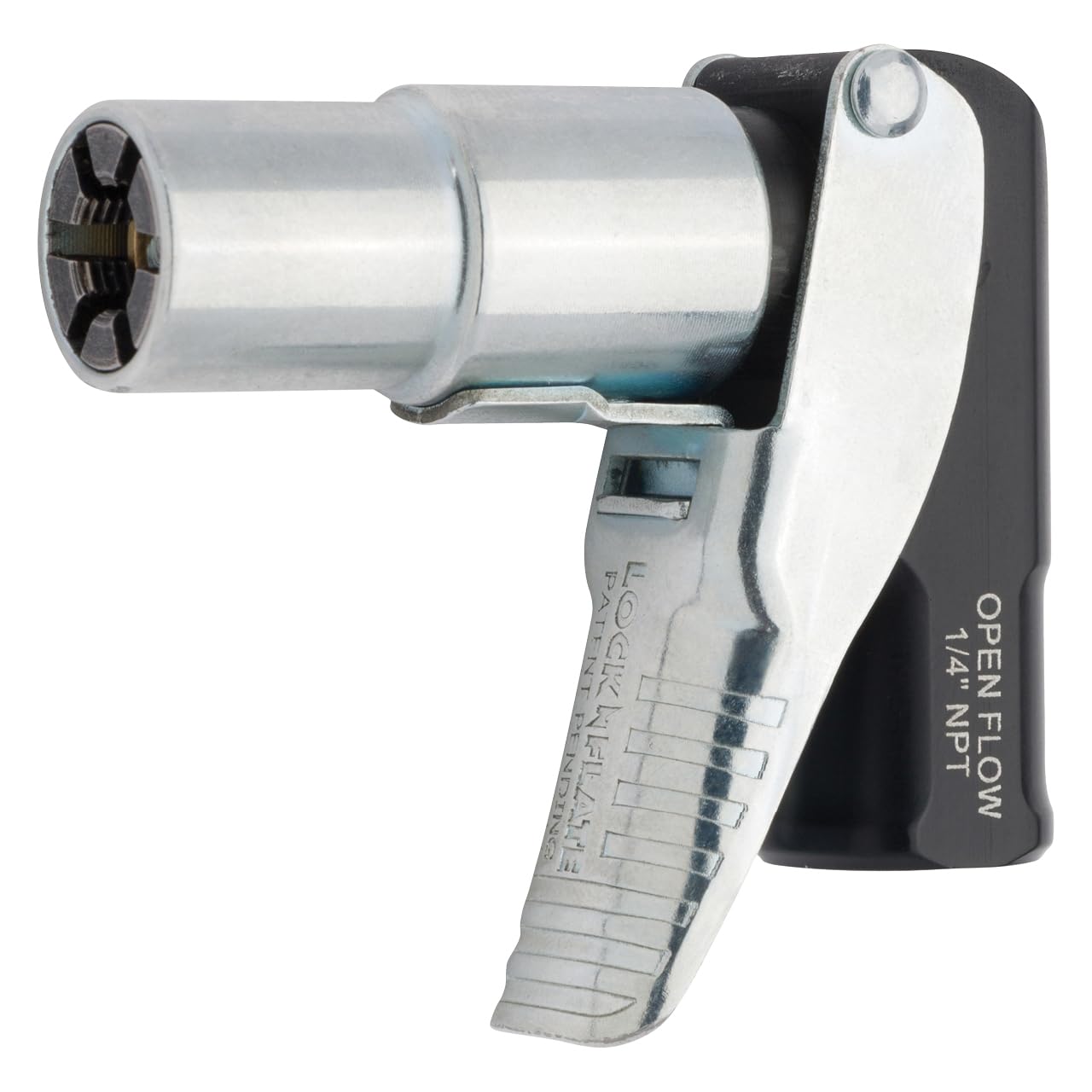

• Compact right-angle shape clears rims, exhausts, and frames
• Reduces hose bending and extends valve life
• Ideal for recessed or angled valve stems on motorcycles and vehicles

What ensures a secure, leak-free connection to Schrader valves?

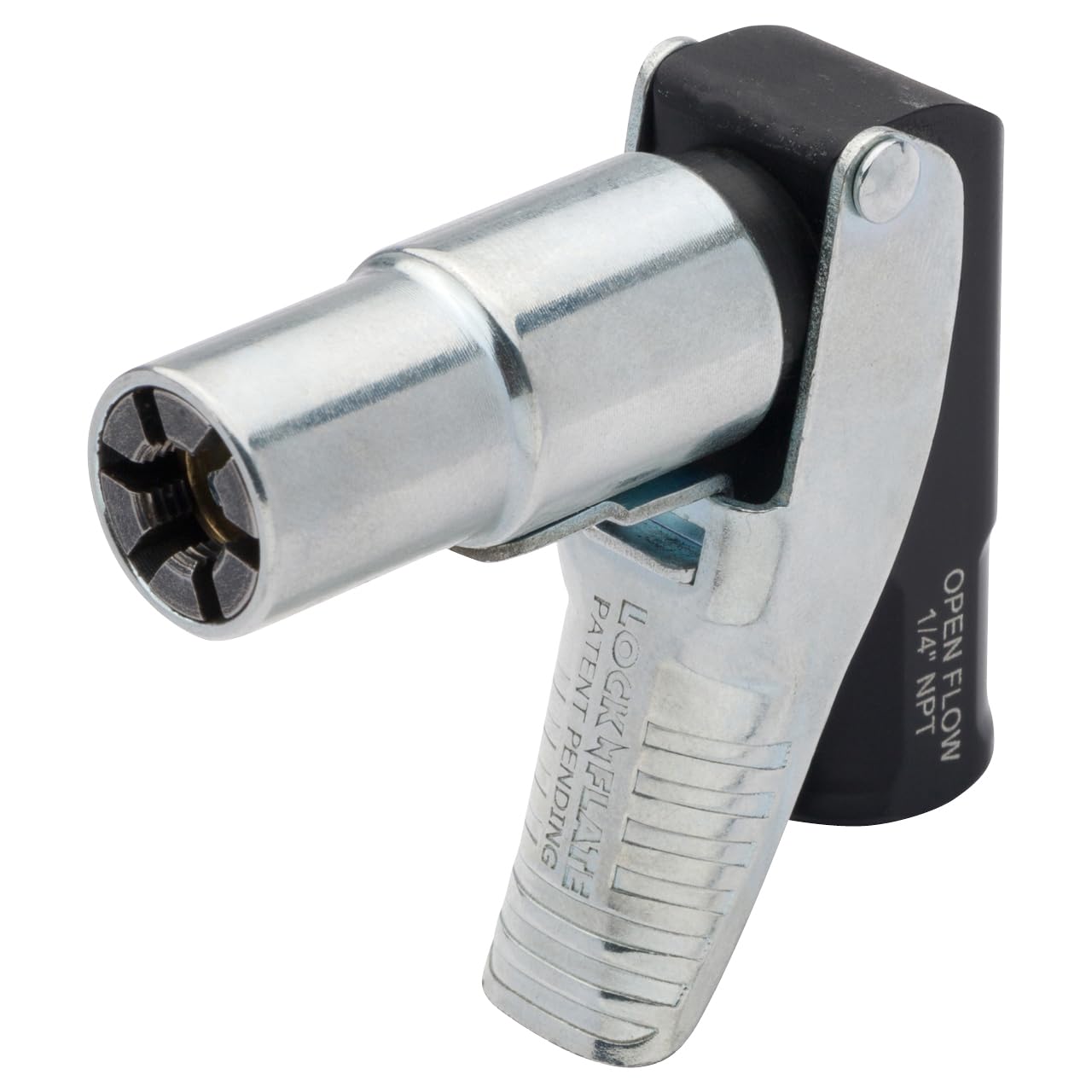

Six hardened steel jaws lock onto the valve for a firm, hands-free hold while the spring-loaded TPU seal mates to the valve tip to prevent air loss. The collet is designed for standard Schrader threads so connections remain tight even under pressure.

• SIX steel jaws provide mechanical lock for stable attachment
• Spring-loaded TPU seal compensates for valve core presence or removal
• Hardened collet fits standard VG8/8V1 Schrader threads for durability

Can I use this with my shop compressor or portable inflator?

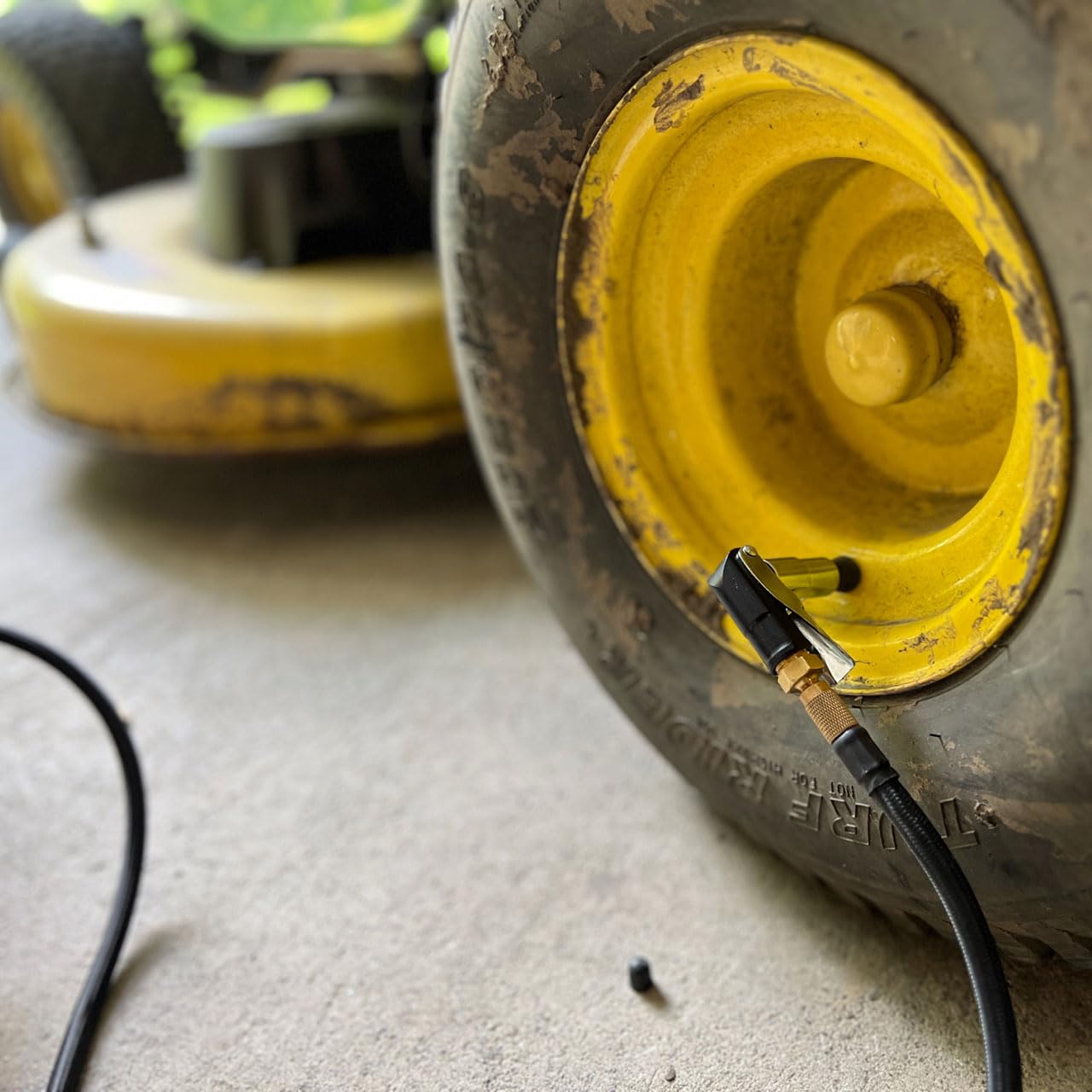

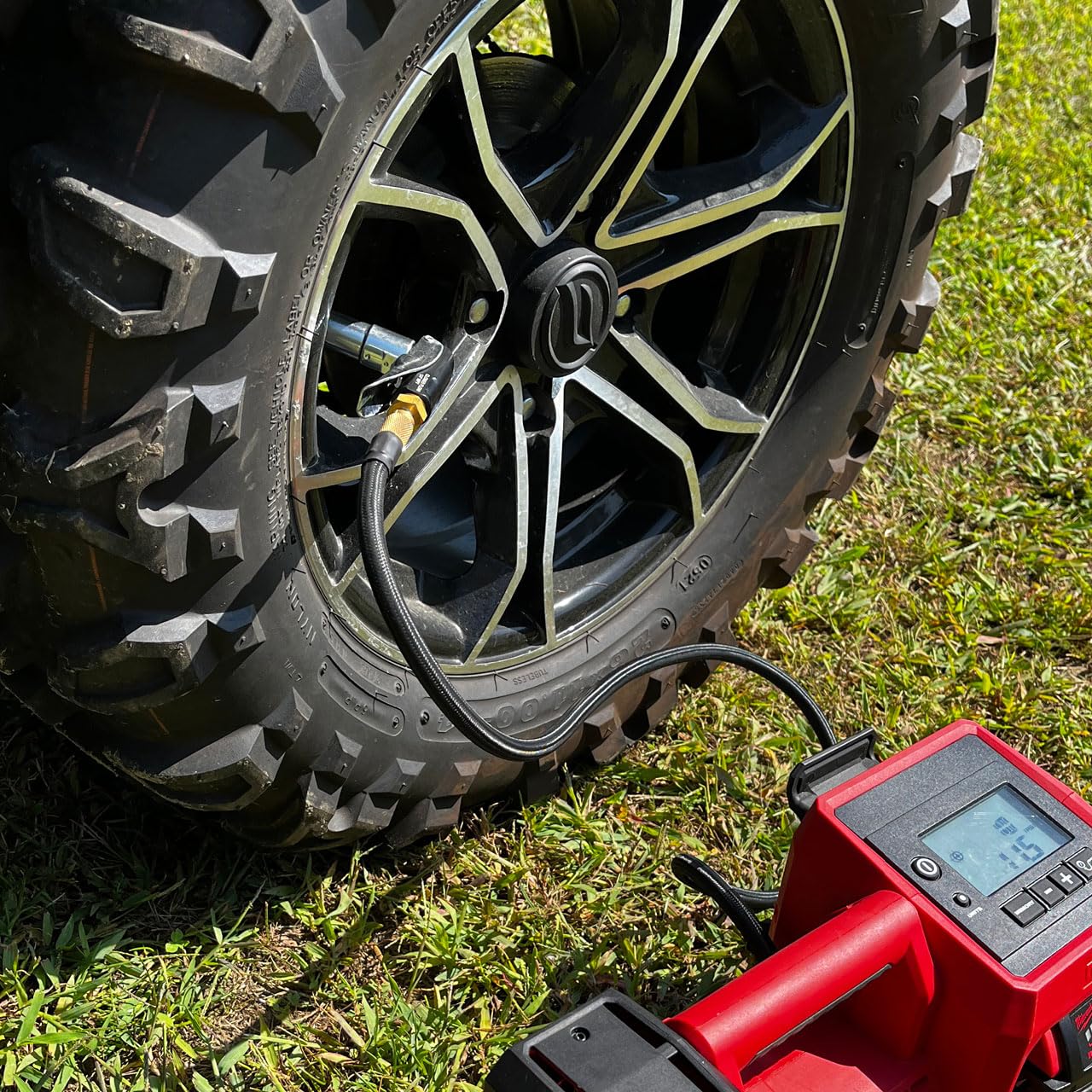

The Open Flow 90° chuck is rated to 150 PSI and uses a 1/4" NPT thread, making it compatible with most garage compressors, portable gauges, and inflators. Because air flows through continuously, it pairs well with manual foot pumps, hand triggers, and automatic tire inflation systems.

• Rated up to 150 PSI — suitable for many garage and industrial systems
• 1/4" NPT thread works with standard air hoses and fittings
• Open Flow design supports hand/foot control and automatic inflators

Why choose Open Flow versus Closed Flow versions?

Open Flow allows air to pass through the chuck even before it fully engages the valve, which is useful with external inflators and automated systems. Closed Flow requires the chuck to lock the valve before air will pass, making it better for direct compressor hookups where you want to avoid free-flowing air.

• Open Flow: continuous air passage; best for hand/foot controls and auto inflators
• Closed Flow: air only when engaged; ideal for direct compressor use
• Choose based on your inflation method and safety preferences

Who is this for: The LockNFlate® 90-Degree Air Chuck (Open Flow 90°) is built for mechanics, tire technicians, motorcycle riders, cyclists, ATV owners, and DIY enthusiasts who need a rugged, low-profile chuck that locks securely to Schrader valves. It’s especially useful in workshops and service bays where repeated, fast, hands-free inflation is required and for anyone who works with tight valve clearances or automatic inflators. If you require a dependable connection that resists wear and handles standard shop pressures, this Open Flow chuck is a practical addition to your air tool kit.
