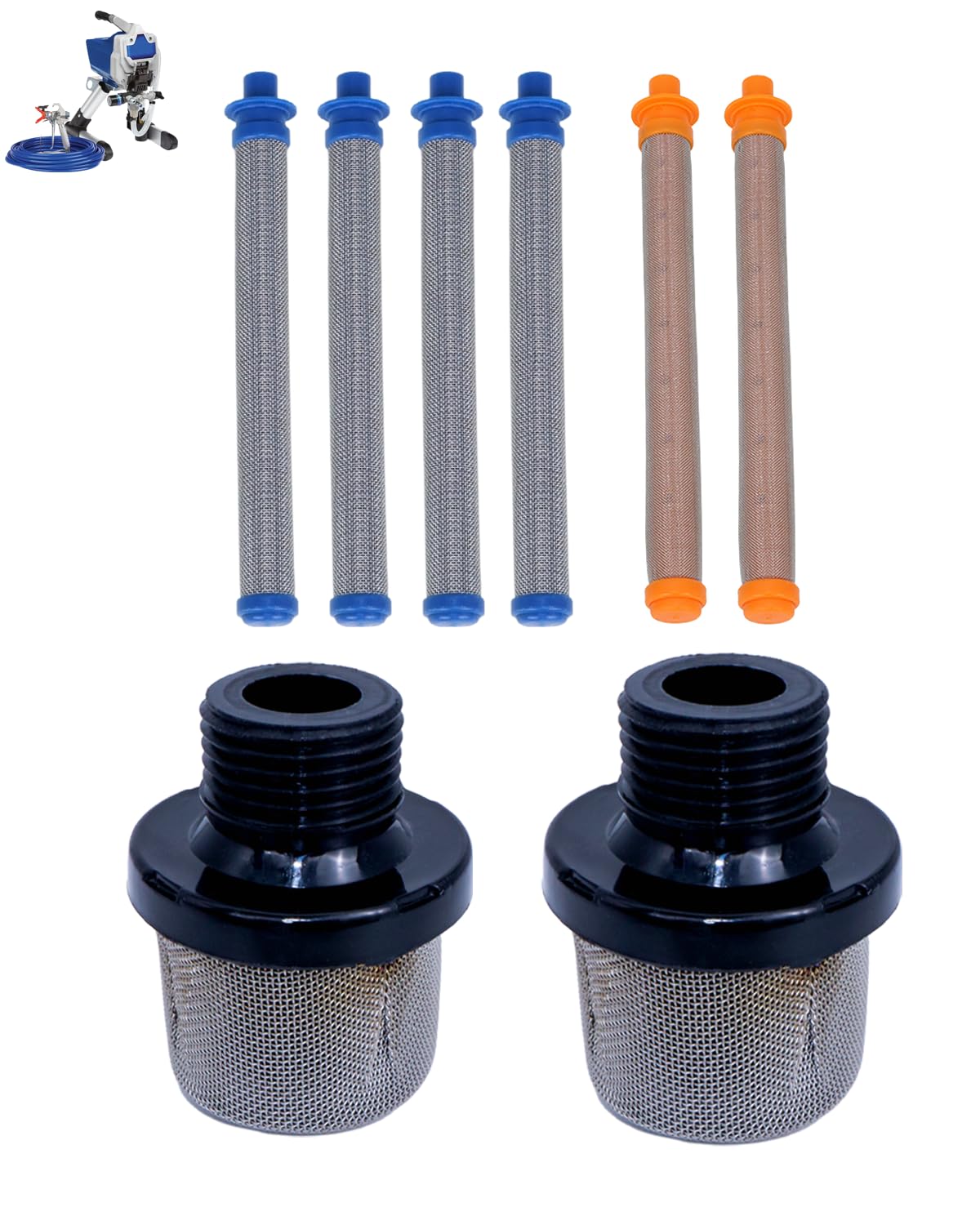

LUCKXUANYUAN Airless Spray Filter Set for Graco — 8‑pc (35/60/100 Mesh) Stainless‑Steel & Plastic

This LUCKXUANYUAN filter set gives a practical, ready-to-install solution for routine maintenance and on-the-job filter replacement. Built to match common Graco inlet and spray-gun geometries, the set blends stainless-steel and engineered plastic meshes to trap contaminants that cause tip clogs and pump wear. Whether you’re switching coatings or performing preventive care, these filters are intended to reduce downtime and extend component life.

How does this kit reduce spray tip clogs?

The kit separates incoming particles by location and mesh fineness so large debris is captured at the pump inlet while finer particulates are stopped at the gun. This two-stage approach prevents material from reaching the spray tip and helps maintain consistent fan patterns.

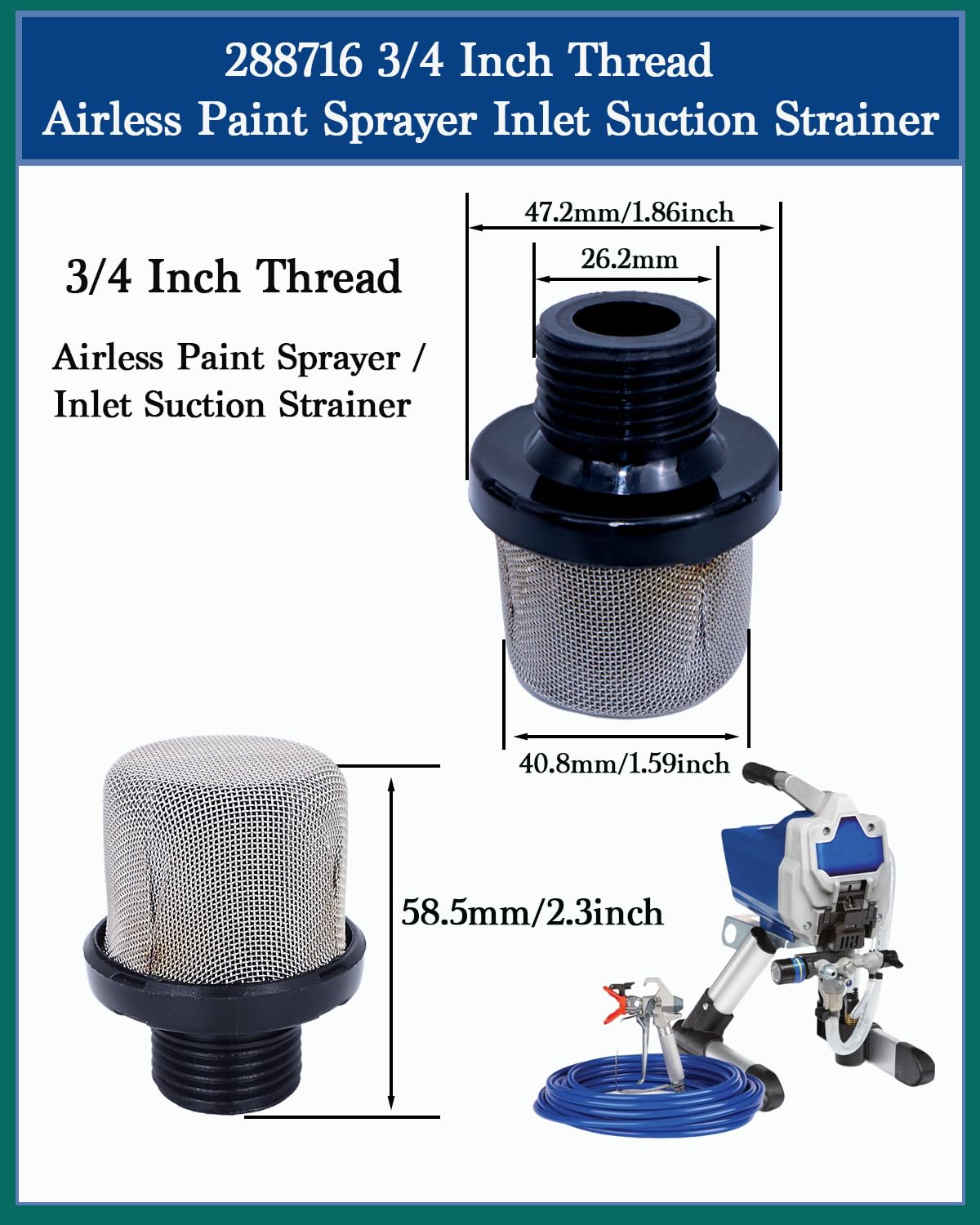

• 288716 inlet filters: 35-mesh stainless-steel screens capture larger contaminants before the pump.

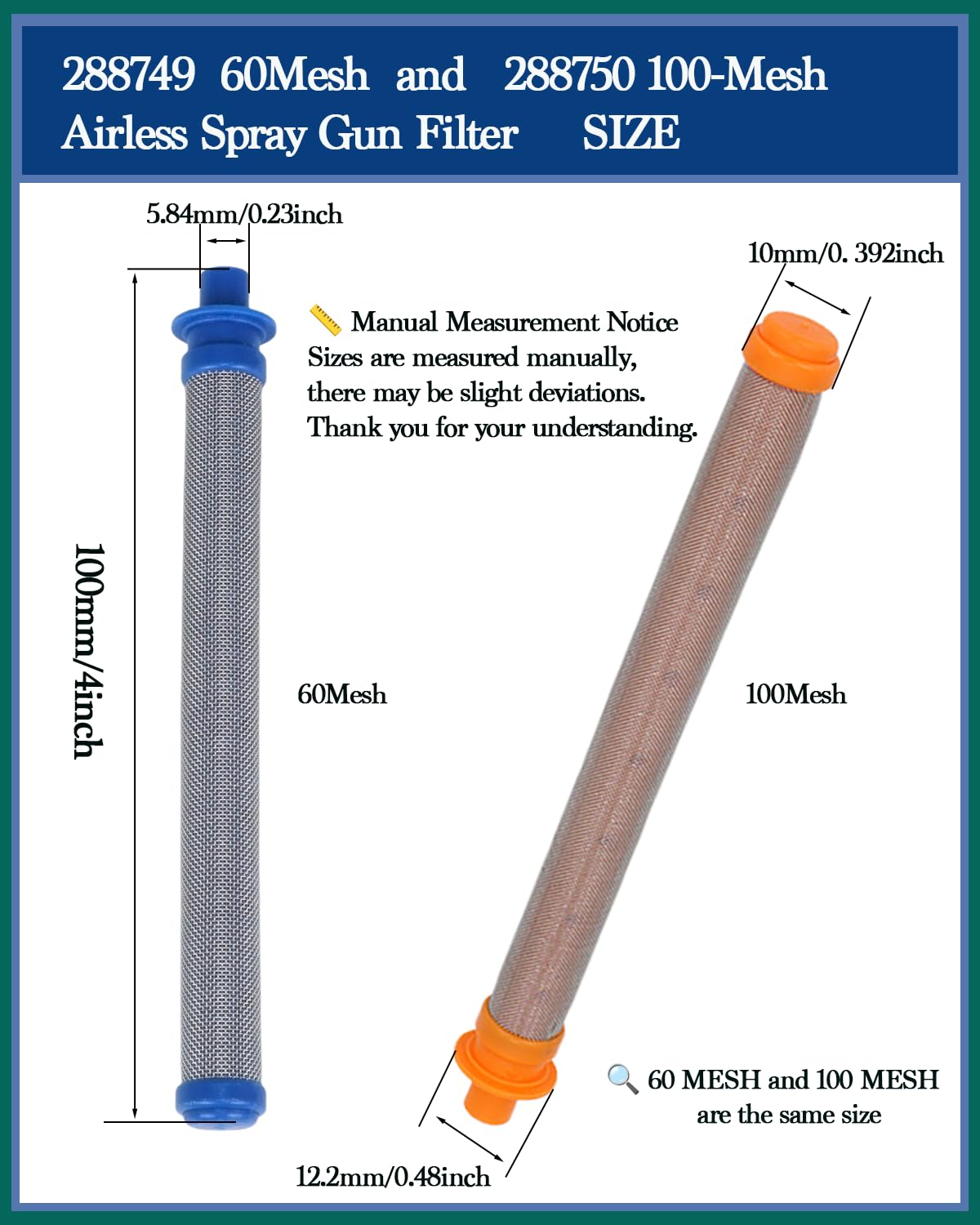

• 288749 gun filters: 60-mesh blue filters for medium-fine particles in general use.
• 288750 gun filters: 100-mesh orange filters for very fine straining with thinner coatings.
• Combined coverage: suitable across primers, basecoats and many topcoats to minimize clogs.

Which Graco models and spray guns are compatible?

Each part in this set is chosen to fit a wide range of Graco units and guns commonly used by contractors and DIYers. The inlet strainers and gun filters are specified to mate with several Magnum, ProX and SG-series models.

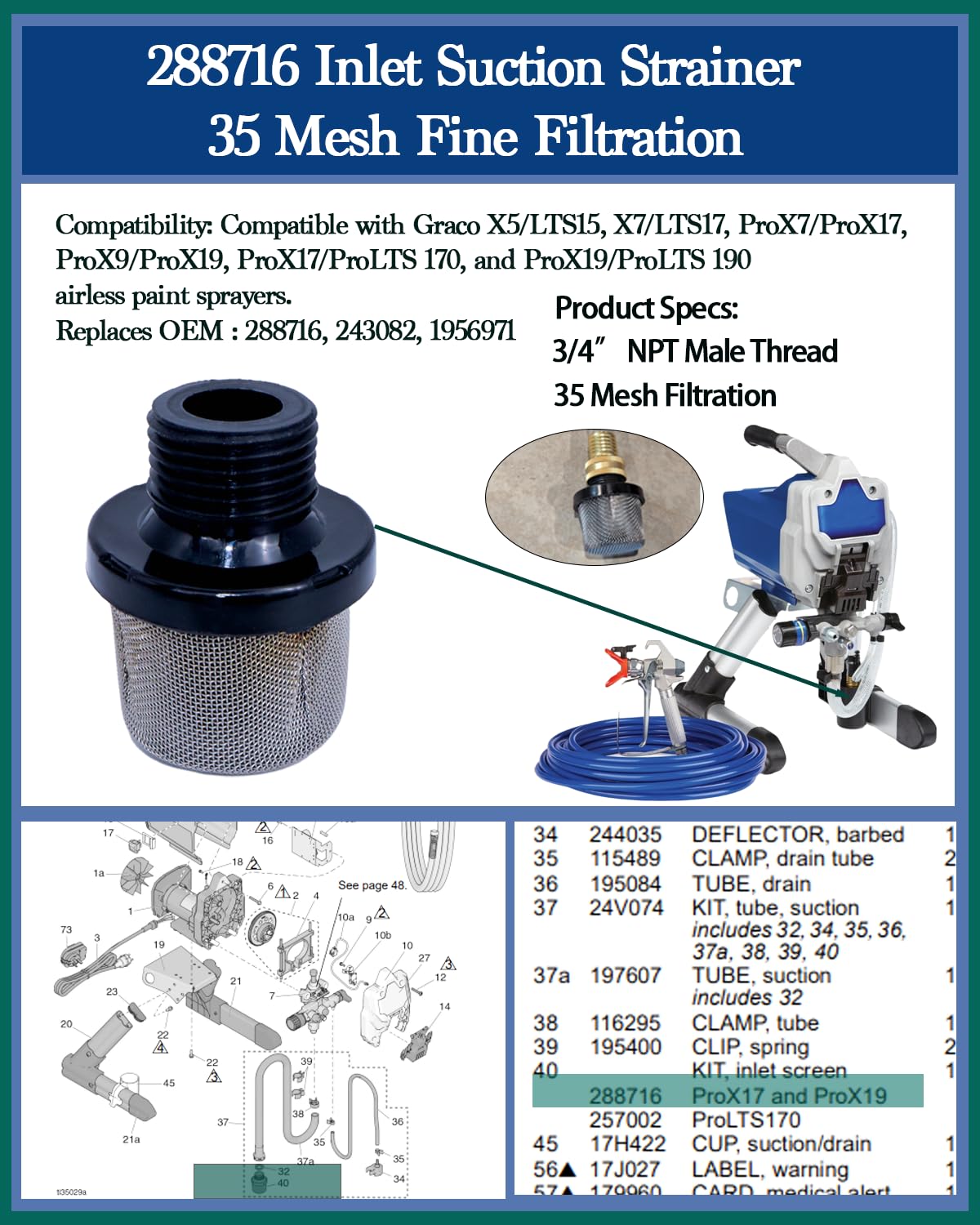

• 288716 inlet: fits Graco Magnum X5/LTS15, X7/LTS17, ProX7/ProX17, ProX9/ProX19, ProLTS170/190.

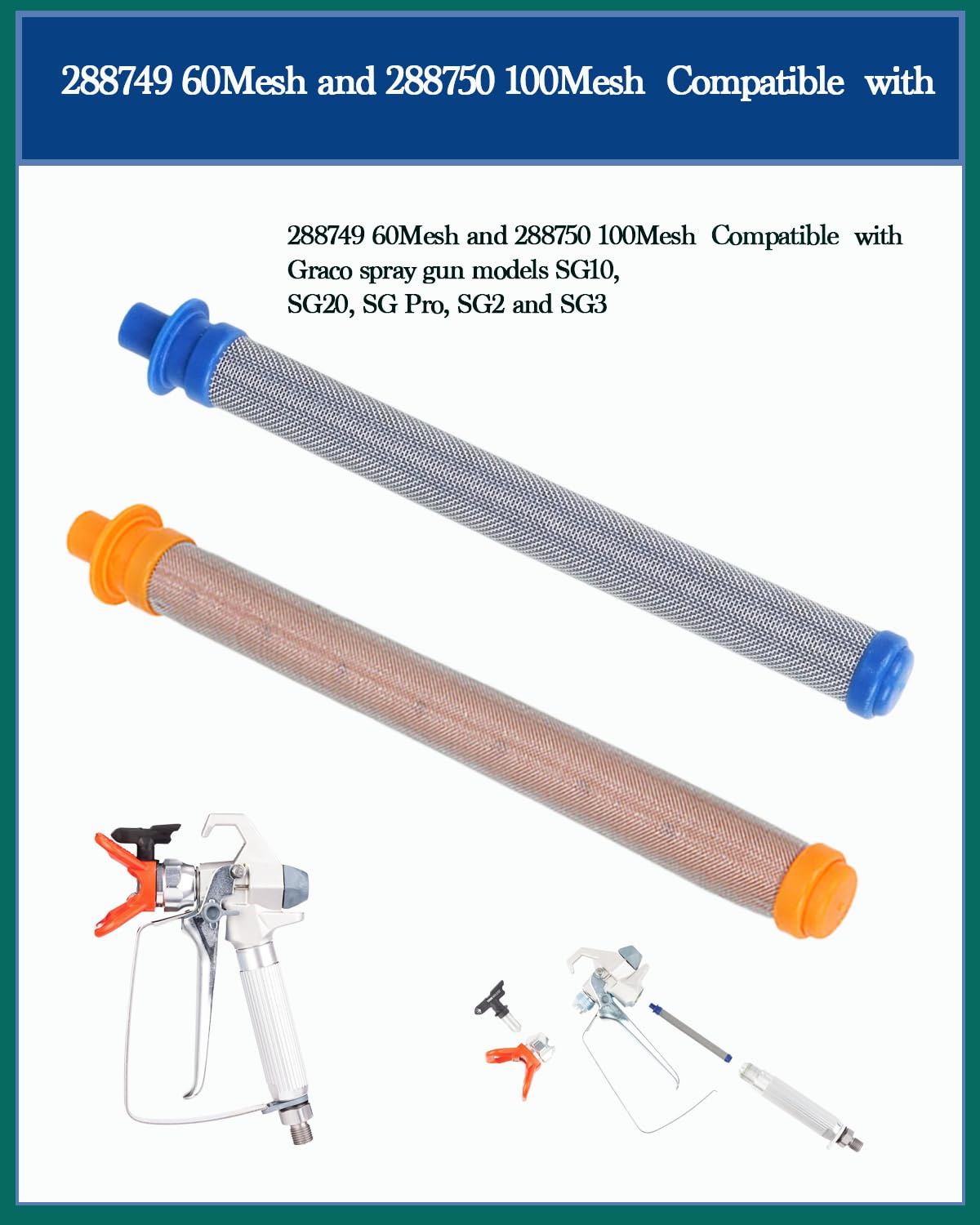

• 288749 & 288750 gun filters: suitable for SG2, SG3, SG Pro, SG10 and SG20 spray guns.
• 3/4" male thread on the inlet fits standard Graco inlet ports for simple installation.
• Third-party replacement — designed for direct fit where OEM part numbers match.

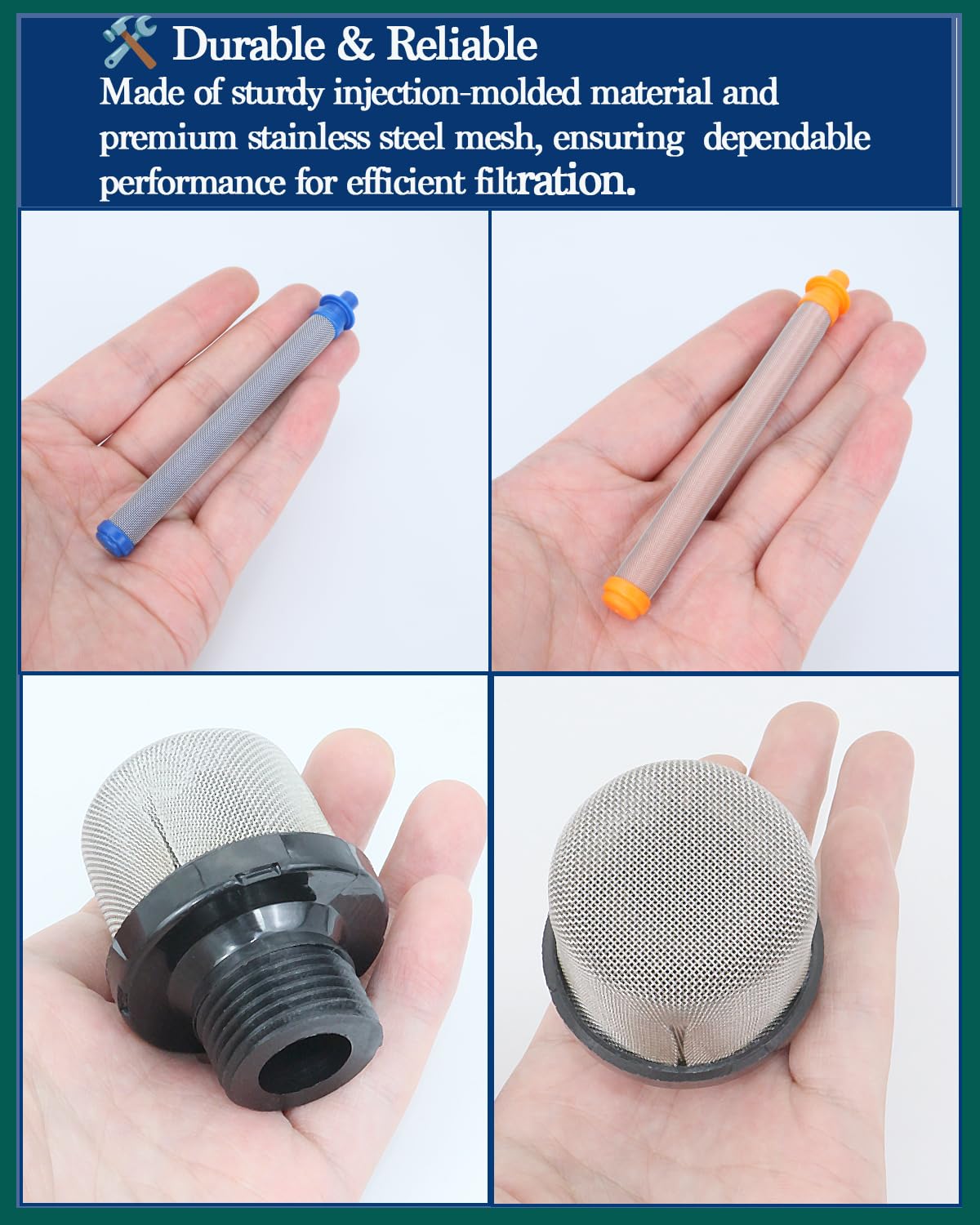

What materials and construction ensure durability?

These filters combine corrosion-resistant stainless steel and engineered plastics to withstand jobsite exposure and solvent contact. Precision molding and fine meshes provide consistent filtration without compromising flow.

• 288716: stainless-steel mesh for strength and chemical resistance at the pump inlet.
• 288749/288750: durable plastic housing with fine woven meshes for reliable gun-side filtration.
• Robust threads and snug tolerances for leak-free seating and long service life.
• Each piece is tested by LUCKXUANYUAN to validate durability and fit before shipping.

How should I choose between the 60-mesh and 100-mesh gun filters?

Choose mesh size based on the viscosity and finish requirements of your coating. Use the coarser 60-mesh when spraying heavier materials and the finer 100-mesh for thin coatings where finer straining preserves finish quality.

• 60-mesh (blue): best for thicker paints, primers and general-purpose spraying.
• 100-mesh (orange): ideal for thinner or critical-finish coatings to avoid micro-debris.
• Swap filters when changing coating types to reduce contamination risk and maintain consistent flow.
• Keep spare filters on hand to replace clogged screens quickly between jobs.

Who this is for: The LUCKXUANYUAN 8-piece Airless Spray Filter Set is designed for professional painters, contractors and serious DIYers who service Graco Magnum, ProX and SG-series machines. If you perform routine maintenance, switch coatings often, or want to reduce spray interruptions and pump wear, this kit offers a complete set of inlet and gun-side filters to keep equipment running smoothly.
