Luney 100 Micron Inline Fuel Filter Kit — Aluminium Body, 6/8/10AN Adapters & 50mm Bracket

Luney's 100 micron inline fuel filter is a universal, aluminum-bodied fuel screen kit that removes particles 100 microns and larger while offering multiple AN adapter sizes and a 50 mm mounting bracket for easy installation. This compact kit bundles a robust inline filter element and hardware so you can adapt the connection to a wide range of fuel systems. Built with a forged aluminum housing and a stainless-steel filter media, the assembly is designed to resist corrosion and withstand routine vibration. The kit includes three AN adapter sizes, extra O-rings and a mounting clip so mechanics and DIYers can fit the filter quickly without sourcing additional parts.

How does this filter protect my fuel system?

The 100 micron stainless-steel mesh captures larger particles that can clog injectors, pumps and carburetors while allowing normal fuel flow. Its pleated screen increases filtration area so it traps debris without causing undue pressure drop. The solid aluminum end caps and forged body keep the element seated and prevent leaks under vibration.

• Stainless-steel 100 μm mesh captures grit and rust before sensitive components.
• Pleated screen design expands filtering surface for improved debris capacity.
• Forged aluminum housing resists corrosion and mechanical wear.
• Sealed O-rings reduce seepage and limit noise from loose fittings.

Which connections are included and how do I choose the right one?

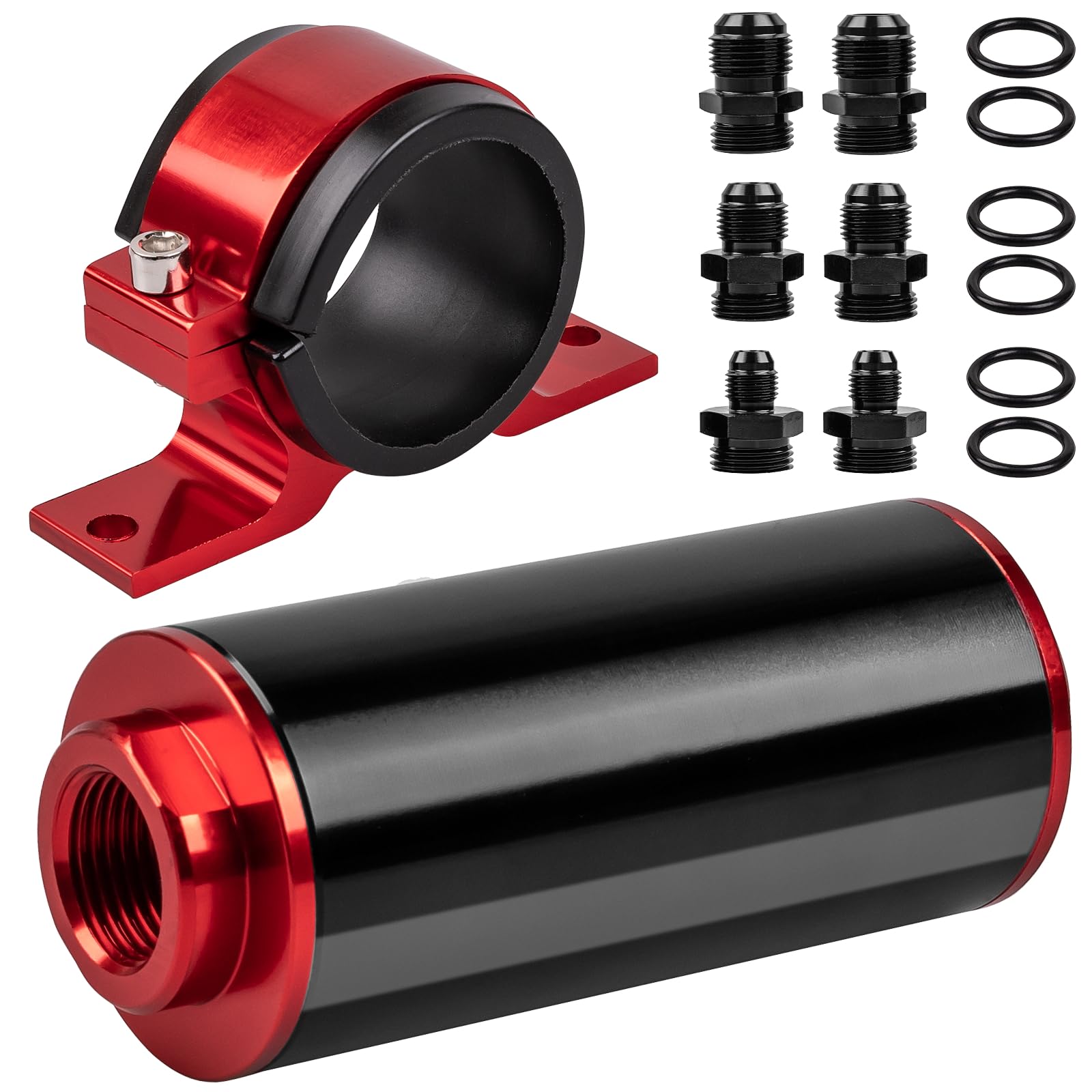

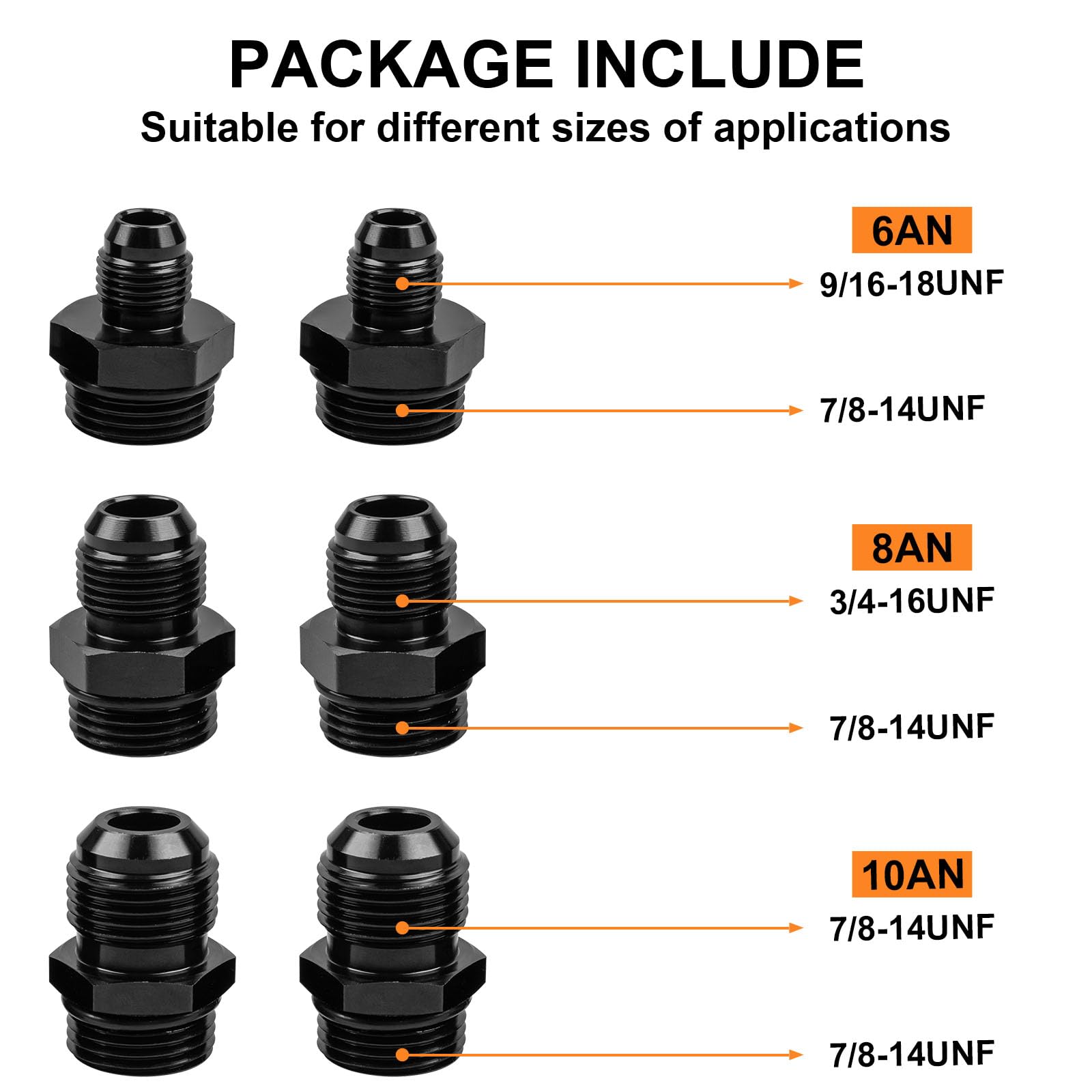

The kit supplies two adapters each for 6AN, 8AN and 10AN fittings so you can match common hose or hard-line sizes. Select the adapter that matches your hose end or AN fitting thread, then use the provided O-rings to ensure a sealed mating at both ends. If you need to change sizes later, the included extras make swapping fast without new purchases.

• Two adapters for each 6AN, 8AN, 10AN size to fit different systems.
• Six O-rings included for secure, leak-resistant connections.
• Adapters thread into standard inlet/outlet ports for easy swaps.
• Works with fuel lines that accept AN-style fittings or hose ends.

What materials and construction features improve durability?

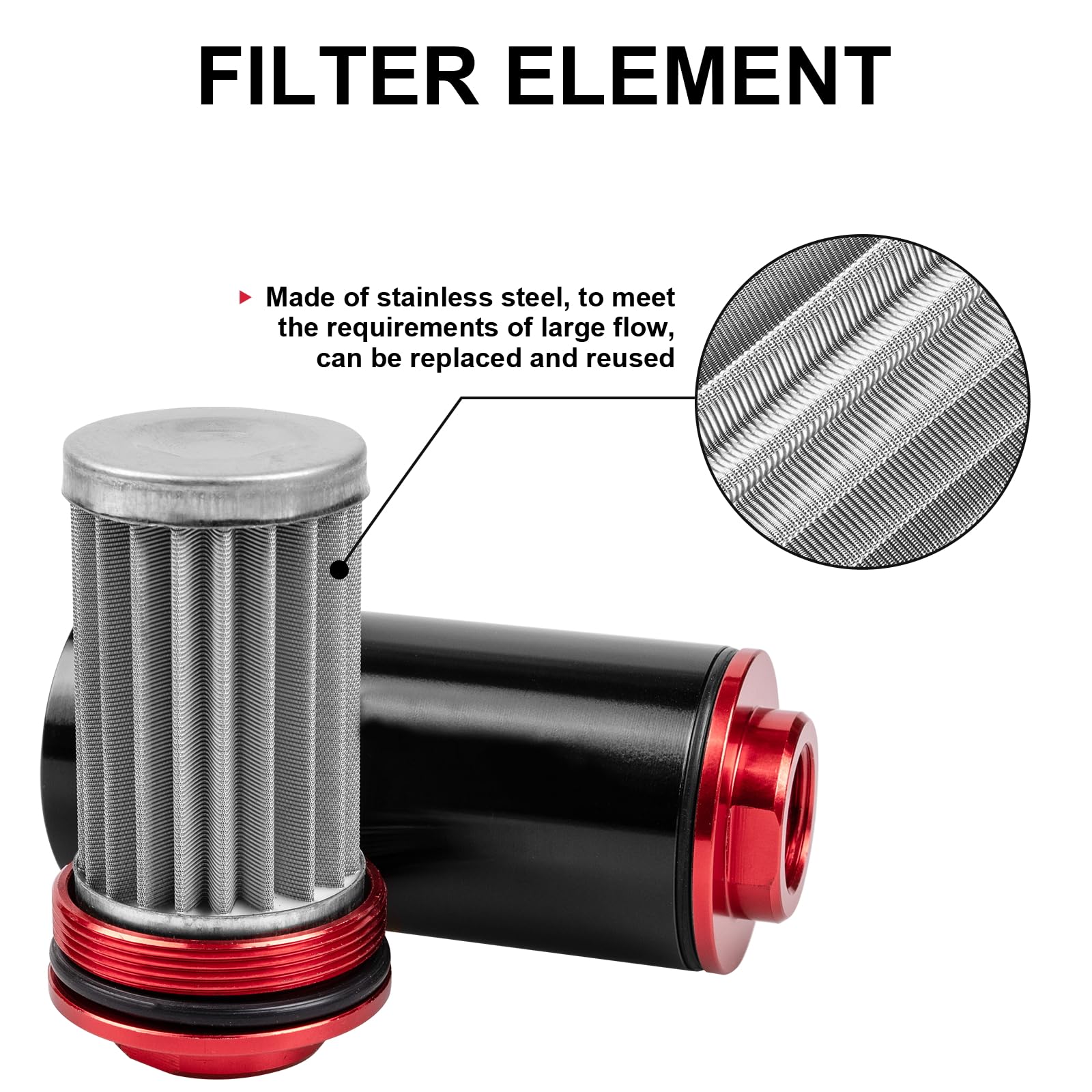

The body is CNC-forged aluminum that keeps weight low while improving strength and corrosion resistance compared with cast components. Inside, the stainless-steel filter element resists rust and solvents commonly found in gasoline and diesel. The end caps and fold-pleat filter construction increase service life and maintain filtration efficiency under repeated use.

• Forged aluminum housing resists impact and corrosion over time.
• Stainless-steel mesh resists fuel corrosion and maintains pore structure.
• Folded/pleated screen increases surface area for longer life.
• O-rings and robust fittings reduce vibration-related loosening and noise.

How simple is installation and maintenance?

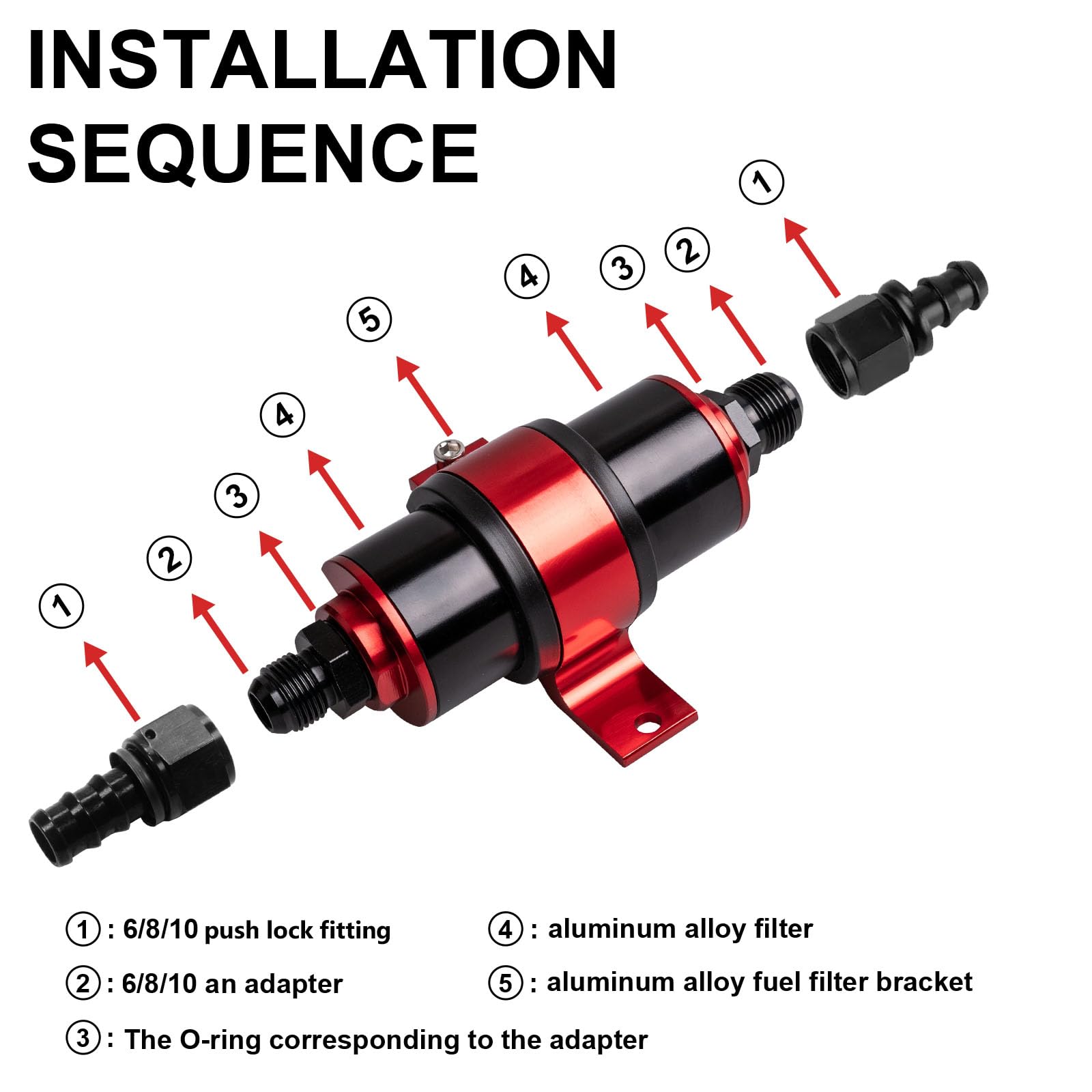

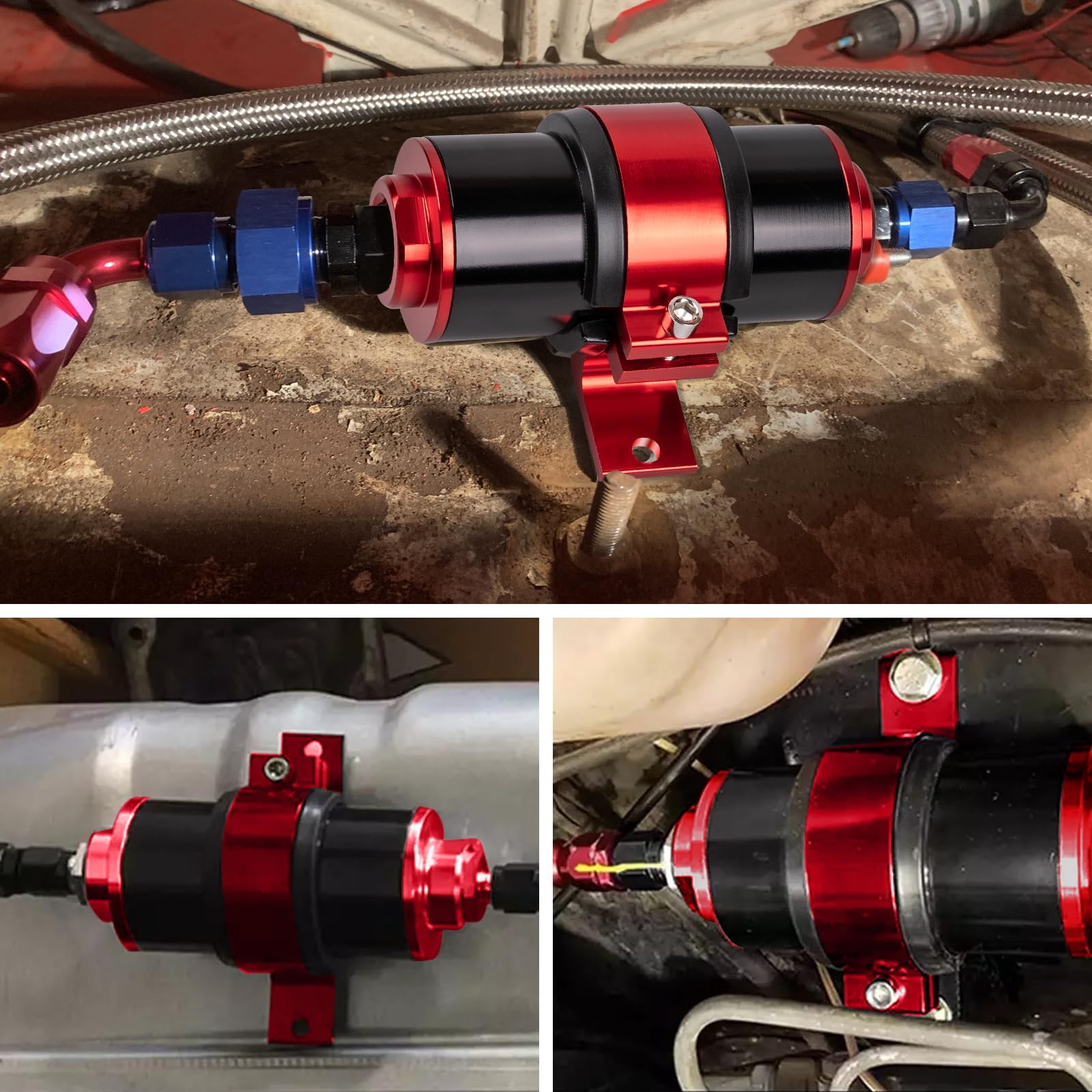

Installation is straightforward for anyone familiar with fuel-line work: pick the matching AN adapter, fit O-rings, and secure the filter with the included 50 mm mounting bracket. Routine inspection is recommended—remove and clean or replace the element if heavy contamination is visible. The extra adapters and O-rings make field repairs or swaps quick without a trip to the parts store.

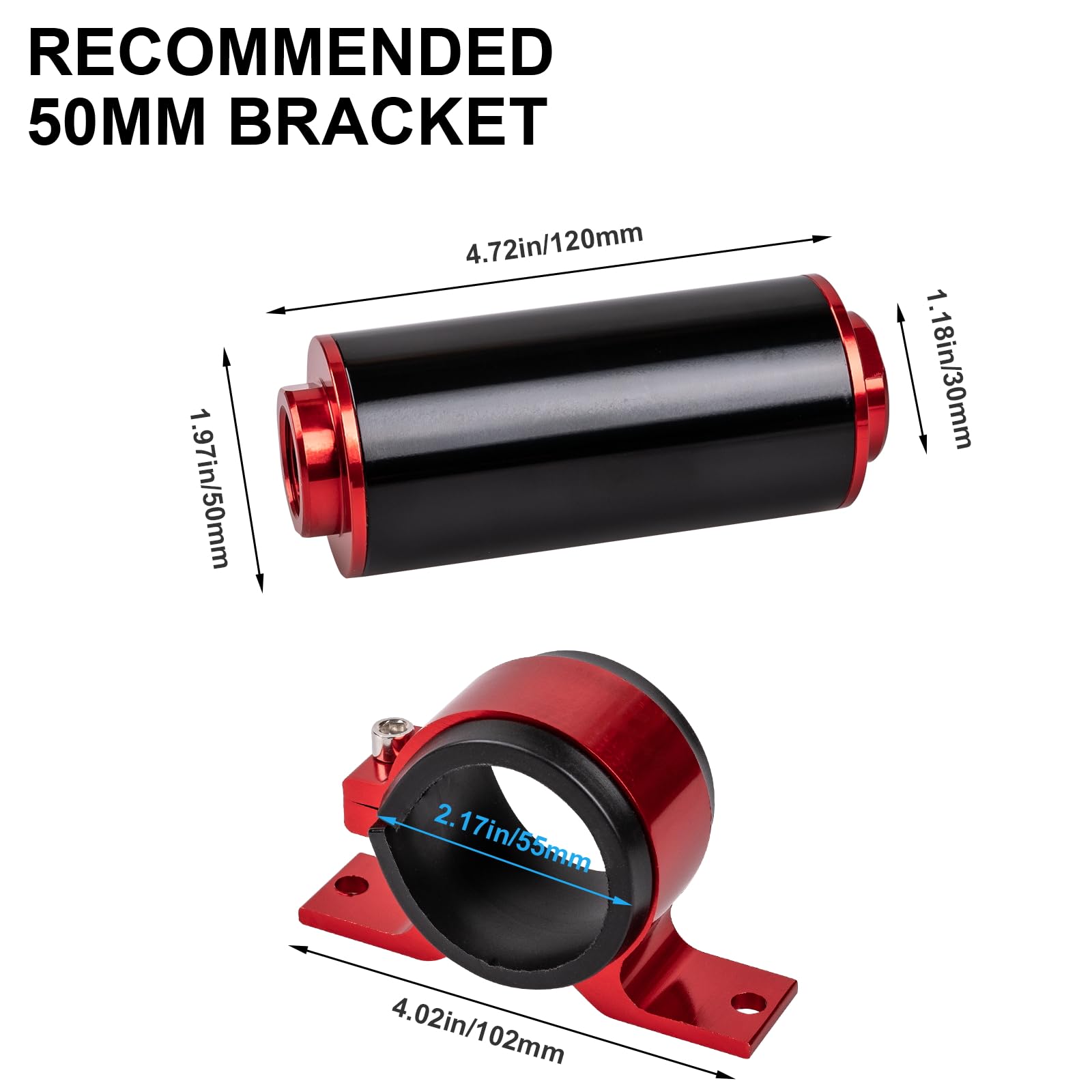

• Includes 50 mm mounting bracket for secure chassis or rail mounting.
• Swapable adapters mean minimal plumbing changes during installs.
• Extra O-rings provided for resealing after maintenance.
• Designed for hand tools and basic mechanical skills—no specialty tooling required.

Who is this for? This Luney filter kit suits hobbyists, race teams, marine owners and light-commercial mechanics who need a versatile inline filter that adapts to multiple AN sizes. It’s ideal when you want a corrosion-resistant, reusable stainless mesh screen with hardware to mount and seal the unit quickly. Choose this kit when you need a practical, serviceable filter solution for gasoline or diesel systems that traps larger contaminants while preserving fuel flow.

FAQ

Q: Can this filter be used with gasoline and diesel?

A: Yes. The stainless-steel mesh and aluminum housing are compatible with both gasoline and diesel fuels.

Q: How often should the filter element be checked or replaced?

A: Inspect during routine service; replace or clean when heavy debris is visible or if flow is reduced.
