LUTIFIX OBD2 Breakout Box 16‑Pin CAN — Voltage Display, LED Indicators & Jumper Leads for Safe Diagnostics

The LUTIFIX OBD2 Breakout Box is a 16-pin diagnostic adapter that reveals power, ground and communication lines with a built-in voltage display, LED status indicators and jumper cables for safe, accurate OBDII testing.

When troubleshooting vehicles, visibility into the OBDII port wiring and signals is essential. This LUTIFIX breakout box gives technicians and advanced DIYers a transparent connection between a car’s 16-pin socket and external tools like scanners, multimeters or oscilloscopes. It combines real-time voltage readout, multi-color LEDs and four jumper leads to simplify fault finding across CAN, K-line and other common OBDII protocols.

How does the LUTIFIX breakout box help identify power and ground problems?

The device exposes the port’s power and ground pins and displays their states instantly so you can spot supply drops, intermittent grounds or short conditions. Three colored LEDs provide at-a-glance verification while the numeric voltage display gives an exact measurement for troubleshooting.

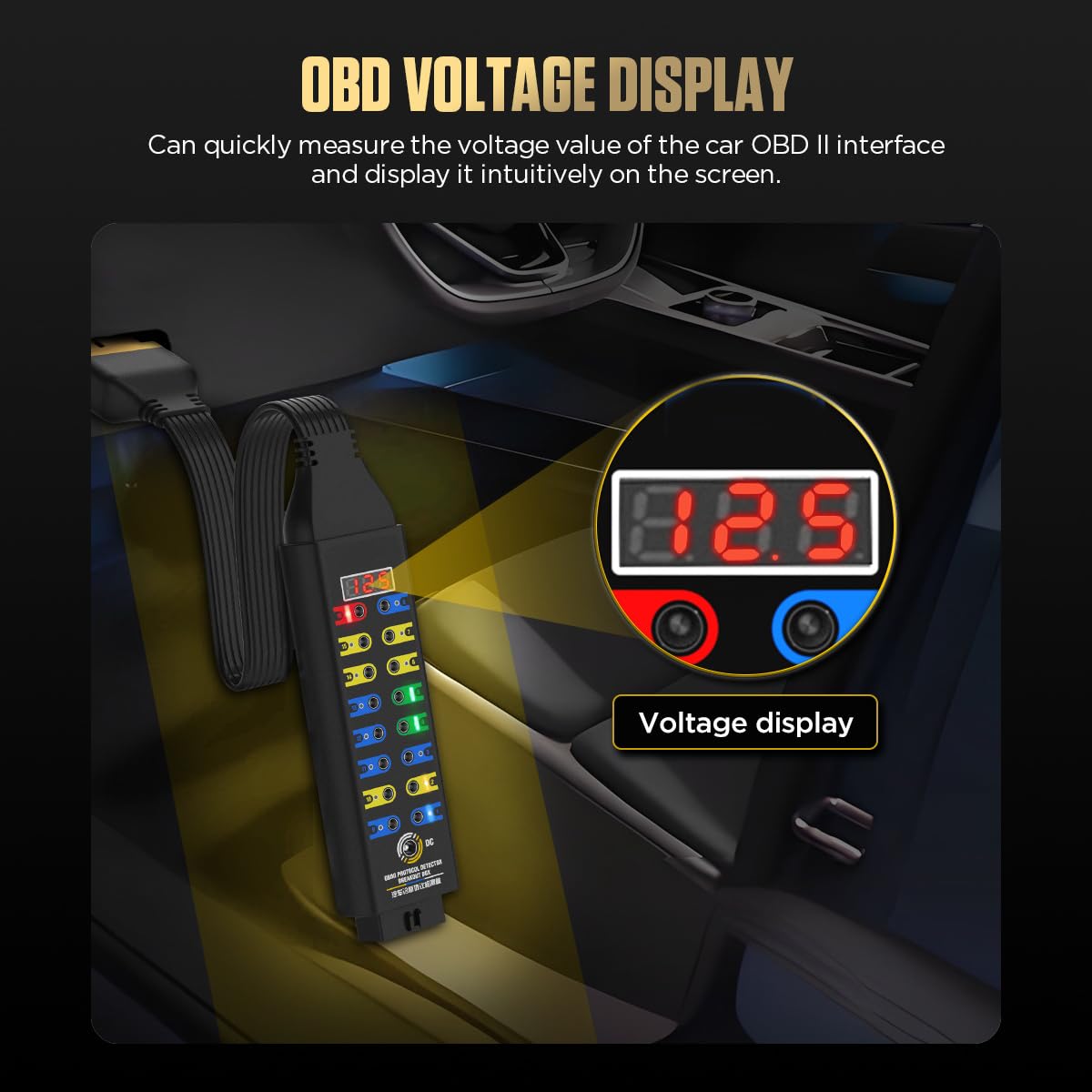

• Built-in voltage display shows battery and system voltage in real time

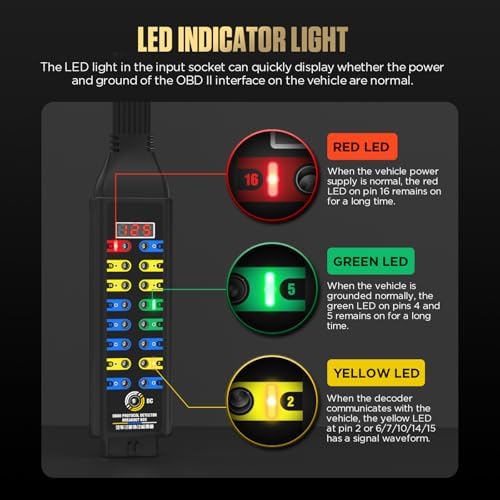

• Three-color LED indicators for power, ground and communication status

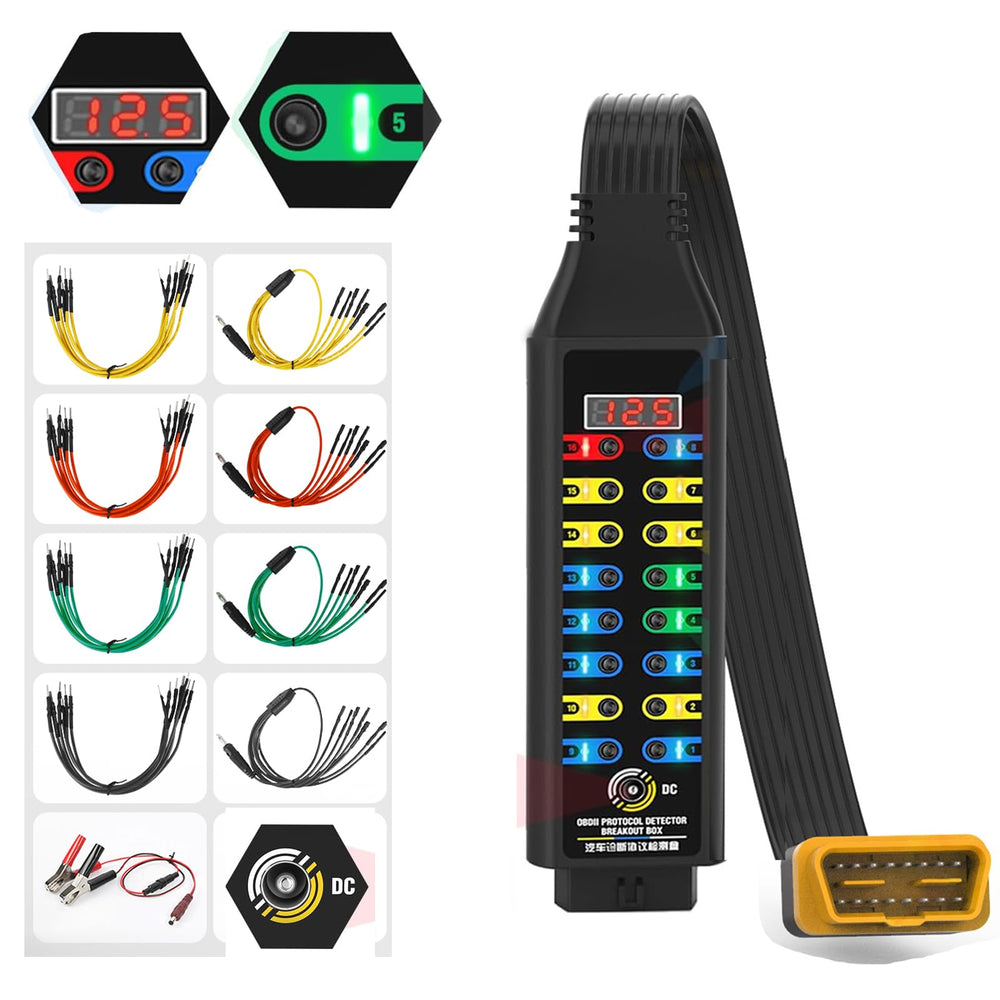

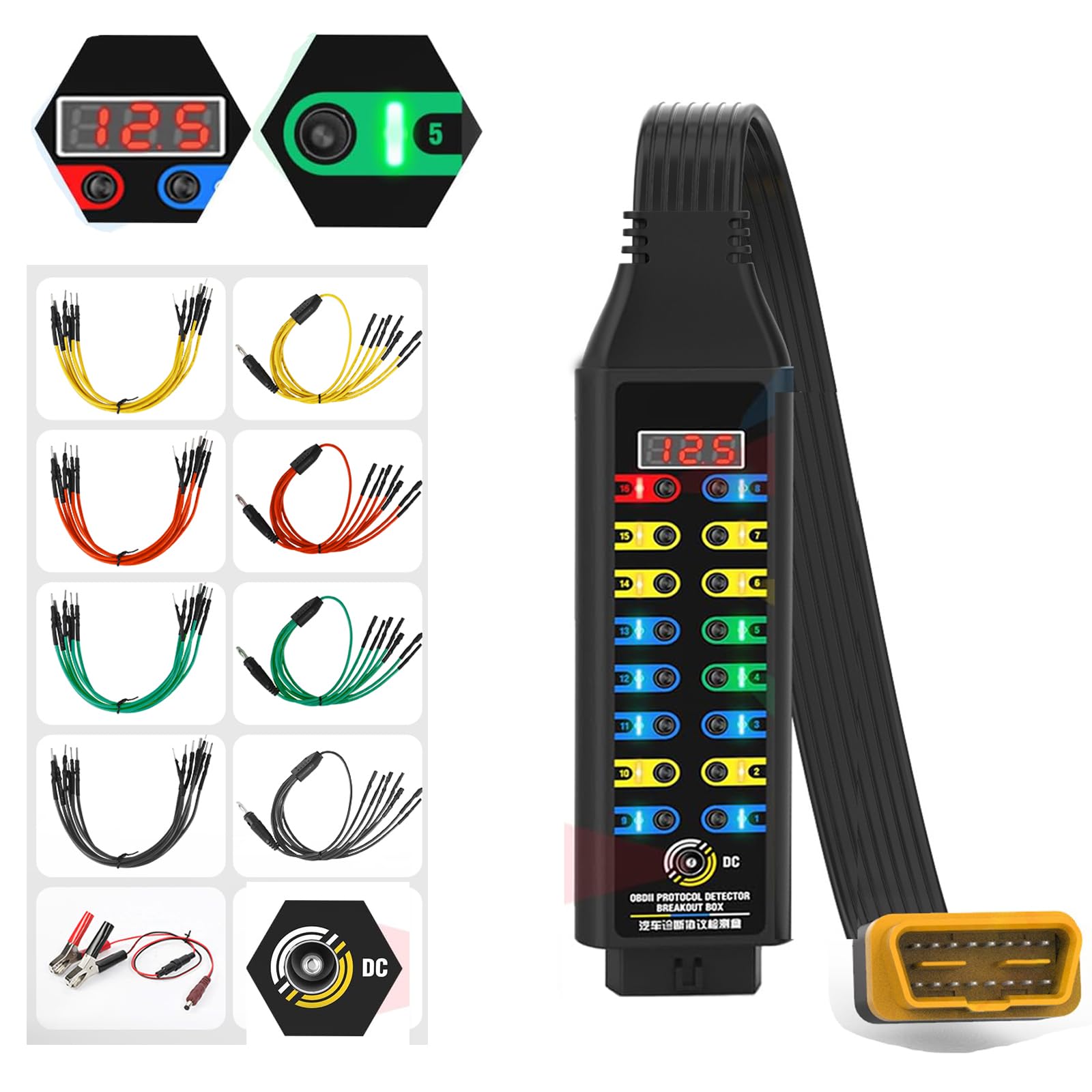

• Four-color jumper cables for targeted connection and isolation
• Secure 16-pin fit avoids accidental contact or misleading readings

Can I use this with different scan tools and oscilloscopes?

Yes — the LUTIFIX breakout box is designed for two-way connection between the vehicle and a range of external instruments. It maintains signal integrity and supports common OBDII protocols so you can record waveforms, read live data or run diagnostic queries without interfering with the network.

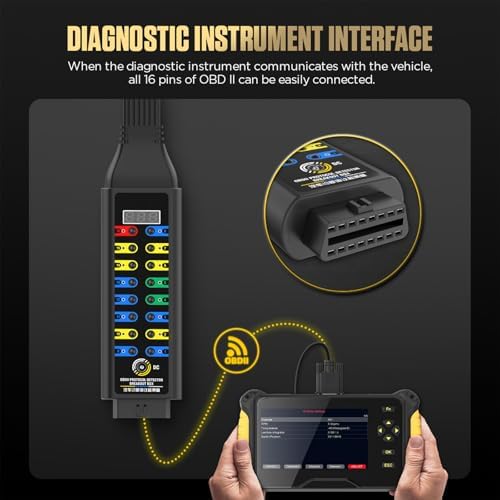

• Standard 16-pin OBDII interface for broad compatibility
• Supports CAN bus, K-line and other standard OBDII communication lines

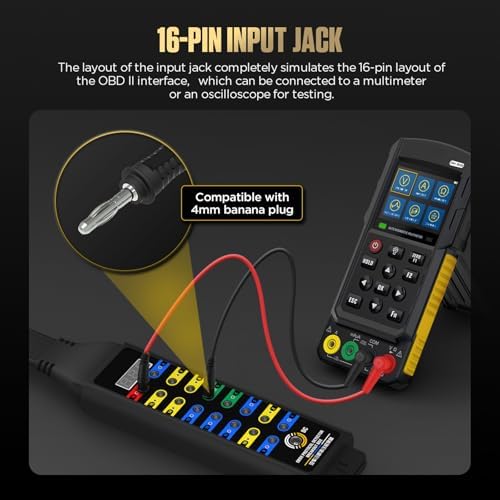

• Works with multimeters, oscilloscopes, code readers and scan tools

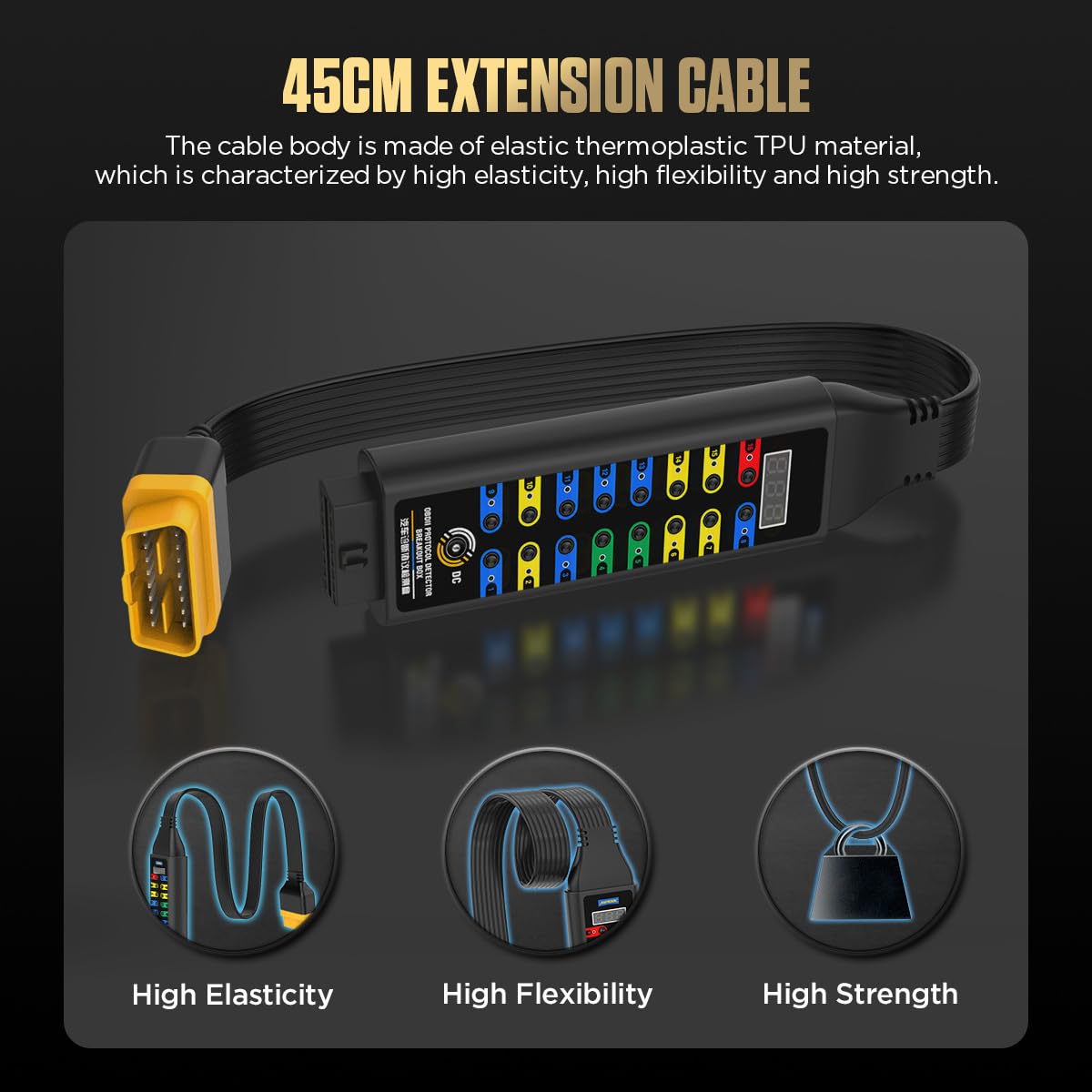

• Reinforced 17.7-inch extension cable for easier bench or in-vehicle testing

What safety and reliability features prevent data loss or damage?

The unit includes a secure transmission design and a durable housing to minimize accidental disconnects that can corrupt communication or lock vehicle systems. The jumper arrangement and LEDs help you make safe, stepwise measurements and avoid introducing faults during testing.

• Secure transmission mechanism reduces risk of signal interruption
• Durable construction and reinforced cable for repeated workshop use
• Color-coded jumpers and labeled pins reduce wiring mistakes
• Non-invasive hookup keeps vehicle networks stable during diagnostics

How do I integrate the breakout box into my diagnostic workflow?

Plug the LUTIFIX breakout box into the vehicle’s OBDII port, attach your meter, scope or scanner to the breakout outputs, then monitor the voltage display and LED indicators while you test. Use the jumper leads to isolate circuits, inject signals or temporarily reroute lines for targeted checks.

• Direct plug-in to the vehicle’s 16-pin OBDII connector for immediate access
• Connect diagnostic tools to the breakout outputs for live analysis
• Use jumpers to test individual pins without soldering or splicing
• Monitor LED and voltage readout while running vehicle diagnostics

Who is this for? Automotive technicians, electricians, ECU programmers and advanced DIY mechanics will find the LUTIFIX OBD2 Breakout Box valuable for systematic troubleshooting, waveform capture and network diagnostics. It’s built for anyone who needs clear, non-invasive access to OBDII ports — from professional repair shops to home garages — and for those who use scanners, oscilloscopes or multimeters to diagnose modern vehicle systems.
