MAXXHAUL Square LED Combination Tail Light 12V 2-Pack — Weatherproof DOT-Compliant, 28-LED

MAXXHAUL 80685 is a universal, weatherproof square 12V combination tail light with bright LED arrays designed for trucks, trailers, RVs, boats and utility vehicles.

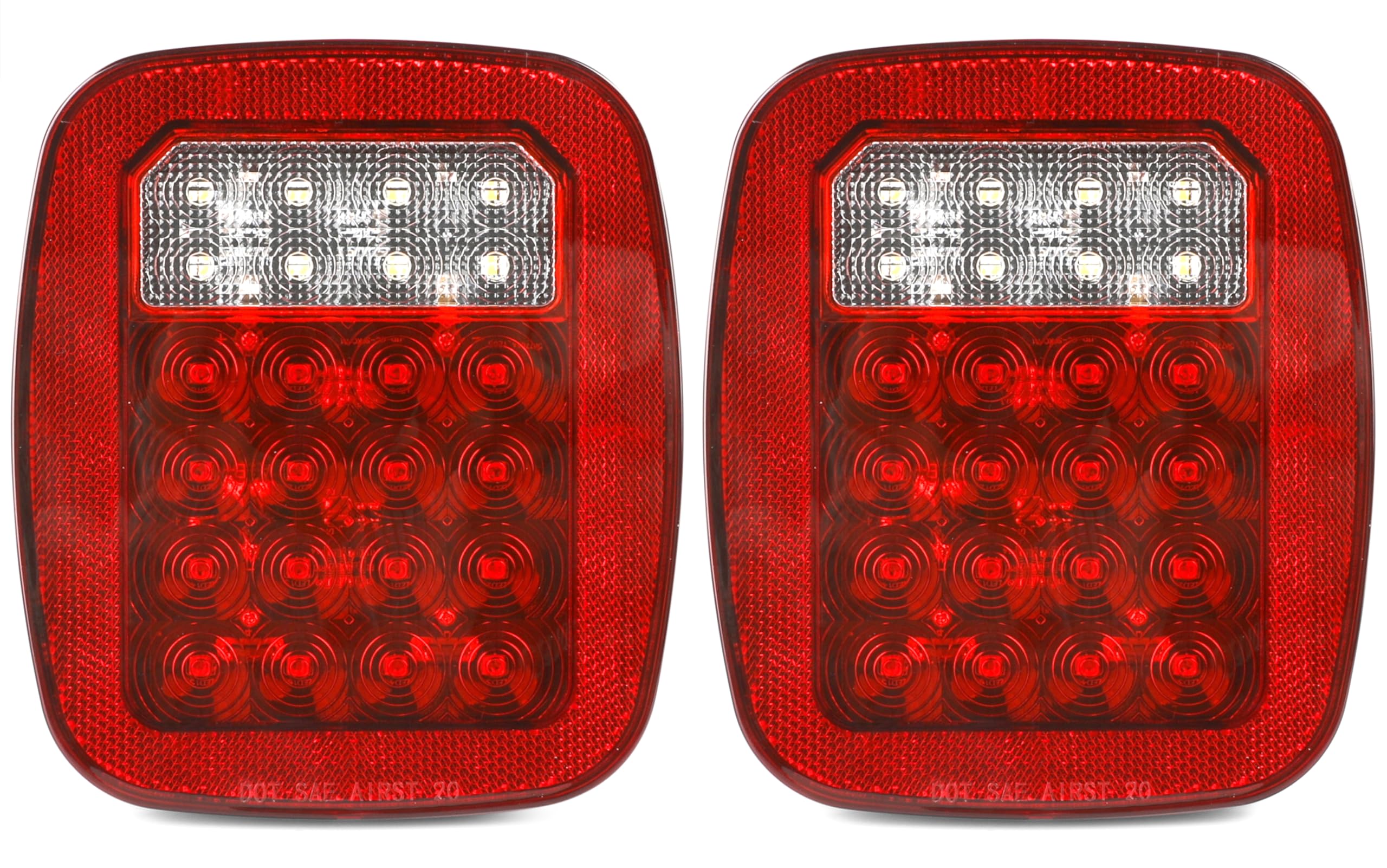

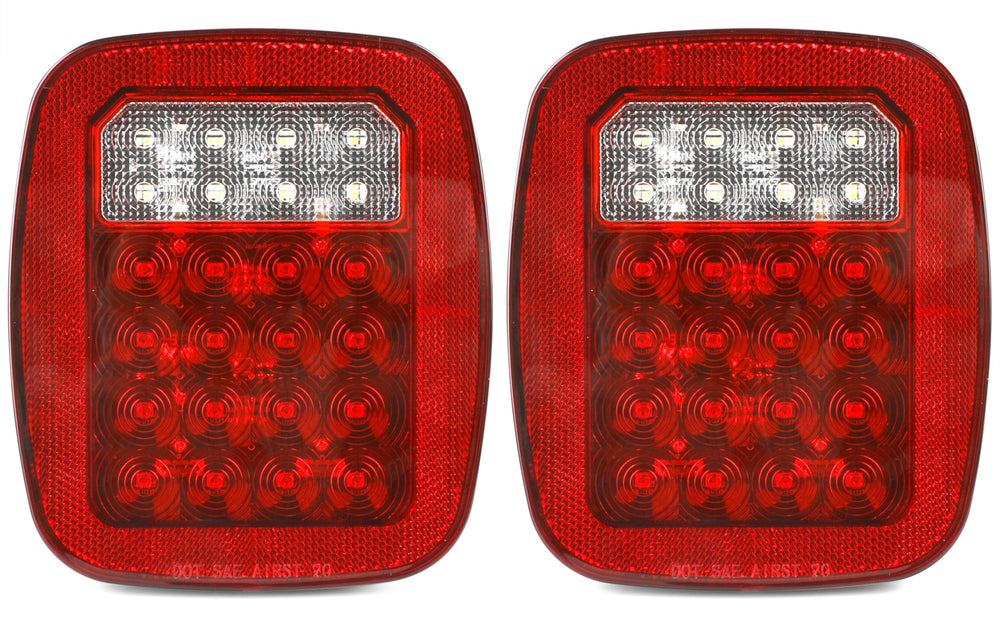

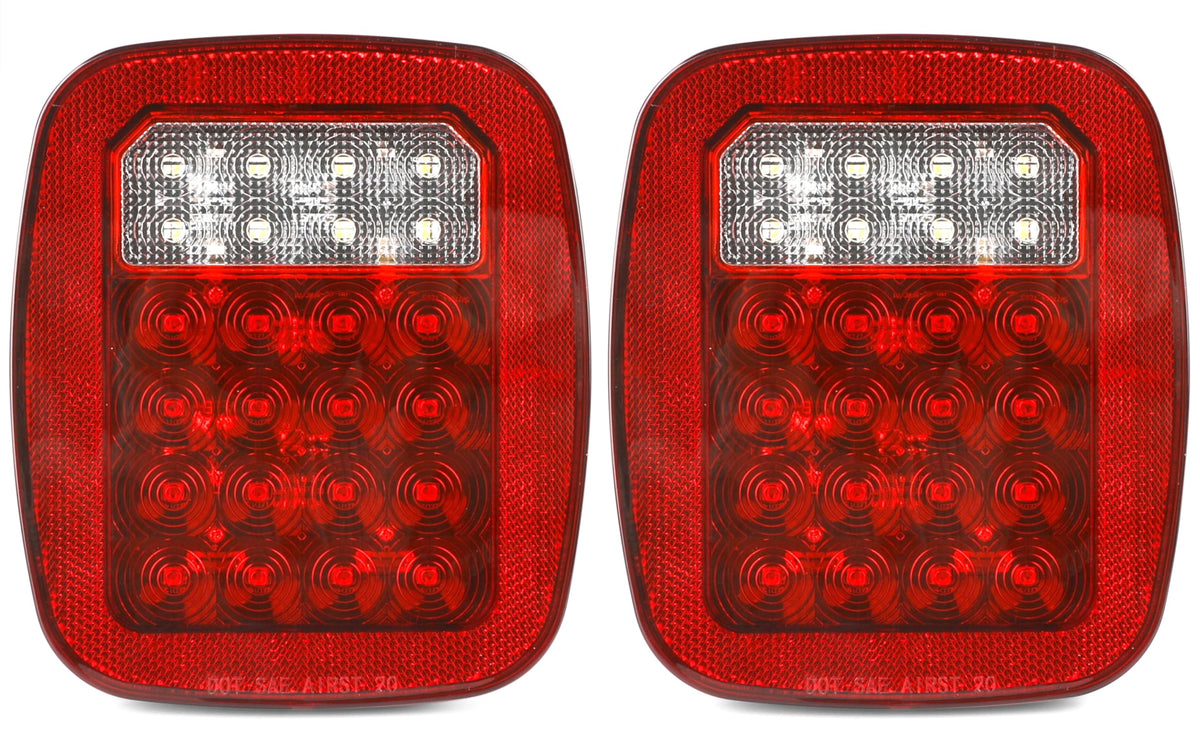

This two-pack of MAXXHAUL square combination tail lights delivers a durable, DOT-compliant lighting solution intended to replace 12V incandescent assemblies on a wide variety of vehicles. Constructed with PMMA (acrylic) lenses sonic-welded to a rugged ABS housing and secured with stainless-steel front screws, these lamps are built to resist water intrusion, vibration and road impacts. The lights use a multi-function LED array for stop, turn, tail and reverse functions and include a 3-stud mounting pattern and color-coded hardwired leads for easier installation.

How bright and reliable are the LEDs for everyday use?

The assembly uses a focused LED array to provide clear, long-lasting illumination for stop/turn, tail and reverse signals without the shorter life and fragility of incandescent bulbs. LEDs also switch on instantly for more visible braking and signaling.

• 28 LEDs total configured for red stop/turn/tail and white reverse illumination.

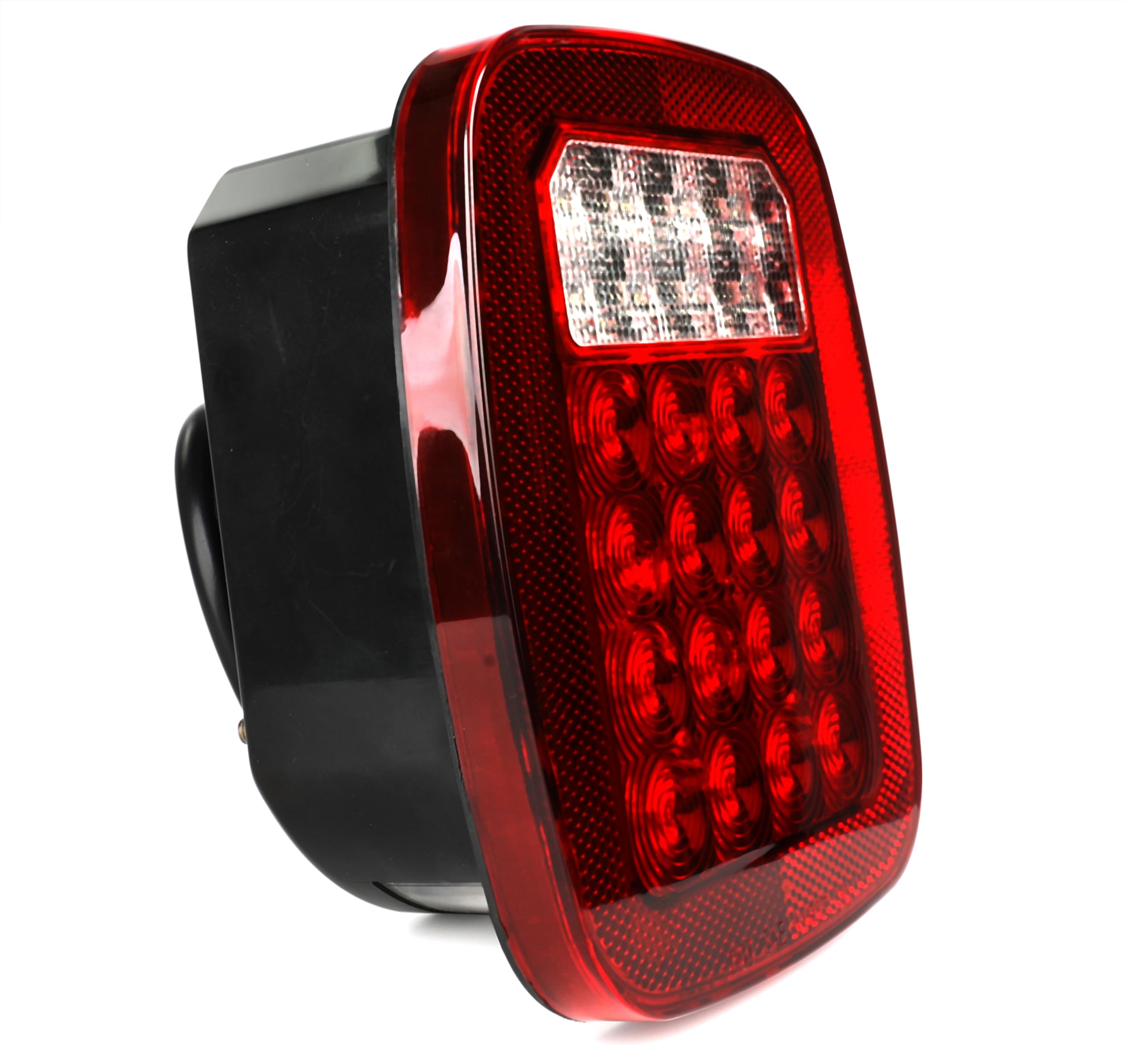

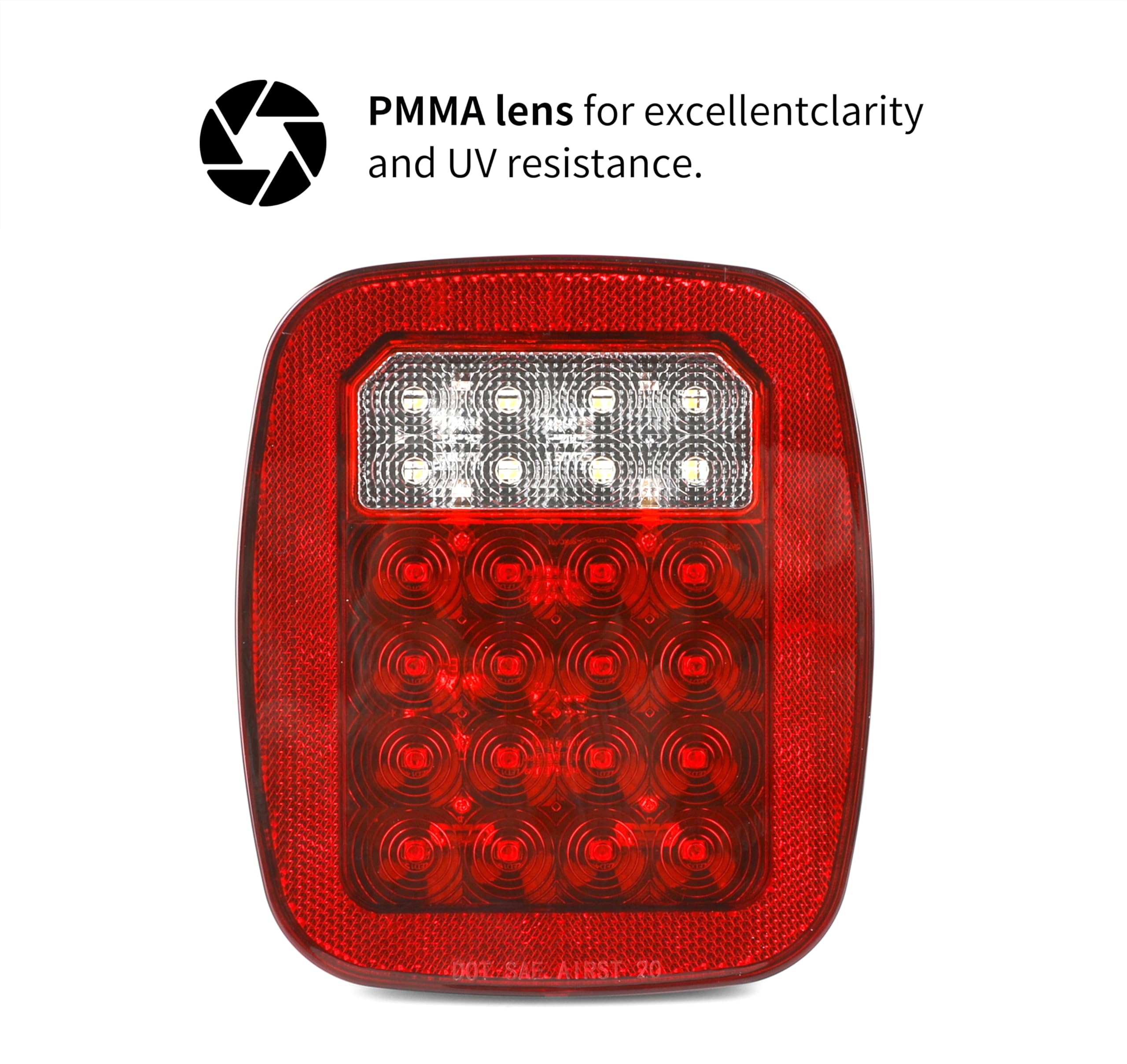

• PMMA lenses maintain clarity and UV resistance so light output stays consistent.
• LEDs have longer service life and improved shock resistance compared with filament bulbs.
• One unit in the pair includes dedicated license plate lighting when needed.

What makes installation straightforward or challenging?

The MAXXHAUL 80685 is designed for universal fit on 12V systems with a 3-stud mount and color-coded hardwired leads, reducing guesswork during wiring. However, some vehicles and specific models (for example, older Wrangler YJ/CJ applications) may need minor trimming or drill adjustments.

• 3-stud mounting pattern fits many common mounting surfaces; bolt holes are slightly larger to accommodate different hardware.
• Color-coded hardwires: White = Ground; White+Yellow = Backup; White+Black = Low-beam Red + License; White+Red = High-beam Red.
• Wiring harness not included—splicing or adapter harness may be required for plug-and-play setups.
• Only one lamp includes license-plate illumination; plan wiring accordingly for legal plate lighting on the opposite side if required.

How well does the light stand up to weather and road conditions?

This model combines a sonic-welded acrylic lens with a durable ABS housing and stainless steel fasteners to resist water, salt and vibration commonly encountered on road and marine applications. The assembly meets DOT requirements for street-legal use, giving added assurance for on-road installations.

• Sonic-welded PMMA lens and ABS housing reduce water entry and increase impact resistance.
• Stainless-steel front screws resist corrosion in wet or coastal environments.
• Designed to tolerate vibration and shocks from towing, off-road use, or heavy loads.
• DOT-compliant construction for legal operation on public roads.

Which common vehicles and situations is this tail light compatible with?

The MAXXHAUL 80685 is aimed at users looking to upgrade or replace square 12V tail lights on a wide range of vehicles. It suits trailers, flatbeds, pickup trucks, vans, RVs, buses and many boats when properly sealed and wired.

• Universal design for most 12V vehicles: trucks, trailers, RVs, vans, buses and boats.
• Ideal for fleet maintenance, trailer retrofits, and do-it-yourself vehicle upgrades.
• Works well where rugged, weather-resistant lighting is required, such as coastal or off-road use.
• May require minor modification for certain older Jeep Wrangler YJ/CJ installations.

Who is this for: The MAXXHAUL 80685 two-pack is intended for vehicle owners, fleet managers, and DIY mechanics needing a robust, street-legal LED replacement for square 12V tail-light assemblies. Choose this set if you want longer-lasting LEDs, weather-resistant construction, and a universal mounting pattern for trailers, trucks, vans, RVs or marine applications—bearing in mind that wiring harnesses and occasional minor mounting tweaks are part of installation.
