Mekar 6.0L PowerStroke IPR Valve Socket Kit with Oil Rail Adapters & Seal Kit — HPOP Pressure Test Tools (2003–2010)

This comprehensive service kit is made for the 6.0L PowerStroke V8 diesel (2003–2010) and includes a threaded IPR substitute, multiple oil rail adapters, and an air-test fitting so you can pressurize and monitor the high-pressure oil (HPO) system with standard shop instruments. Components are machined from solid steel or brass, finished for corrosion resistance, and sized to fit Excursion, E-series, and Super Duty trucks that share the 6.0L platform. The kit replaces the factory IPR valve during bench or on-vehicle testing and provides secure ports to attach gauges and compressed air safely.

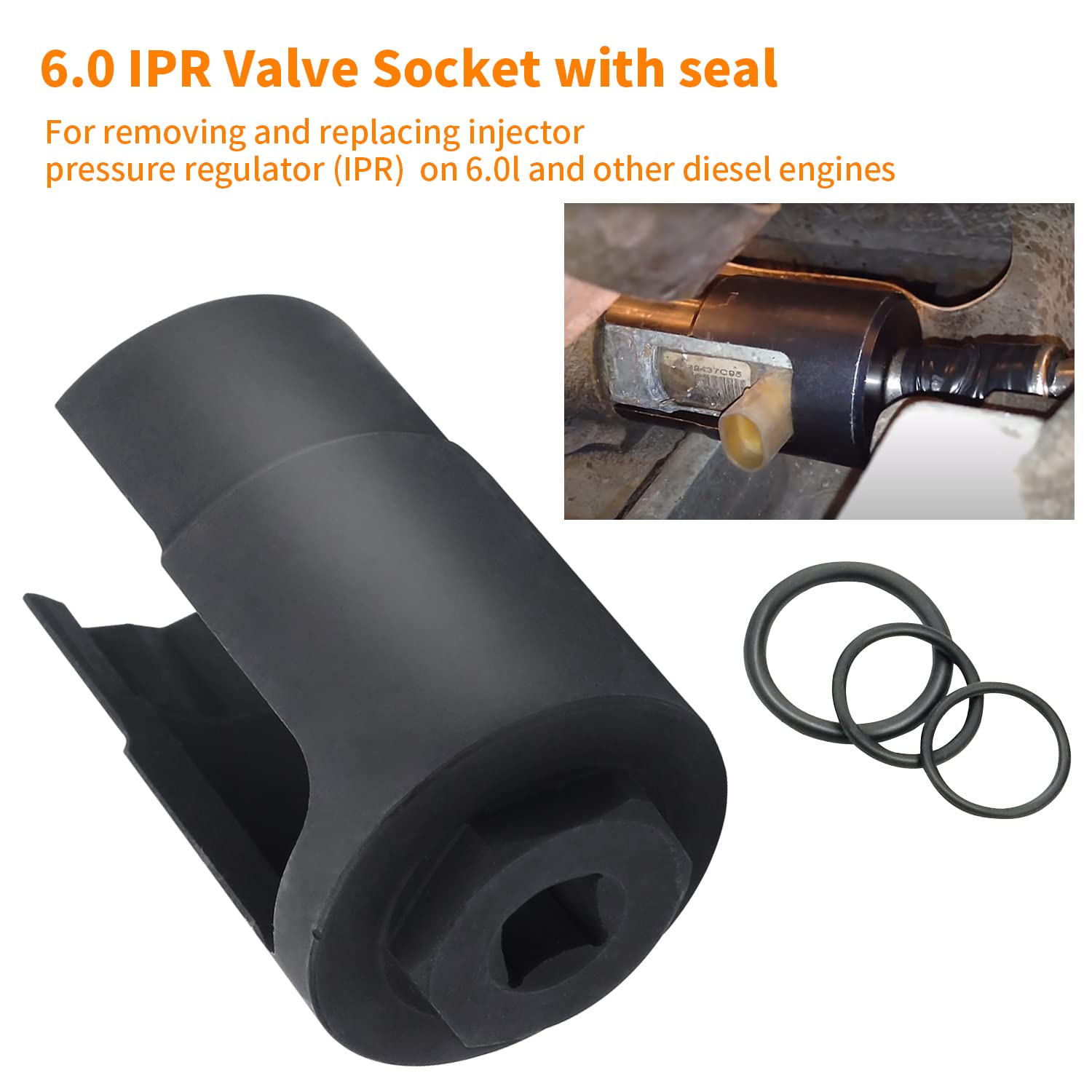

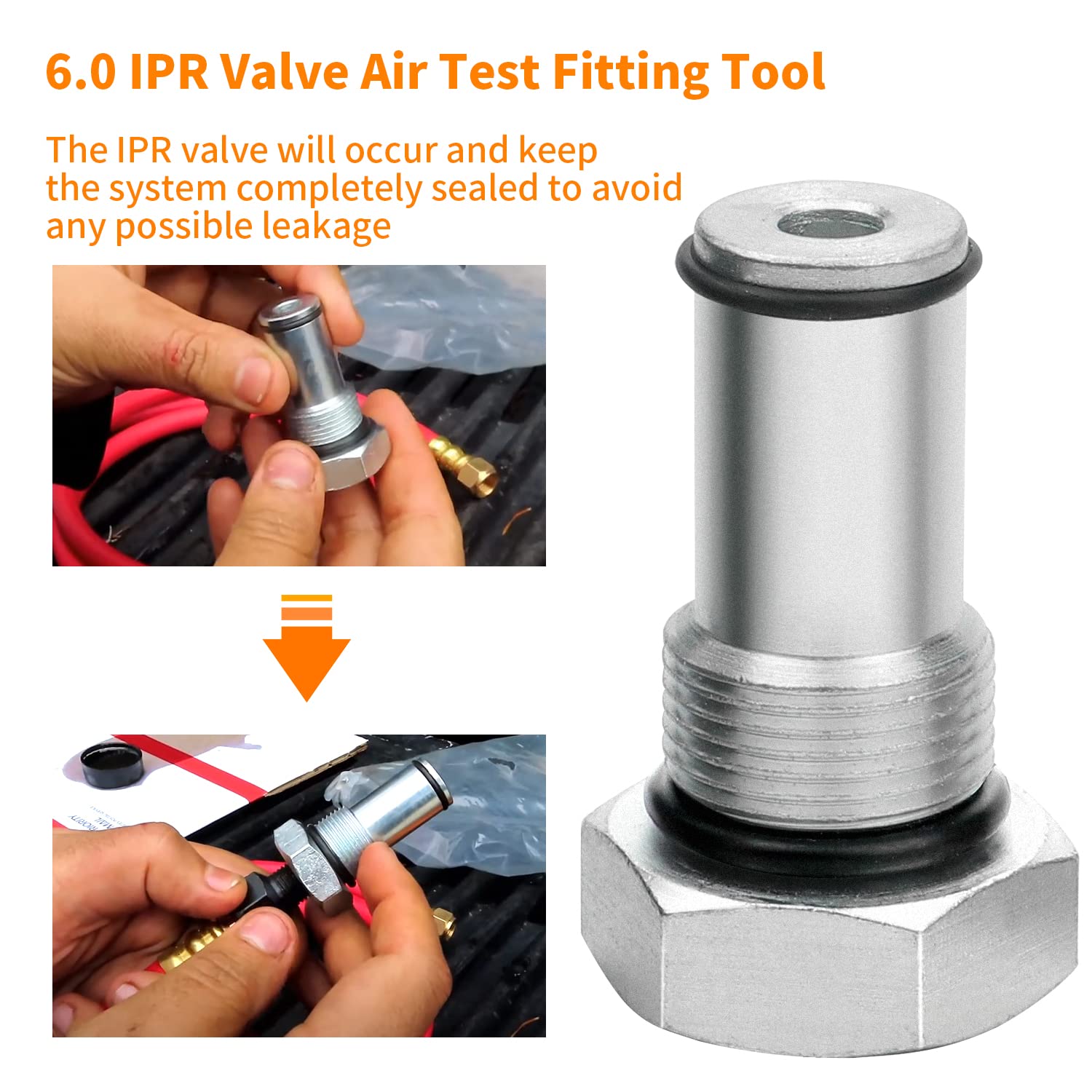

How does the IPR valve socket let me test the HPOP without leaks?

Instead of removing the IPR and losing a sealed connection, the Mekar IPR socket screws into the IPR port with 1/4" pipe threads to accept common air fittings and gauges. It forms a tight, serviceable seal so you can run pressure tests or air-bleed procedures without oil egress. The solid-metal construction resists deformation when tightened, maintaining a leak-free connection under shop pressures.

• 1/4" pipe thread for standard test fittings
• Replaces the IPR valve to maintain system seal
• Solid steel/brass construction for durability
• Smooth finish reduces thread galling and leaks

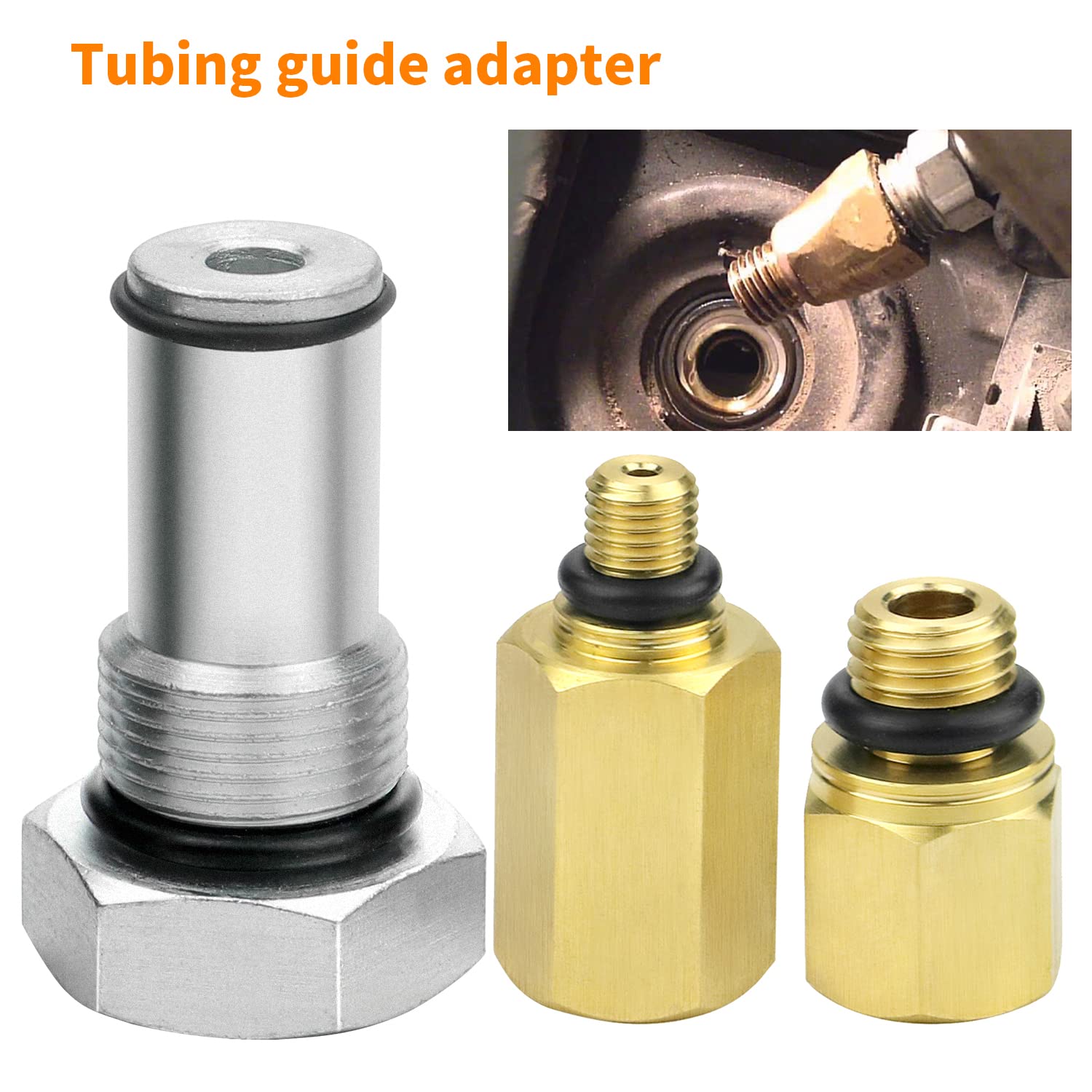

What do the oil rail adapters let me measure and inspect?

The included oil rail adapters provide direct instrument access to injector control pressure (ICP) and let you isolate individual rail ports for leak checks. By connecting a gauge or a pressure transducer to the adapter you can observe HPOP behavior under cranking and running conditions. They also serve as service ports when performing controlled air or pressure decay tests to locate high-pressure oil leaks.

• Adapters sized for factory rail ports on 6.0L engines
• Enable direct ICP readings with standard gauges
• Facilitate leak detection using compressed shop air
• Allow isolation of rail sections for targeted diagnosis

Can I use this kit on my specific truck model and year?

Yes — the kit is designed for the 6.0L V8 PowerStroke used across multiple Ford platforms. Fitment covers Excursion 6.0L (2003–2010), E-350/E-450 (2004–2010), and F-250/F-350/F-450/F-550 Super Duty trucks (2003–2010). Always confirm the rail and IPR thread sizes on your engine before starting, but the kit targets the common factory configurations for these years.

• Compatible with 6.0L PowerStroke engines from 2003–2010
• Fits Excursion, E-series, and Super Duty models listed
• Designed for factory rail port and IPR thread standards
• Check vehicle specifics for any aftermarket changes

What materials and durability can I expect from these tools?

Mekar manufactures the socket and adapters from solid steel or brass and subjects them to testing and finishing to reduce corrosion and wear. The metal choices balance strength and thread stability so the fittings retain sealing integrity after repeated service cycles. Because these are diagnostic accessories, the focus is on leak-free performance and long service life in workshop conditions.

• Solid steel or brass construction for mechanical strength
• Corrosion-resistant finish for workshop environments
• Precision threads to minimize wear and maintain seals
• Tested designs optimized for repeated use

Who is this for: This Mekar kit is intended for professional diesel technicians, experienced DIYers, and shops that service Ford 6.0L PowerStroke engines and need reliable diagnostic ports for ICP measurement and HPOP leak testing. If you perform injector control pressure diagnostics, HPOP troubleshooting, or routine rail leak checks, this kit gives the secure connections and standard-thread access needed to use gauges and air testers safely and effectively.
