MOREV 5-Pin AC CDI Ignition Module for 50cc–125cc ATVs Dirt Bikes — 5‑pin Rectangular Connector, Direct-Fit Replacement

If your small engine uses an AC ignition system and the original CDI has failed or performs inconsistently, this MOREV replacement offers a direct-fit 5-pin rectangular connector and the standard form factor used across many horizontal 4-stroke models. It is engineered for vehicles that require an AC-fired control unit (not DC CDI units) and is widely used as a cost-effective repair option for common off-road and recreational machines.

How will this CDI module restore engine ignition performance?

This unit supplies the timing and high-voltage pulse to the spark plug in AC ignition systems, replacing a faulty or intermittent original module to reestablish consistent spark delivery. Installing a proper-match CDI can stop misfires, weak starts, and sudden stalls caused by ignition module failure.

• Replaces AC-specific CDI circuitry for compatible horizontal 4-stroke engines.
• Uses a standard rectangular 5-pin male connector to match OEM harnesses.
• Re-establishes reliable ignition pulses for smoother starts and idle.

Which vehicles and engines are compatible with this MOREV 5-pin CDI?

Compatibility depends on the ignition type and connector, not just the engine size or brand. This CDI is suitable for many 50cc–125cc horizontal 4-stroke ATVs, dirt bikes, pit bikes and go-karts that use an AC-fired ignition and a 5-pin rectangular plug.

• Known compatible models include Coolster 3125B/3125R/3125XR8/3050C and TaoTao Boulder B1, Cheetah, TForce, New TForce, DB17, DB14.
• Also fits select SSR SR70/SR110/SR125, Apollo RFZ/X18/X4/X19 and various Kayo, Baja, Roketa, Kazuma, SunL and Jetmoto machines.
• Not compatible with DC CDI systems, GY6 6-pin connectors, or different pin arrangements.

How do I verify this CDI will match my original unit?

Before ordering, compare physical and electrical details of your existing CDI to ensure a correct fit. The connector shape, pin layout, terminal positions and module dimensions must match; brand or displacement alone is not a reliable indicator.

• Confirm your original is an AC-fired CDI, not DC.

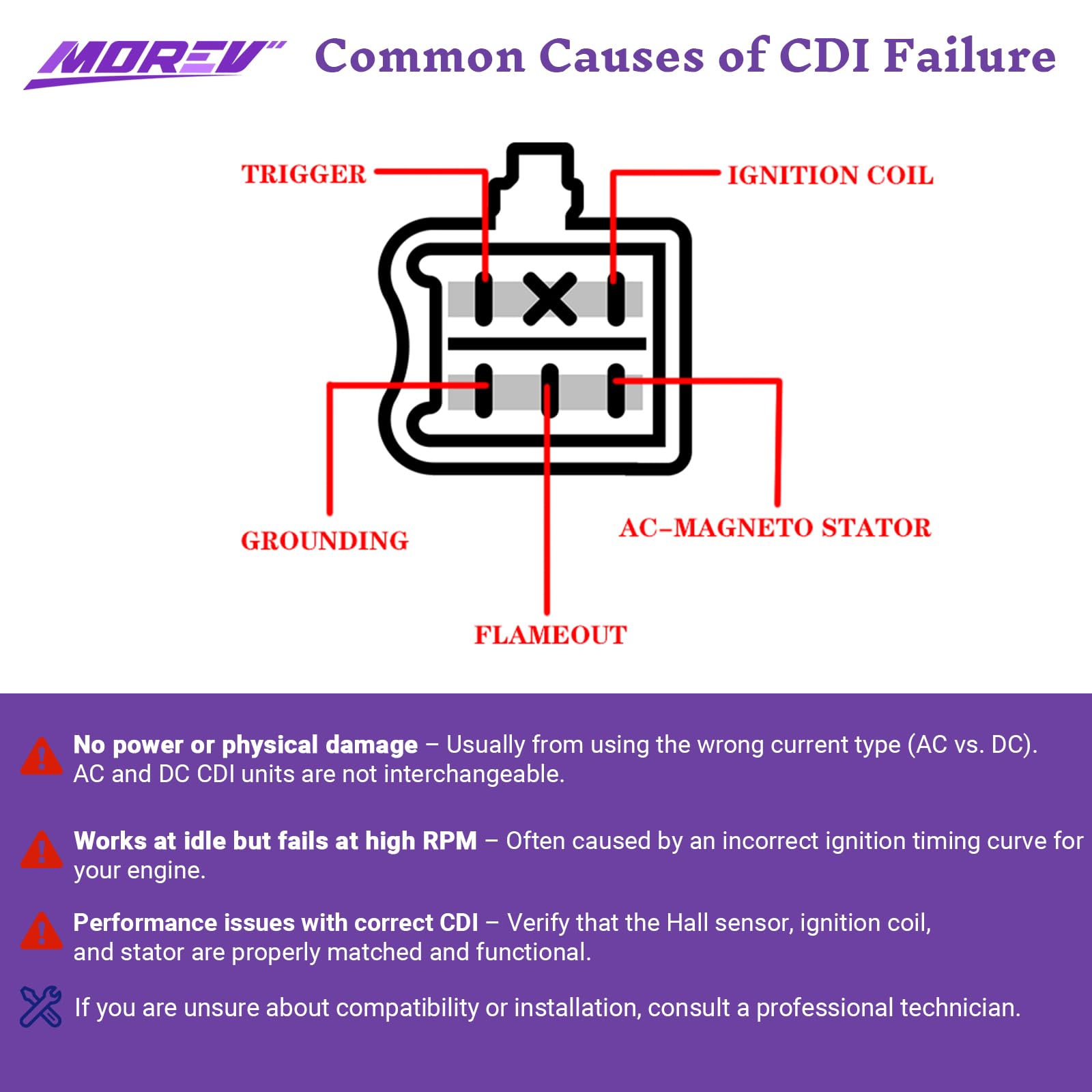

• Compare the 5-pin rectangular connector shape and pin positions to your harness plug.

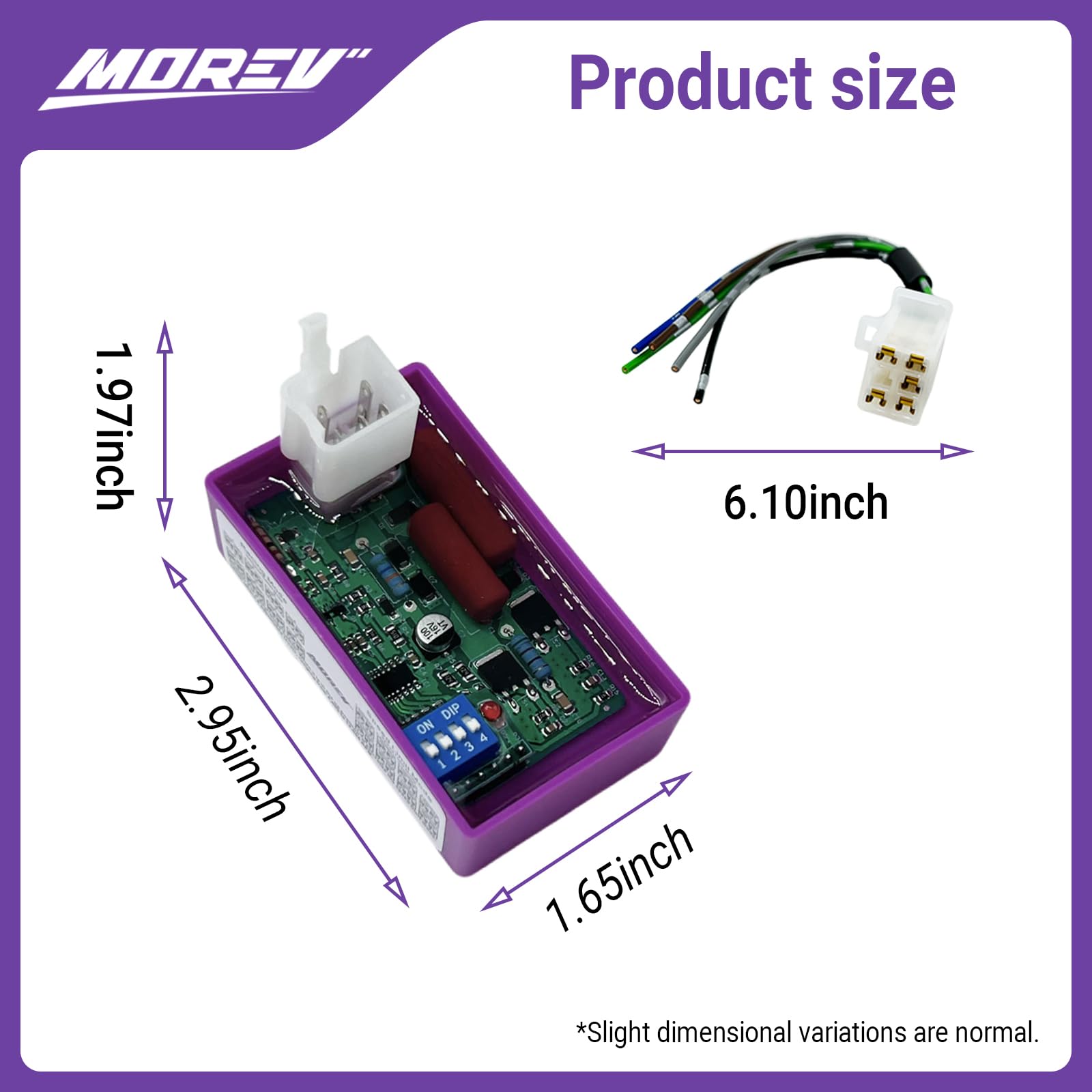

• Measure module size and mounting points to verify fitment in your vehicle’s frame or bracket.

What should I expect during installation and troubleshooting?

Installation is typically a direct swap if the connector and mounting match. Basic wiring checks and an inspection of the stator/coil and battery (where applicable) help ensure the issue is truly the CDI before replacement.

• Disconnect the battery and ensure the ignition is off before swapping modules.
• Inspect stator and wiring for damage; poor wiring can mimic CDI failure.
• After installation, test for consistent spark and normal starting/idle behavior.

Who this is for: Riders, mechanics and DIY owners of small off-road machines who need a direct-replacement 5-pin AC CDI module for horizontal 4-stroke 50cc–125cc engines. If you have a compatible AC ignition system and a matching rectangular 5-pin connector, this MOREV module is a practical, affordable option to restore reliable ignition timing. If you’re unsure about compatibility, identify the original CDI type and connector before purchasing to avoid incorrect fitment.
