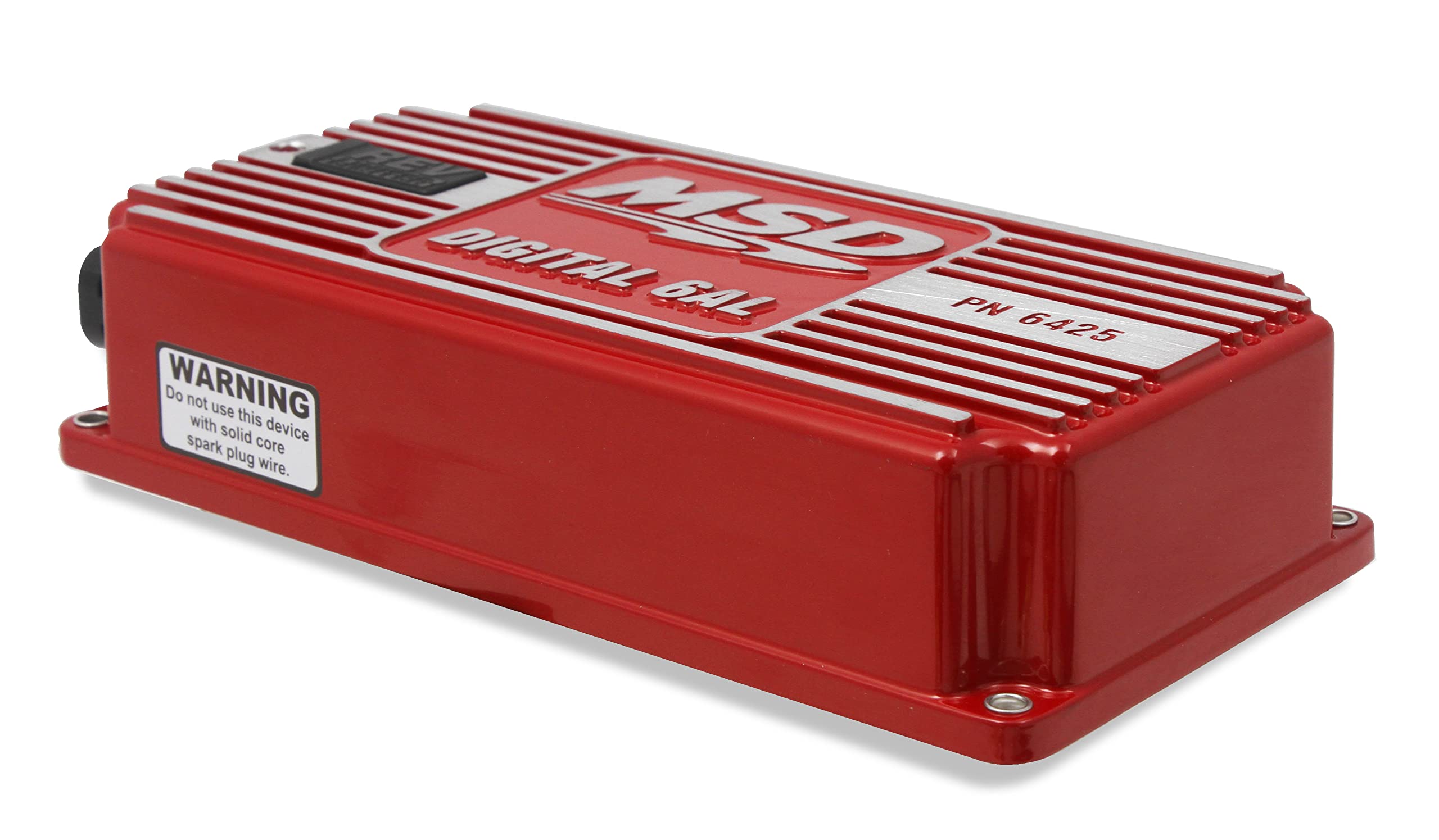

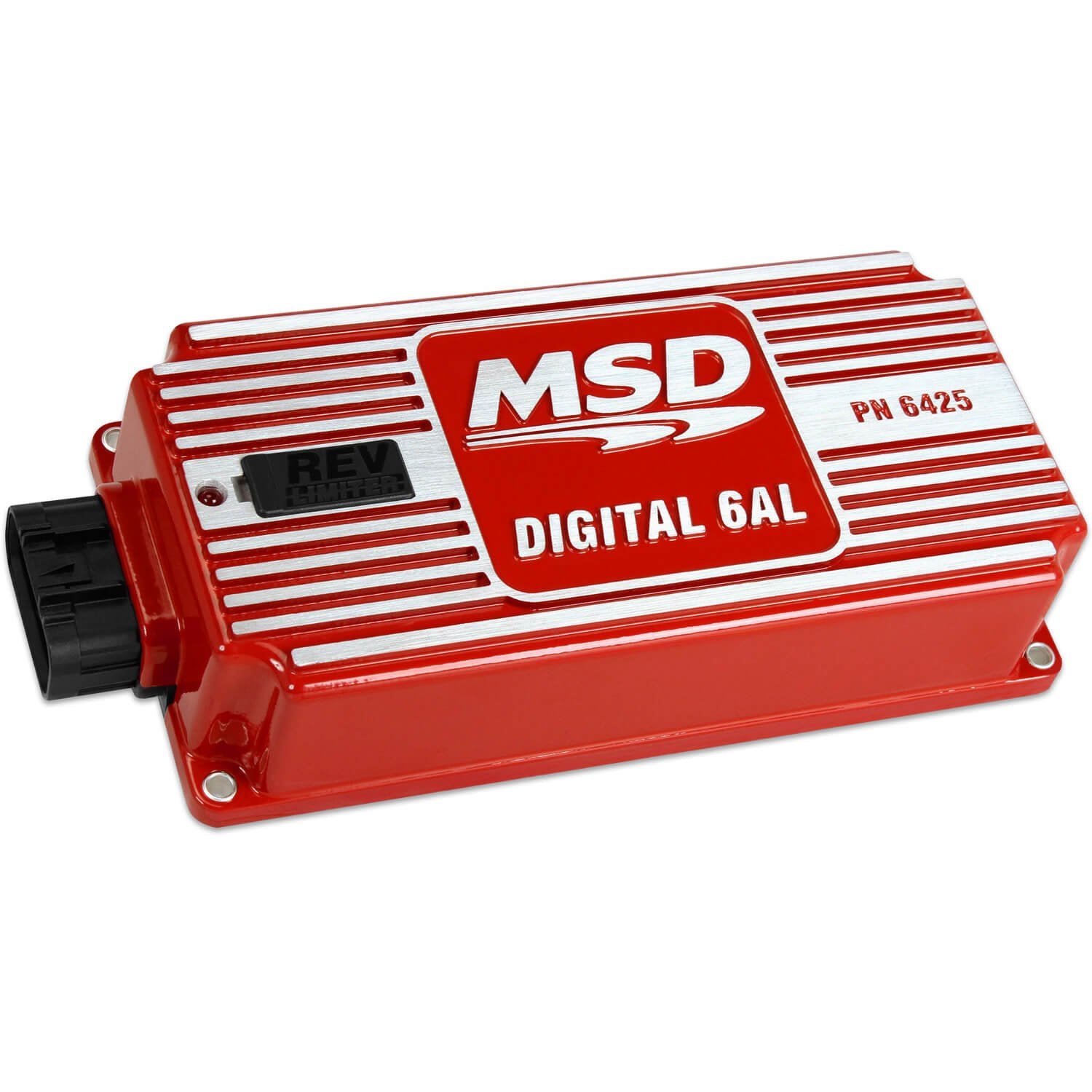

MSD Digital 6AL Ignition Control — Red compact unit with adjustable rev limiter and high-voltage, high-energy spark

The MSD 6425 Digital 6AL is a compact ignition control box with built-in rev limiting that delivers high-voltage, high-energy spark for 4-, 6- and 8-cylinder engines.

This compact red MSD unit combines a digital ignition control with a selectable rpm limiter and robust high-output spark delivery. Designed for street and performance applications, it harnesses efficient electronics to provide strong spark energy while drawing less current. All wiring exits through a locked, sealed connector for a tidy, reliable installation, and the integrated LED makes quick system checks possible.

How does the MSD 6425 improve ignition performance?

The 6425 increases available spark energy and delivers consistent high-voltage pulses, improving ignition reliability under load. Its design focuses on efficient power use so systems with limited electrical capacity still get strong spark output.

• 530 volts peak output for confident spark delivery
• 135 millijoules (mJ) of spark energy for improved combustion initiation
• Efficient components reduce current draw compared with older designs
• Compatible with 12–15 V systems and supports 7 V starts

What does the built-in rev control do and how is it set?

The MSD 6425 includes a user-adjustable rpm limiter using two rotary dials that set the limit in 100 rpm increments. This lets you cap engine speed to safe levels for protecting drivetrains or maintaining consistent launch/tuning targets.

• Two rotary dials for precise rpm-limit setting in 100 rpm steps
• Simple mechanical adjustment—no external programming tools required
• Reliable cutoff logic to help avoid over-rev situations
• Works with 4-, 6- and 8-cylinder configurations

How is the MSD 6425 installed and maintained?

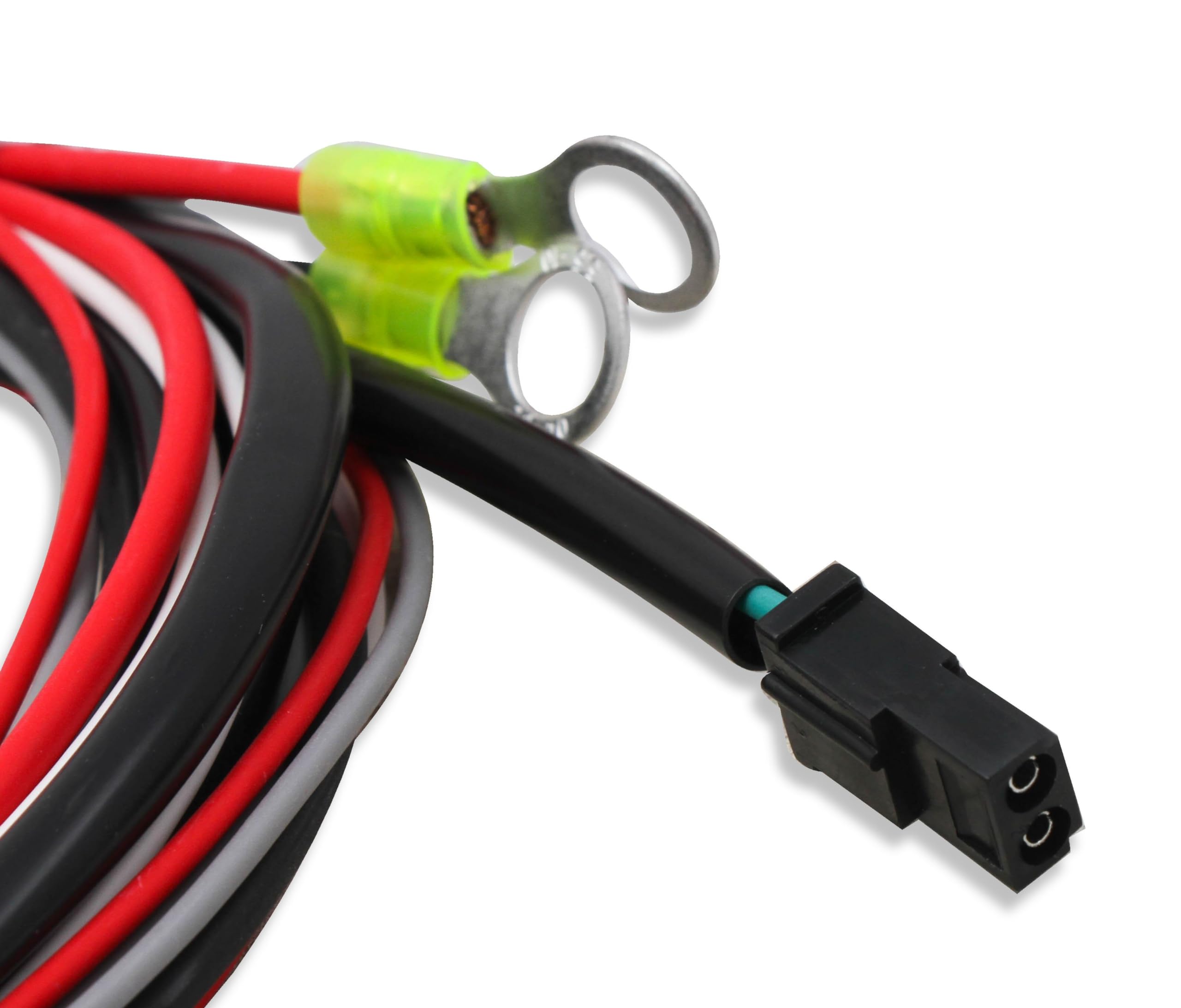

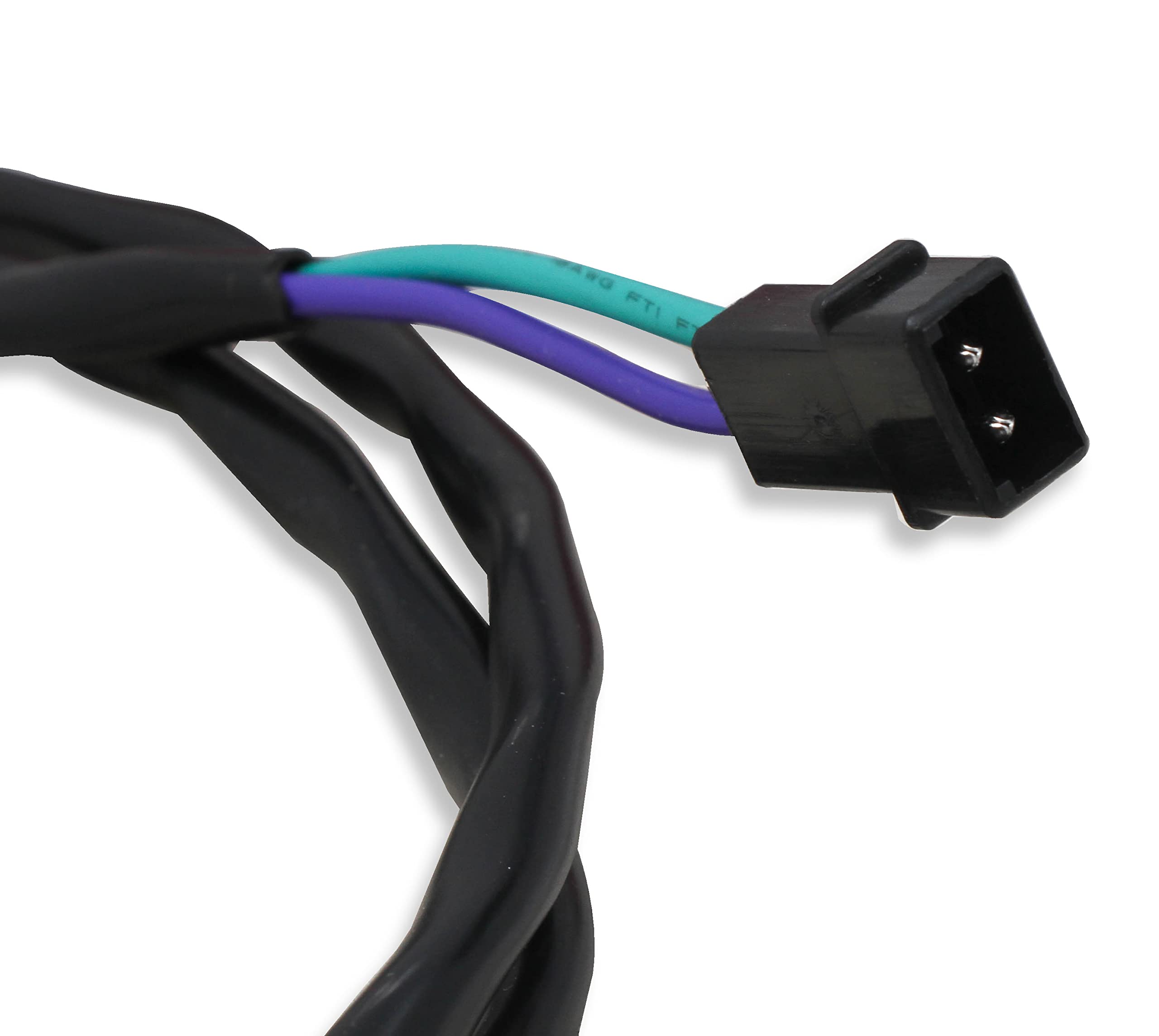

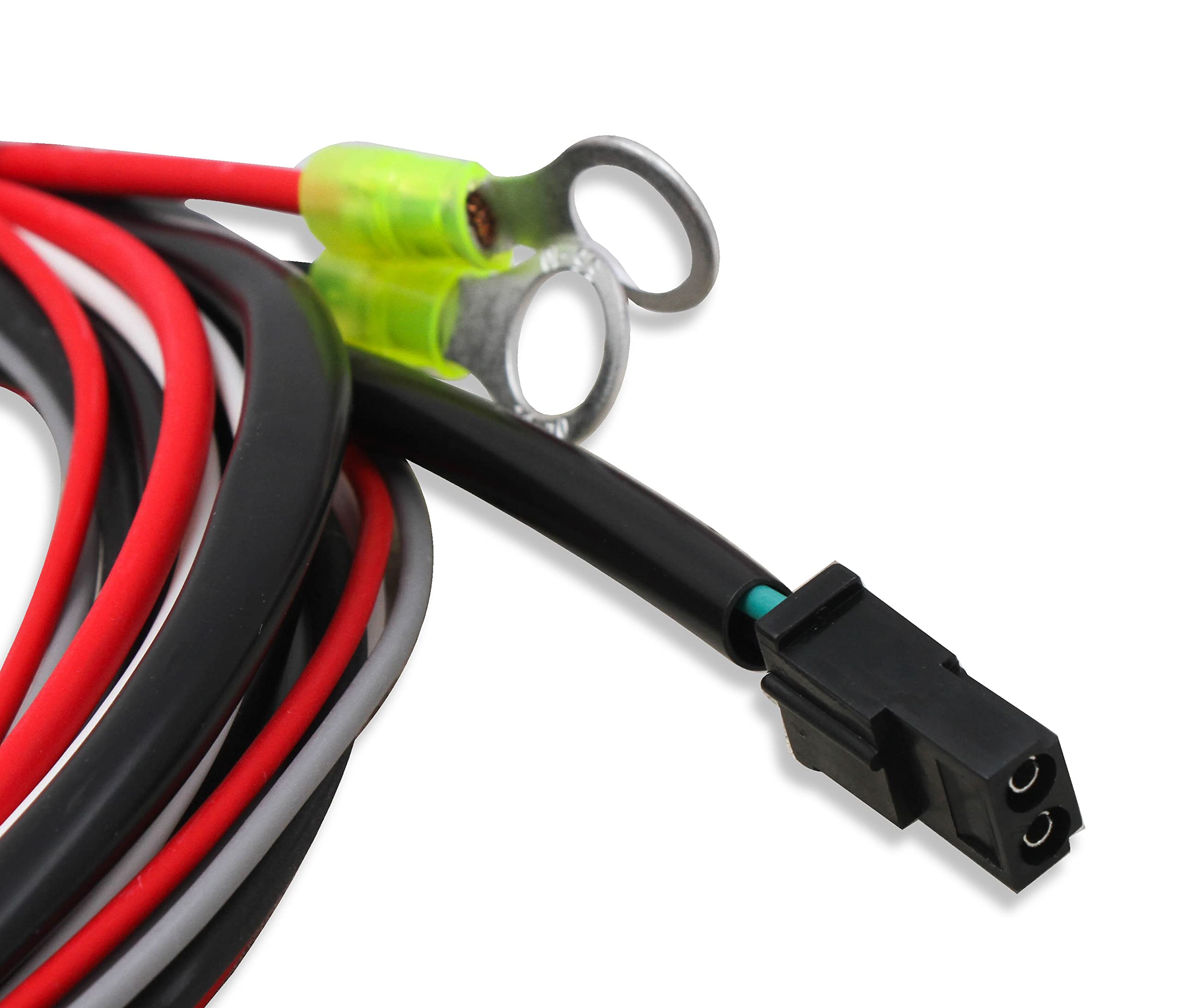

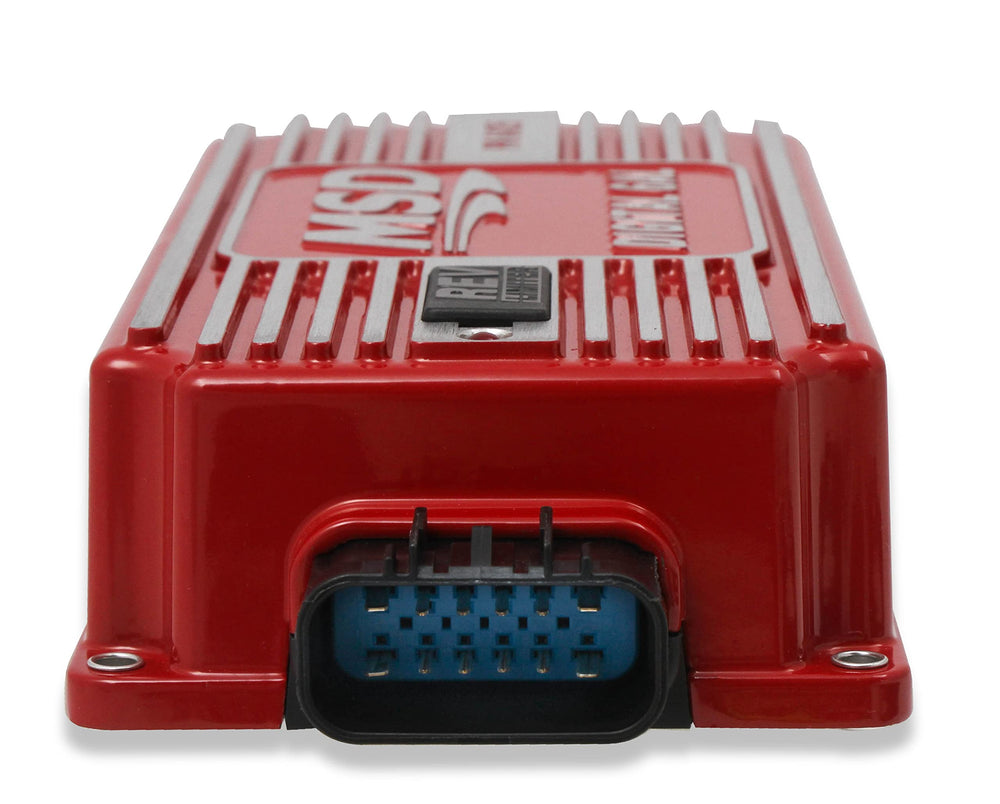

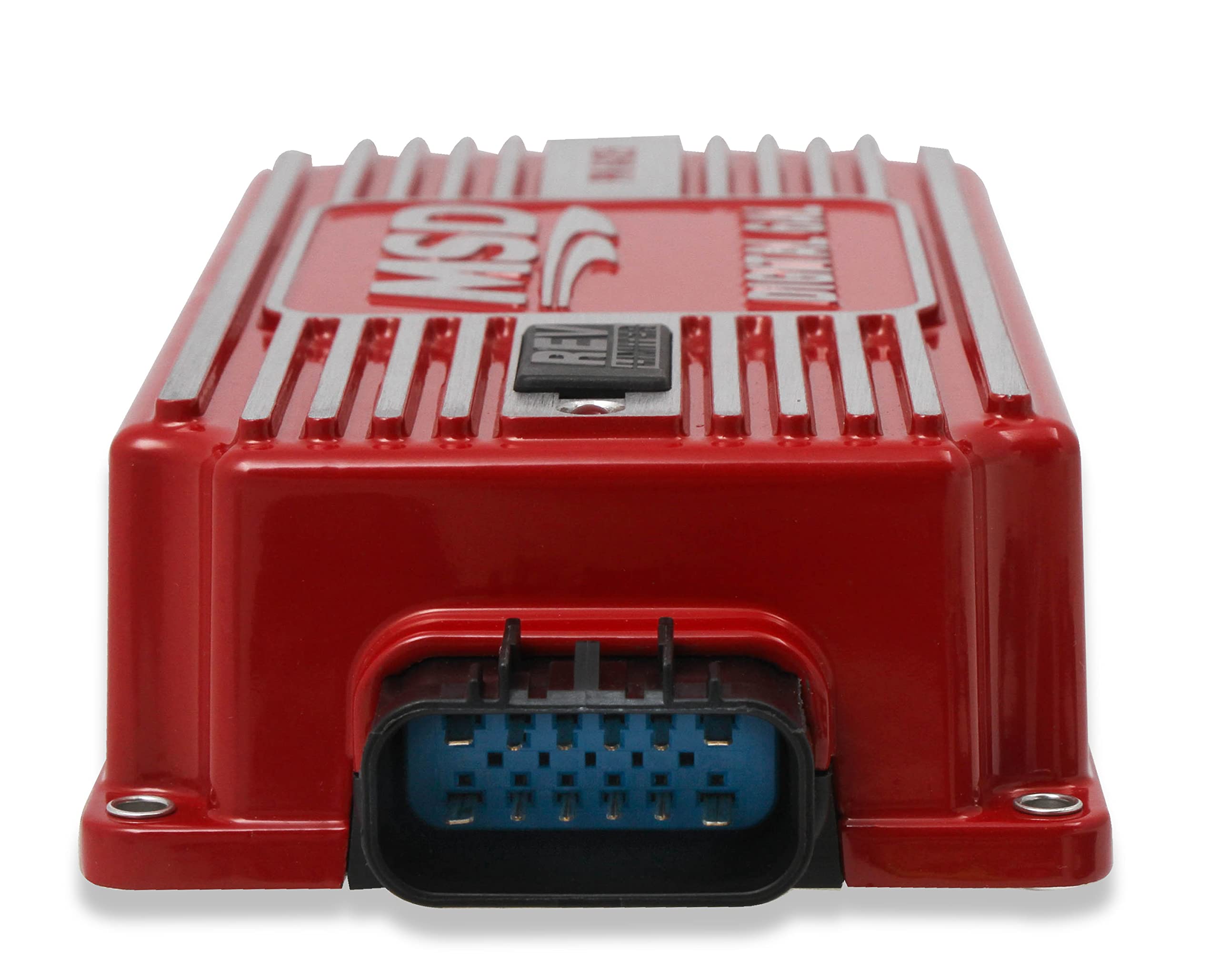

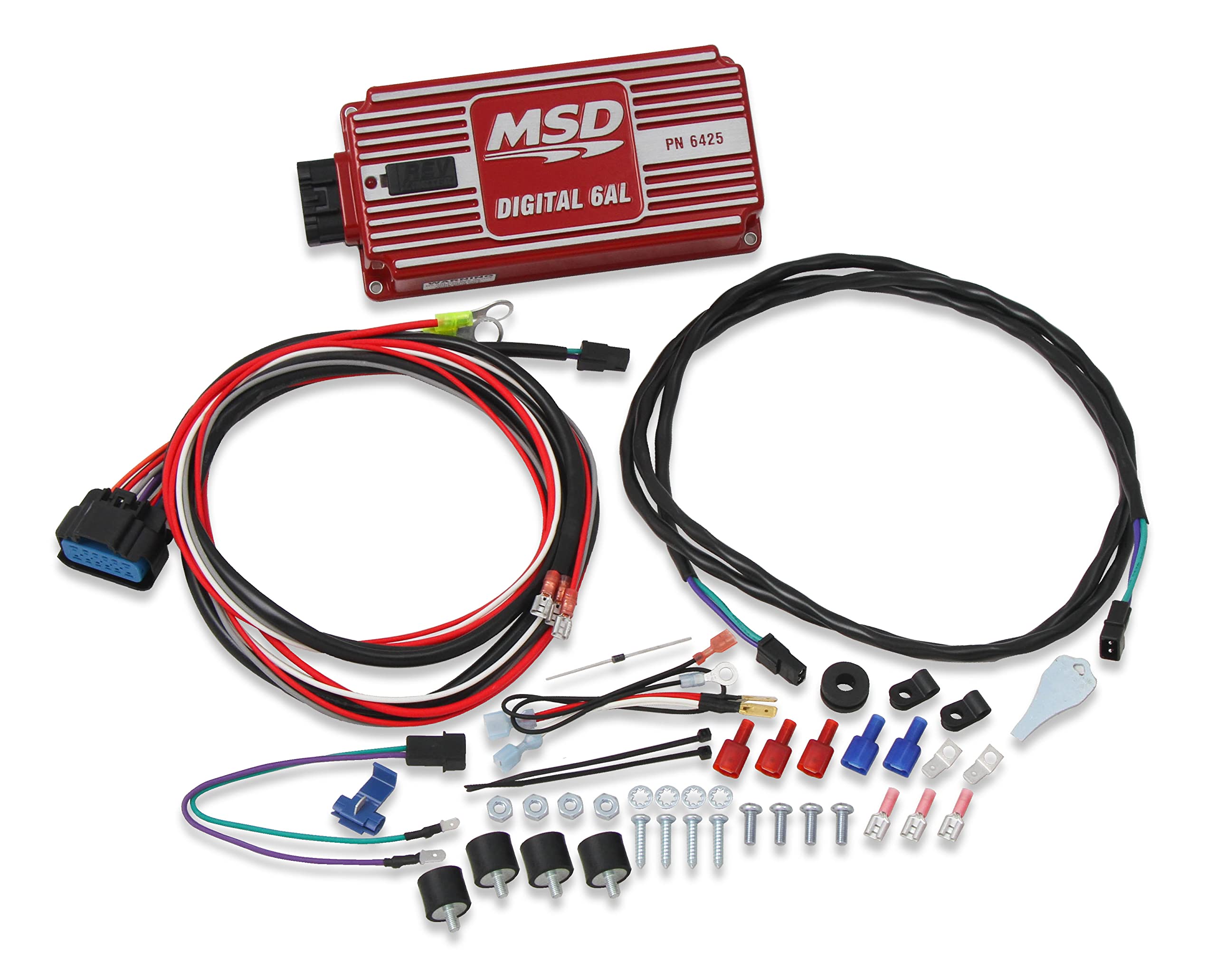

Installation is straightforward thanks to the sealed, locked connector that routes all wires through a single harness exit. A built-in LED helps verify system health quickly during installation and troubleshooting.

• All wires exit via a single locked, sealed connector for clean routing
• Integrated LED provides immediate visual system checks

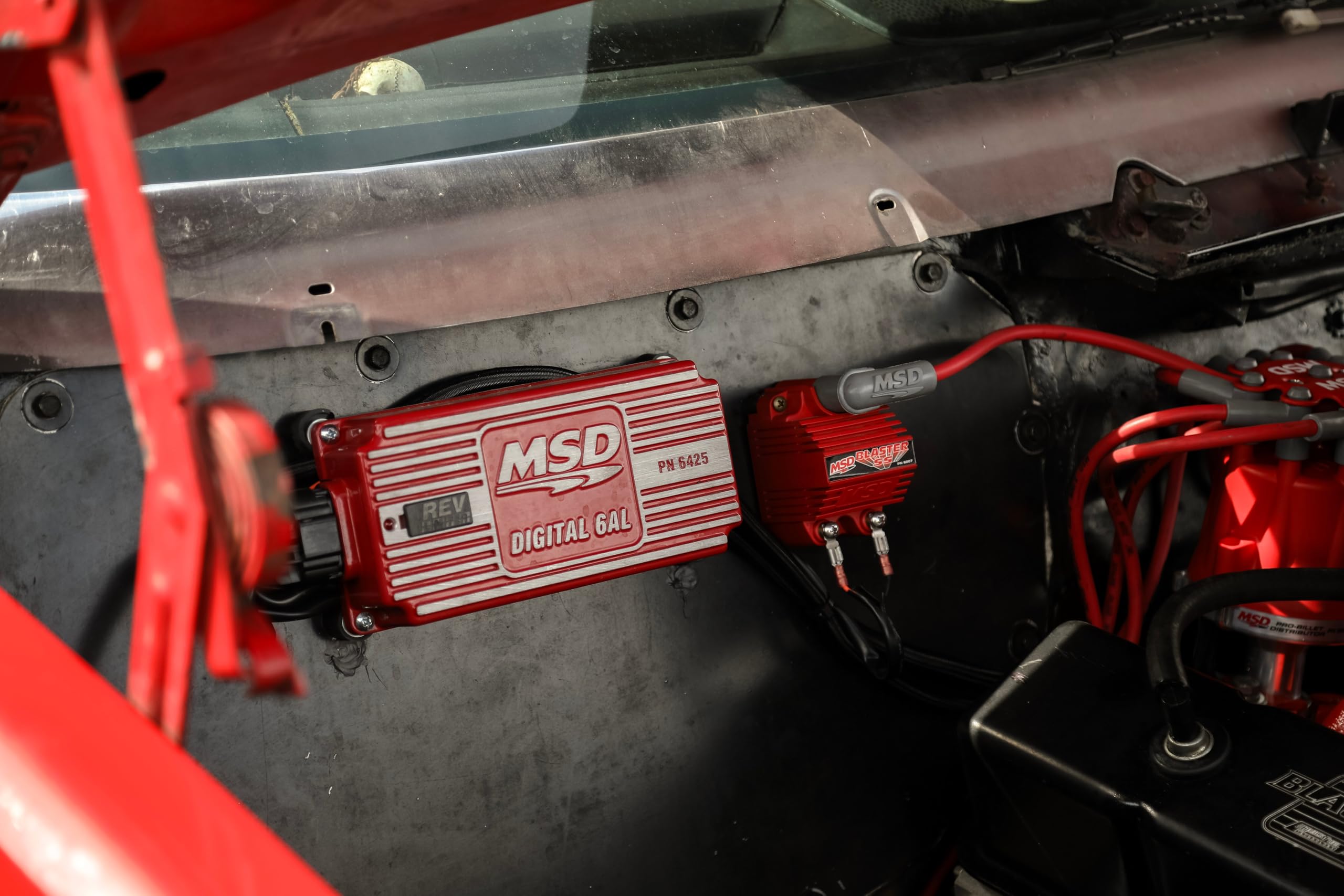

• Mount in a dry, protected location away from extreme heat sources
• Compatible with standard MSD ignition accessories and harnesses

What electrical and performance specs should I expect?

The unit operates across normal vehicle voltages and is engineered to deliver high output without excessive current draw. It scales its output to engine speed and is specified per 1,000 rpm for current consumption.

• Works with 12–15 V operational systems and supports 7 V starts
• Current draw approximately 0.7 amp per 1,000 rpm
• High output: 530 V and 135 mJ of spark energy
• Suitable for 4-, 6- and 8-cylinder ignition setups

Who is this for? The MSD 6425 Digital 6AL is aimed at car owners, hot-rodders and weekend racers who need a compact, high-energy ignition box with a built-in rpm limiter. It suits restorations where space is limited, performance installs that demand dependable spark under load, and anyone wanting a tidy harness with fast diagnostic feedback via a status LED. If you need a proven ignition controller that balances high-voltage performance with efficient current use and flexible rev control, this MSD unit is a strong candidate.
