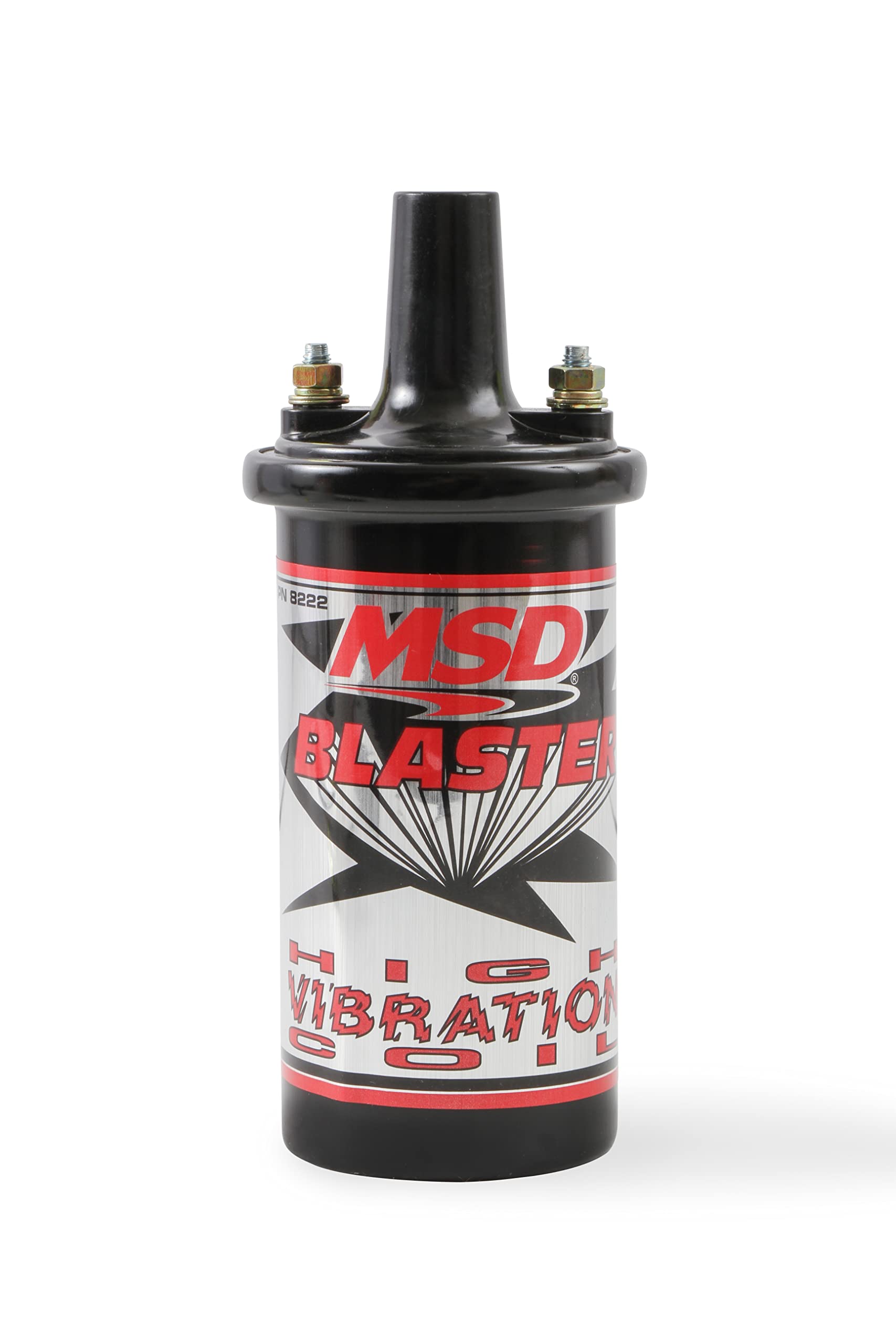

MSD Ignition Coil Blaster 8222 Canister Style — Black Individual, High‑Vibration High‑Voltage

MSD 8222 Blaster is a canister-style ignition coil engineered to deliver higher-voltage output and withstand severe vibration for electronic and MSD ignition systems.

This high-vibration coil suits engines that need a durable, high-output substitute for stock coils. Housed in a metal canister and fully encased in epoxy, the unit protects the windings against mechanical shock and road or race vibration while delivering a high-voltage spark thanks to a 100:1 turns ratio and reduced primary resistance. It’s CARB E.O. approved and sold individually in a black finish.

How does this coil improve ignition performance?

The MSD 8222 provides stronger secondary voltage compared with many OE coils, improving the energy available to the spark plugs. The 100:1 turns ratio and lower primary resistance increase the voltage the coil produces without changing ignition timing or modules.

• 100:1 turns ratio for elevated secondary voltage
• Lower primary resistance to boost current flow
• Designed for electronic ignitions and MSD systems

What makes this coil reliable in high-vibration environments?

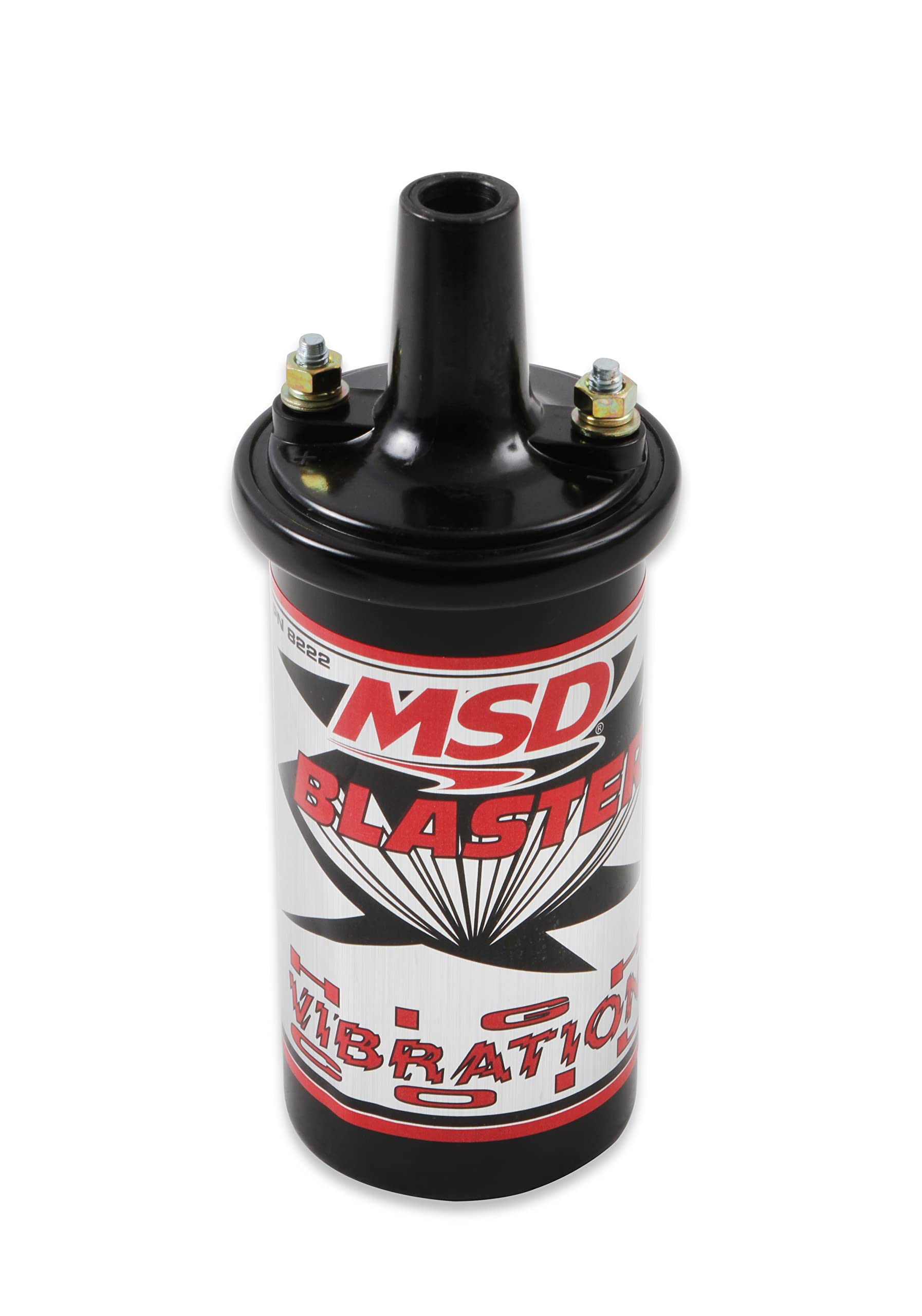

Reliability comes from the coil’s metal canister that’s fully encapsulated in epoxy to secure the windings and electrical connections. This construction reduces the chance of internal damage from constant vibration, making it suitable for off-road, racing, or heavy-duty applications.

• Metal canister shell for structural strength
• Epoxy-encapsulated windings to prevent movement and shorting
• Black finish resists corrosion and wear

Is this compatible with my ignition system?

The MSD 8222 is intended for electronic ignitions and MSD ignition systems. If you use points-type distributors, a ballast resistor is required to protect the coil and control current. Always compare physical dimensions and terminal type with your vehicle before installation.

• Works with electronic ignitions and MSD boxes
• Requires ballast resistor for points-style ignitions
• Sold individually; verify fit and terminals for your vehicle

Are there regulatory or packaging details I should know?

The coil carries CARB E.O. approval for certain emissions-controlled applications, indicating compliance with relevant California emissions standards where applicable. It ships as a single black canister-style coil and is intended as a direct-replacement or upgrade in compatible systems.

• CARB E.O. approved for applicable models
• Single-unit retail packaging in black finish
• Ideal as a replacement or performance upgrade

Who is this for: The MSD 8222 Blaster coil is aimed at enthusiasts, mechanics, and fleet operators who need a rugged, high-output ignition coil for high-vibration or demanding conditions. It’s useful for performance street cars, off-road rigs, classic vehicles upgraded with electronic ignitions, and any application where enhanced voltage output and vibration resistance are priorities. Confirm electrical compatibility and installation requirements—such as a ballast resistor for points—before purchase.
